1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

제어 방식:수동

스풀:1 스풀

정격 유량:120 L/분 (31.7 US gpm)

최대 압력:305바 (4400 psi)

입구 포트:G3/4

출구 포트:G3/4

포트 크기:G3/4

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:SD14 시리즈 모노블럭 방향 제어 밸브

포장 크기:15*26*15

총중량:6.80 kg

재고 상태: 재고 있음

1079 이 제품을 찾아보시지 않겠습니까?

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable

1-Spool Hydraulic Valve | SD14 Model | Factory Direct & Customizable drawing image

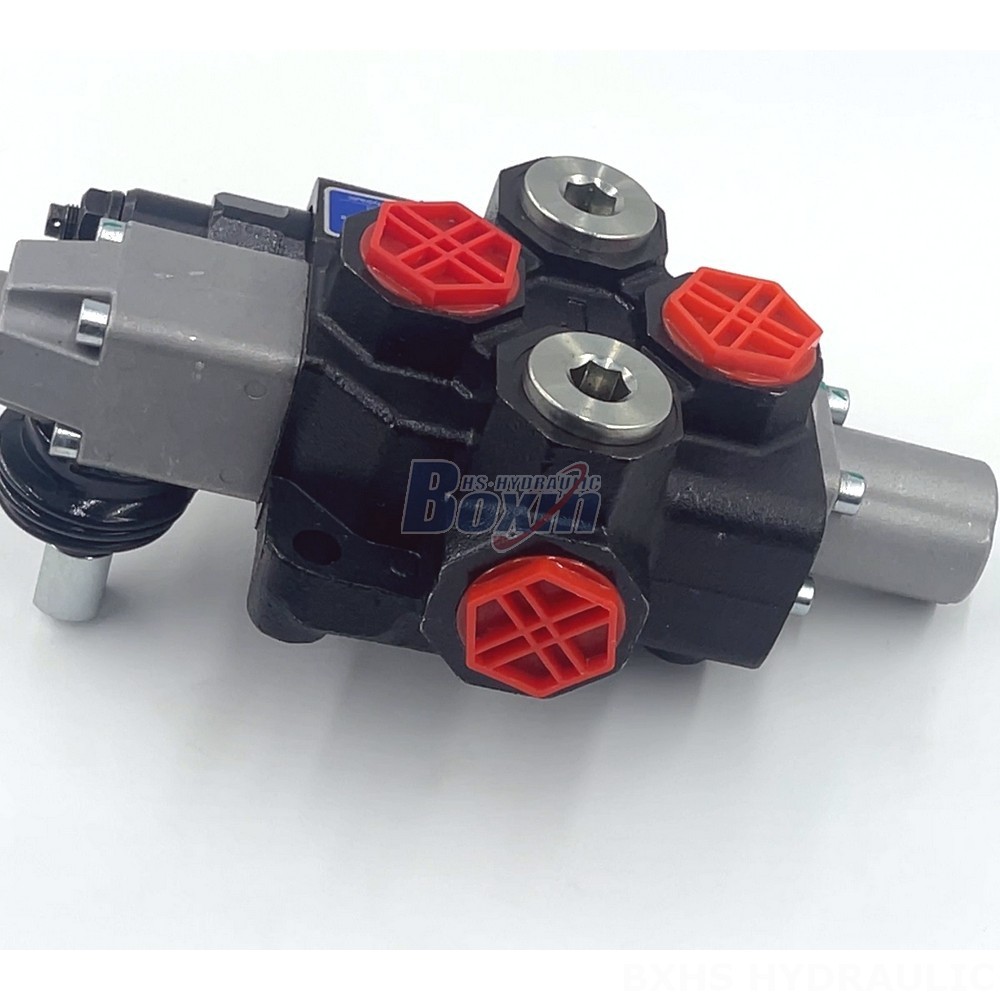

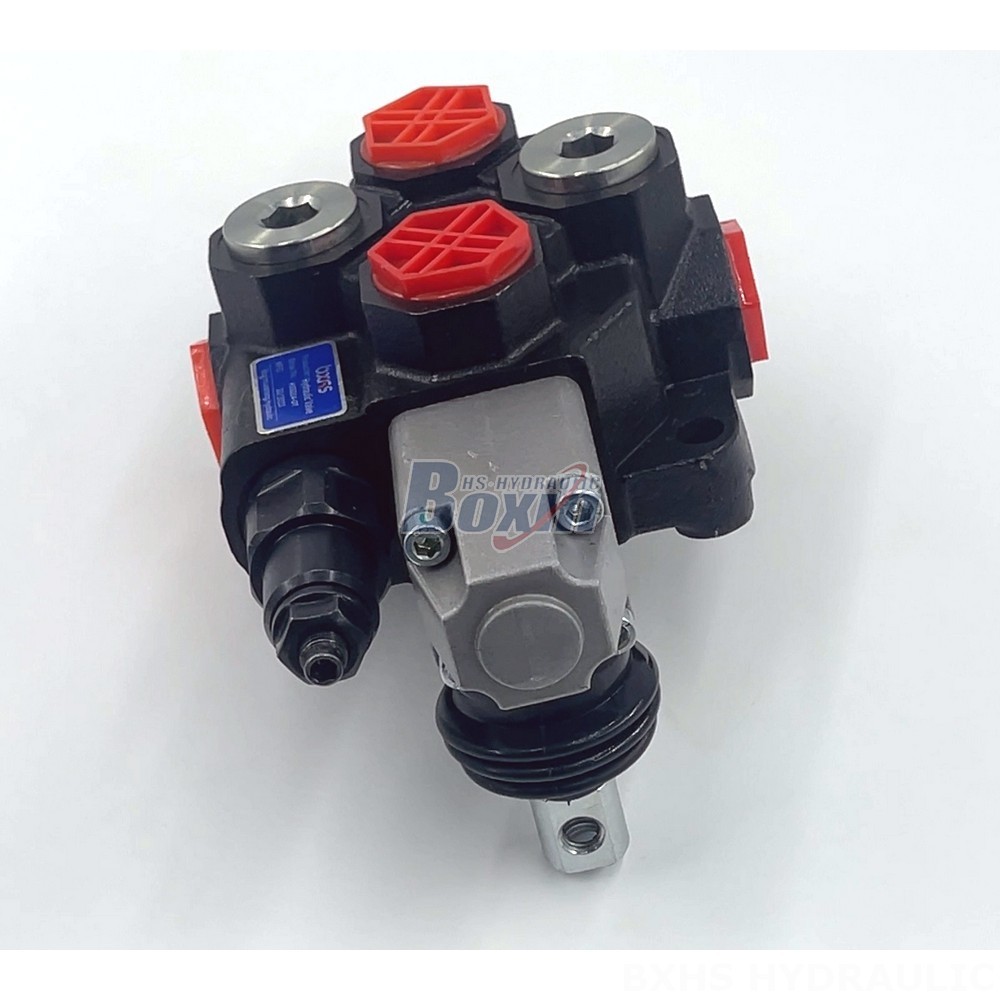

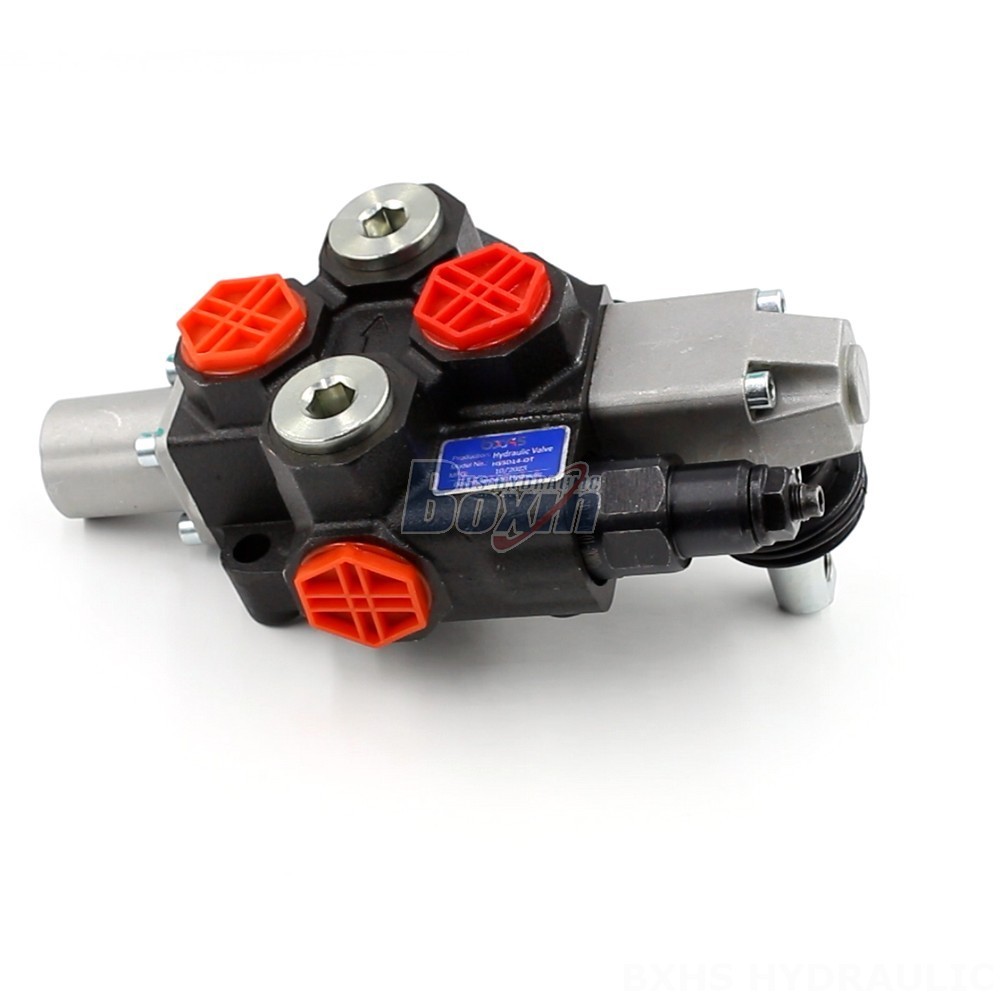

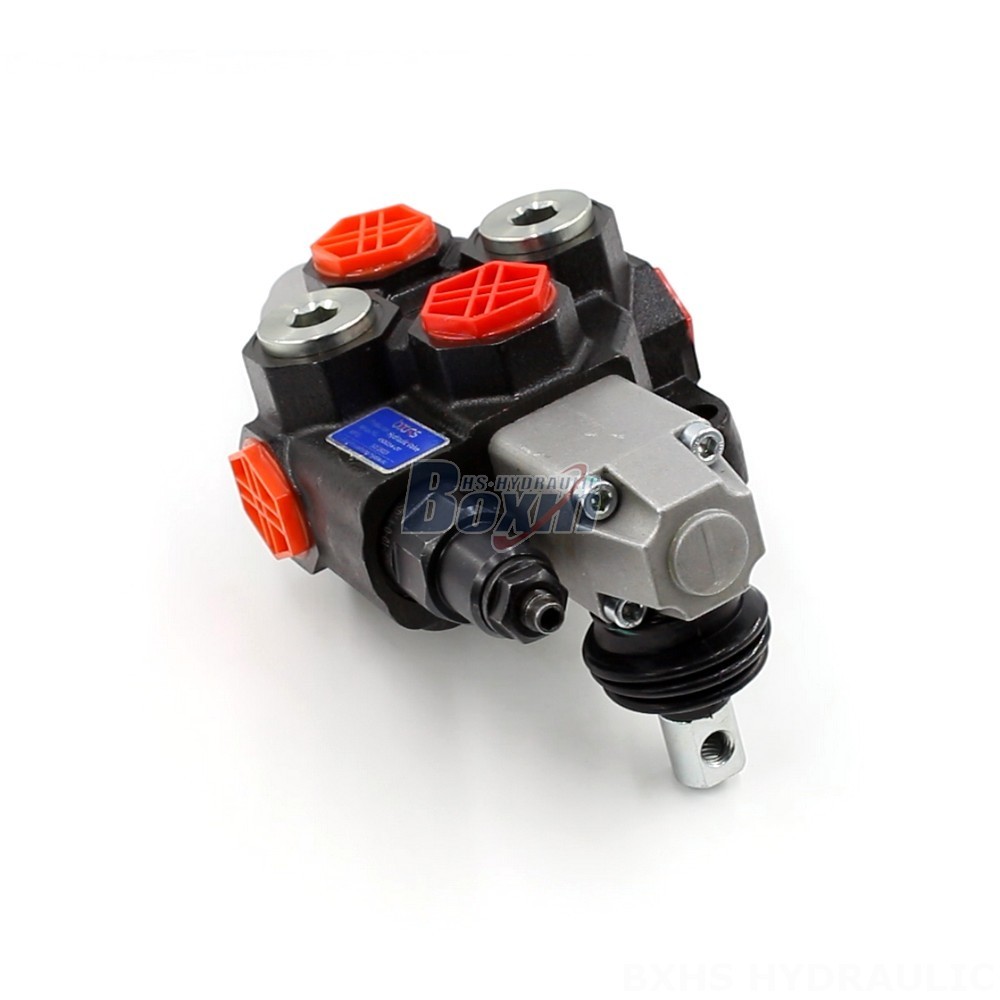

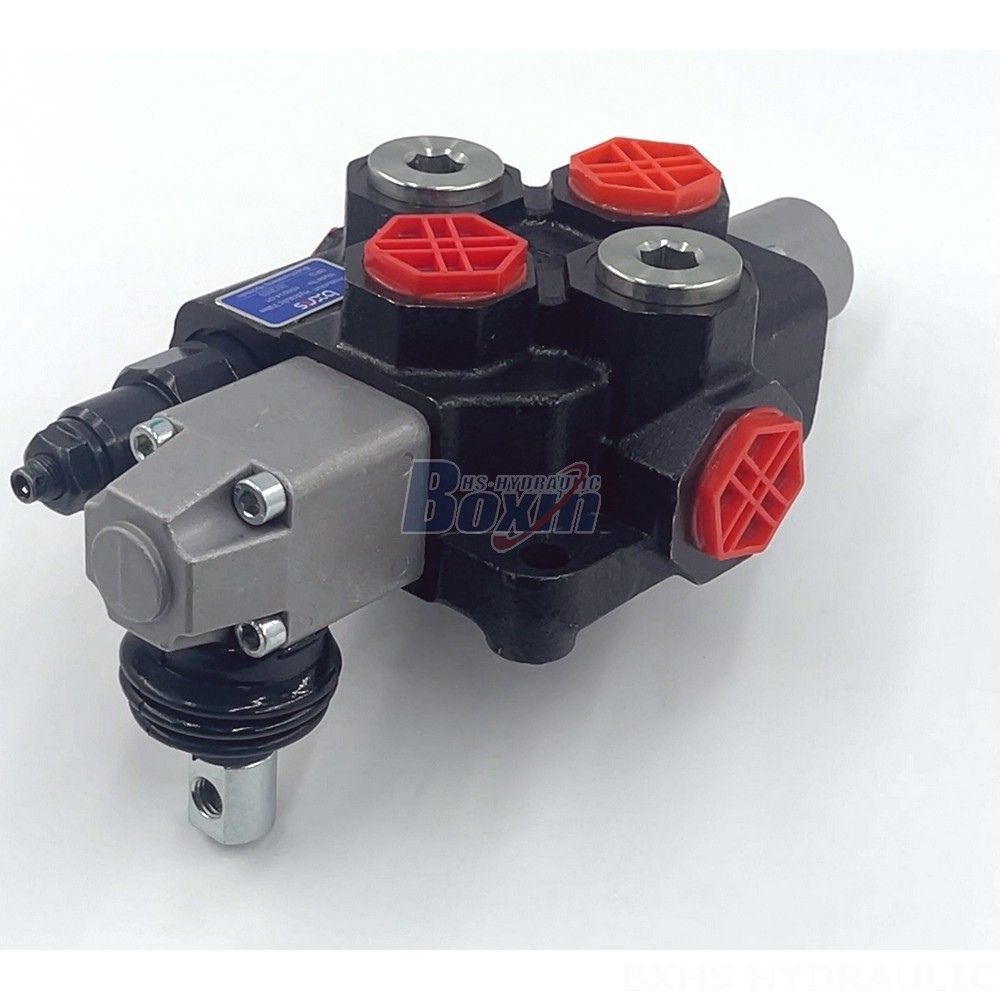

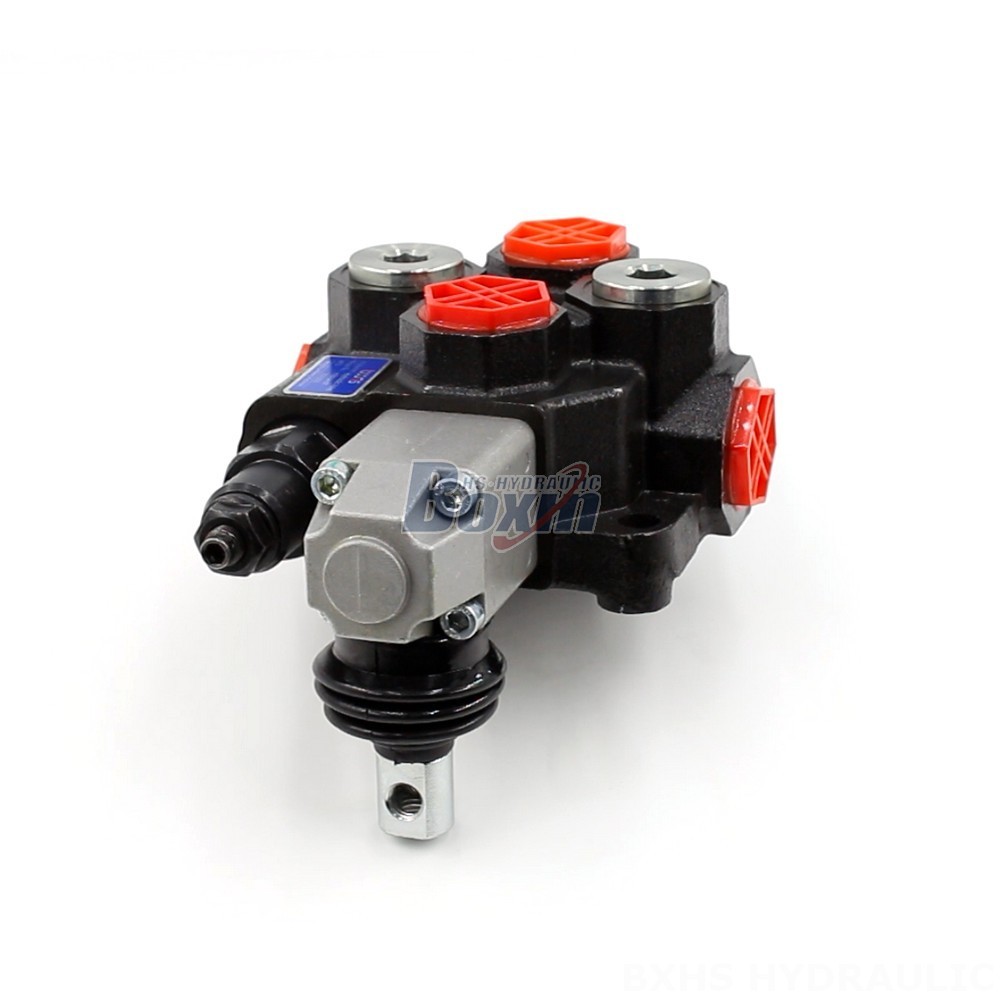

The SD14 Series Hydraulic Sectional Valve is a high-performance, 1-spool monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. Featuring manual control and a rated flow of 120 L/min (31.7 US gpm), this valve is ideal for telehandlers, forklifts, excavators, loaders, and other mobile equipment.

SD14 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 유압
스풀 1 스풀
주변 온도 범위 -40°C to +60°C (-40°F to +140°F)
구조 유형 모노블록 밸브
섹션 1 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 120 L/분 (31.7 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G3/4
출구 포트 G3/4
포트 크기 G3/4

This SD14 Series Hydraulic Sectional Valve is a robust, reliable, and customizable solution for your hydraulic system needs. It features a monoblock construction for increased strength and durability. With a rated flow of 120 L/min (31.7 US gpm) and a maximum pressure of 315 bar (4600 psi), this valve delivers the power and performance you need for demanding applications. This valve is designed for a wide range of operating temperatures (-40°C to +60°C) and viscosities (15 - 75 mm²/s), ensuring reliable operation in various environments. Available directly from our factory, you can customize this valve to meet your specific requirements. Our SD14 Series Hydraulic Sectional Valve is suitable for a wide range of applications, including: Telehandlers, Forklifts, All Terrain Cranes, Stackers, Aerial Platforms, Motor Graders, Midi-Excavators, Mini-Excavators, Skid Steer Loaders, and Compact Wheel Loaders. Contact us today to discuss your specific needs and get a customized solution.
