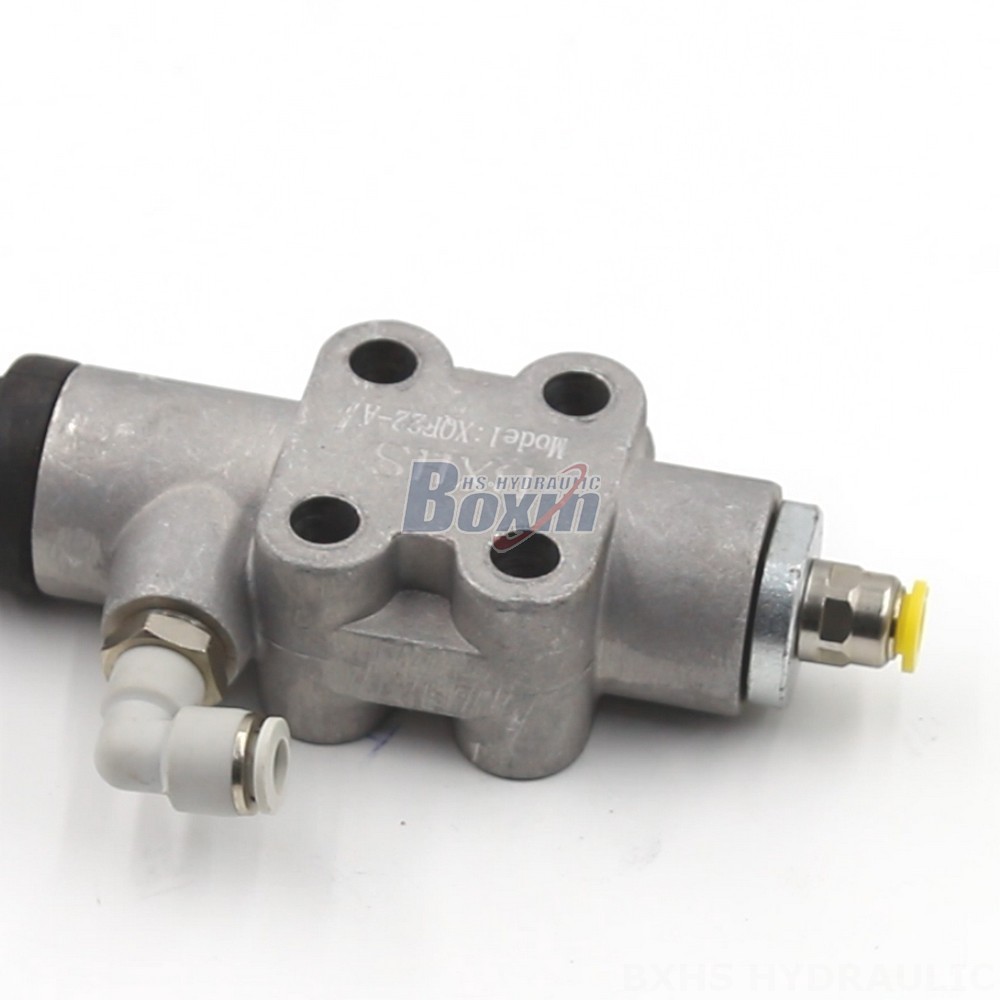

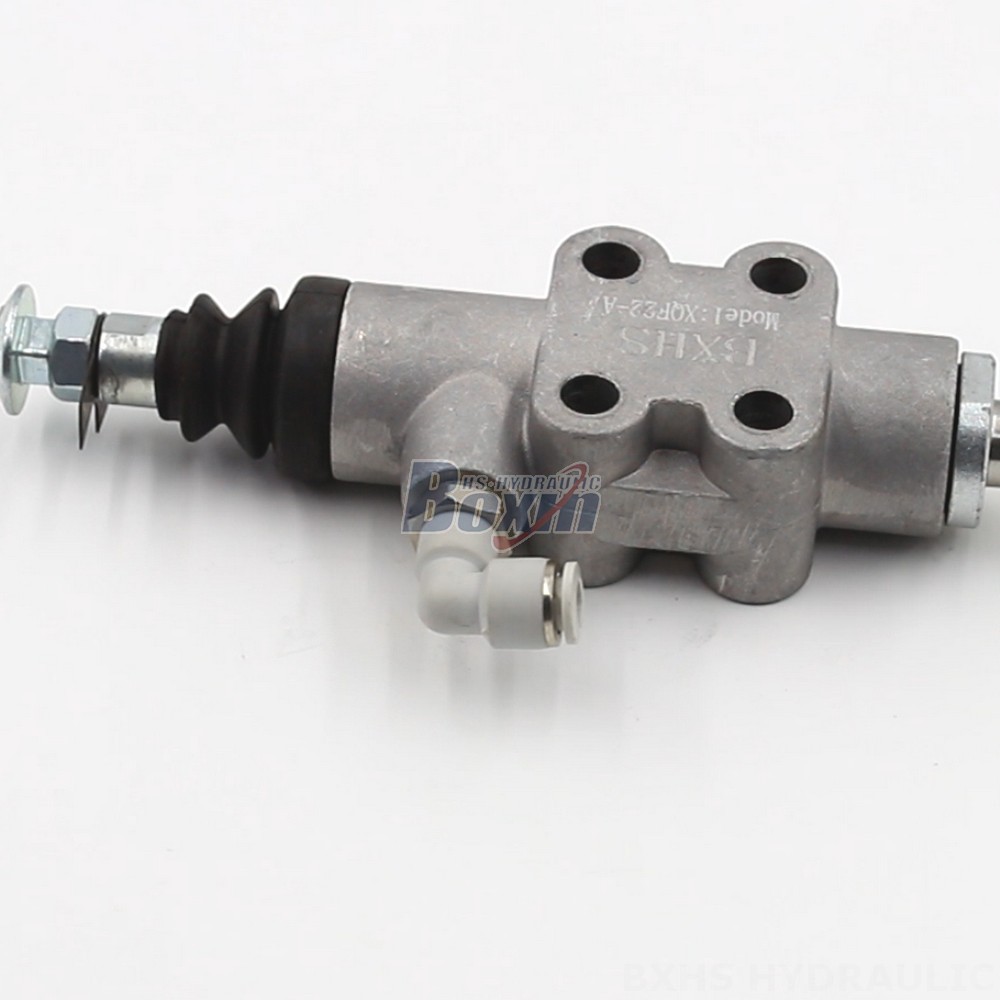

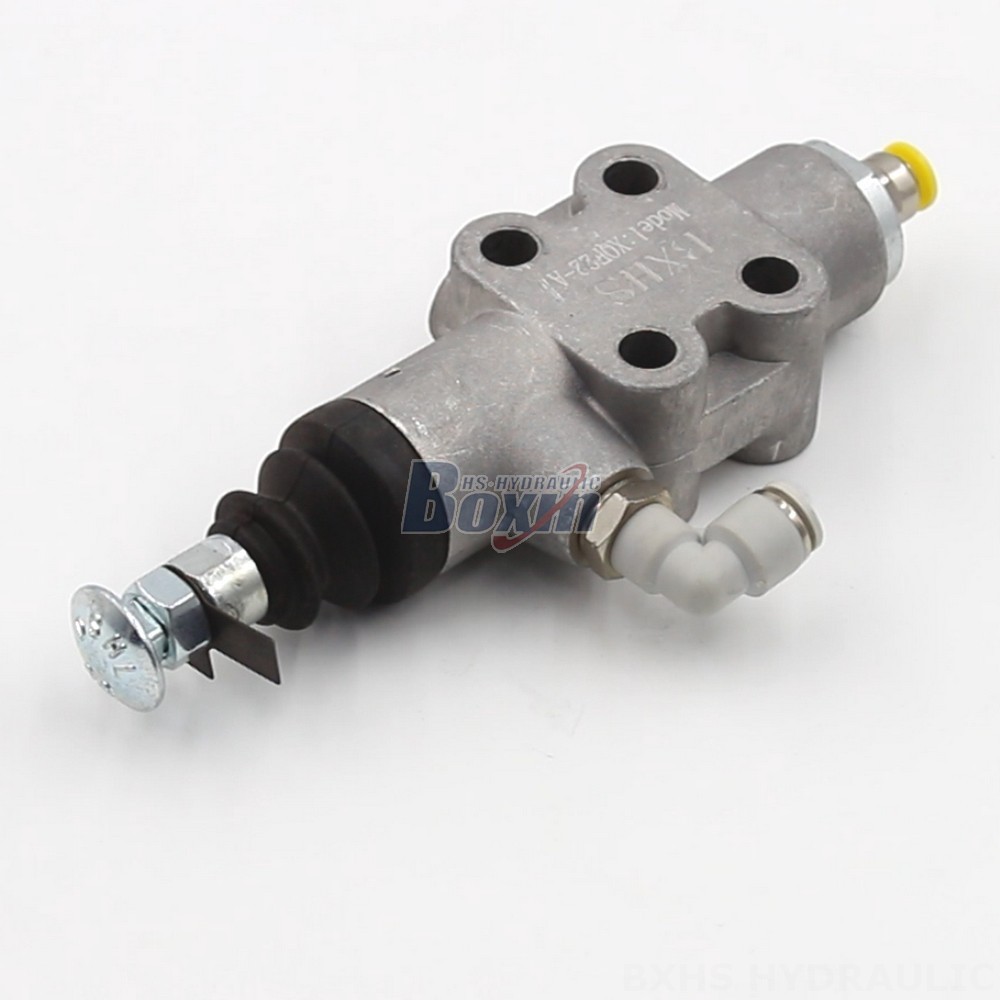

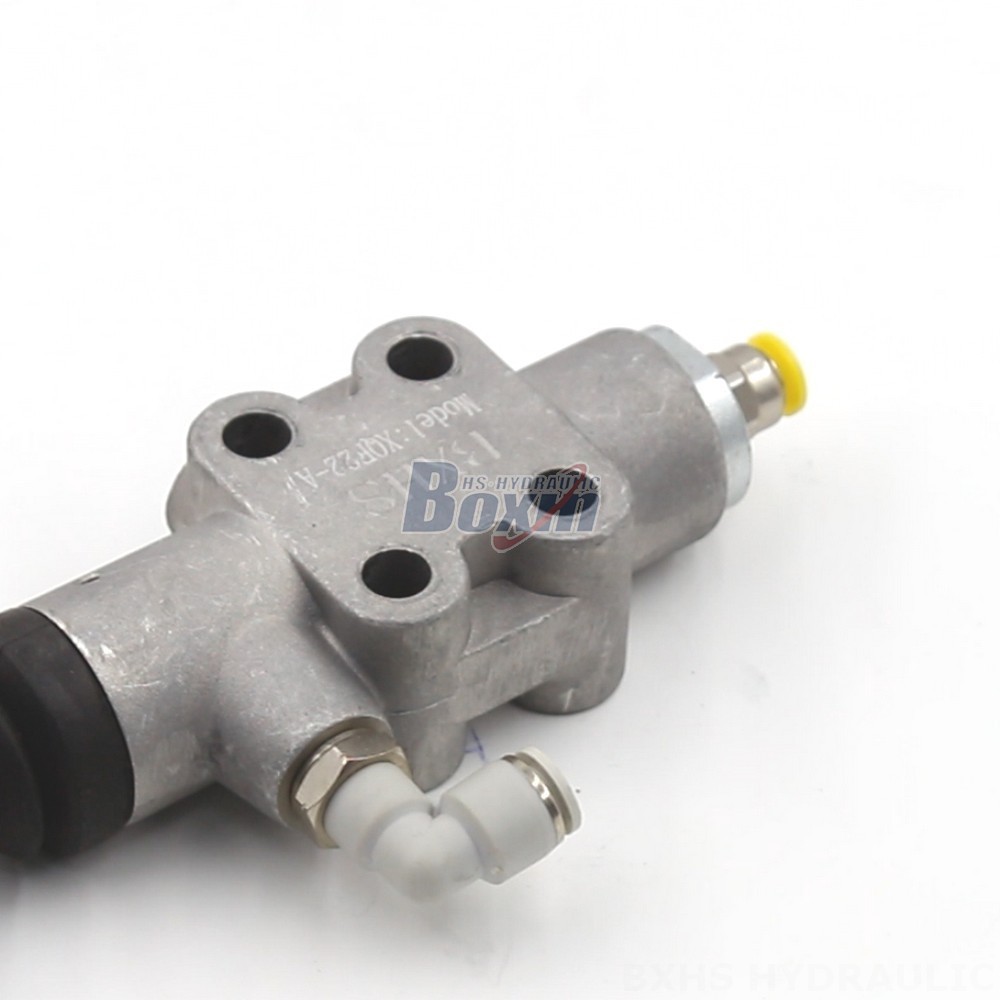

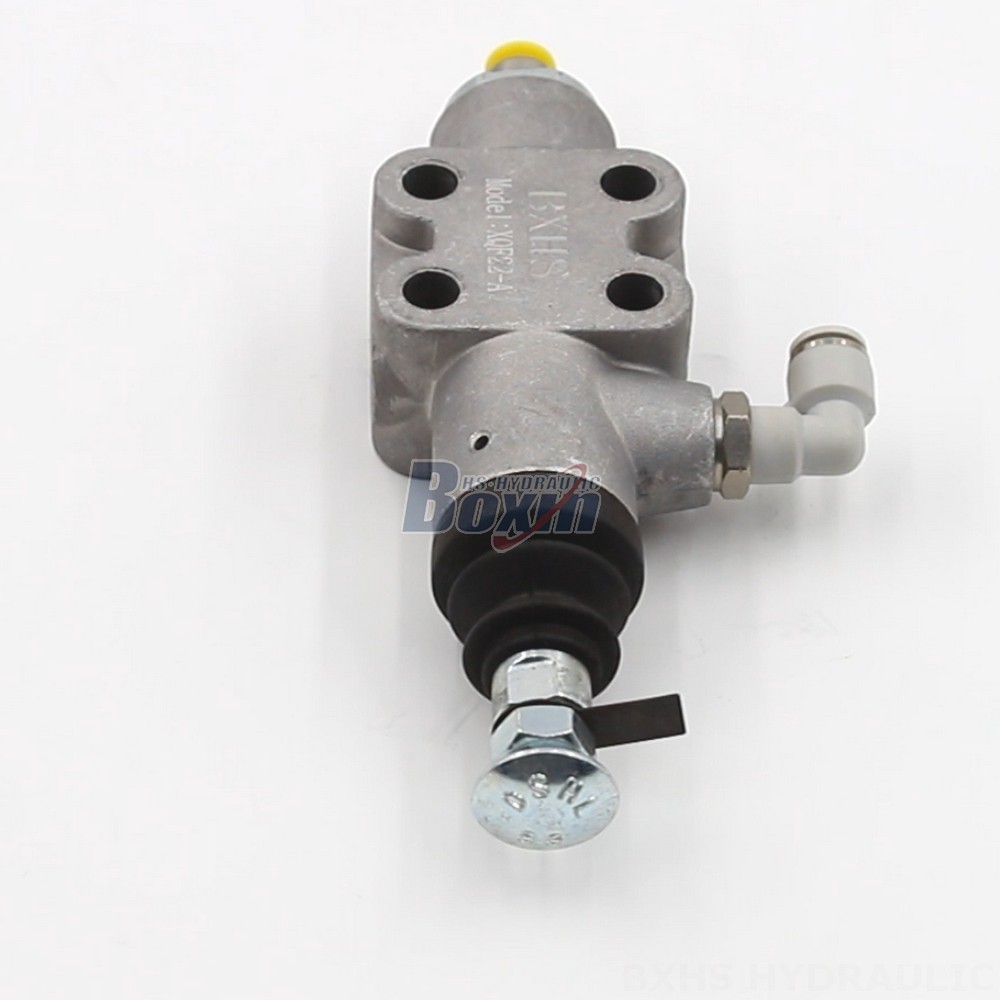

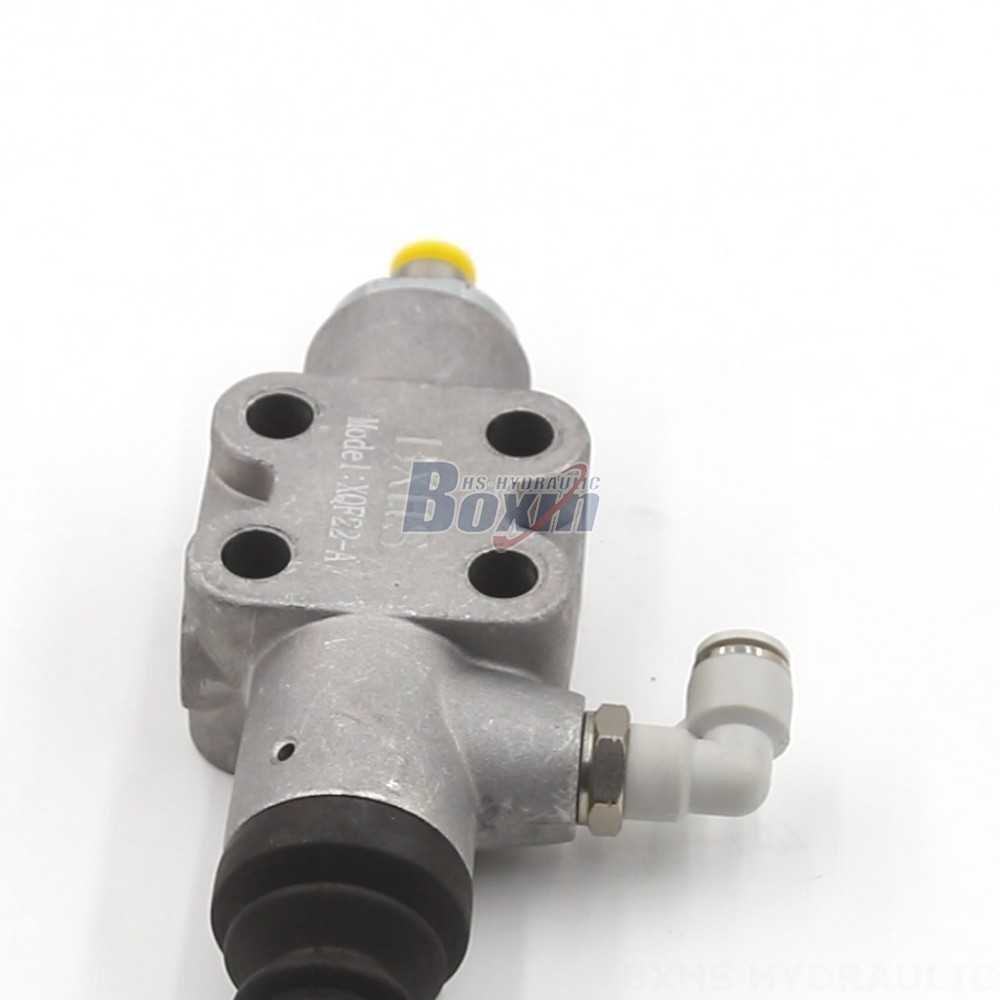

The 1 Spool Pneumatic Directional Valve, XQF22-A Series, is designed for controlling the direction of pneumatic fluid flow. It features a rated flow of 60 L/min, a maximum pressure of 200 bar, and an operating viscosity range of 12-400 mm²/s. The valve is suitable for use in various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles. It is compatible with equipment such as telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, tractors, and front-end loaders.
| XQF 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 공압 |
| 스풀 | 1 스풀 |
| 주변 온도 범위 | -40°C to +60°C (-40°F to +140°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 50리터 (13.2 US gpm) |
| 최대 압력 | 200바 (2900 psi) |
| 입구 포트 | G1/4 |
| 출구 포트 | G1/4 |
| 포트 크기 | G1/4 |
**1 Spool Pneumatic Directional Valve | XQF22-A Series**
**Product Specifications:**
* Control Method: Pneumatic
* Section: 1 Section
* Rated Flow: 60 L/min (15.8 US gpm)
* Max Pressure: 200 bar (2900 psi)
* Operating Viscosity Range: 12 - 400 mm²/s (12 cSt to 400 cSt)
* Ambient Temperature Range: -40°C to +60°C (-40°F to +140°F)
* Spool: 1 Spool
* Series: XQF22-A Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER
