What is the primary application of the 1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable?

The 1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable

Name: 1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-51551
Availability: InStock

홈구역 방향 밸브SD25 시리즈제품 상세

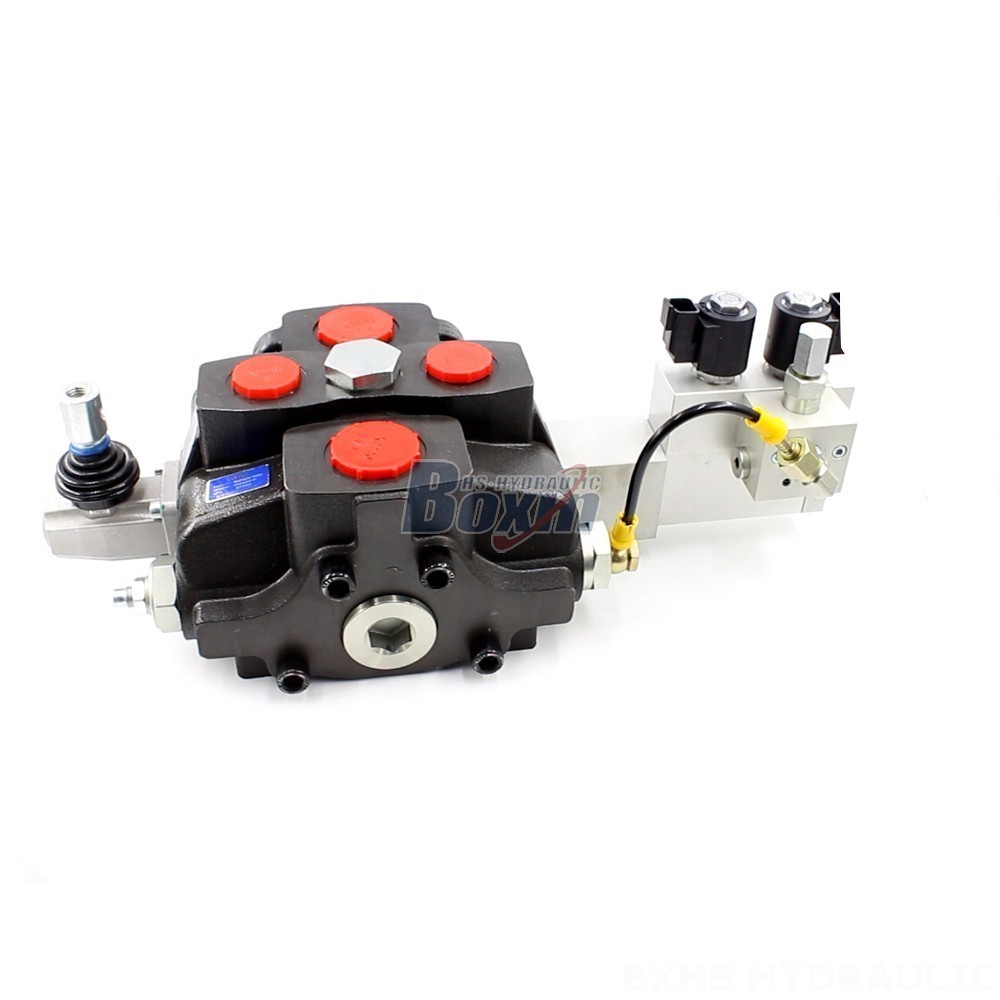

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable cover photo

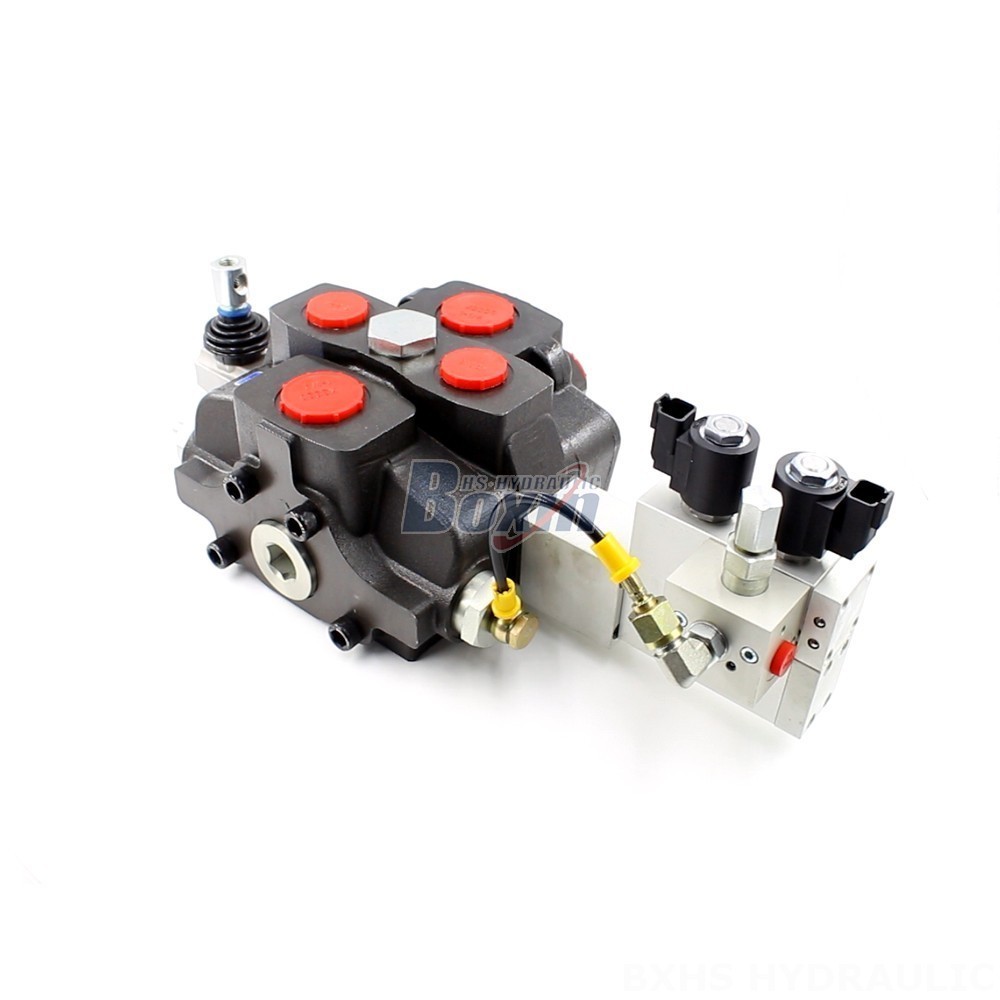

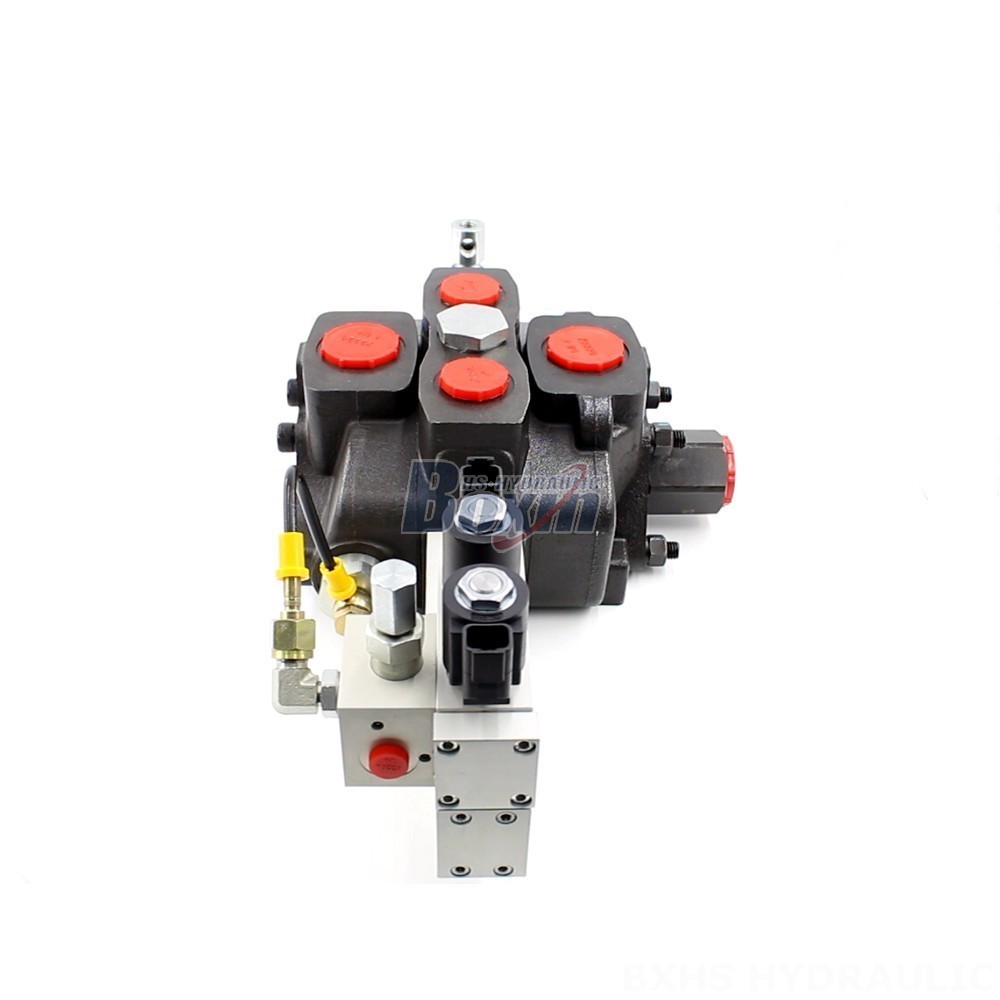

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable main image

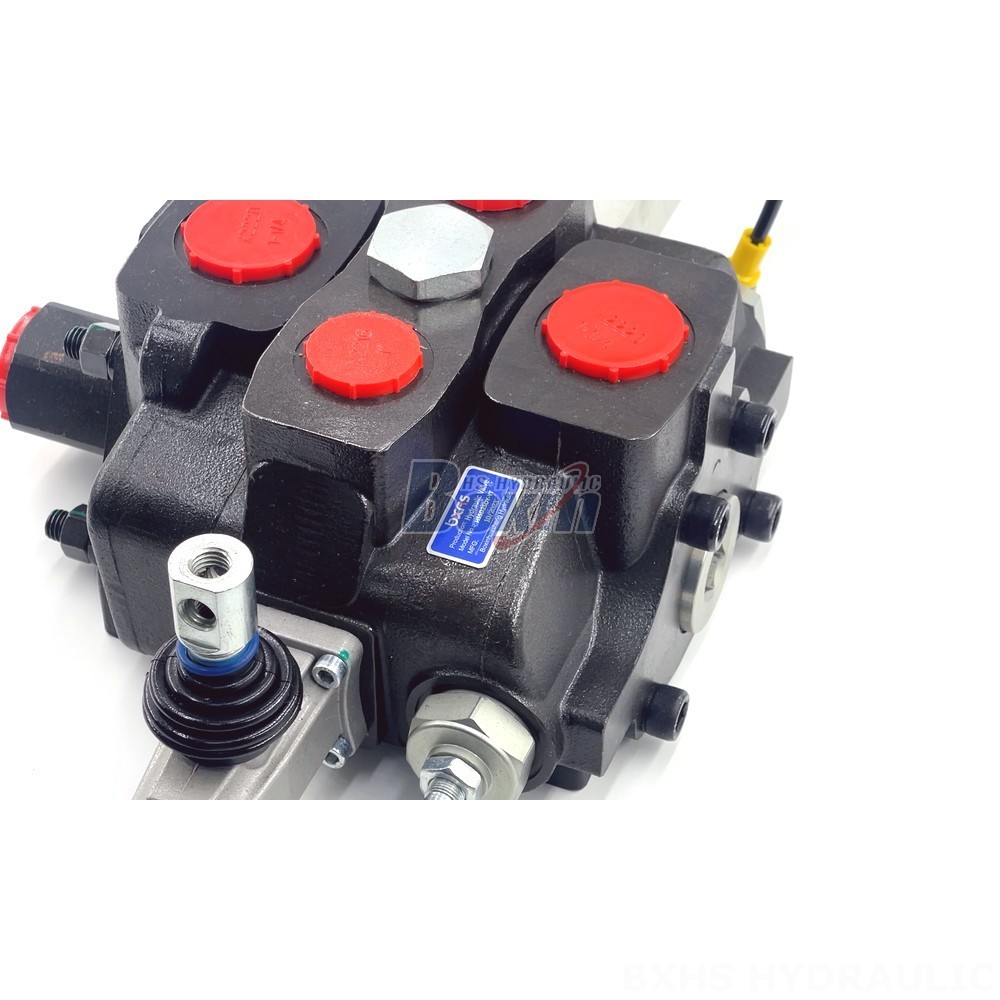

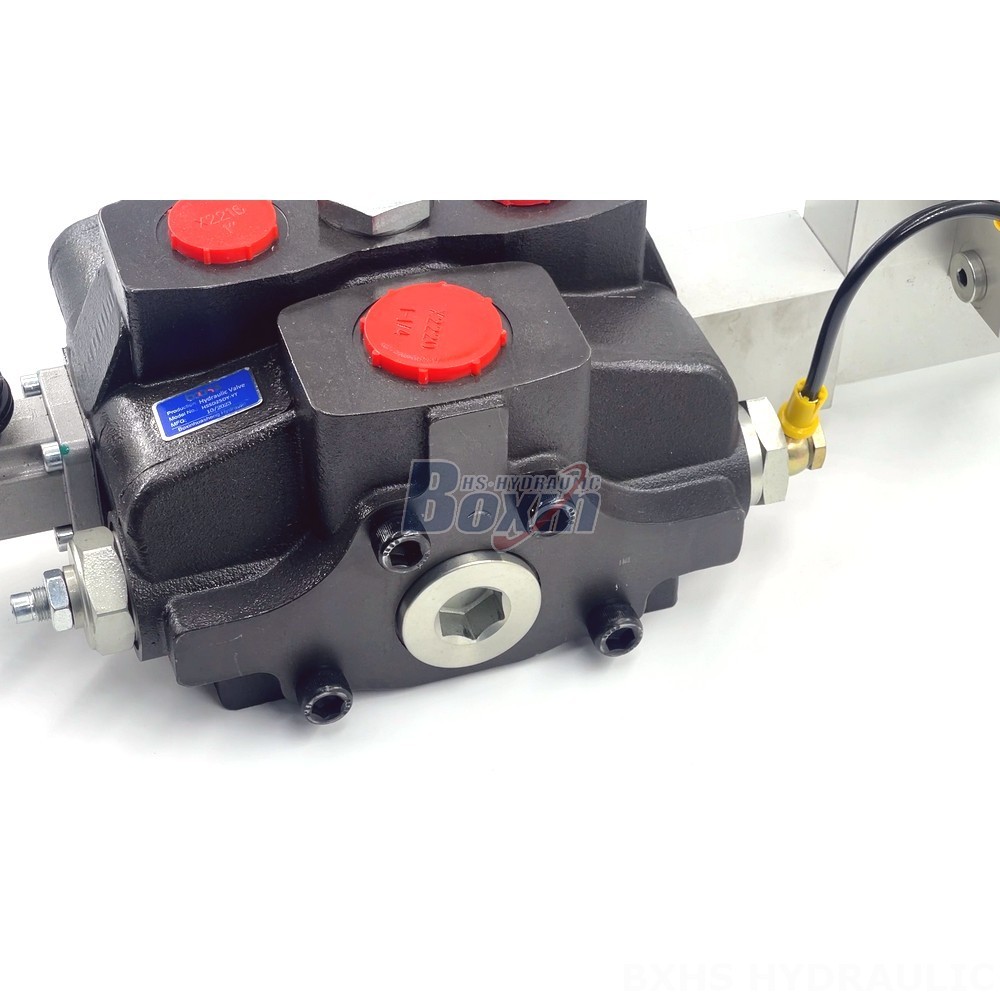

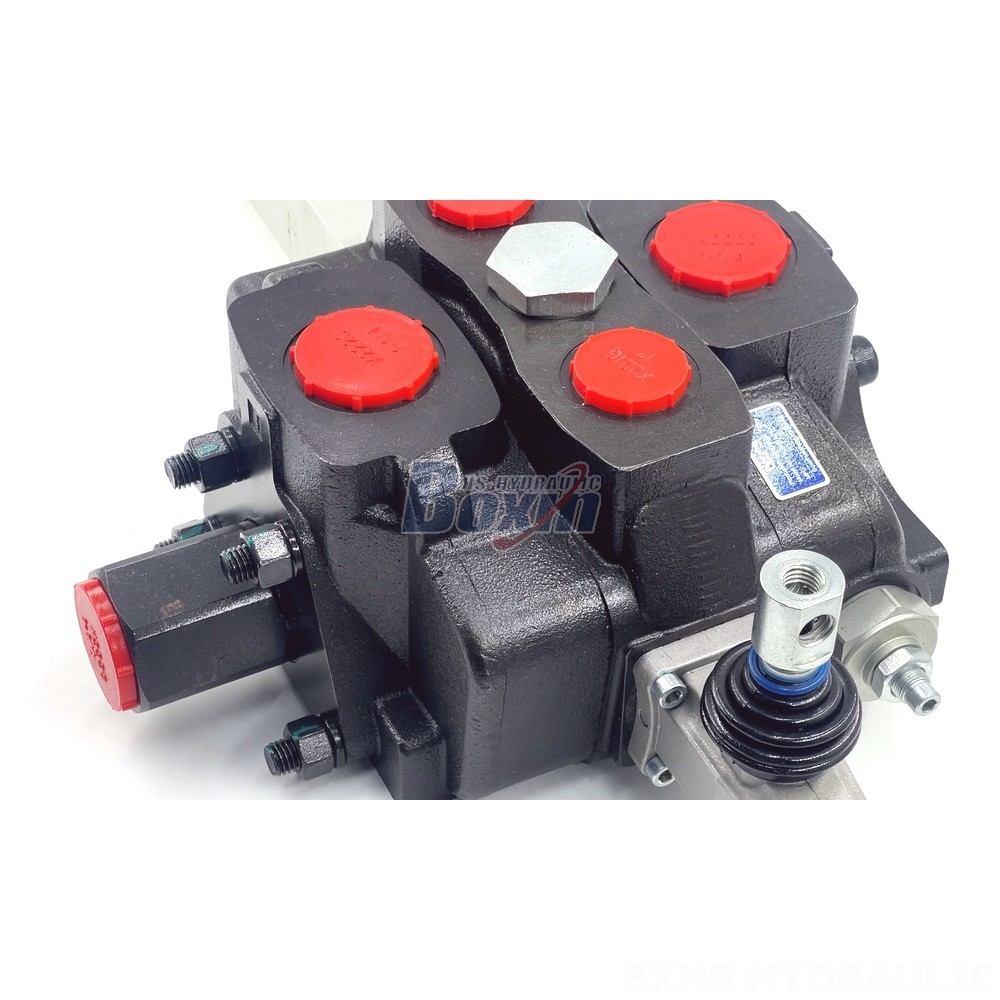

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable detail image

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable

제어 방식:전기 유압

스풀:1 스풀

정격 유량:분당 240리터 (63.4 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:SAE 16

출구 포트:SAE 16

포트 크기:SAE 16

브랜드:BXHS

제품 유형:구역 방향 밸브

제품 시리즈:SD25 시리즈 구역 방향 밸브

포장 크기:55*35*20

총중량:33.00 kg

재고 상태: 재고 있음

문의하기

1000 이 제품을 찾아보시지 않겠습니까?

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable

1 Spool Sectional Directional Valve | SD25 Series | Factory Direct & Customizable drawing image

The SD25 Series 1 Spool Sectional Directional Valve is an electro-hydraulically controlled valve designed for use in a wide range of industrial applications. It features a compact monoblock design with a rated flow of 240 L/min (63.4 US gpm) and a maximum pressure of 315 bar (4600 psi).

SD25 시리즈 구역 방향 밸브 매개변수
제어 방식	수동, 전기 유압, 유압
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	섹션 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션
작동 점도 범위	12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량	분당 240리터 (63.4 US gpm)
최대 압력	315바 (4600 psi)
입구 포트	G1, SAE 16
출구 포트	G1-1/4, SAE 16
포트 크기	G1, G1-1/4, SAE 12

The SD25 Series 1 Spool Sectional Directional Valve is available in a variety of configurations to meet the specific requirements of any application. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicle applications. Some typical applications include telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
