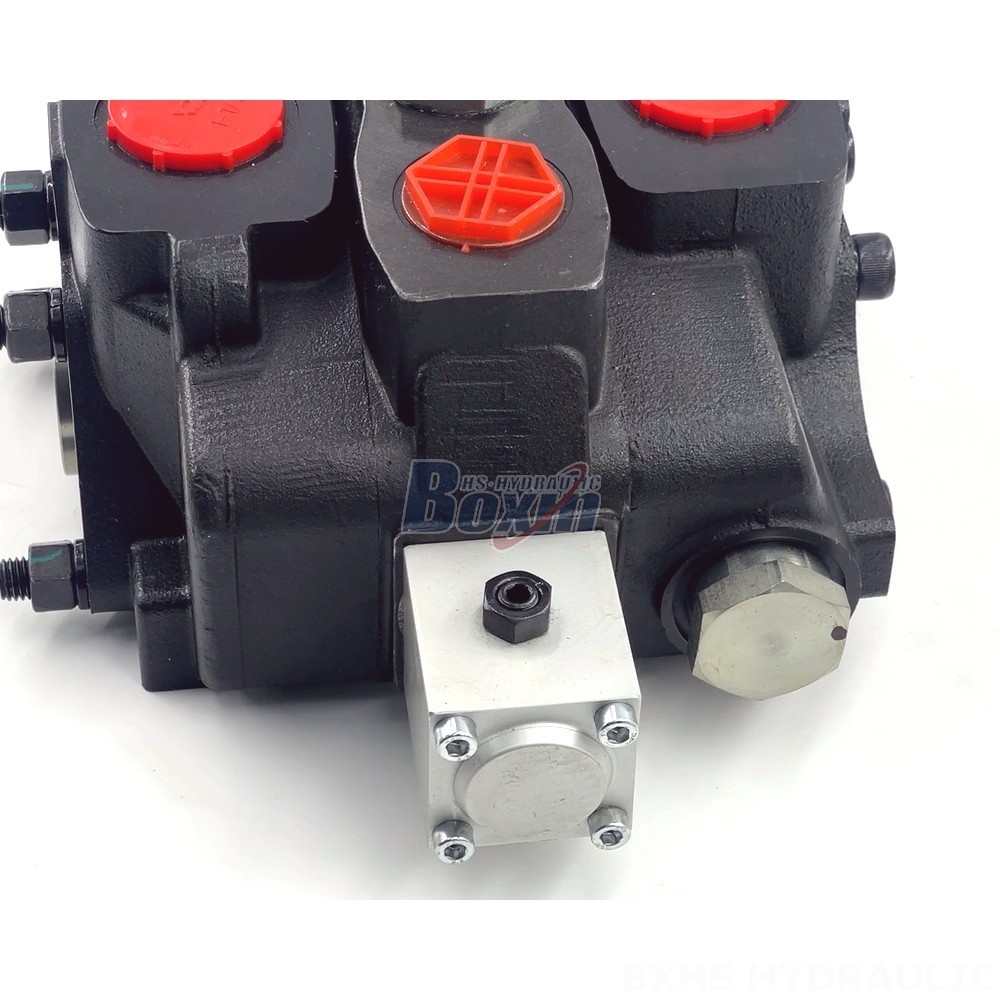

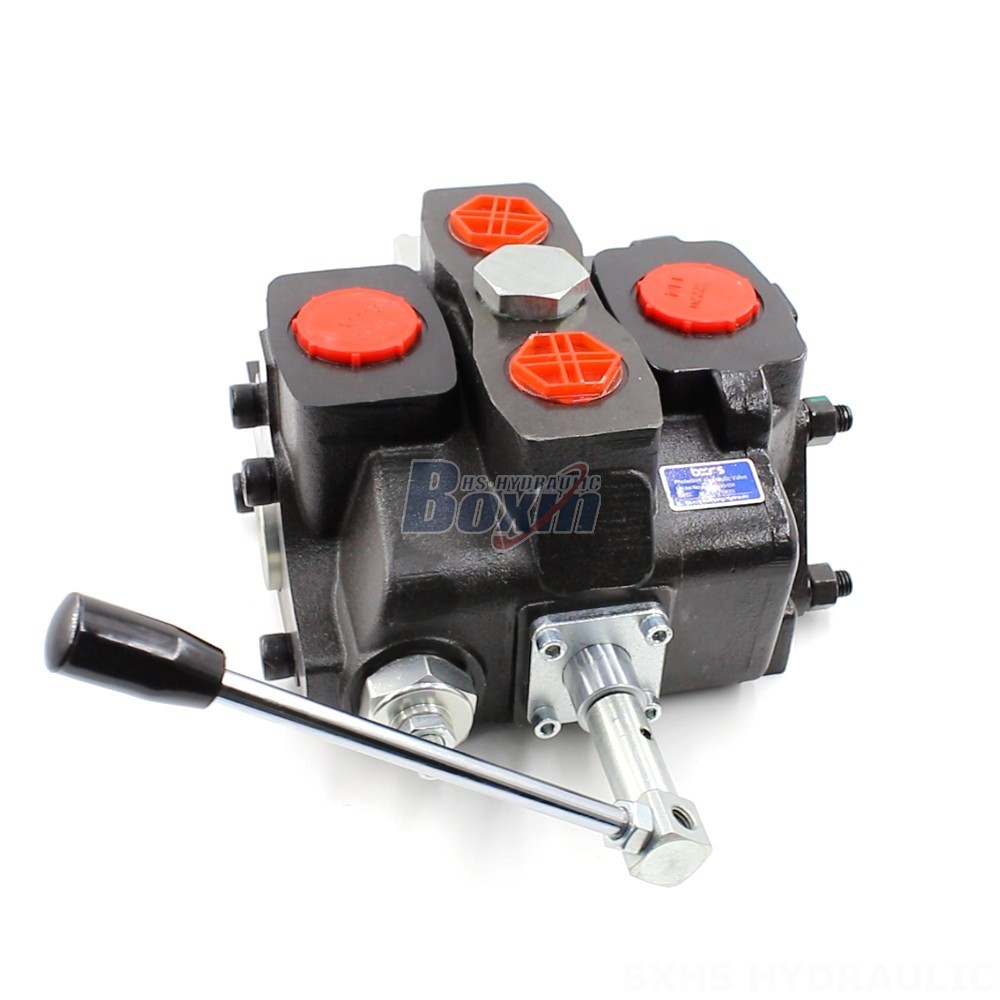

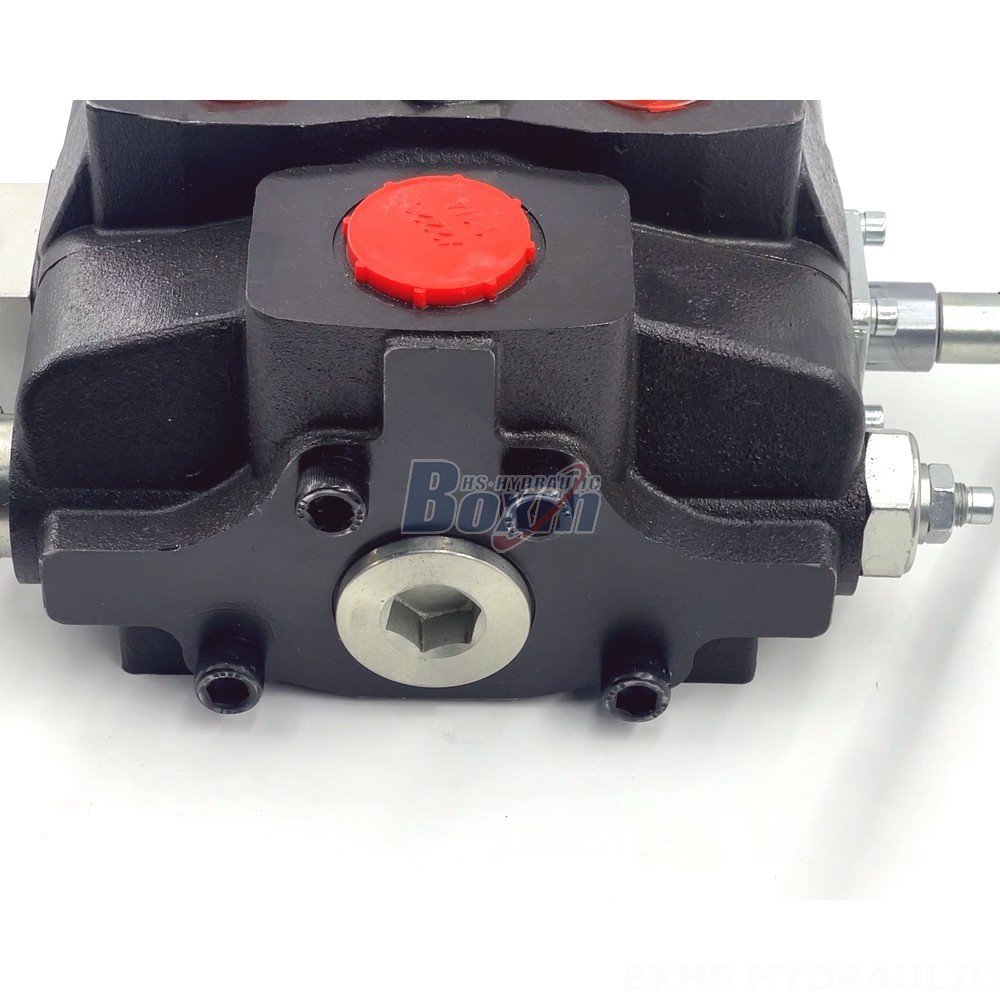

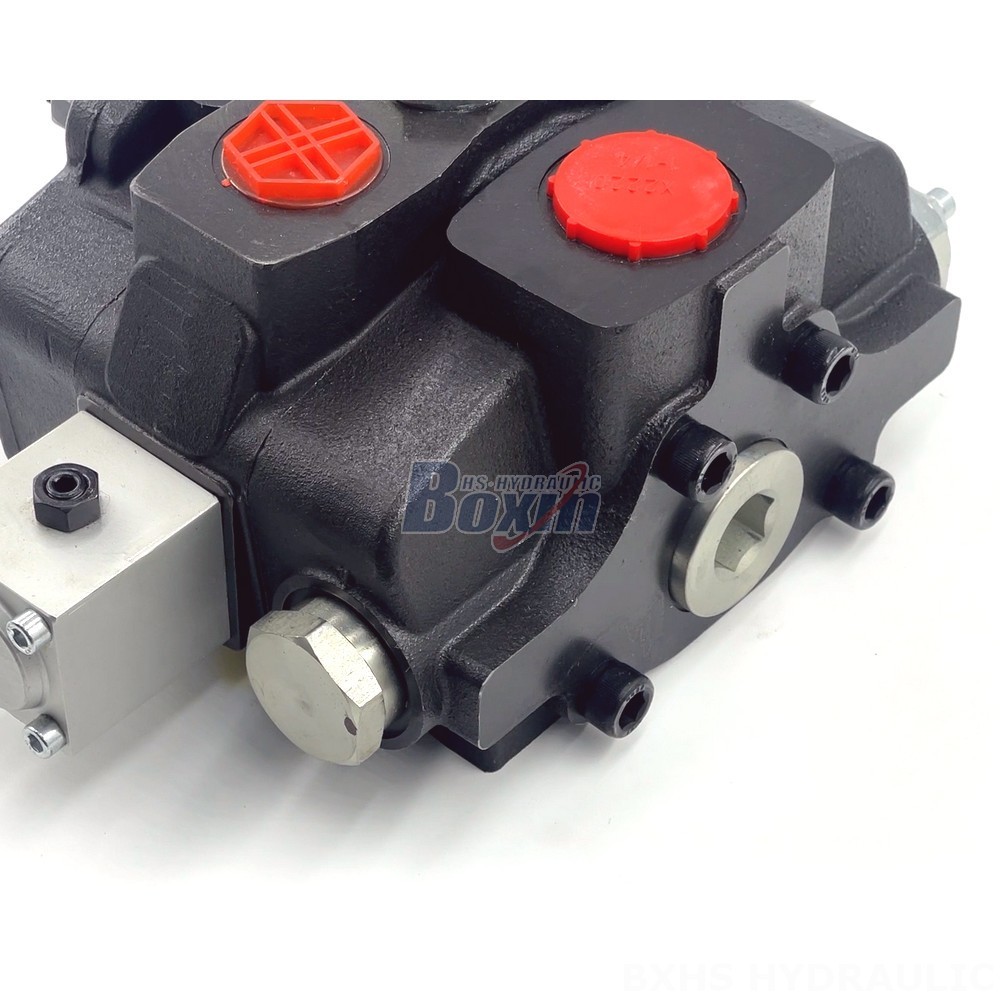

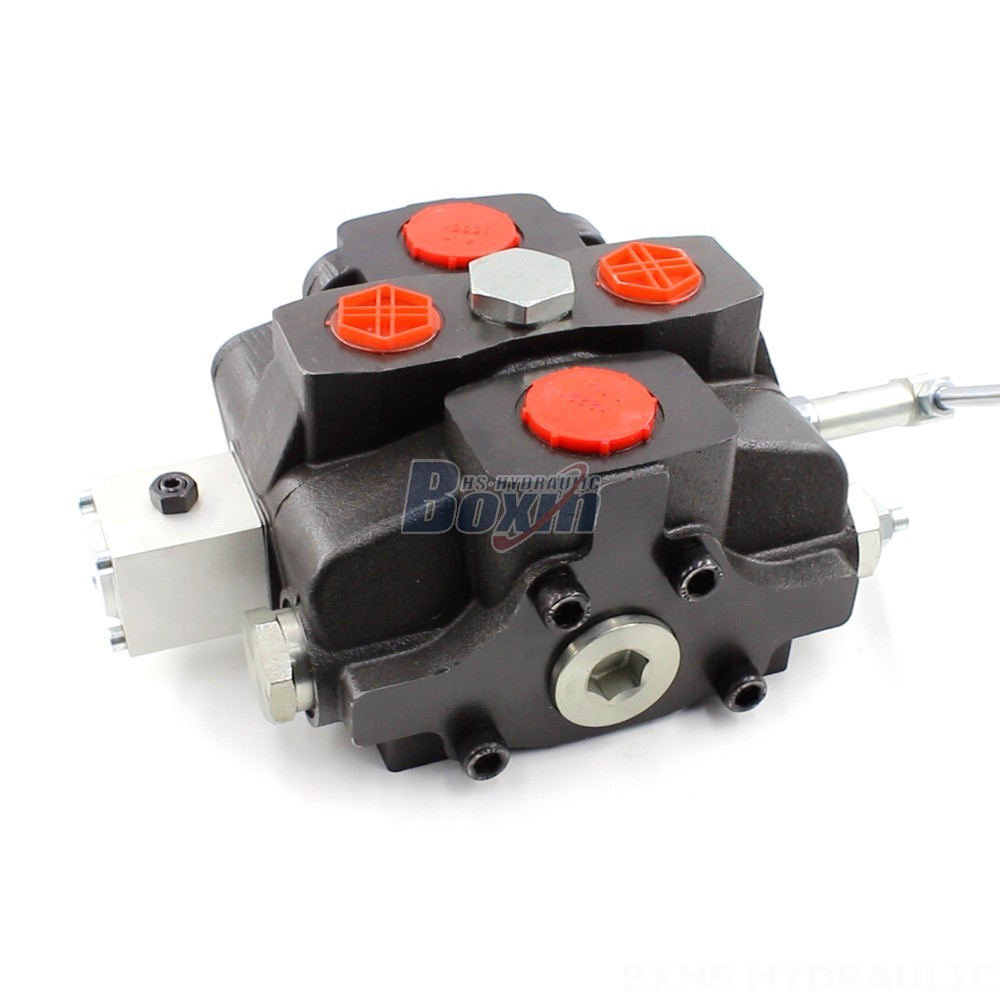

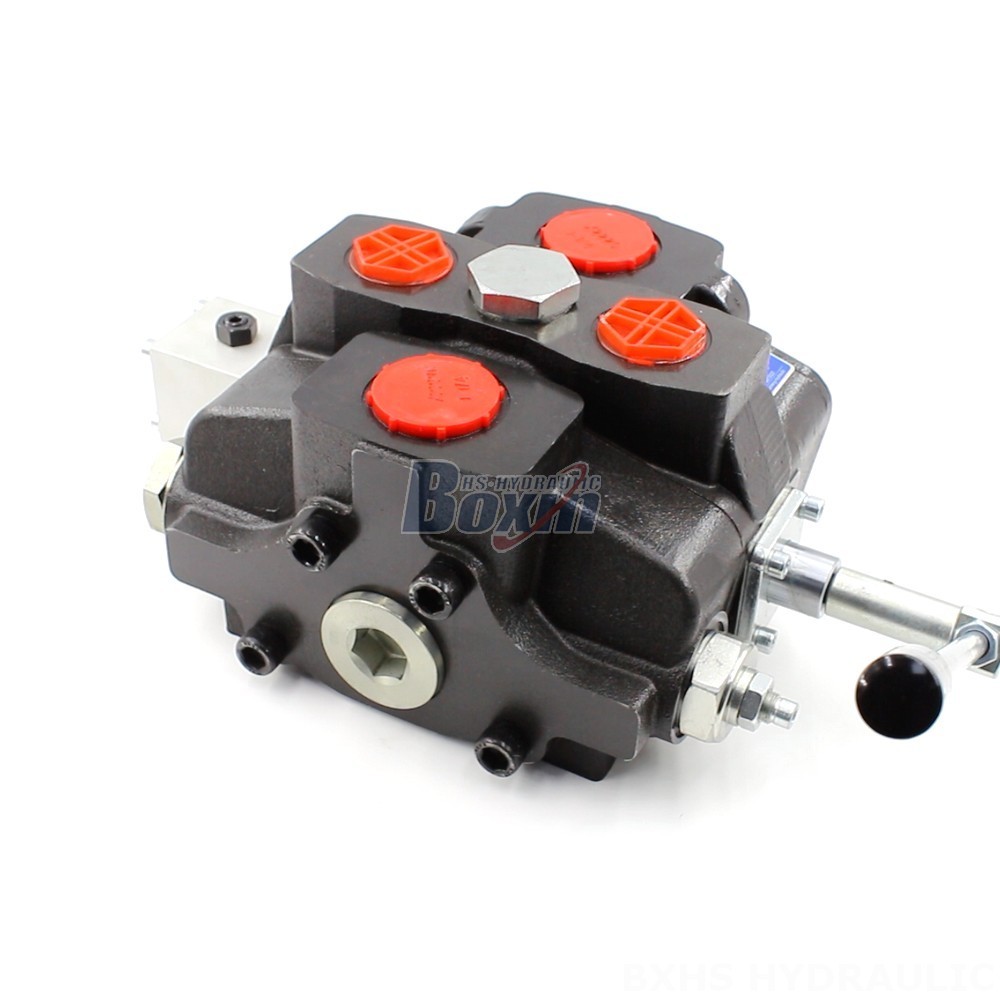

The SD25 Series Hydraulic Valve is a high-performance, monoblock directional valve designed for various heavy-duty applications in construction, material handling, agriculture, and industrial vehicles. This joystick-controlled valve features one spool and offers a rated flow of 240 L/min (63.4 US gpm) at a maximum pressure of 315 bar (4600 psi). It is available for OEM and wholesale orders.
| SD25 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 전기 유압, 유압 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 240리터 (63.4 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G1, SAE 16 |
| 출구 포트 | G1-1/4, SAE 16 |
| 포트 크기 | G1, G1-1/4, SAE 12 |
The SD25 Series Hydraulic Valve is a robust and reliable directional valve engineered for demanding applications. It features a single section, monoblock construction for high durability and compact size. The valve is controlled by a joystick, providing precise and responsive operation. It has a rated flow of 240 L/min (63.4 US gpm) and can handle pressures up to 315 bar (4600 psi). Its operating viscosity range is 12 - 400 mm²/s (12 cSt to 400 cSt), allowing for use in a wide range of hydraulic systems. The valve operates reliably in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for use in various machines including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders. We offer the SD25 Series Hydraulic Valve for OEM and wholesale orders, allowing you to incorporate it into your own equipment designs or purchase in bulk for your specific needs.
