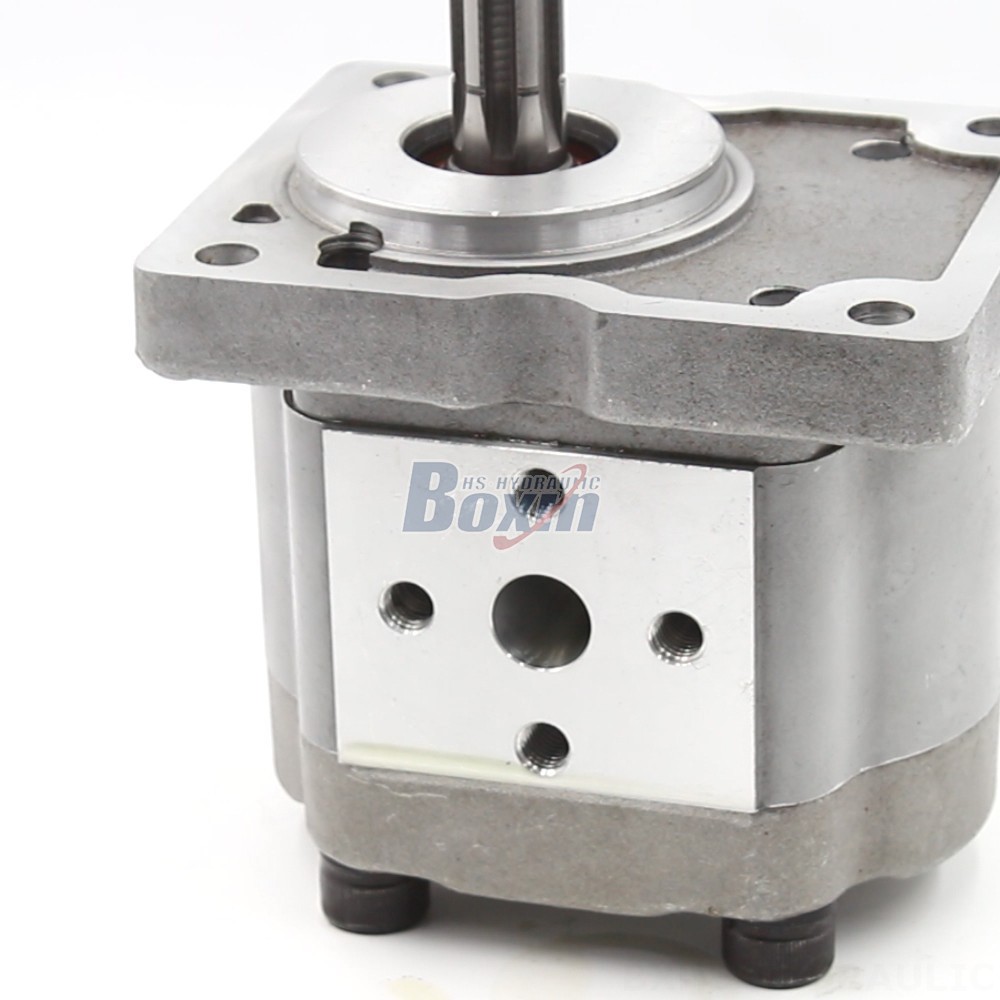

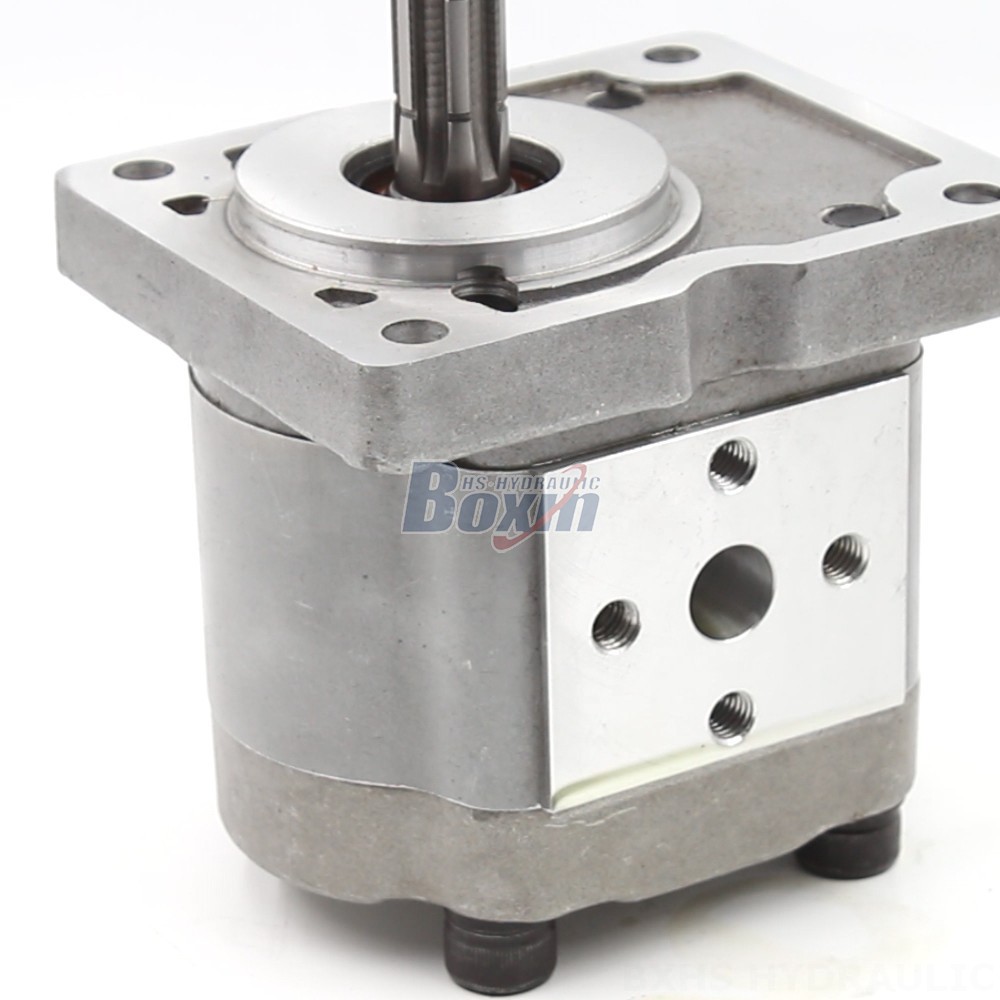

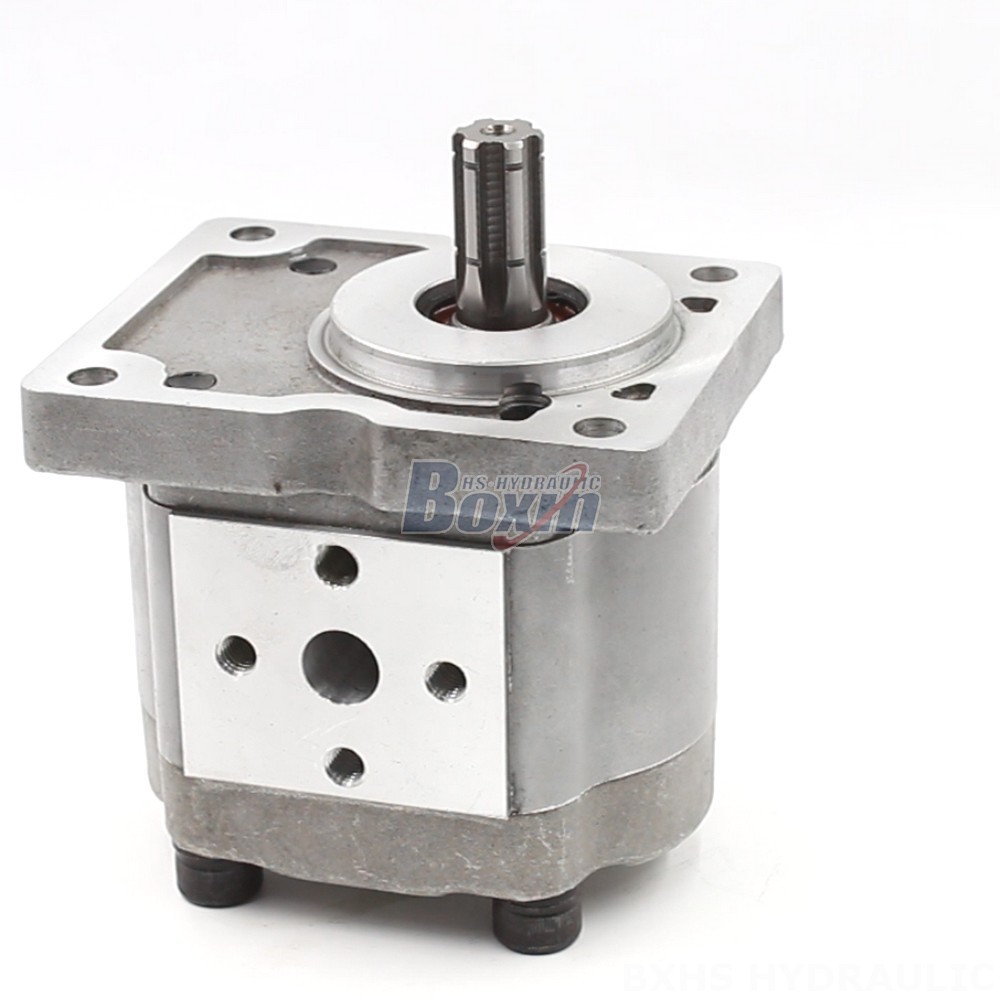

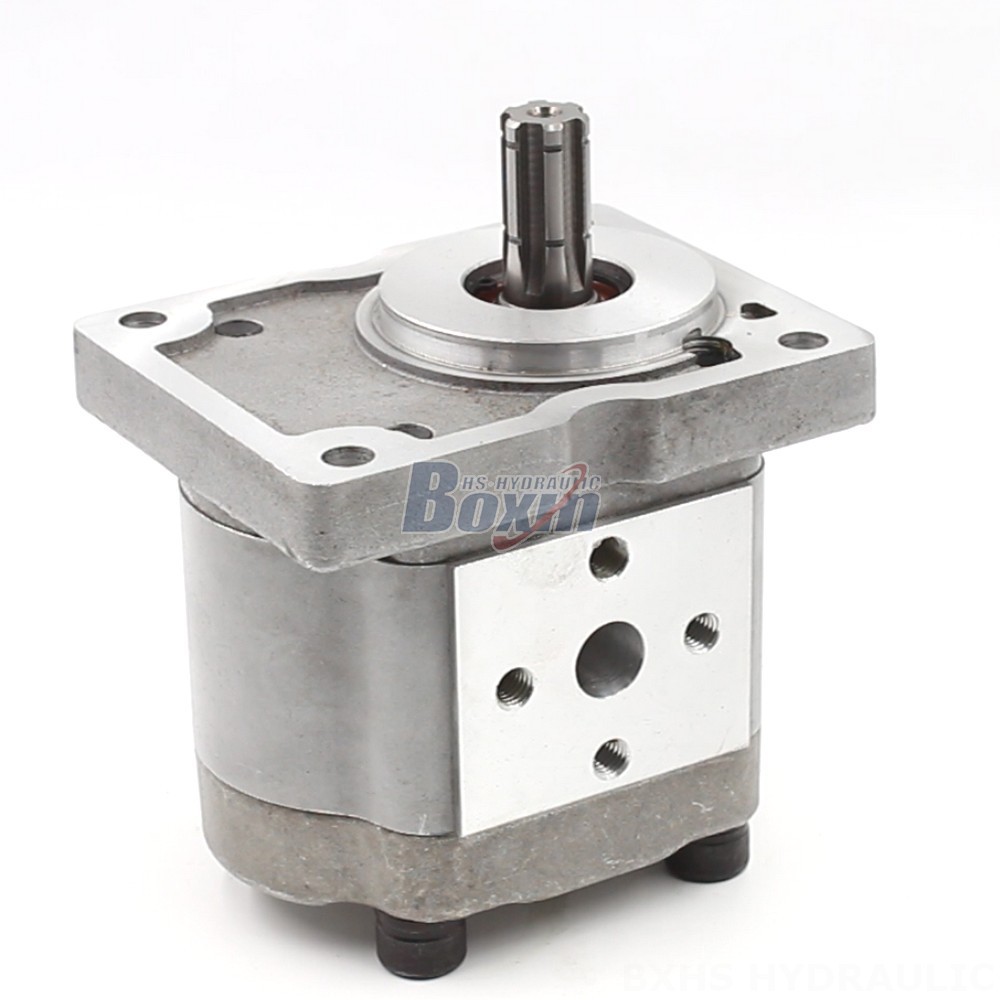

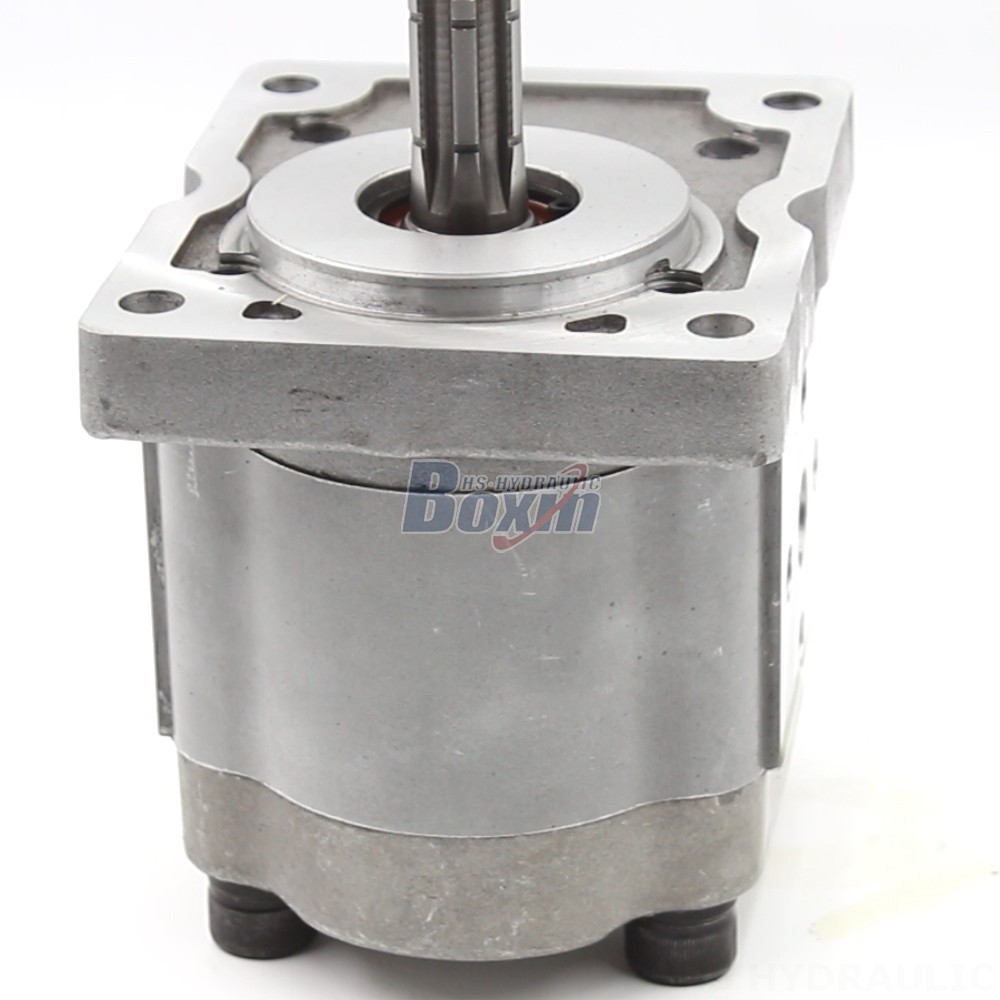

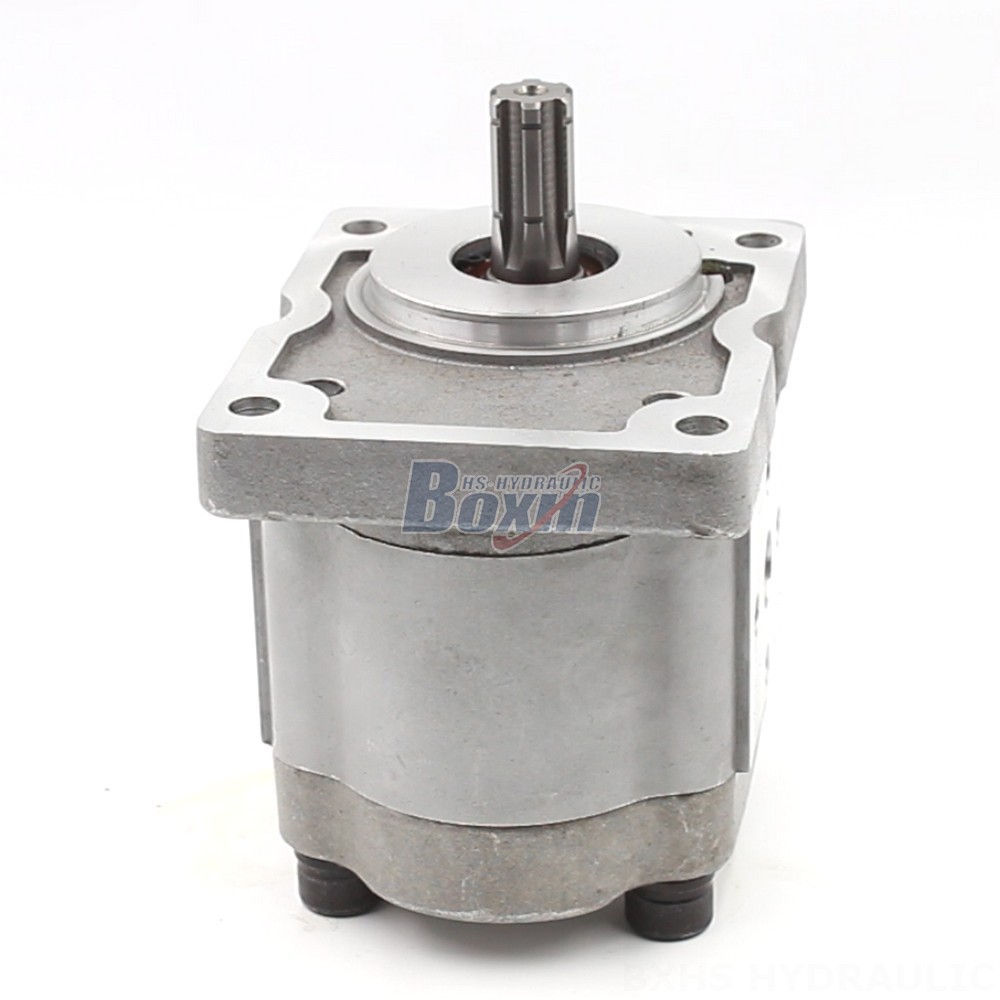

A high-quality 10 cc/rev hydraulic gear pump, designed for use in a wide range of industrial applications. With a rated pressure of 18 MPa and a rated speed of 2000 r/min, this pump is capable of delivering reliable performance in even the most demanding conditions. It is constructed from durable aluminium and features a B-Square flange and an involute spline shaft. It is part of the NSH series and is commonly used in material handling, construction, earth moving, agriculture, and industrial vehicle applications.
| NSH 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 10 cc/회전, 32 cc/회전, 40 cc/회전, 50 cc/회전, 100 cc/회전 |
| 정격 압력 | 18 MPa (2610 psi) |
| 최대 압력 | 20 MPa (2900 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 4200회전 |
| 회전 방향 | L: 왼쪽 (반시계 방향) |
| 재질 | 알루미늄 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | B-사각 플랜지 |
| 샤프트 유형 | X: 유선 스플라인 |
**10 cc/rev Hydraulic Gear Pump**
**Product Specifications:**
* Displacement: 10 cc/rev
* Rated Pressure: 18 MPa (2610 psi)
* Rated Speed: 2000 r/min
* Max Speed: 4200 r/min
* Rotation: Left (counter-clockwise)
* Structure: External Gear Pump
* Material: Aluminium
* Flange Version: B-Square Flange
* Shaft Type: Involute Spline
* Series: NSH Series
**Applications:**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models:**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Telehandler
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
