2 Spool Directional Control Valve QSF32 Series

제어 방식:부하 감응 비례

스풀:2 스풀

정격 유량:분당 250리터 (66 US gpm)

최대 압력:230바 (3300 psi)

입구 포트:M36×2

출구 포트:M36×2

포트 크기:M18×1.5

브랜드:BXHS

제품 유형:노면 청소차 밸브

제품 시리즈:QSF32 시리즈 노면 청소차 밸브

Packagingsize:27*27*20

Grossweight:35.00 kg

재고 상태: 재고 있음

99 이 제품을 찾아보시지 않겠습니까?

2 Spool Directional Control Valve QSF32 Series

2 Spool Directional Control Valve QSF32 Series

2 Spool Directional Control Valve QSF32 Series drawing image

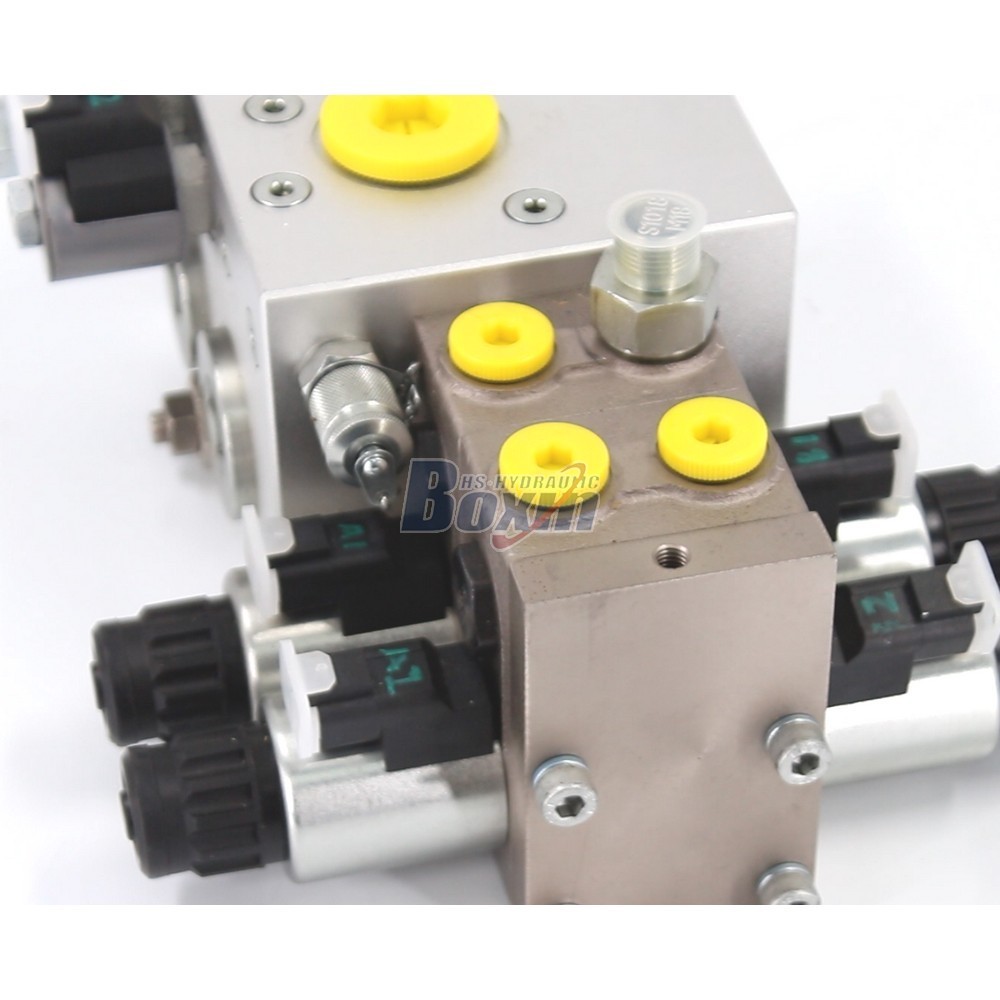

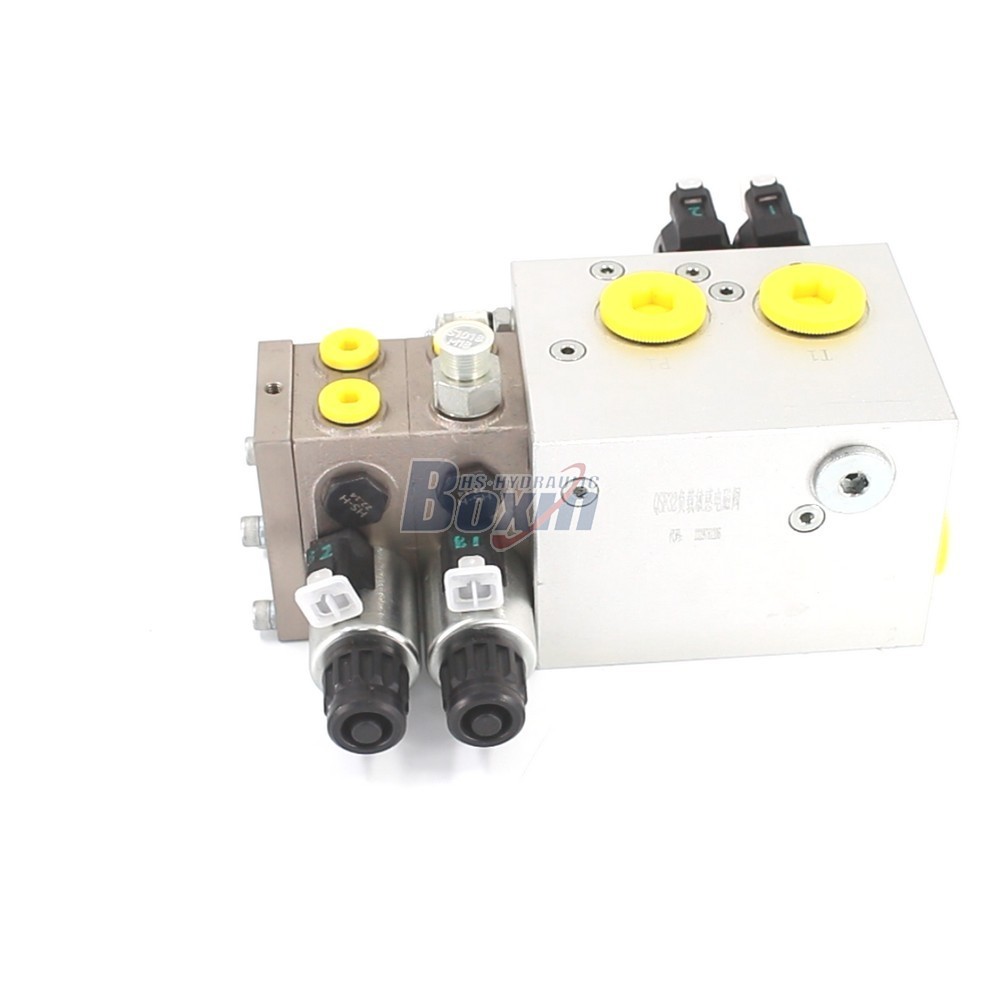

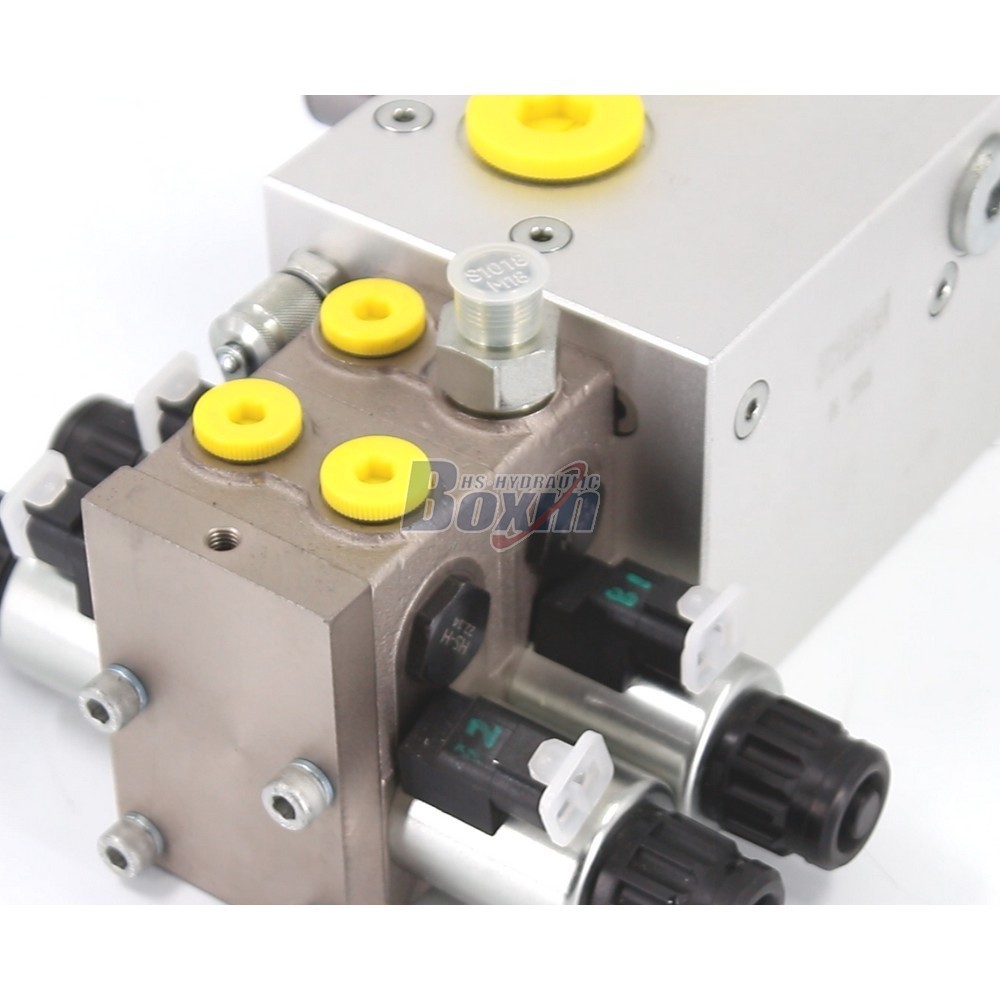

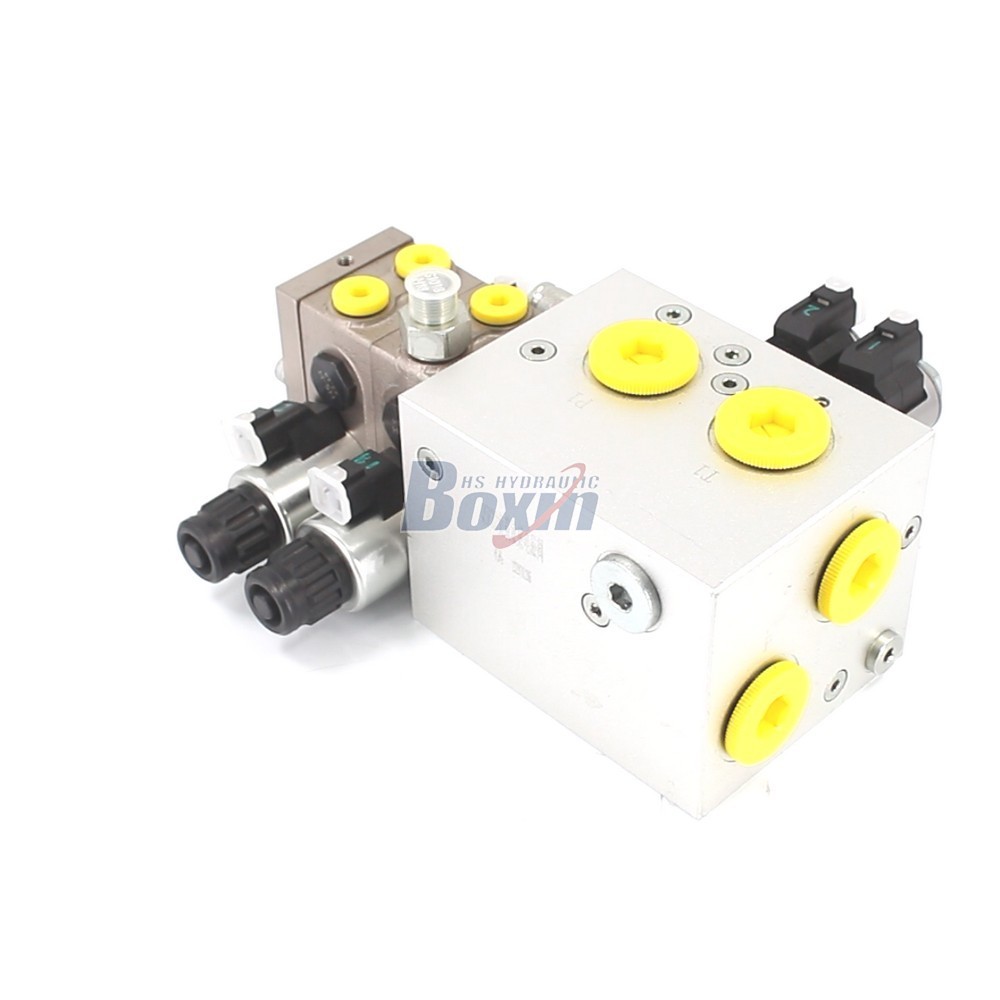

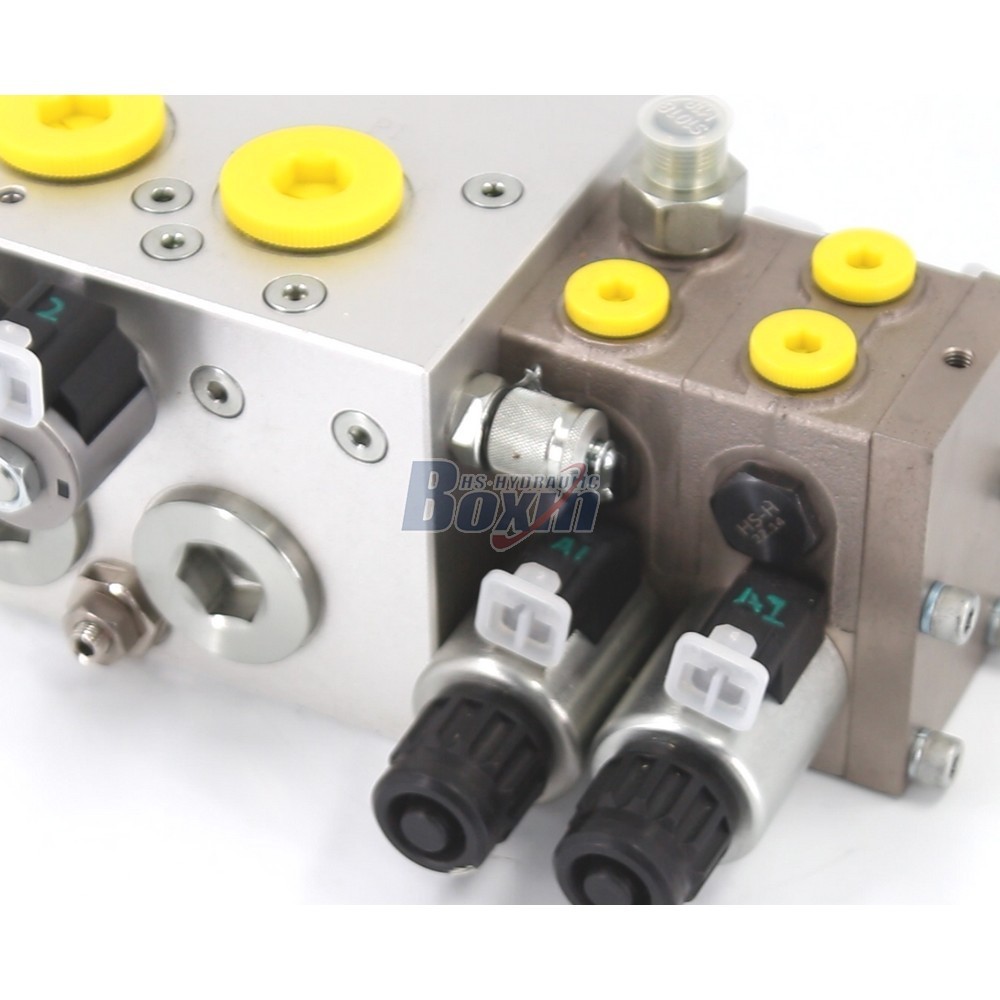

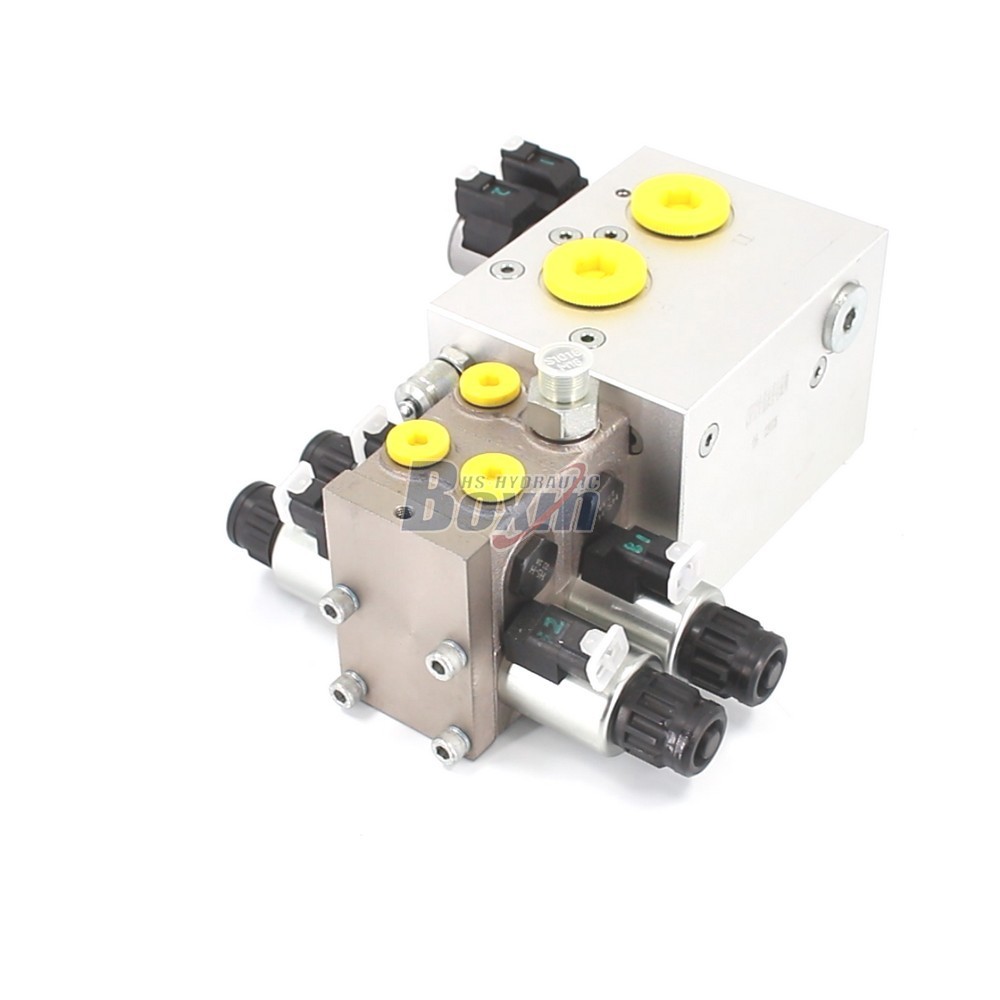

The QSF32 Series is a high-performance 2-spool load-sensing proportional directional control valve designed for heavy-duty applications. It offers a rated flow of 250 L/min and a maximum pressure of 230 bar, providing precise control for construction, agricultural, and material handling equipment.

QSF32 시리즈 노면 청소차 밸브 매개변수
제어 방식 솔레노이드, 부하 감응 비례
스풀 1 스풀, 2 스풀, 3 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 섹션 밸브
섹션 1 섹션, 2 섹션, 3 섹션
작동 점도 범위 12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량 분당 250리터 (66 US gpm)
최대 압력 250바 (3600 psi)
입구 포트 G1, SAE 16, 1 NPT, M36×2
출구 포트 G1, SAE 16, 1 NPT, M36×2
포트 크기 G1, SAE 16, 1 NPT, M36×2

As a professional hydraulic manufacturer, we specialize in the production of the QSF32 Series 2-spool load-sensing directional control valves. Engineered for efficiency and durability, this series is compatible with wheel loaders, excavators, tractors, and telehandlers, ensuring seamless operation in demanding environments. We offer comprehensive global manufacturing services, including OEM, ODM, and private labeling, tailored to your specific mechanical requirements. Whether you require customized flow configurations or bulk wholesale orders, our factory-direct supply chain guarantees reliable quality and competitive pricing. We are actively seeking long-term partnerships with international distributors, wholesalers, and professional trade companies to expand our reach in the global market. Contact us today for bespoke hydraulic solutions, factory wholesale inquiries, and flexible manufacturing collaborations.
