What is the primary application of the 4-Spool Directional Valve: Technical Data & Downloadable Resources?

The 4-Spool Directional Valve: Technical Data & Downloadable Resources is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

4-Spool Directional Valve: Technical Data & Downloadable Resources

Name: 4-Spool Directional Valve: Technical Data & Downloadable Resources
Brand: Boxinhuasheng
SKU: BXHS-53383
Availability: InStock

홈모노블럭 방향 제어 밸브P40 시리즈제품 상세

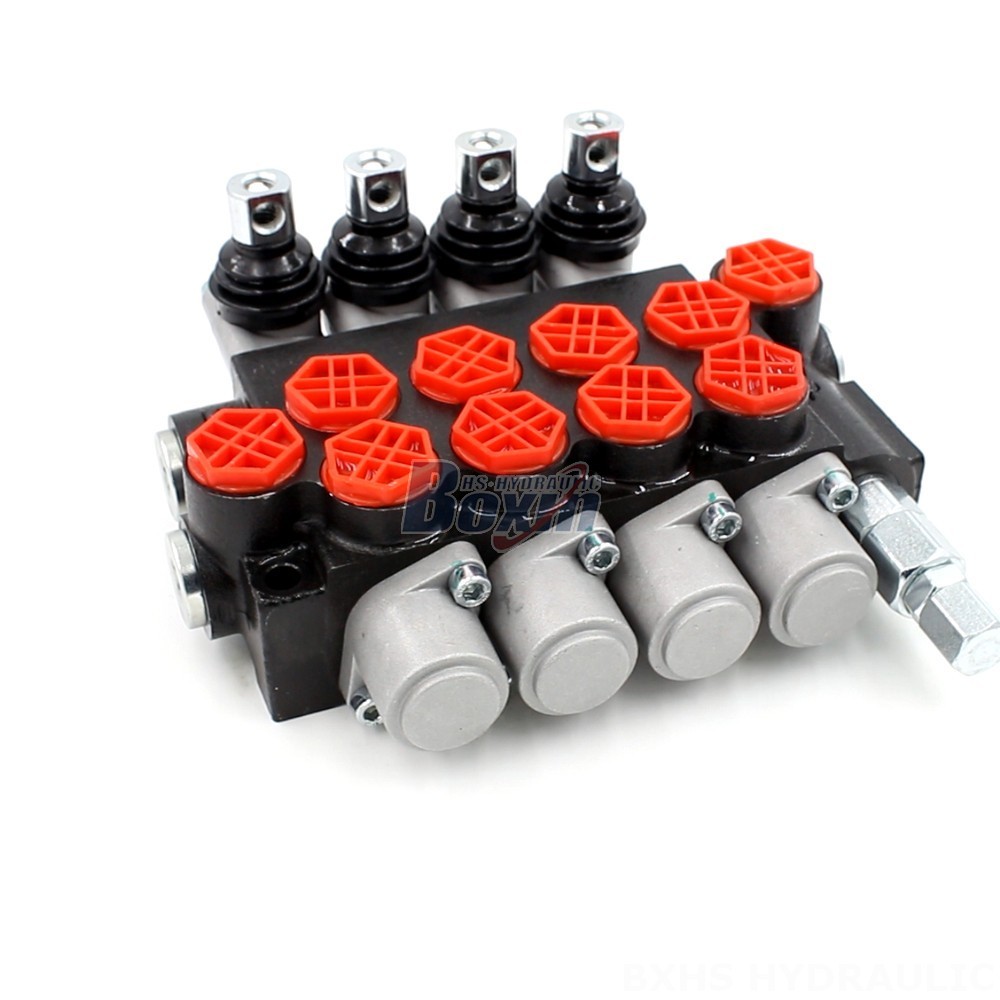

4-Spool Directional Valve: Technical Data & Downloadable Resources cover photo

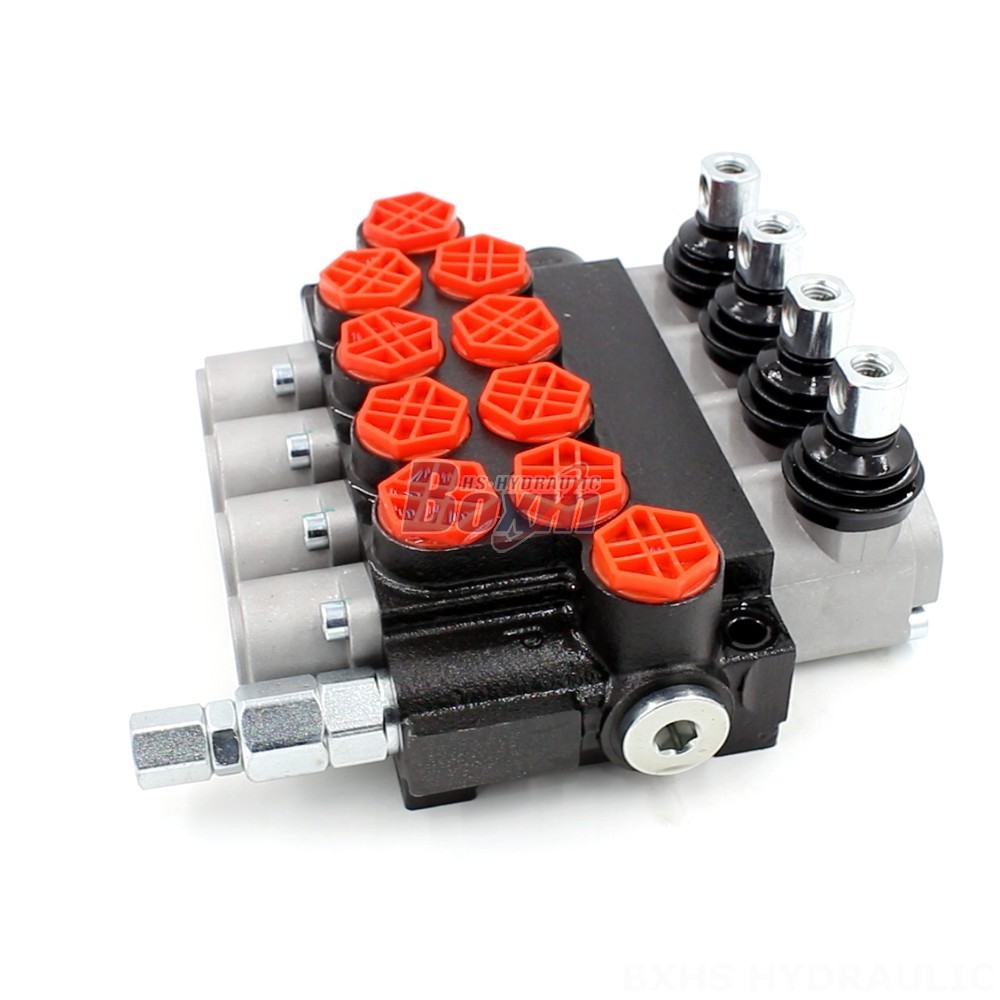

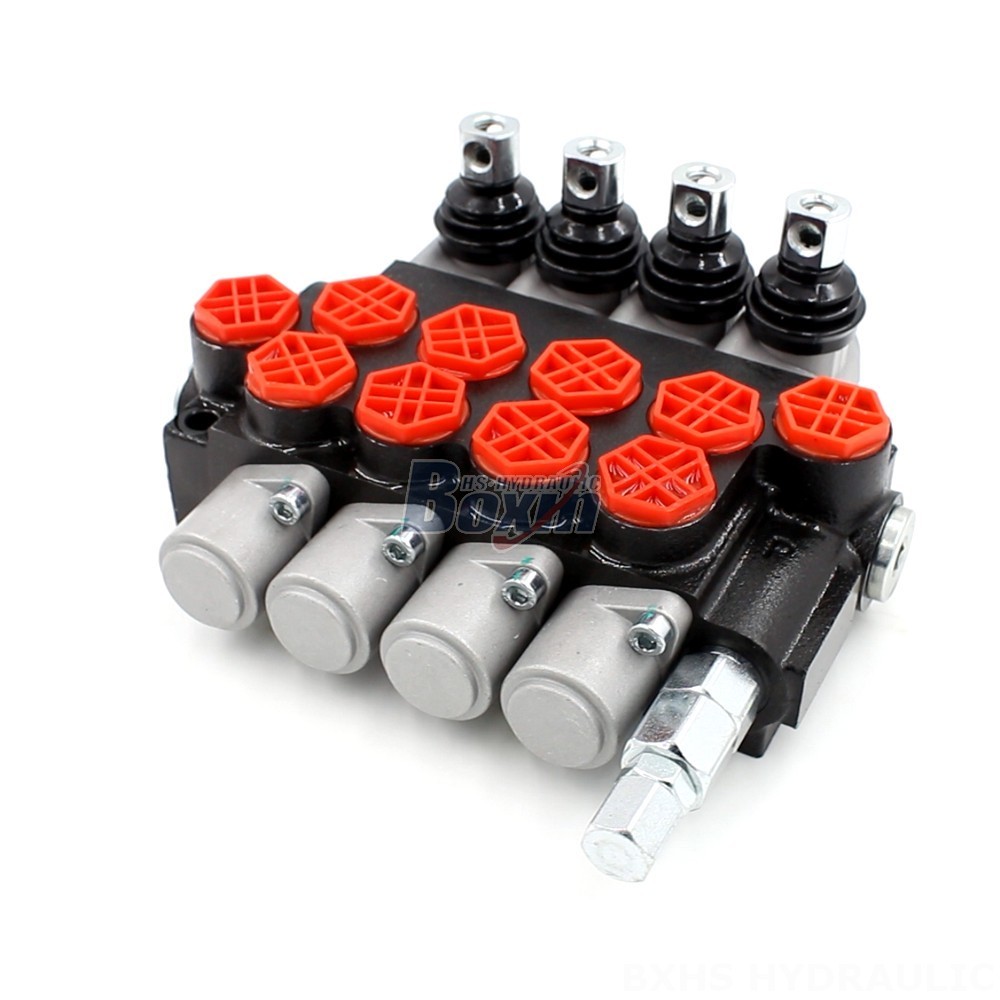

4-Spool Directional Valve: Technical Data & Downloadable Resources main image

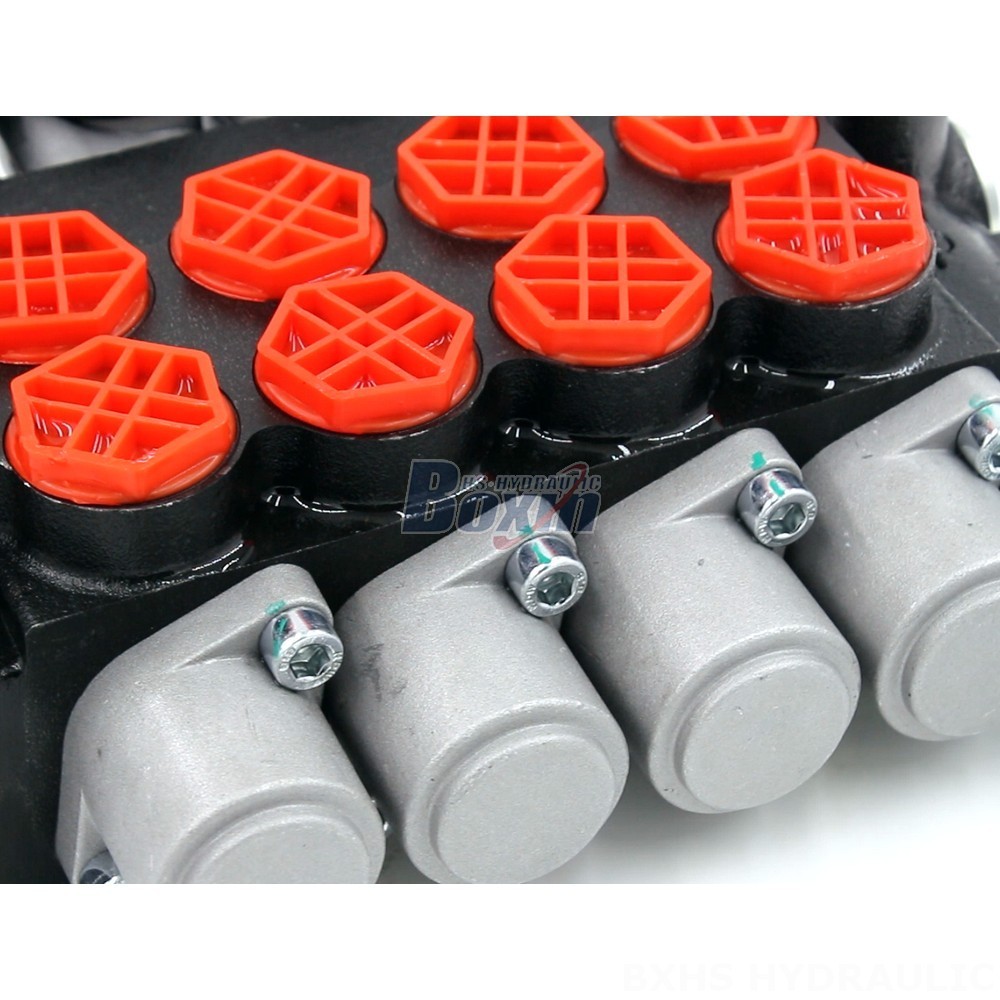

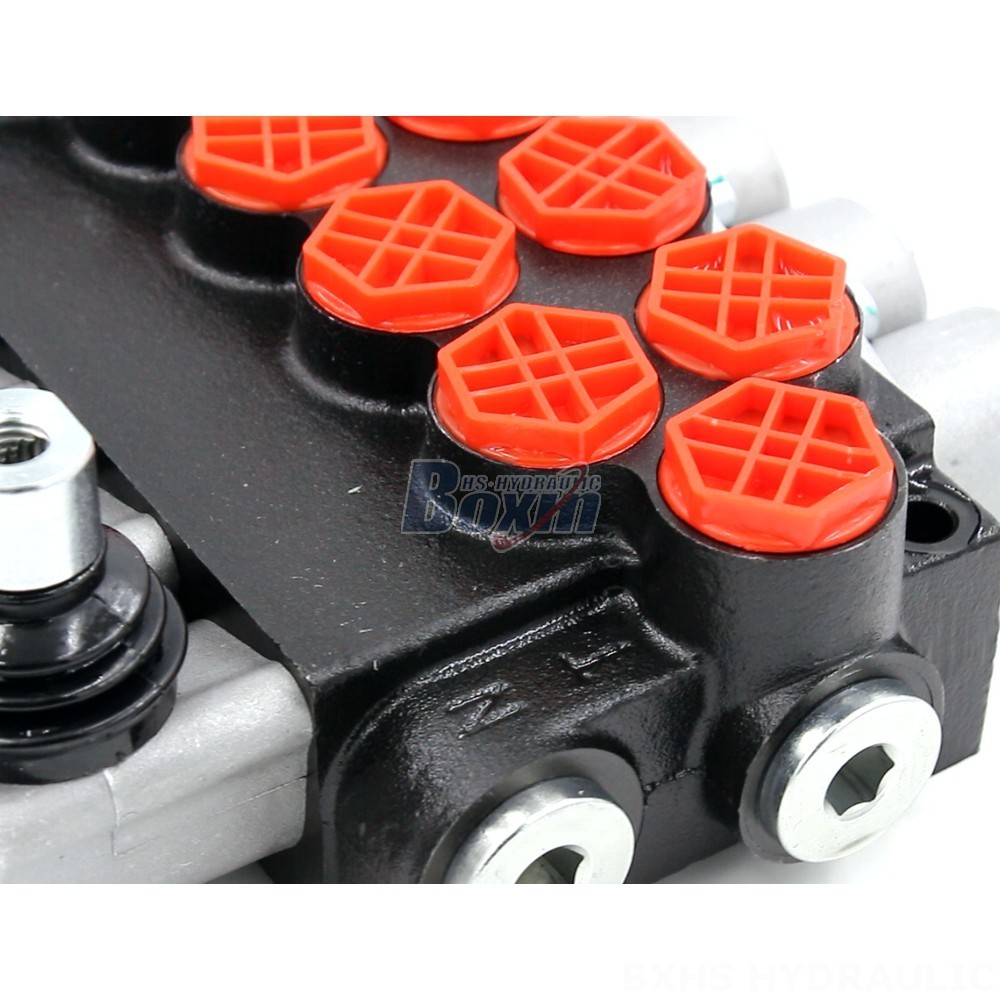

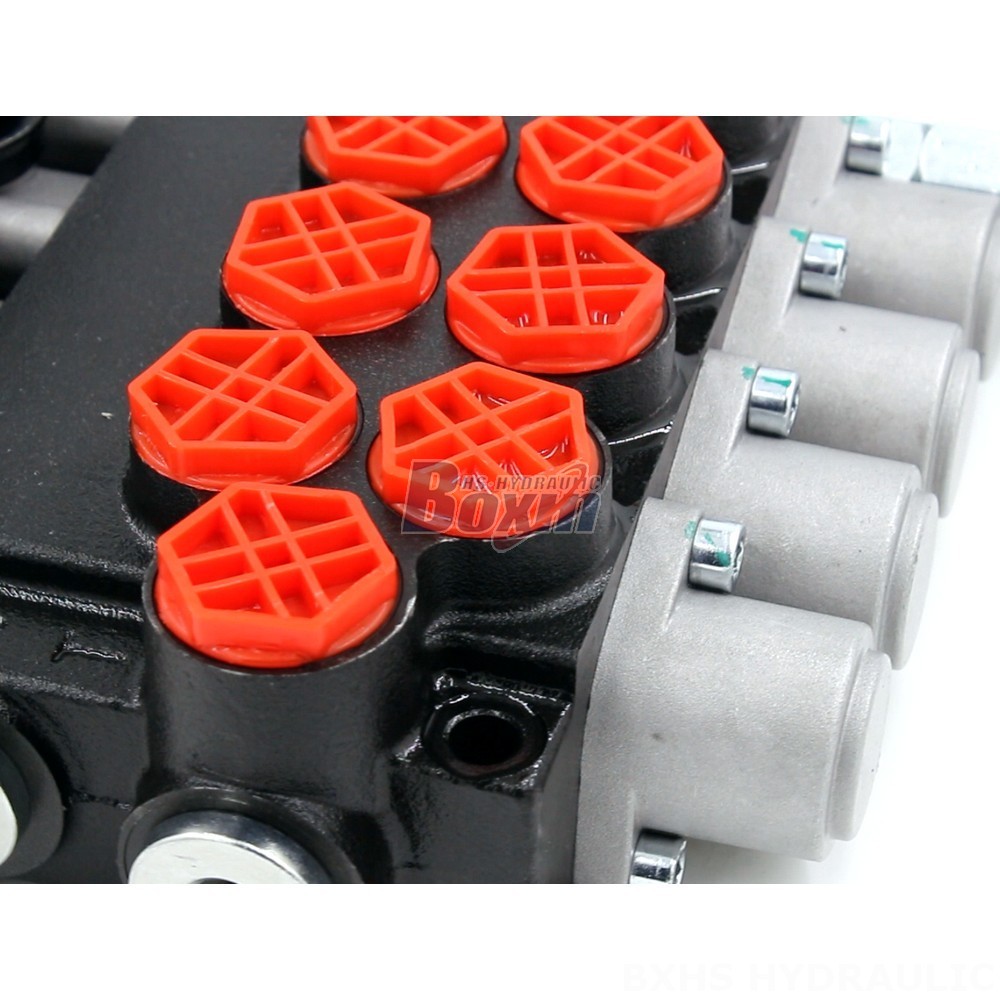

4-Spool Directional Valve: Technical Data & Downloadable Resources detail image

4-Spool Directional Valve: Technical Data & Downloadable Resources

제어 방식:수동

스풀:4 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:24*23*13

총중량:8.20 kg

재고 상태: 재고 있음

문의하기

1362 이 제품을 찾아보시지 않겠습니까?

4-Spool Directional Valve: Technical Data & Downloadable Resources

4-Spool Directional Valve: Technical Data & Downloadable Resources drawing image

The P40 Series Hydraulic Oil Control Valve is a 4-spool, monoblock directional valve designed for demanding applications in material handling, construction, and industrial vehicles. With a rated flow of 40 L/min and a max pressure of 250 bar, this valve provides reliable and efficient control of hydraulic systems.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	250바 (3600 psi)
입구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This robust and compact 4-spool directional valve features manual control and a 4-section design, offering versatile control capabilities for various hydraulic applications. Its durable monoblock construction ensures reliability under demanding conditions. The P40 Series valve is suitable for a wide range of equipment, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
