15-30일 생산 리드타임

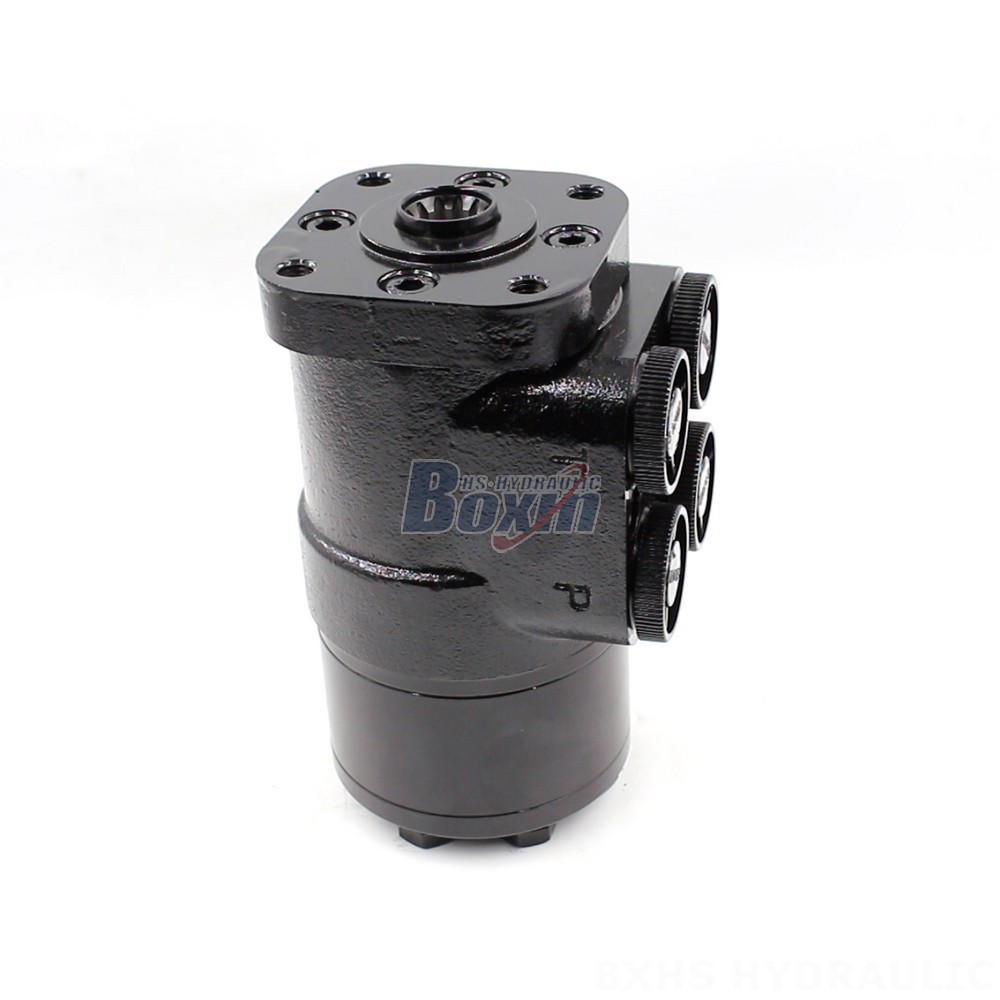

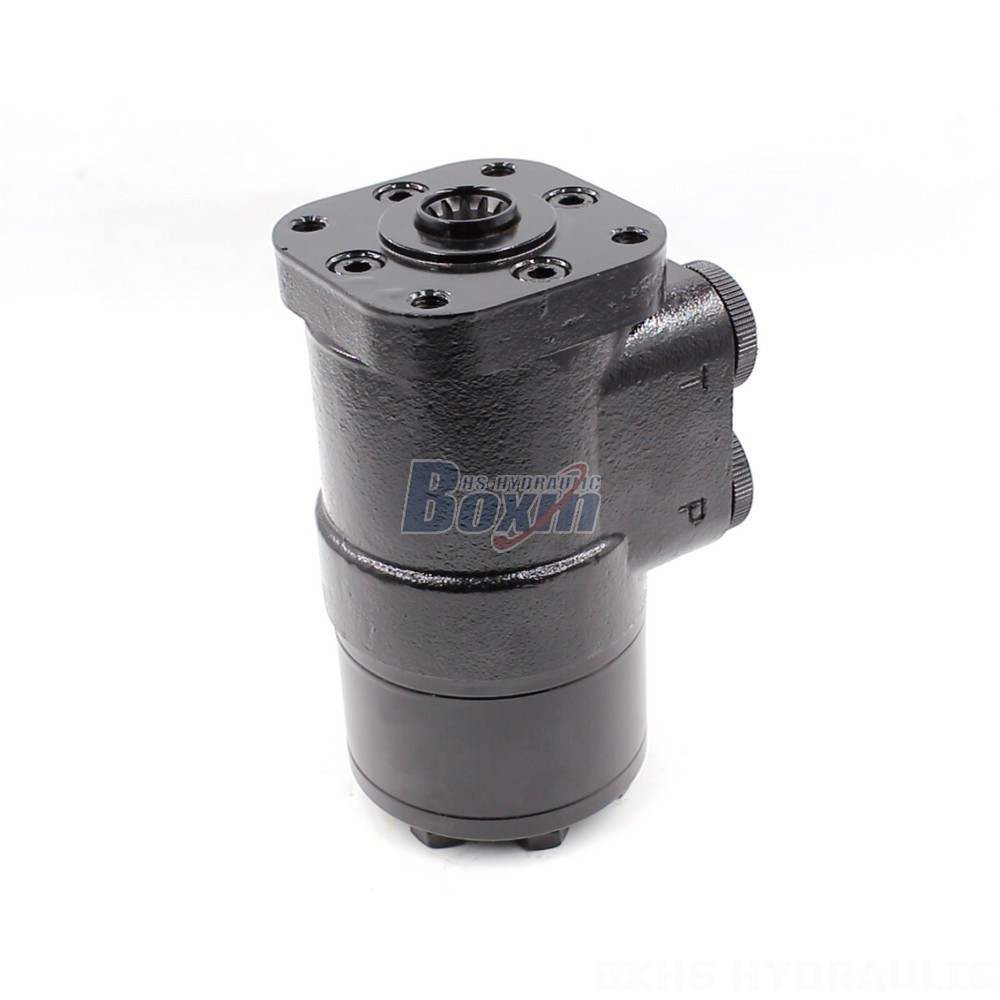

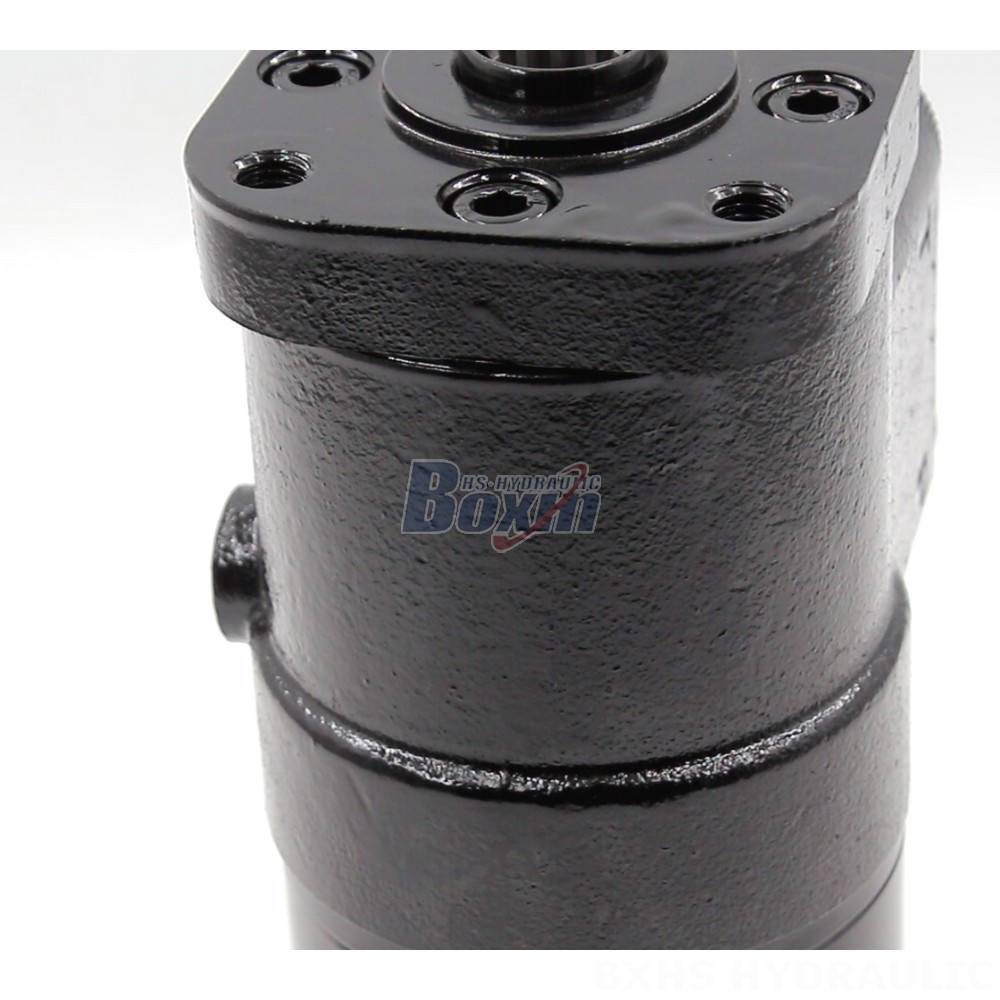

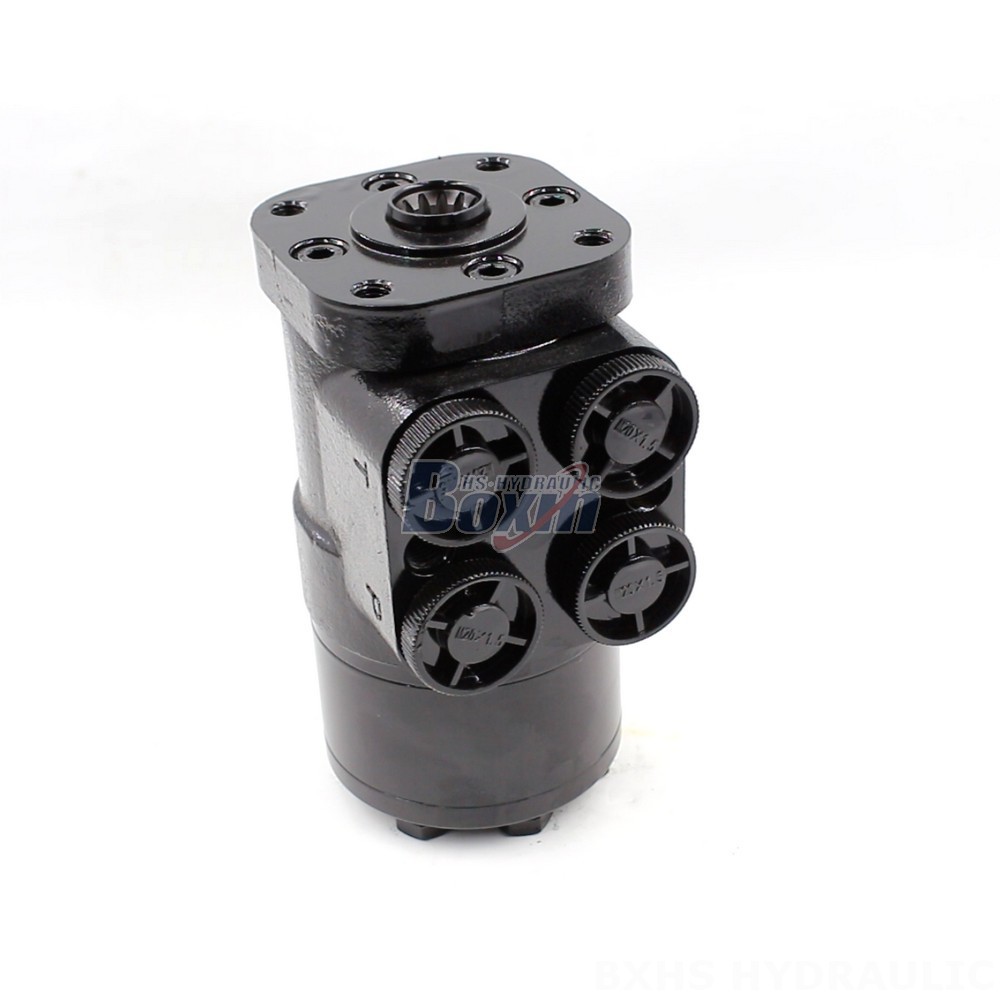

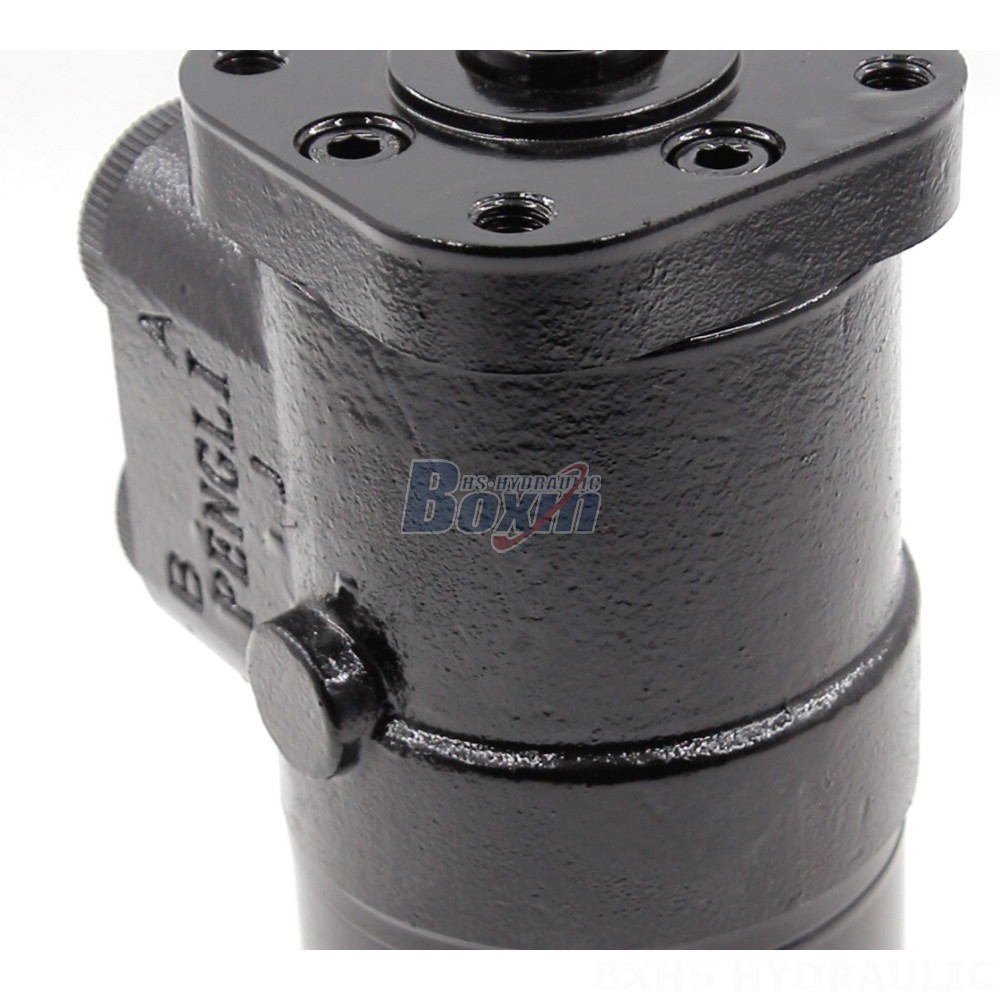

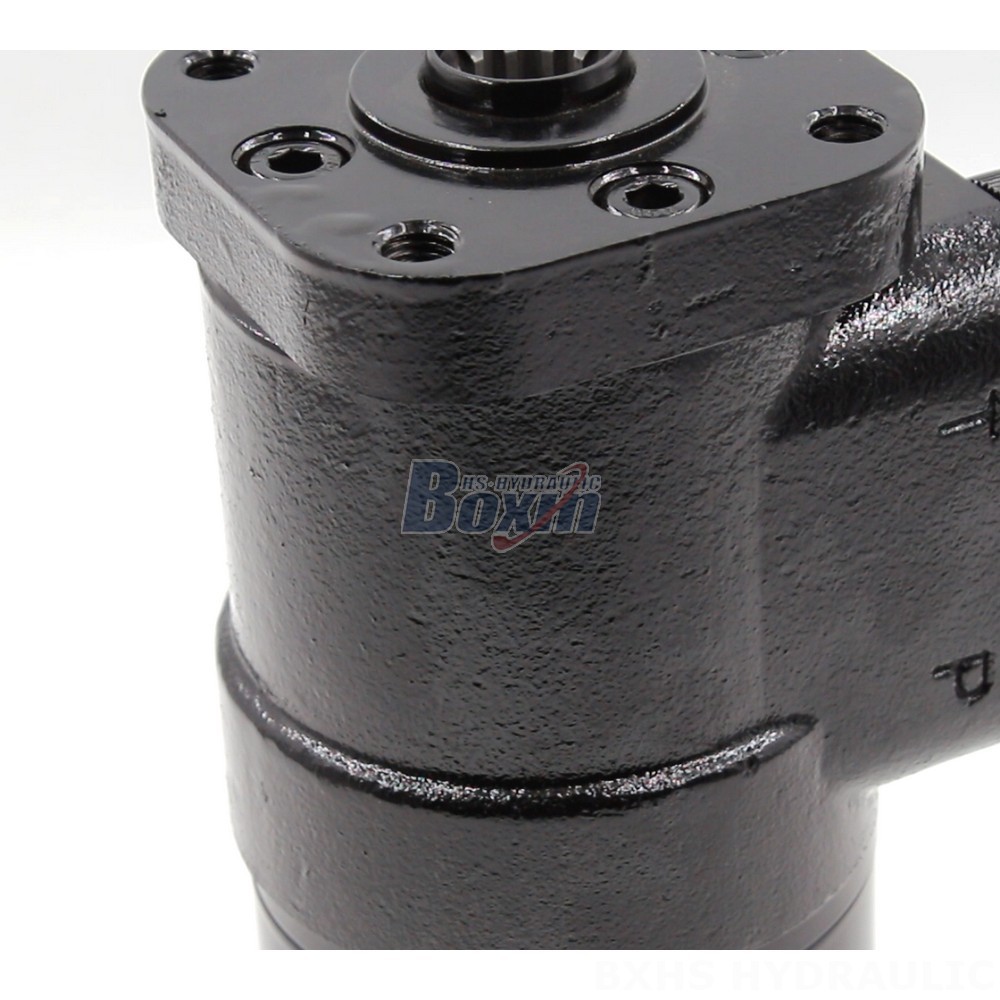

High-quality 400ml/r, 30L/min hydraulic steering unit (BZZ1-E400B) for material handling, construction, and agricultural applications. Cast iron construction, customizable valve block, OEM/ODM available. Wholesale pricing for distributors and dealers.
| BZZ1 시리즈 조향 장치 매개변수 | |
|---|---|
| 변위 | 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r |
| 밸브 블록 | 사용자 정의 가능 |
| 재질 | 주철 |
| 정격 유량 | 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/분, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min |
| 최대 연속 배압 | 2.5 Mpa |
| 최대 입력 압력 | 16 Mpa |
The BZZ1-E400B is a robust and reliable 400ml/r, 30L/min hydraulic steering unit ideal for a wide range of applications including forklifts, telehandlers, skid steer loaders, compact wheel loaders, wheel loaders, tractors, front-end loaders, backhoe loaders, and mini-excavators. Built with durable cast iron, this unit boasts a maximum input pressure of 16 MPa and a maximum continuous back pressure of 2.5 MPa. The valve block is customizable to meet specific application requirements.
We are a leading manufacturer of hydraulic products offering **OEM**, **ODM**, and **private labeling** services. We provide high-quality **wholesale** pricing for large orders and actively seek partnerships with **distributors**, **wholesalers**, **dealers**, and **trading companies** worldwide. As a factory, we offer direct **factory supply** and **factory wholesale** prices, ensuring competitive pricing and efficient order fulfillment.
Key Features:
* Displacement: 400 ml/r
* Rated Flow: 30 L/min
* Max Input Pressure: 16 MPa
* Max Continuous Back Pressure: 2.5 MPa
* Material: Cast Iron
* Customizable Valve Block
* Applications: Material Handling, Construction, Agriculture, Industrial Vehicles
Contact us today to discuss your hydraulic steering unit needs and explore our **OEM/ODM** and **wholesale** opportunities. Let's build a successful partnership together! We are a factory direct **manufacturer** and offer competitive pricing and fast delivery times.
