What is the primary application of the 4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory?

The 4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory

Name: 4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory
Brand: Boxinhuasheng
SKU: BXHS-57671
Availability: InStock

홈조향 장치BZZ1 시리즈제품 상세

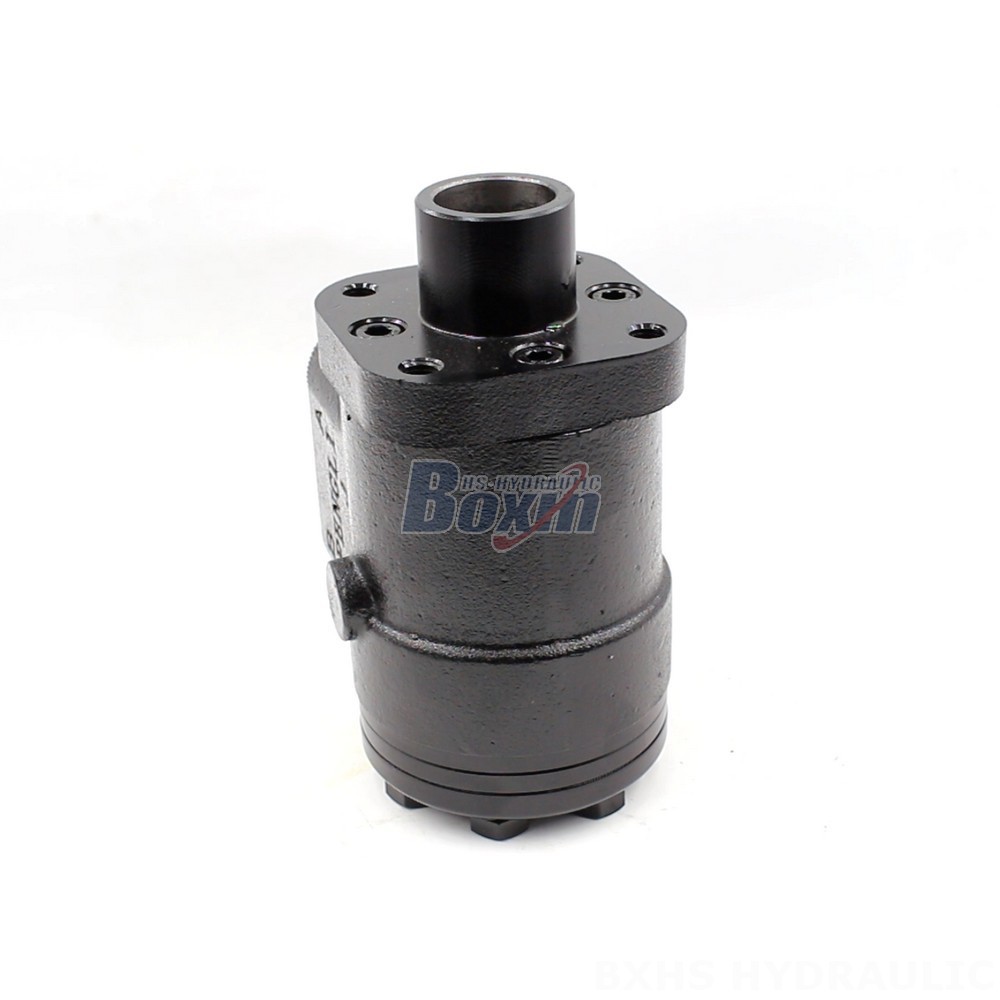

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory cover photo

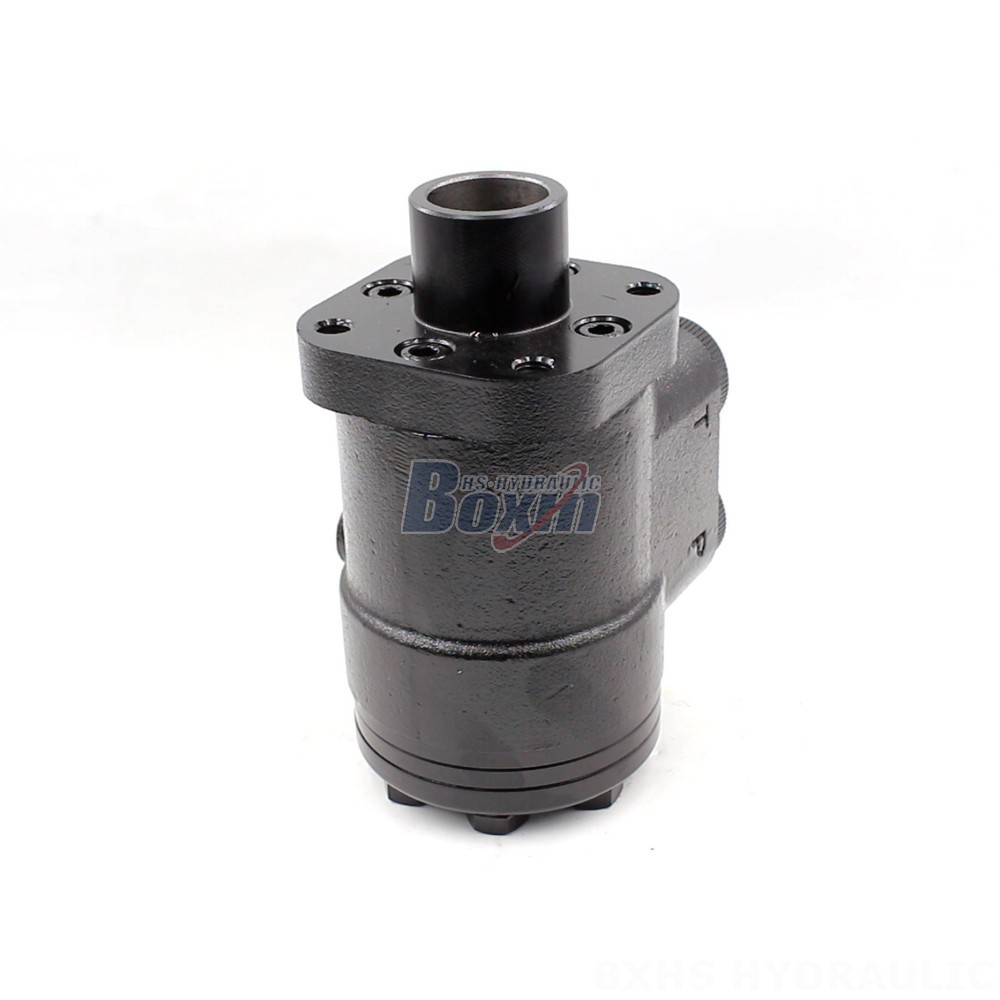

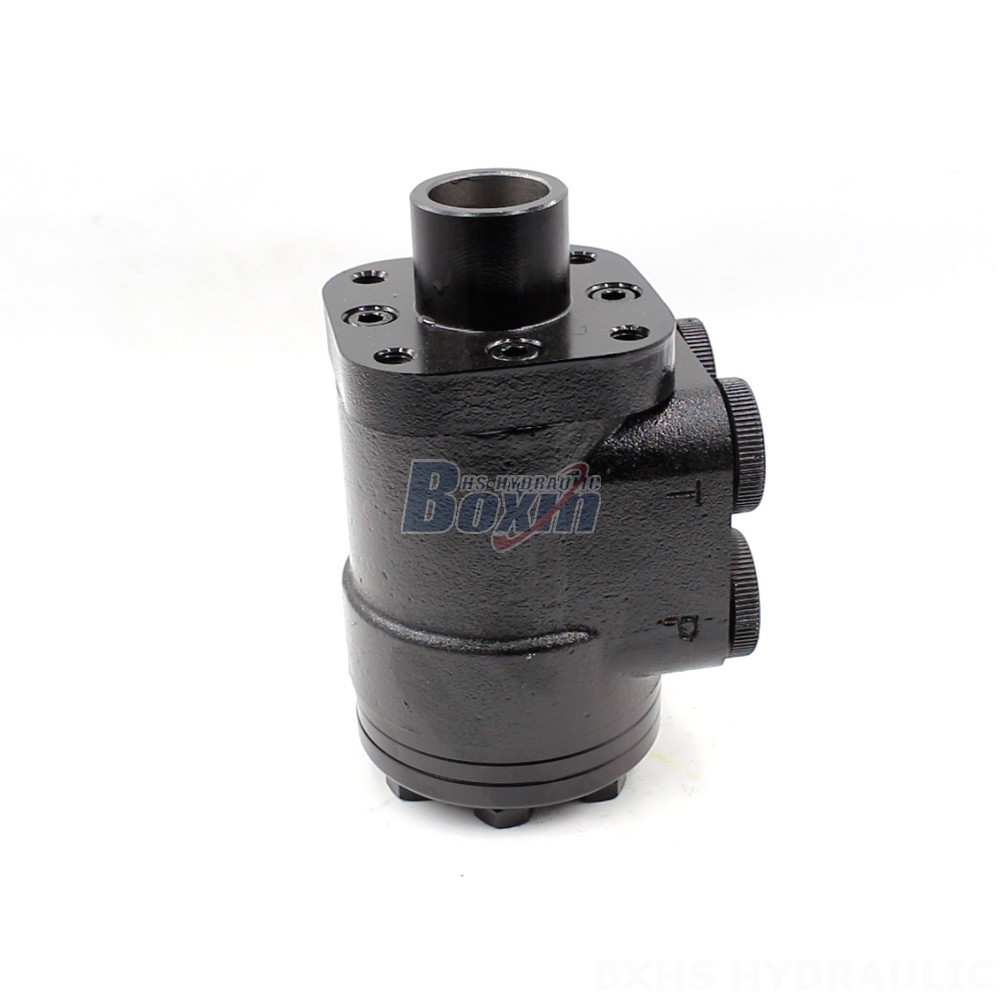

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory main image

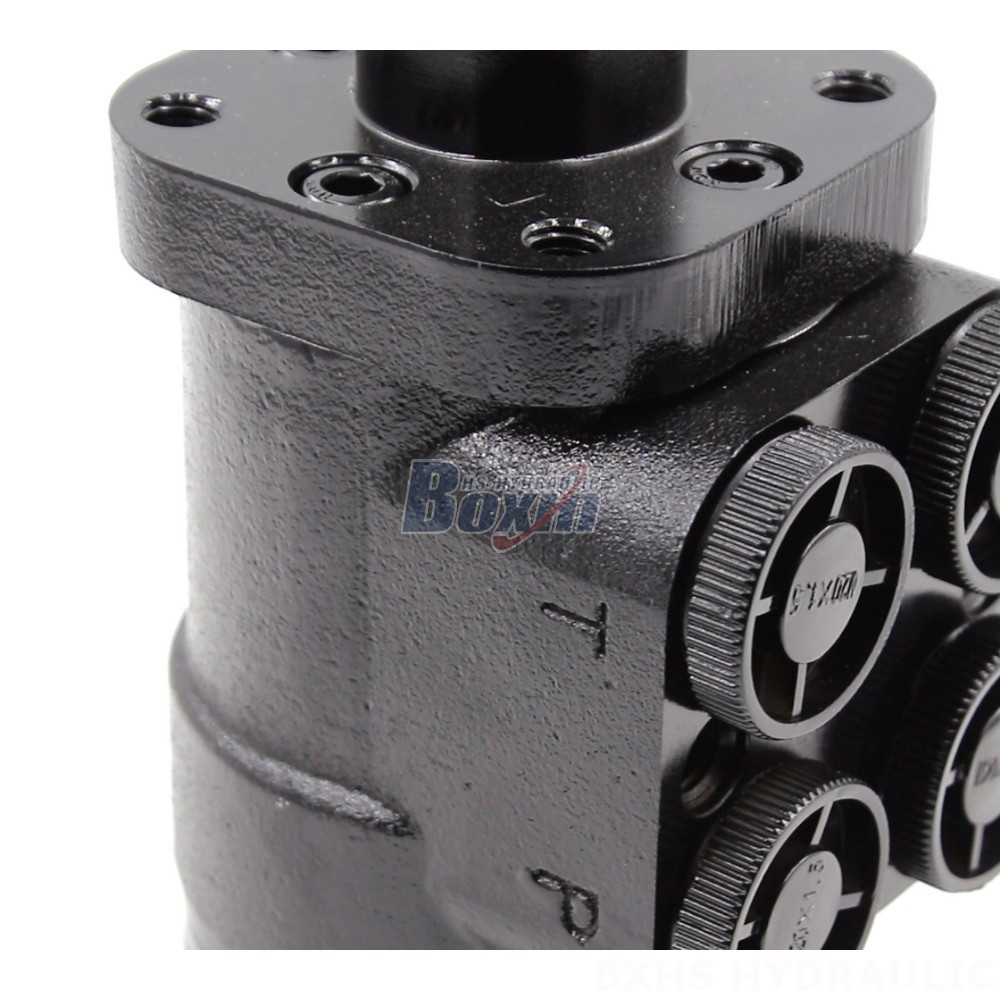

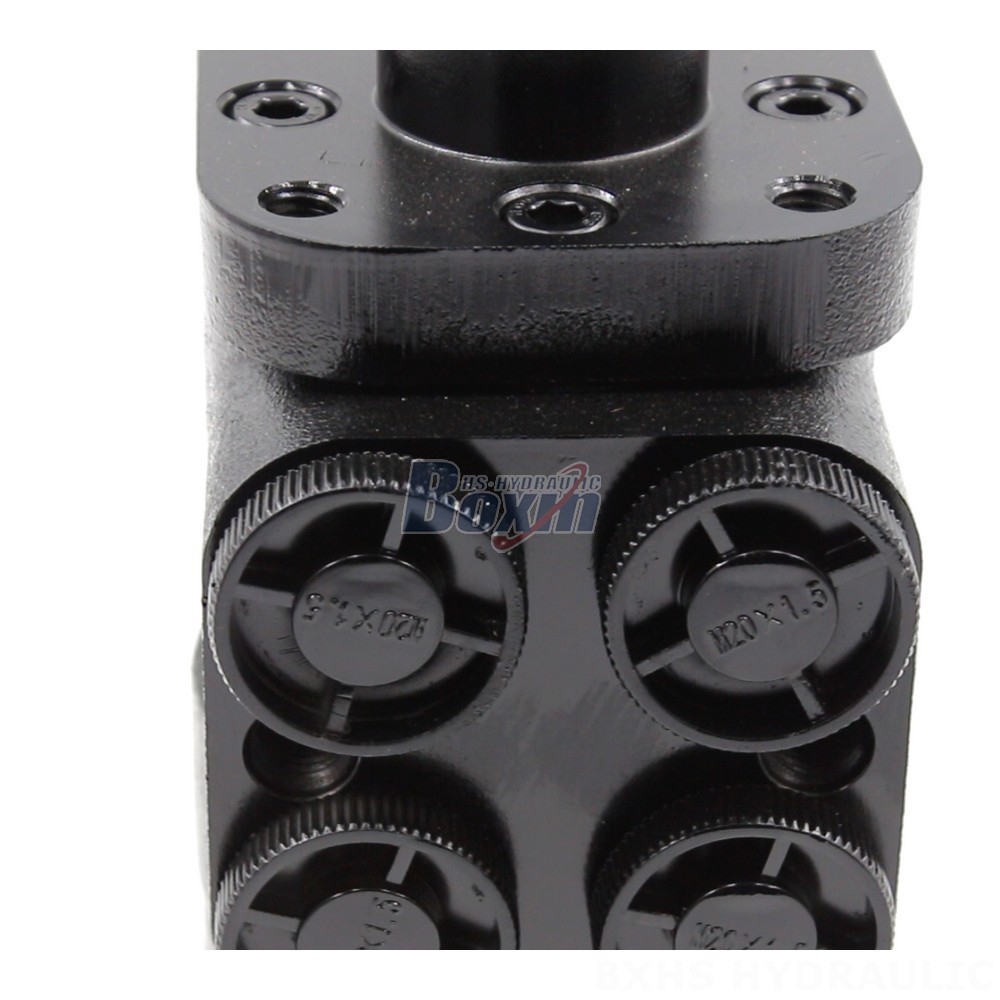

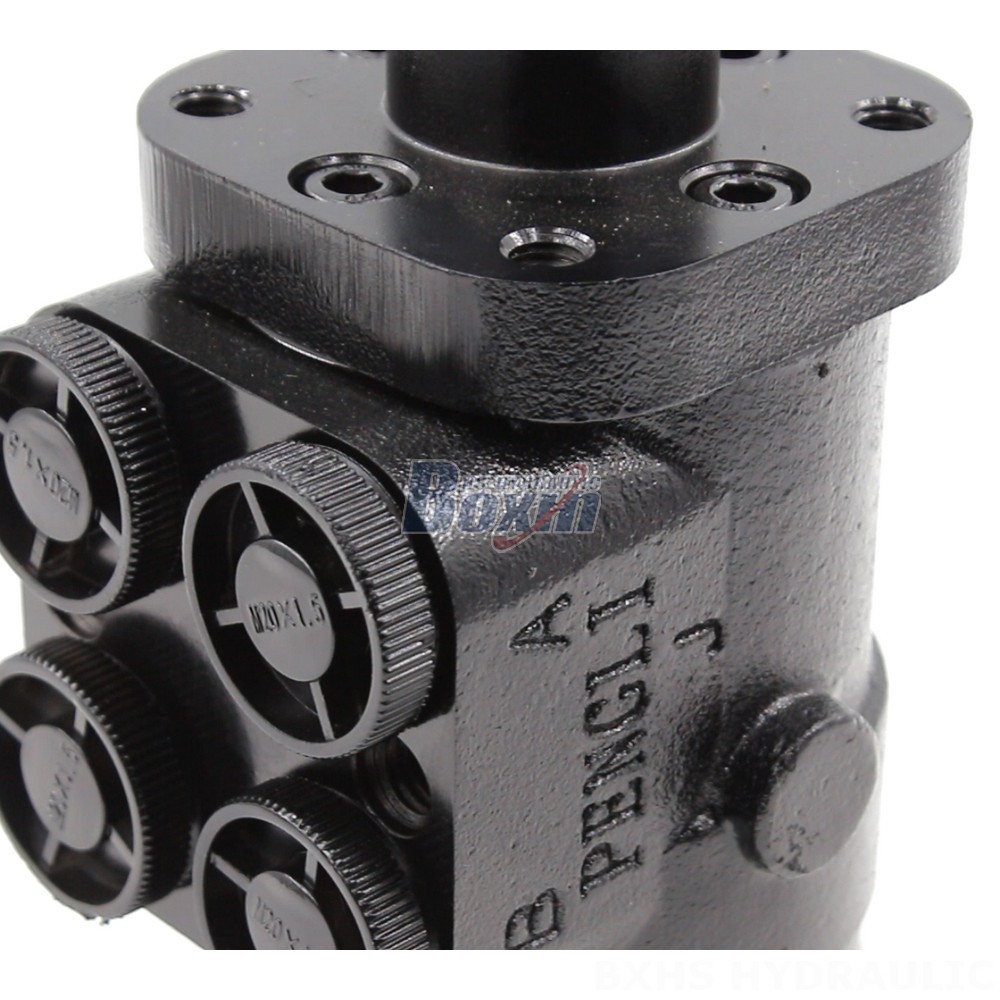

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory detail image

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory

변위:50 ml/r

정격 유량:4 L/min

브랜드:BXHS

제품 유형:조향 장치

제품 시리즈:BZZ1 시리즈 조향 장치

포장 크기:11*11*17

총중량:6.10 kg

재고 상태: 재고 있음

문의하기

525 이 제품을 찾아보시지 않겠습니까?

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory

4L/min Hydraulic Steering Unit - BZZ1-E50A - Direct from Factory drawing image

High-quality 4L/min hydraulic steering unit (BZZ1-E50A) manufactured from cast iron, ideal for various applications including forklifts, skid steer loaders, and agricultural machinery. Direct from factory, offering OEM/ODM, customization and wholesale options.

BZZ1 시리즈 조향 장치 매개변수
변위	50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r
밸브 블록	사용자 정의 가능
재질	주철
정격 유량	5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/분, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min
최대 연속 배압	2.5 Mpa
최대 입력 압력	16 Mpa

We are a hydraulic product manufacturer offering a wide range of services including manufacturing, OEM, ODM, customization, and wholesale. Our flagship product, the 4L/min Hydraulic Steering Unit - BZZ1-E50A - is available directly from our factory.

**Key Features:**
* **Model:** BZZ1-E50A
* **Displacement:** 50 ml/r
* **Rated Flow:** 4 L/min
* **Max Input Pressure:** 16 MPa
* **Max Cont Back Pressure:** 2.5 MPa
* **Material:** Durable Cast Iron
* **Valve Block:** Customizable to meet your specific requirements

**Applications:**
* Material Handling (Forklifts)
* Construction and Earth Moving (Skid Steer Loaders, Compact Wheel Loaders, Telehandlers, Backhoe Loaders, Mini-Excavators)
* Industrial Vehicles
* Agriculture (Tractors and Front-End Loaders)

**Business Opportunities:**
We are actively seeking distributors, wholesalers, and dealers worldwide to partner with us. We offer competitive pricing, reliable quality, and flexible order sizes. We welcome inquiries for OEM (Original Equipment Manufacturer), ODM (Original Design Manufacturer) projects and custom designs to meet your specific needs. Our factory provides direct wholesale pricing for significant volume orders. Benefit from our factory-direct pricing and exceptional quality. Contact us today to discuss your requirements and explore potential collaborations.

**Contact us now to learn more about our 4L/min Hydraulic Steering Unit (BZZ1-E50A) and other hydraulic products!**
