What is the primary application of the 500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min?

The 500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min

Name: 500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min
Brand: Boxinhuasheng
SKU: BXHS-57793
Availability: InStock

홈조향 장치BZZ5 시리즈제품 상세

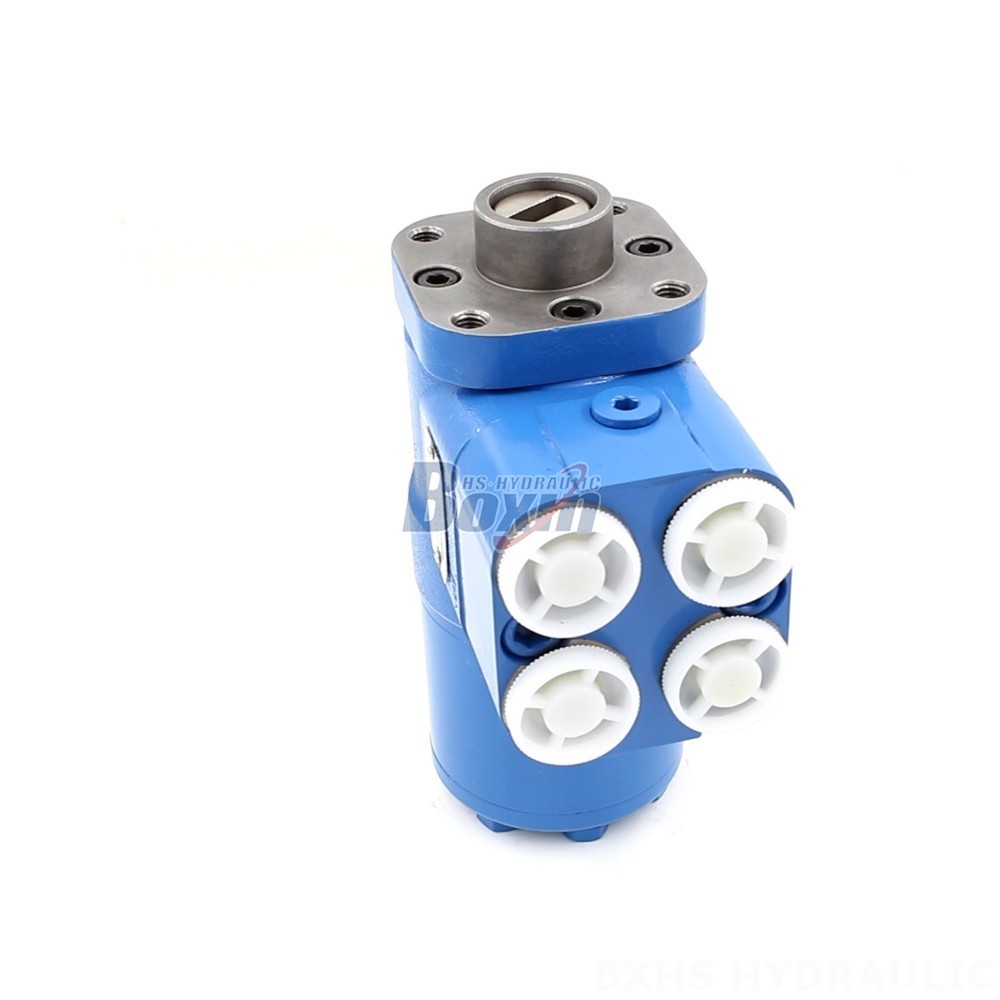

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min cover photo

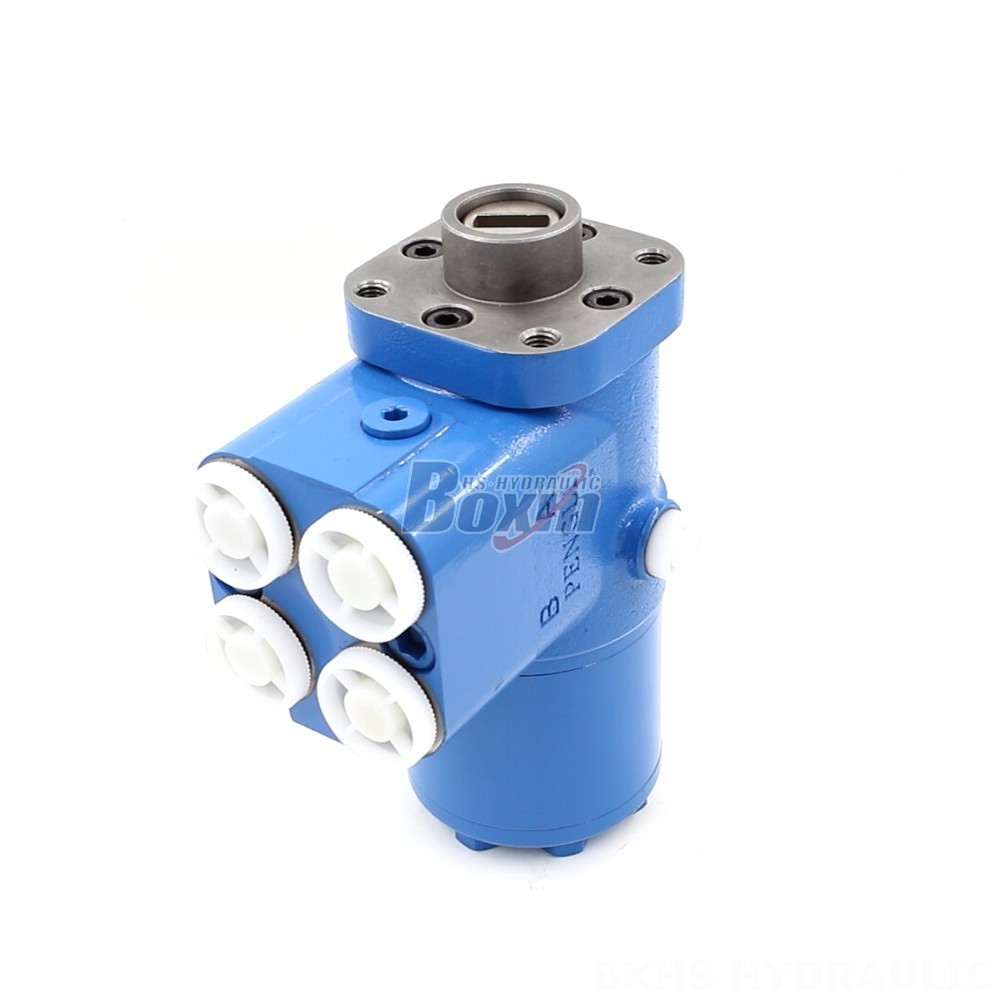

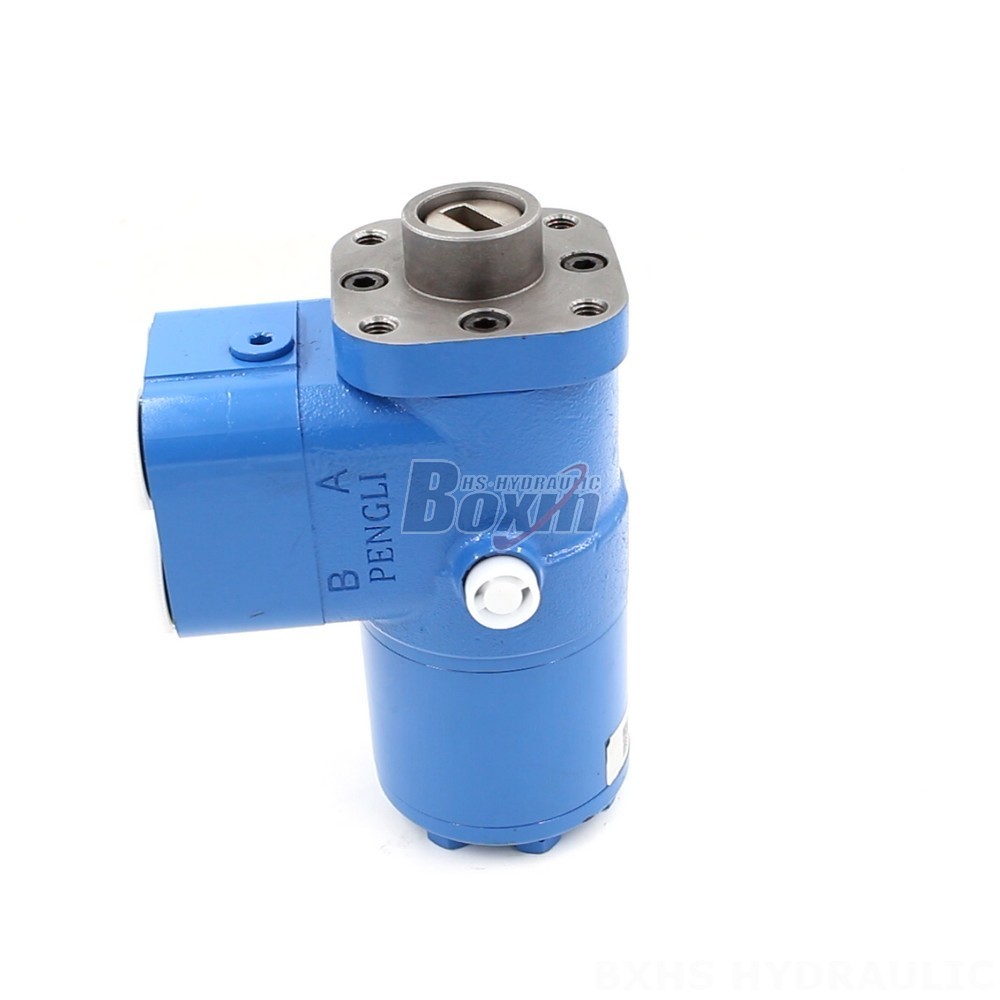

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min main image

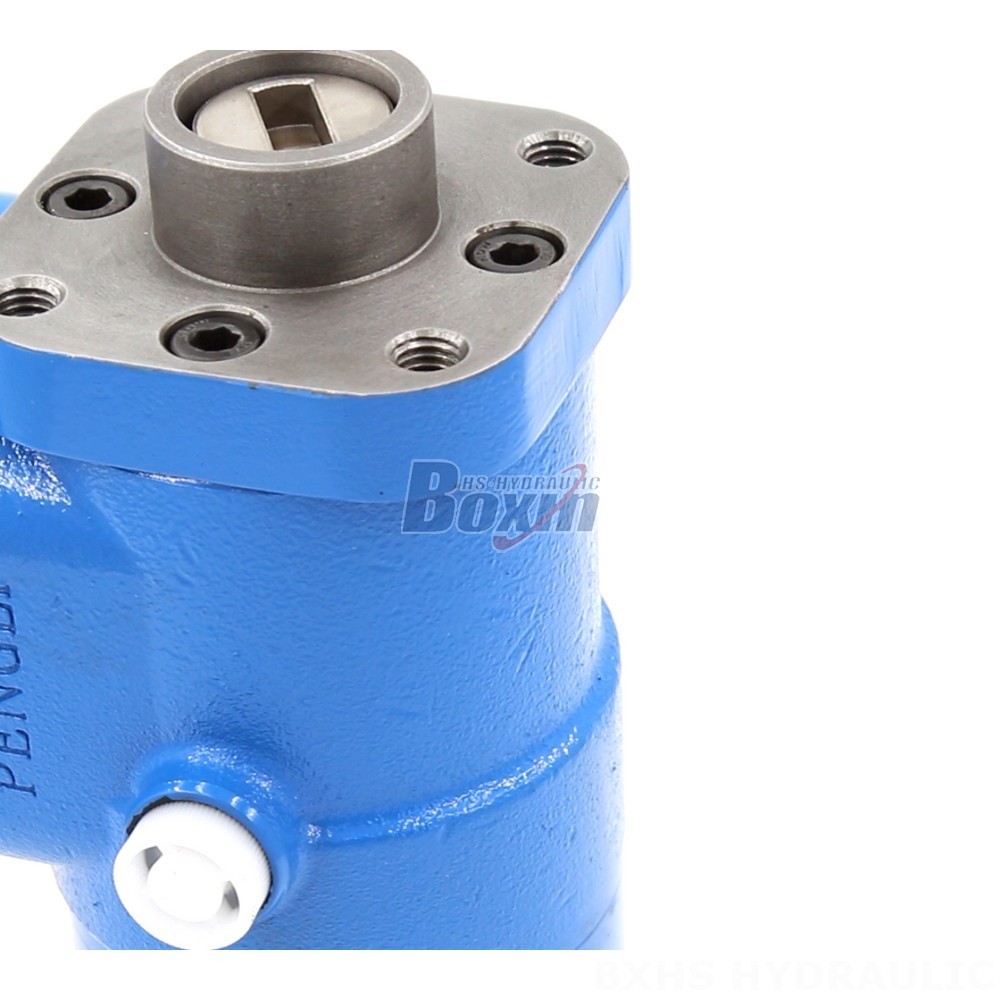

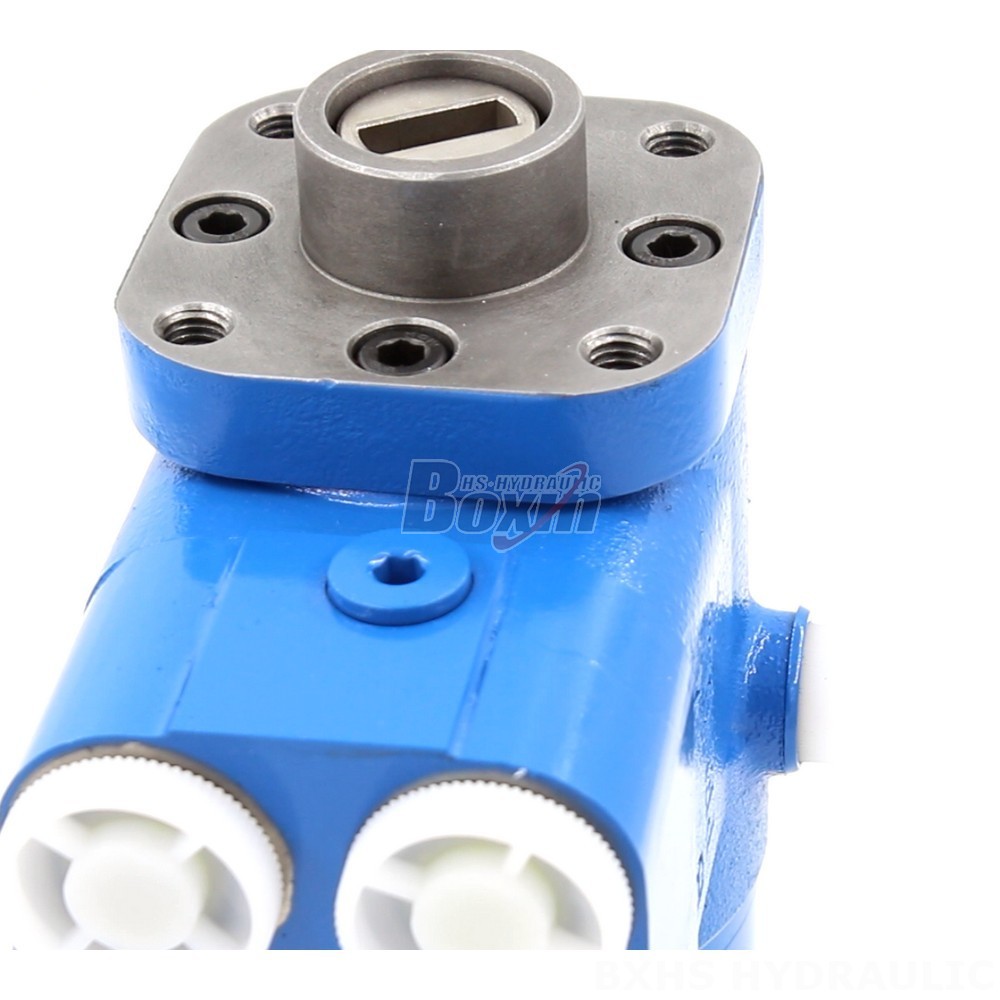

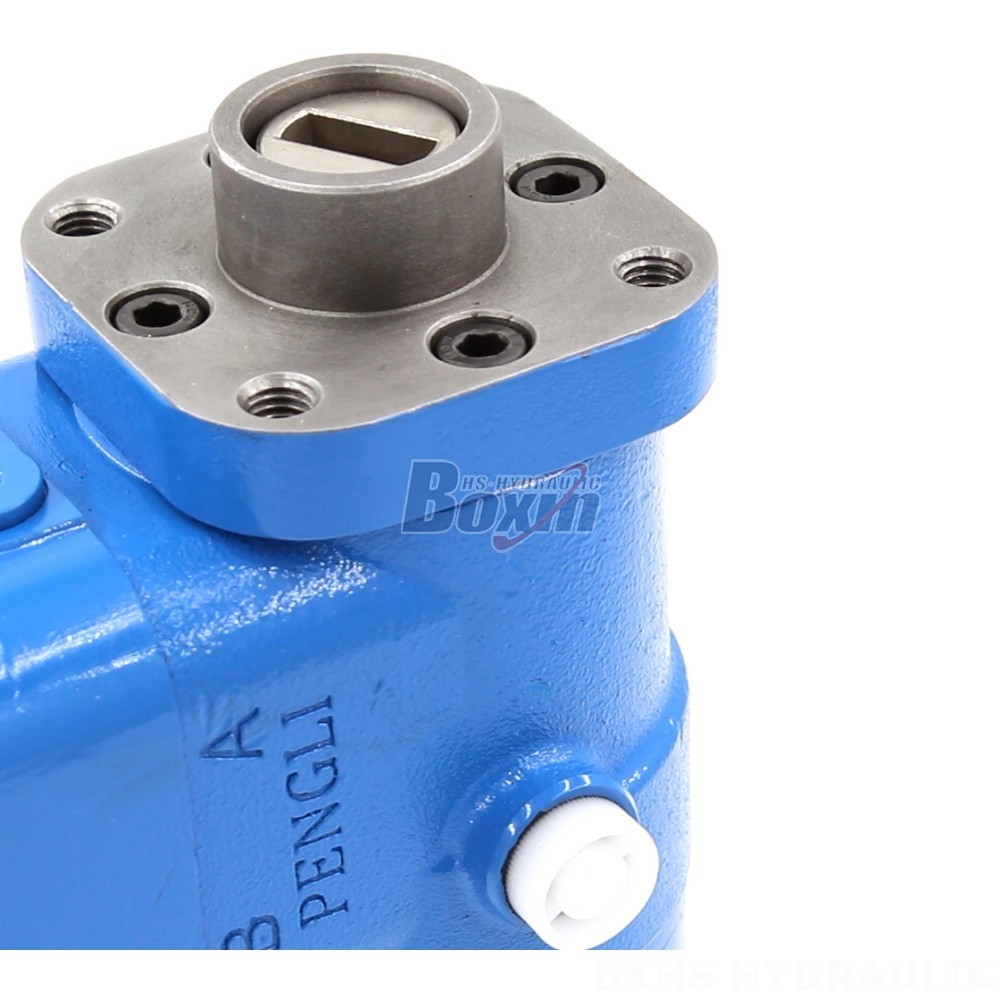

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min detail image

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min

변위:500 ml/r

정격 유량:38 L/min

브랜드:BXHS

제품 유형:조향 장치

제품 시리즈:BZZ5 시리즈 조향 장치

포장 크기:16*11*24

총중량:10.00 kg

재고 상태: 재고 있음

문의하기

564 이 제품을 찾아보시지 않겠습니까?

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min

500ml/r Hydraulic Steering Unit BZZ5-E500C 38L/min drawing image

High-quality 500ml/r hydraulic steering unit (BZZ5-E500C) with 38L/min rated flow, designed for various applications including construction, agriculture, and material handling. Offers OEM, ODM, and wholesale opportunities.

BZZ5 시리즈 조향 장치 매개변수
변위	50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r
밸브 블록	사용자 정의 가능
재질	주철
정격 유량	5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/분, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min
최대 연속 배압	1.6 Mpa
최대 입력 압력	16 Mpa

We are a hydraulic product manufacturer offering global supply of the BZZ5-E500C 500ml/r Hydraulic Steering Unit, featuring a 38L/min rated flow and robust cast iron construction. This high-performance unit boasts a maximum input pressure of 16 MPa and a maximum continuous back pressure of 1.6 MPa. The valve block is customizable to meet your specific requirements. Applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, tractors, mini/midi excavators, backhoe loaders, harvesters, and sweepers.

**Key Features:**
* **Displacement:** 500 ml/r
* **Rated Flow:** 38 L/min
* **Max Input Pressure:** 16 MPa
* **Max Cont Back Pressure:** 1.6 MPa
* **Material:** Cast Iron
* **Valve Block:** Customizable

**We offer a full range of services, including:**
* **Manufacturing:** High-quality production at our factory.
* **OEM/ODM:** Customize your hydraulic steering units to meet your brand specifications.
* **Private Labeling:** Put your brand name on our high-quality products.
* **Custom Design:** Tailor-made solutions for your unique needs.
* **Wholesale:** Competitive pricing for bulk orders.

**We are actively seeking:**
* Distributors
* Wholesalers
* Agents
* Trading Companies

Partner with a reliable hydraulic steering unit manufacturer and benefit from our factory-direct wholesale pricing and customized solutions. Contact us today to discuss your requirements and explore collaborative opportunities. We are committed to providing top-quality hydraulic components and outstanding customer service. Contact us for a quote! Our factory supplies high-quality hydraulic steering units at competitive wholesale prices.
