This high-quality hydraulic gear pump offers a displacement of 10 cc/rev, rated pressure of 20 MPa (2900 psi), and rated speed of 2000 r/min. It is available in various configurations and is ideal for use in a wide range of applications including construction, agriculture, and industrial vehicles.
| CBHS-FL3 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 10 cc/회전, 4 cc/회전, 20 cc/회전, 16 cc/회전, 14 cc/회전, 6 cc/회전 |
| 정격 압력 | 20 MPa (2900 psi) |
| 최대 압력 | 25 MPa (3625 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 3000회전 |
| 회전 방향 | L: 왼쪽 (반시계 방향), R: 오른쪽 (시계 방향) |
| 재질 | 알루미늄 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | A-타원 플랜지 |
| 샤프트 유형 | H: 직사각형 스플라인, X: 유선 스플라인, P: 평범한 키 |

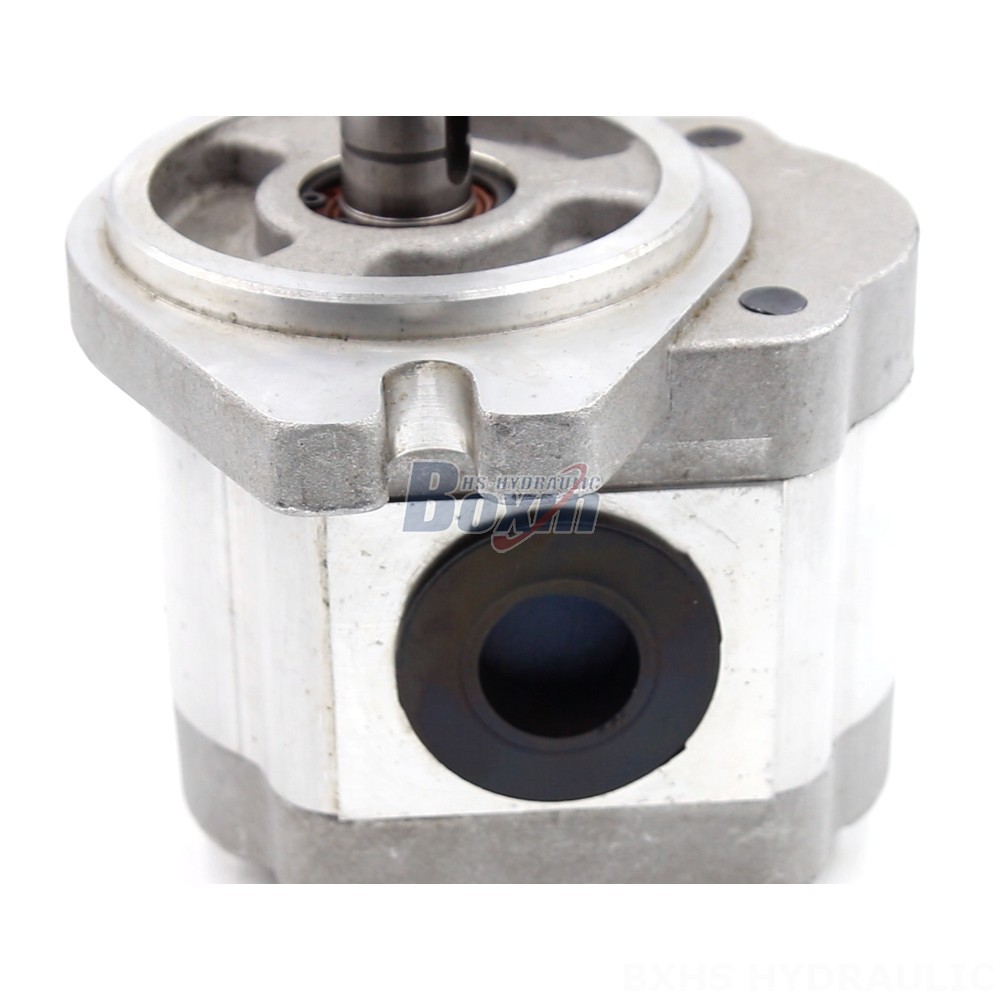

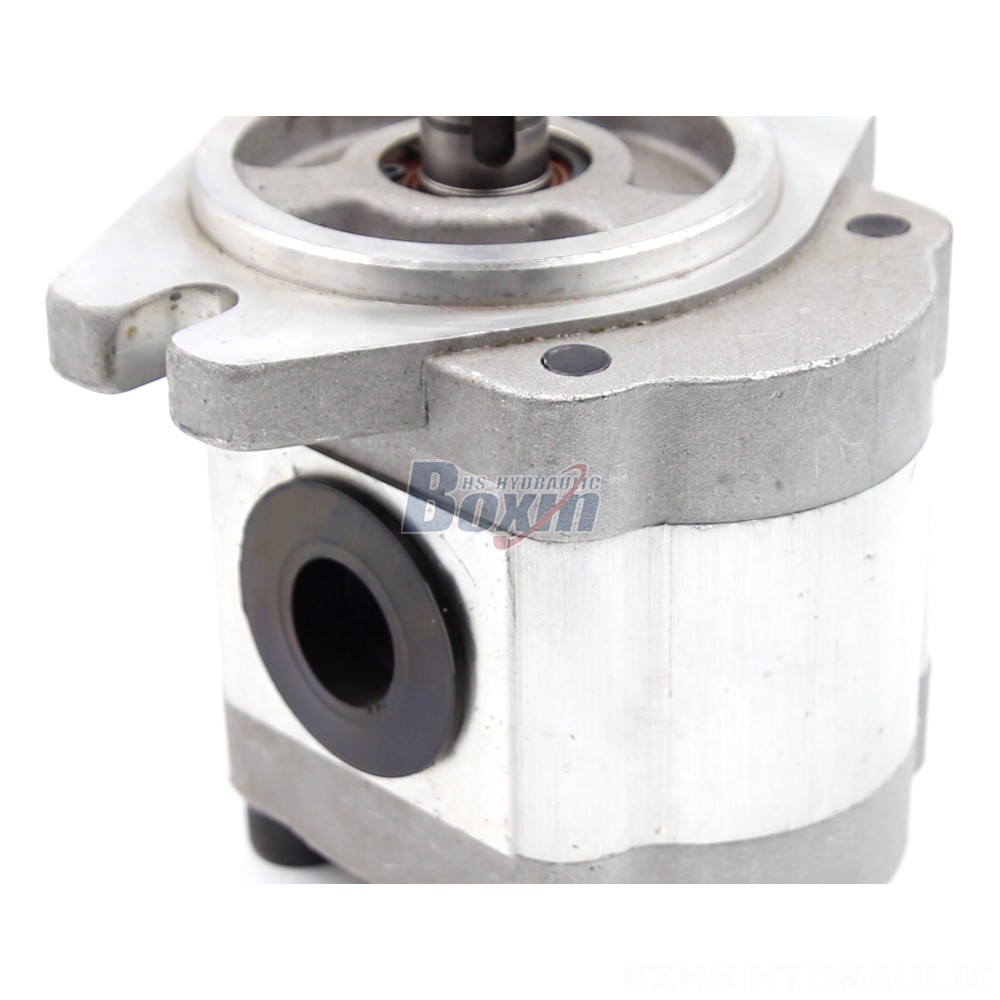

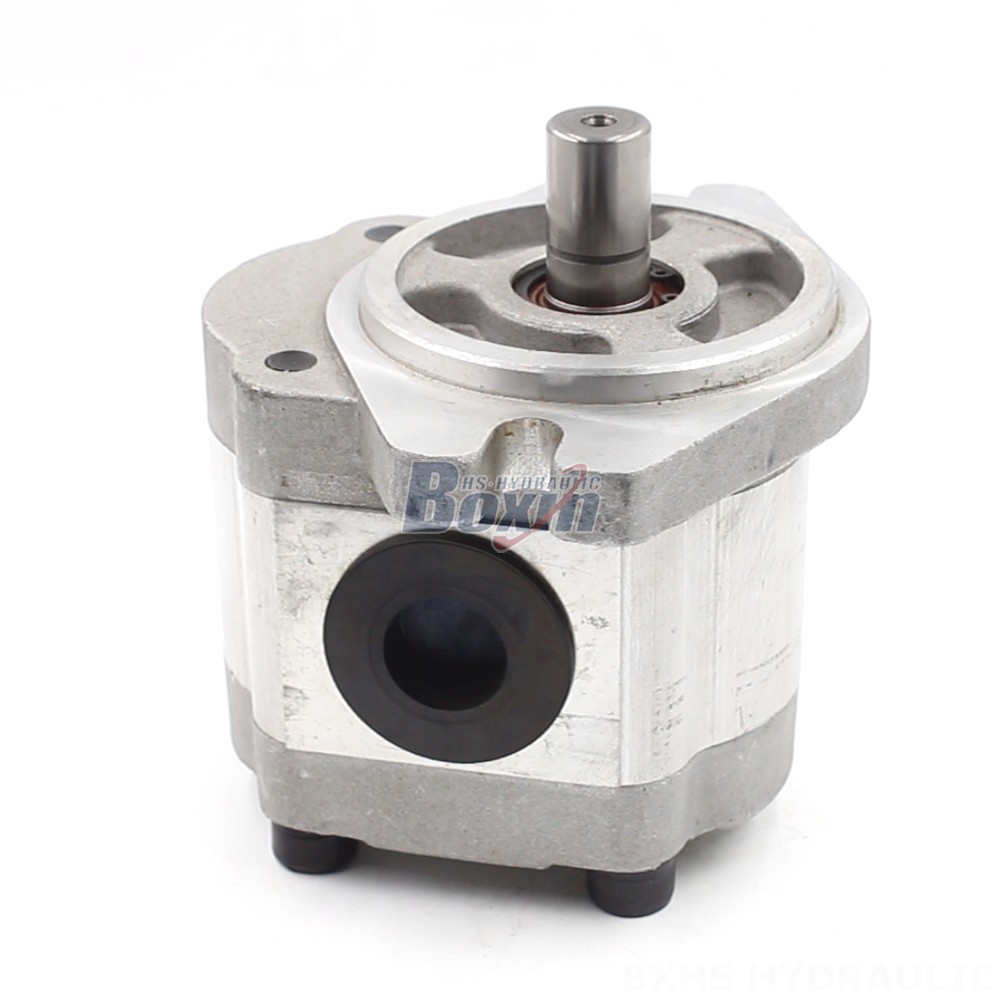

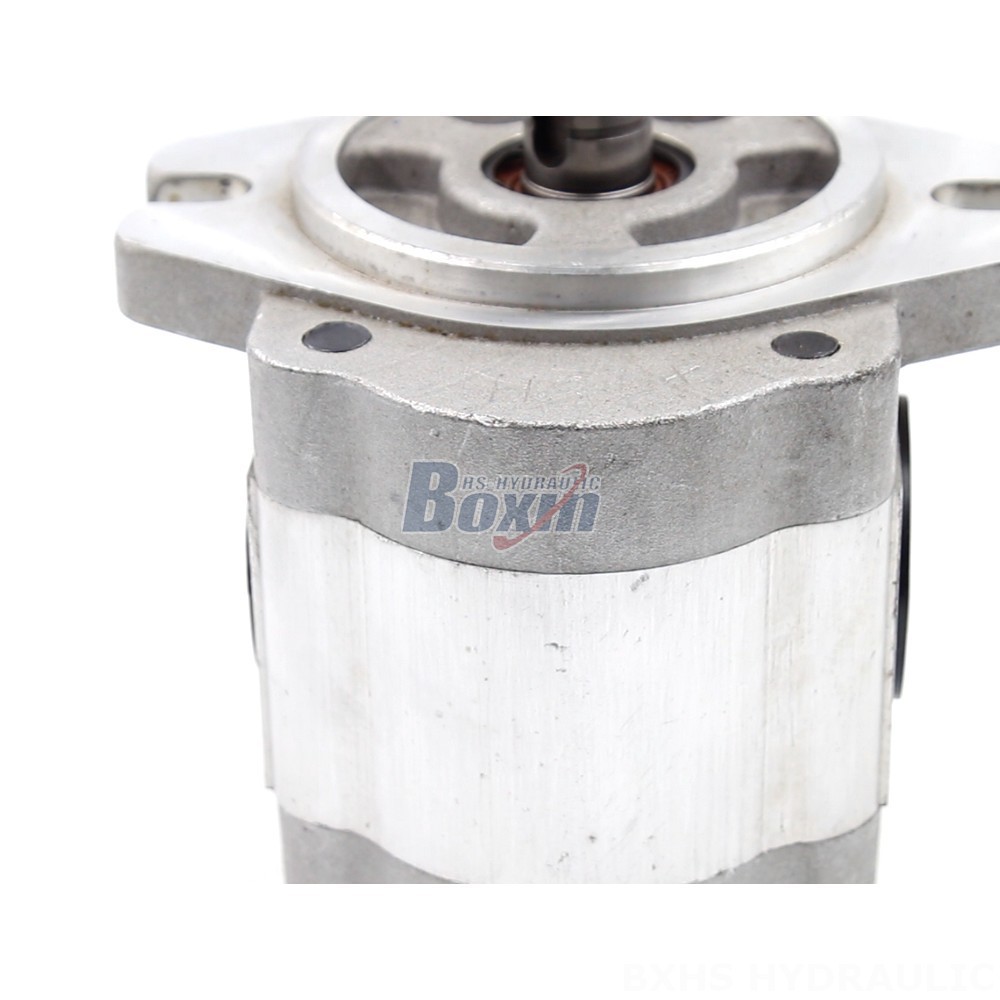

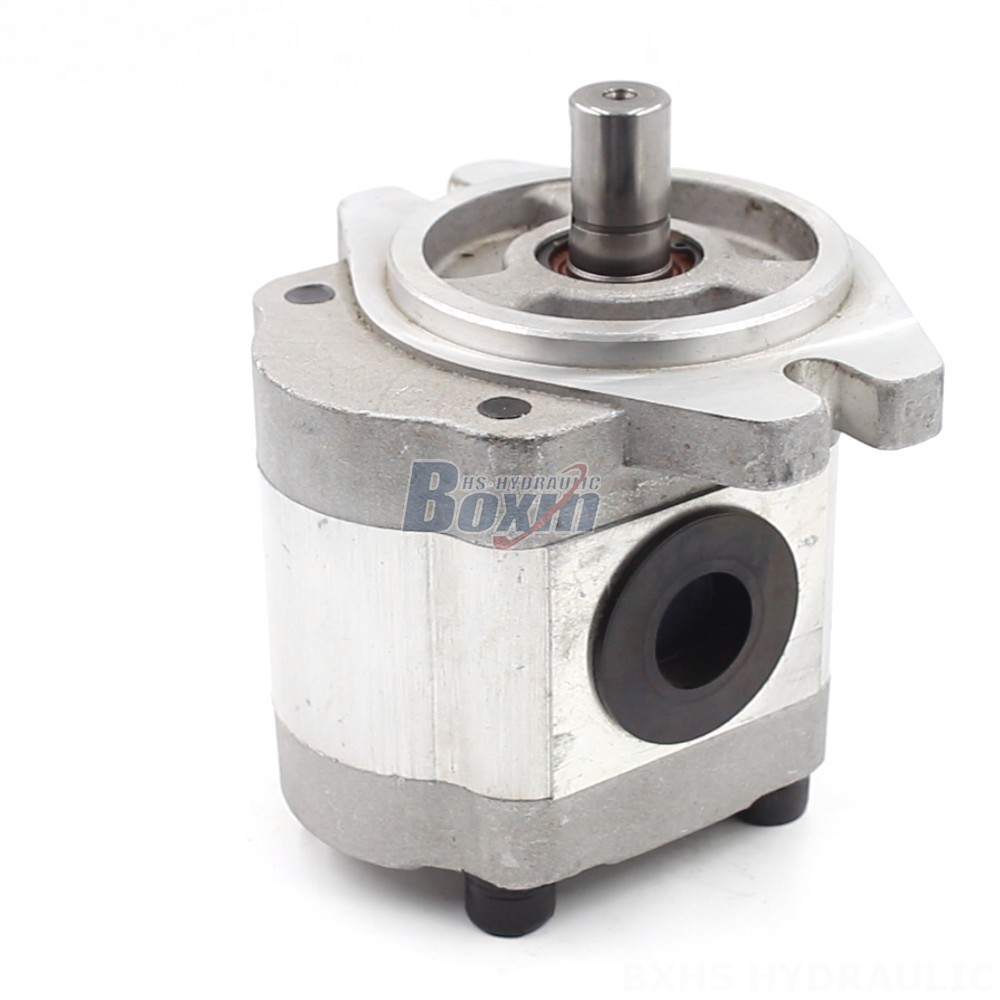

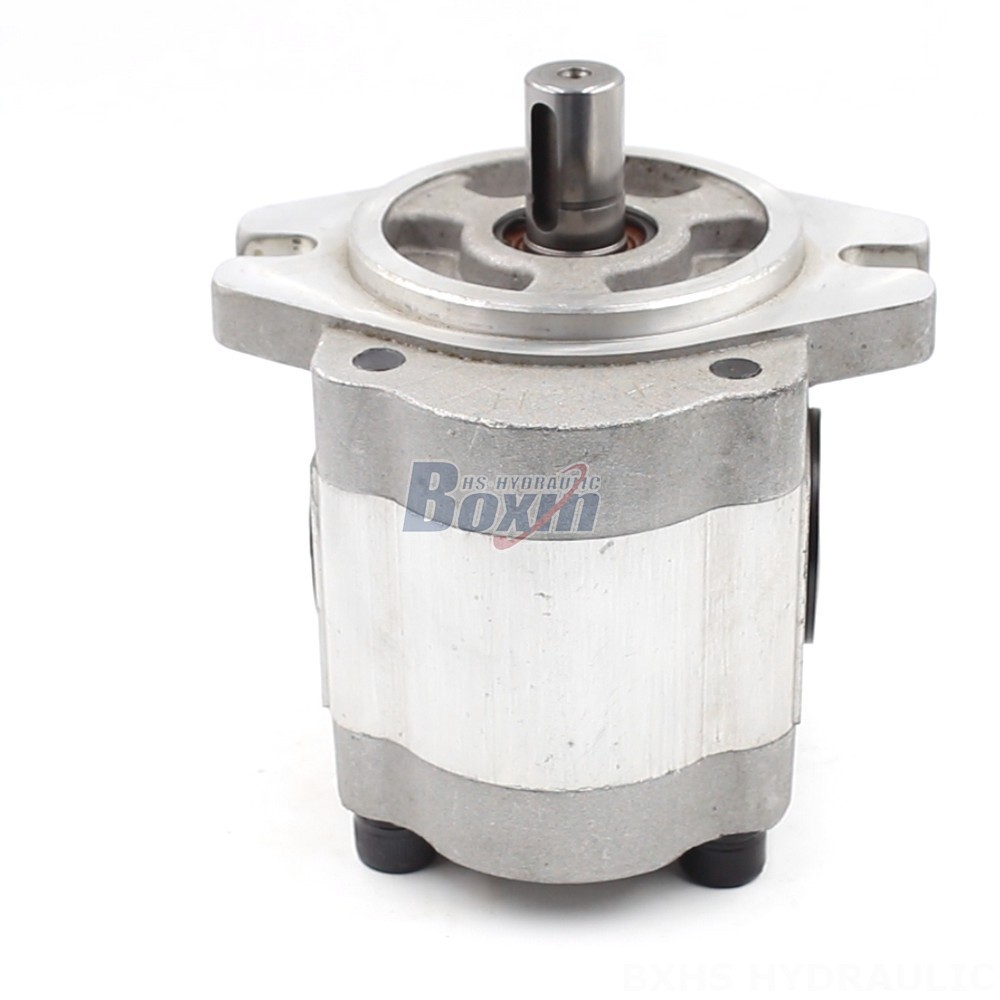

This 6 cc/rev Hydraulic Gear Pump is manufactured with high-quality materials and is designed for durability and reliability. It features an A-Oval flange and a Plain Key shaft, making it compatible with a variety of applications. The pump offers a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. It is also customizable to meet specific requirements. This pump is ideal for use in construction equipment, agricultural machinery, and industrial vehicles. It is particularly well-suited for telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, tractors and front-end loaders, harvesters, balers, and sprayers. As a manufacturer, we offer factory direct pricing, OEM, ODM, and private label services. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
