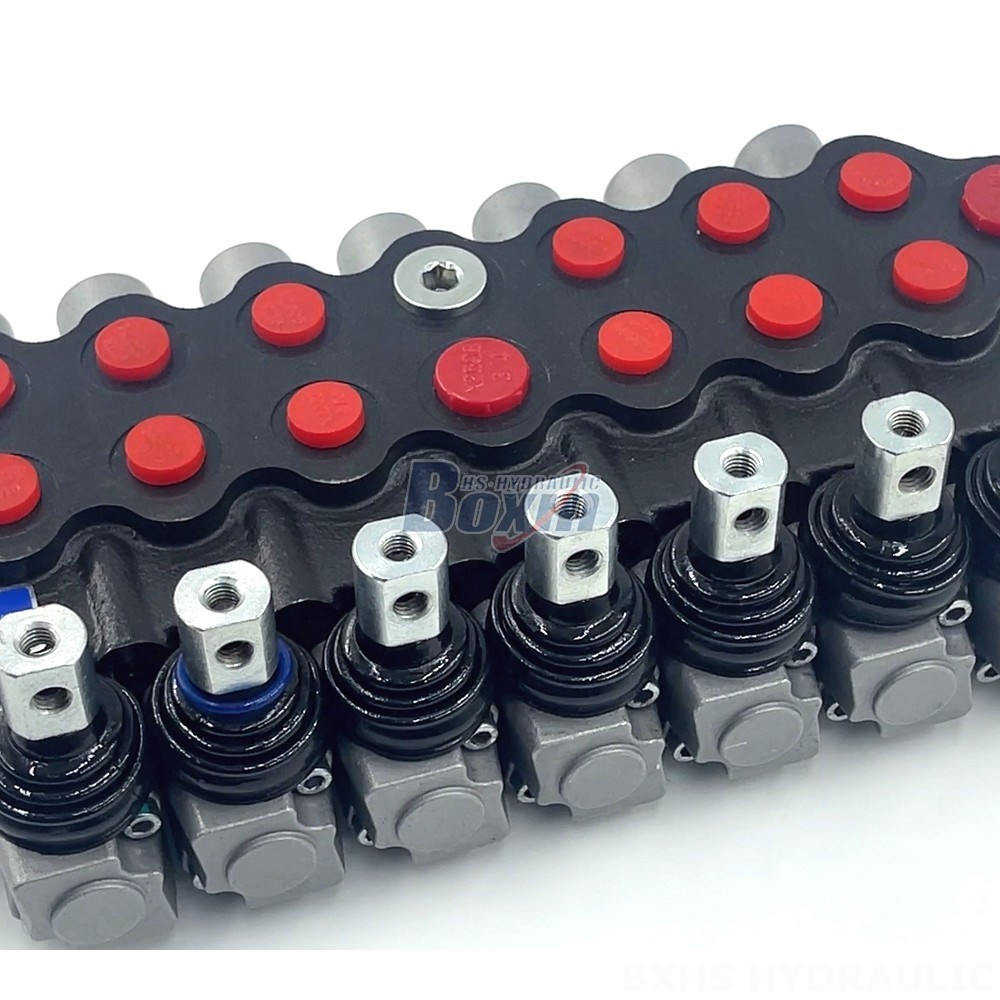

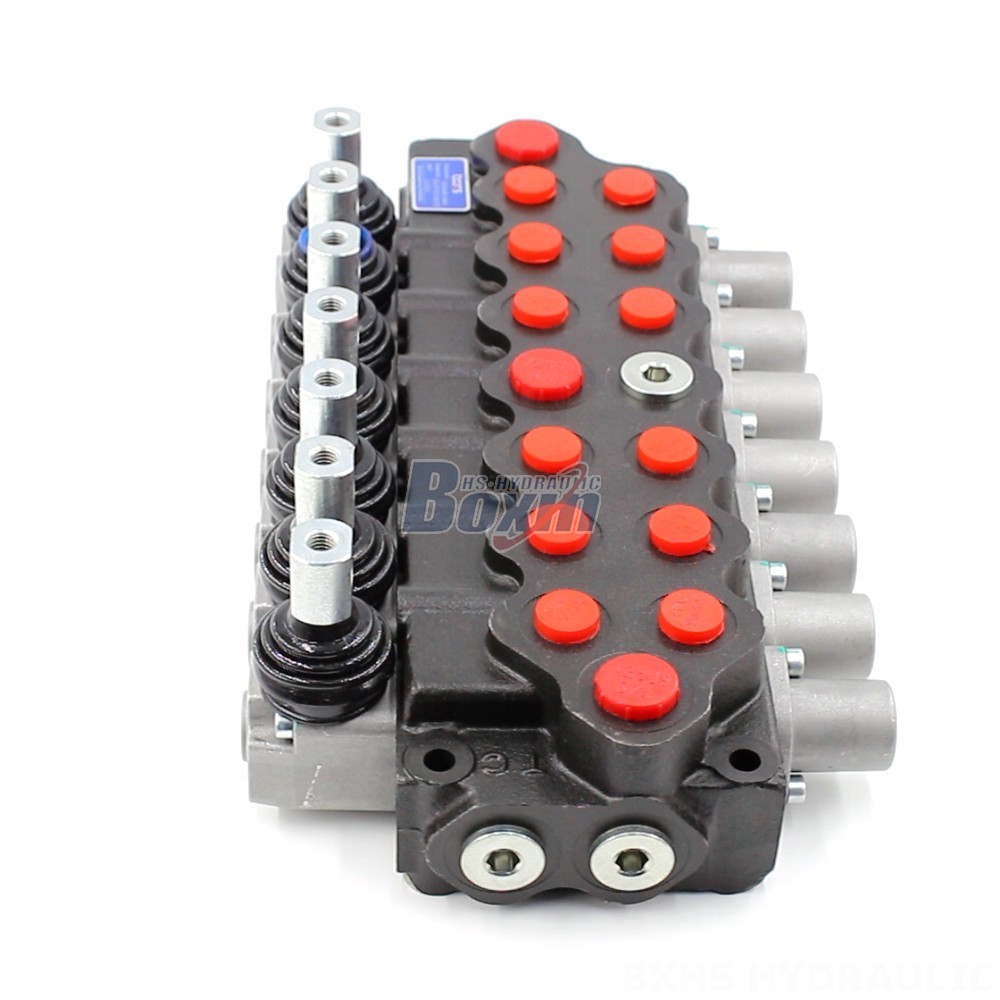

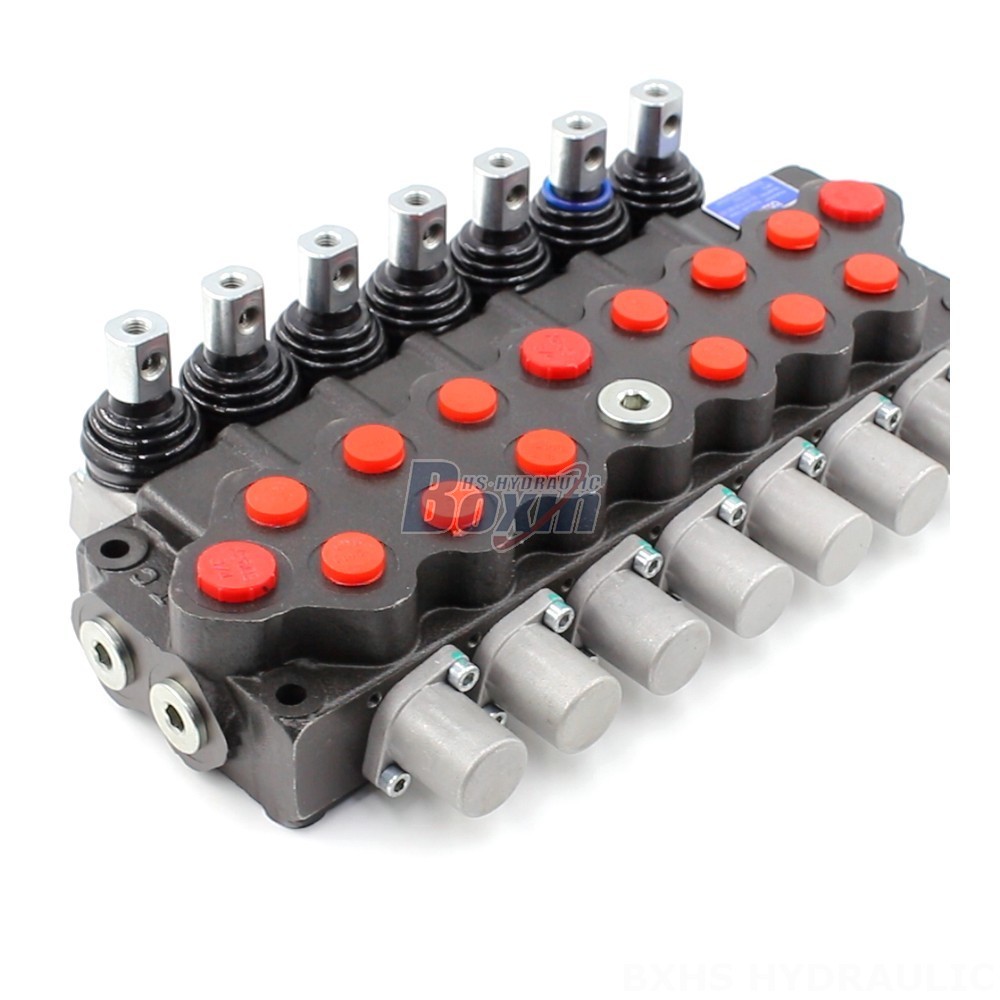

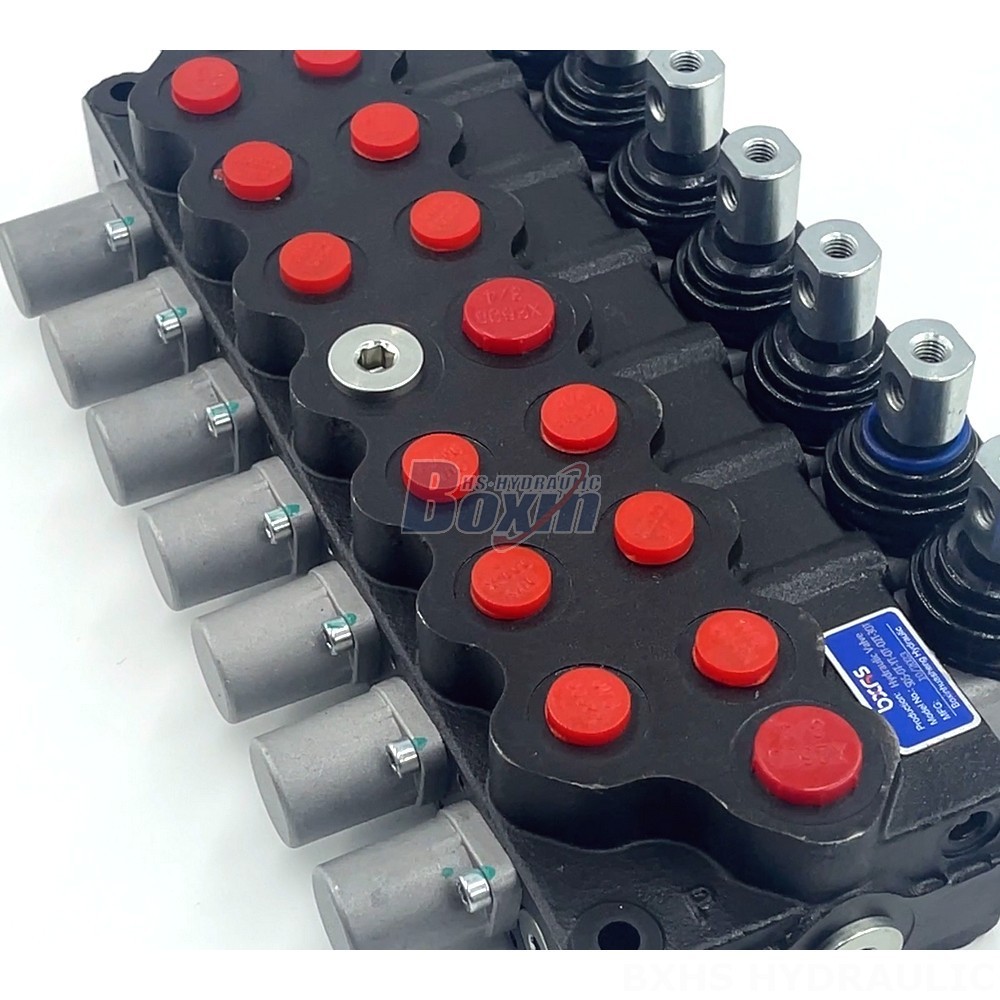

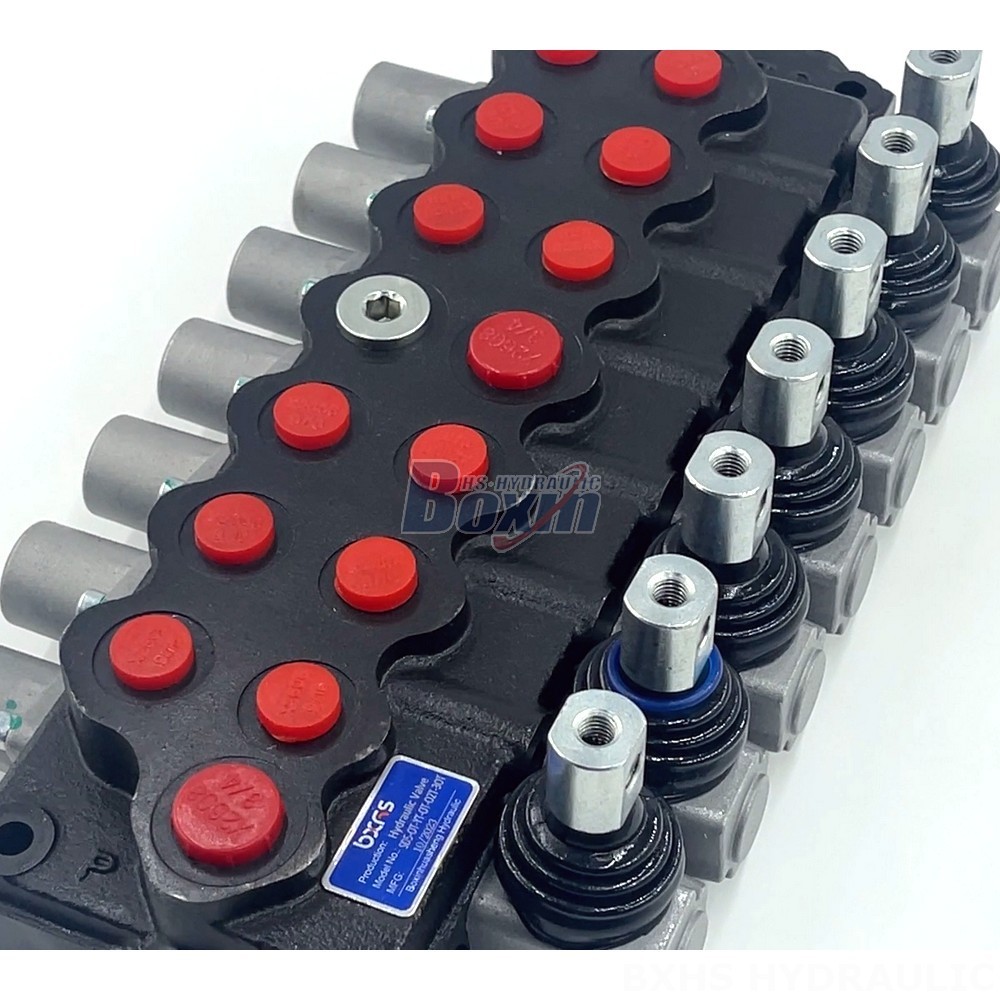

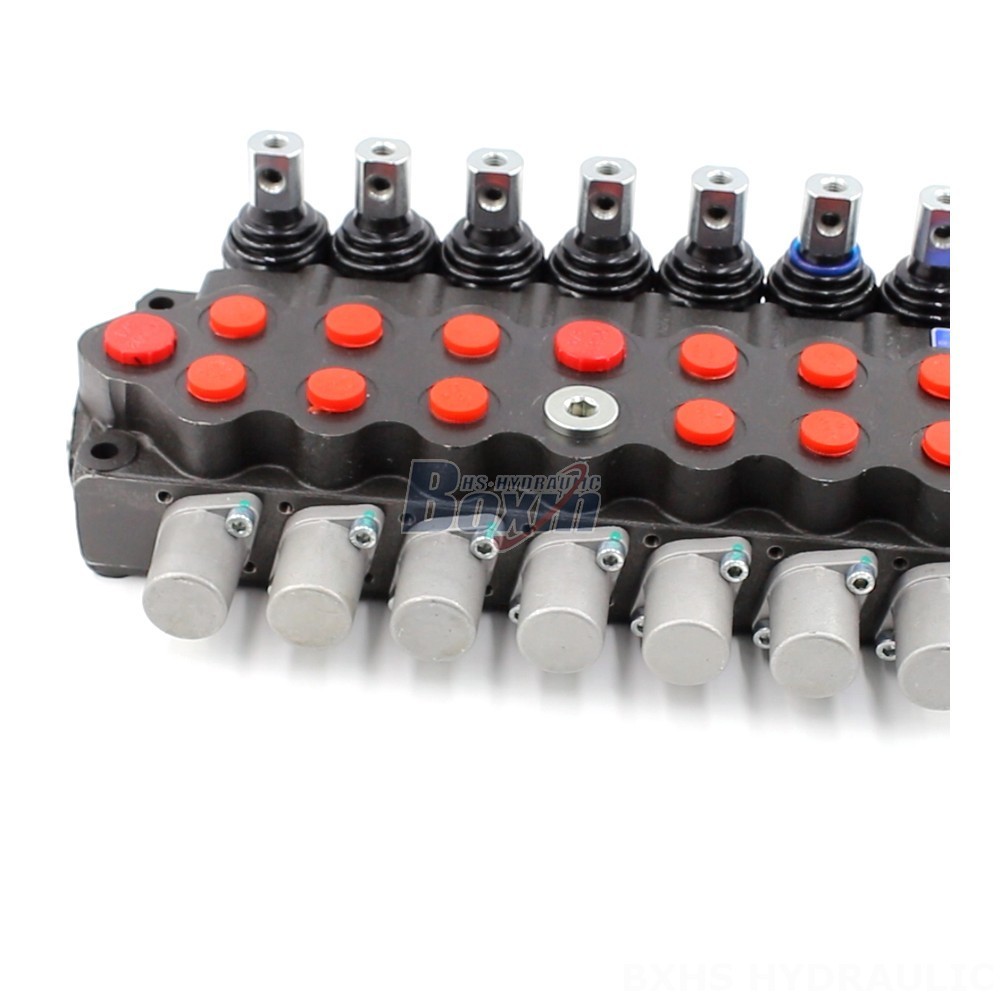

The SD5 Series 7-Spool Hydraulic Multiplier Valve is a high-performance, monoblock valve designed for a wide range of applications in construction, material handling, agriculture, and industrial vehicles. With its 7 spools and rated flow of 40 L/min, it provides precise control and efficient operation.
| SD5 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +60°C (-40°F to +140°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 305바 (4400 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2 |
| 출구 포트 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
| 포트 크기 | G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8 |
This 7-Spool Hydraulic Multiplier Valve is built with a robust monoblock construction, providing exceptional durability and reliability. It features a rated flow of 40 L/min, a maximum pressure rating of 305 bar (4400 psi), and a wide operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt). Designed for demanding environments, it operates within an ambient temperature range of -40°C to +60°C (-40°F to +140°F). With its manual control and 7 spools, this valve offers precise control for a variety of hydraulic functions. This Hydraulic Multiplier Valve is ideal for applications such as telehandlers, forklifts, stackers, aerial platforms, mini-excavators, compact wheel loaders, harvesters, bale wrappers, seeding machines, and wood splitters.
