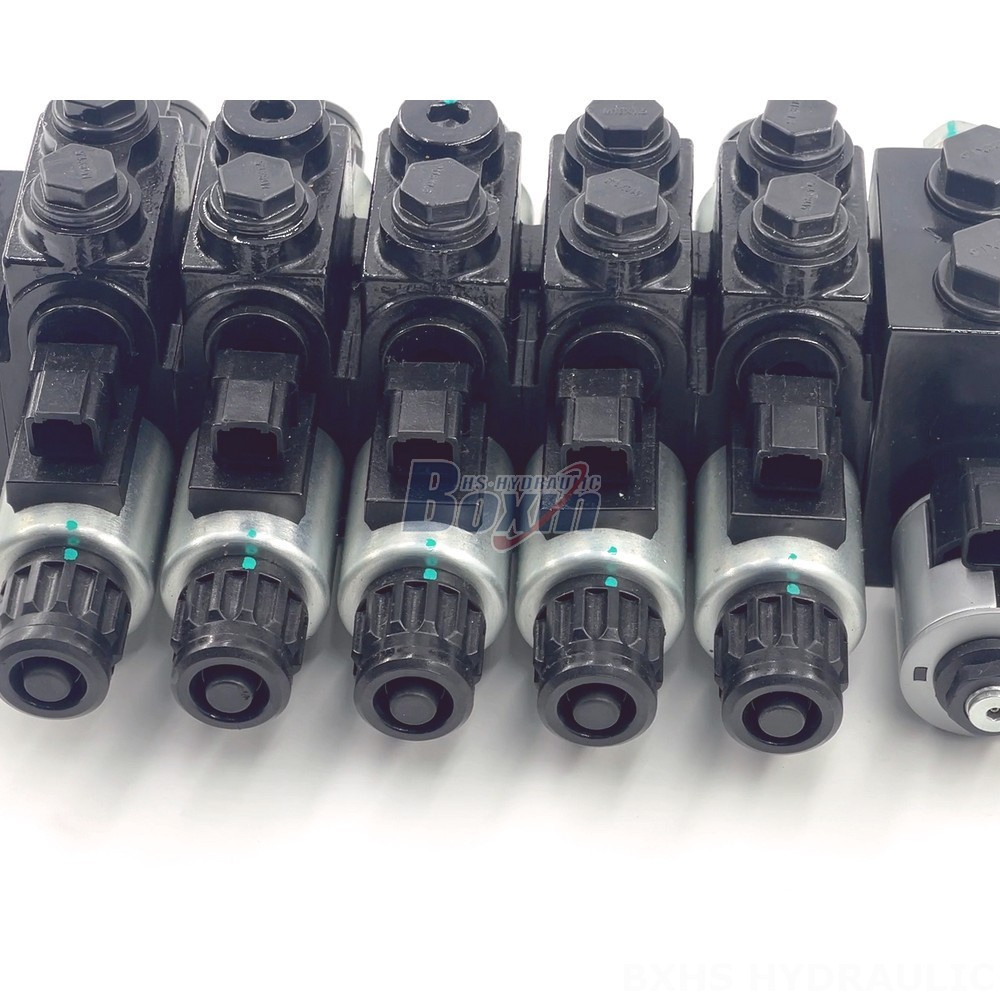

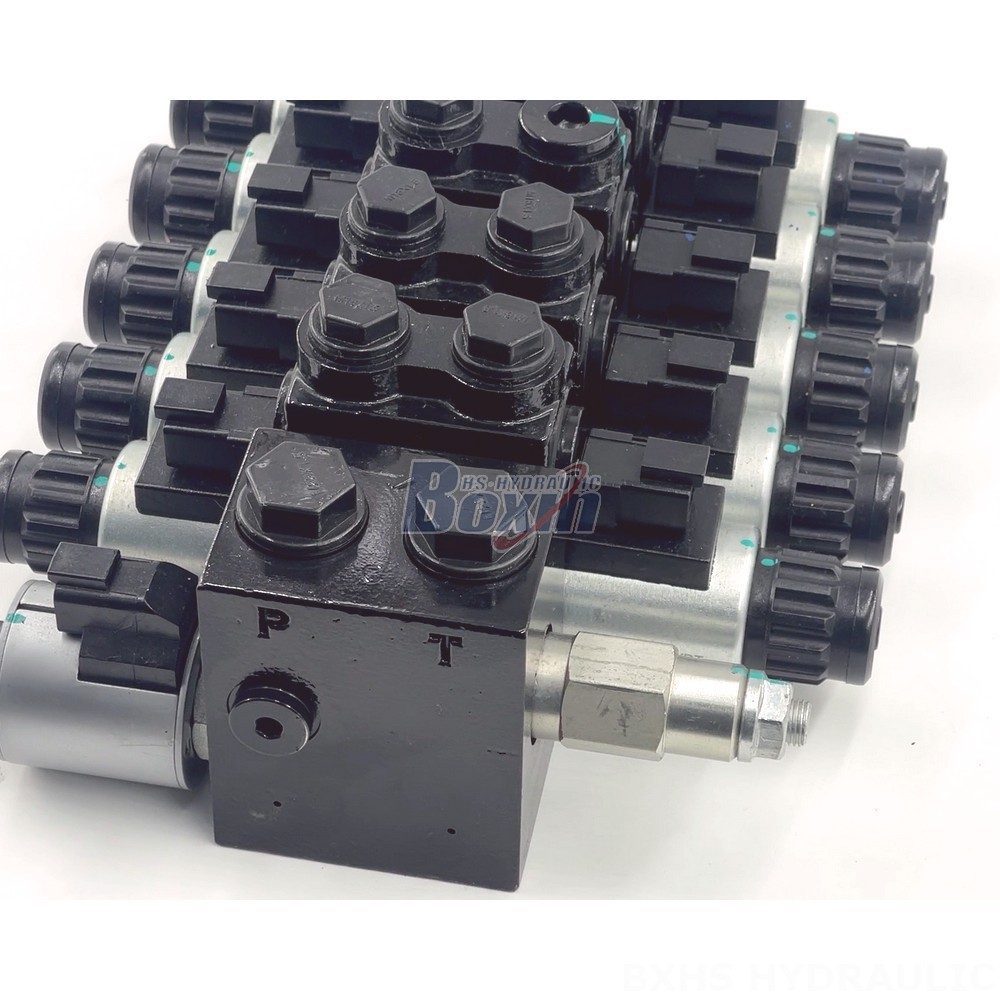

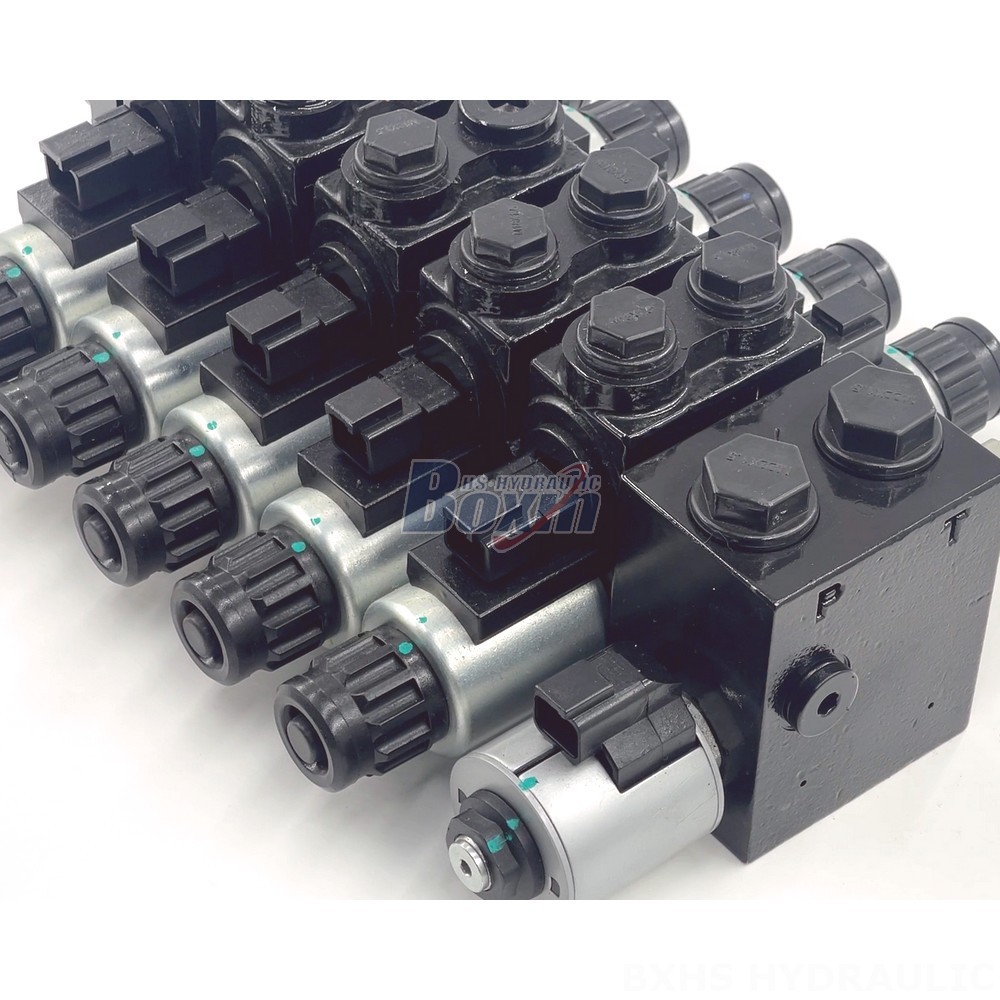

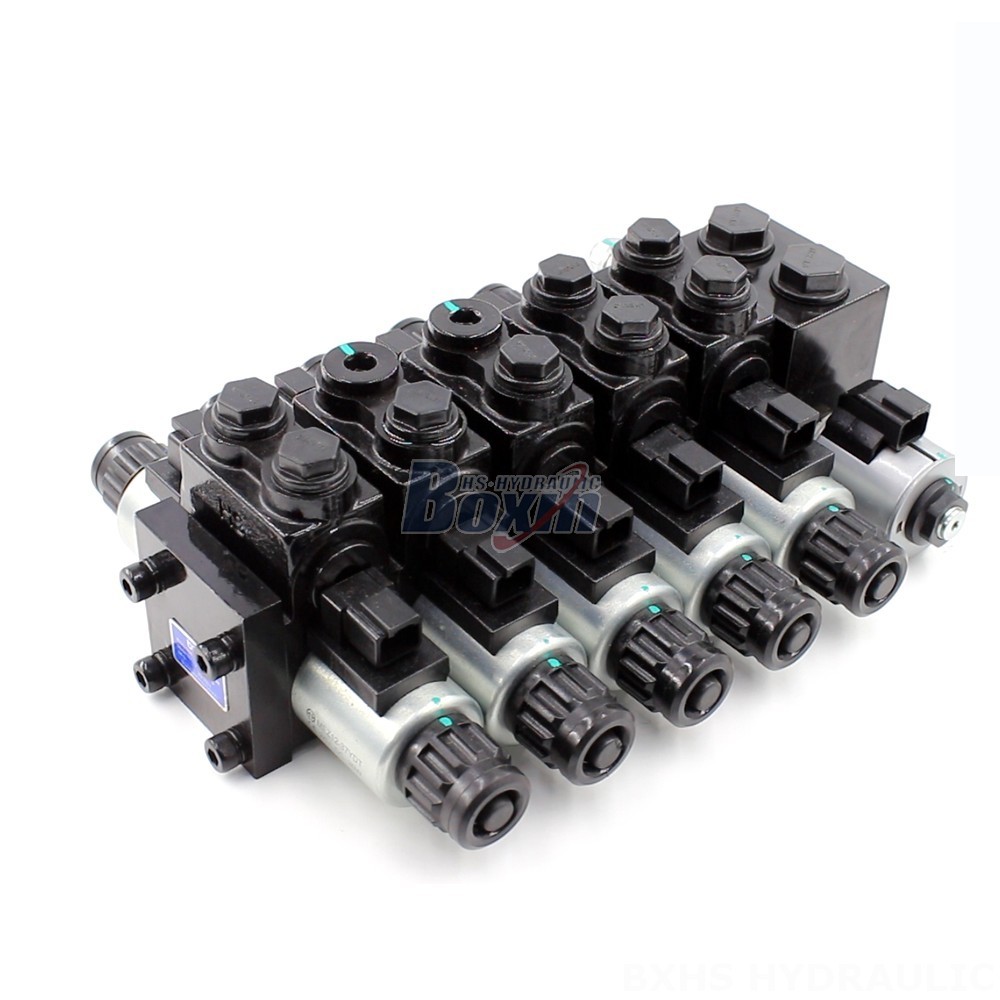

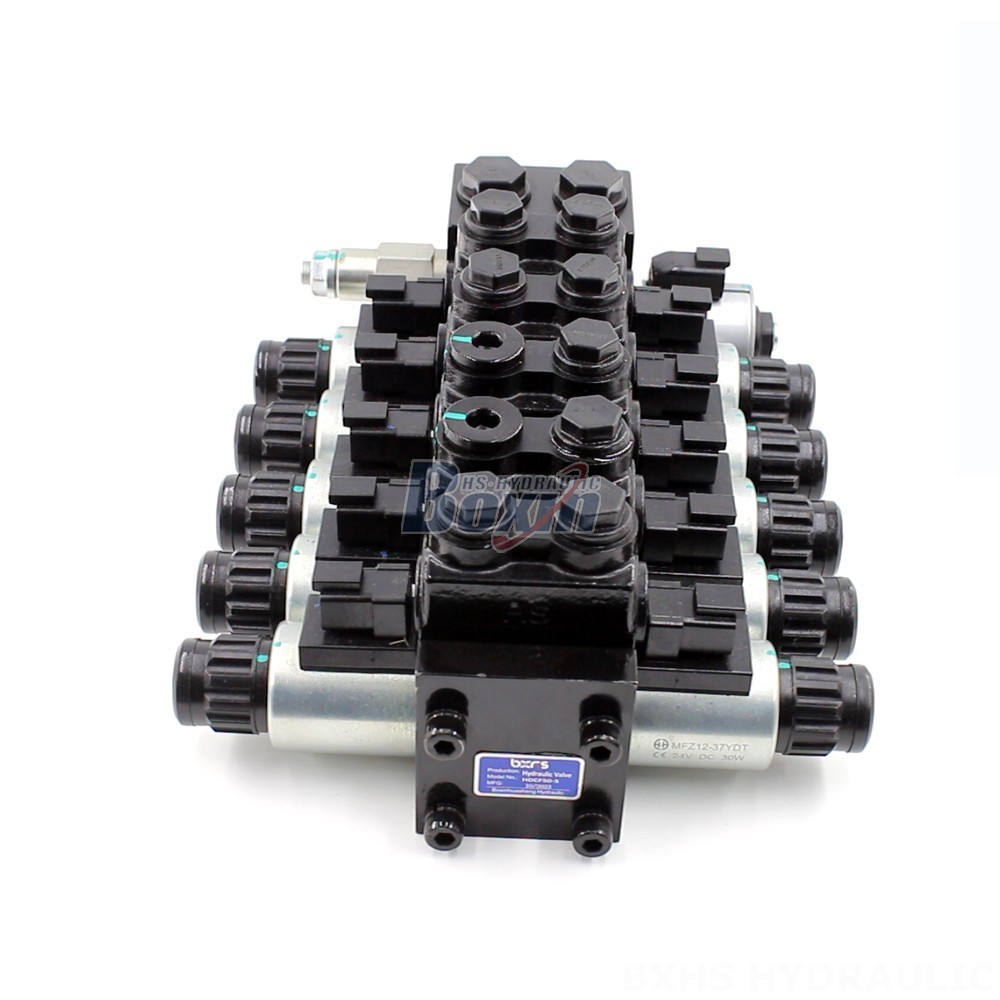

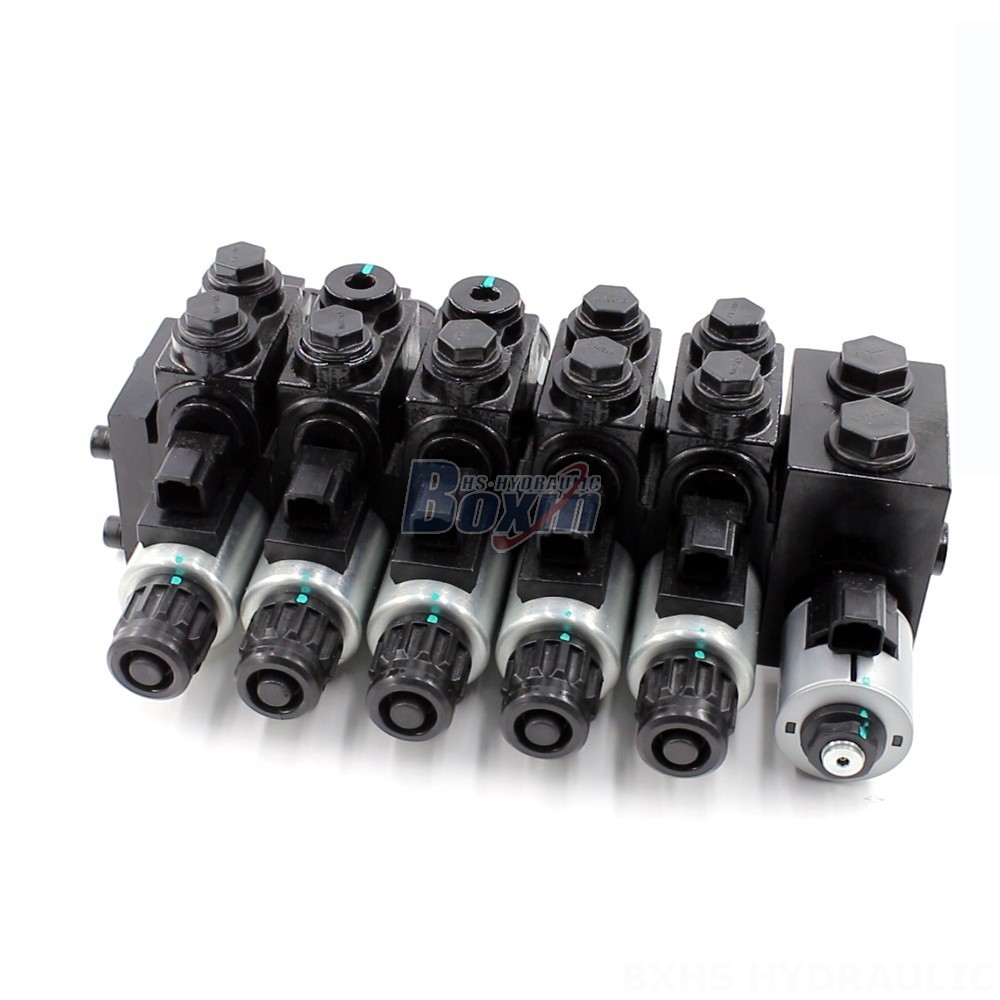

The Advanced HDCF50 Solenoid Control Valve is a high-performance hydraulic valve designed for demanding applications across various industries. With its robust sectional structure, 50 L/min flow capacity, and 160 bar pressure rating, this valve offers exceptional control and reliability.
| HDCF50 시리즈 솔레노이드 제어 밸브 매개변수 | |
|---|---|
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀 |
| 제어 방식 | 솔레노이드 |
| 포트 크기 | M22×1.5, SAE 8 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션 |
| 주변 온도 범위 | -20°C ~ +80°C (-4°F ~ +176°F) |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 출구 포트 | M18×1.5, M22×1.5, SAE 8 |
| 최대 압력 | 160바 (2300 psi) |
| 정격 유량 | 분당 50리터 (13.2 US gpm) |
| 구조 유형 | 섹션 밸브 |
| 입구 포트 | M18×1.5, M22×1.5, SAE 8 |
**Product Name:** Advanced HDCF50 Solenoid Control Valve
**Control Method:** Solenoid
**Section:** 5 Section
**Structure Type:** Sectional Valve
**Rated Flow:** 50 L/min (13.2 US gpm)
**Max Pressure:** 160 bar (2300 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -20°C to +80°C (-4°F to +176°F)
**Spool:** 5 Spool
**Voltage:** 12V 24V
**Series:** HDCF50 Series
**Application Area:** Material Handling, Construction and Earth Moving, Agriculture, Industrial Vehicles
**Applicable Model:** Telehandler, Forklift, All Terrain Crane, Stacker, Aerial Platform, Motor Grader, Mini-Excavator, Skid Steer Loader, Compact Wheel Loader, Wheel Loader
**Key Features:**
- Advanced design for demanding hydraulic applications
- Sectional valve construction allows for customization and flexibility
- High flow capacity of 50 L/min ensures efficient operation
- Maximum pressure rating of 160 bar for heavy-duty applications
- Wide operating viscosity range from 15 to 75 cSt
- Robust construction with high durability and reliability
- Available in various spool configurations and voltage options
- Suitable for a wide range of hydraulic systems and equipment
- Backed by global manufacturing and support
