Advanced Hydraulic Gear Pumps - CBHS-F550 Series. Wholesale & OEM. Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev. Rated Pressure: 20 MPa (2900 psi). Rated Speed: 2000 r/min. Max Speed: 2200 r/min. These pumps are widely used in material handling, construction and earth moving, agriculture, and industrial vehicles.
| CBHS-F5 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 32 cc/회전, 50 cc/회전, 63 cc/회전, 20 cc/회전 |
| 정격 압력 | 20 MPa (2900 psi) |
| 최대 압력 | 25 MPa (3625 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 2500회전 |
| 회전 방향 | L: 왼쪽 (반시계 방향), R: 오른쪽 (시계 방향) |
| 재질 | 주철 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | B-사각 플랜지 |
| 샤프트 유형 | H: 직사각형 스플라인, X: 유선 스플라인, P: 평범한 키 |

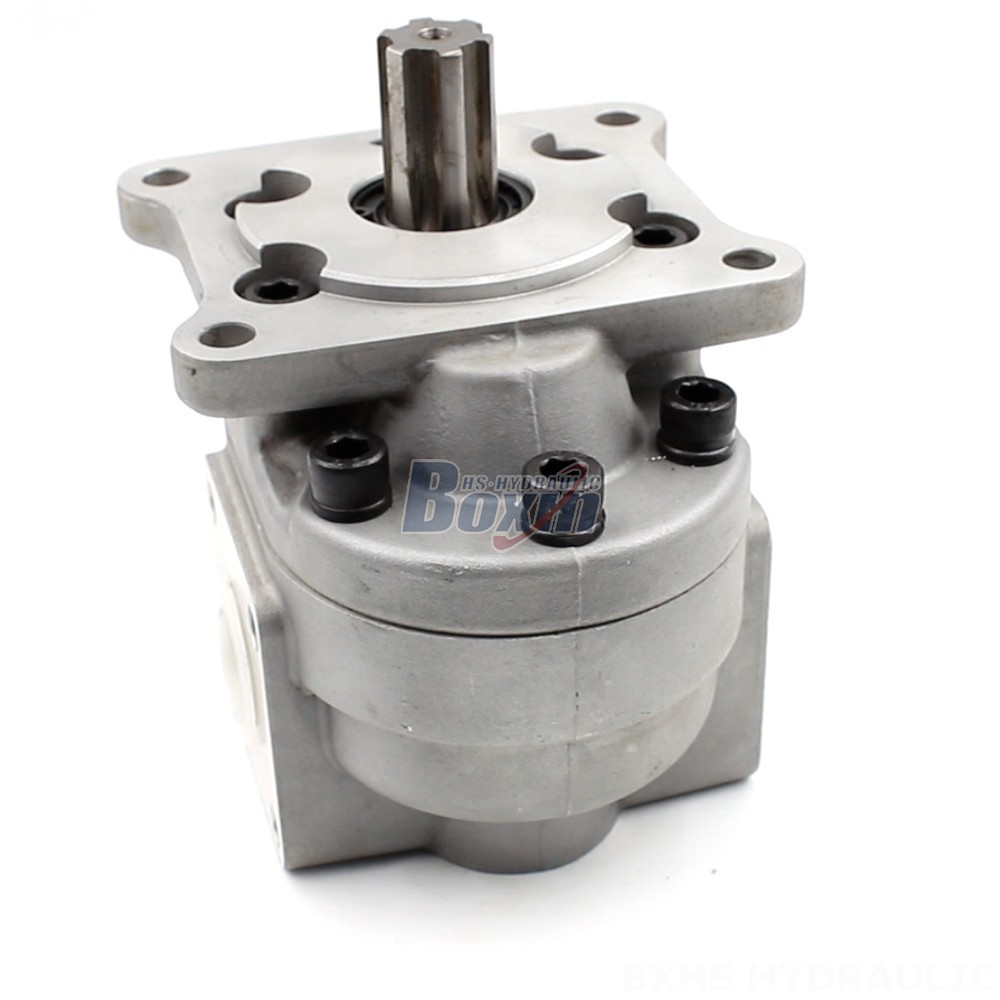

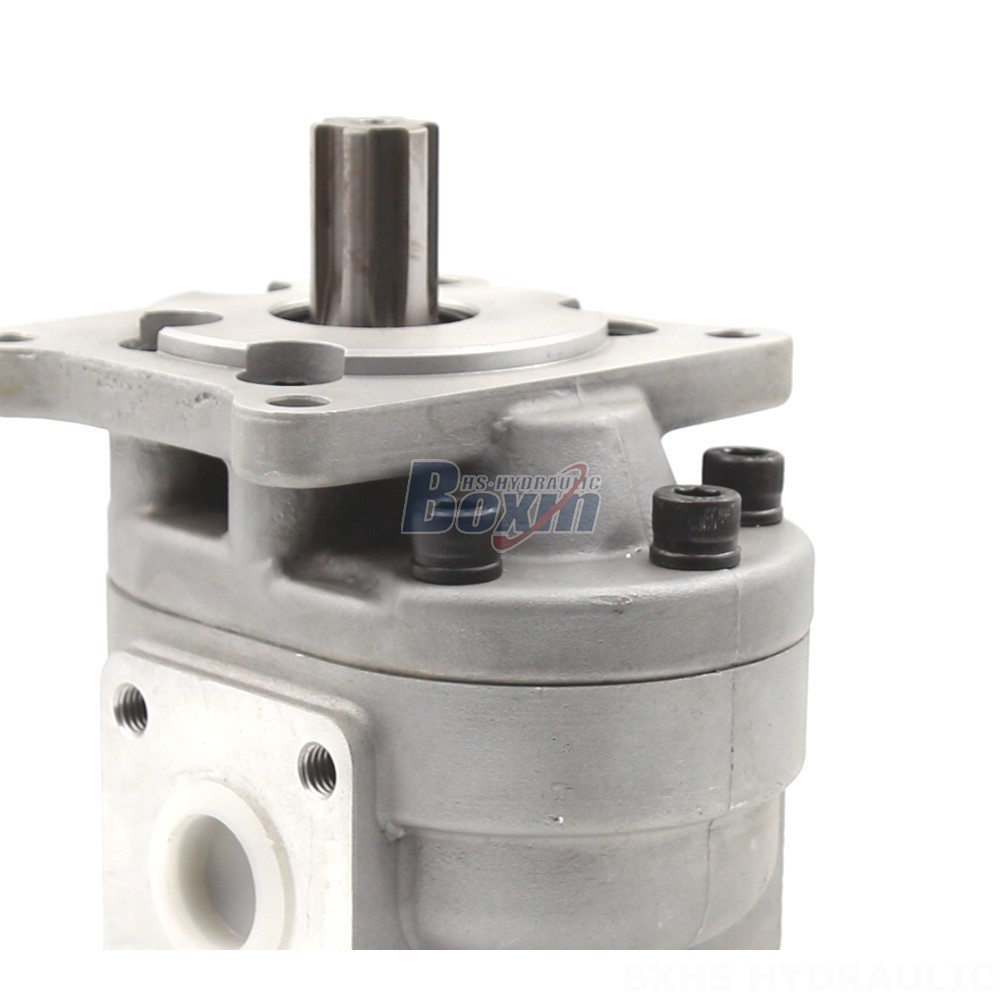

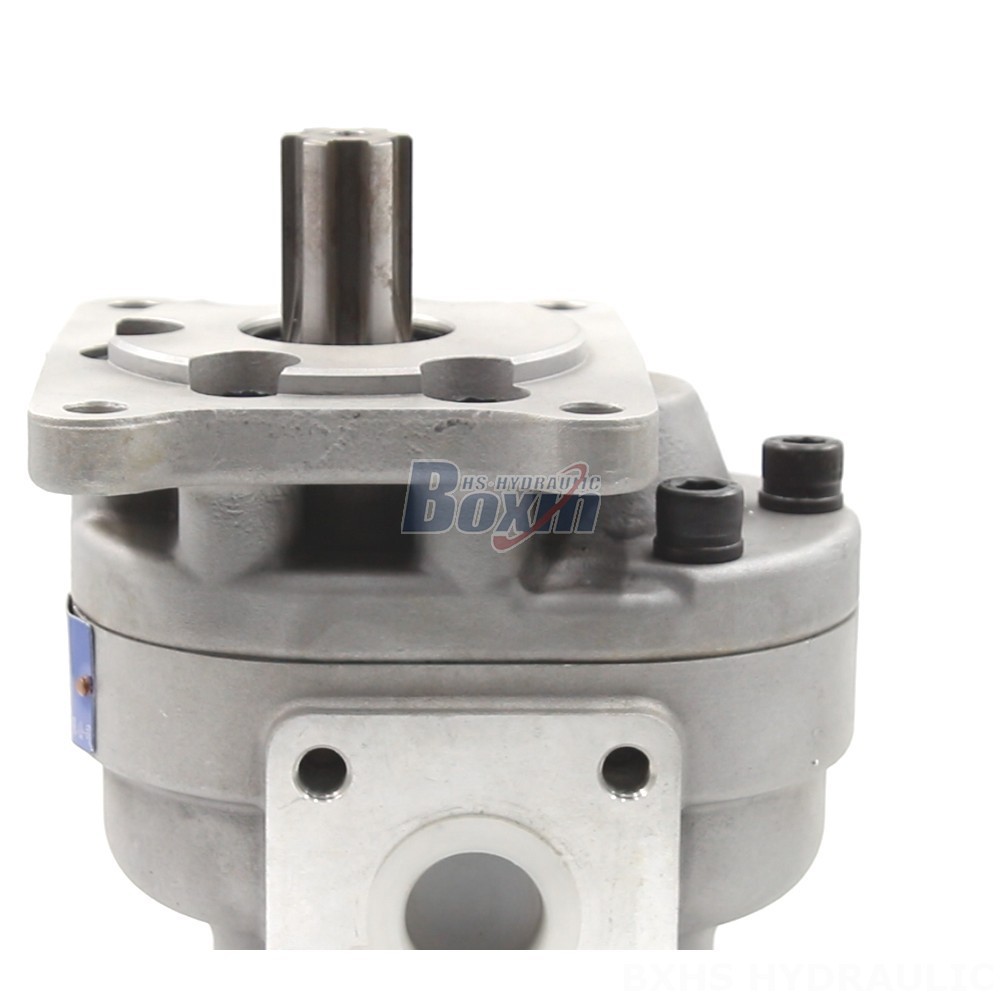

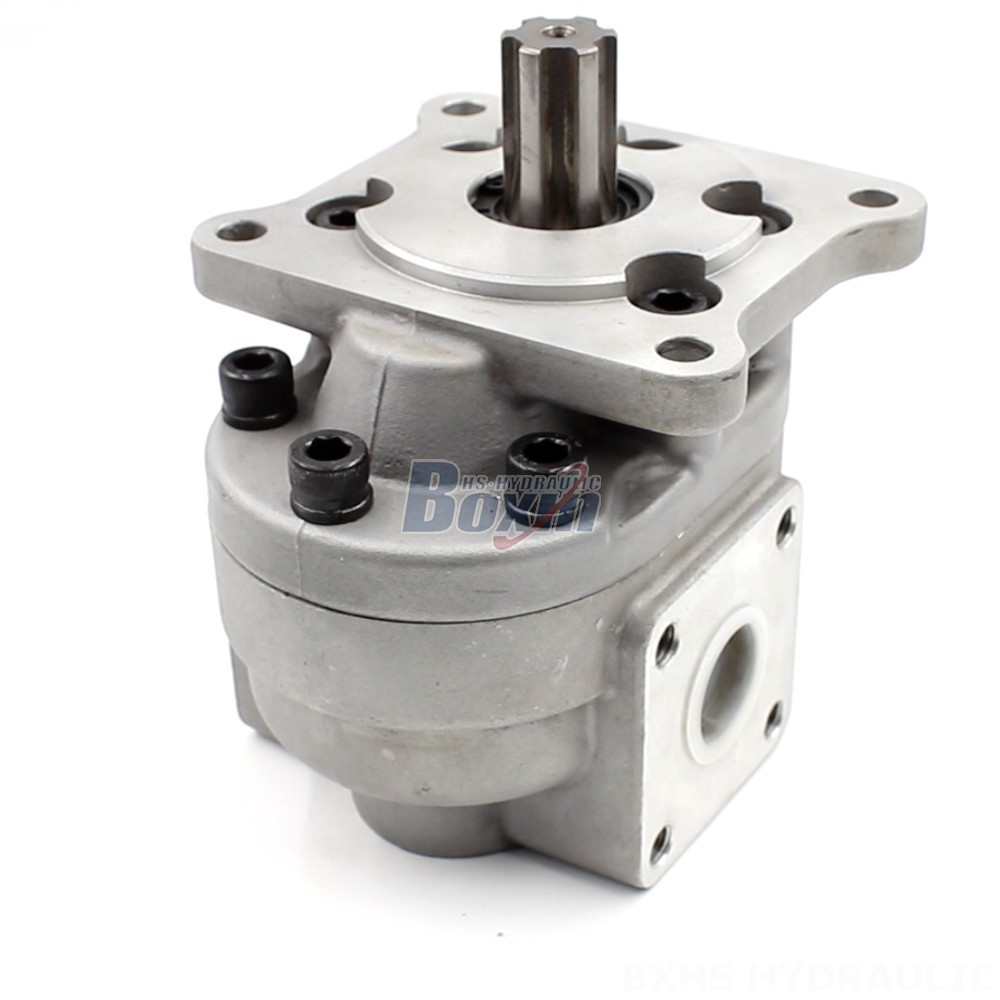

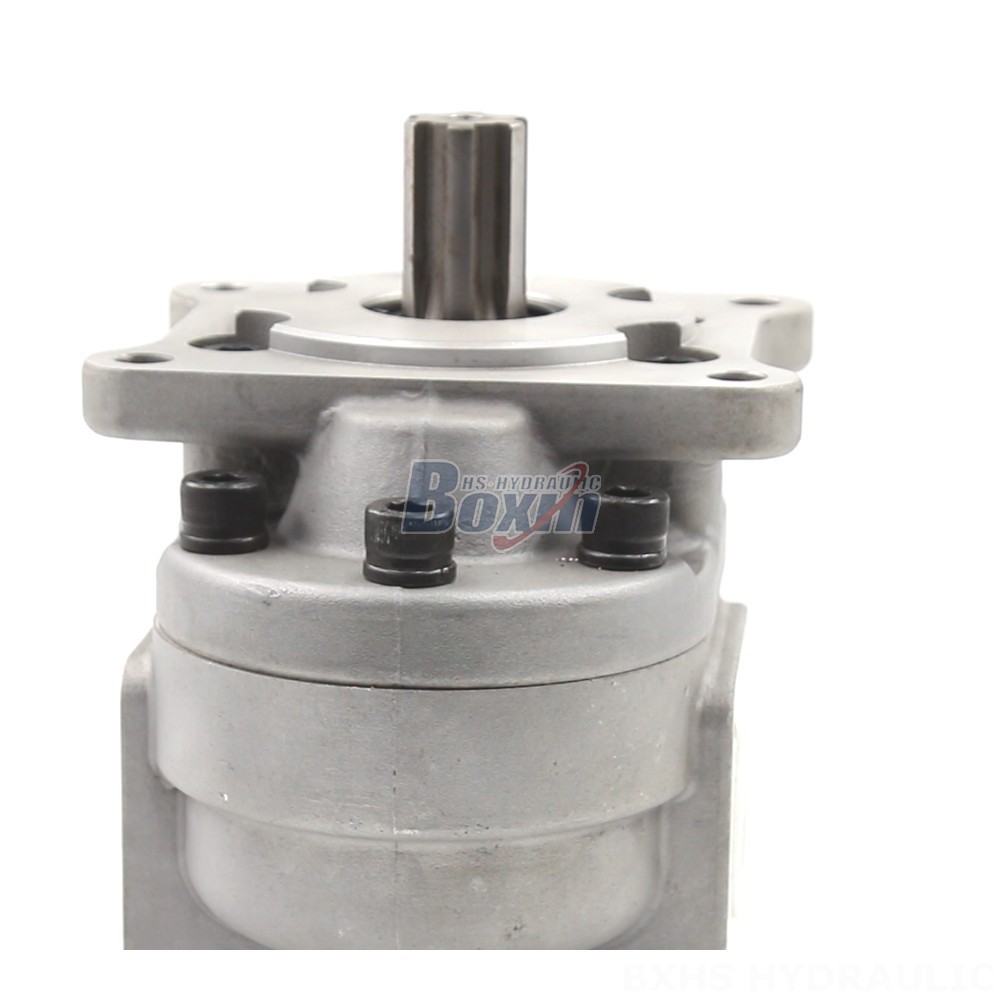

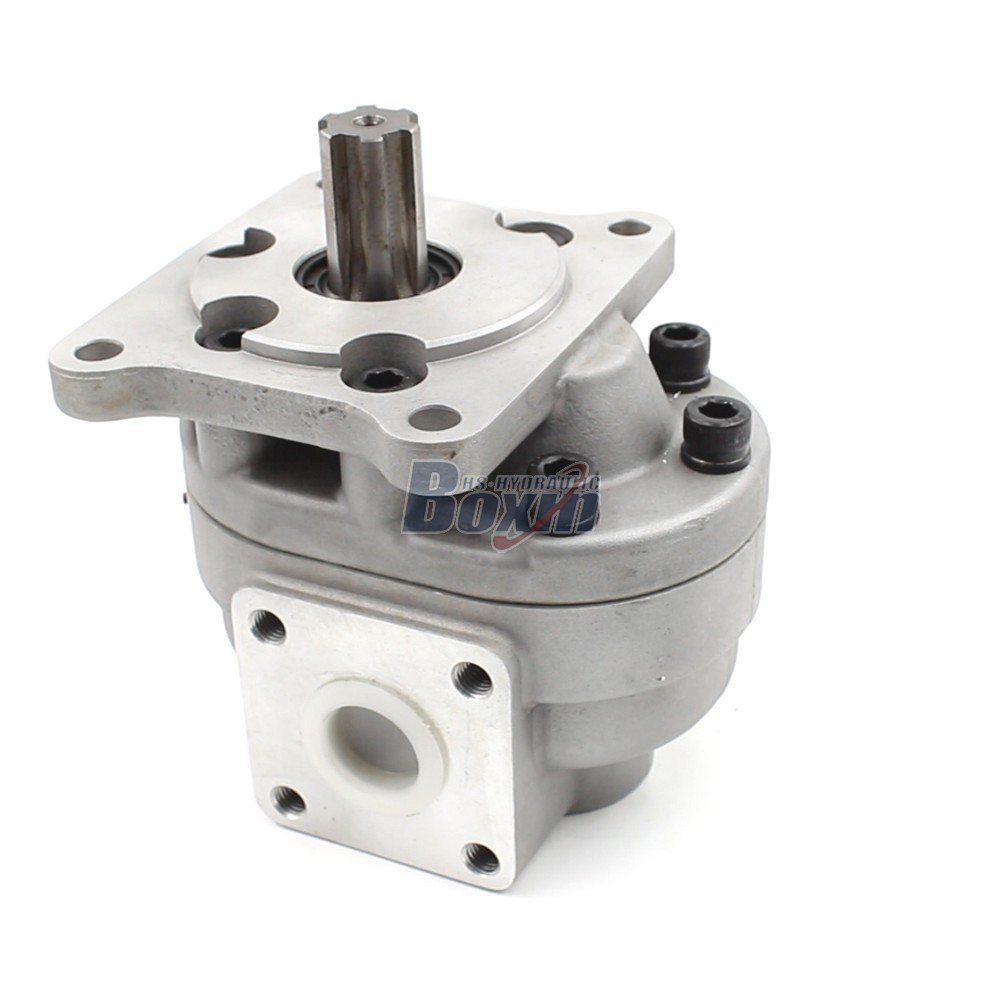

**Advanced Hydraulic Gear Pumps - CBHS-F550 Series**
**Product Description**
The Advanced Hydraulic Gear Pumps - CBHS-F550 Series are designed to provide high performance and reliability in a wide range of applications. These pumps feature a robust cast iron construction and are available with a variety of displacement options to meet the specific requirements of your application.
**Key Features**
* Displacement: 32 cc/rev, 50 cc/rev, 63 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: Left (counter-clockwise), Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: Plain Key, Rectangle Spline, Involute Spline
* Series: CBHS-F5 Series
* Application Area: MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
**Benefits**
* High performance and reliability
* Robust cast iron construction
* Variety of displacement options
* Wide range of applications
**Contact us today to learn more about the Advanced Hydraulic Gear Pumps - CBHS-F550 Series.**
