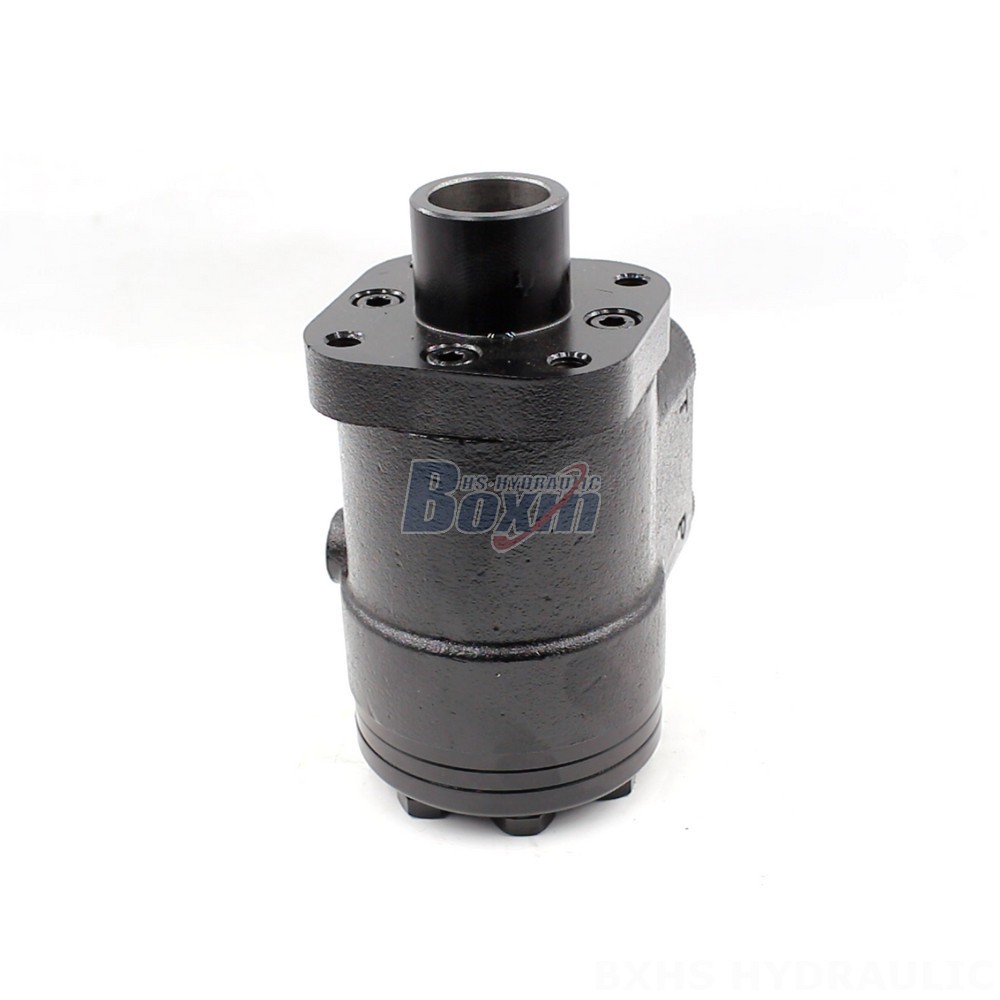

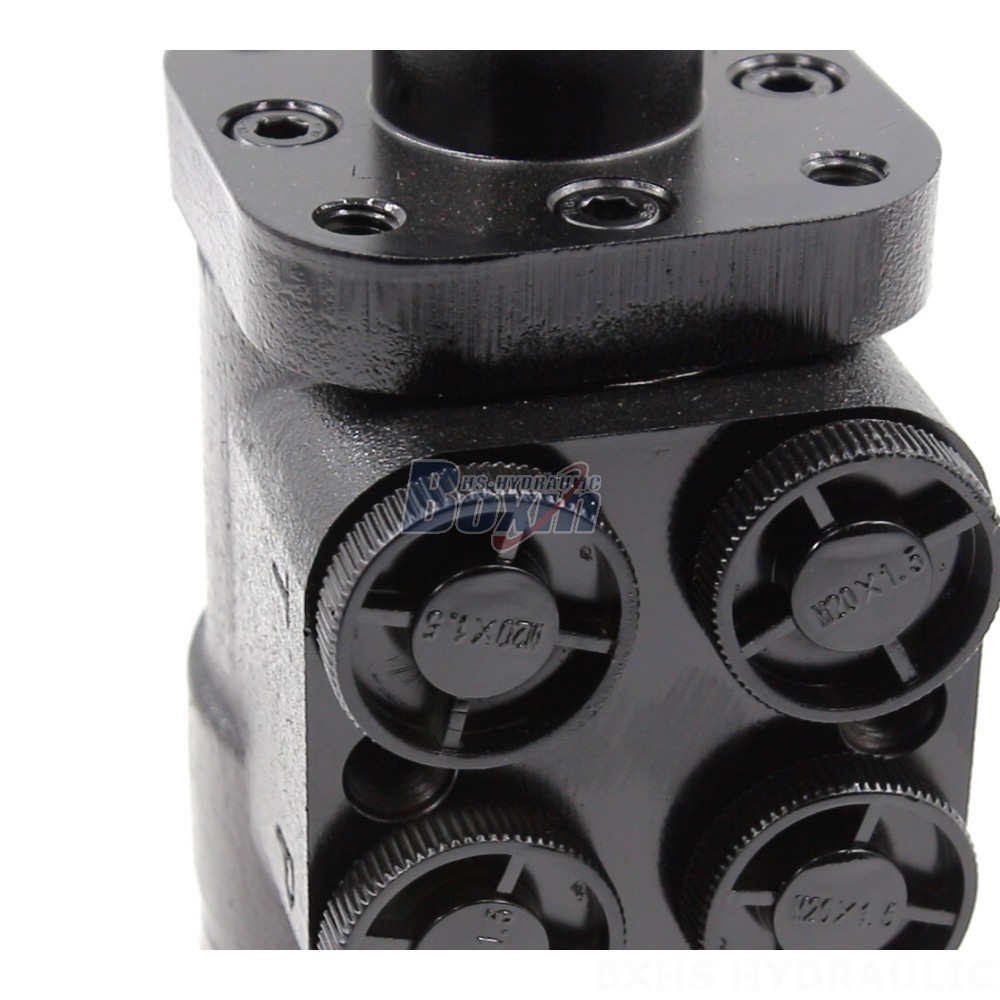

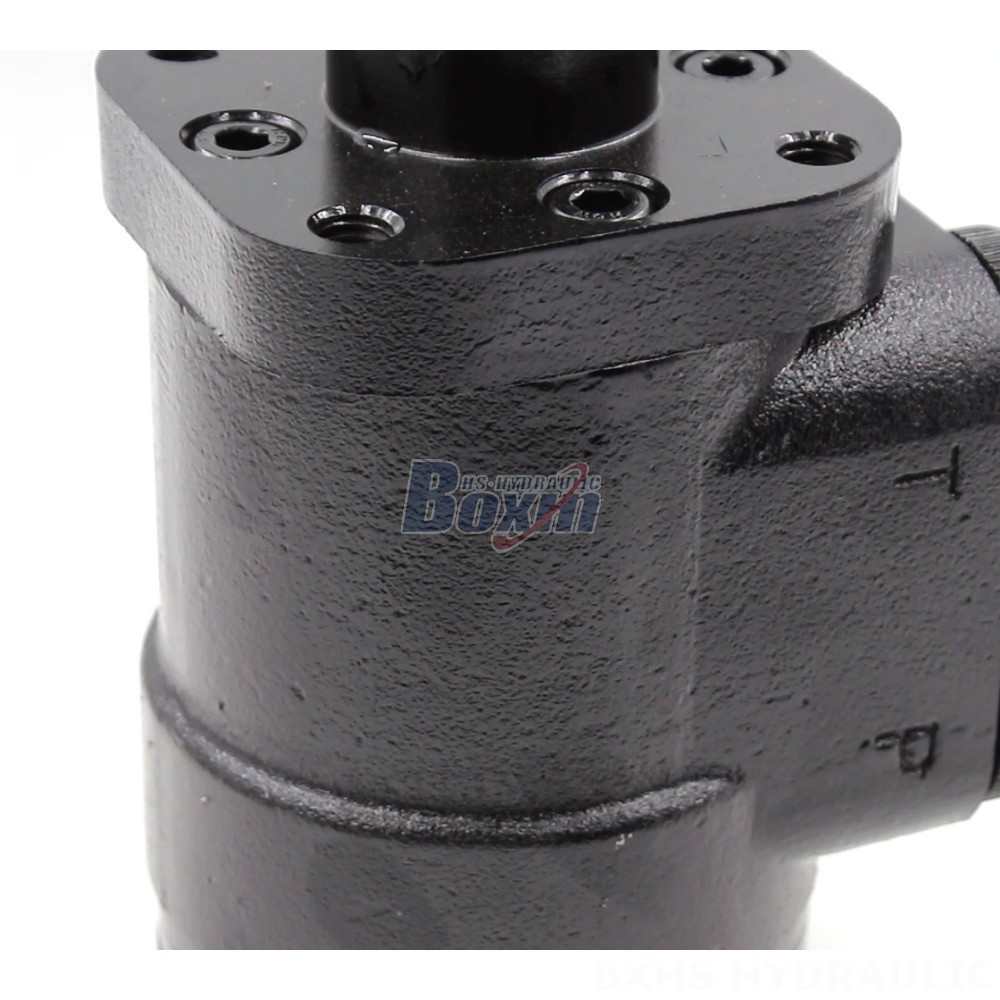

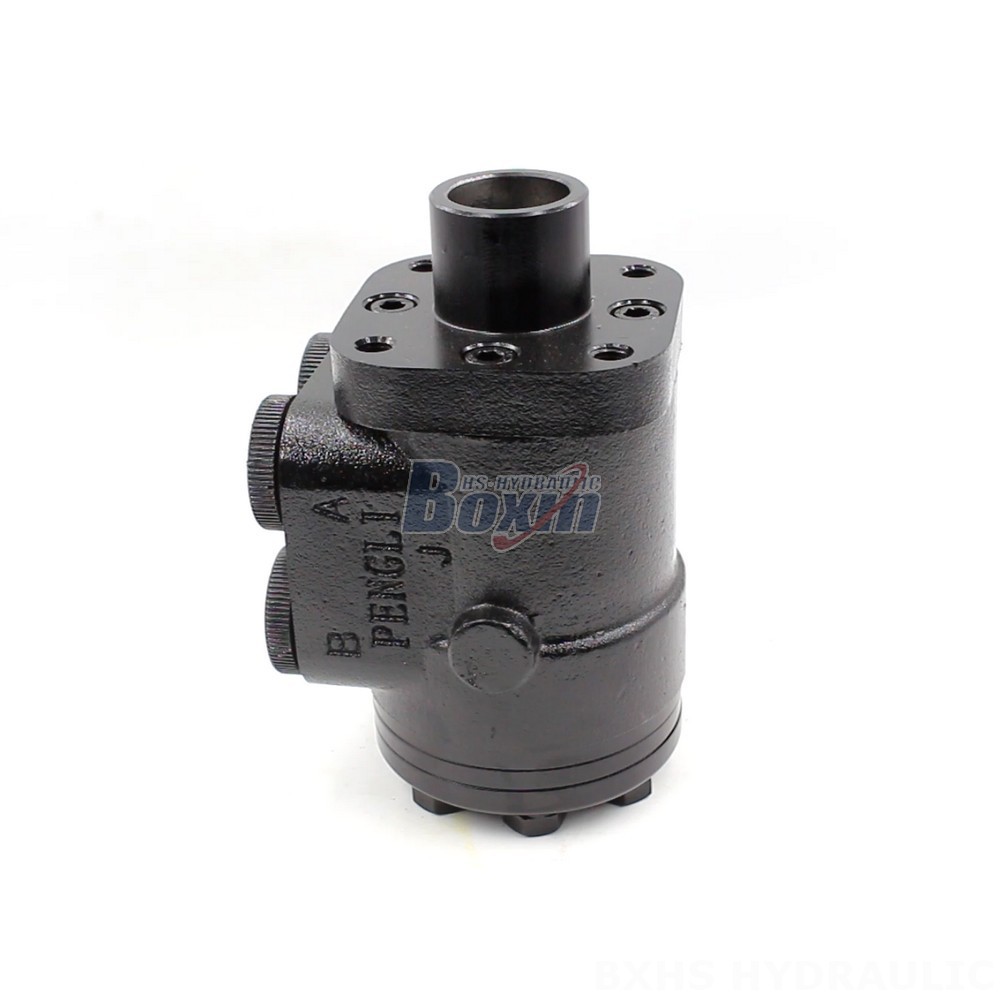

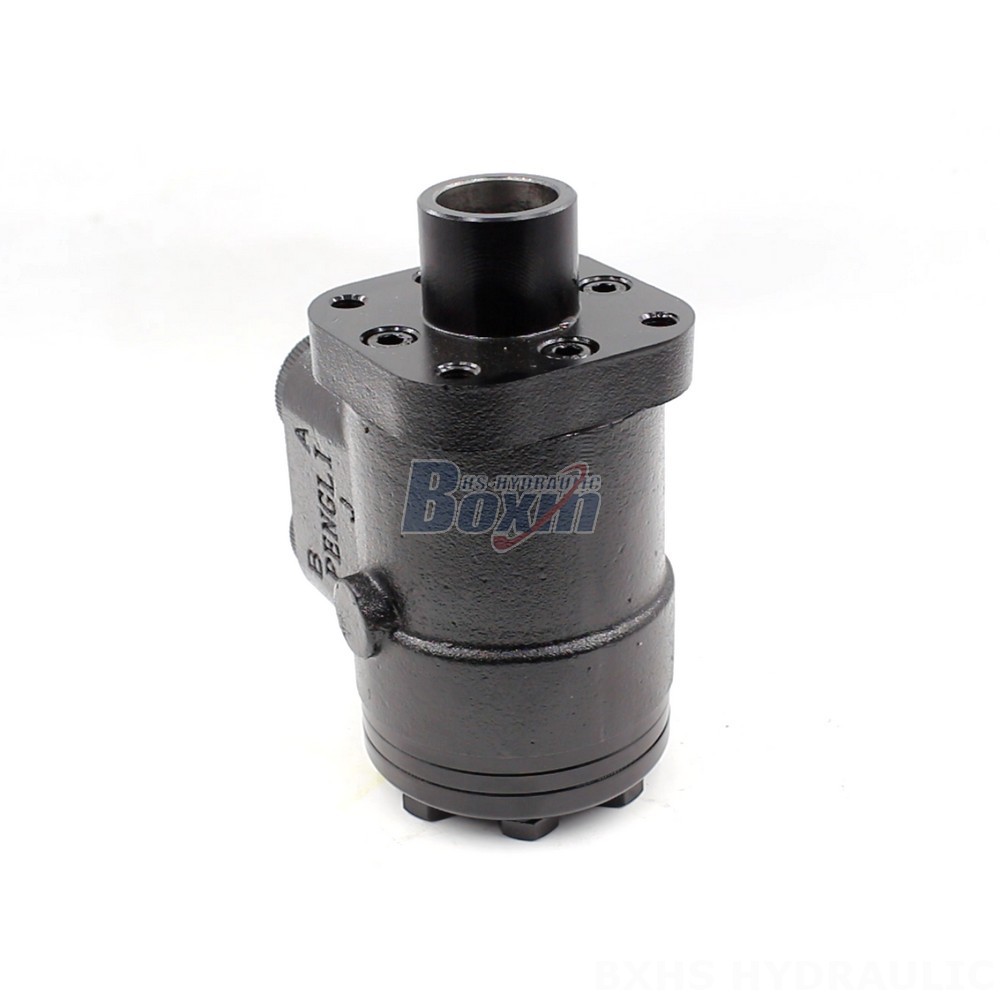

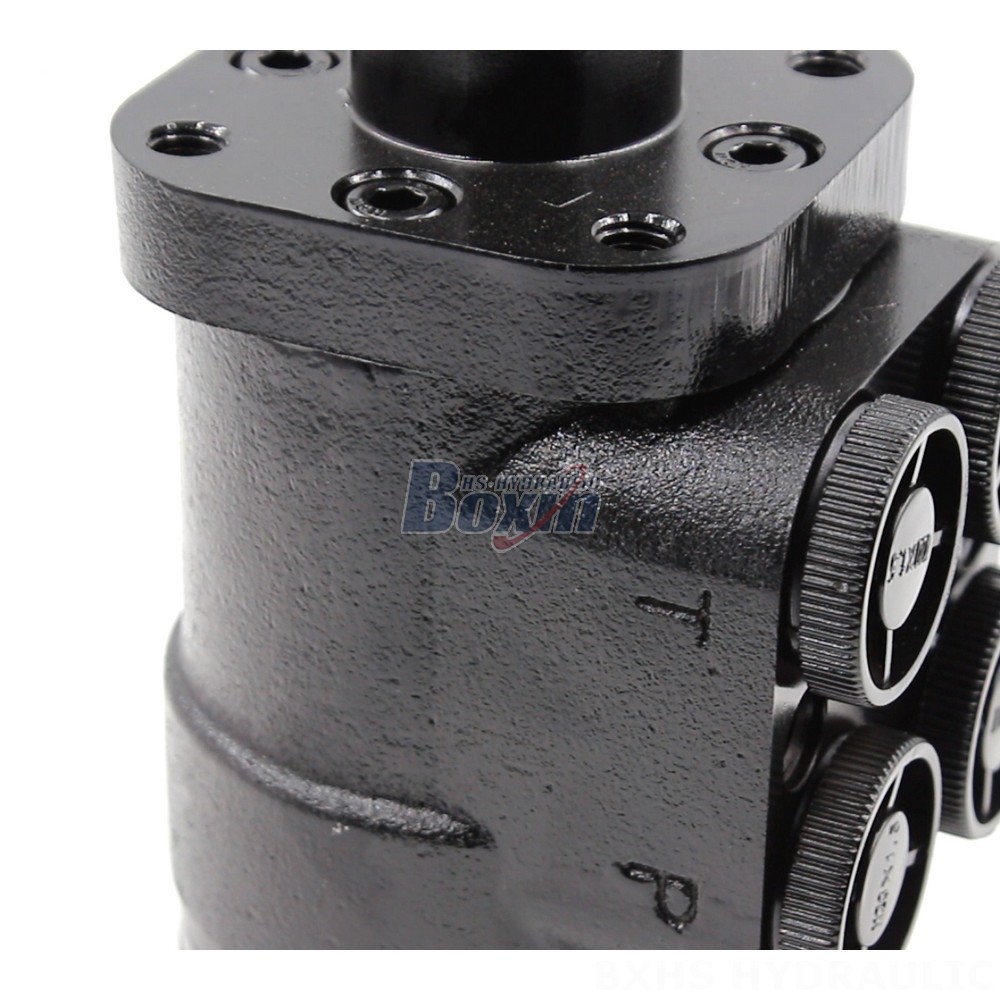

BZZ1-E50A 50ml/r 4L/min Hydraulic Steering Unit

변위:50 ml/r

정격 유량:4 L/min

브랜드:BXHS

제품 유형:조향 장치

제품 시리즈:BZZ1 시리즈 조향 장치

포장 크기:11*11*17

총중량:6.10 kg

재고 상태: 재고 있음

606 이 제품을 찾아보시지 않겠습니까?

BZZ1-E50A 50ml/r 4L/min Hydraulic Steering Unit

BZZ1-E50A 50ml/r 4L/min Hydraulic Steering Unit

BZZ1-E50A 50ml/r 4L/min Hydraulic Steering Unit drawing image

High-quality BZZ1-E50A 50ml/r 4L/min hydraulic steering unit, made of cast iron with customizable valve block. Ideal for various applications including forklifts, skid steers, and agricultural machinery. Factory direct wholesale and OEM/ODM services available.

BZZ1 시리즈 조향 장치 매개변수
변위 50 ml/r, 63 ml/r, 100 ml/r, 80 ml/r, 125 ml/r, 160 ml/r, 200 ml/r, 250 ml/r, 280 ml/r, 315 ml/r, 400 ml/r, 500 ml/r, 630 ml/r, 800 ml/r, 1000 ml/r
밸브 블록 사용자 정의 가능
재질 주철
정격 유량 5 L/min, 6 L/min, 4 L/min, 7.5 L/min, 9.5 L/min, 12 L/분, 15 L/min, 19 L/min, 21 L/min, 24 L/min, 30 L/min, 38 L/min, 48 L/min, 60 L/min, 75 L/min
최대 연속 배압 2.5 Mpa
최대 입력 압력 16 Mpa

We are a hydraulic product manufacturer supplying globally. We offer manufacturing, OEM, ODM, customization, and wholesale services for our BZZ1-E50A 50ml/r 4L/min Hydraulic Steering Unit. This robust unit features a displacement of 50 ml/r, a maximum input pressure of 16 MPa, and a maximum continuous back pressure of 2.5 MPa, delivering a rated flow of 4 L/min. The pump body is constructed from durable cast iron for long-lasting performance. The valve block is customizable to meet your specific application needs.

This hydraulic steering unit is perfect for a wide range of applications in MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, INDUSTRIAL VEHICLES, and AGRICULTURE. Applicable models include forklifts, skid steer loaders, compact wheel loaders, telehandlers, tractors and front-end loaders, mini-excavators, and backhoe loaders.

**Key Features:**
* **Displacement:** 50 ml/r
* **Max Input Pressure:** 16 MPa
* **Max Cont Back Pressure:** 2.5 MPa
* **Rated Flow:** 4 L/min
* **Material:** Cast Iron
* **Valve Block:** Customizable

**We are actively seeking distributors, wholesalers, and trading companies worldwide.** As a manufacturer and factory, we offer competitive pricing and reliable supply chains for bulk orders. Our factory wholesale program ensures you get the best possible value. We welcome inquiries regarding OEM, ODM, and customization opportunities. Contact us today to discuss your needs and explore our partnership opportunities.
