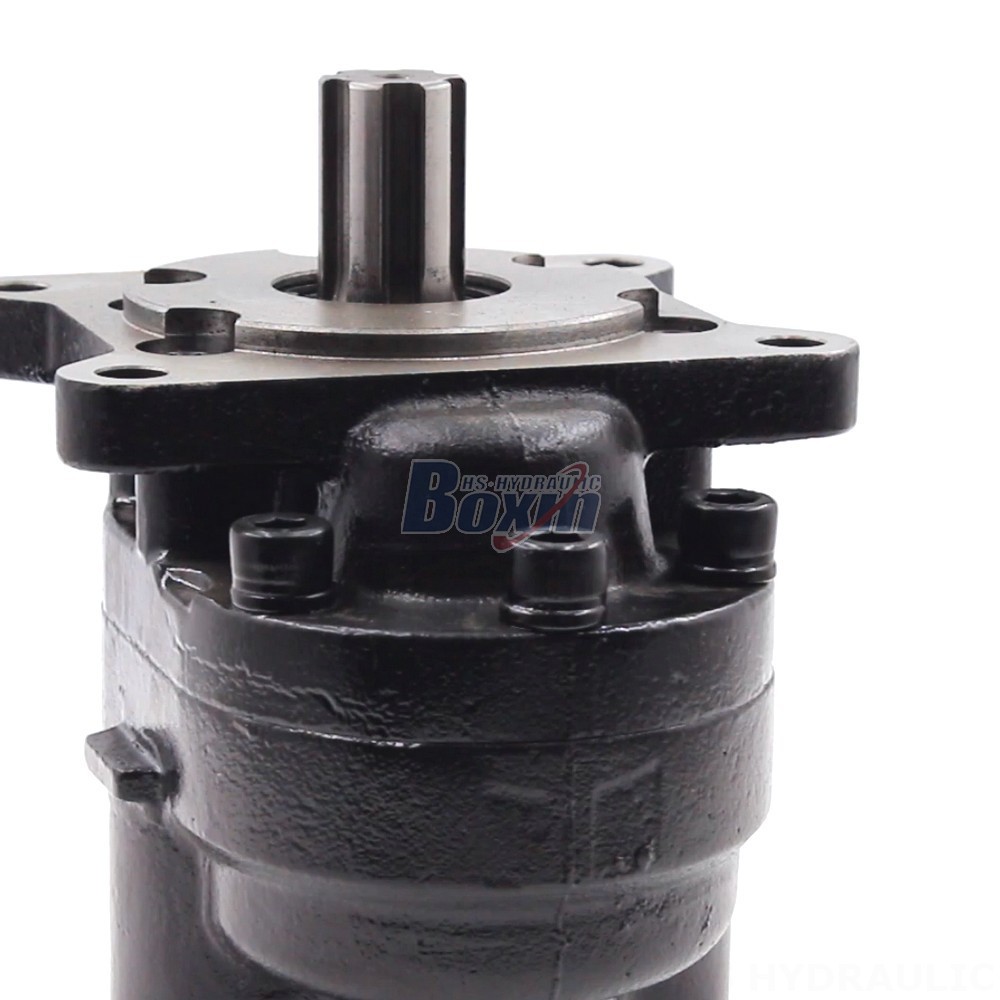

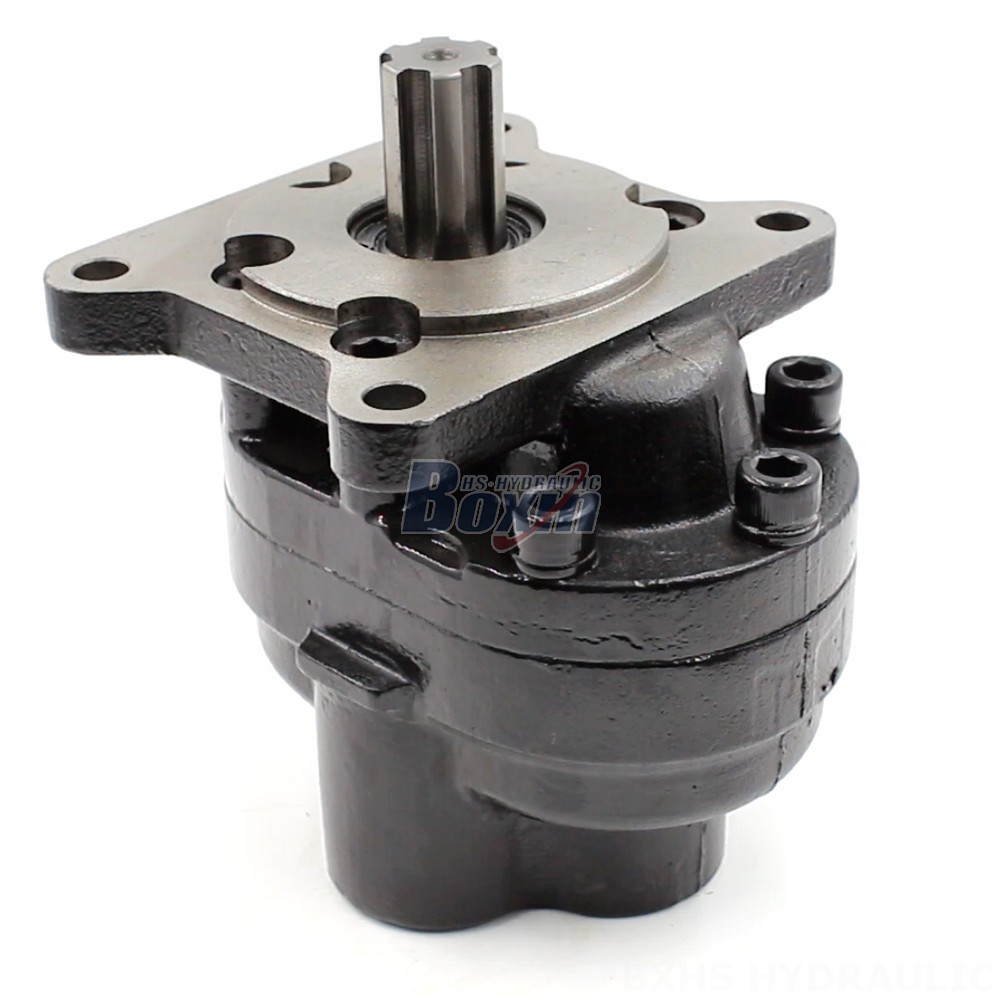

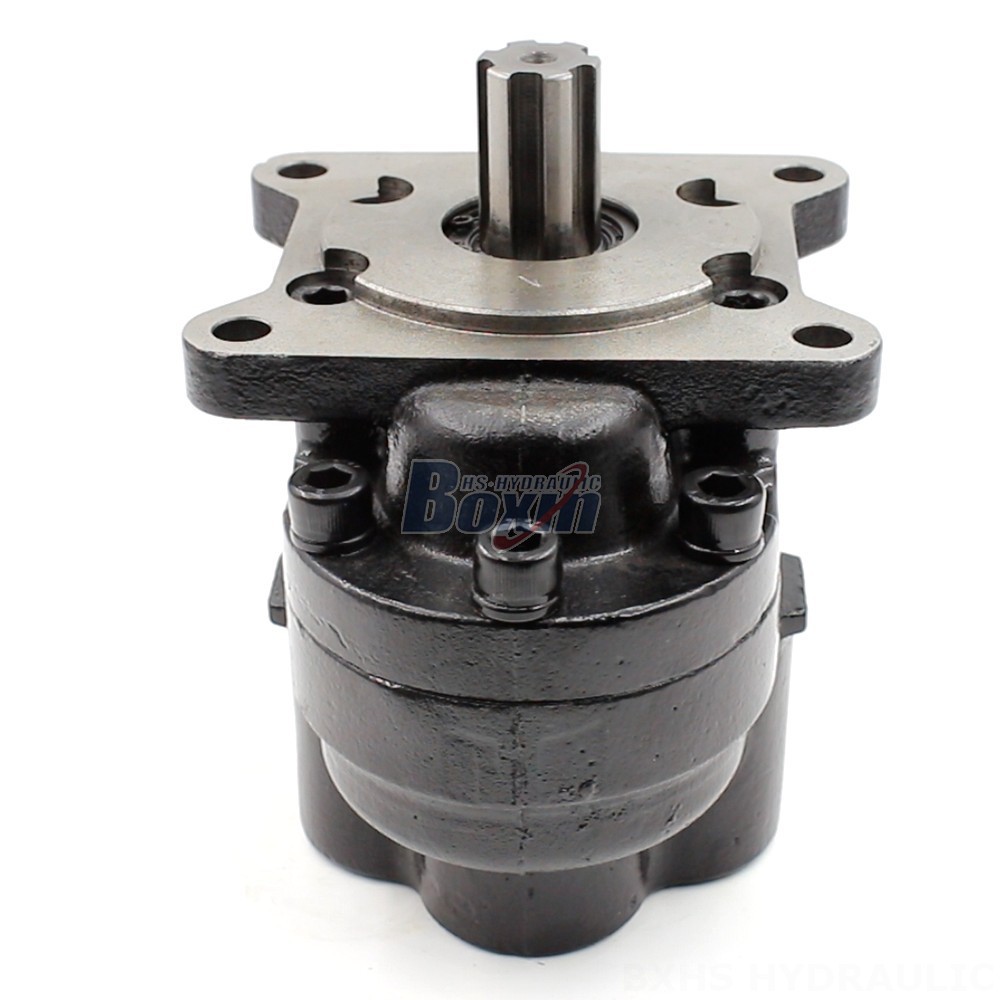

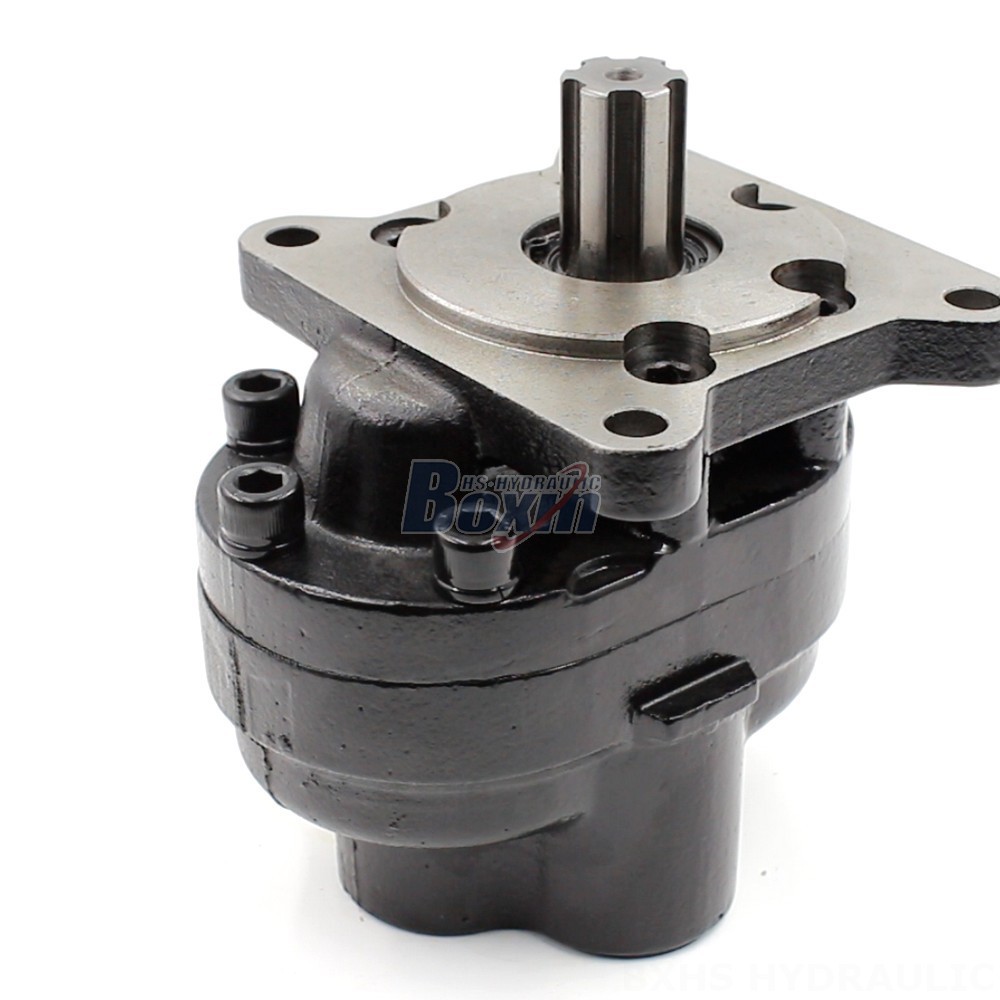

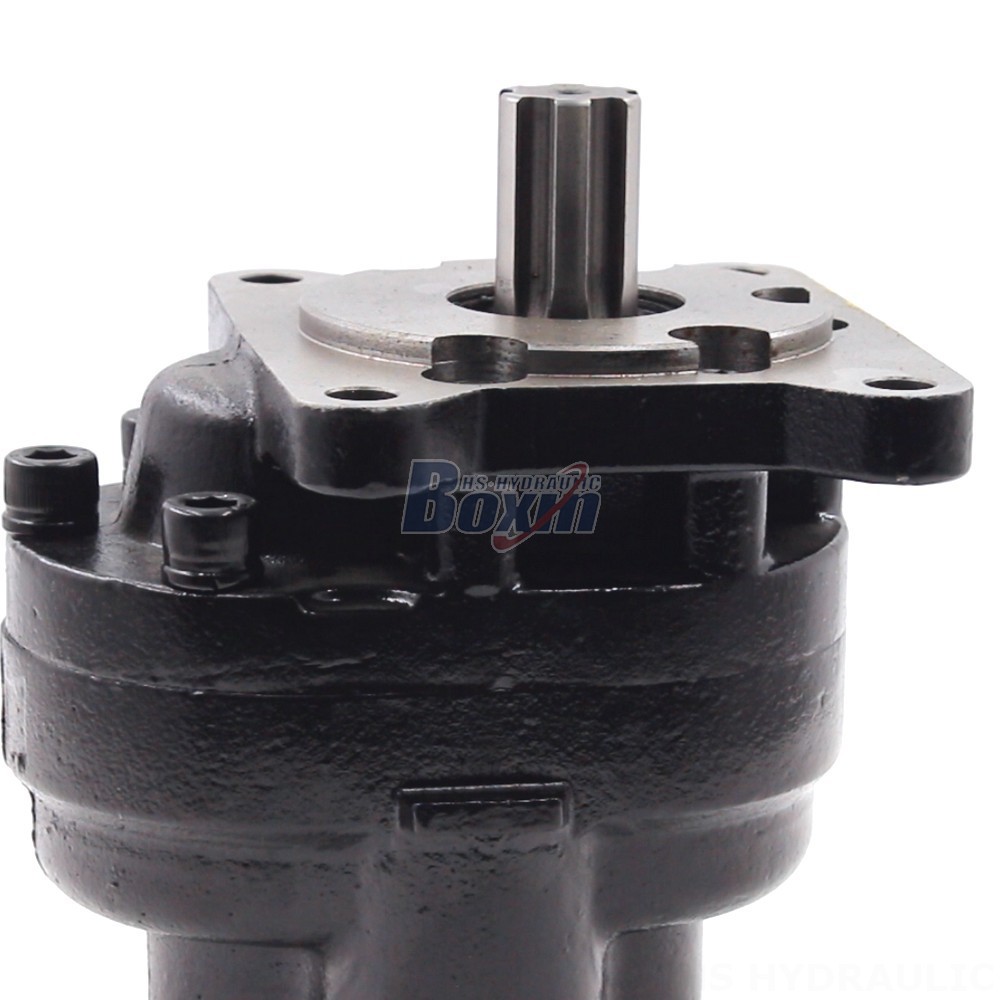

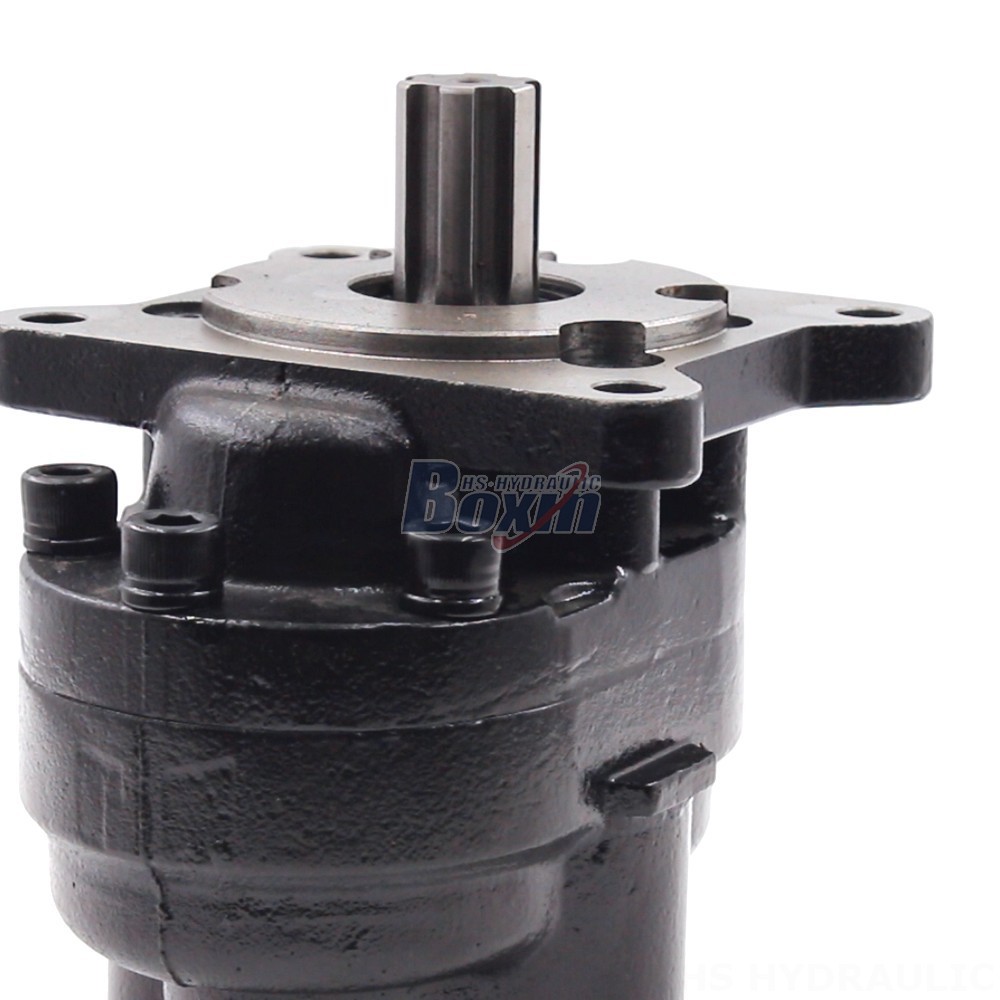

The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. The pump features a displacement of 32 cc/rev, a rated pressure of 20 MPa, and a rated speed of 2000 r/min. The pump is constructed from cast iron and features a B-Square flange and a plain key shaft. The CBHS-F532 is part of the CBHS-F5 Series of hydraulic gear pumps.
| CBHS-F5 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 32 cc/회전, 50 cc/회전, 63 cc/회전, 20 cc/회전 |
| 정격 압력 | 20 MPa (2900 psi) |
| 최대 압력 | 25 MPa (3625 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 2500회전 |
| 회전 방향 | L: 왼쪽 (반시계 방향), R: 오른쪽 (시계 방향) |
| 재질 | 주철 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | B-사각 플랜지 |
| 샤프트 유형 | H: 직사각형 스플라인, X: 유선 스플라인, P: 평범한 키 |
The CBHS-F532 Hydraulic Gear Pump is a high-performance pump designed for use in a wide range of applications, including material handling, construction, agriculture, and industrial vehicles.
**Key Features**
* Displacement: 32 cc/rev
* Rated Pressure: 20 MPa (2900 psi)
* Rated Speed: 2000 r/min
* Max Speed: 2200 r/min
* Rotation: L: Left (counter-clockwise), R: Right (clockwise)
* Structure: Internal Gear Pump
* Material: Cast Iron
* Flange Version: B-Square Flange
* Shaft Type: P: Plain Key, H: Rectangle Spline, X: Involute Spline
* Series: CBHS-F5 Series
**Applications**
* Material Handling
* Construction and Earth Moving
* Agriculture
* Industrial Vehicles
**Applicable Models**
* Telehandler
* Forklift
* All Terrain Crane
* Stacker
* Aerial Platform
* Motor Grader
* Midi-Excavator
* Mini-Excavator
* Skid Steer Loader
* Compact Wheel Loader
