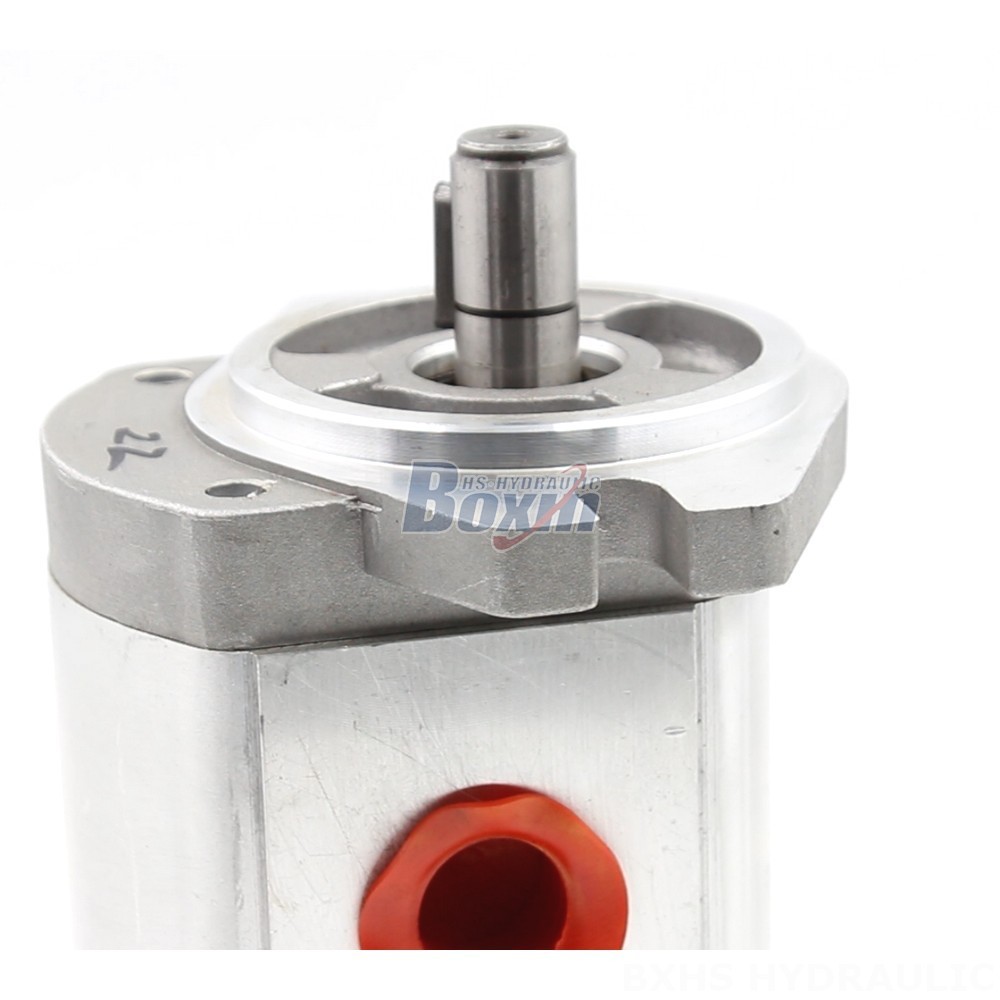

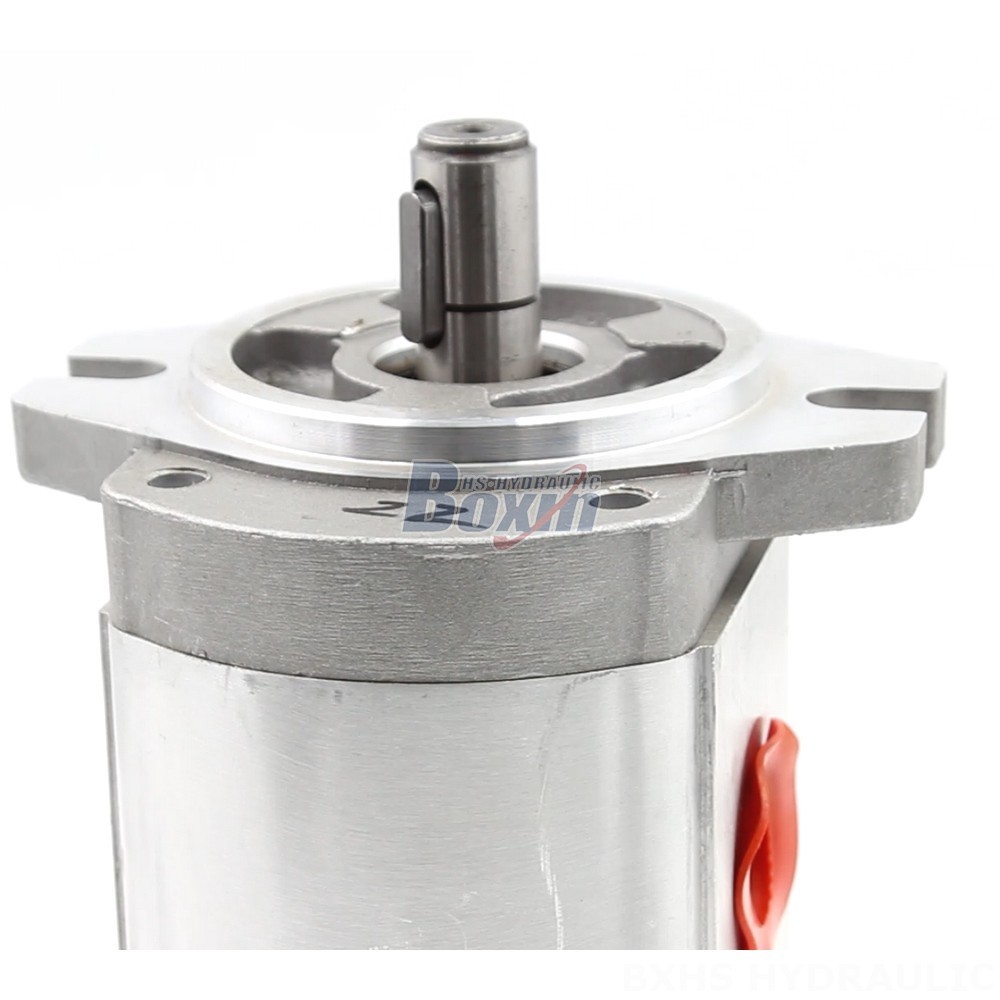

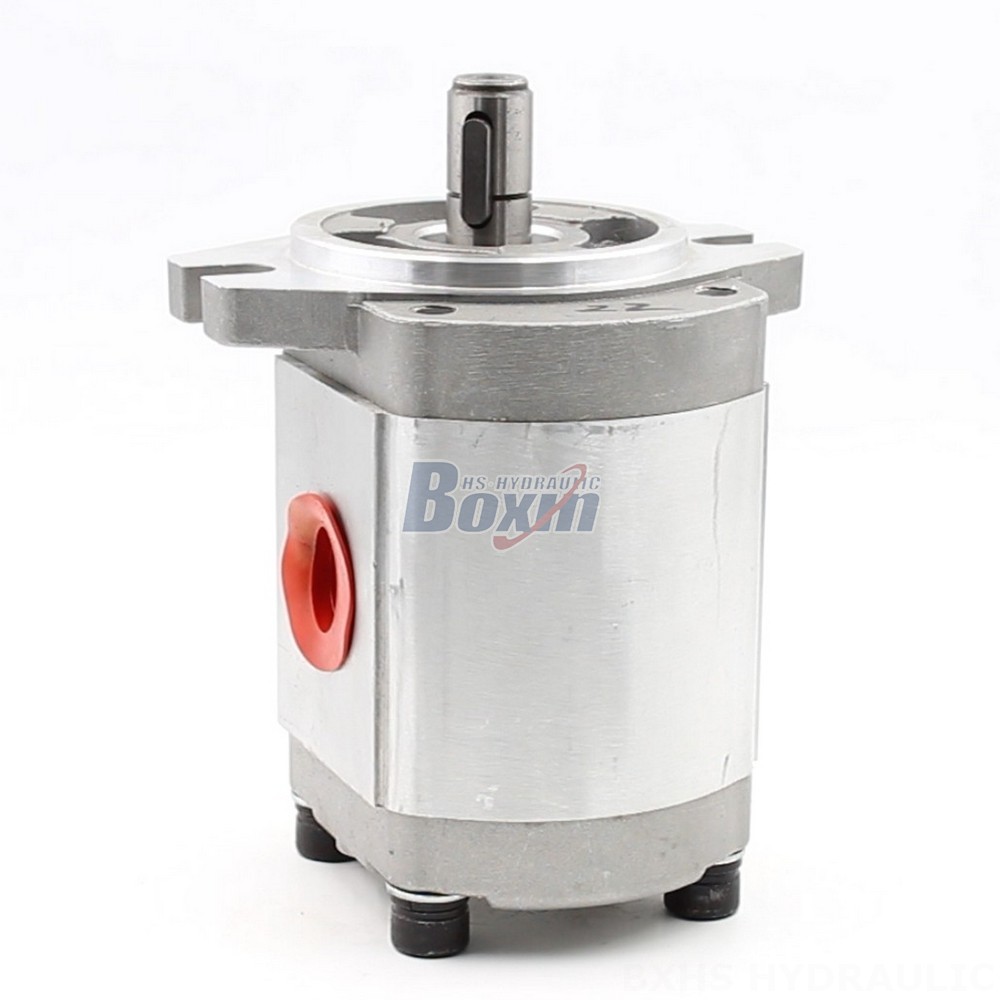

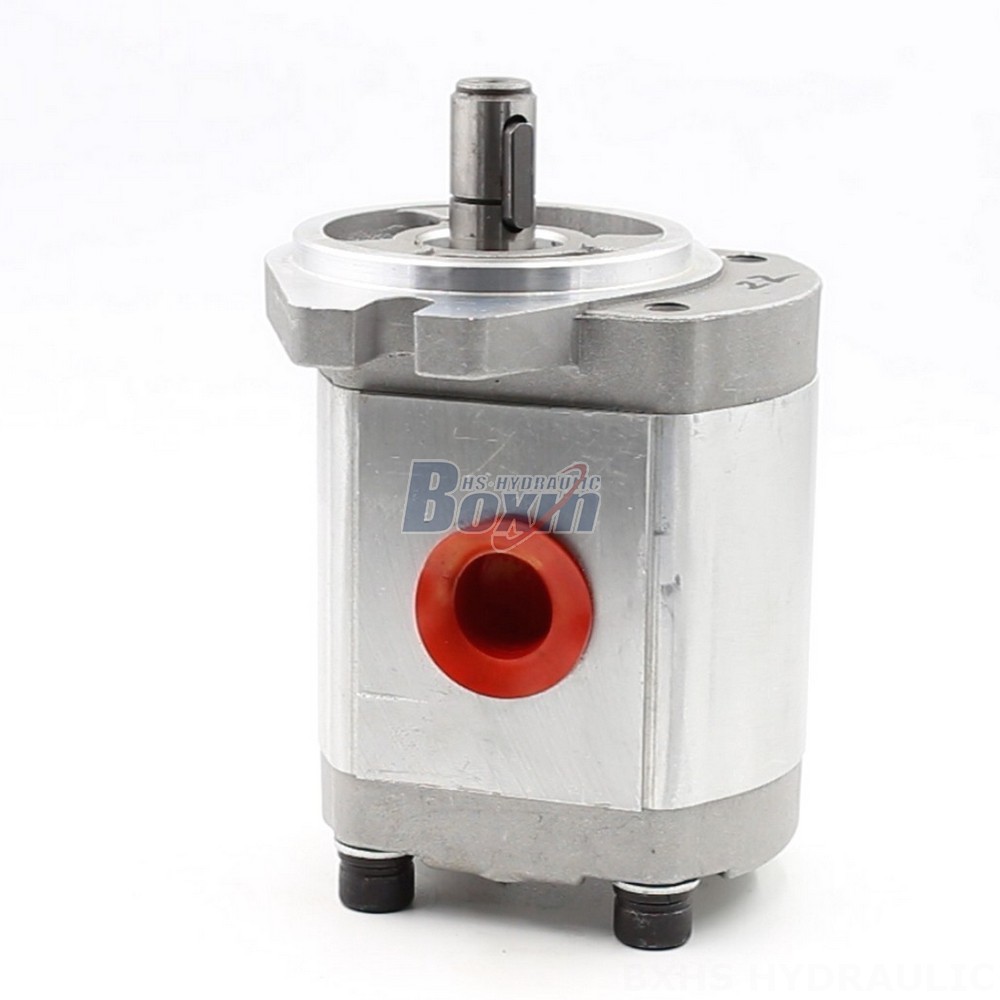

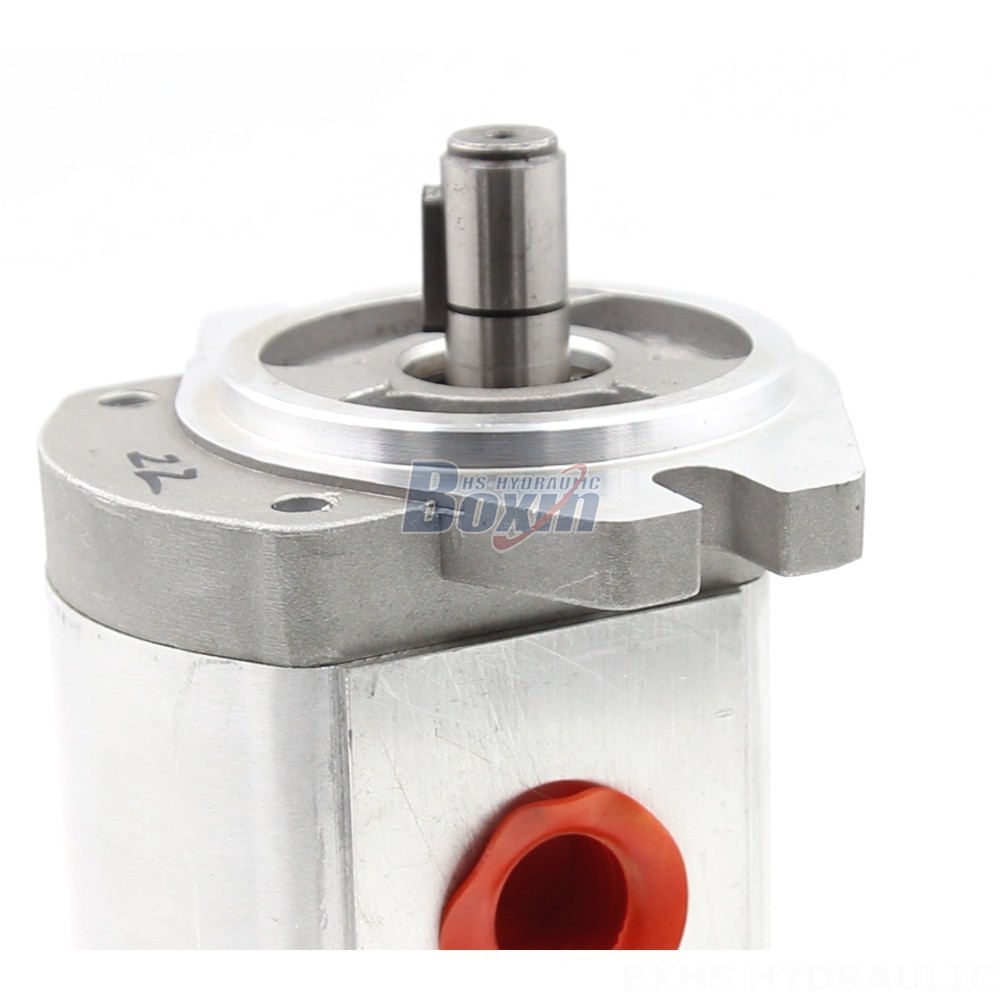

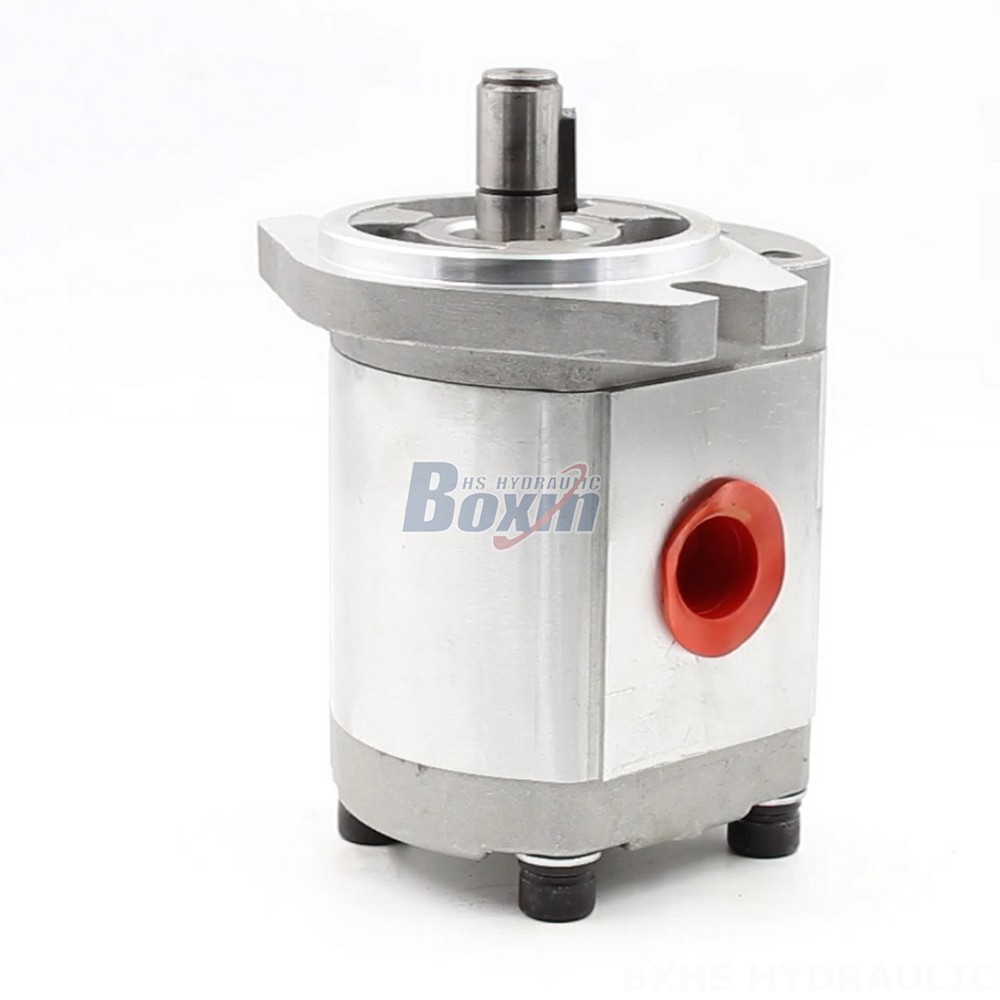

The CBHS-FL304 4 cc/rev Hydraulic Gear Pump is a high-performance pump designed for a variety of applications in construction, agriculture, and industrial vehicles. With a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min, this pump is built to handle demanding tasks with ease.
| CBHS-FL3 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 10 cc/회전, 4 cc/회전, 20 cc/회전, 16 cc/회전, 14 cc/회전, 6 cc/회전 |
| 정격 압력 | 20 MPa (2900 psi) |
| 최대 압력 | 25 MPa (3625 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 3000회전 |
| 회전 방향 | L: 왼쪽 (반시계 방향), R: 오른쪽 (시계 방향) |
| 재질 | 알루미늄 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | A-타원 플랜지 |
| 샤프트 유형 | H: 직사각형 스플라인, X: 유선 스플라인, P: 평범한 키 |
The CBHS-FL304 is an internal gear pump made of aluminium with an A-Oval flange and a plain key shaft. It is part of the CBHS-FL3 Series and is designed for a wide range of applications, including telehandlers, forklifts, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, tractors and front-end loaders, harvesters, and balers. The pump has a displacement of 10 cc/rev, a rated pressure of 20 MPa (2900 psi), and a rated speed of 2000 r/min. The maximum speed is 3000 r/min. The pump is available in left (counter-clockwise) and right (clockwise) rotation configurations. This pump is manufactured and supplied globally, and we are looking for distributors, wholesalers, agents, and traders to join our network.
