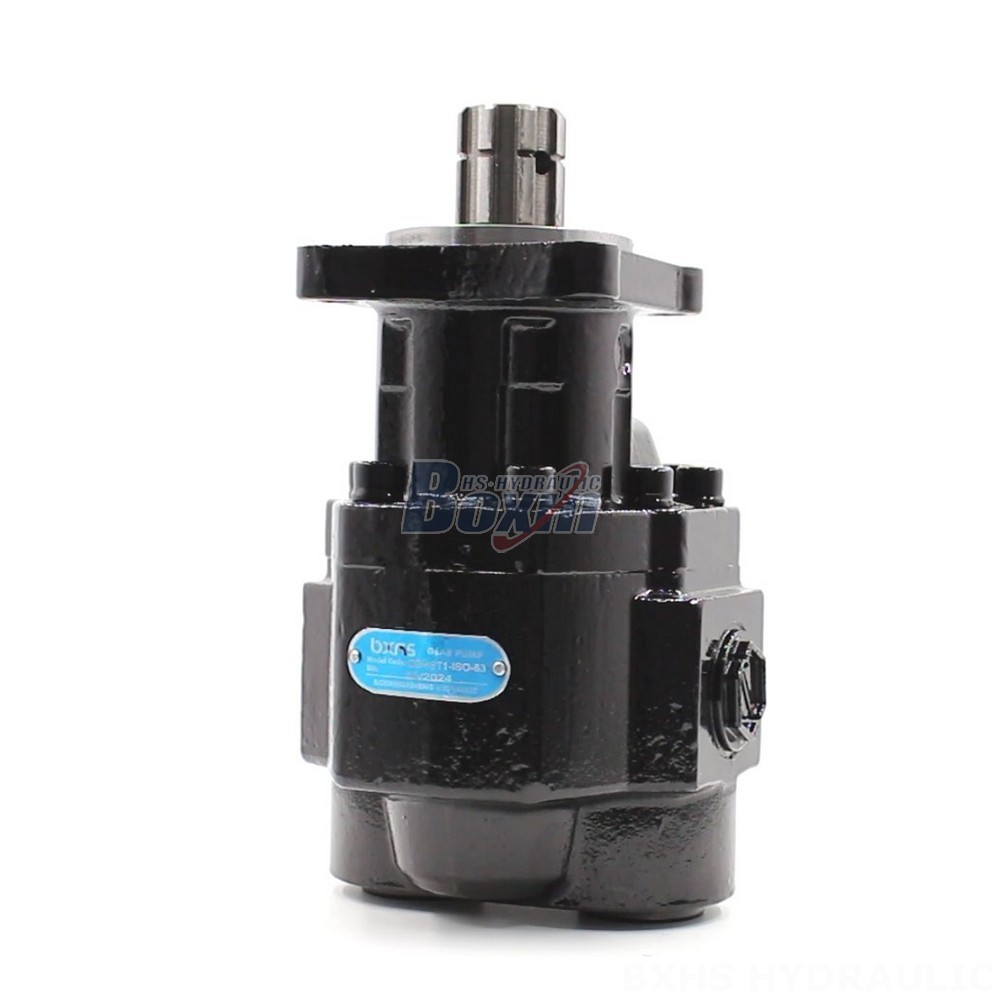

The CBHST1-ISO-63 Hydraulic Gear Pump is an advanced and globally renowned product designed for exceptional performance in various applications. With customizable displacement options ranging from 32 to 110 cc/rev, this pump delivers optimal flow rates for diverse hydraulic systems. Engineered with a robust cast iron construction, it withstands high pressures up to 23 MPa (3335 psi) and operates efficiently at speeds of up to 2500 r/min.
| CBHST1-ISO 시리즈 유압 기어 펌프 매개변수 | |
|---|---|
| 변위 | 50 cc/회전, 63 cc/회전, 80 cc/회전, 100 cc/회전, 110 cc/회전, 34 cc/회전, 43 cc/회전, 90 cc/회전, 120 cc/회전, 82 cc/회전 |
| 정격 압력 | 20 MPa (2900 psi), 23 MPa (3335 psi), 25 MPa (3625 psi) |
| 최대 압력 | 23 MPa (3335 psi), 25 MPa (3625 psi), 28 MPa (4061 psi) |
| 정격 속도 | 분당 2000회전 |
| 최대 속도 | 분당 2500회전 |
| 회전 방향 | 양방향 |
| 재질 | 주철 |
| 구조 | 외부 기어 펌프 |
| 플랜지 버전 | ISO-4 장착 구멍 |
| 샤프트 유형 | H: 직사각형 스플라인 |
The CBHST1-ISO-63 Hydraulic Gear Pump boasts a bidirectional rotation, allowing for versatility in system design. Its swashplate structure ensures smooth and reliable operation, while the ISO-4 mounting flange and rectangle spline shaft type provide compatibility with a wide range of applications. This pump finds its applications in material handling, construction, agriculture, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
