What is the primary application of the Customizable Hydraulic Valves: P120-G1 Monoblock Valve?

The Customizable Hydraulic Valves: P120-G1 Monoblock Valve is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Customizable Hydraulic Valves: P120-G1 Monoblock Valve

Name: Customizable Hydraulic Valves: P120-G1 Monoblock Valve
Brand: Boxinhuasheng
SKU: BXHS-52567
Availability: InStock

홈모노블럭 방향 제어 밸브P120 시리즈제품 상세

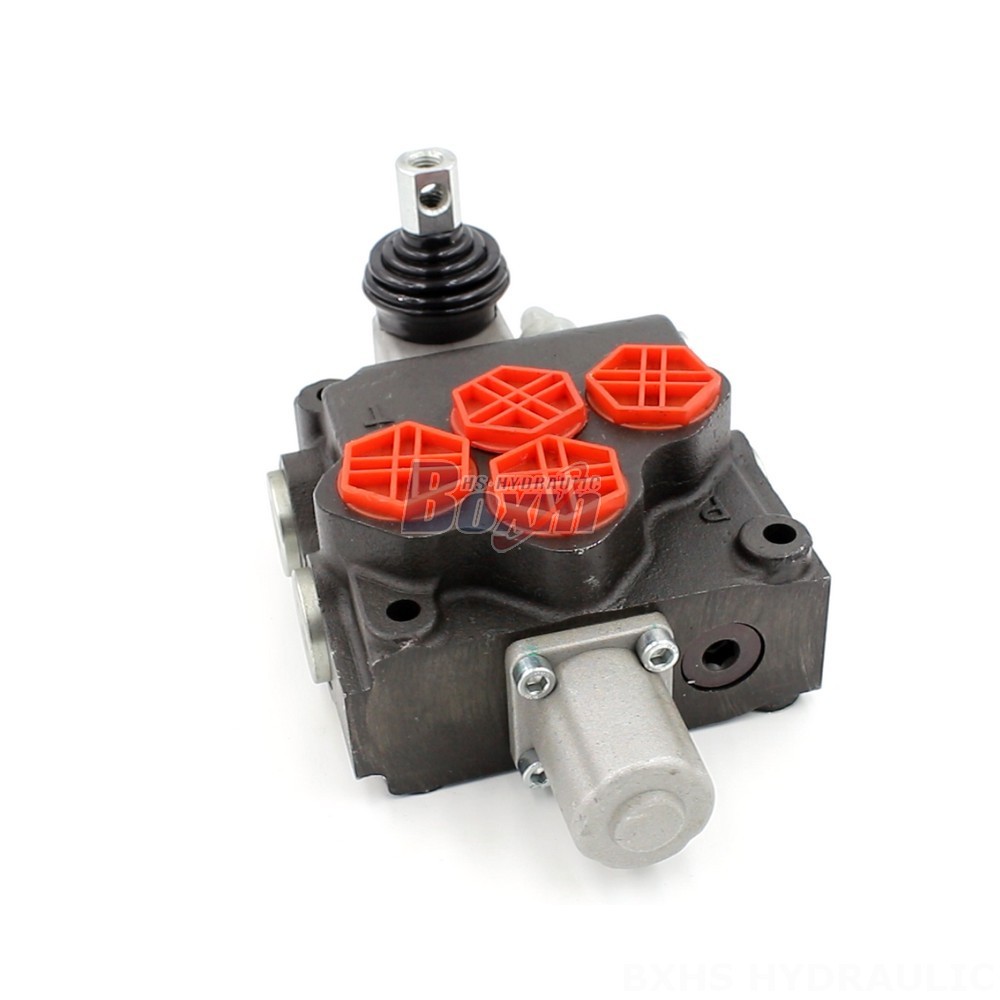

Customizable Hydraulic Valves: P120-G1 Monoblock Valve cover photo

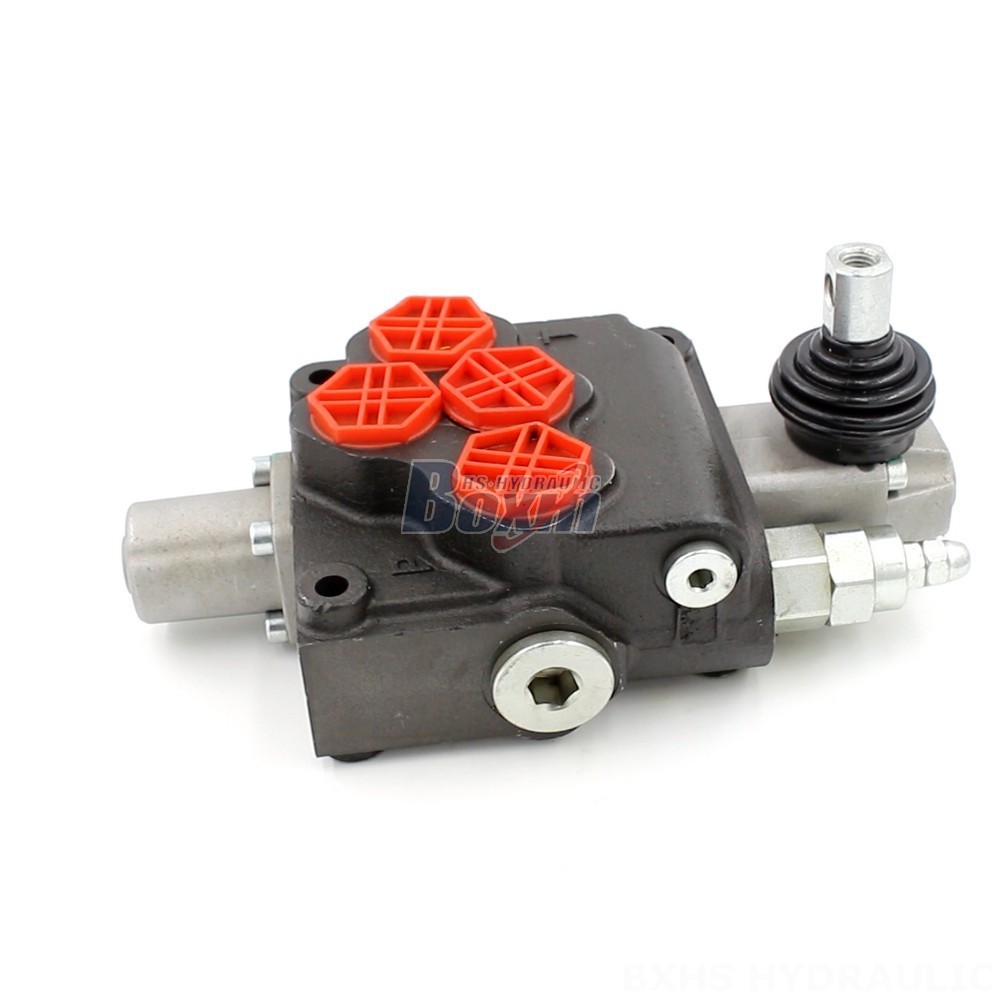

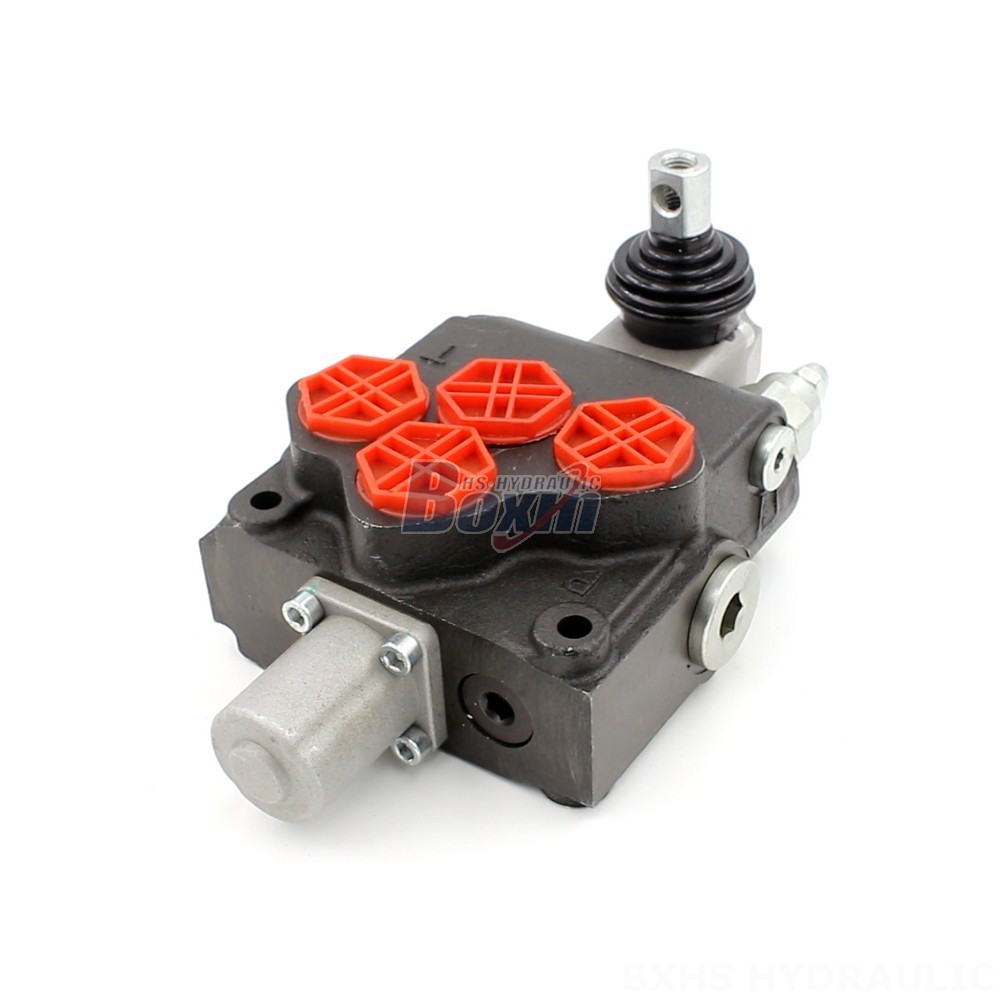

Customizable Hydraulic Valves: P120-G1 Monoblock Valve main image

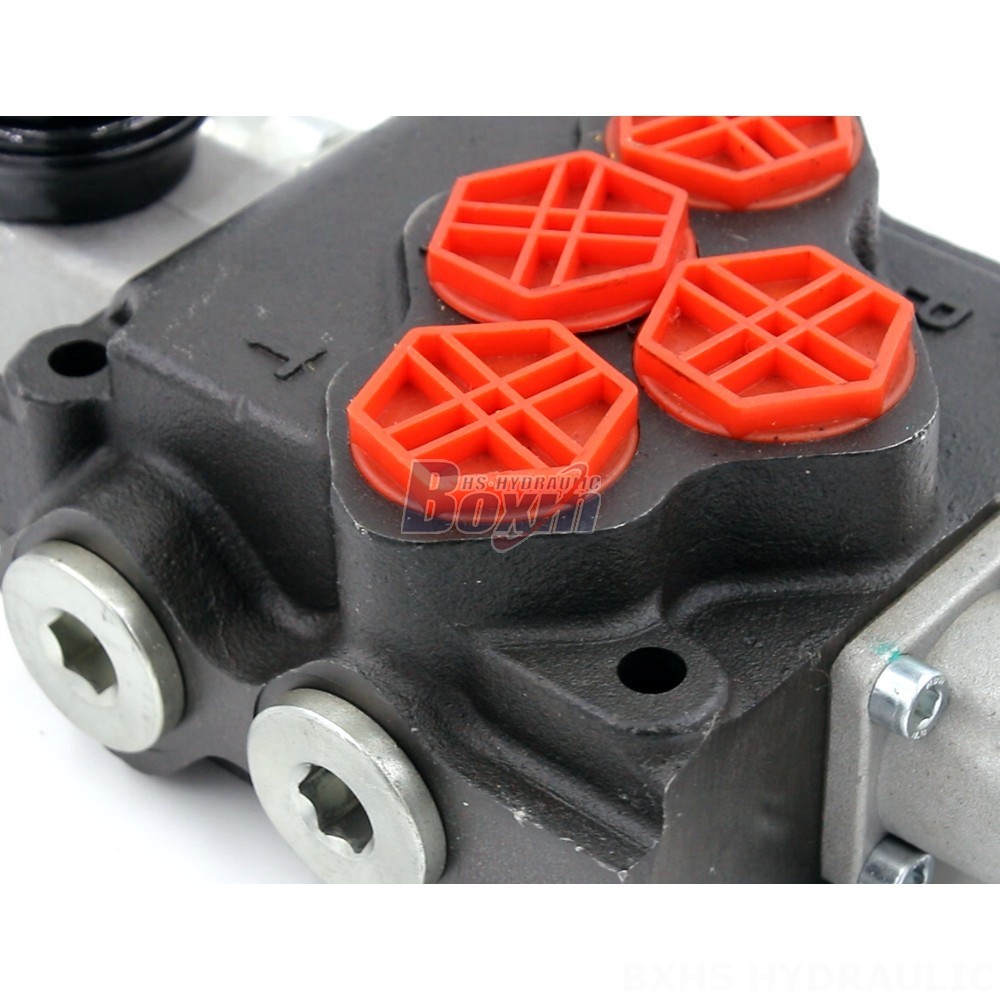

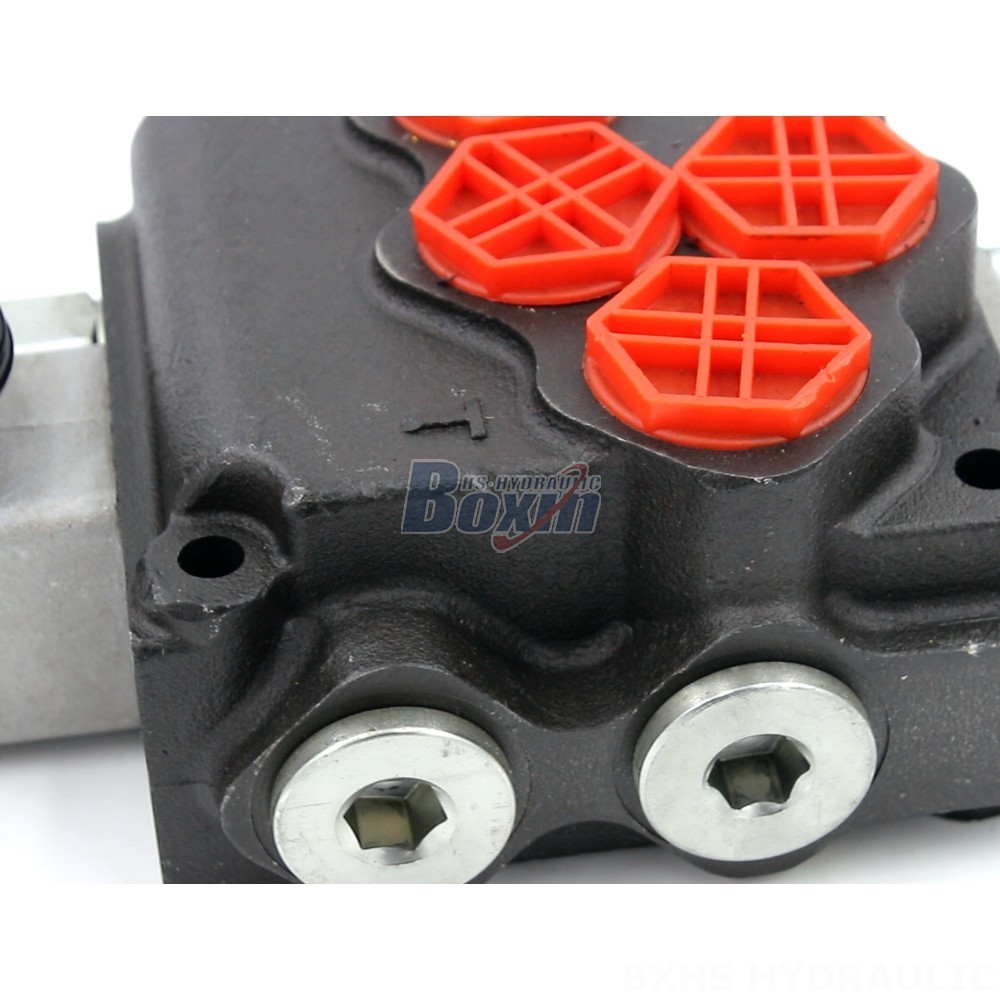

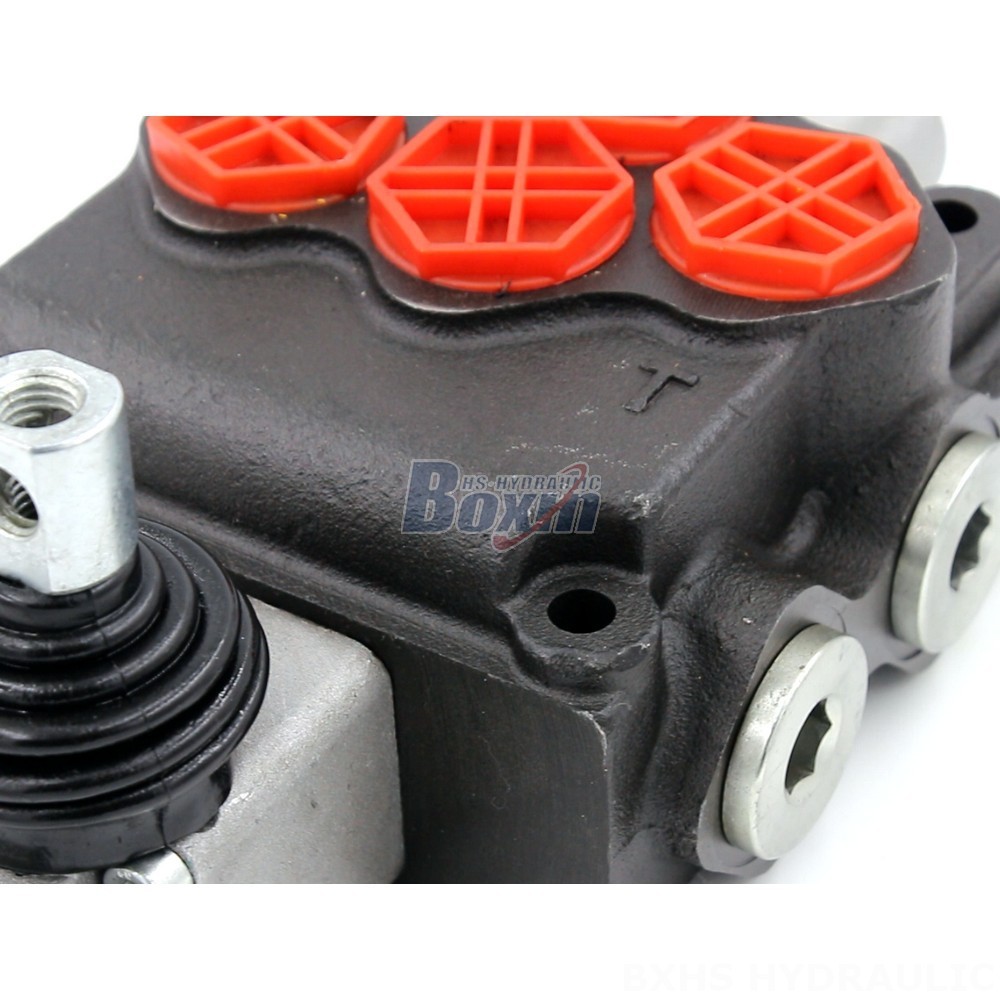

Customizable Hydraulic Valves: P120-G1 Monoblock Valve detail image

Customizable Hydraulic Valves: P120-G1 Monoblock Valve

제어 방식:수동

스풀:1 스풀

정격 유량:120 L/분 (31.7 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1

출구 포트:G1

포트 크기:G1

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P120 시리즈 모노블럭 방향 제어 밸브

포장 크기:19*35*16

총중량:13.60 kg

재고 상태: 재고 있음

문의하기

1037 이 제품을 찾아보시지 않겠습니까?

Customizable Hydraulic Valves: P120-G1 Monoblock Valve

Customizable Hydraulic Valves: P120-G1 Monoblock Valve drawing image

The P120-G1 Monoblock Valve is a customizable 3 position 4 way hydraulic control valve designed for a variety of applications, including material handling, construction, and agriculture. This valve is rated for a flow rate of 120 L/min and a maximum pressure of 250 bar.

P120 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀
정격 유량	120 L/분 (31.7 US gpm)
최대 압력	250바 (3600 psi)
입구 포트	G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
출구 포트	G1, SAE 16, 1 NPT, M36×2
포트 크기	G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션
구조 유형	모노블록 밸브
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)

The P120-G1 is a robust and reliable hydraulic control valve, featuring a monoblock design and a 120 L/min flow rate. It operates at a maximum pressure of 250 bar and is suitable for use in a wide range of temperatures, from -40°C to +80°C. This valve is ideal for applications in material handling, construction, agriculture, and industrial vehicles, such as telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi excavators, mini excavators, skid steer loaders, and compact wheel loaders. The P120-G1 is customizable to meet specific application needs, making it a versatile and valuable component for your hydraulic system.
