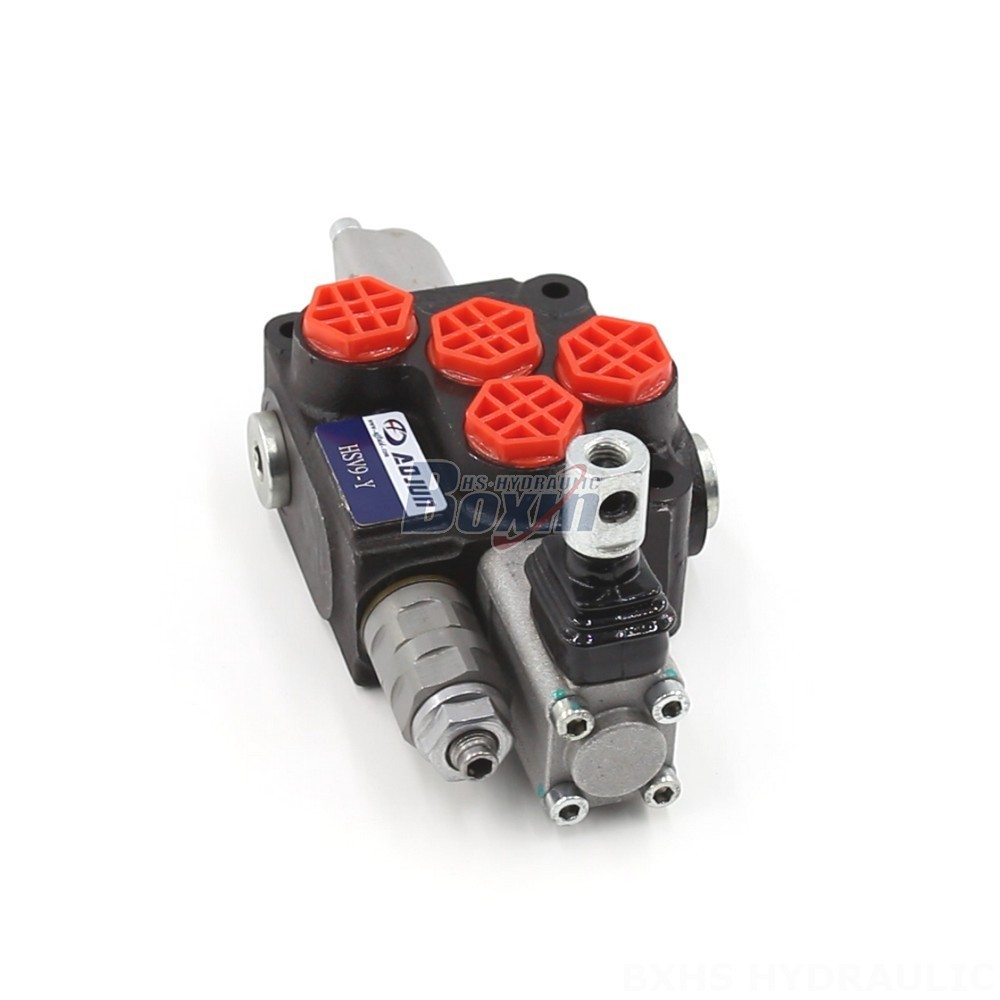

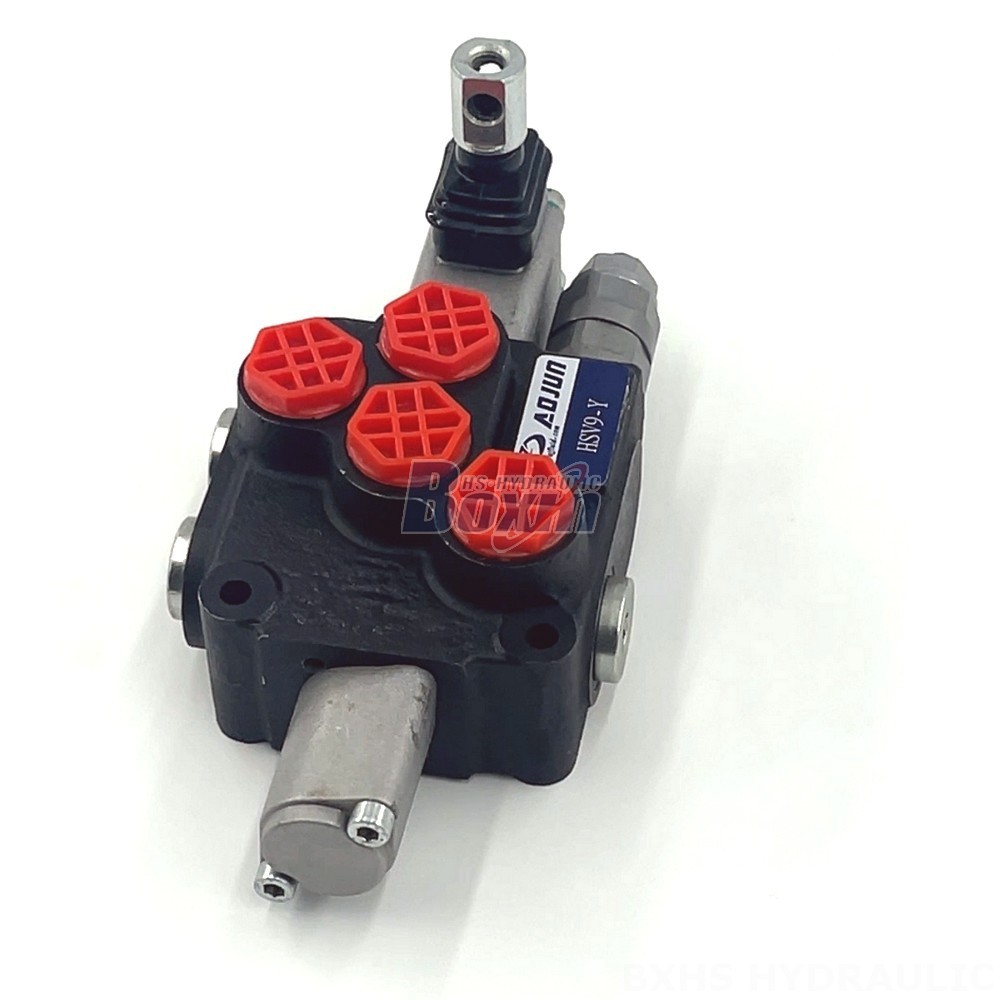

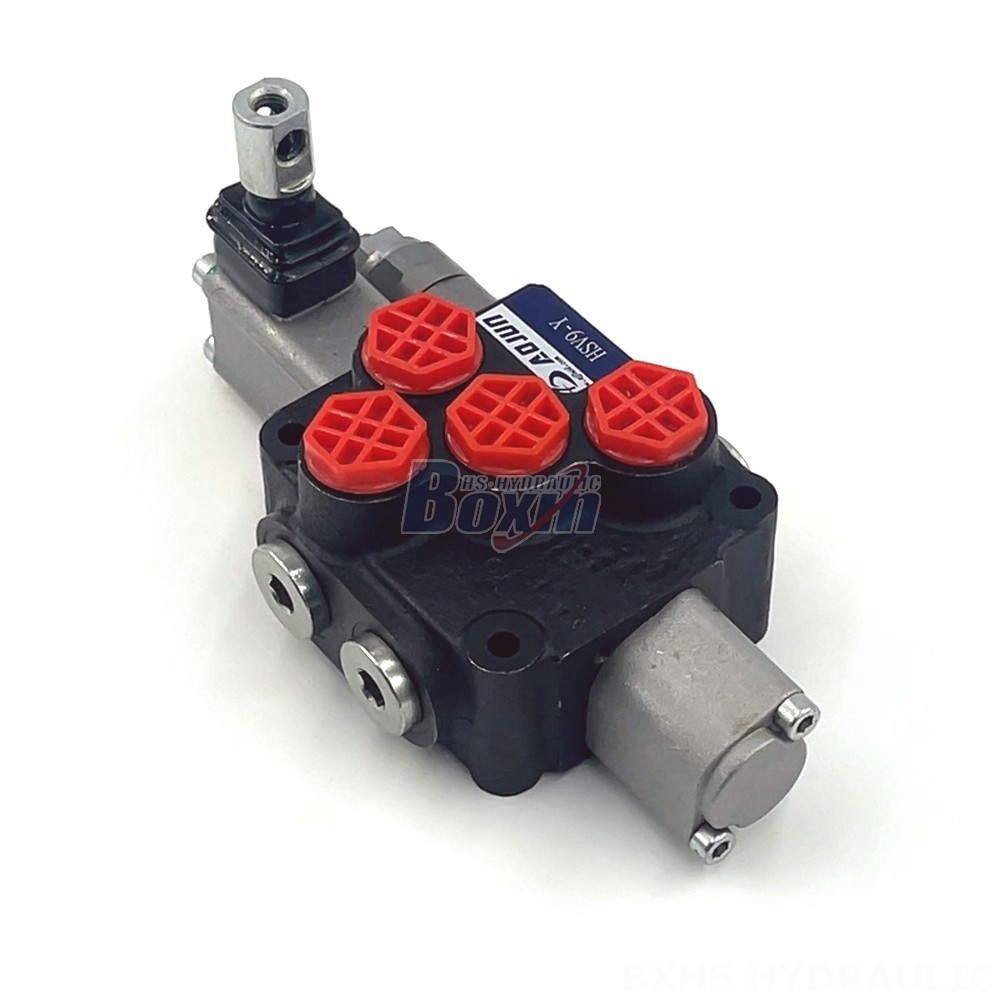

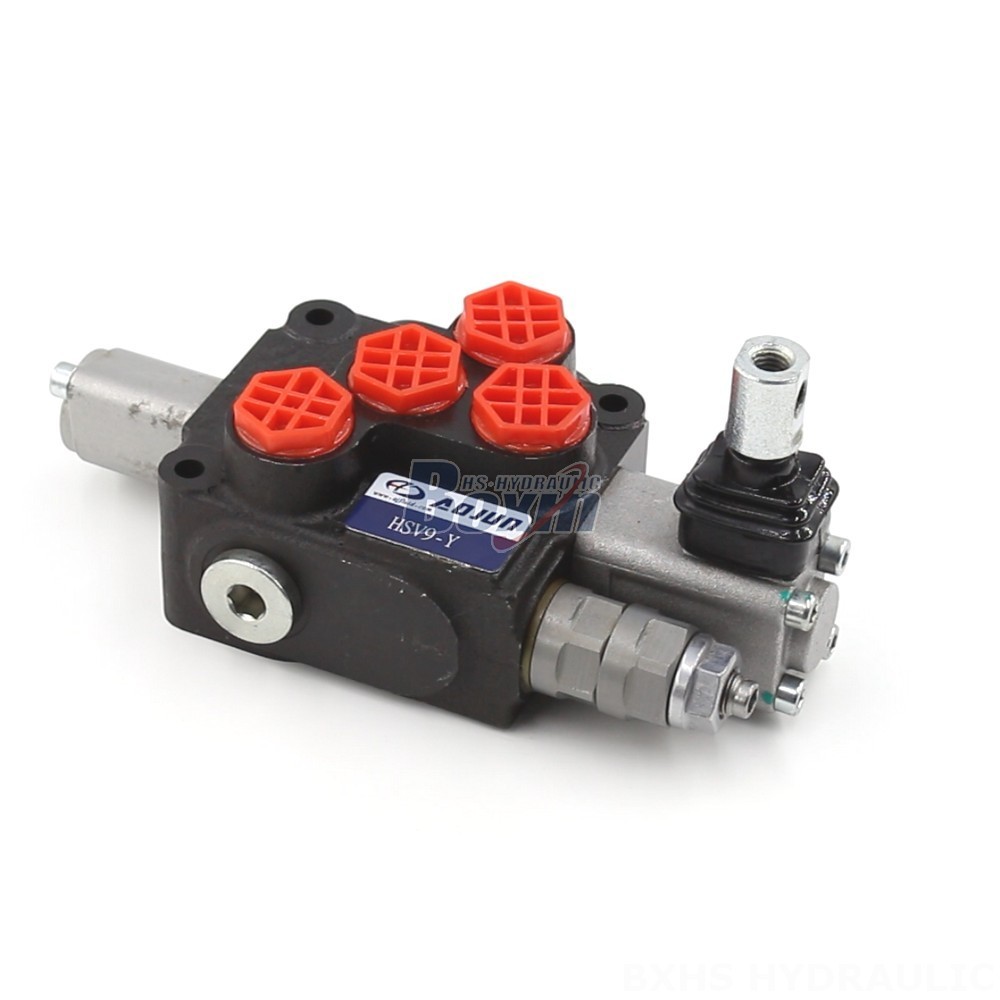

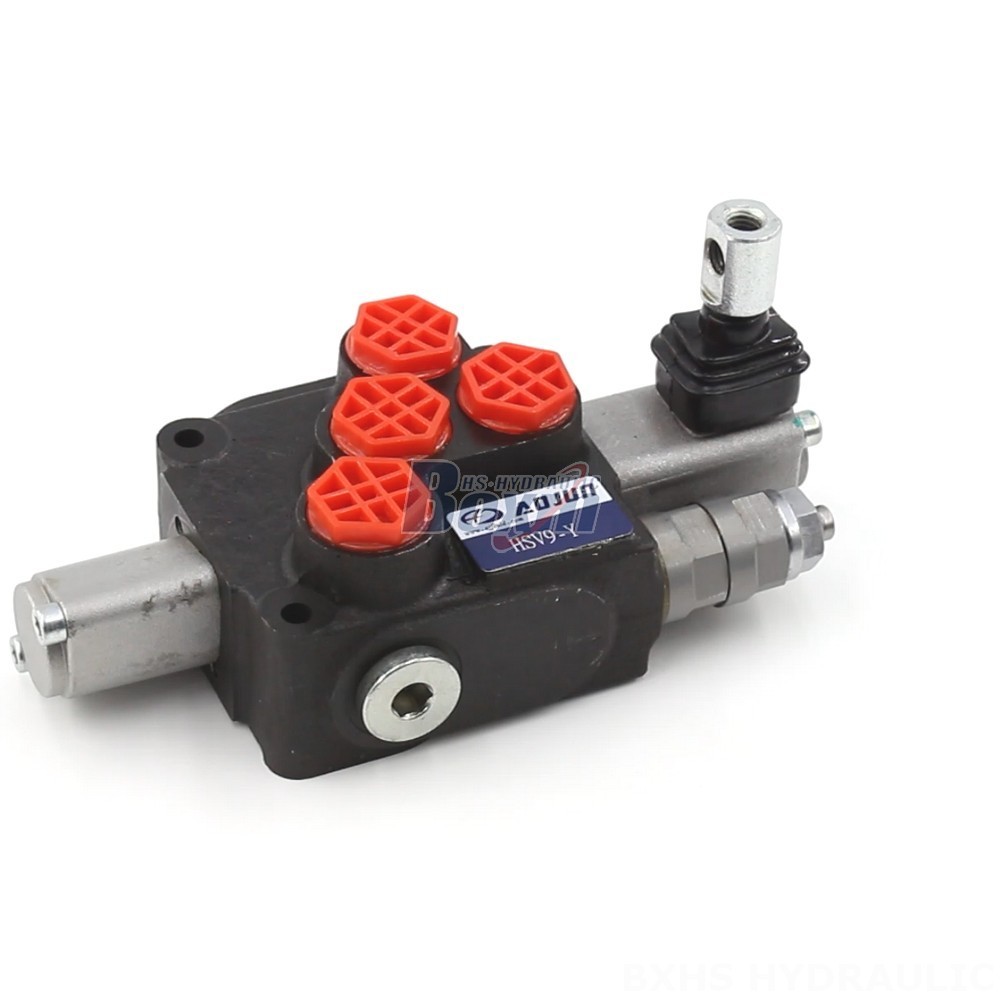

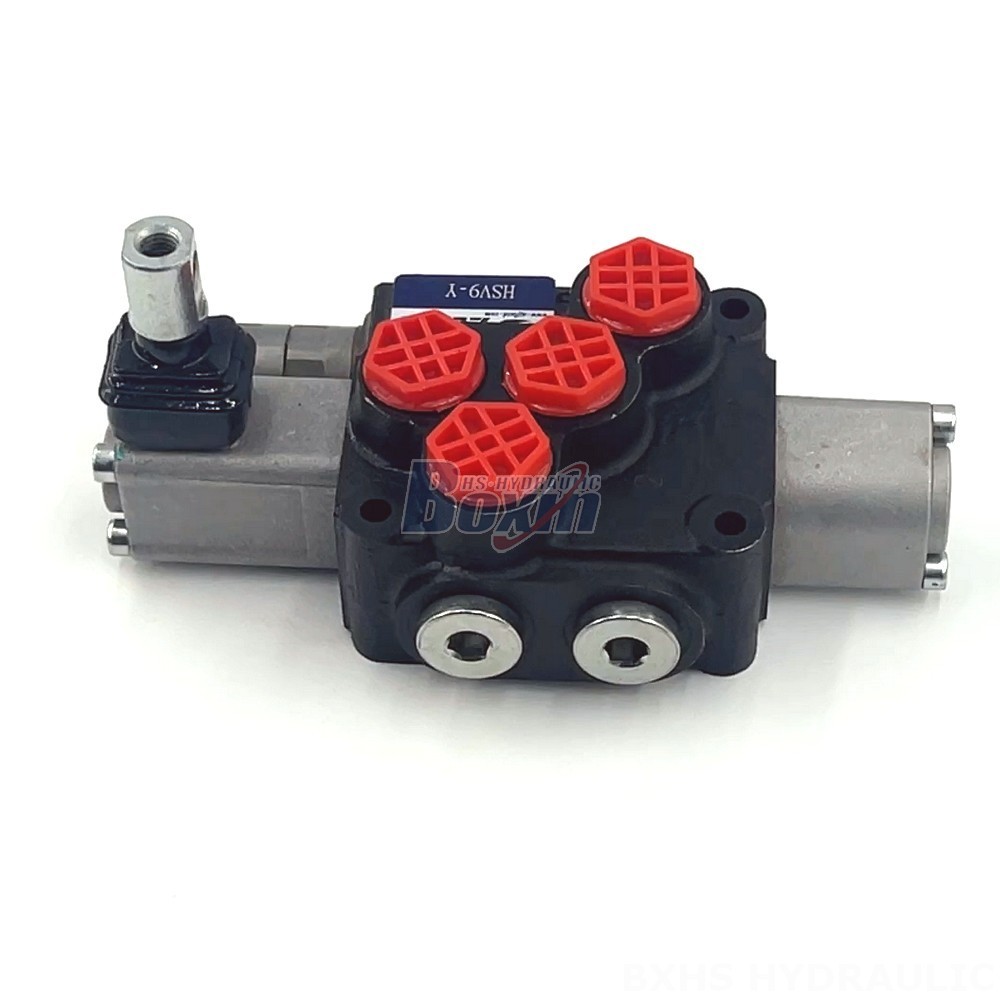

The DCV20 Hydraulic Directional Control Valve is a high-performance valve designed for a wide range of applications, including material handling, construction, agriculture, and industrial vehicles. Manufactured with precision and durability, this valve offers exceptional flow and pressure capabilities, ensuring efficient and reliable operation in demanding hydraulic systems.
| DCV20 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 전기 유압, 조이스틱, 수동 및 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 20리터 (5.2 US gpm) |
| 최대 압력 | 350바 (5100 psi) |
| 입구 포트 | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| 출구 포트 | G3/8, M18×1.5, SAE 8, 3/8 NPT |
| 포트 크기 | G3/8, M18×1.5, SAE 8, 3/8 NPT |
**DCV20 Hydraulic Directional Control Valve**
**Product Specifications:**
* Control Method: Manual
* Section: 1 Section
* Structure Type: Monoblock Valve
* Rated Flow: 20 L/min (5.2 US gpm)
* Max Pressure: 350 bar (5100 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 1 Spool
* Series: DCV20 Series
**Key Features:**
* Compact and robust design for easy integration into hydraulic systems
* Manual control for precise and responsive operation
* High flow capacity and pressure rating for demanding applications
* Wide operating temperature range ensures reliable performance in diverse environments
* Suitable for various hydraulic applications in material handling, construction, agriculture, and industrial vehicles
**Applications:**
* Telehandlers
* Forklifts
* All-terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
* Tractors and front-end loaders
* Harvesters
* Backhoes
* Seeding machines
* Sprayers
* Balers
* Skip loaders
