The DCV58 Hydraulic Directional Control Valve is a high-performance, customisable valve designed for demanding hydraulic applications. With its solenoid control, sectional valve structure, and robust construction, it offers precise control, high flow capacity, and exceptional durability.
| DCV58 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 솔레노이드, 솔레노이드 및 수동 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀, 11 스풀, 12 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션, 11 섹션, 12 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 350바 (5100 psi) |
| 입구 포트 | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| 출구 포트 | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| 포트 크기 | G1/2, M22×1.5, SAE 10, 1/2 NPT |

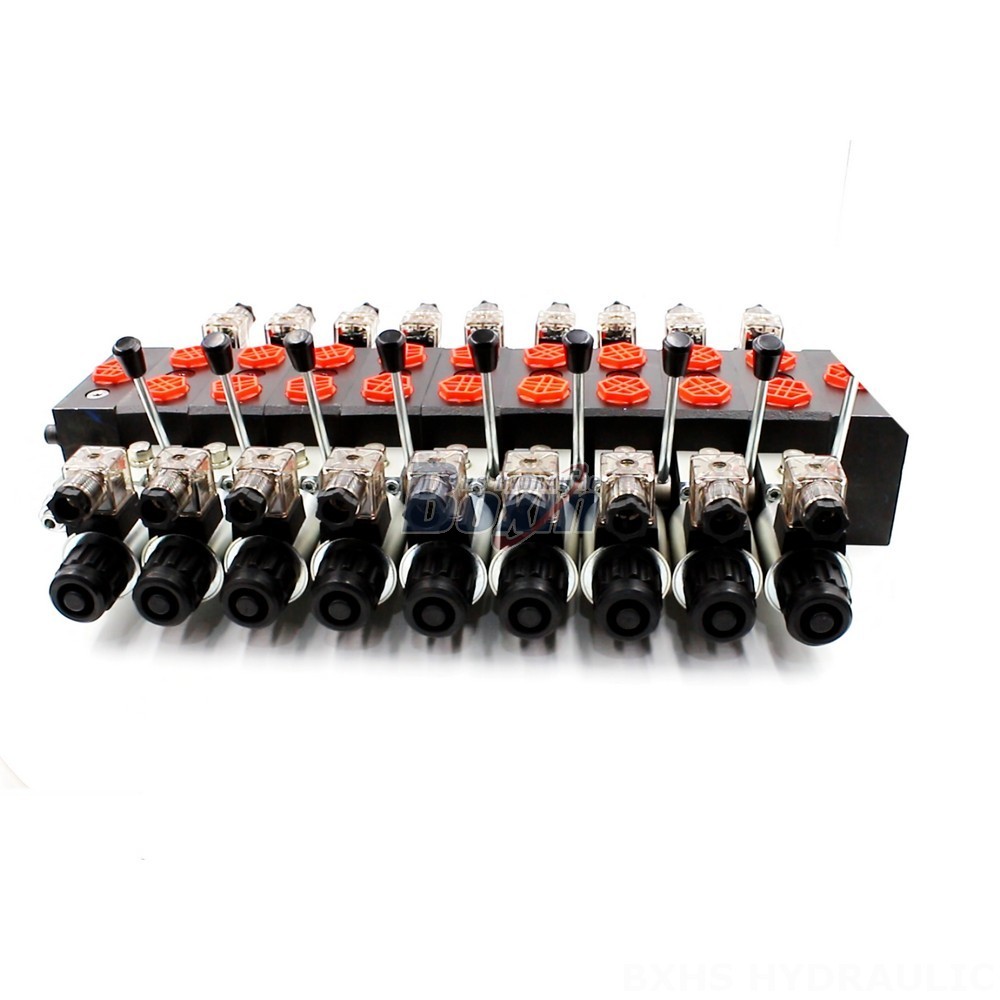

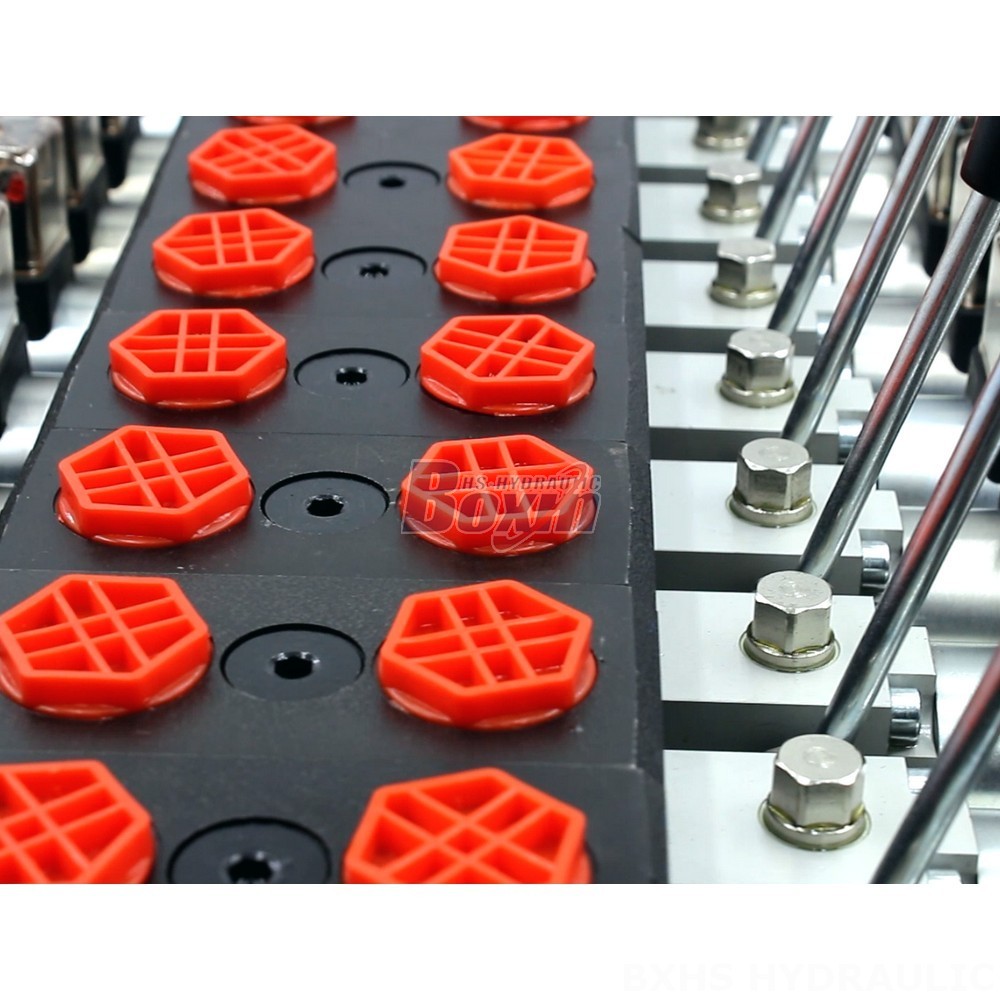

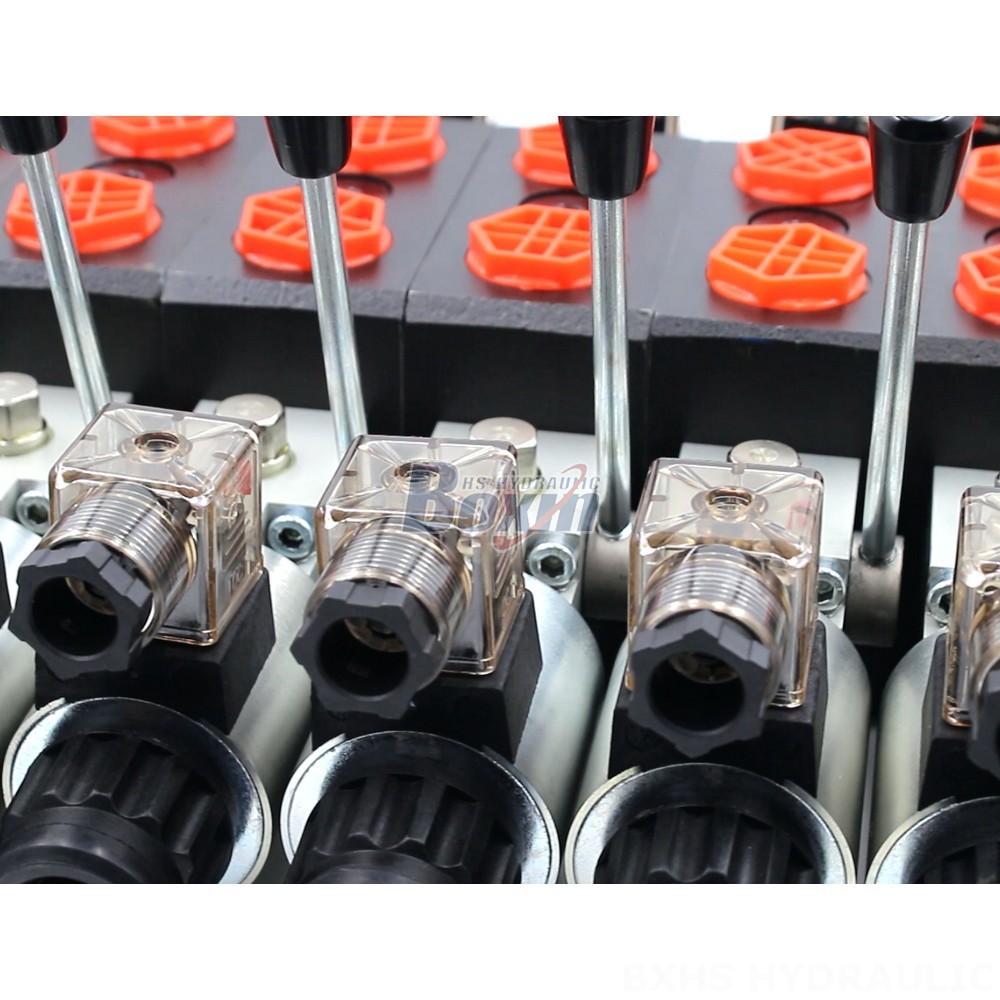

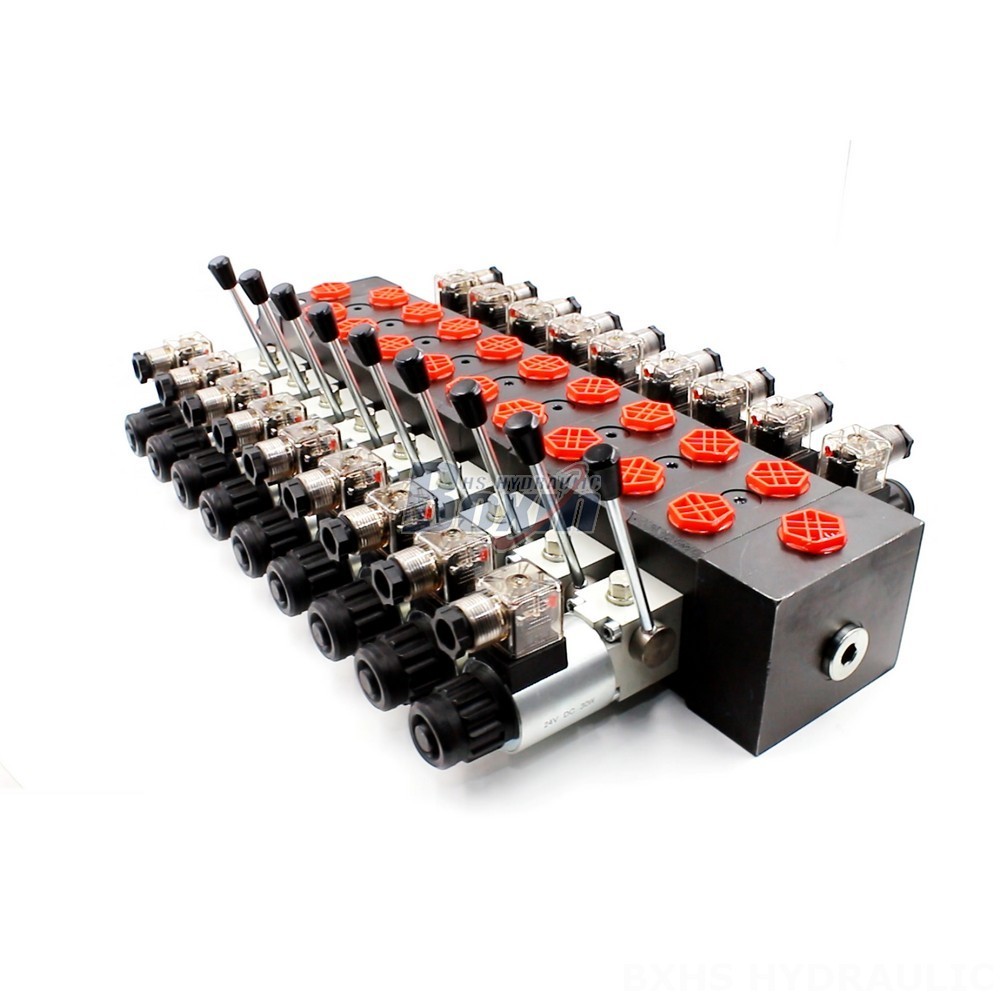

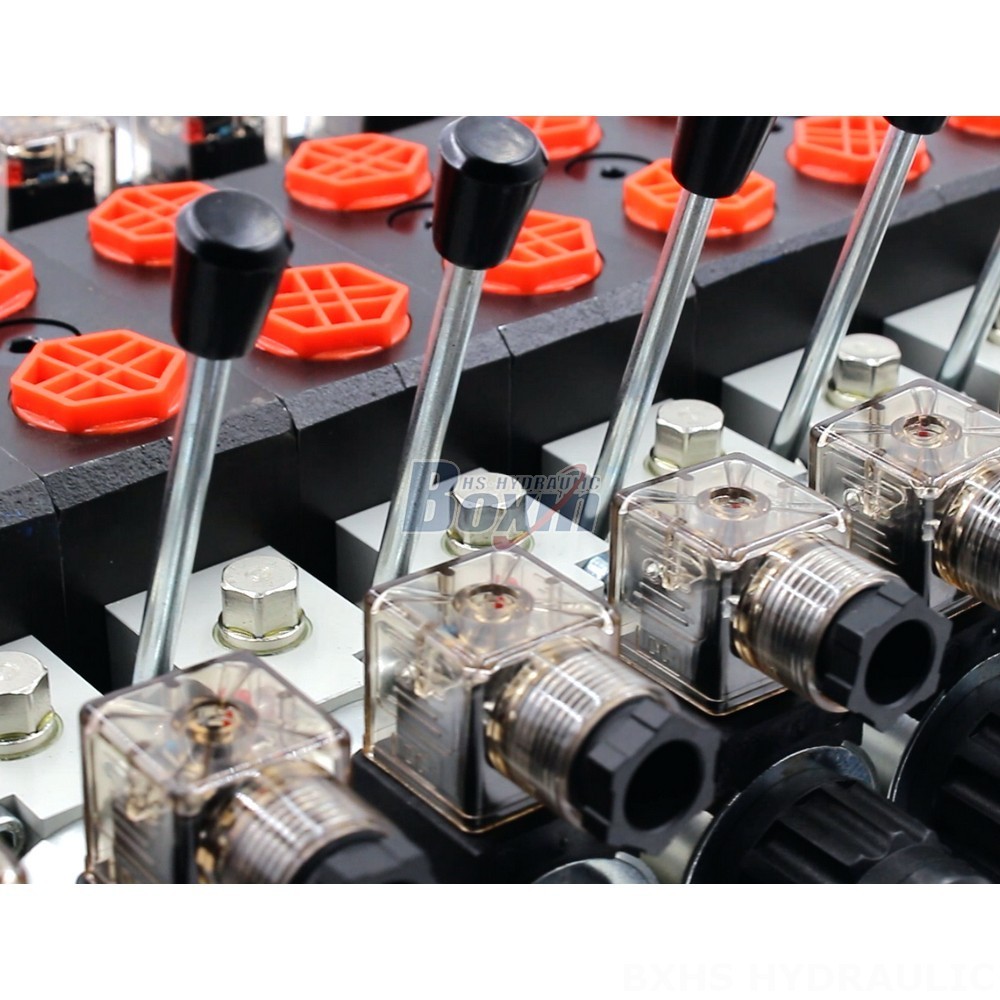

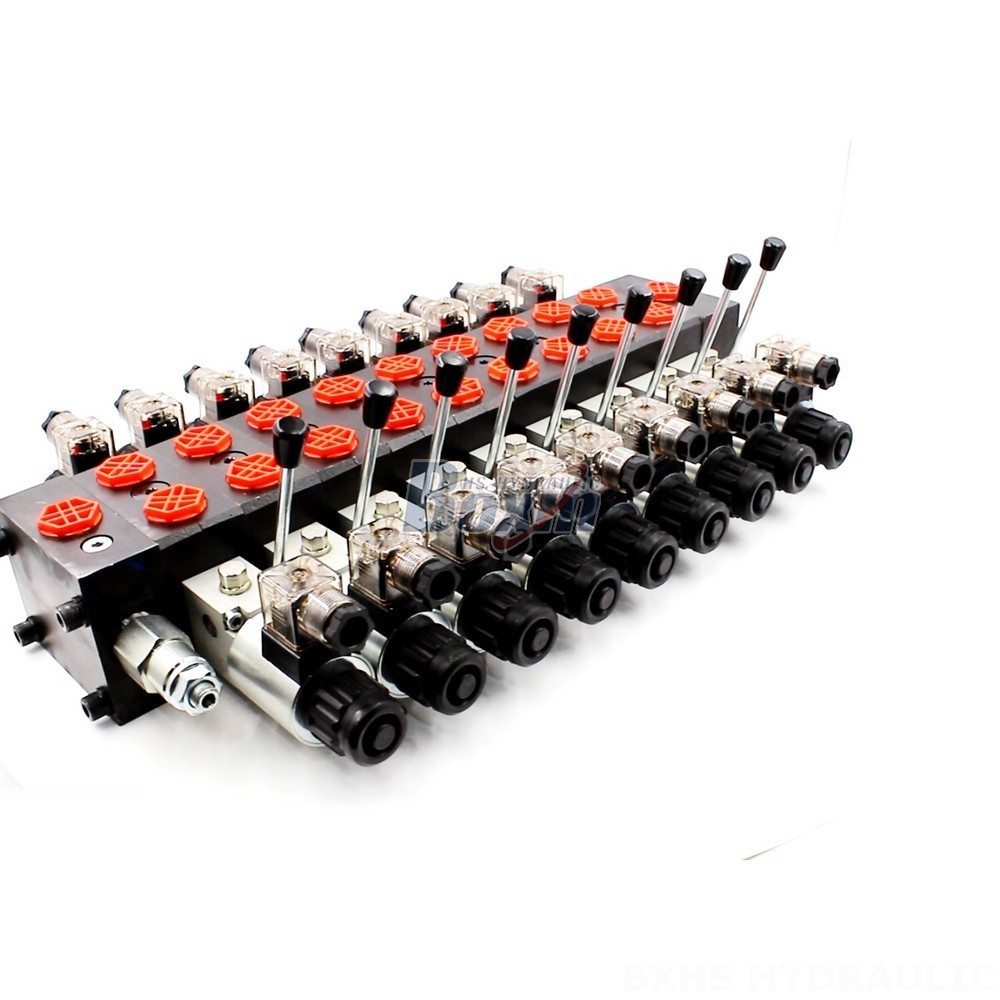

**DCV58 Hydraulic Directional Control Valve**
**Control Method:** Solenoid
**Section:** 9 Section
**Structure Type:** Sectional valve
**Rated Flow:** 60 L/min (15.8 US gpm)
**Max Pressure:** 350 bar (5100 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 9 Spool
**Series:** DCV58 Series
**Applications:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Models:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MIDI-EXCAVATOR, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER
The DCV58 Hydraulic Directional Control Valve is a versatile and reliable solution for a wide range of hydraulic systems. Its high flow capacity and pressure rating make it suitable for demanding applications, while its sectional valve structure allows for easy customization to meet specific requirements.
