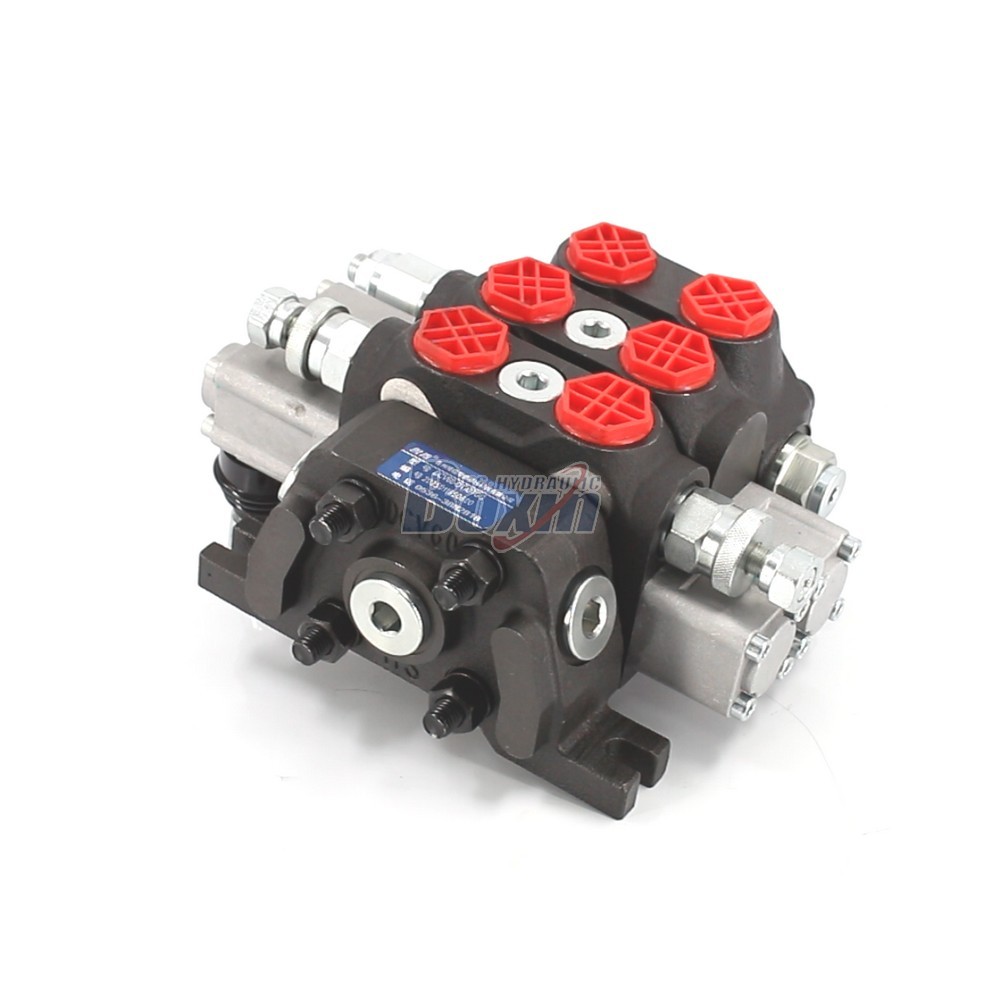

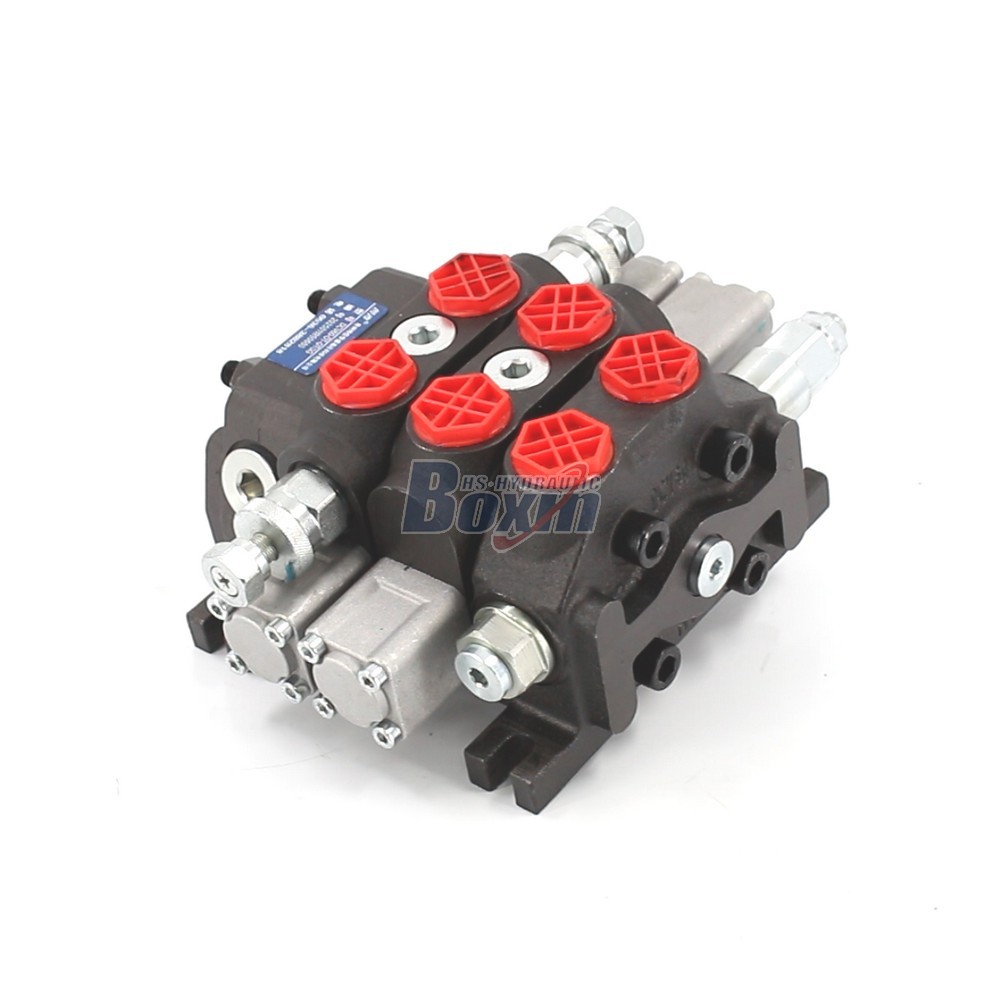

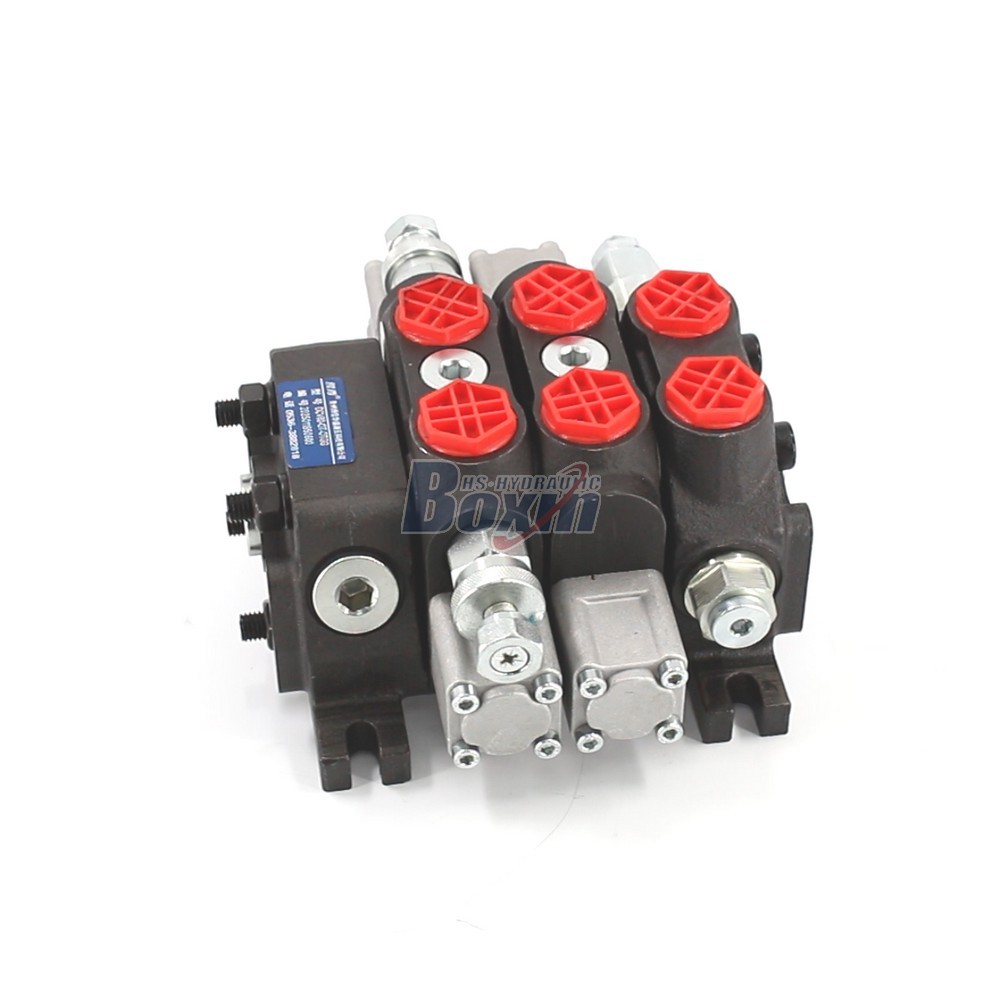

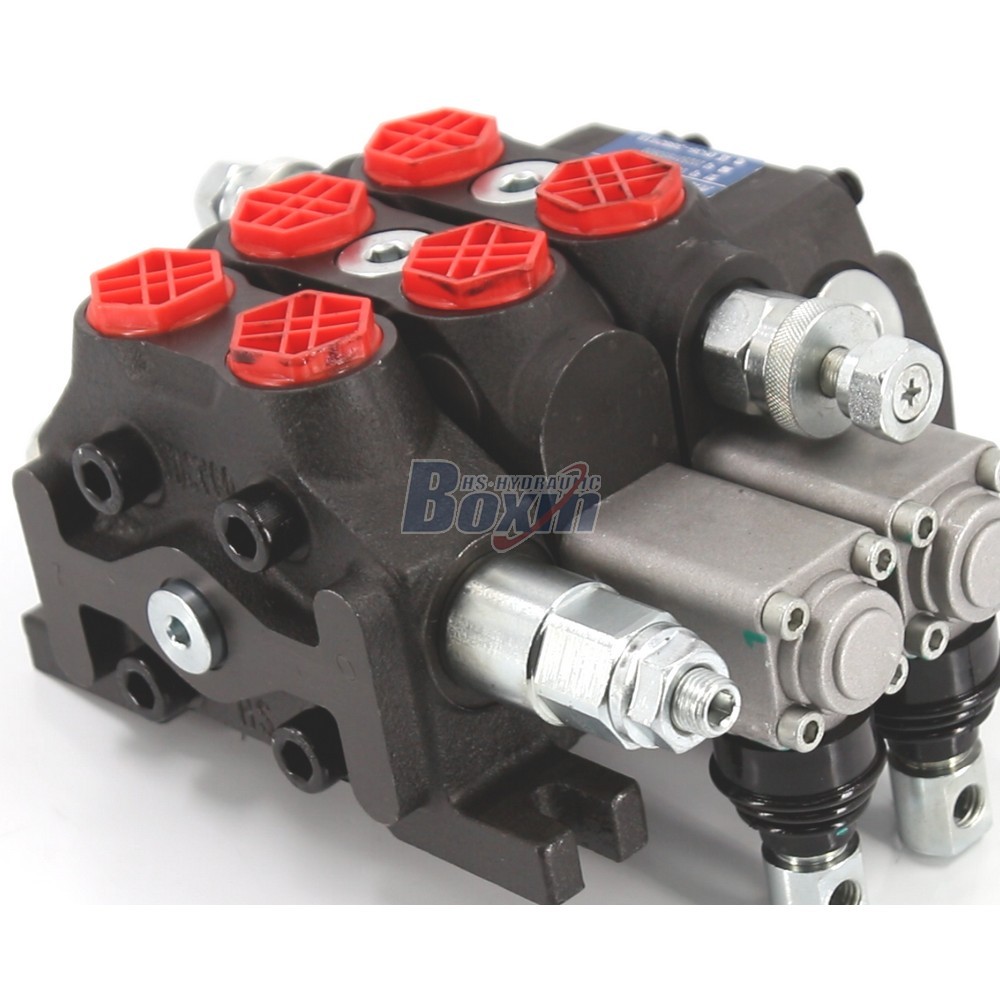

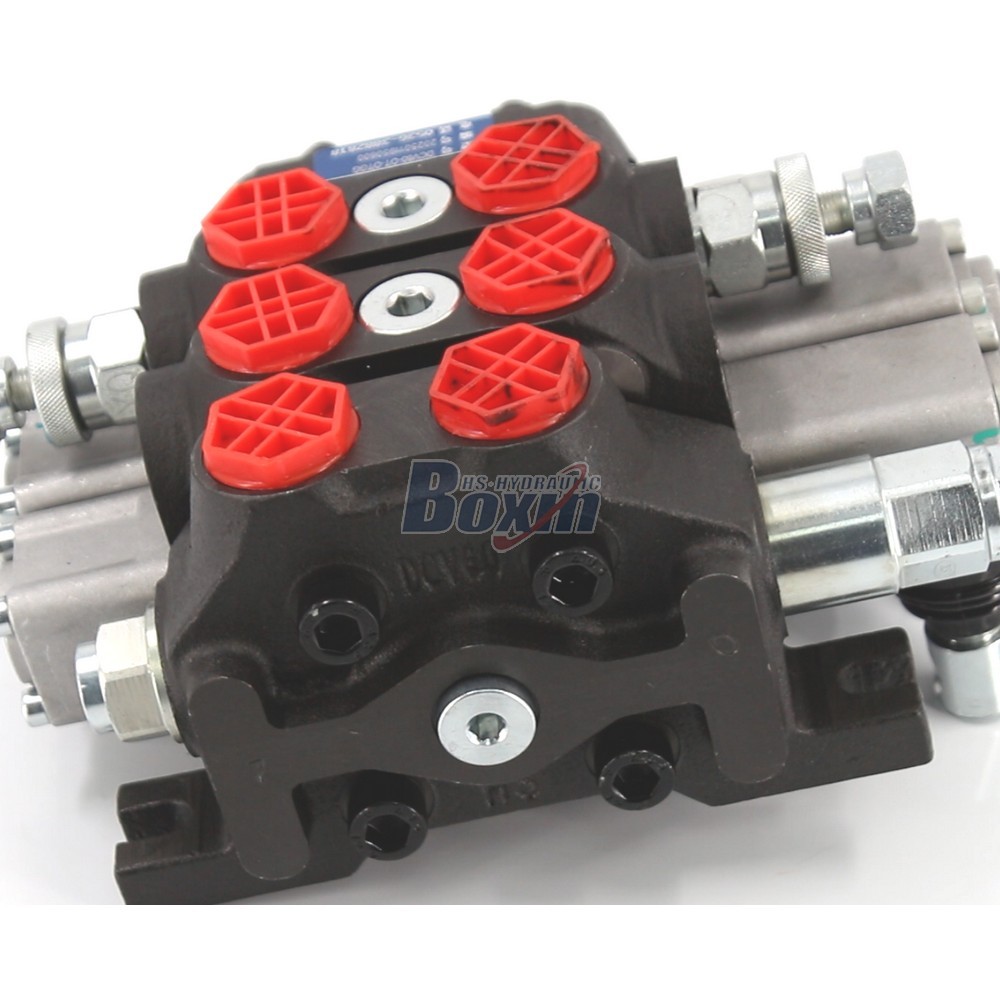

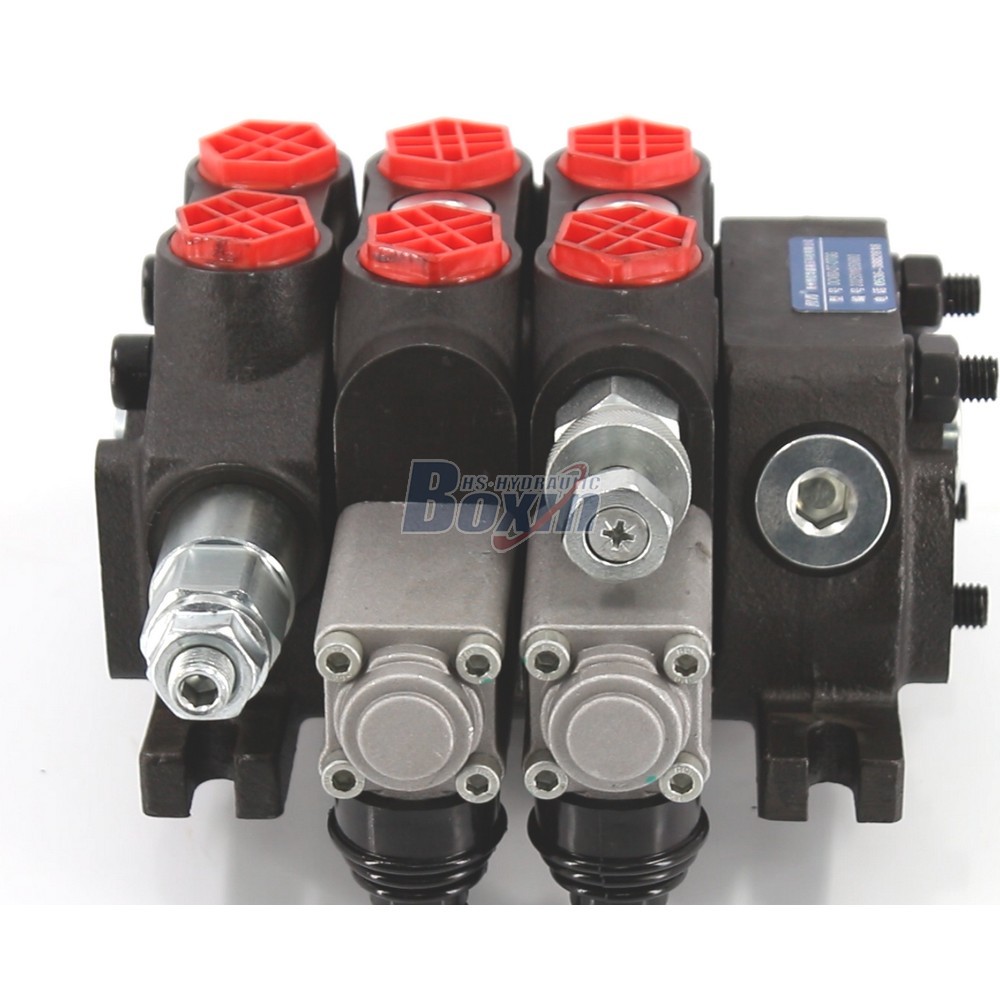

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

제어 방식:수동

스풀:2 스풀

정격 유량:분당 60리터 (15.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G3/4

출구 포트:G3/4

포트 크기:G3/4

브랜드:BXHS

제품 유형:구역 방향 밸브

제품 시리즈:DCV60 시리즈 구역 방향 밸브

포장 크기:30*25*18

총중량:11.00 kg

재고 상태: 재고 있음

114 이 제품을 찾아보시지 않겠습니까?

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve

DCV60-FZJ Series Hydraulic Directional Control Valve 2 Spool Sectional Valve drawing image

The DCV60-FZJ Series is a high-performance 2-spool sectional hydraulic directional control valve designed for precise manual operation. It offers a rated flow of 60 L/min and can withstand pressures up to 350 bar, making it ideal for demanding construction, agricultural, and material handling applications.

DCV60 시리즈 구역 방향 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 수동, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 전동기
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀, 11 스풀, 12 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 섹션 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션, 11 섹션, 12 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 60리터 (15.8 US gpm)
최대 압력 315바 (4600 psi), 350바 (5100 psi)
입구 포트 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT

As a prominent hydraulic manufacturer, we provide the DCV60-FZJ Series 2 Spool Sectional Valve, engineered for professional-grade performance and reliability. Featuring a robust manual control system and G3/4 porting, this valve is optimized for compact machinery such as mini-excavators, skid steer loaders, and tractors. We offer comprehensive solutions including manufacturing, OEM, and private labeling services to meet your specific technical requirements. Our factory supply ensures competitive wholesale pricing and consistent quality for high-volume orders. We are actively seeking global partners, including distributors, wholesalers, agents, and traders, to expand our market reach. Whether you need customized configurations or bulk supply, our factory-direct support provides the technical expertise and inventory stability required for industrial vehicle and earth-moving equipment applications.
