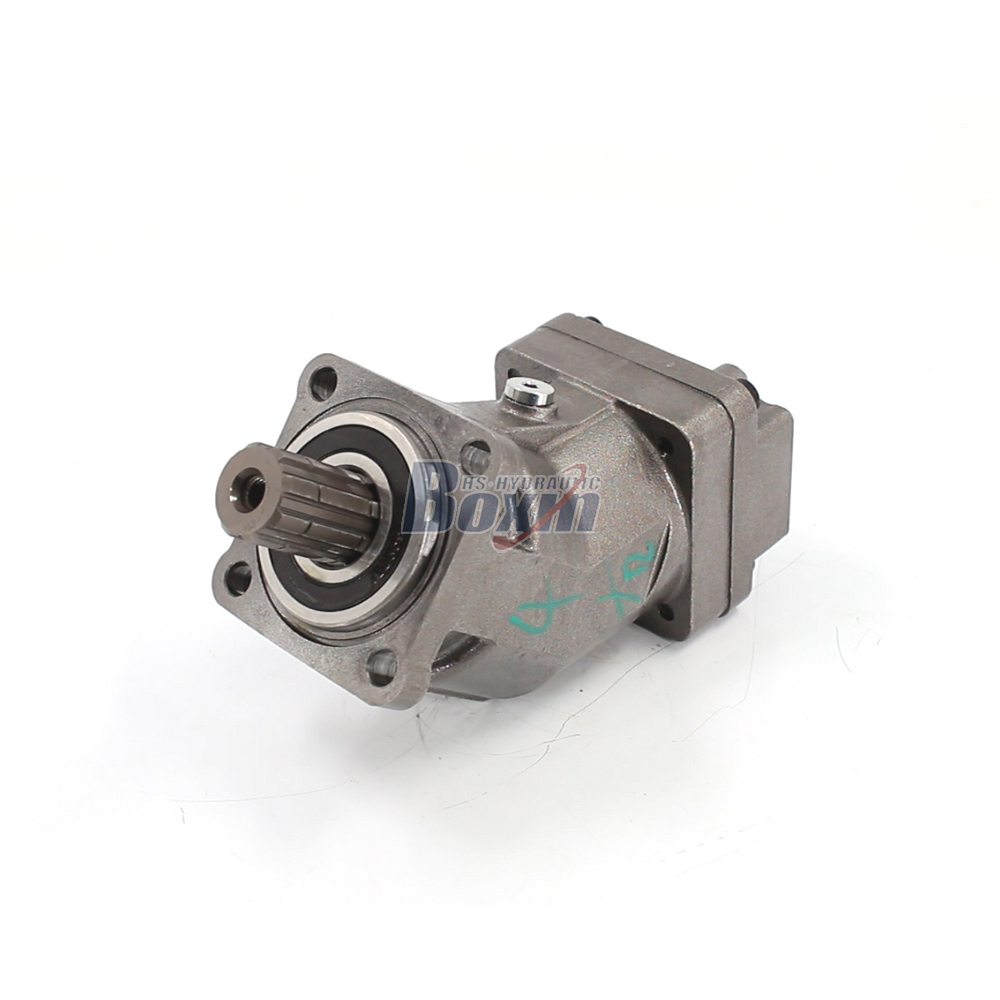

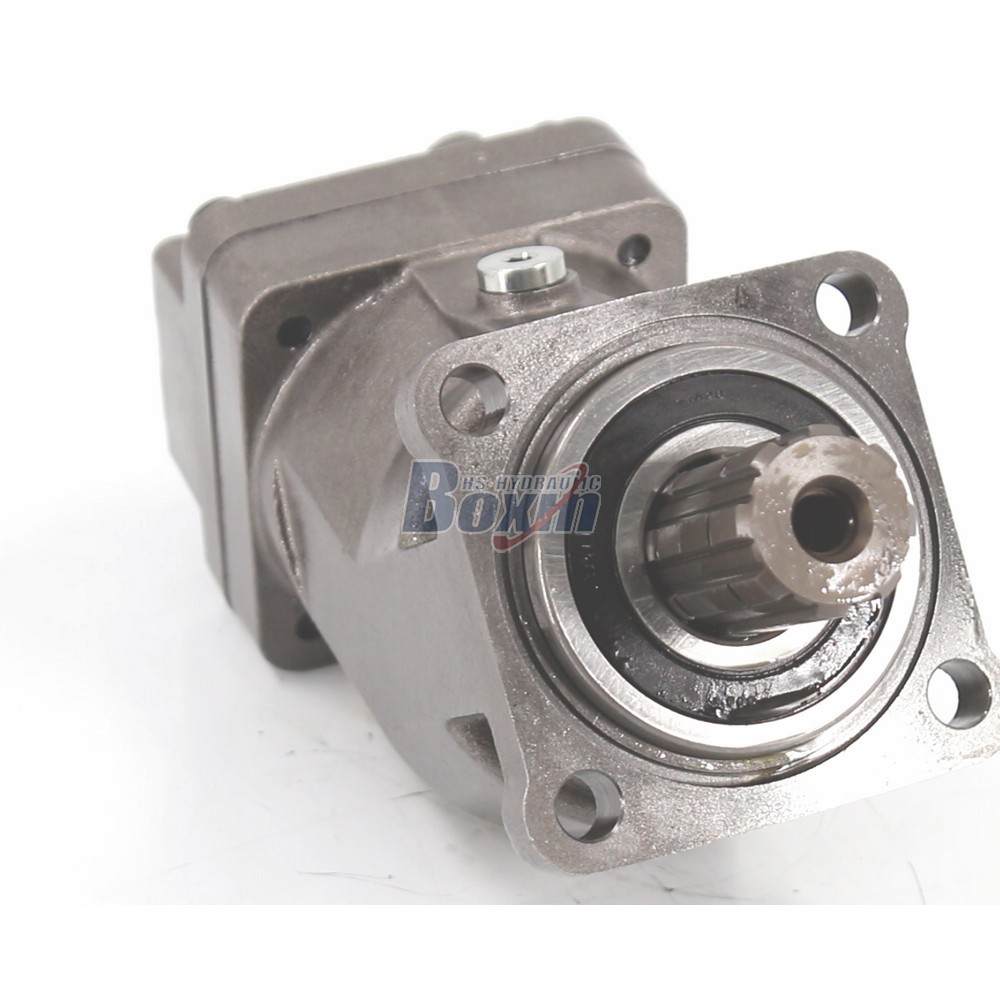

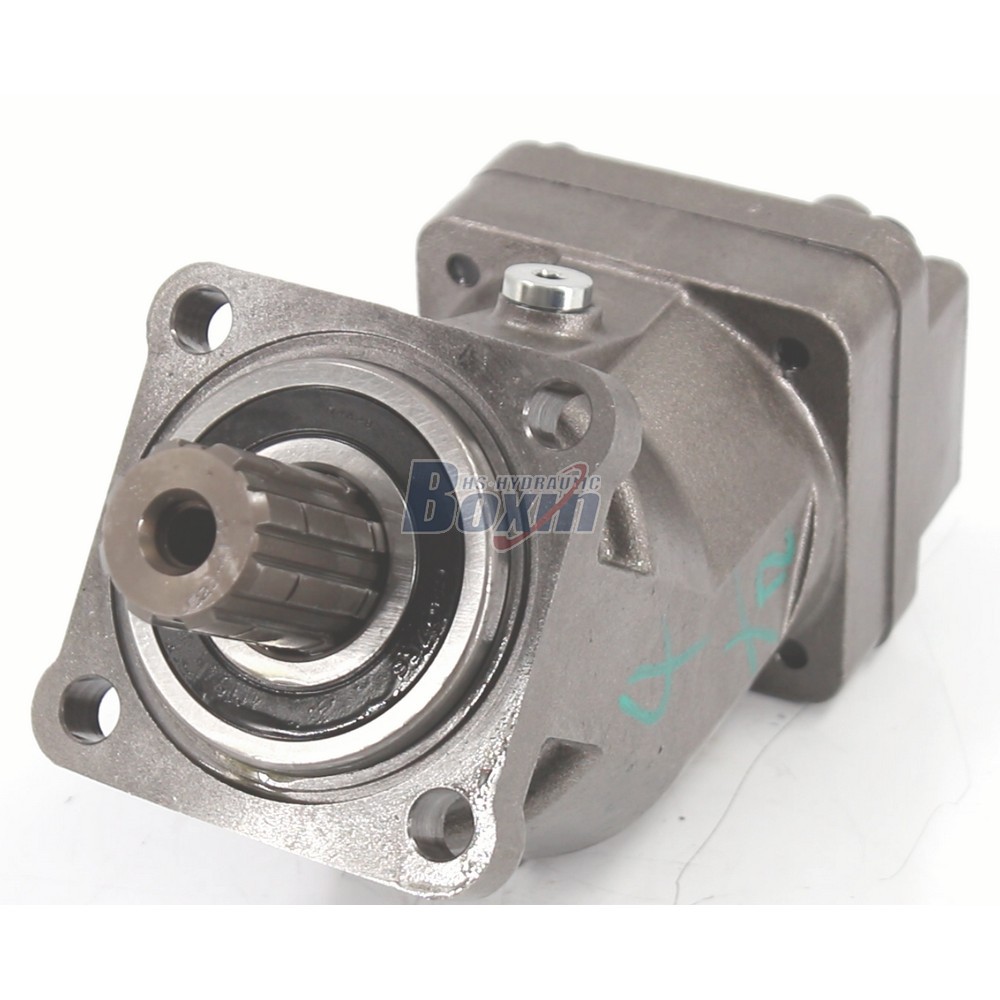

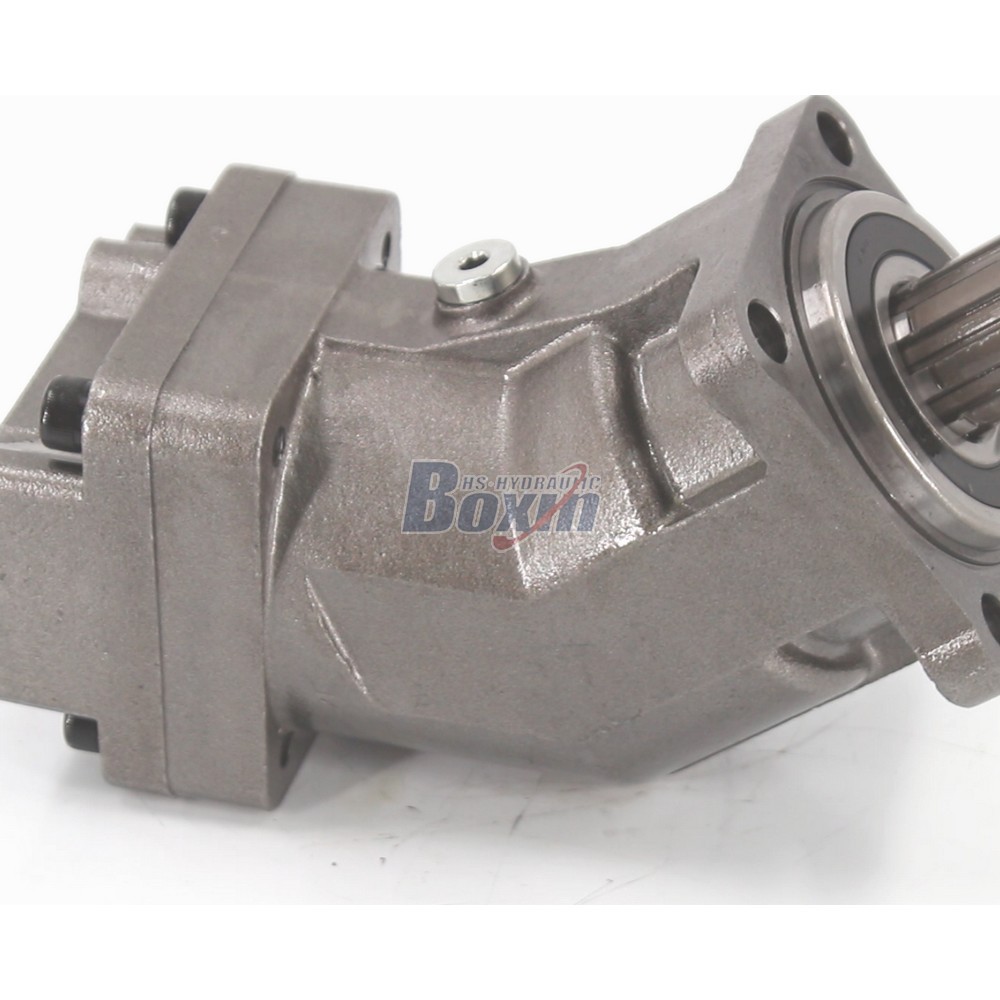

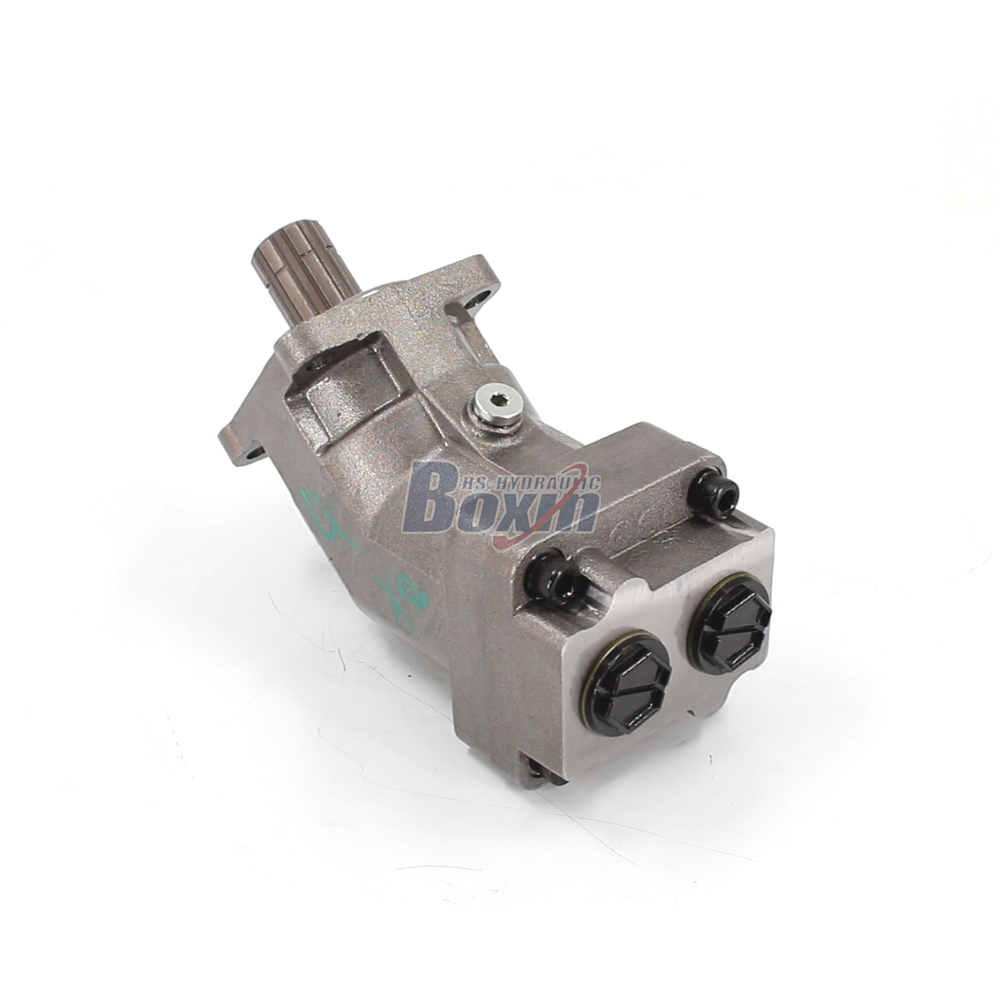

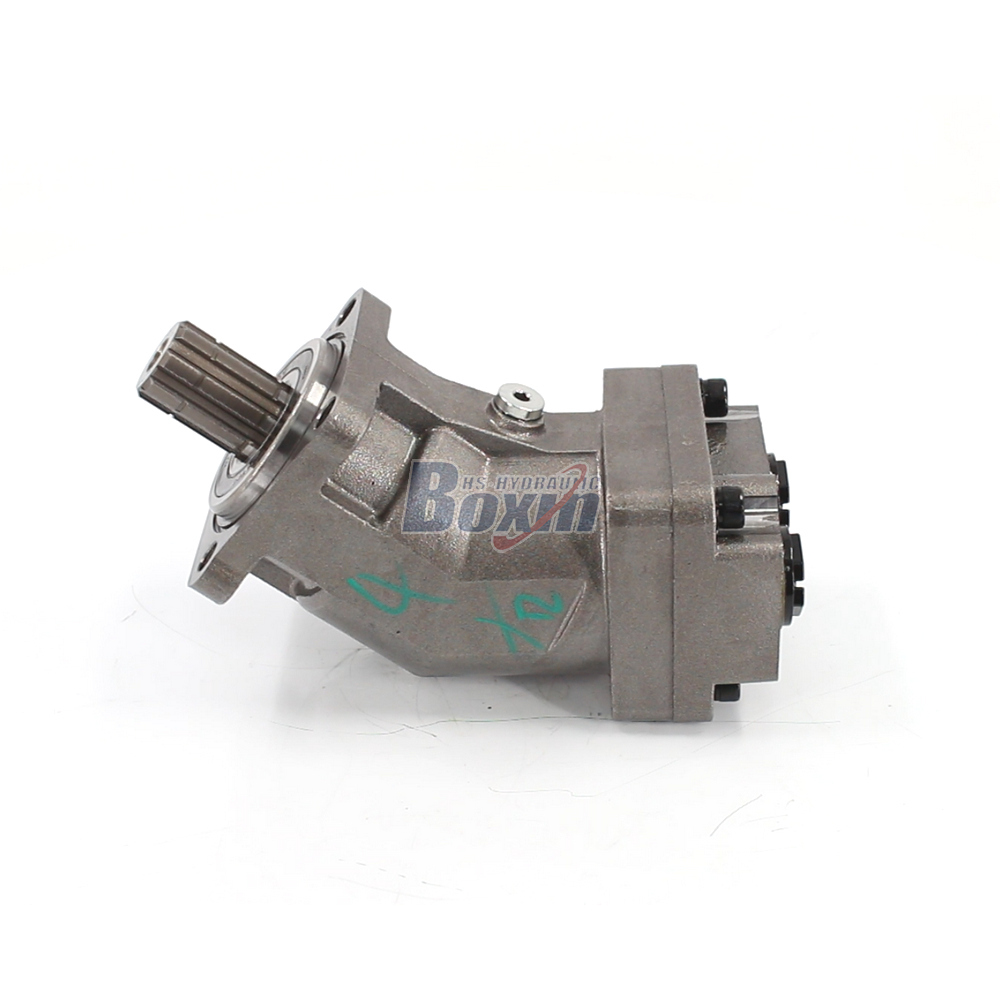

This XPi-40L axial hydraulic piston pump features a 40 cc/rev displacement and withstands rated pressures of 38 MPa (5511 psi). Manufactured by a 25-year IATF 16949 certified factory, it is ideal for mini-excavators and skid steer loaders. We offer full OEM/ODM customization with 100% tested quality assurance.
| XPI 시리즈 유압 피스톤 펌프 매개변수 | |
|---|---|
| 변위 | 32 cc/회전, 40 cc/회전, 45 cc/회전, 50 cc/회전, 63 cc/회전, 80 cc/회전, 25 cc/회전, 108 cc/rev |
| 정격 압력 | 38 MPa (5511 psi) |
| 최대 압력 | 42 MPa (6091 psi) |
| 정격 속도 | 1600 r/min |
| 최대 속도 | 1900 r/min |
| 회전 방향 | L: 왼쪽 (반시계 방향), R: 오른쪽 (시계 방향) |
| 재질 | 주철 |
| 구조 | 스와시플레이트 |
| 플랜지 버전 | ISO-4 장착 구멍 |
| 샤프트 유형 | H: 직사각형 스플라인 |
**1. High-Efficiency axial hydraulic piston pump Specs**
- Delivers consistent flow with 40 cc/rev displacement at rated speed of 1600 r/min (Max 1900 r/min).
- Engineered for heavy-duty cycles with Rated Pressure 38 MPa (5511 psi) and Max Pressure 42 MPa (6091 psi).
**2. Reliable 40cc hydraulic pump for Construction**
- Specifically designed for Left (counter-clockwise) rotation applications in compact machinery.
- Perfect fit for Mini-Excavators, Skid Steer Loaders, Backhoe Loaders, and Concrete Boom Pumps.
**3. Trusted OEM hydraulic components Manufacturer**
- Backed by 25+ years of expertise, 4 modern factories (68,000㎡), and annual capacity of 1.5 million units.
- Supports Private Label, custom logo laser marking, and tailored casing designs for global brands.
**4. mini excavator hydraulic pump Quality Assurance**
- Every unit undergoes 100% bench testing for pressure, flow, and sealing before shipment.
- Certified by IATF 16949, CE, and SGS; produced using 260+ vertical machining centers for tight tolerances.
**5. Factory Direct Sales & Global Compatibility**
- Directly replaces major international brands with superior compatibility and cost-effectiveness.
- Secured with rust-proof treatment and heavy-duty wooden crate packaging for safe worldwide export.
