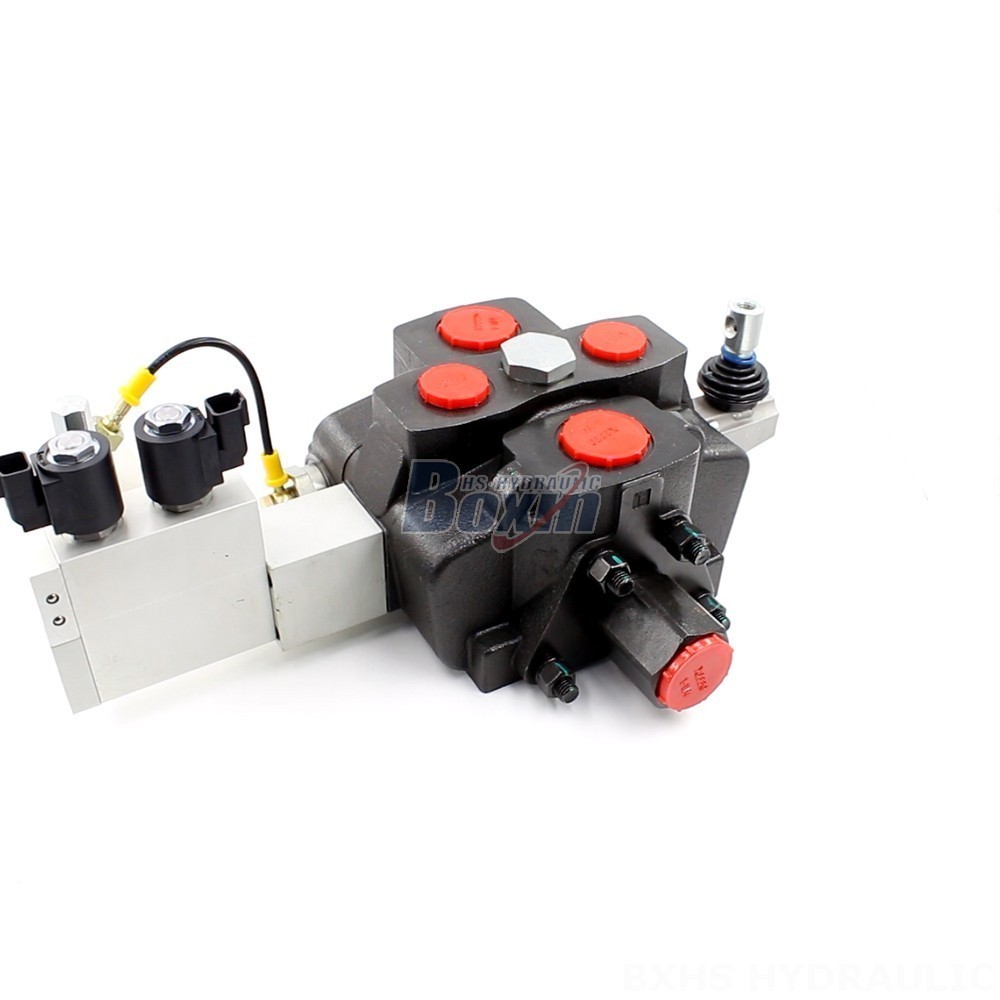

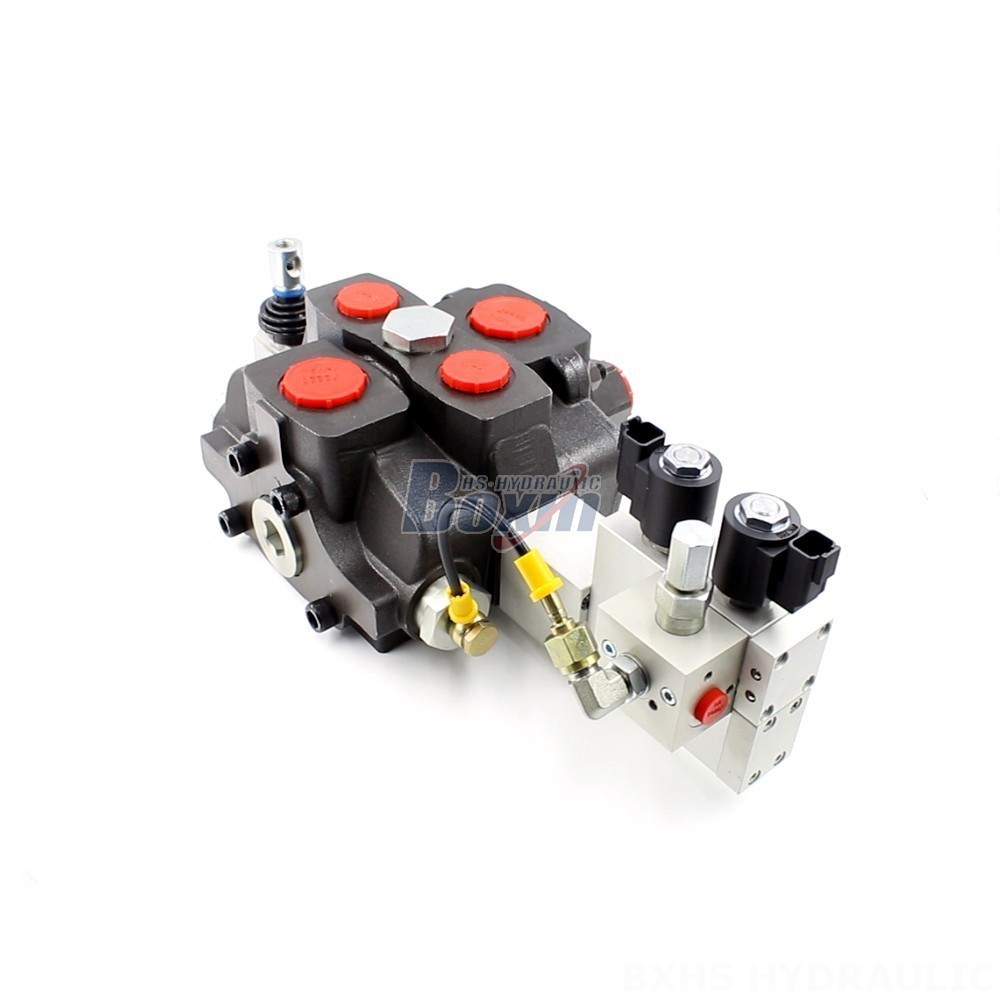

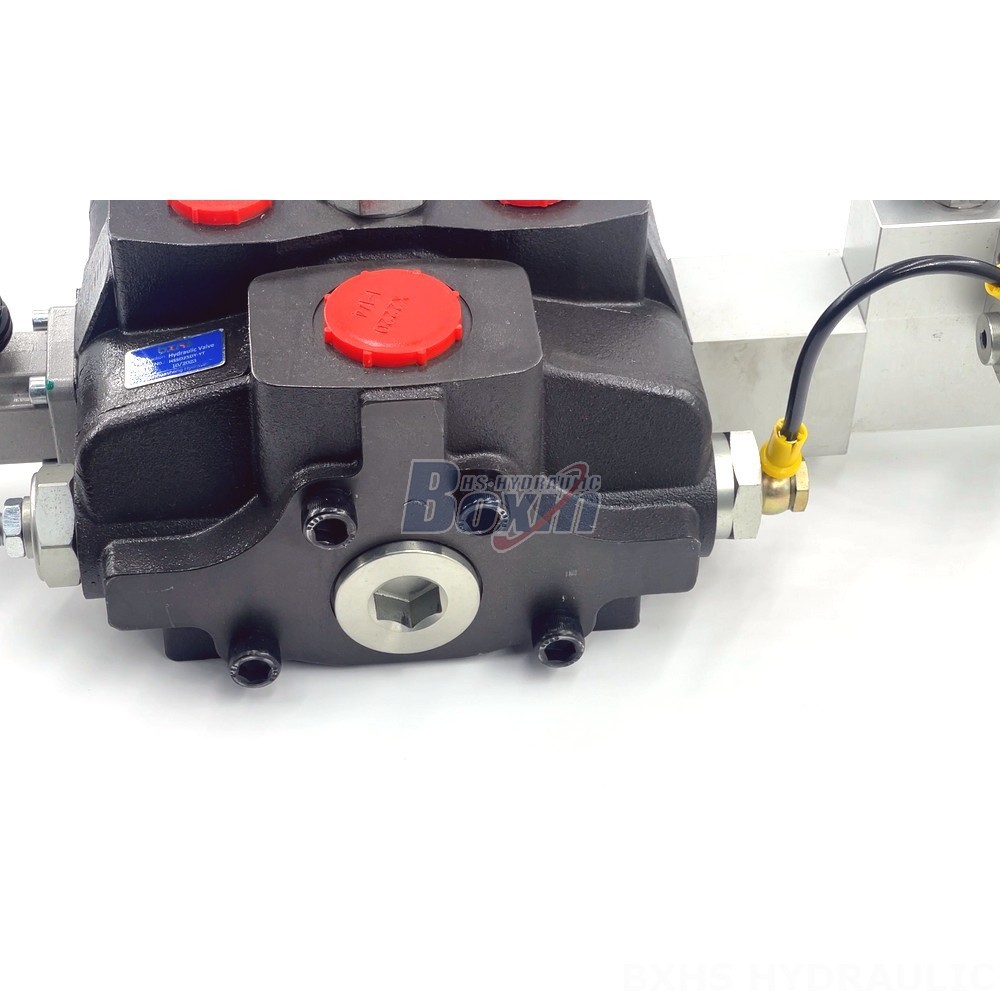

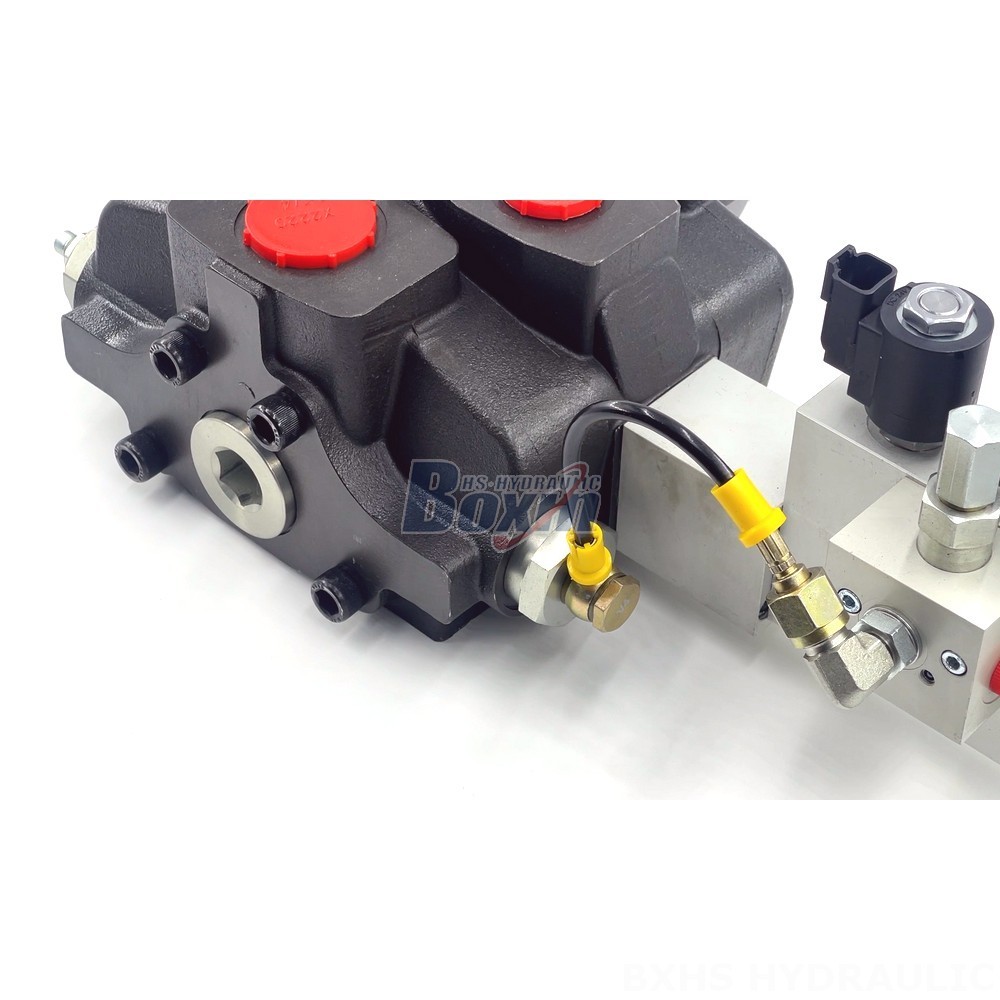

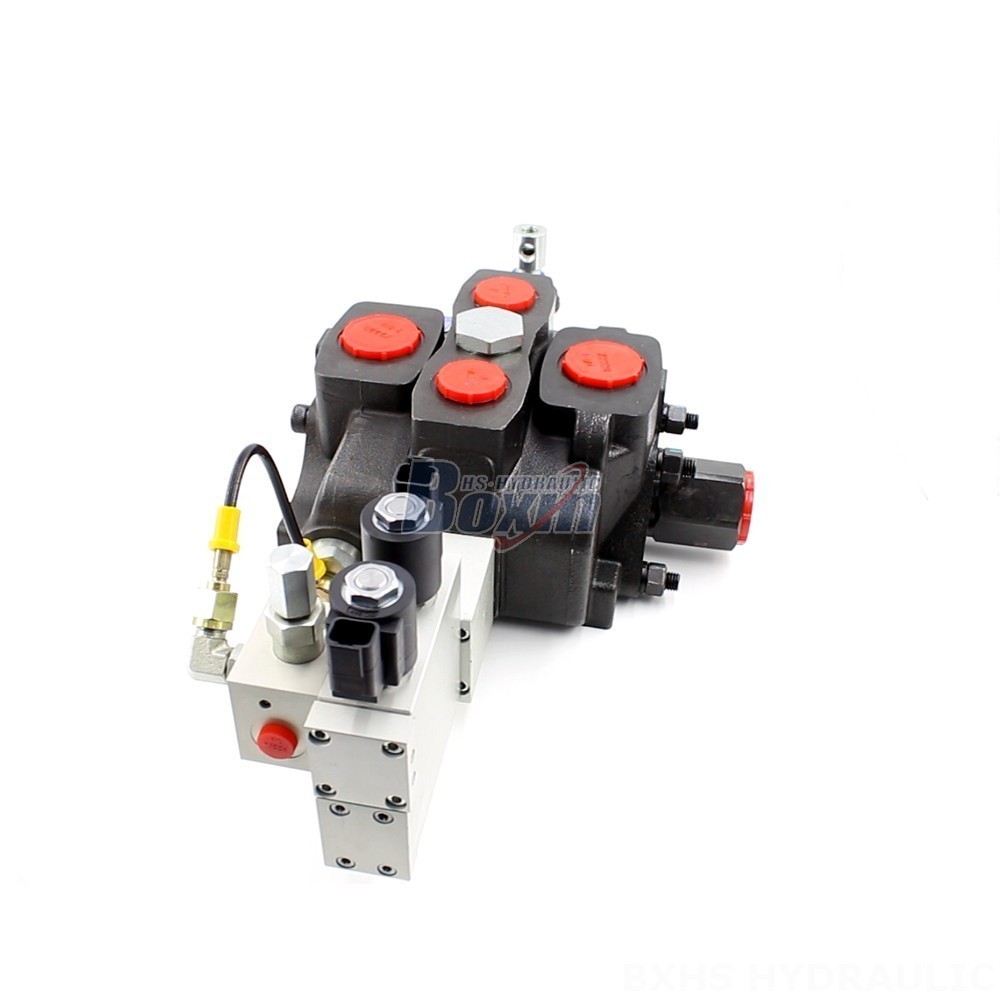

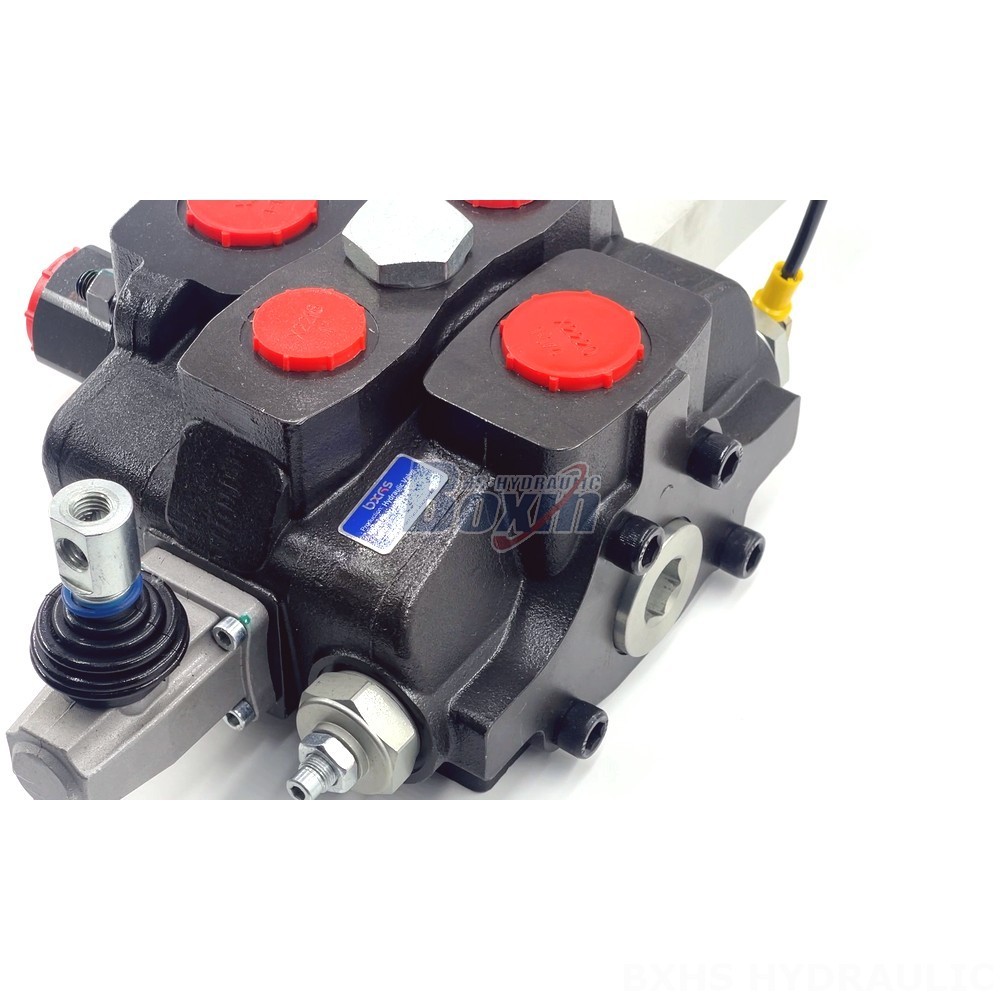

The Electro-hydraulic Valve for Industrial Applications (SD25 Model) is a high-performance valve designed for demanding industrial applications. With a rated flow of 240 L/min and a maximum pressure of 315 bar, it delivers exceptional flow and pressure capabilities. Its monoblock construction ensures durability and reliability, while its wide temperature range (-40°C to +80°C) allows for operation in various environments. The SD25 Series valve is ideal for material handling, construction, earth moving, agriculture, and industrial vehicle applications, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, and excavators.
| SD25 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 전기 유압, 유압 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 240리터 (63.4 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G1, SAE 16 |
| 출구 포트 | G1-1/4, SAE 16 |
| 포트 크기 | G1, G1-1/4, SAE 12 |
**Electro-hydraulic Valve for Industrial Applications (SD25 Model)**
**Control Method:** Electro-hydraulic
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 240 L/min (63.4 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SD25 Series
**Key Features:**
* High flow capacity (240 L/min)
* High pressure capability (315 bar)
* Wide temperature range (-40°C to +80°C)
* Monoblock construction for durability
* Single spool for simple operation
**Applications:**
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Excavators
