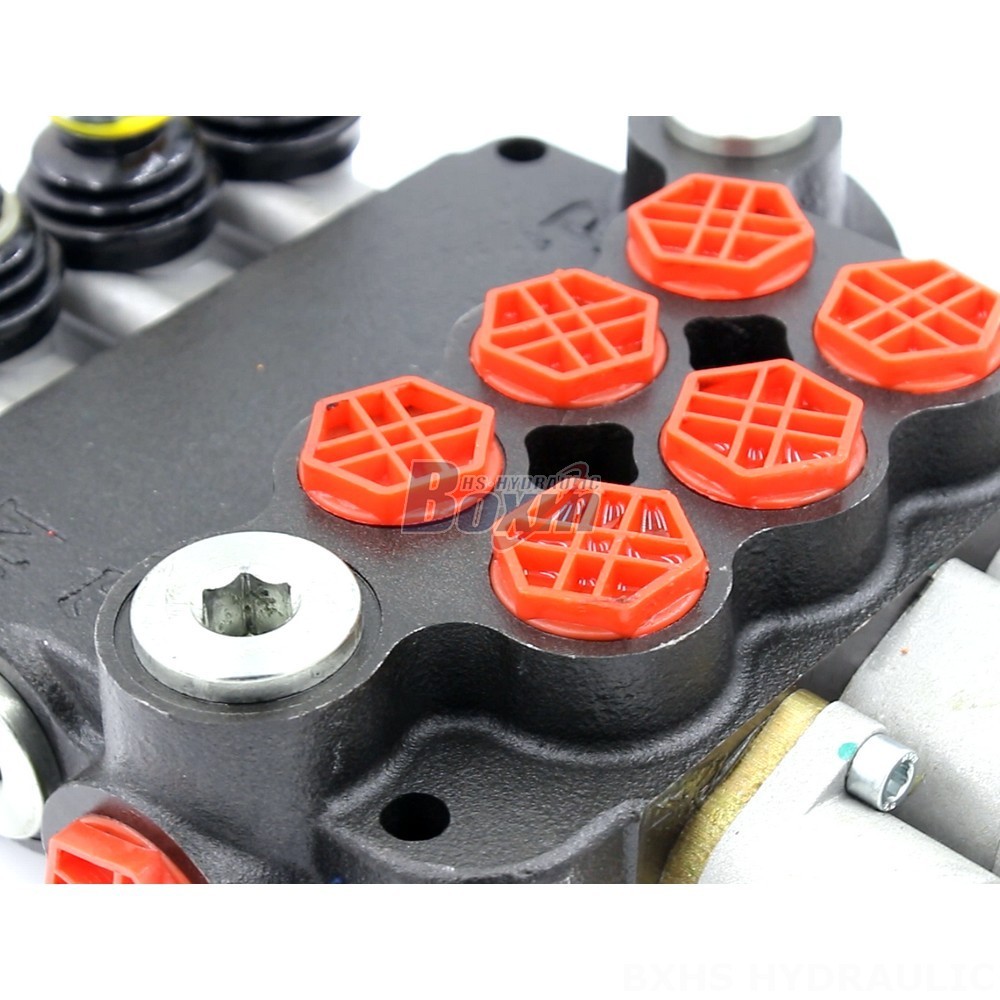

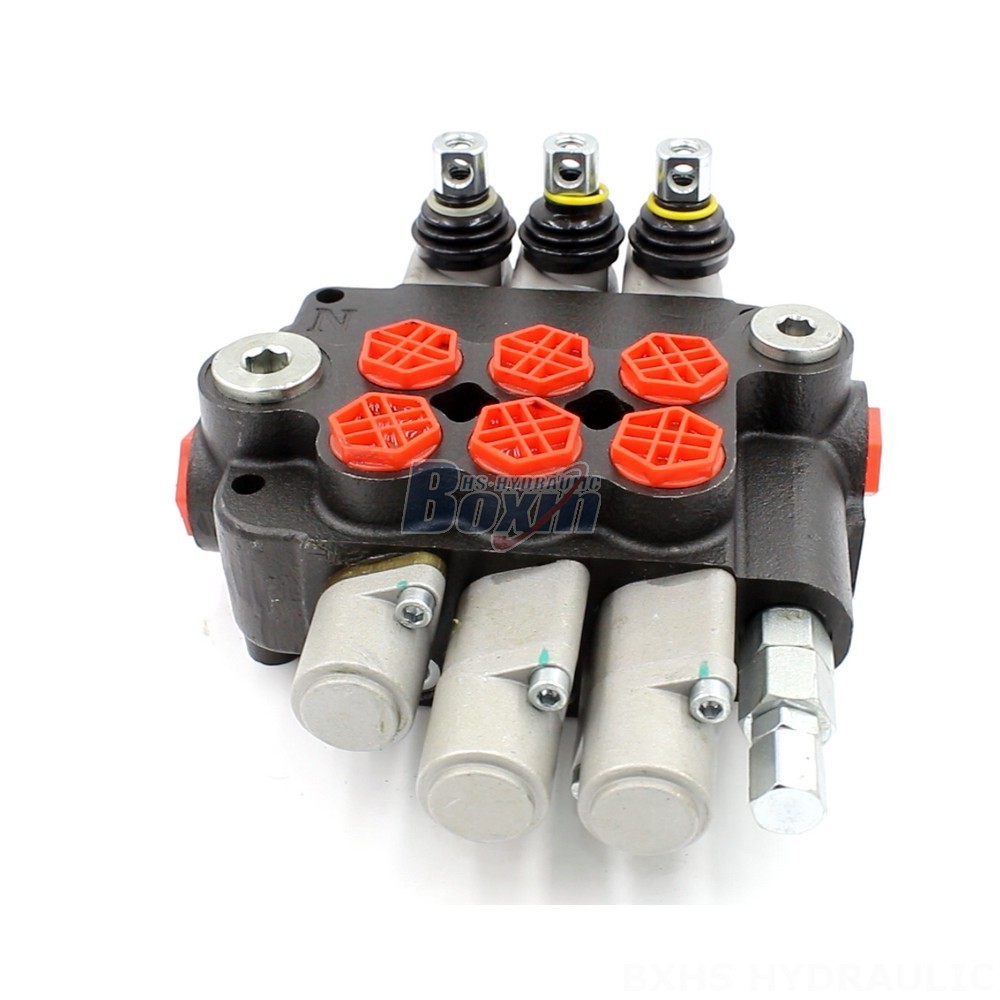

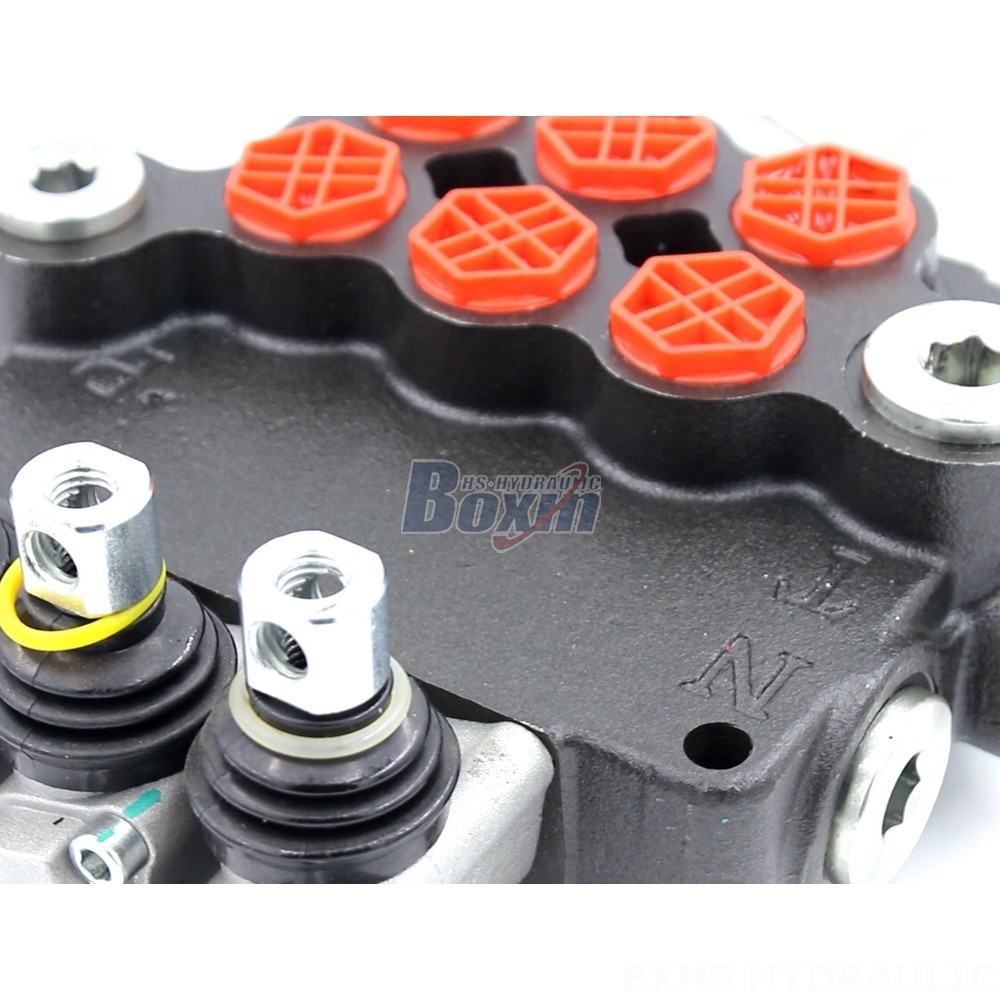

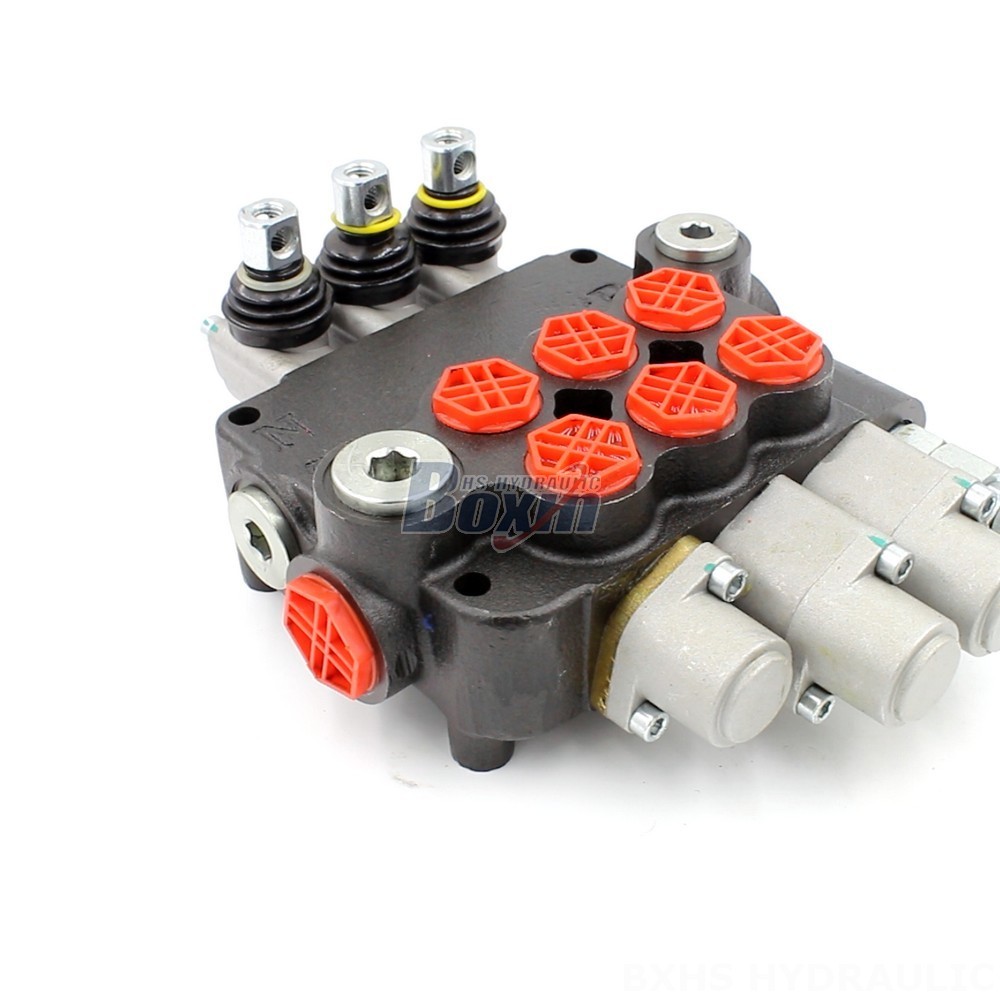

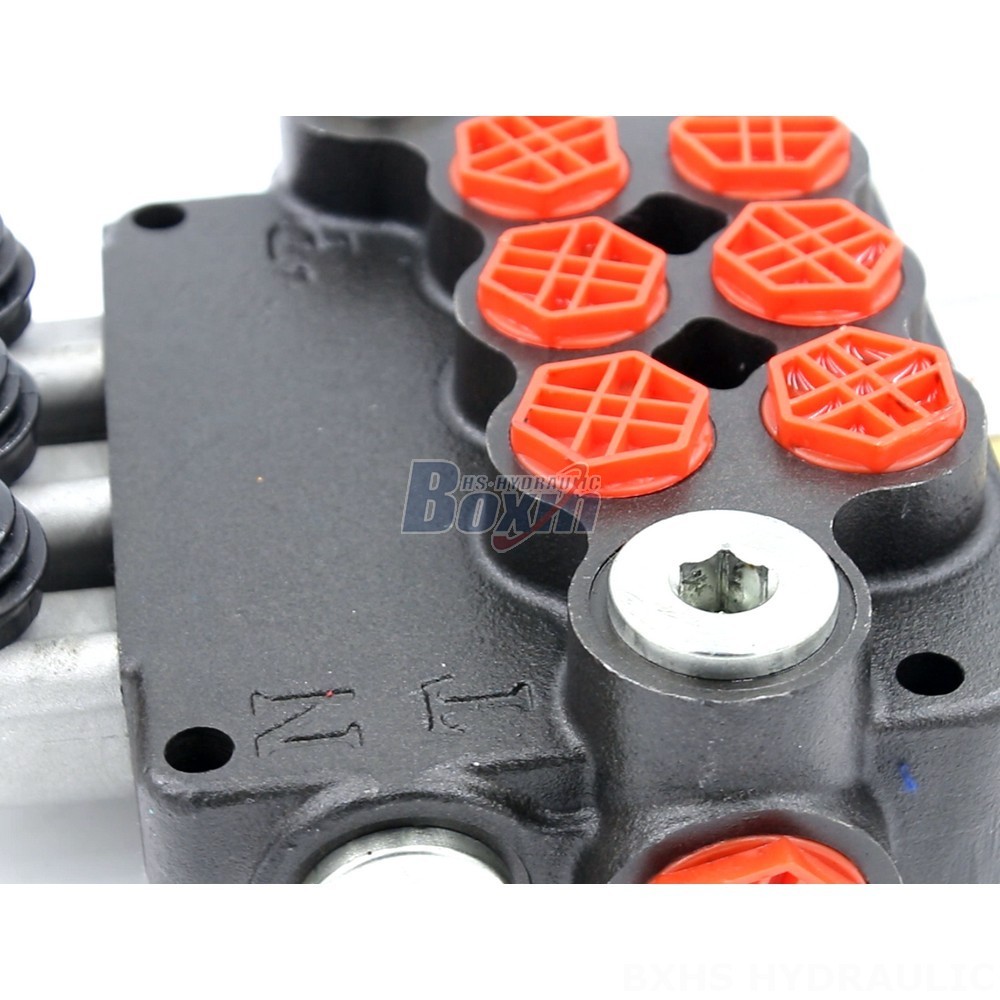

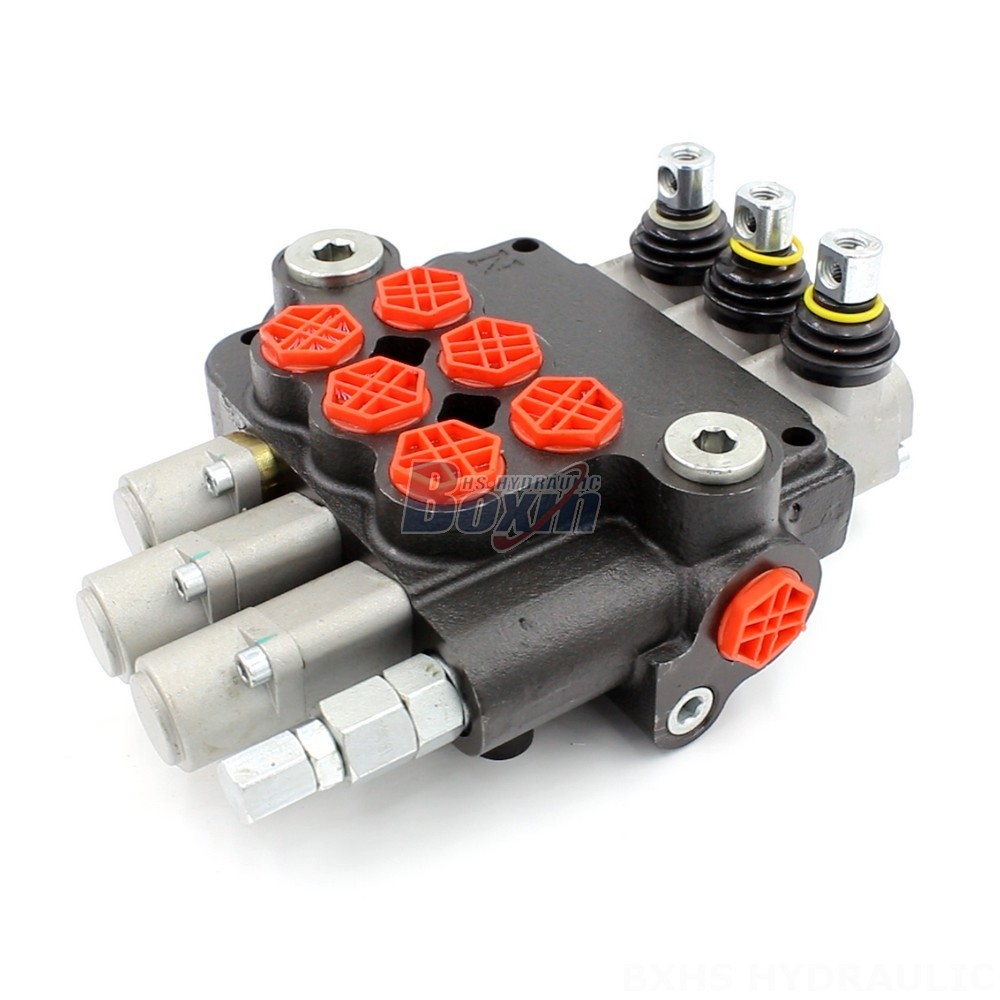

The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are a superior quality product with excellent support. They are manually controlled, have a 3 section structure, and are a monoblock valve. With a rated flow of 80 L/min and a max pressure of 250 bar, they have an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. They have 3 spools and are part of the P80 Series. These valves are ideal for use in material handling, construction, earth moving, agriculture, and industrial vehicles.
| P80 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 80리터 (21.2 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 출구 포트 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 포트 크기 | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are manufactured by a leading manufacturer of hydraulic products. They are factory supplied and factory wholesale, ensuring that you get the best possible price and quality. These valves are designed to meet the highest standards of performance and durability. They are made from high-quality materials and are precision-engineered to provide years of trouble-free operation. The Factory-Backed Distribution: P80-G34-G12 Hydraulic Valves are the perfect choice for anyone looking for a high-quality, reliable hydraulic valve. They are backed by a comprehensive warranty and are supported by a team of experienced engineers who can provide you with the technical assistance you need.
