What is the primary application of the Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications?

The Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications

Name: Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications
Brand: Boxinhuasheng
SKU: BXHS-51758
Availability: InStock

홈모노블럭 방향 제어 밸브SHFY-G25L-00 시리즈제품 상세

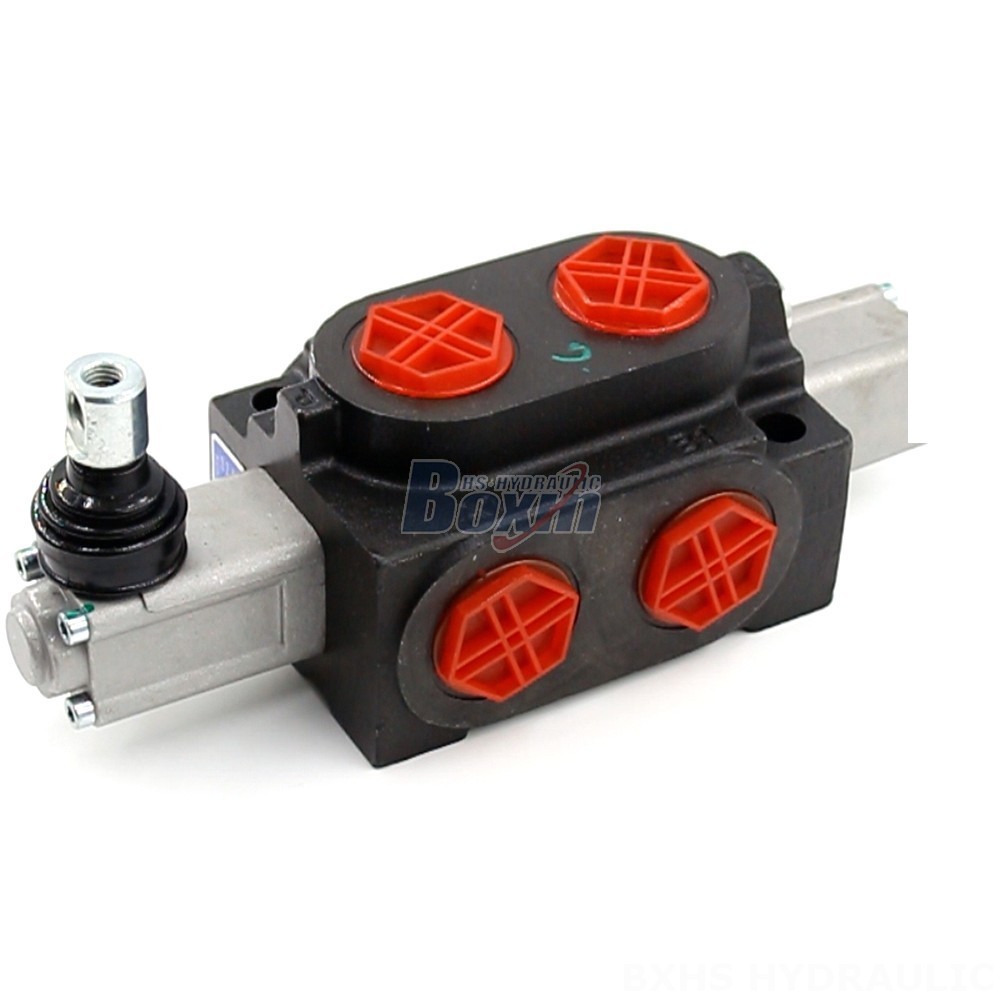

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications cover photo

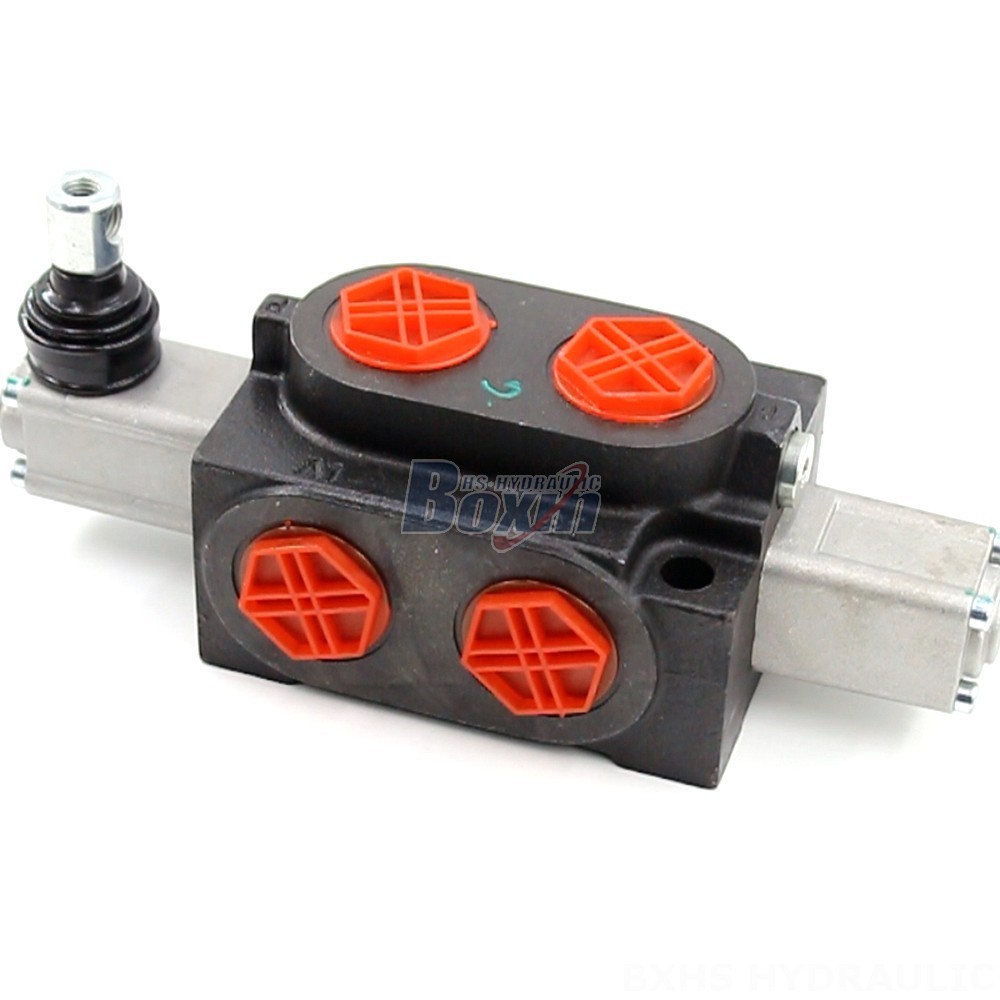

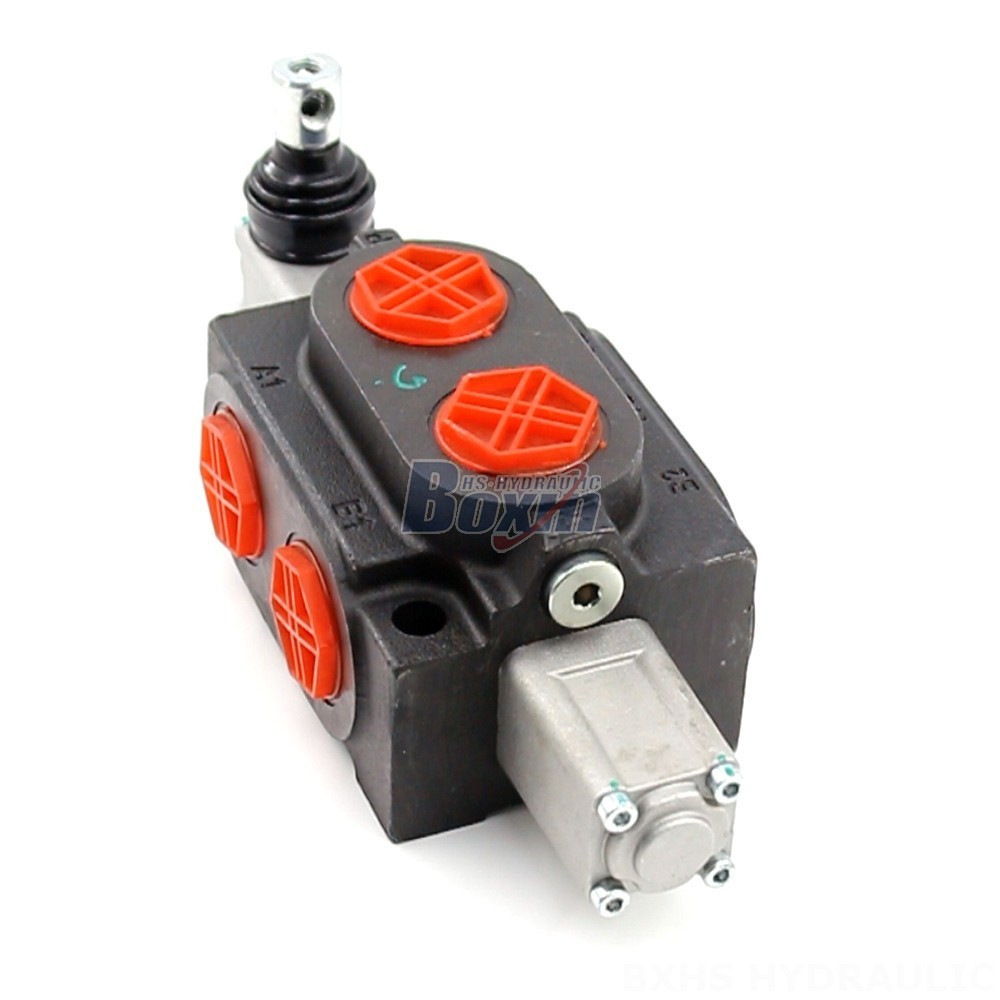

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications main image

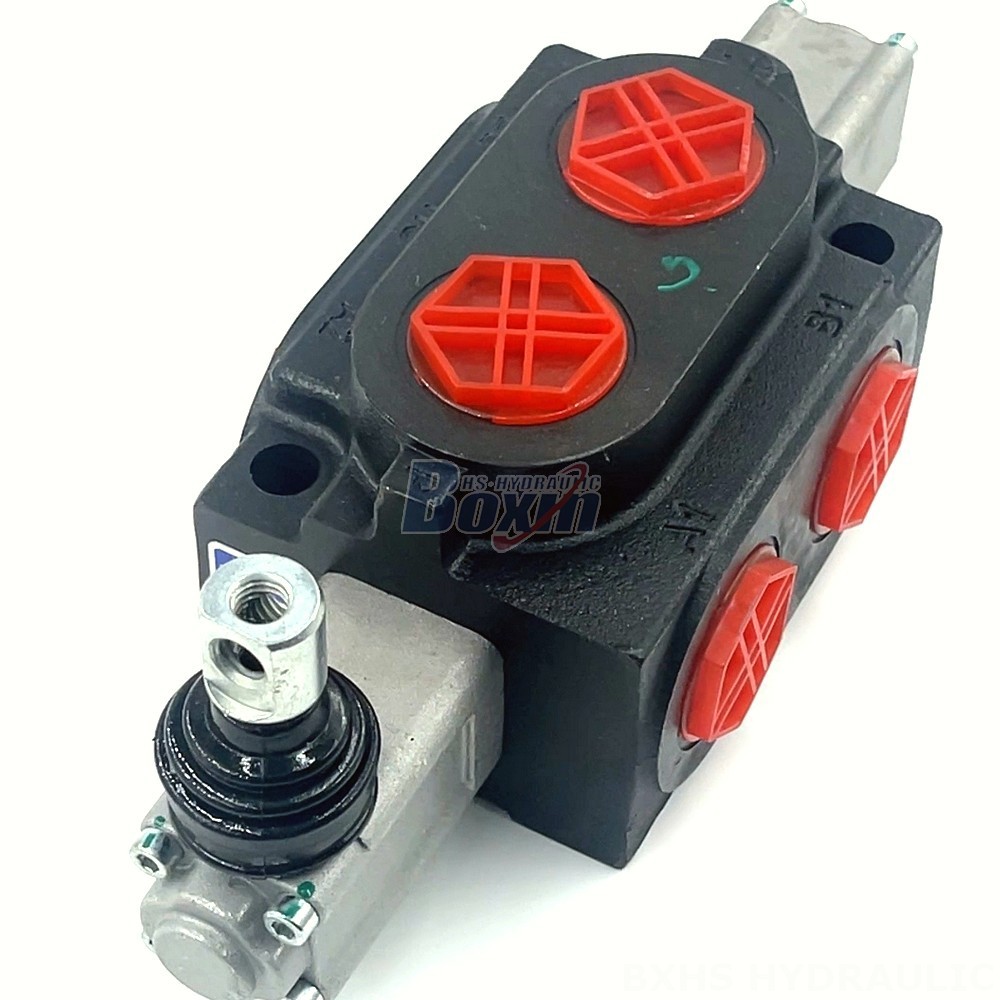

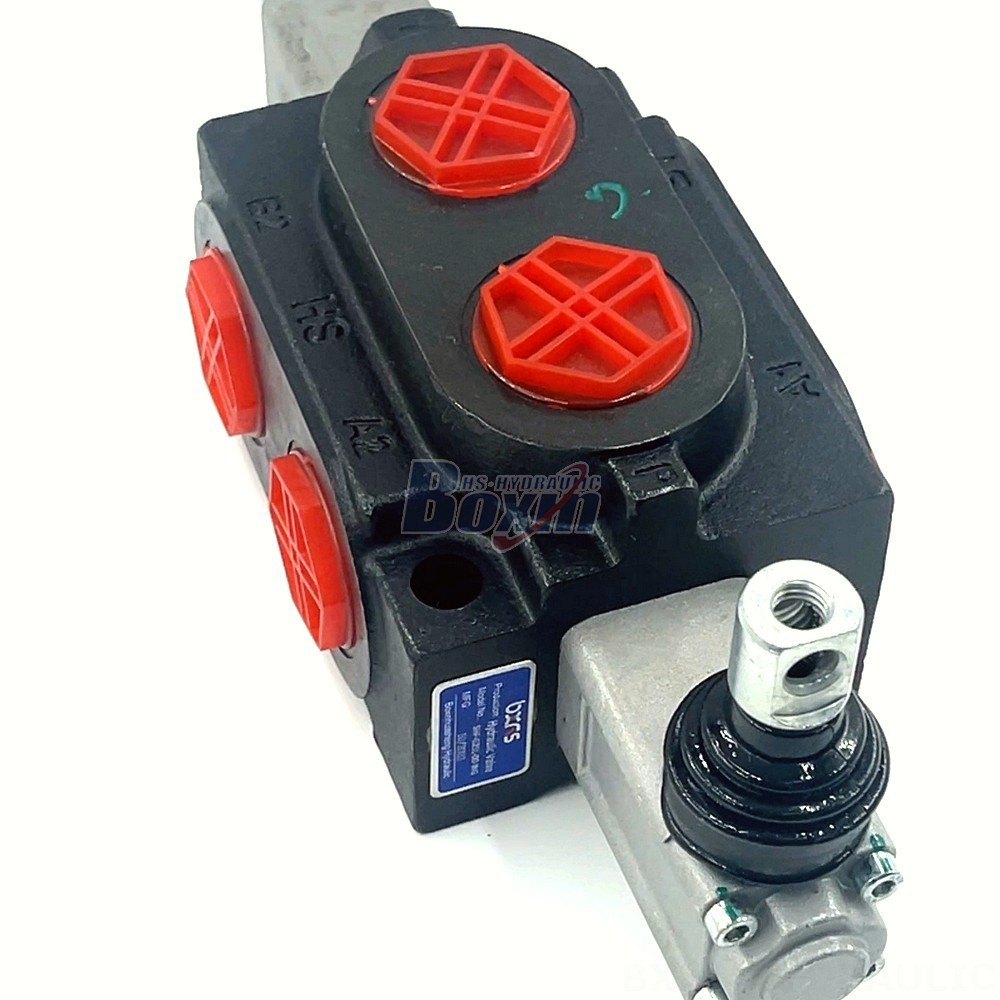

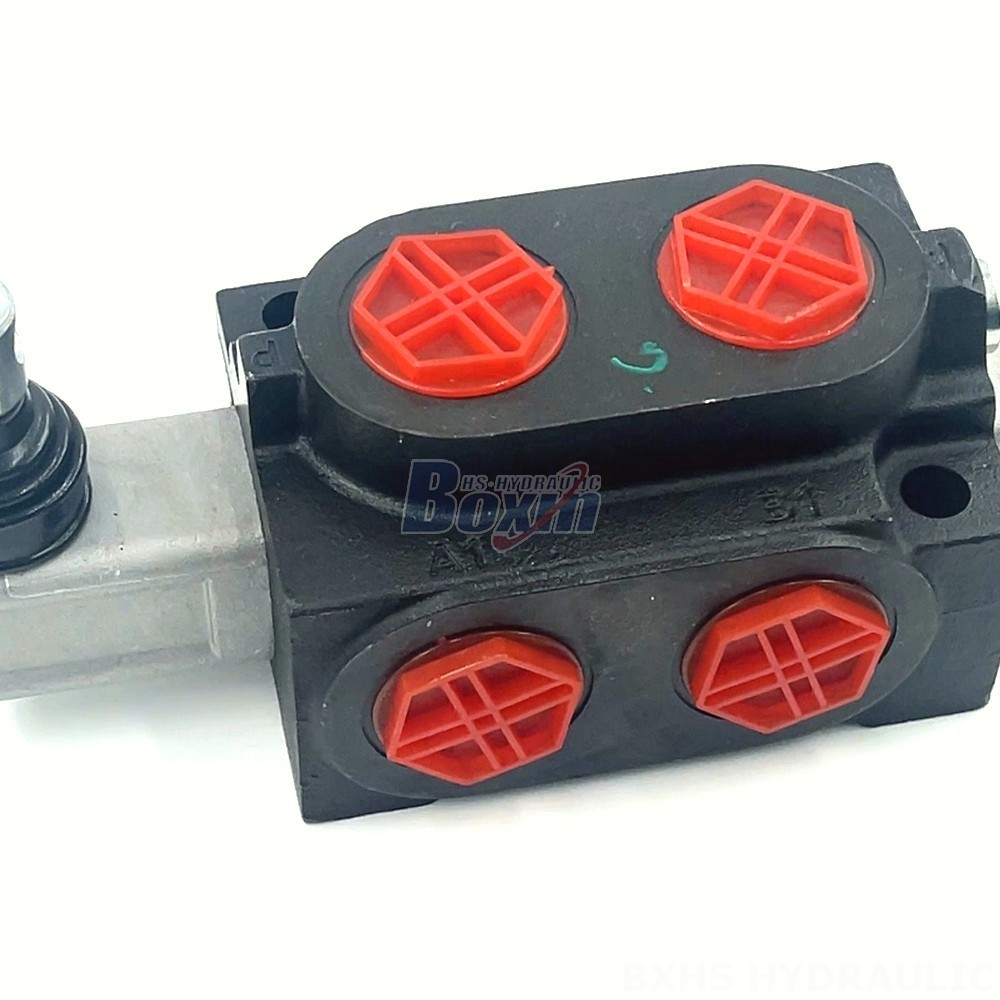

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications detail image

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications

제어 방식:수동

스풀:1 스풀

정격 유량:분당 200리터 (52 US gpm)

최대 압력:350바 (5100 psi)

입구 포트:M33×2.0

출구 포트:M33×2.0

포트 크기:M33×2.0

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:SHFY-G25L-00 시리즈 모노블럭 방향 제어 밸브

포장 크기:16*32*16

총중량:6.50 kg

재고 상태: 재고 있음

문의하기

1040 이 제품을 찾아보시지 않겠습니까?

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications

Hydraulic Directional Control Valve | SHFY-G25L-00 Specifications & Applications drawing image

The SHFY-G25L-00 Hydraulic Directional Control Valve is a 1-section, manually controlled sectional valve designed for use in various applications, including material handling, construction, agriculture, and industrial vehicles. With a rated flow of 200 L/min and a maximum pressure of 315 bar, this valve provides precise control of hydraulic systems.

SHFY-G25L-00 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 유압
스풀	1 스풀
정격 유량	분당 200리터 (52 US gpm)
최대 압력	315바 (4600 psi)
입구 포트	M33×2.0
출구 포트	M33×2.0
포트 크기	M33×2.0
섹션	1 섹션
구조 유형	모노블록 밸브
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
작동 점도 범위	12 - 400 mm²/s (12 cSt to 400 cSt)

**Product Name:** Hydraulic Directional Control Valve | SHFY-G25L-00

**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Sectional valve
**Rated Flow:** 200 L/min (52 US gpm)
**Max Pressure:** 315 bar (4600 psi)
**Operating Viscosity Range:** 12 - 400 mm²/s (12 cSt to 400 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** SHFY-G25L-00 Series

**Application Area:** MATERIAL HANDLING, CONSTRUCTION AND EARTH MOVING, AGRICULTURE, INDUSTRIAL VEHICLES
**Applicable Model:** TELEHANDLER, FORKLIFT, ALL TERRAIN CRANE, STACKER, AERIAL PLATFORM, MOTOR GRADER, MINI-EXCAVATOR, SKID STEER LOADER, COMPACT WHEEL LOADER, TRACTOR AND FRONT-END LOADER, BALER
