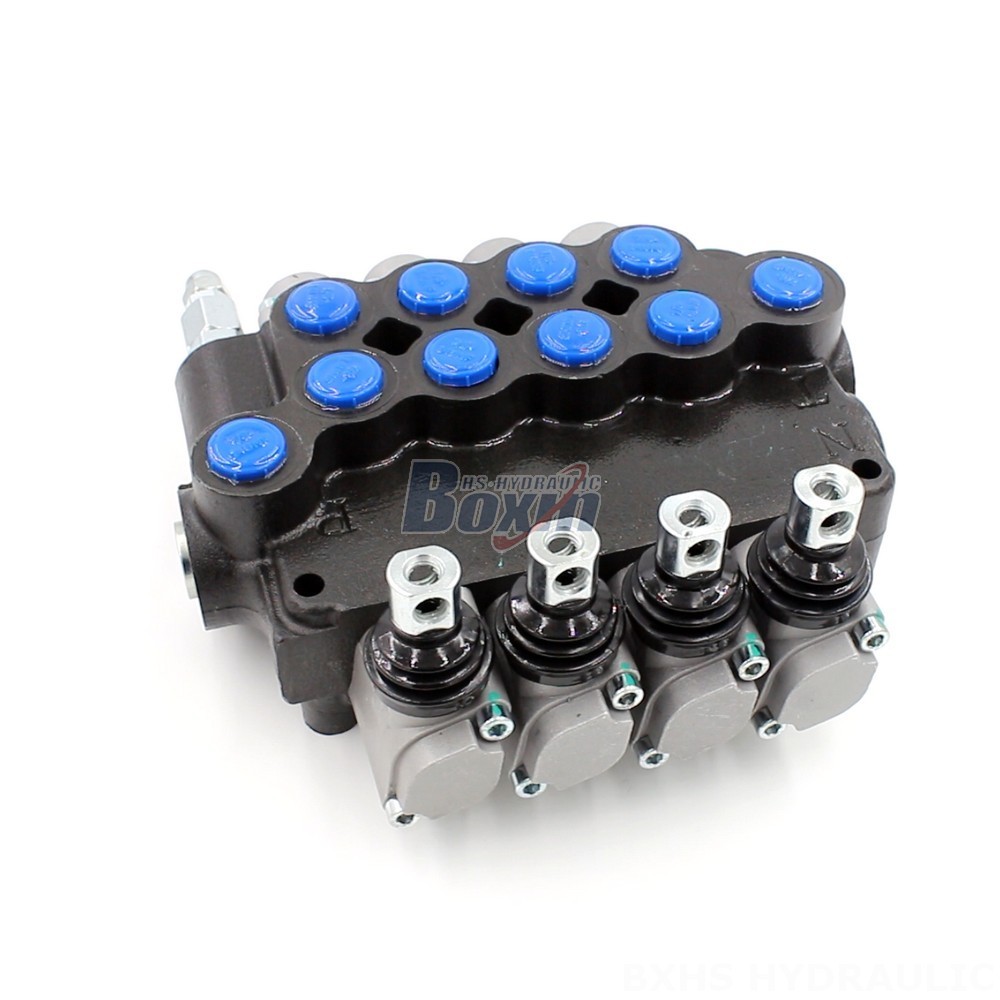

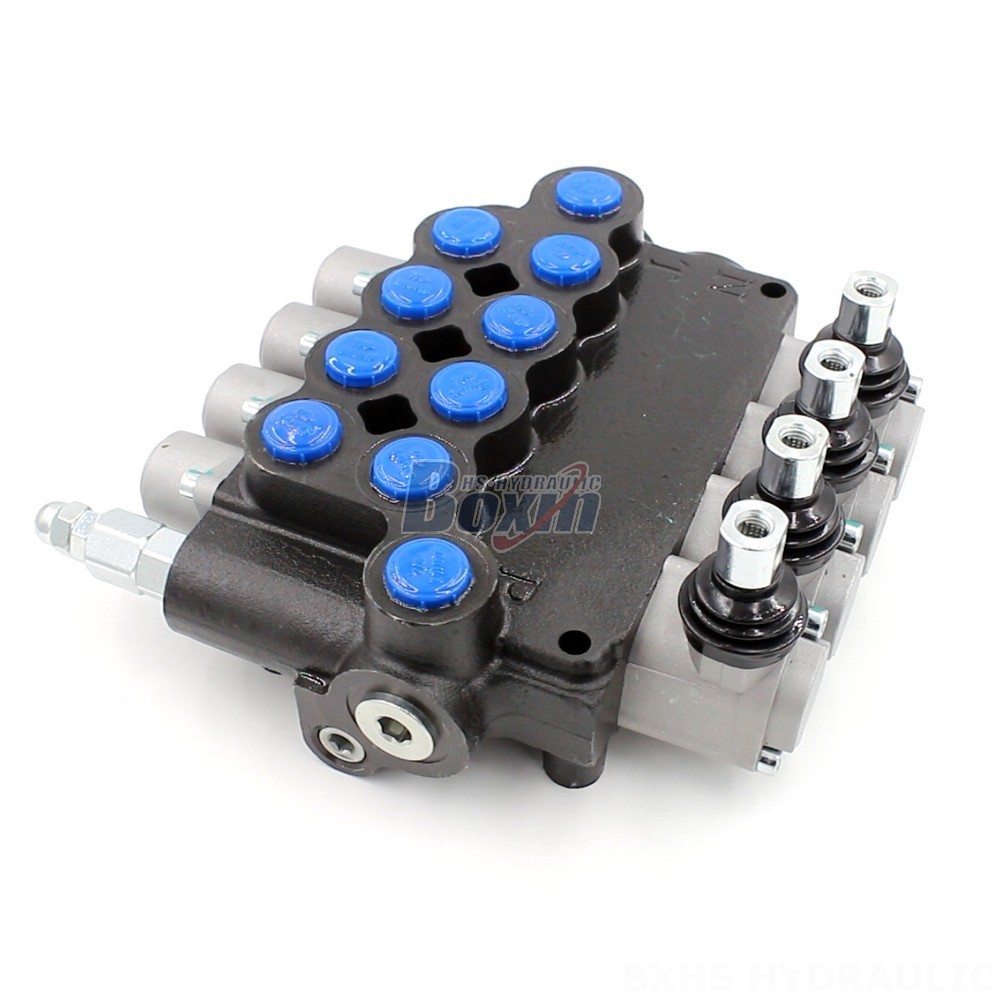

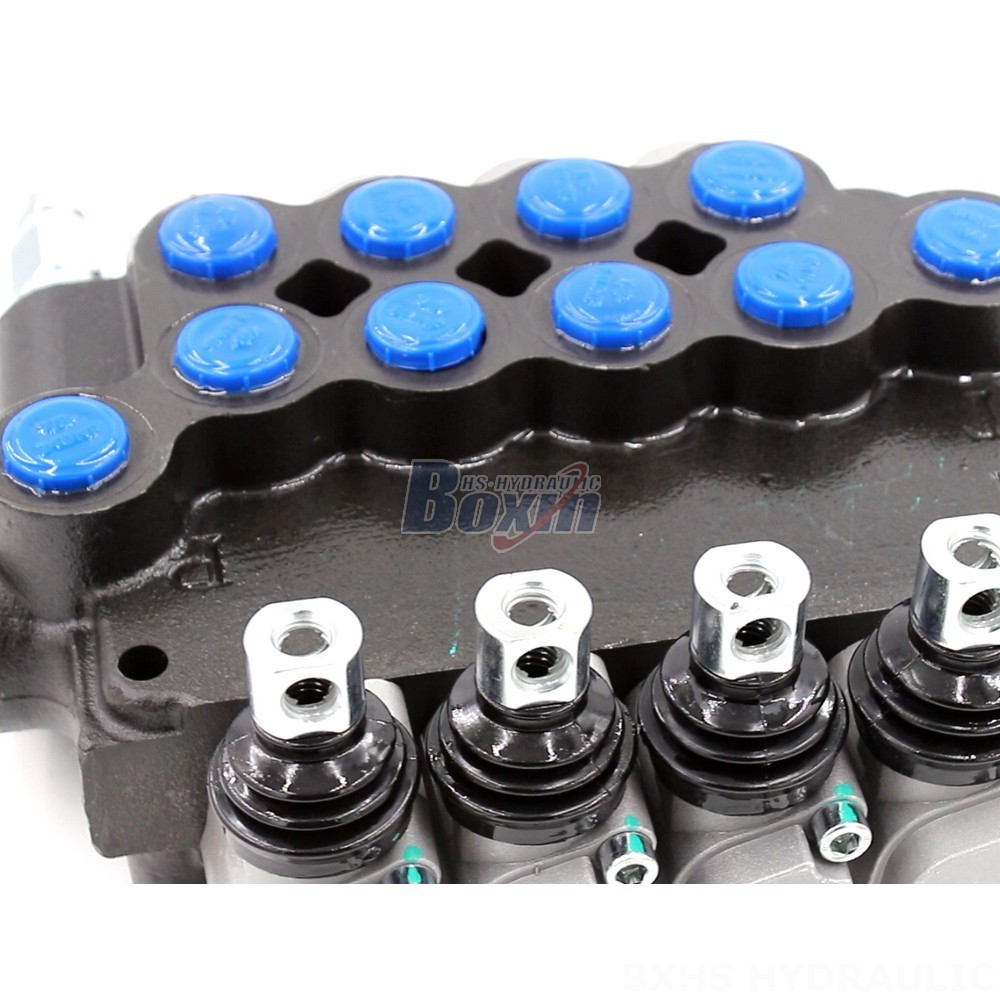

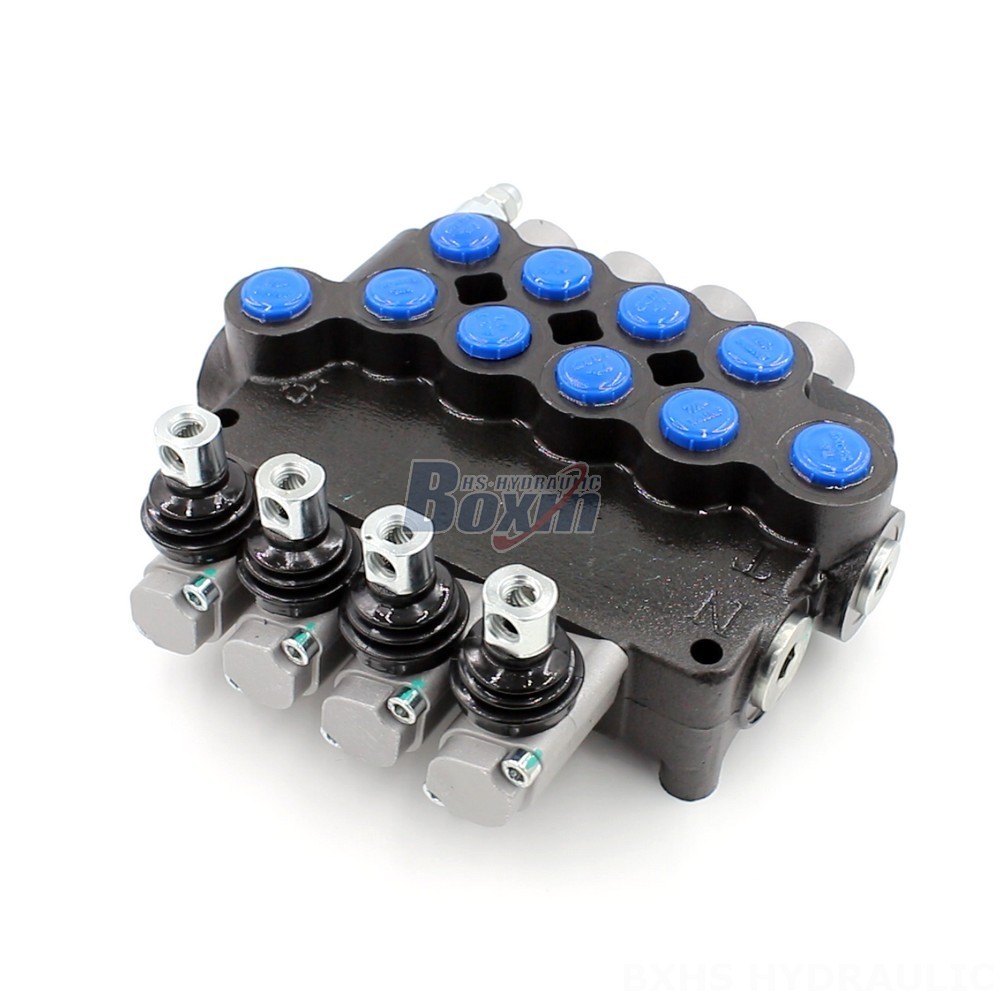

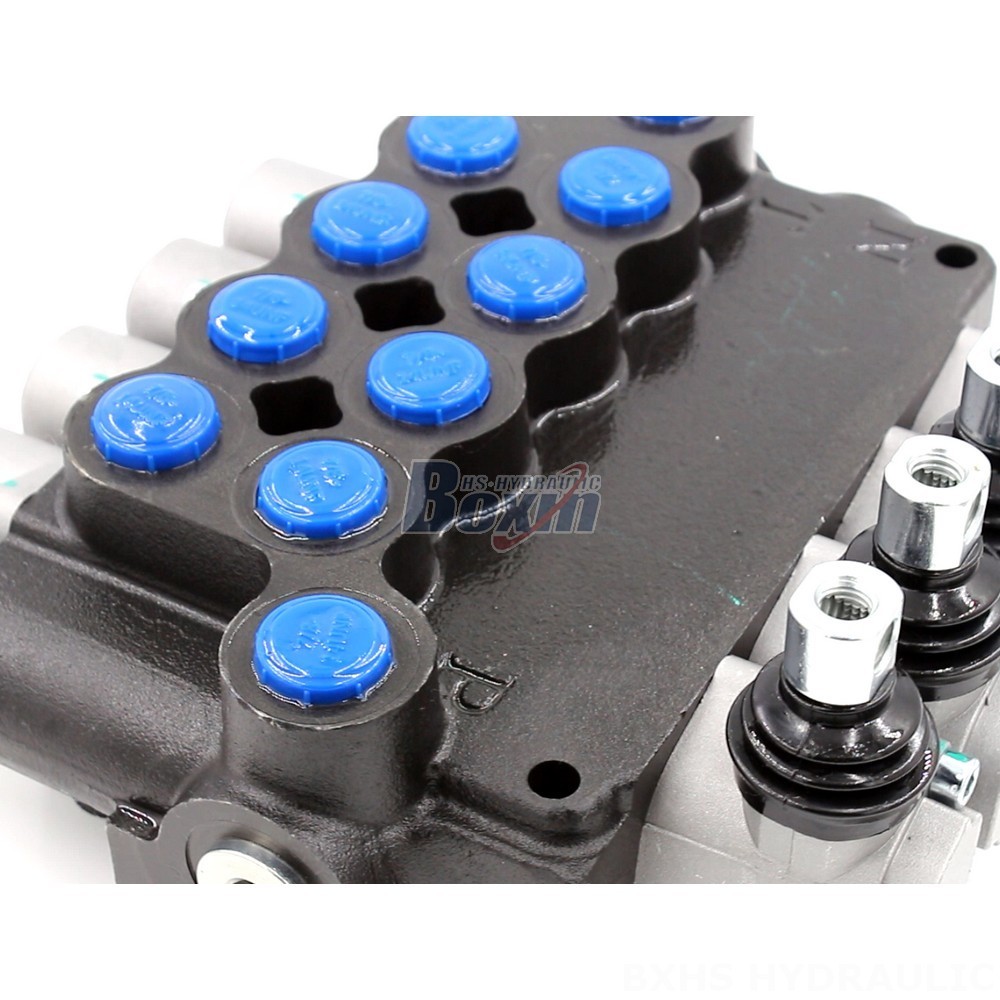

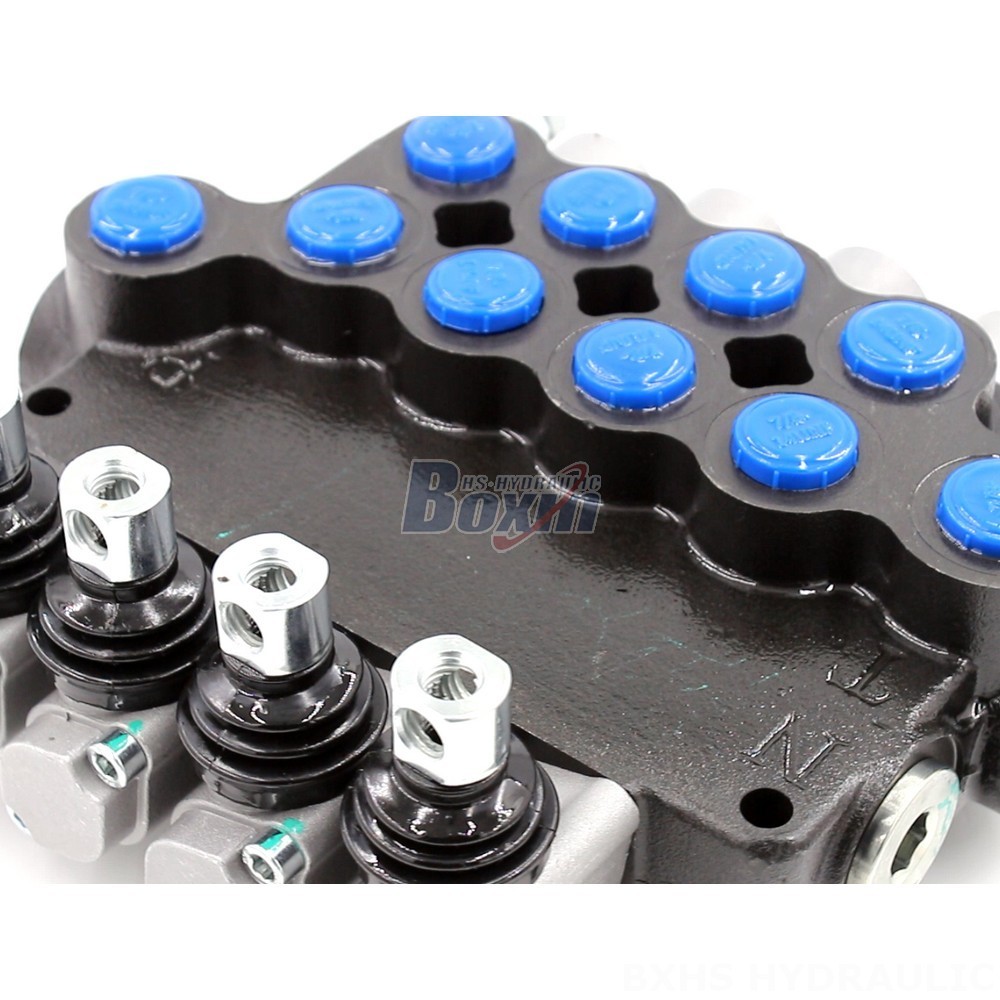

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

제어 방식:수동

스풀:4 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:SAE 10

출구 포트:SAE 10

포트 크기:SAE 10

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P80 시리즈 모노블럭 방향 제어 밸브

포장 크기:26*27*11

총중량:13.40 kg

재고 상태: 재고 있음

1244 이 제품을 찾아보시지 않겠습니까?

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT

Hydraulic Directional Valve, 4 Spool, Monoblock Design - P80-U78-4OT drawing image

The P80-U78-4OT Hydraulic Control Panel is a 4-spool, monoblock directional valve designed for material handling, construction, agriculture, and industrial vehicle applications. It offers a rated flow of 80 L/min and a maximum pressure of 250 bar, making it suitable for various equipment like telehandlers, forklifts, and mini-excavators.

P80 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 80리터 (21.2 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80-U78-4OT Hydraulic Control Panel features a 4-spool, monoblock design, providing a compact and reliable solution for hydraulic systems. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), this valve is suitable for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. The control method is manual, offering straightforward operation. The valve is designed for an operating viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). This durable and efficient valve is specifically designed for telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
