Hydraulic Directional Valve Customization | P80-G12-1OW Series

제어 방식:수동

스풀:1 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P80 시리즈 모노블럭 방향 제어 밸브

포장 크기:26*15*11

총중량:5.00 kg

재고 상태: 재고 있음

1152 이 제품을 찾아보시지 않겠습니까?

Hydraulic Directional Valve Customization | P80-G12-1OW Series

Hydraulic Directional Valve Customization | P80-G12-1OW Series

Hydraulic Directional Valve Customization | P80-G12-1OW Series drawing image

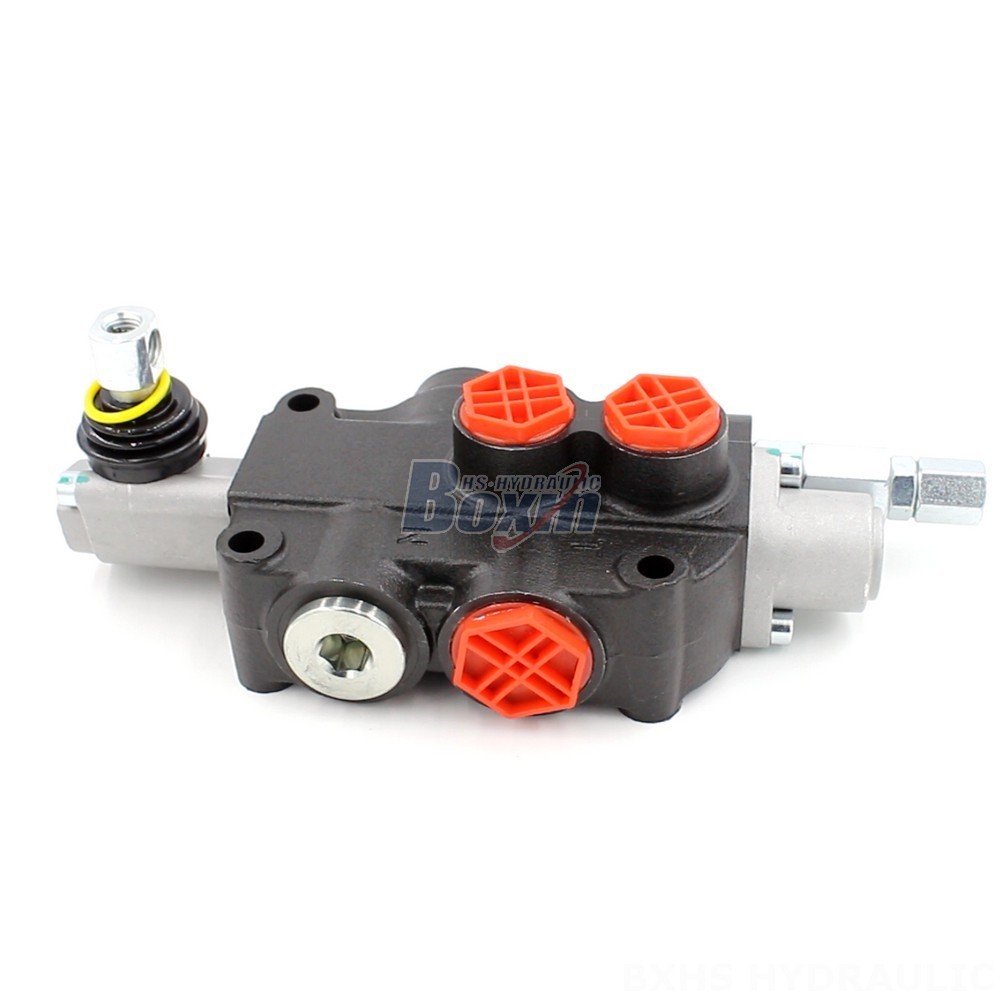

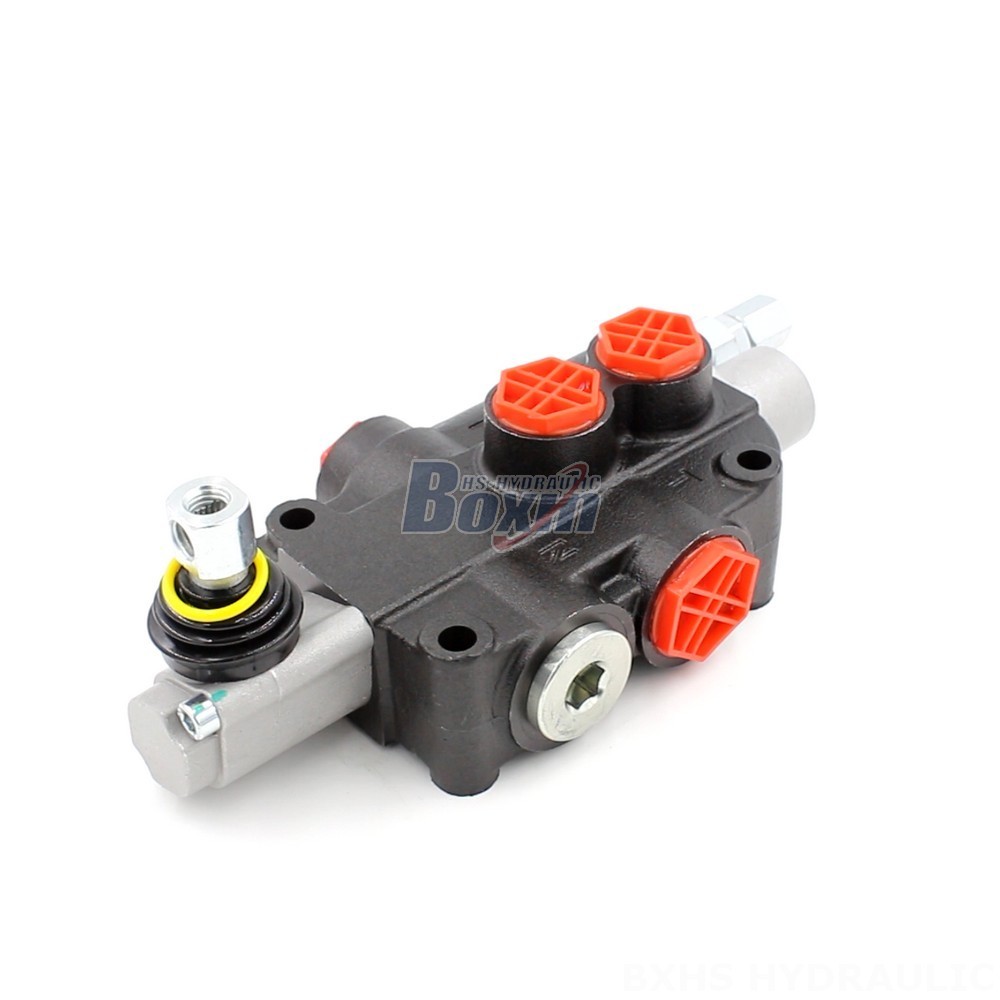

The P80-G12-1OW Series hydraulic directional valve is a high-performance, manually controlled valve designed for use in a variety of material handling, construction, and industrial applications. It features a compact, monoblock design and is rated for 80 L/min (21.2 US gpm) flow at 250 bar (3600 psi). This valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi- excavators, mini- excavators, skid steer loaders, and compact wheel loaders.

P80 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 80리터 (21.2 US gpm)
최대 압력 315바 (4600 psi)
입구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트 G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기 G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

This P80 Series hydraulic directional valve is a manually controlled, monoblock valve offering high performance and durability. With a rated flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), it's suitable for demanding applications across various industries. Its operating viscosity range is 15-75 mm²/s (15 cSt to 75 cSt), and it can withstand temperatures ranging from -40°C to +80°C (-40°F to +176°F). This versatile valve is ideal for applications in material handling, construction, and industrial vehicles, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. Customization options are available to meet your specific needs.
