The P9-80 Series Hydraulic Piston Pump is designed for industrial applications and offers a range of displacement options from 32 cc/rev to 125 cc/rev. It features a rated pressure of 30 MPa (4351 psi), rated speed of 1300 r/min, and maximum speed of 1000 r/min. The pump has a swashplate structure and is made of cast iron. It is available with ISO-4 or UNI-3 mounting holes and a rectangle spline shaft type. The P9-80 Series is suitable for various applications, including material handling, construction and earth moving, agriculture, and industrial vehicles.
| P 시리즈 유압 피스톤 펌프 매개변수 | |
|---|---|
| 변위 | 40 cc/회전, 63 cc/회전, 80 cc/회전 |
| 정격 압력 | 25 MPa (3625 psi) |
| 최대 압력 | 30 MPa (4351 psi) |
| 정격 속도 | 분당 800 회전 |
| 최대 속도 | 분당 1300회전 |
| 회전 방향 | 양방향 |
| 구조 | 외부 기어 펌프, 내부 기어 펌프 |
| 재질 | 주철 |
| 플랜지 버전 | ISO-4 장착 구멍, UNI-3 장착 구멍 |
| 샤프트 유형 | H: 직사각형 스플라인 |

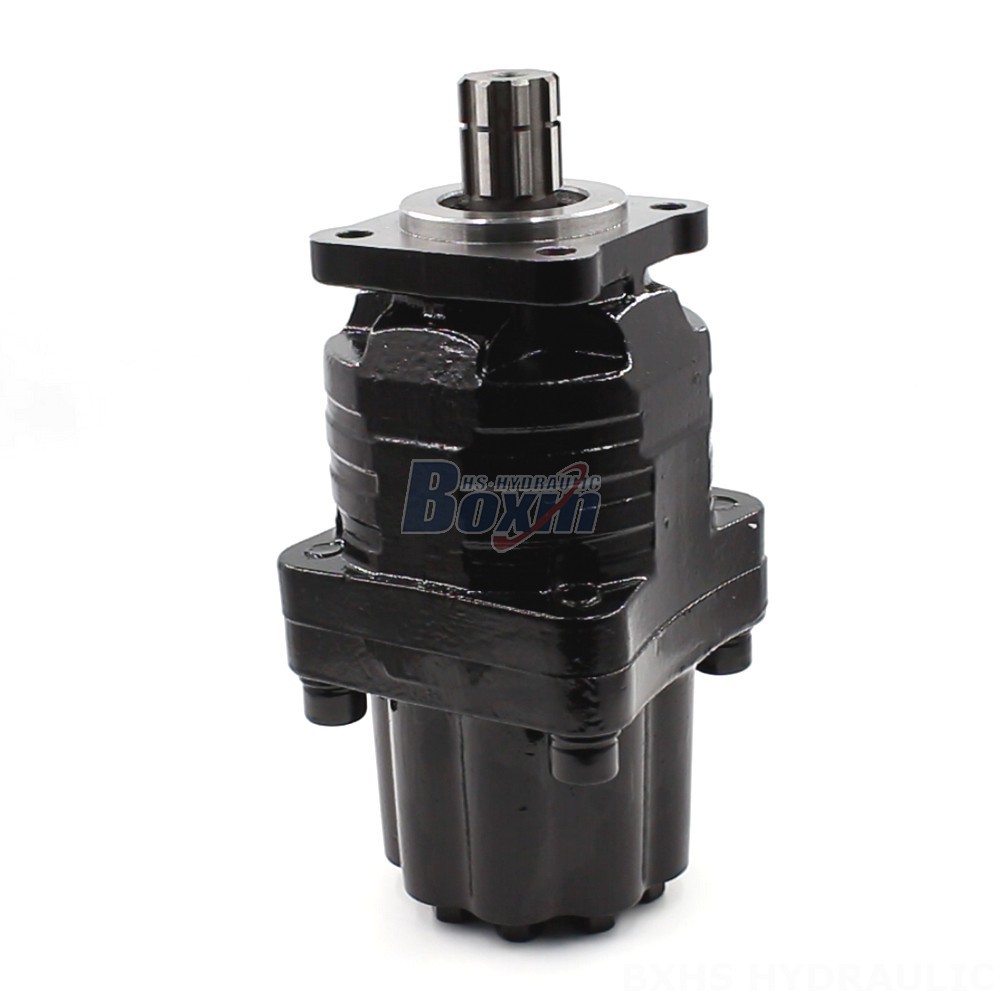

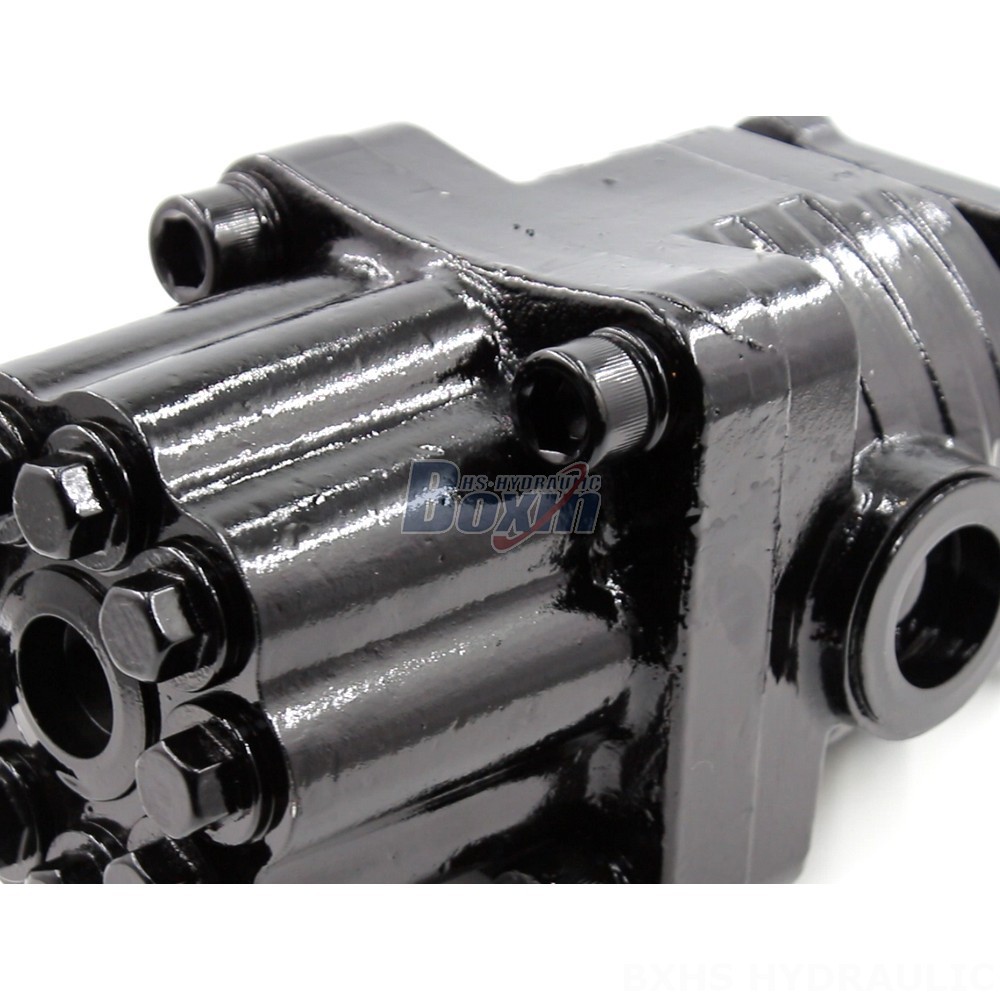

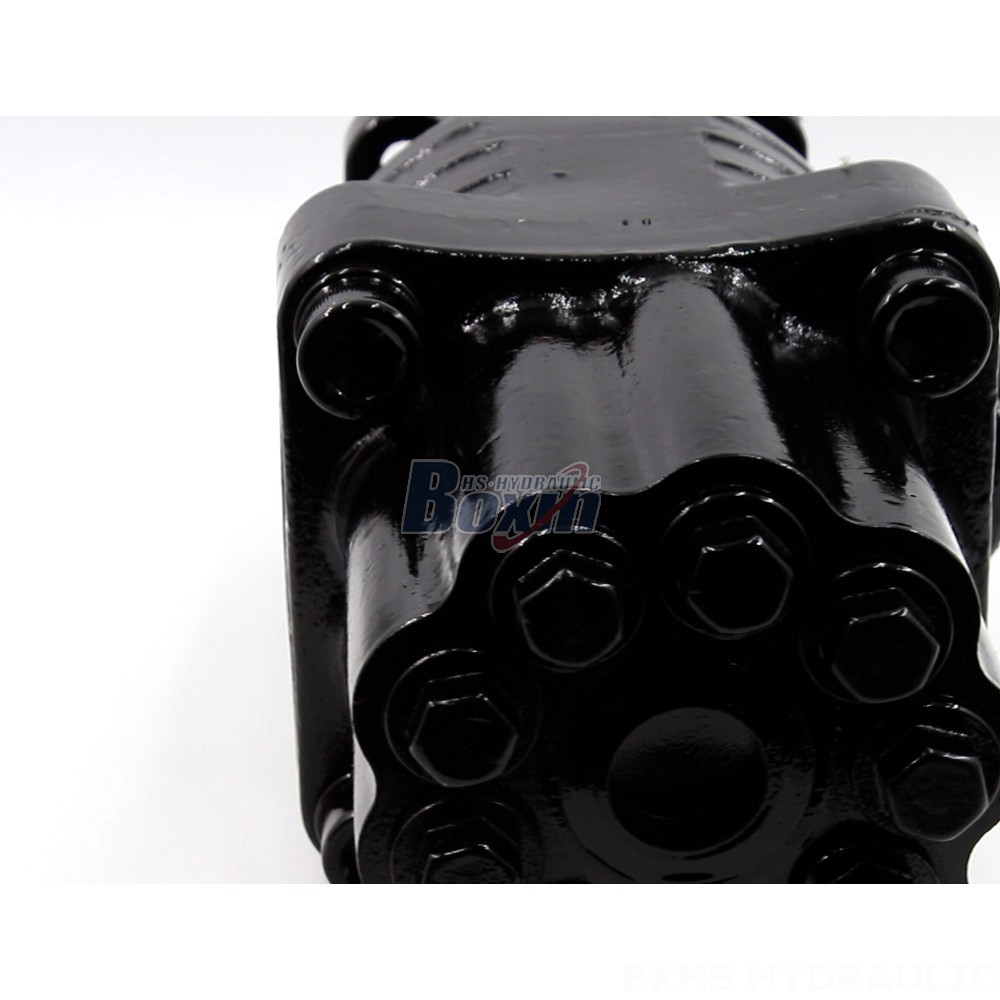

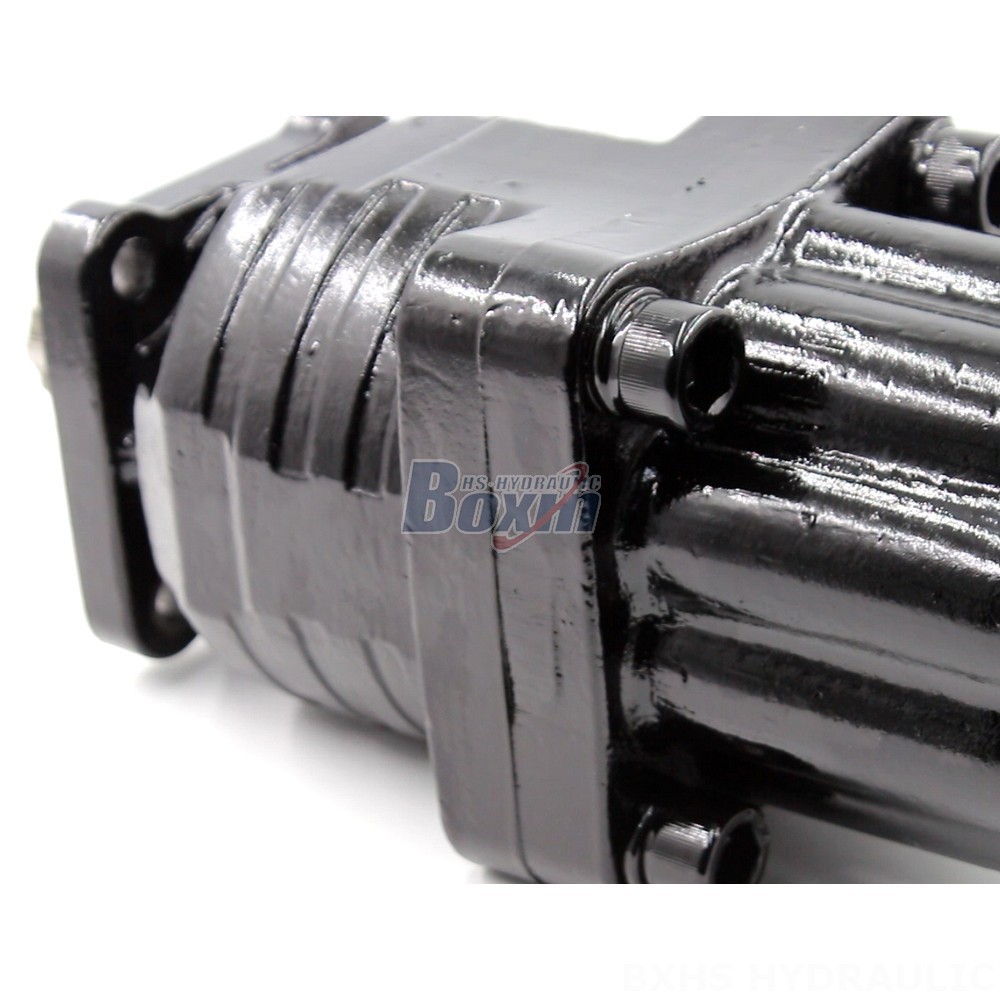

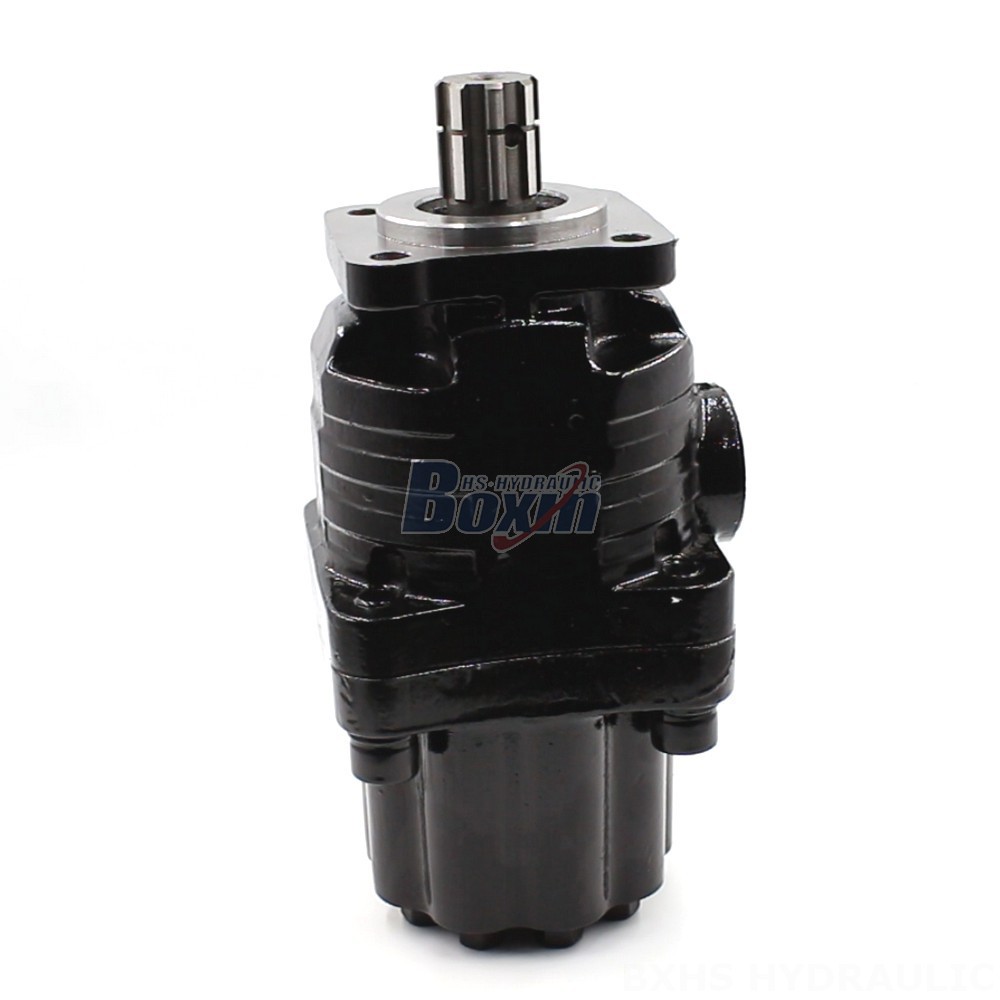

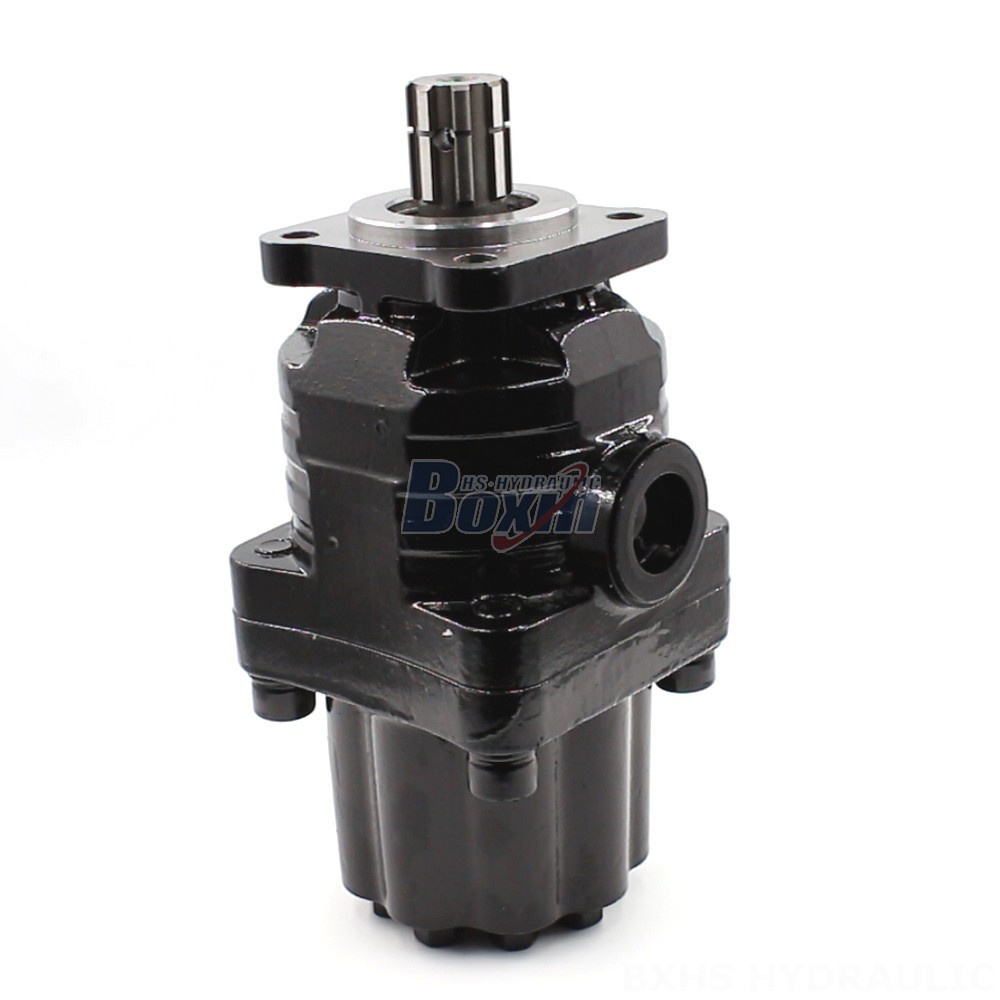

**Product Name:** Hydraulic Piston Pump for Industrial Applications - P9-80 Series
**Displacement:**
- 45 cc/rev
- 63 cc/rev
- 80 cc/rev
- 100 cc/rev
- 125 cc/rev
- 32 cc/rev
**Rated Pressure:** 30 MPa (4351 psi)
**Rated Speed:** 1300 r/min
**Max Speed:** 1000 r/min
**Rotation:** Bidirectional
**Structure:** Swashplate
**Material:** Cast Iron
**Flange Version:**
- ISO-4 Mounting Holes
- UNI-3 Mounting Holes
**Shaft Type:** Rectangle Spline
**Series:** P Series
**Application Area:**
- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES
**Applicable Model:**
- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER
- WHEEL LOADER
