생산 및 배송
15-30일 생산 리드타임
혁신은 개발을 촉진 기술이 미래를 만들다
1531 이 제품을 찾아보시지 않겠습니까?

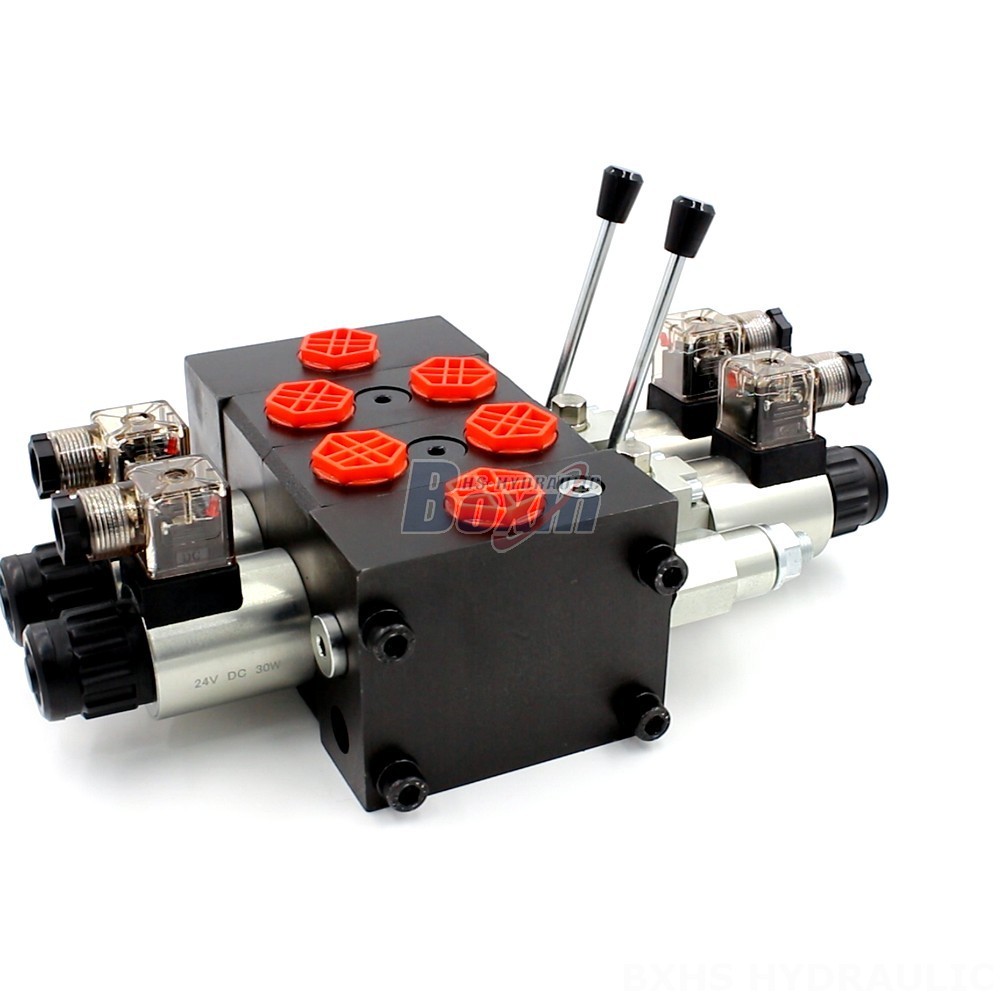

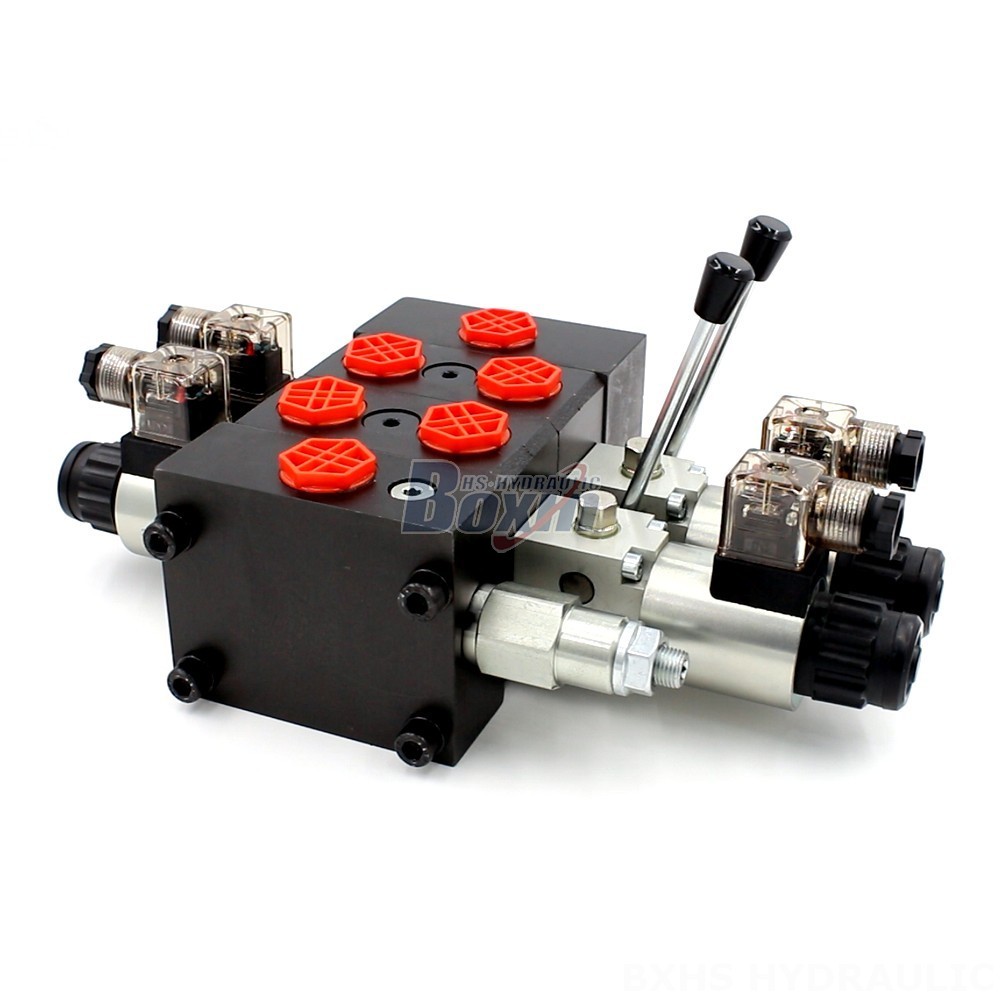

The DCV58 Series Hydraulic Directional Control Valve is a high-performance, 2-section solenoid valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. With a rated flow of 60 L/min and a max pressure of 350 bar, this valve is ideal for controlling hydraulic systems in a wide range of equipment, including telehandlers, forklifts, cranes, and excavators.
| DCV58 시리즈 구역 방향 밸브 매개변수 | |
|---|---|
| 제어 방식 | 솔레노이드, 솔레노이드 및 수동 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀, 8 스풀, 9 스풀, 10 스풀, 11 스풀, 12 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 섹션 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션, 8 섹션, 9 섹션, 10 섹션, 11 섹션, 12 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 350바 (5100 psi) |
| 입구 포트 | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| 출구 포트 | G1/2, M22×1.5, SAE 10, 1/2 NPT |
| 포트 크기 | G1/2, M22×1.5, SAE 10, 1/2 NPT |
The DCV58 Series Hydraulic Directional Control Valve is a cutting-edge sectional valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. This valve features a 2-section design and solenoid control method, making it a reliable and efficient solution for controlling hydraulic systems. With a rated flow of 60 L/min (15.8 US gpm) and a max pressure of 350 bar (5100 psi), the DCV58 Series is capable of handling a wide range of hydraulic applications. The valve operates within an ambient temperature range of -40°C to +80°C (-40°F to +176°F), making it suitable for various working environments. The DCV58 Series is compatible with a wide range of equipment, including telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, and wheel loaders.
