What is the primary application of the Hydraulic Valve Excellence: The P40 Directional Valve Advantage?

The Hydraulic Valve Excellence: The P40 Directional Valve Advantage is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Hydraulic Valve Excellence: The P40 Directional Valve Advantage

Name: Hydraulic Valve Excellence: The P40 Directional Valve Advantage
Brand: Boxinhuasheng
SKU: BXHS-50127
Availability: InStock

홈모노블럭 방향 제어 밸브P40 시리즈제품 상세

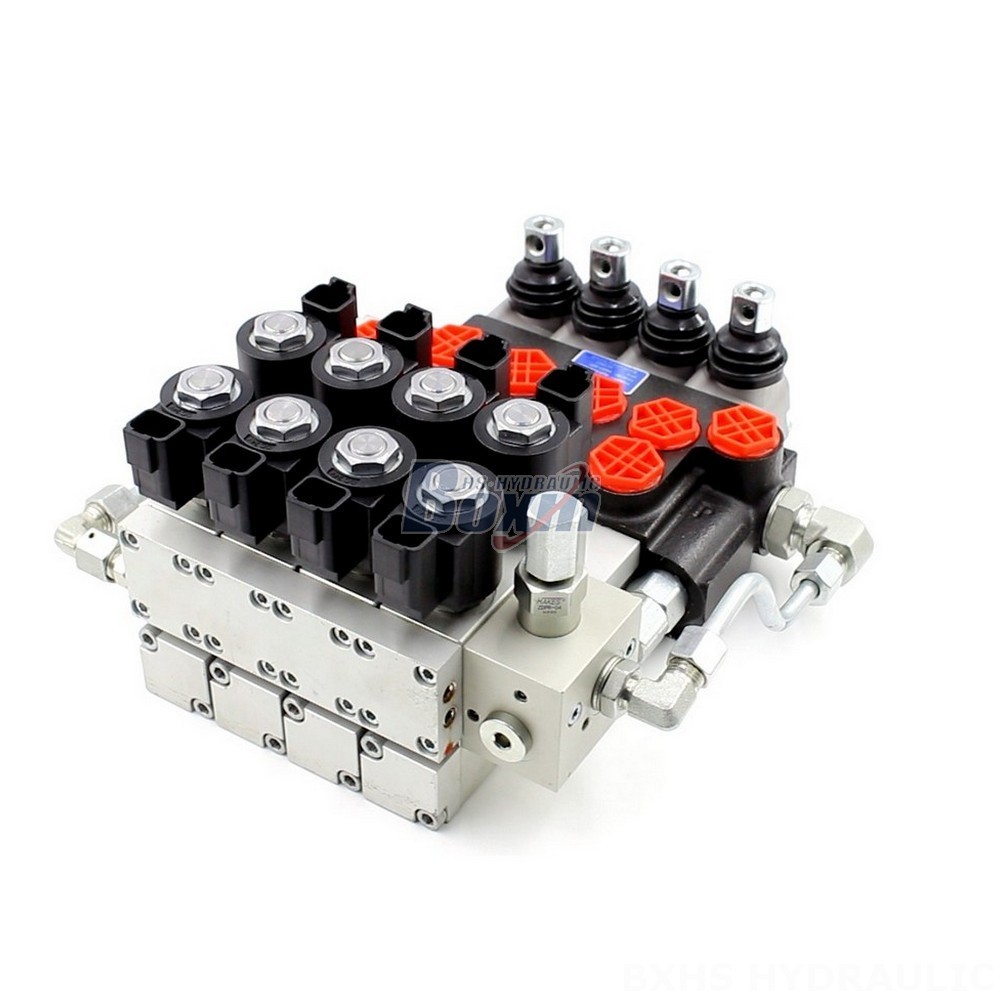

Hydraulic Valve Excellence: The P40 Directional Valve Advantage cover photo

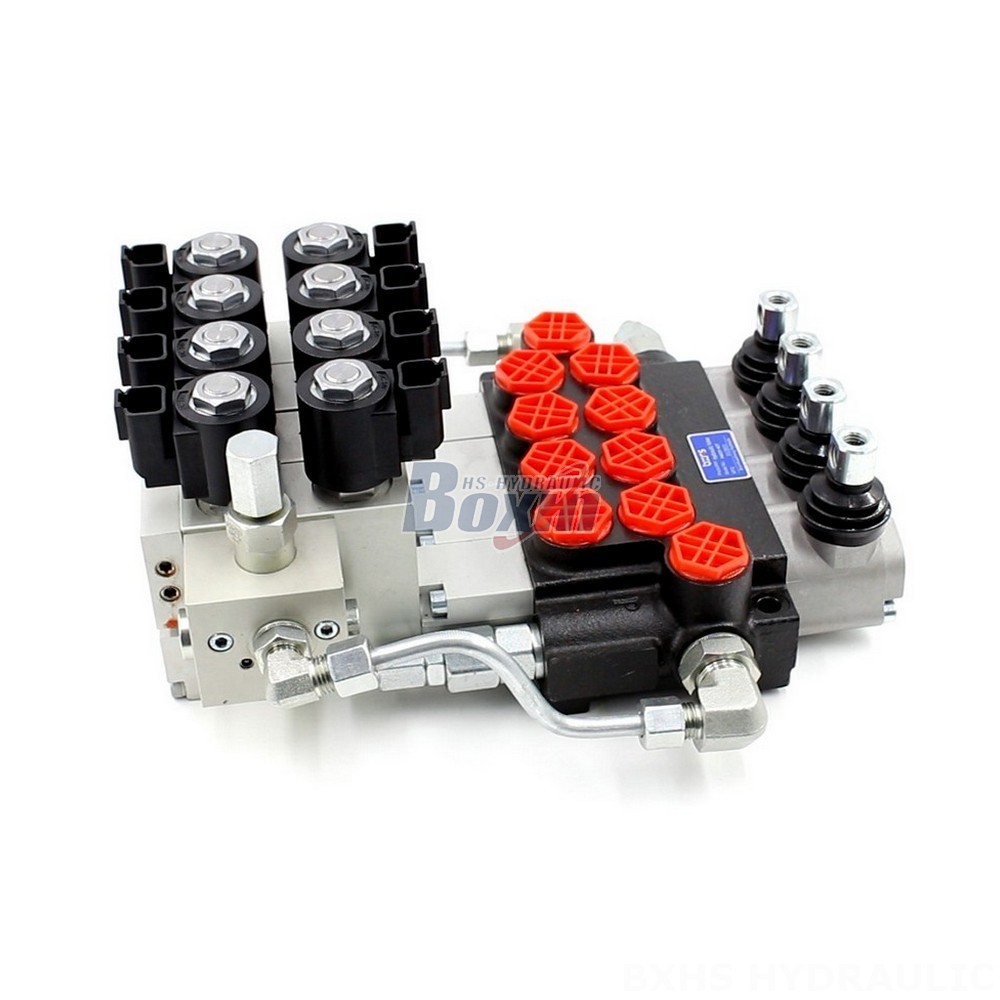

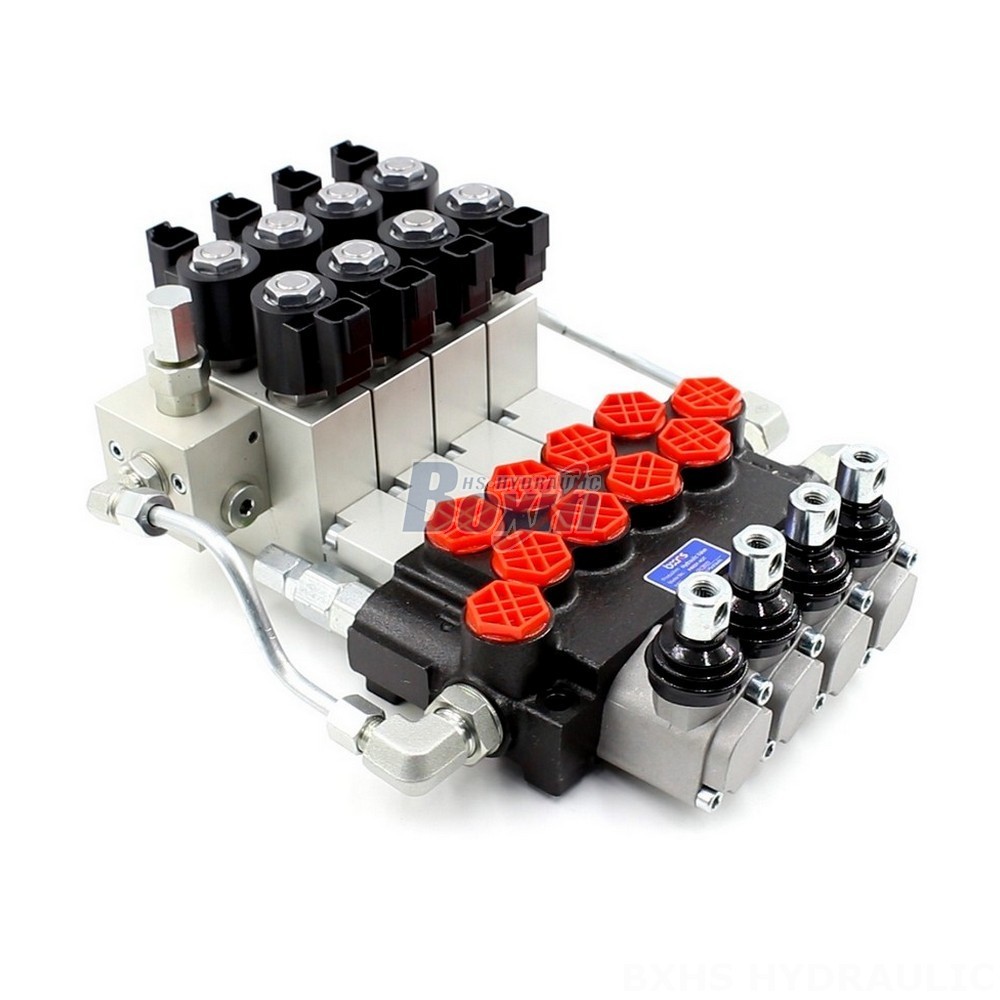

Hydraulic Valve Excellence: The P40 Directional Valve Advantage main image

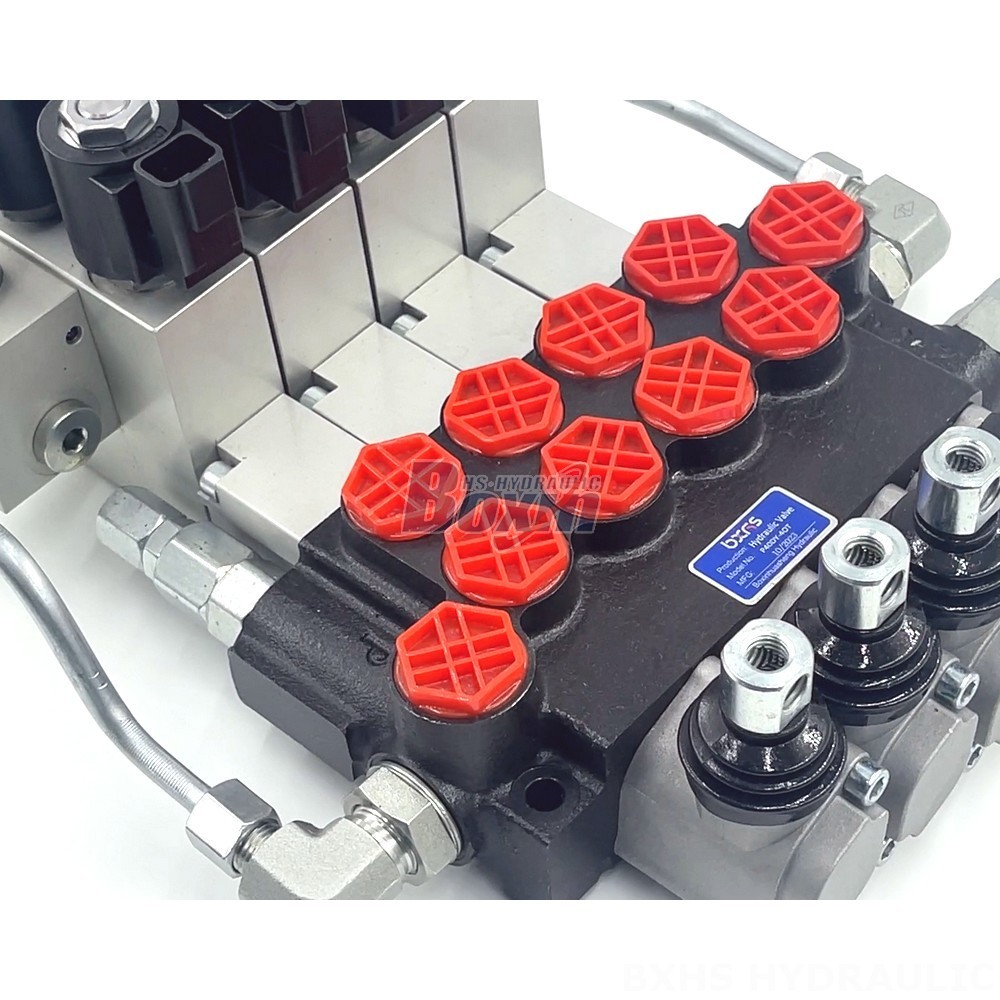

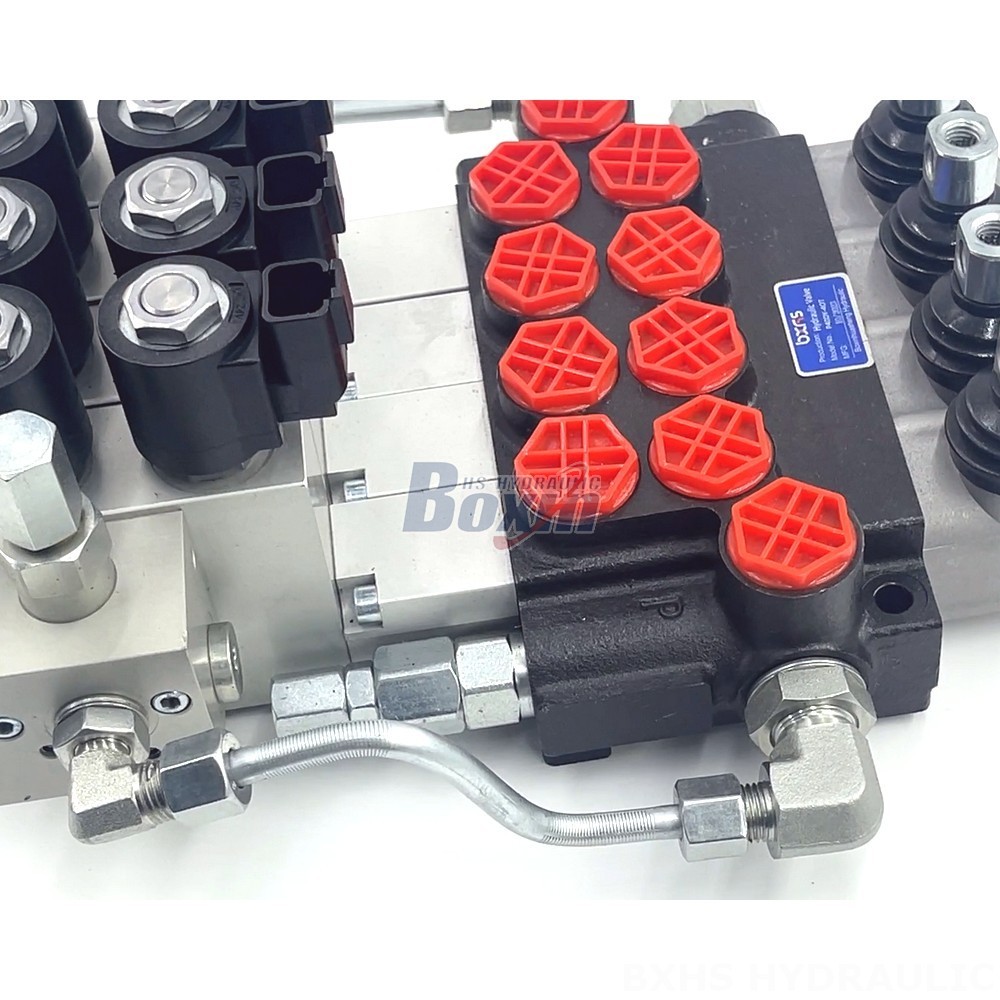

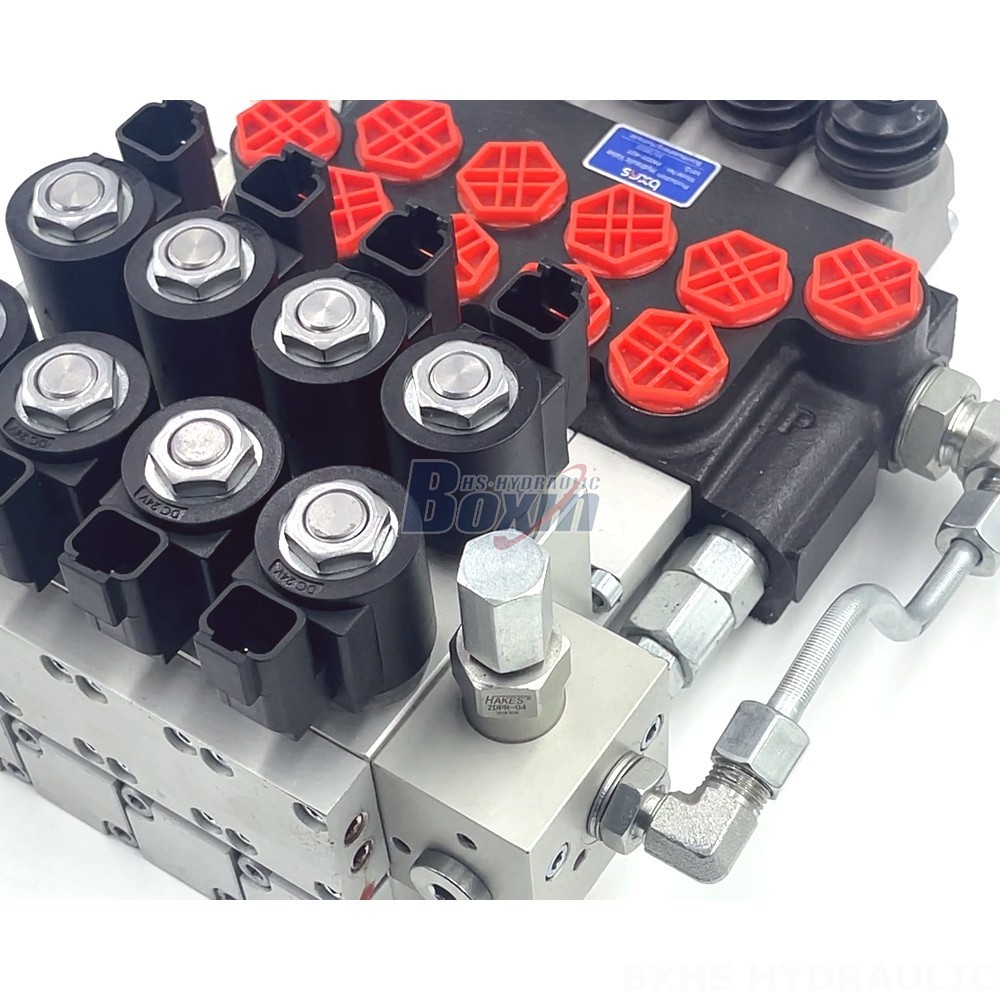

Hydraulic Valve Excellence: The P40 Directional Valve Advantage detail image

Hydraulic Valve Excellence: The P40 Directional Valve Advantage

제어 방식:전기 유압

스풀:4 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:31*24*17

총중량:16.50 kg

재고 상태: 재고 있음

문의하기

1075 이 제품을 찾아보시지 않겠습니까?

Hydraulic Valve Excellence: The P40 Directional Valve Advantage

Hydraulic Valve Excellence: The P40 Directional Valve Advantage drawing image

The P40 Directional Valve is a high-performance, 4-section monoblock valve designed for use in a wide range of construction and industrial applications. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for demanding applications requiring precise control and reliable performance.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	250바 (3600 psi)
입구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40 Directional Valve is a electro-hydraulic controlled valve with a 4-spool configuration. It features a monoblock construction for enhanced durability and reliability. This valve is designed for use in a wide range of applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. The P40 valve is compatible with various machines such as telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. With its high flow rate and pressure rating, the P40 valve provides the necessary power and control for these demanding applications.
