Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

제어 방식:수동

스풀:1 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:19 MPa (2735 psi)

입구 포트:G1/2

출구 포트:G3/4

포트 크기:G3/4

브랜드:BXHS

제품 유형:로그 스플리터 밸브

제품 시리즈:P81 시리즈 로그 스플리터 밸브

포장 크기:27*16*12

총중량:4.80 kg

재고 상태: 재고 있음

2163 이 제품을 찾아보시지 않겠습니까?

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable

Log Splitter Hydraulic Valve | P81 Model | Factory Direct & Customizable drawing image

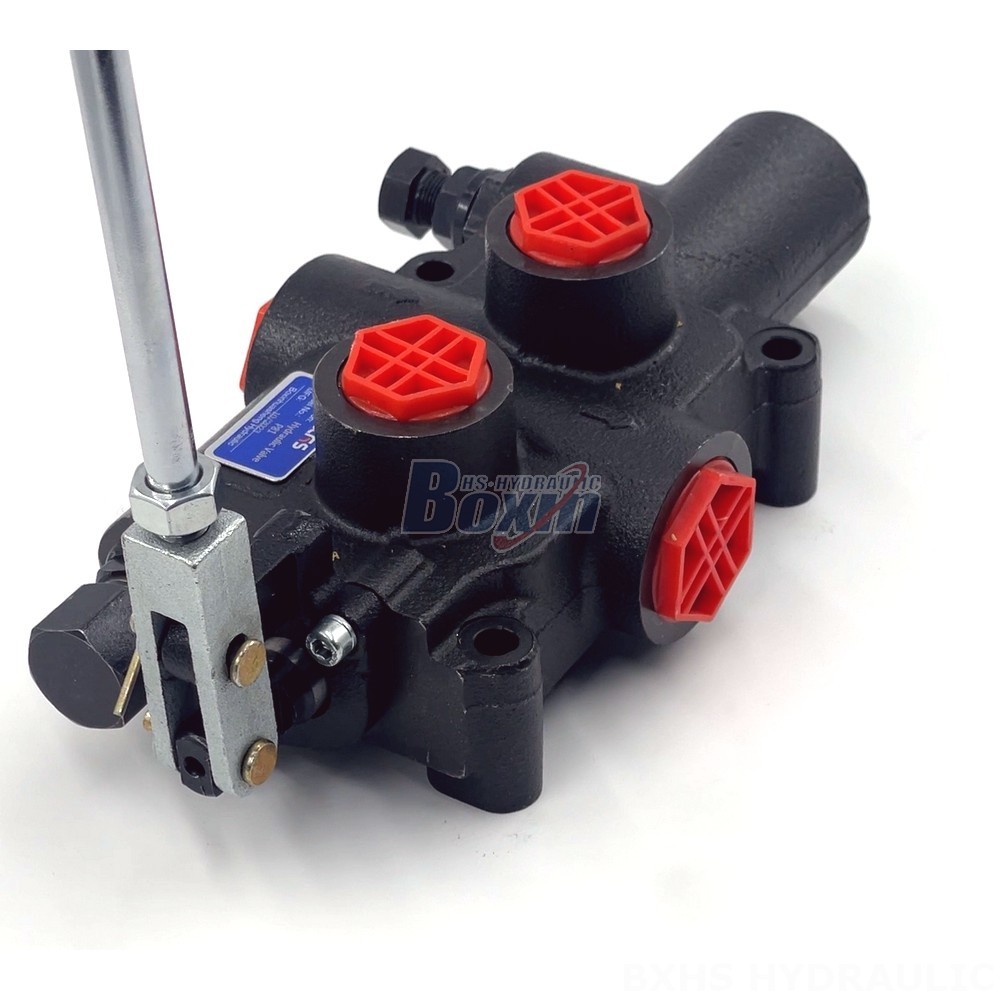

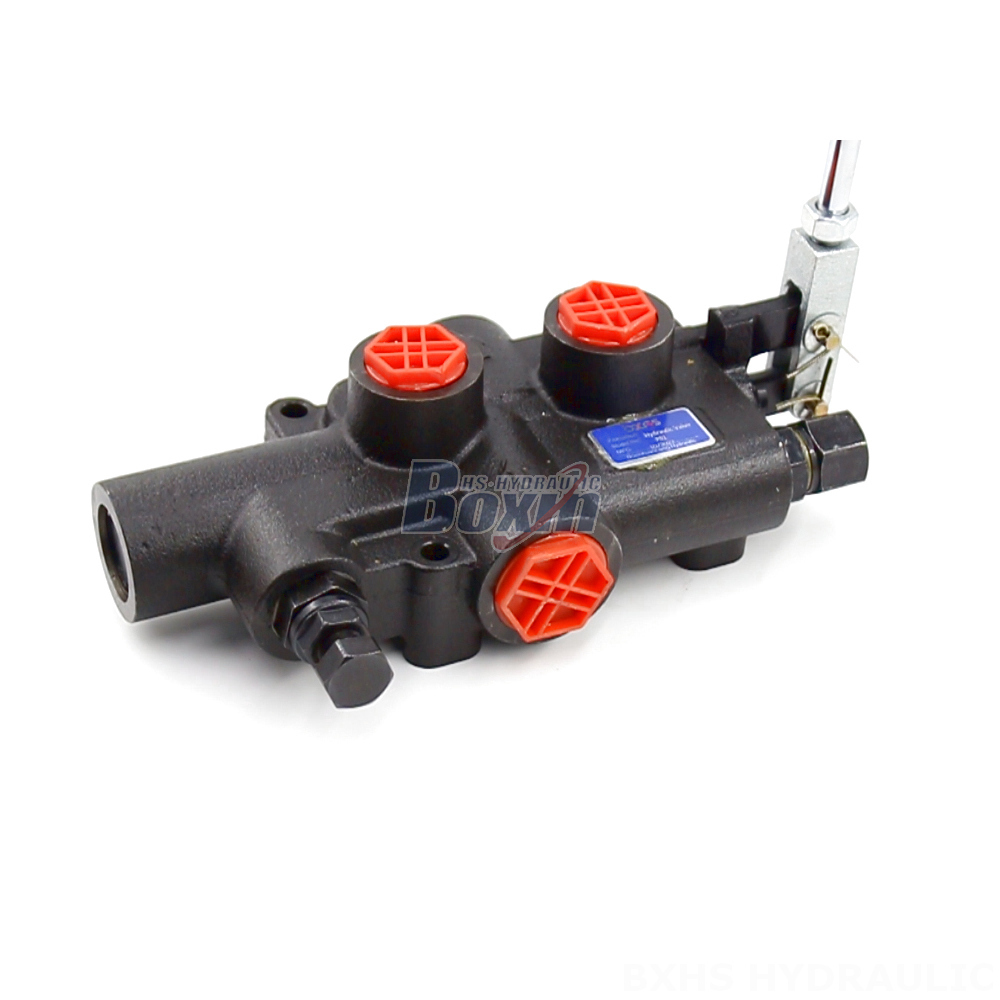

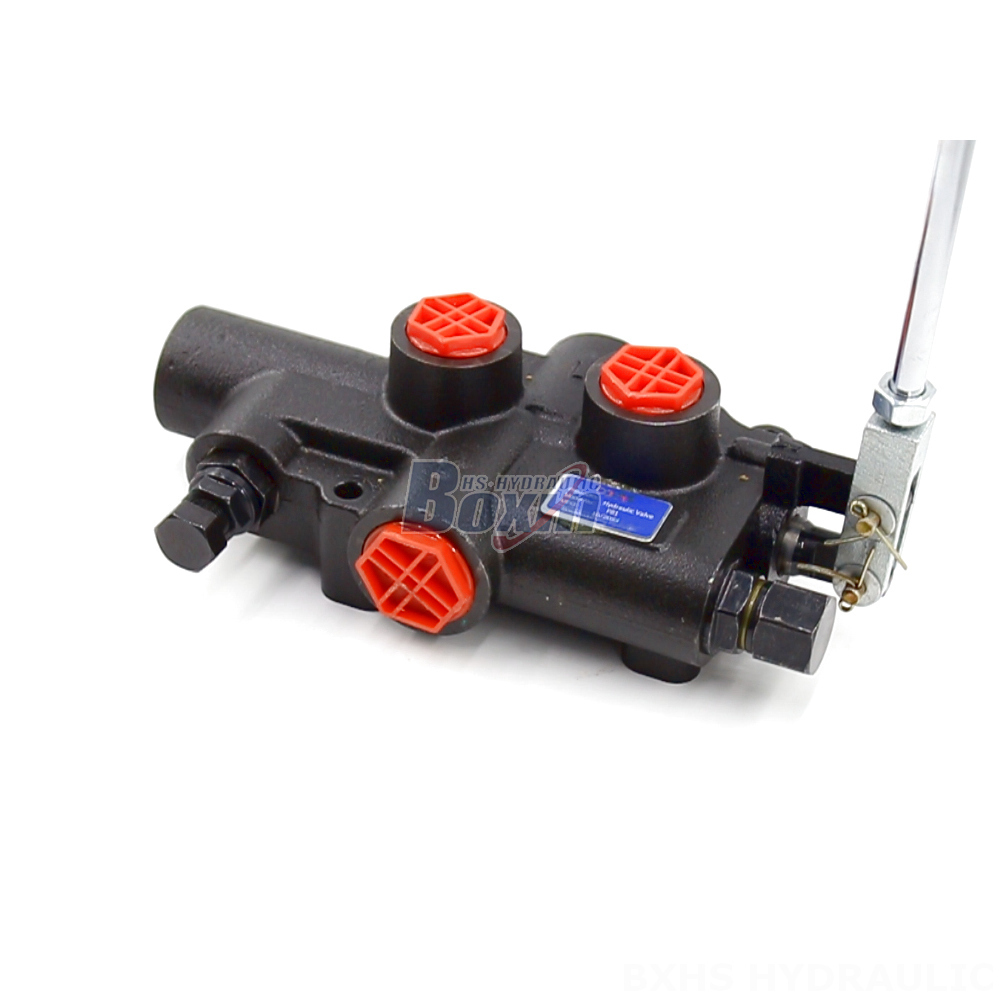

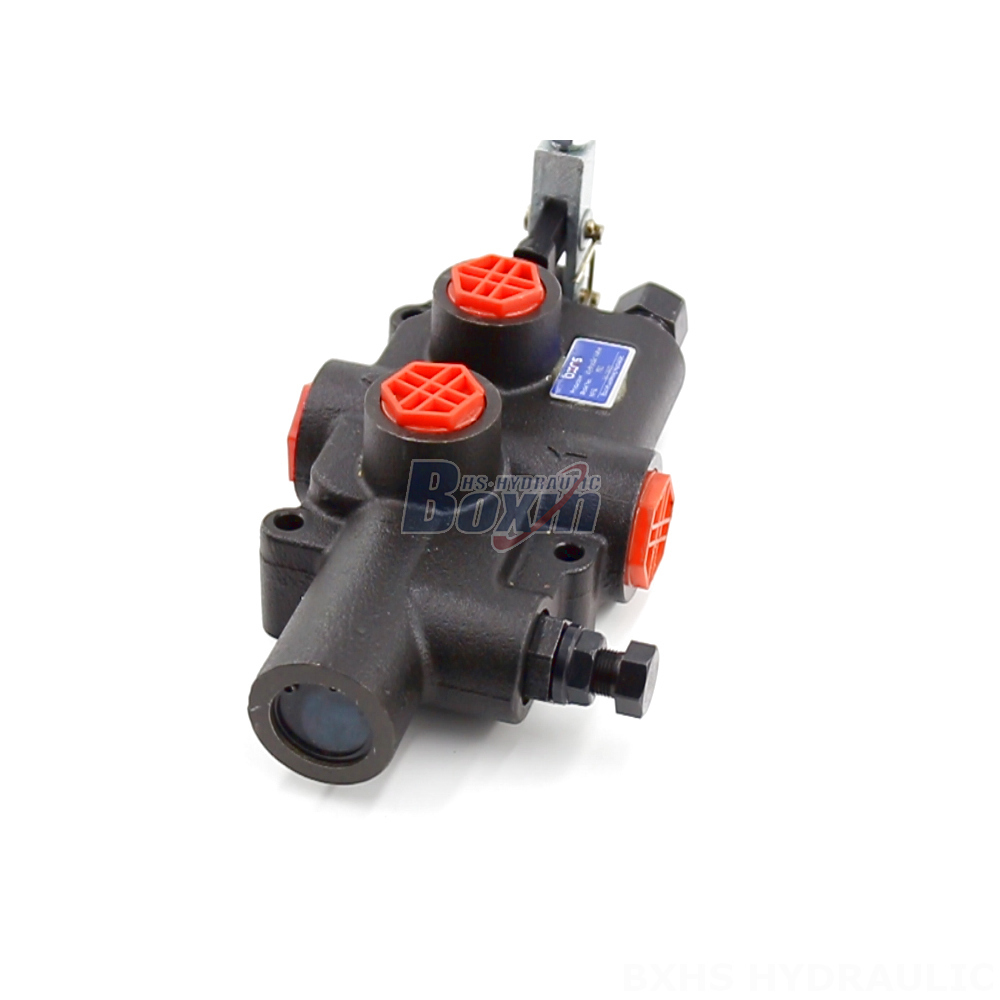

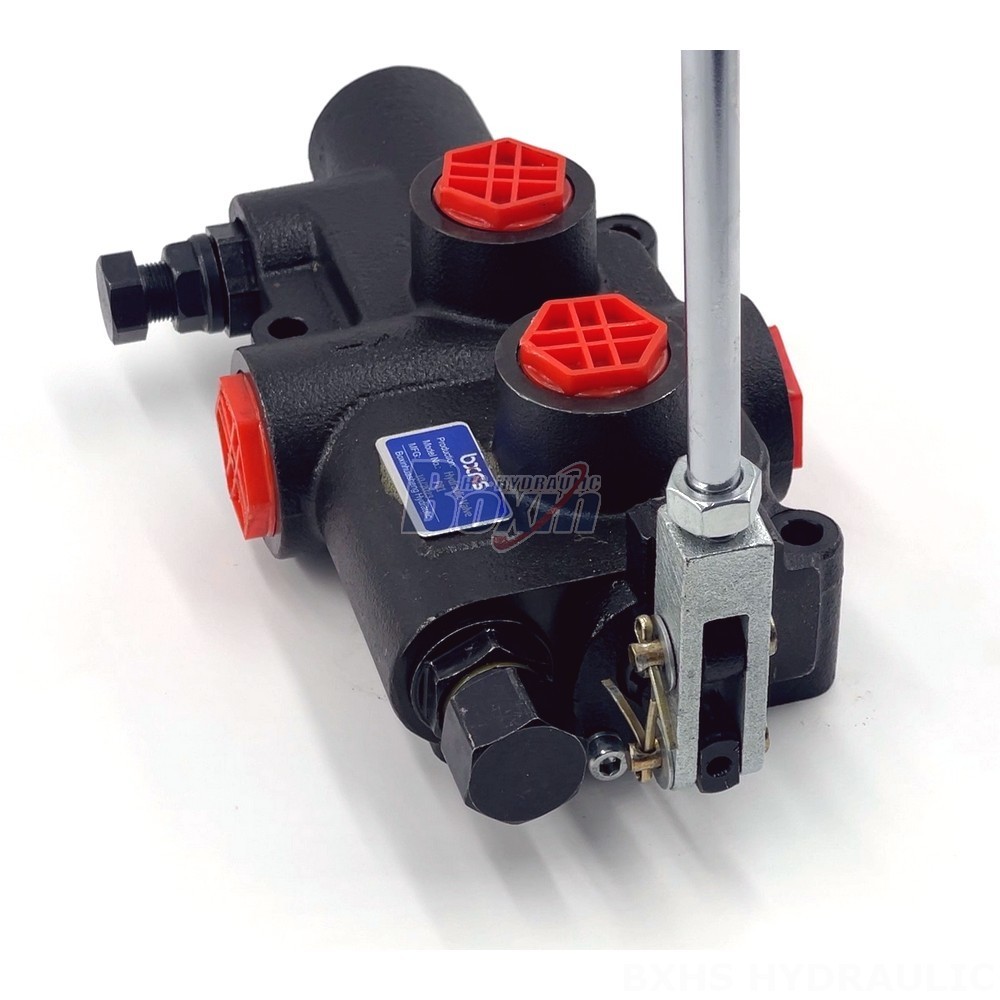

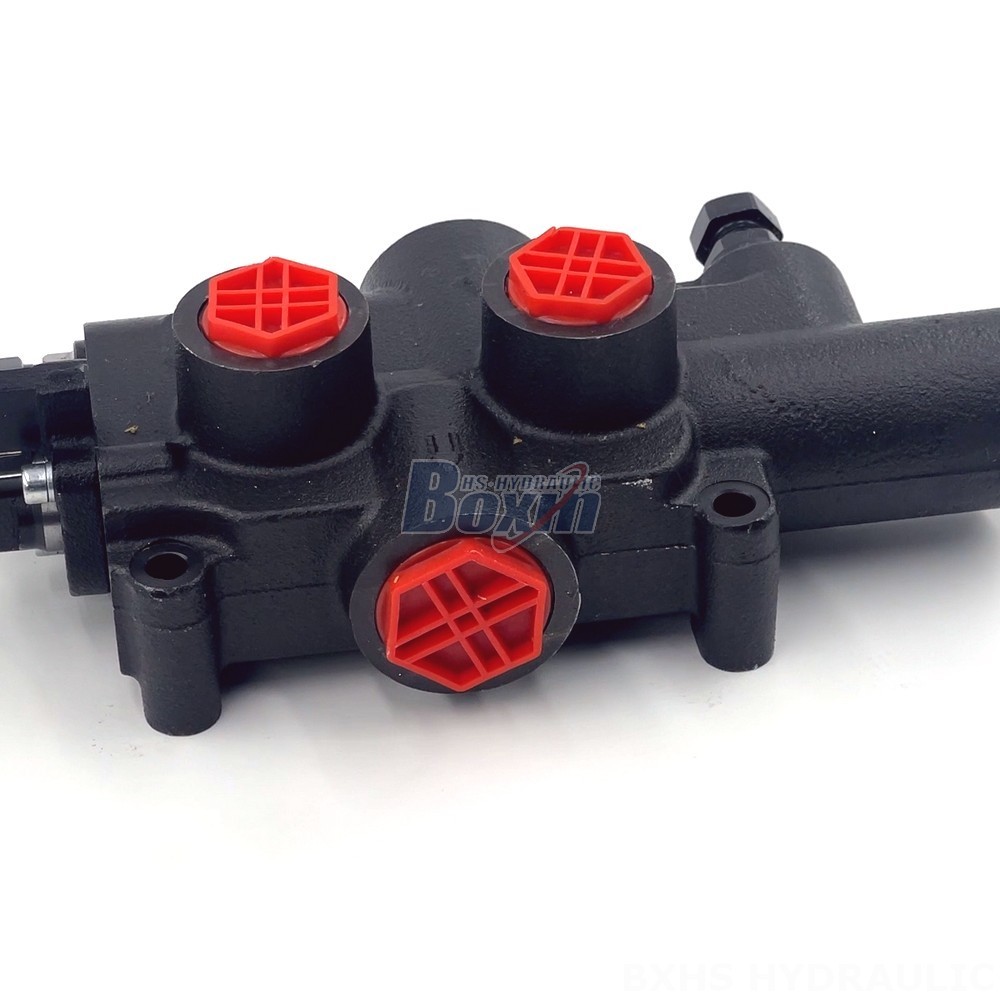

The P81 hydraulic valve is a high-performance, heavy-duty valve designed for use in tractor-powered log splitters. It features a manual control method, 1 section monoblock construction, 80 L/min flow rate, and 250 bar maximum pressure. This durable valve is perfect for industrial applications and offers customizable options to meet your specific needs.

P81 시리즈 로그 스플리터 밸브 매개변수
제어 방식 수동
스풀 1 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 80리터 (21.2 US gpm), 분당 95리터 (25.1 US gpm)
최대 압력 19 MPa (2735 psi)
입구 포트 G1/2
출구 포트 G1/2
포트 크기 G3/4

The P81 model is a robust tractor joy stick log splitter hydraulic valve, ideal for industrial vehicles. This monoblock valve boasts a 1 section design and offers a rated flow of 80 L/min (21.2 US gpm) with a maximum pressure of 250 bar (3600 psi). It operates within a wide viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). The valve features a single spool with a kick-out setting pressure of 70~140bar (1015-2030psi). We offer this valve for manufacturing, OEM, private label, and custom orders, allowing you to tailor it to your specific requirements. We are also actively seeking distributors, wholesalers, agents, and traders worldwide. Contact us today to discuss your needs and explore the possibilities of this high-quality, customizable hydraulic valve.
