The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is a 2-section, monoblock valve with a rated flow of 40 L/min and a maximum pressure of 250 bar. It has an operating viscosity range of 15 - 75 mm²/s and an ambient temperature range of -40°C to +80°C. The valve is available with 2 spools and is part of the P40 Series. It is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including telehandlers, forklifts, all terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders.
| P40 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 출구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 포트 크기 | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

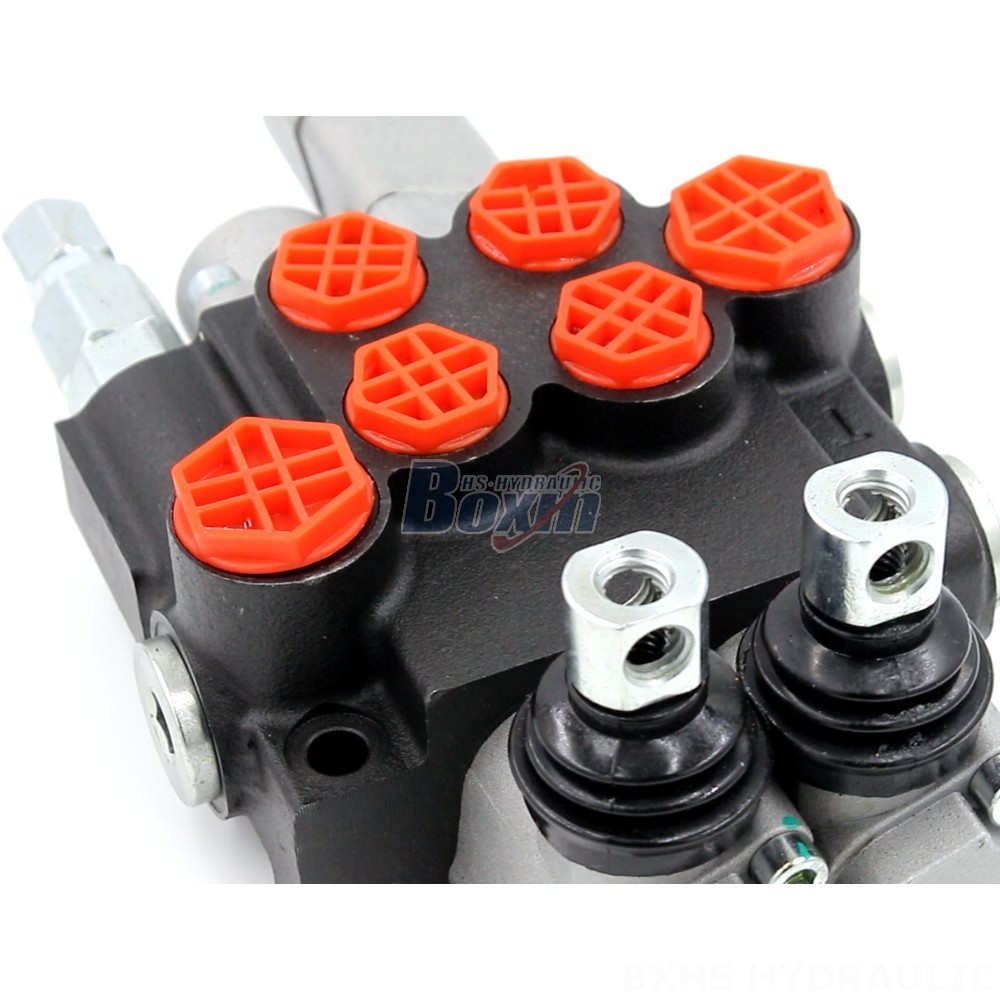

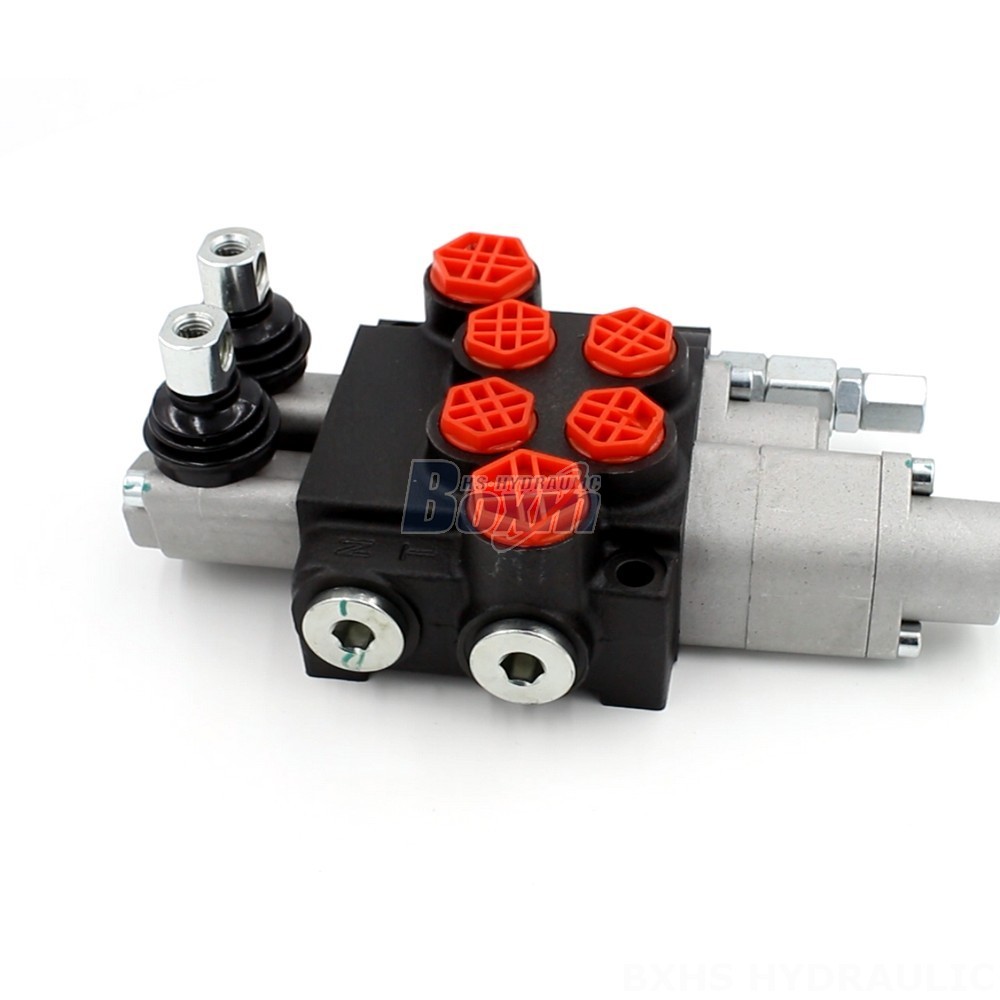

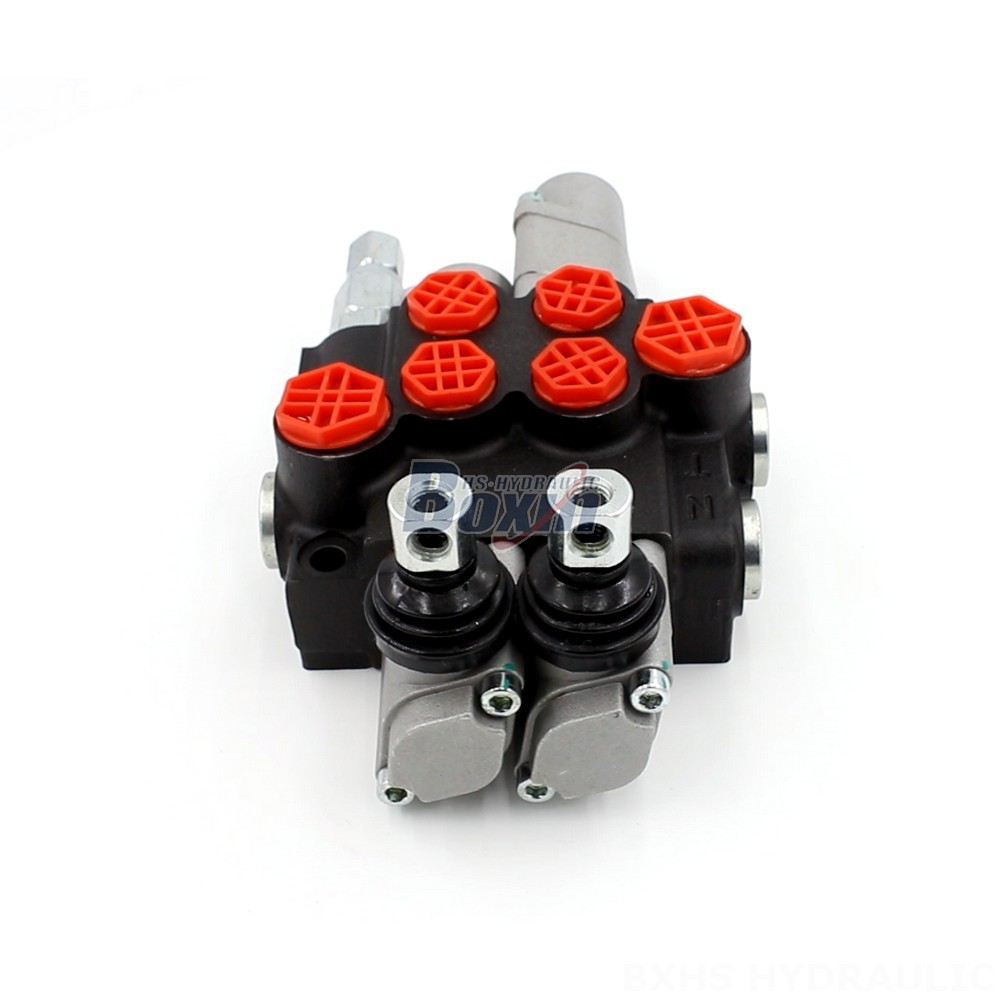

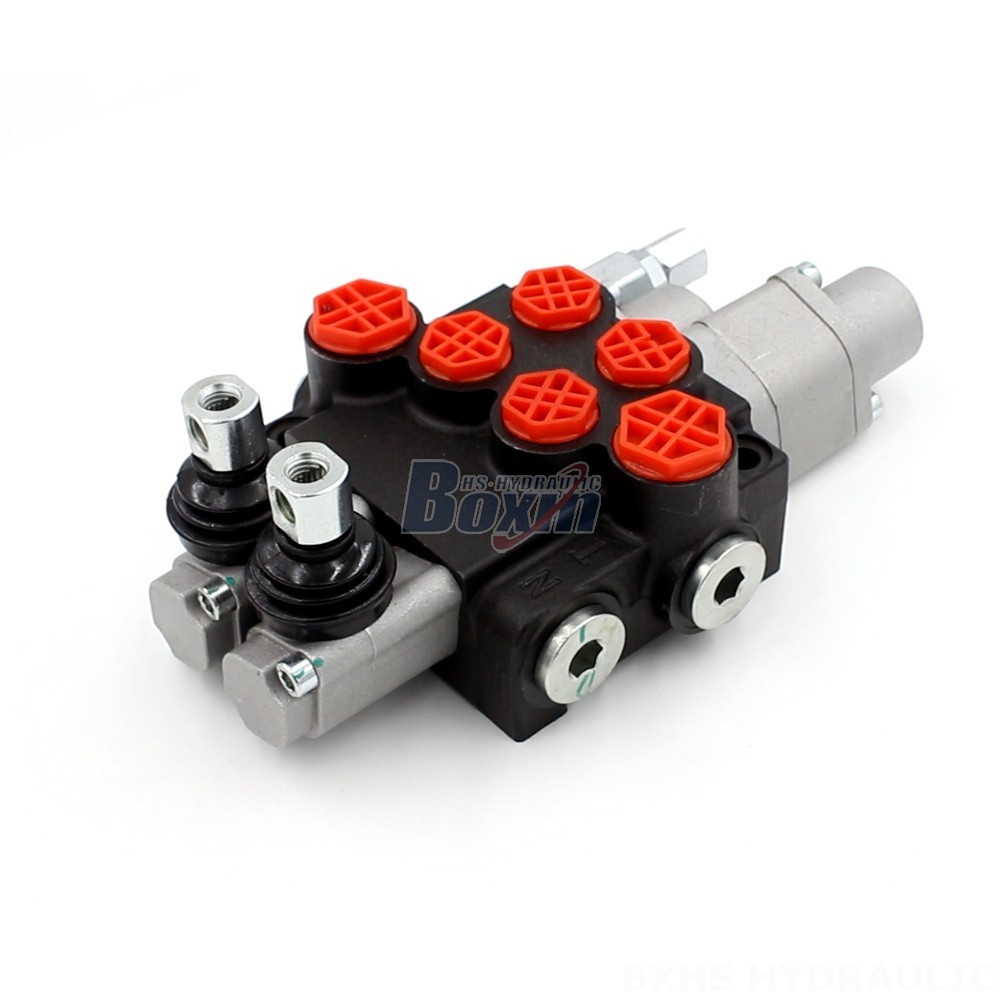

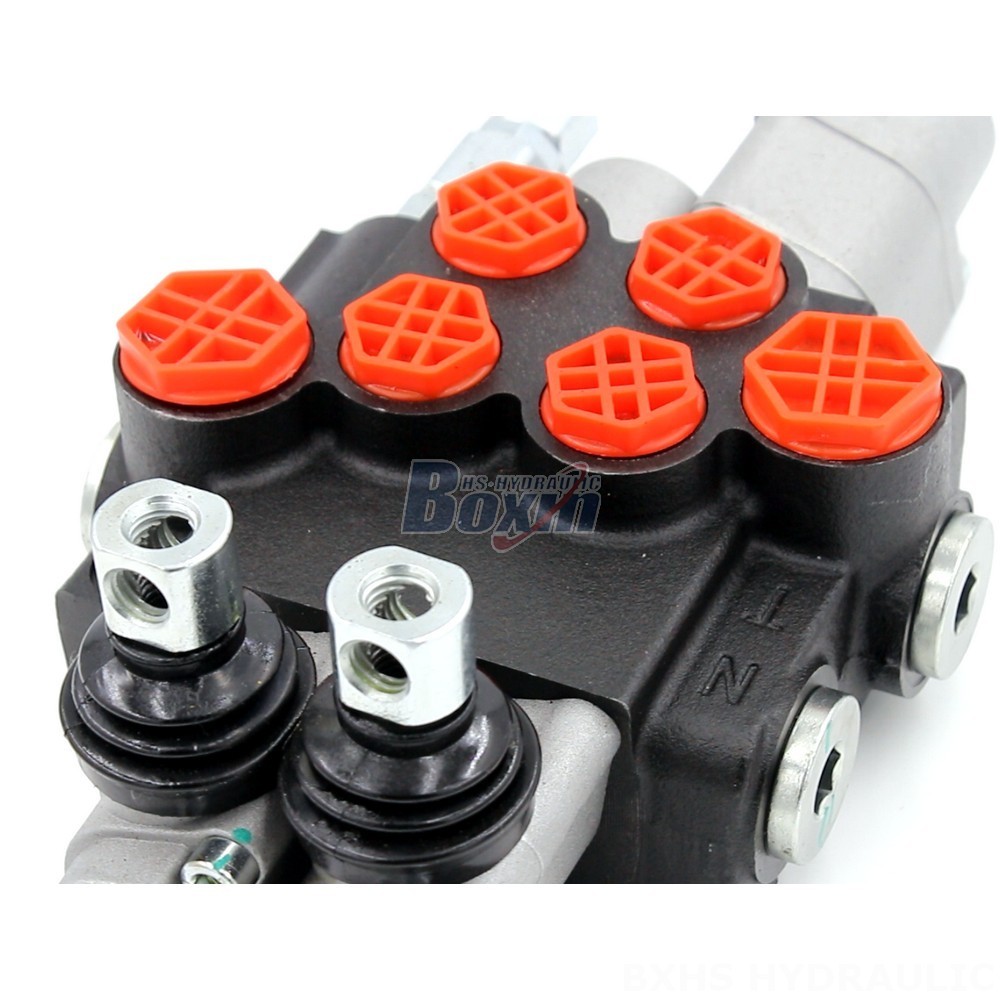

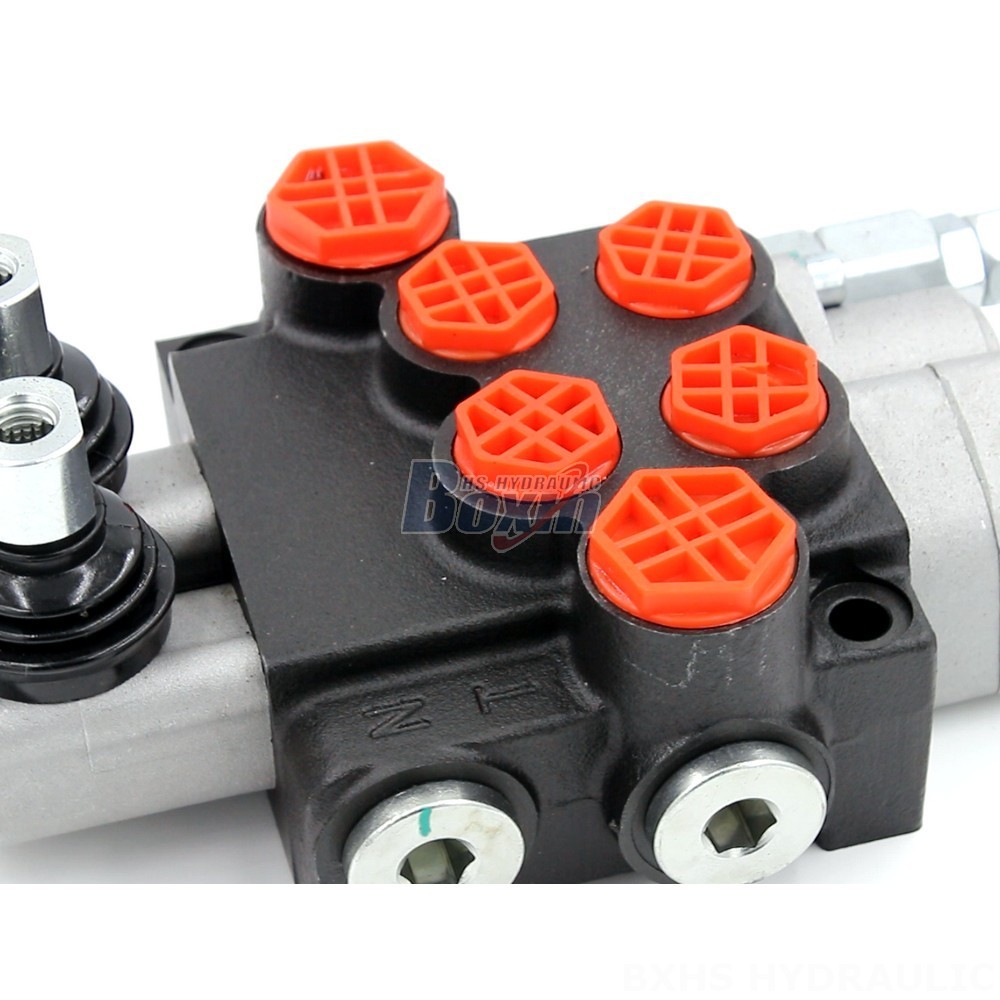

**Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is a high-quality, durable valve that is designed to meet the demands of a variety of applications. It is constructed from high-strength materials and is precision-machined to ensure a long service life.
**Key Features:**
* Manual control
* 2 section
* Monoblock valve
* 40 L/min rated flow
* 250 bar max pressure
* 15 - 75 mm²/s operating viscosity range
* -40°C to +80°C ambient temperature range
* 2 spool
* P40 Series
**Applications:**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series is commonly used in material handling, construction and earth moving, agriculture, and industrial vehicles, including:
* Telehandlers
* Forklifts
* All terrain cranes
* Stackers
* Aerial platforms
* Motor graders
* Midi-excavators
* Mini-excavators
* Skid steer loaders
* Compact wheel loaders
**Benefits:**
The Manual Monoblock Directional Valve - P40-G12-G38-OT-QTW1 Series offers a number of benefits, including:
* High quality and durability
* Precision-machined for a long service life
* Suitable for a wide range of applications
* Easy to install and maintain
