The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a high-performance valve designed for use in a wide range of hydraulic systems. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in demanding applications. The valve is constructed from high-quality materials and is designed to provide long service life.
| P40 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 출구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 포트 크기 | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |

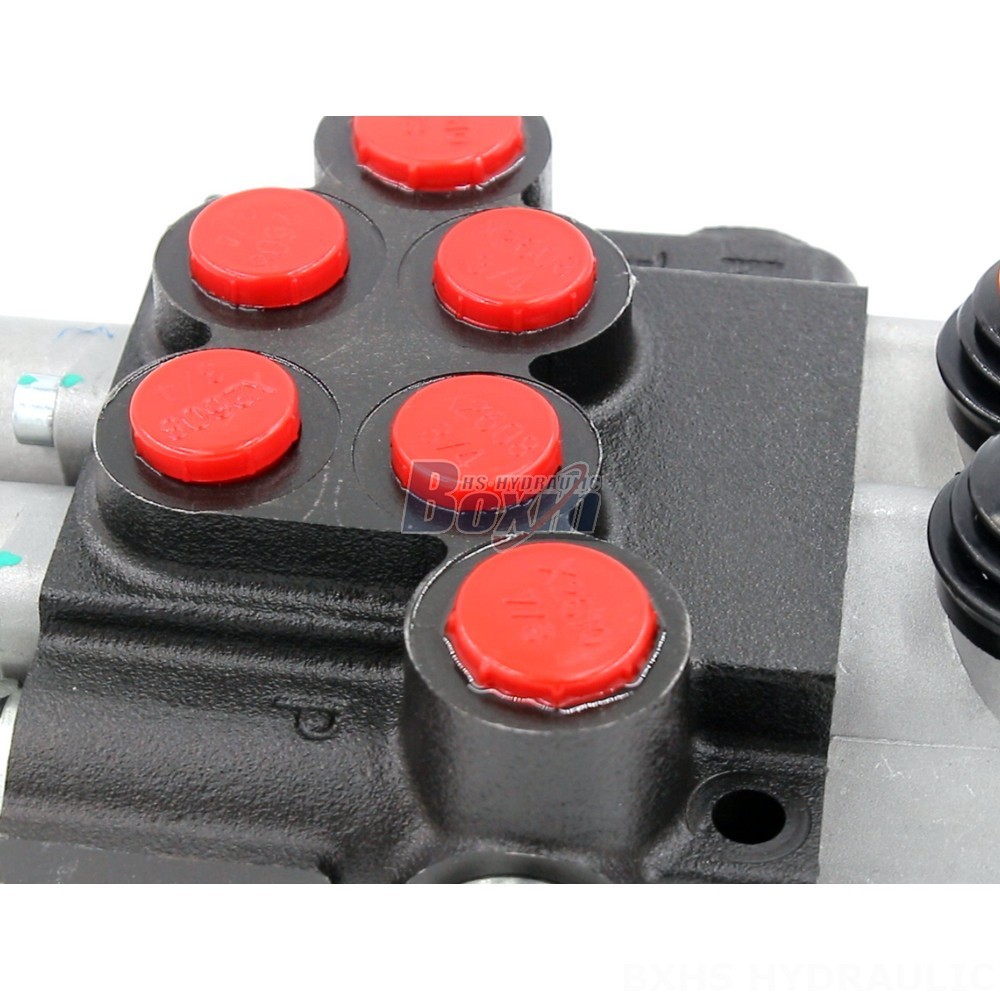

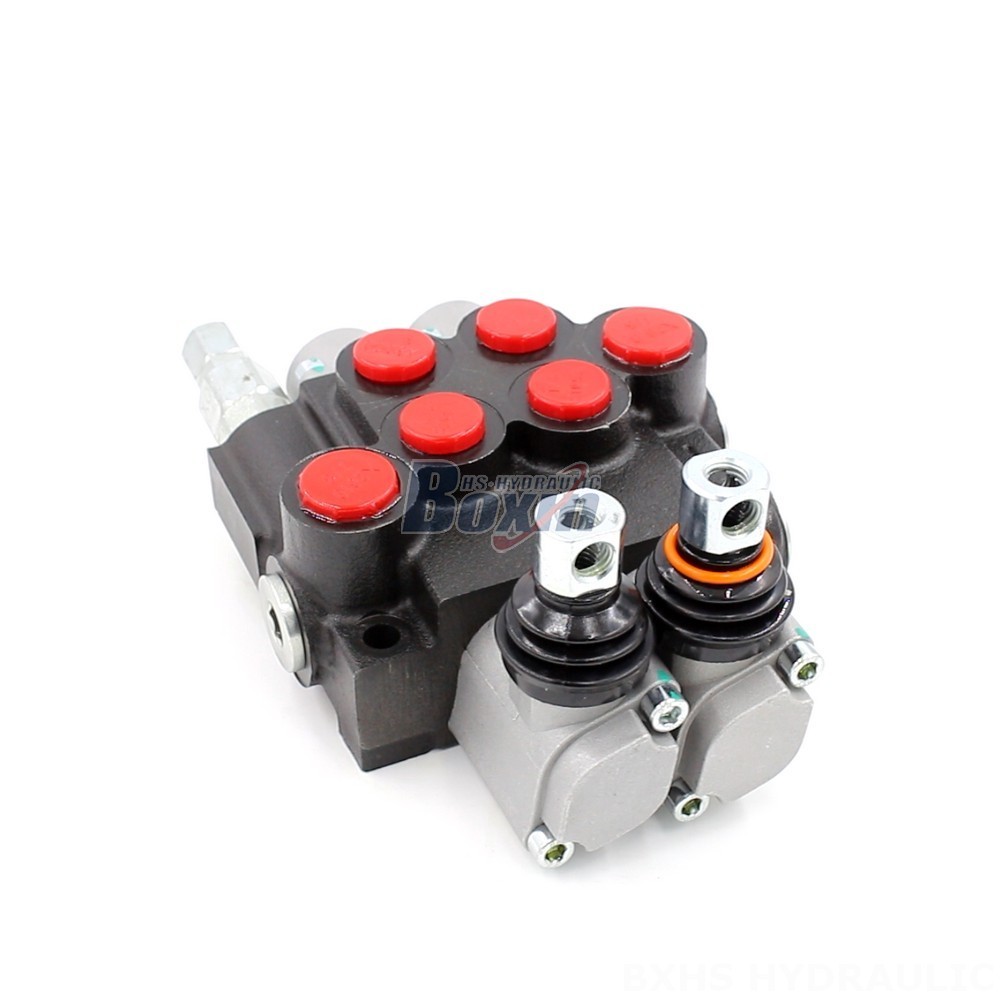

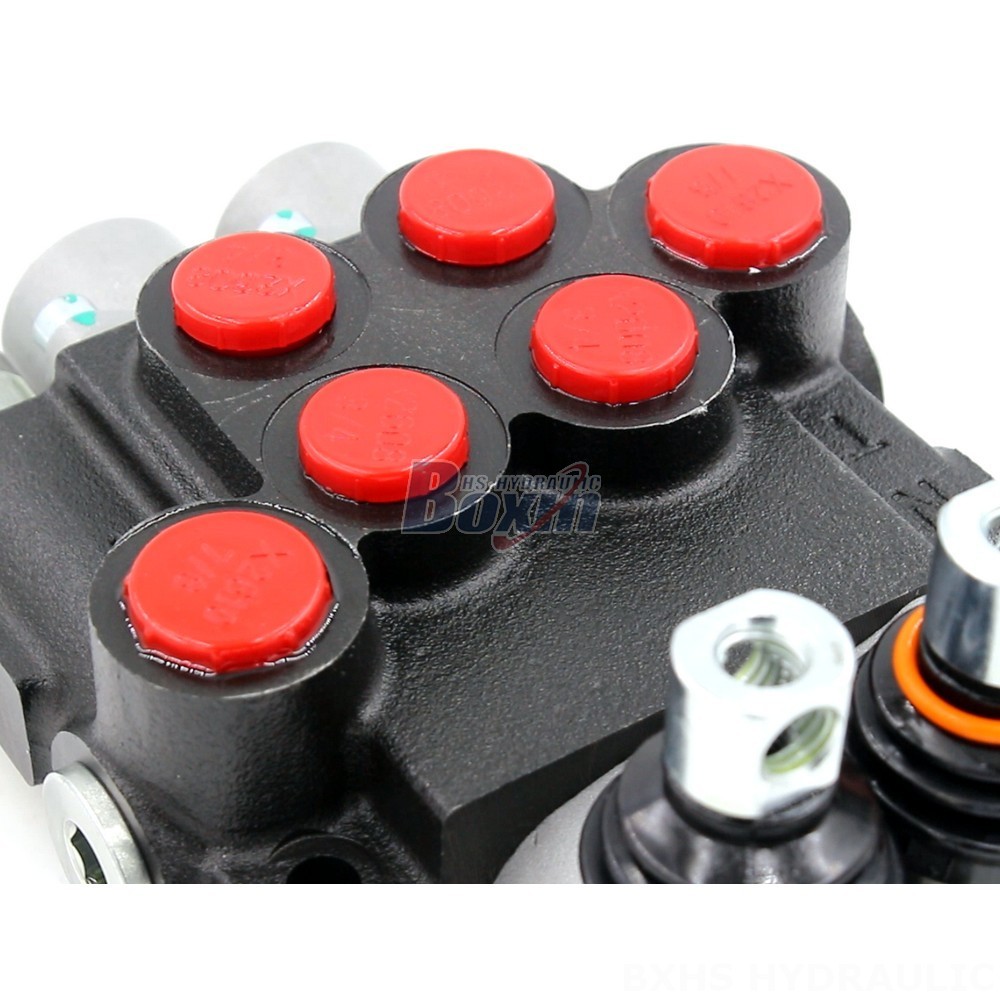

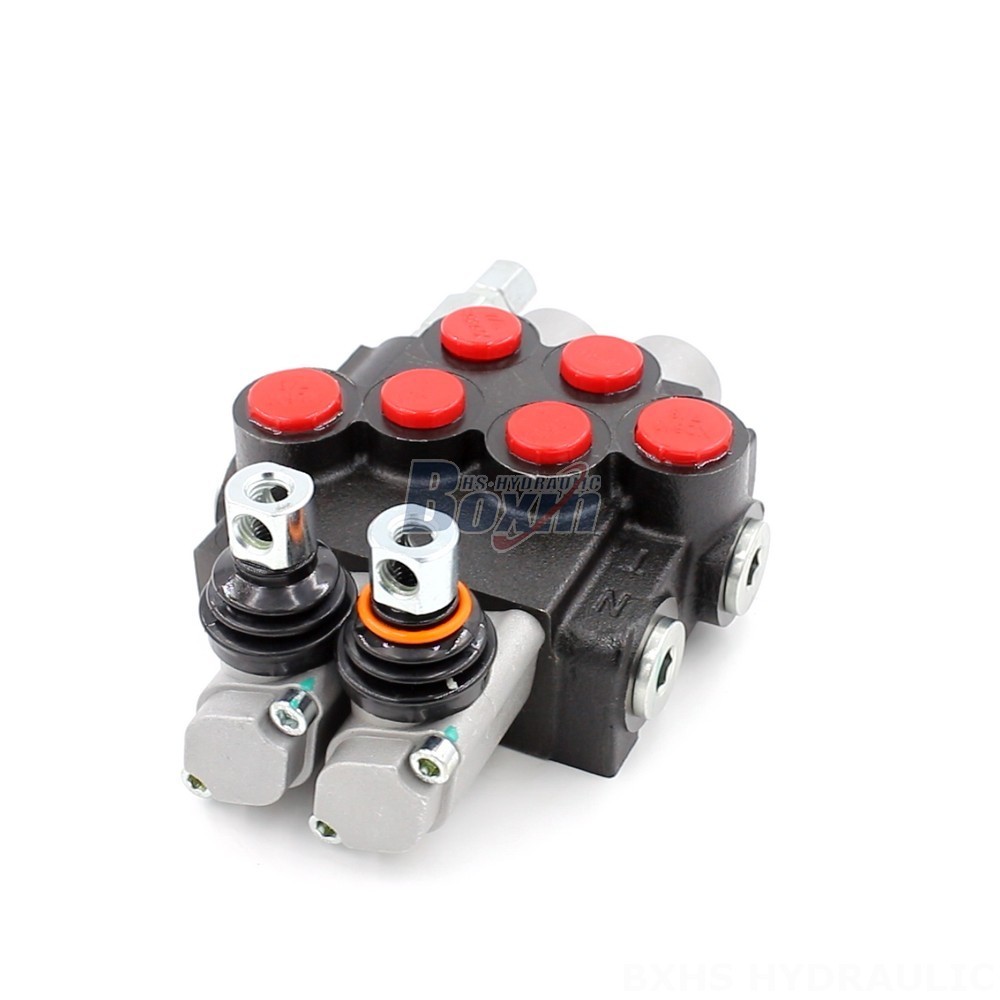

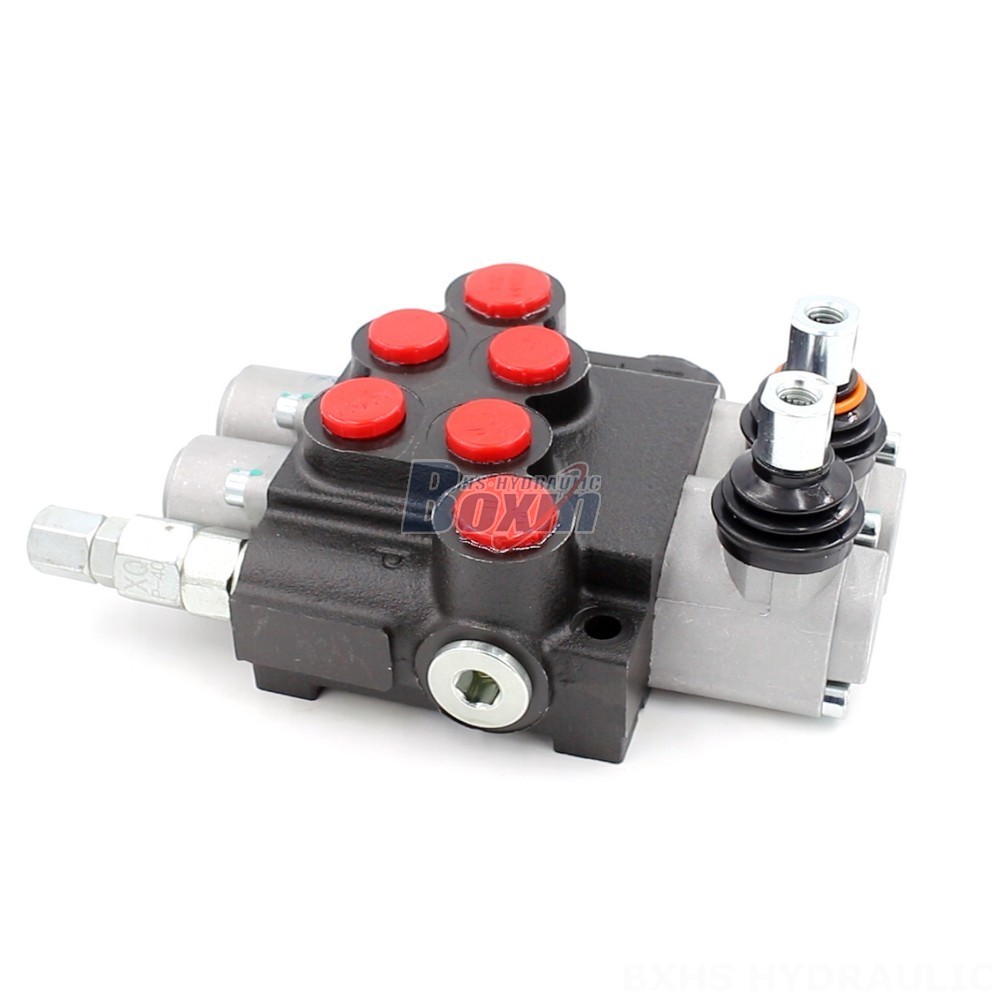

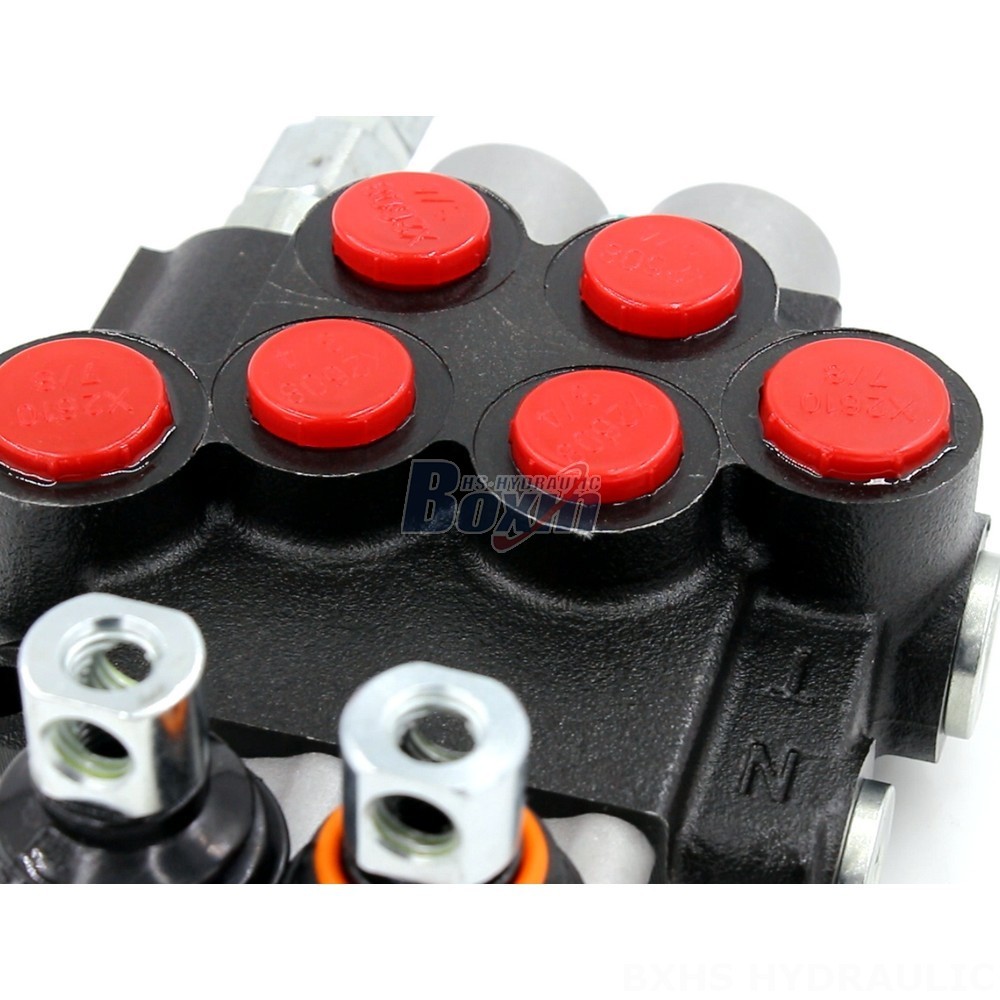

**Manual Monoblock Directional Valve - P40-U78-U34-OT-YW Series**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is a compact and lightweight valve that is ideal for use in mobile hydraulic systems. The valve is constructed from high-strength aluminum alloy and is designed to withstand the harsh conditions of mobile applications. The valve is also equipped with a manual override lever that allows the operator to manually control the valve in the event of a power failure.
**Key Features:**
* Rated flow: 40 L/min (10.5 US gpm)
* Maximum pressure: 250 bar (3600 psi)
* Operating viscosity range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient temperature range: -40°C to +80°C (-40°F to +176°F)
* Spool: 2 Spool
* Series: P40 Series
**Applications:**
The P40-U78-U34-OT-YW Series Manual Monoblock Directional Valve is suitable for use in a wide range of mobile hydraulic applications, including:
* Material handling
* Construction and earth moving
* Agriculture
* Industrial vehicles
**Benefits:**
* Compact and lightweight design
* High strength aluminum alloy construction
* Manual override lever
* Long service life
