What is the primary application of the Monoblock Directional Control Valve | Factory Direct & Customizable?

The Monoblock Directional Control Valve | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Monoblock Directional Control Valve | Factory Direct & Customizable

Name: Monoblock Directional Control Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-54450
Availability: InStock

홈모노블럭 방향 제어 밸브P40 시리즈제품 상세

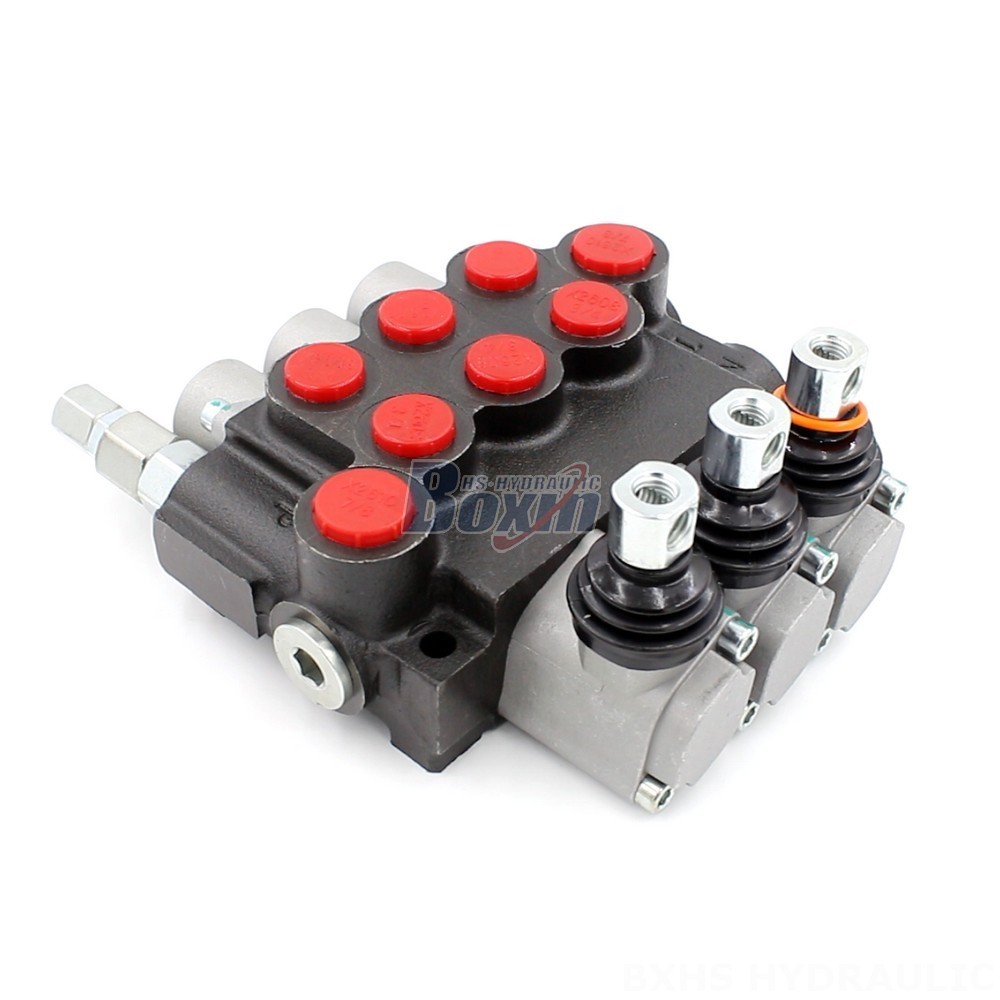

Monoblock Directional Control Valve | Factory Direct & Customizable cover photo

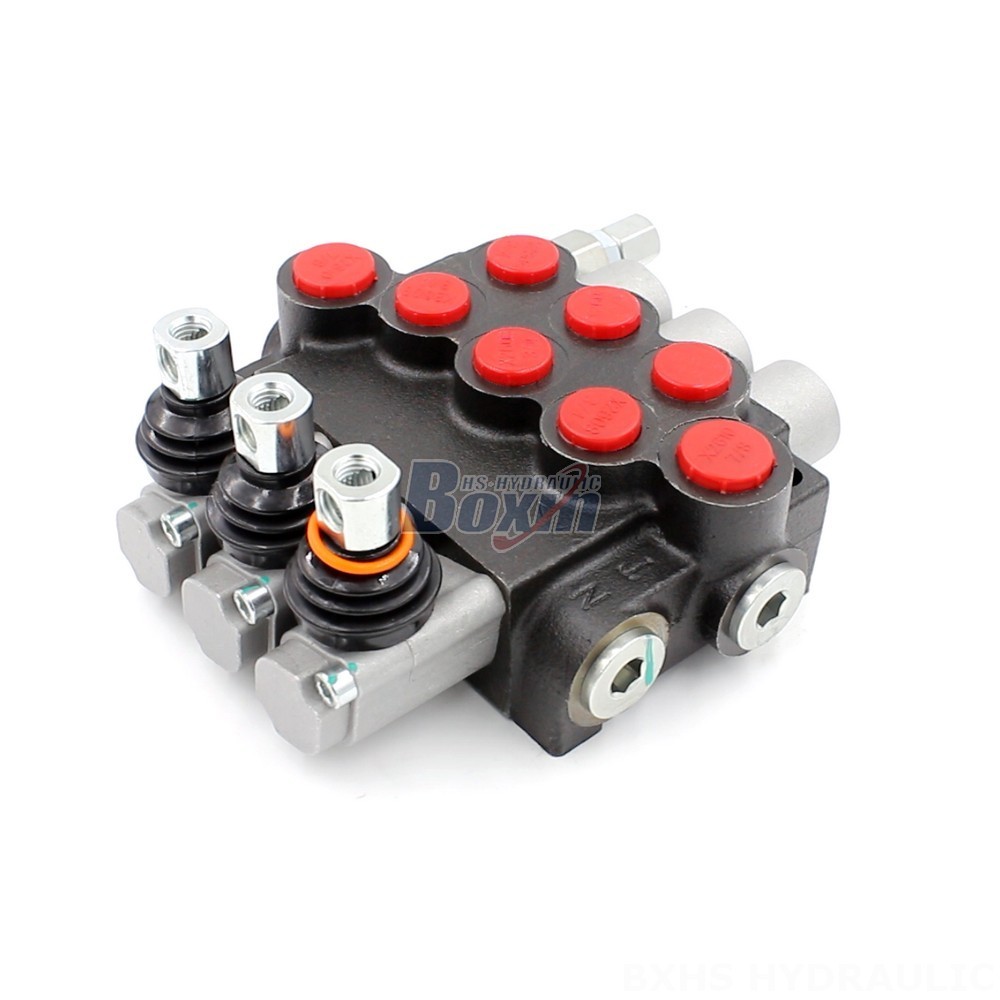

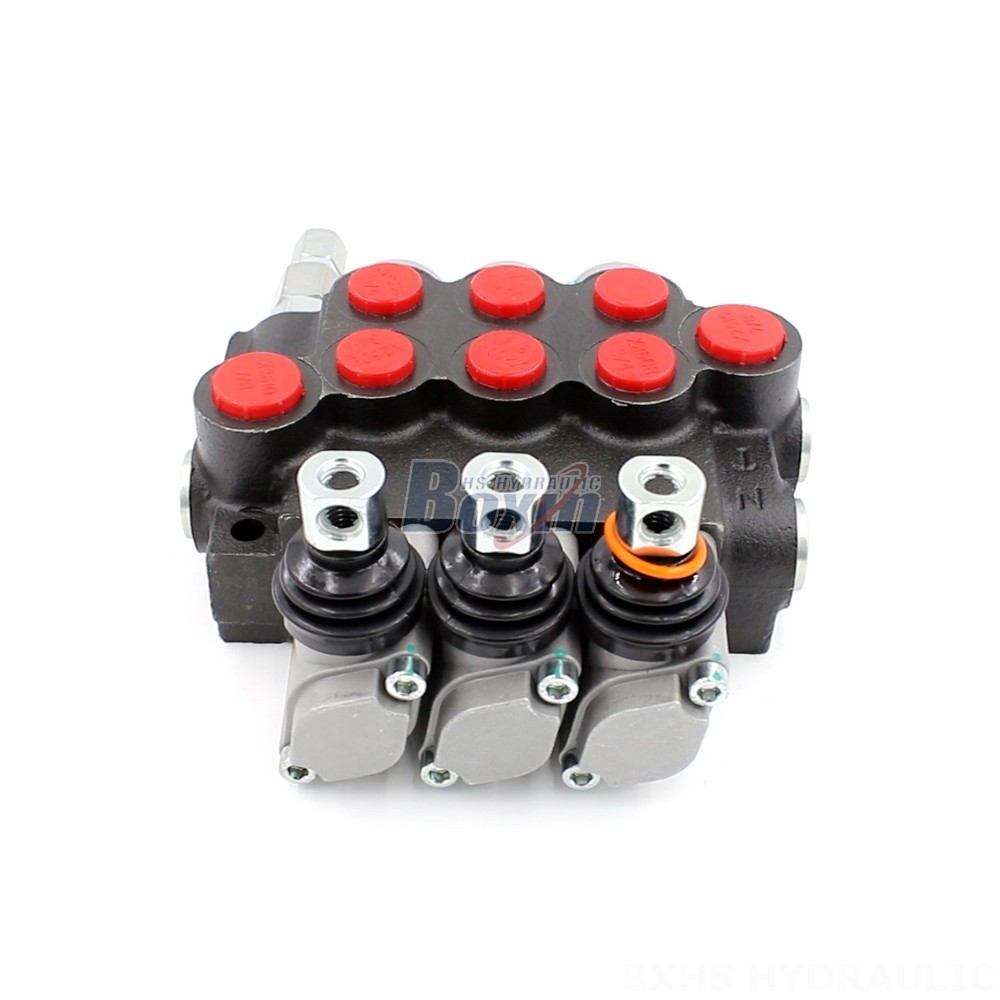

Monoblock Directional Control Valve | Factory Direct & Customizable main image

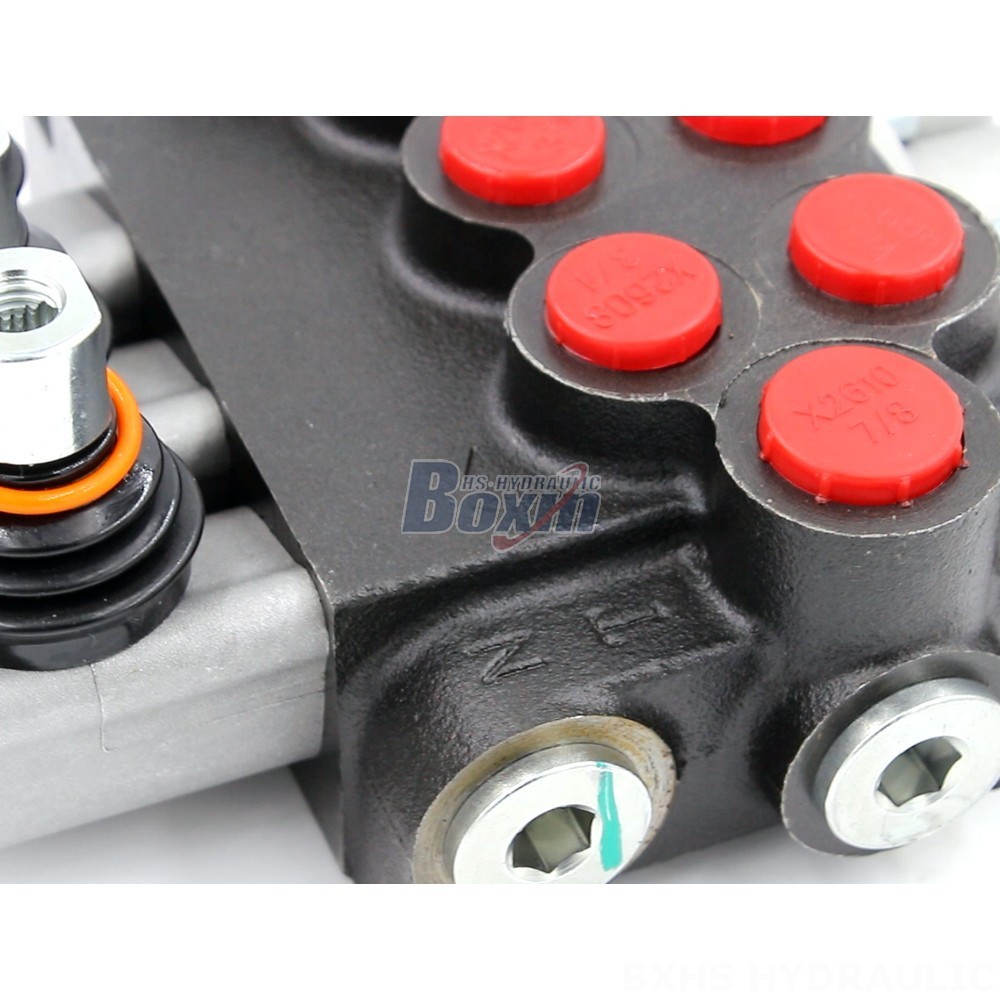

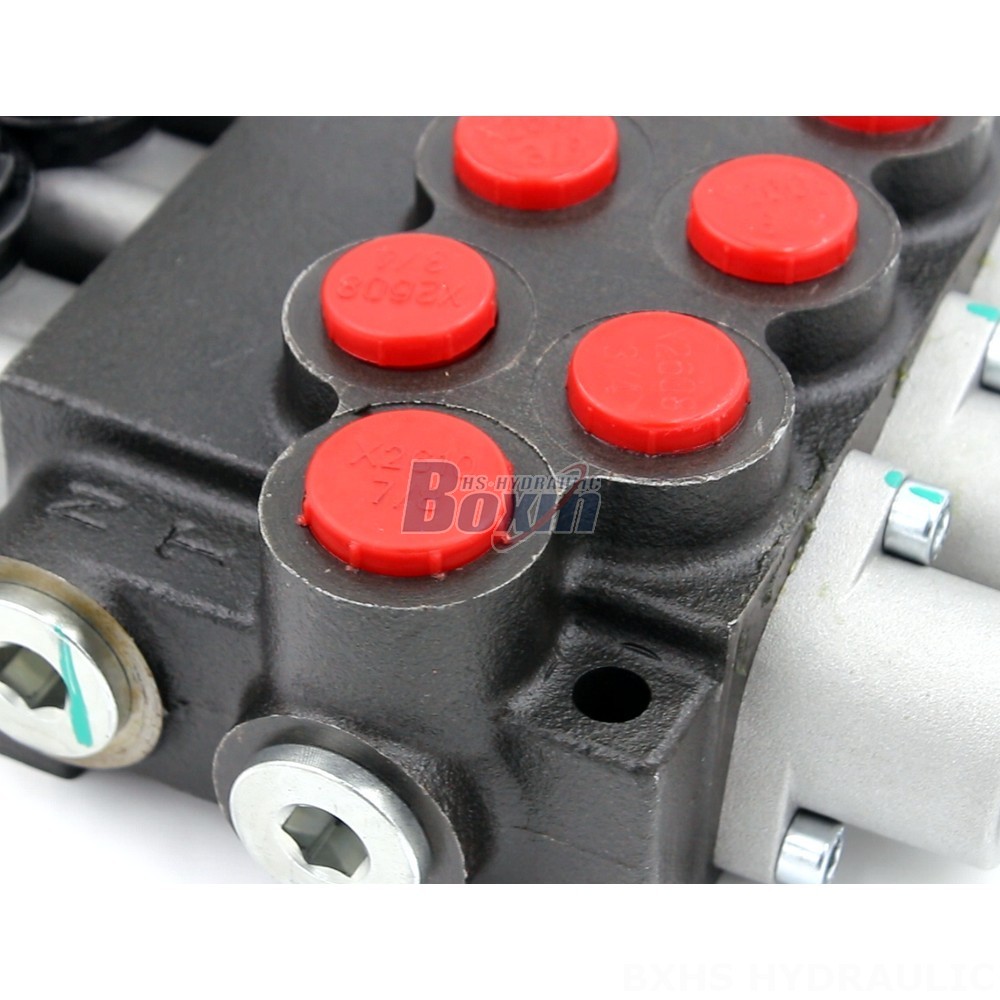

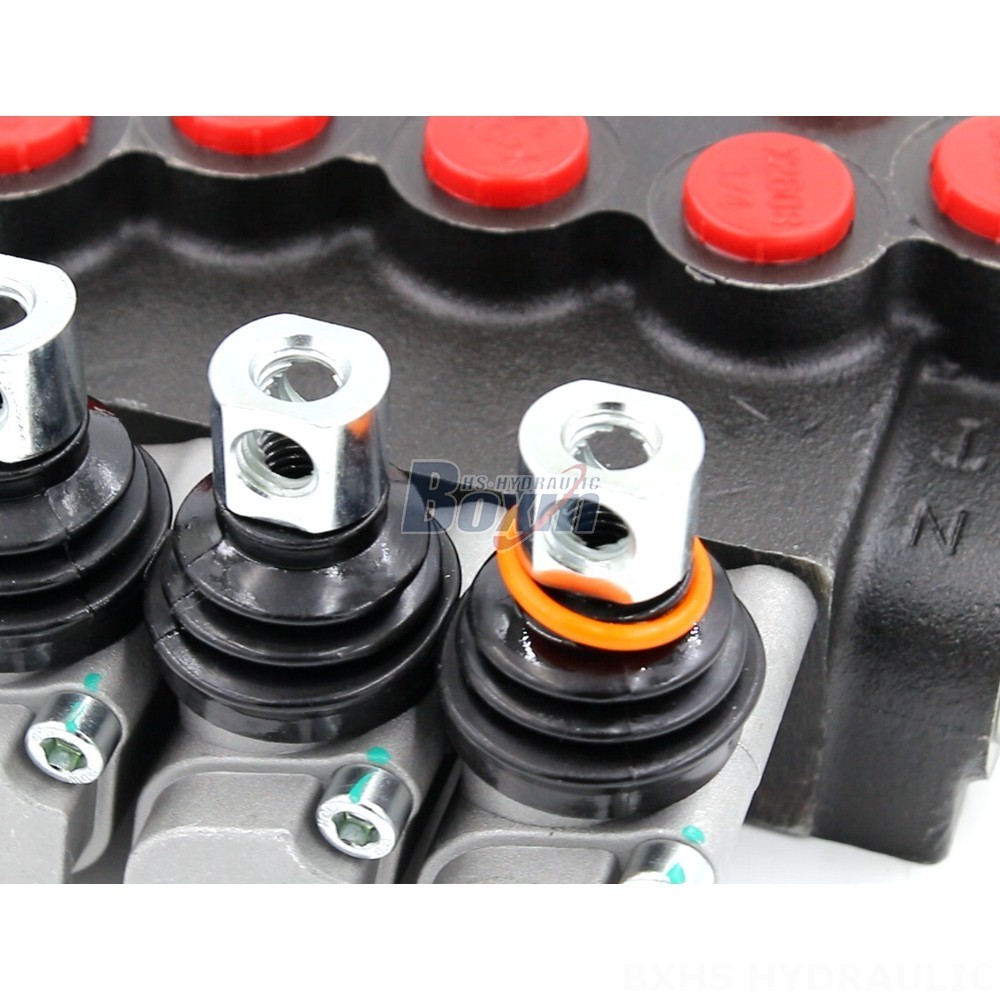

Monoblock Directional Control Valve | Factory Direct & Customizable detail image

Monoblock Directional Control Valve | Factory Direct & Customizable

제어 방식:수동

스풀:3 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:SAE 10

출구 포트:SAE 10

포트 크기:SAE 8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:24*21*13

총중량:7.00 kg

재고 상태: 재고 있음

문의하기

1024 이 제품을 찾아보시지 않겠습니까?

Monoblock Directional Control Valve | Factory Direct & Customizable

Monoblock Directional Control Valve | Factory Direct & Customizable drawing image

This is a high-performance Log Splitter Detent Valve, offering reliable directional control for hydraulic systems in various applications. It's a 3-section, monoblock valve with manual control, designed for demanding environments and available in customized options.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	250바 (3600 psi)
입구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This Log Splitter Detent Valve is a robust, 3-section monoblock valve designed for demanding hydraulic applications. It features manual control and a rated flow of 40 L/min (10.5 US gpm) at a maximum pressure of 250 bar (3600 psi). This valve is ideal for use in material handling, construction, agriculture, and industrial vehicle applications, specifically for telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, backhoe loaders, tractors, and front-end loaders. We offer factory-direct pricing and customization options to meet your specific needs.
