What is the primary application of the Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable?

The Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable

Name: Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable
Brand: Boxinhuasheng
SKU: BXHS-54653
Availability: InStock

홈모노블럭 방향 제어 밸브P80 시리즈제품 상세

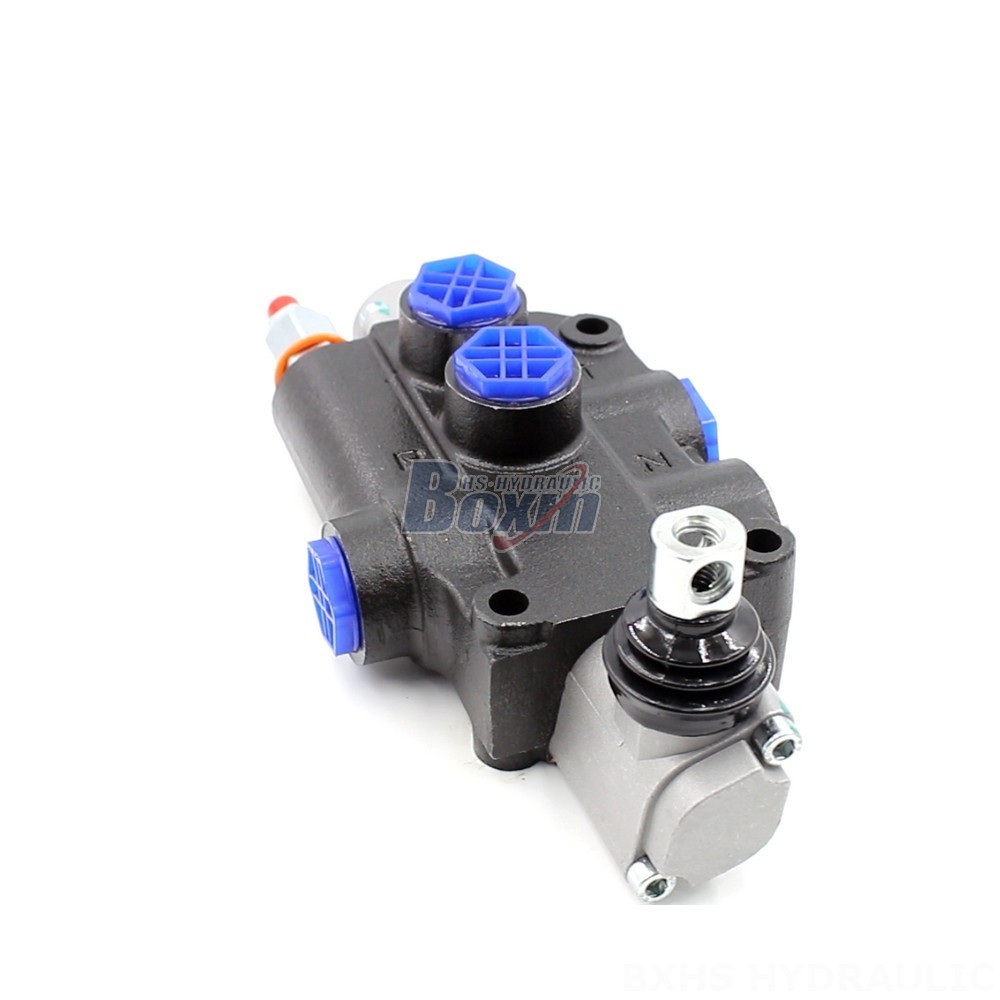

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable cover photo

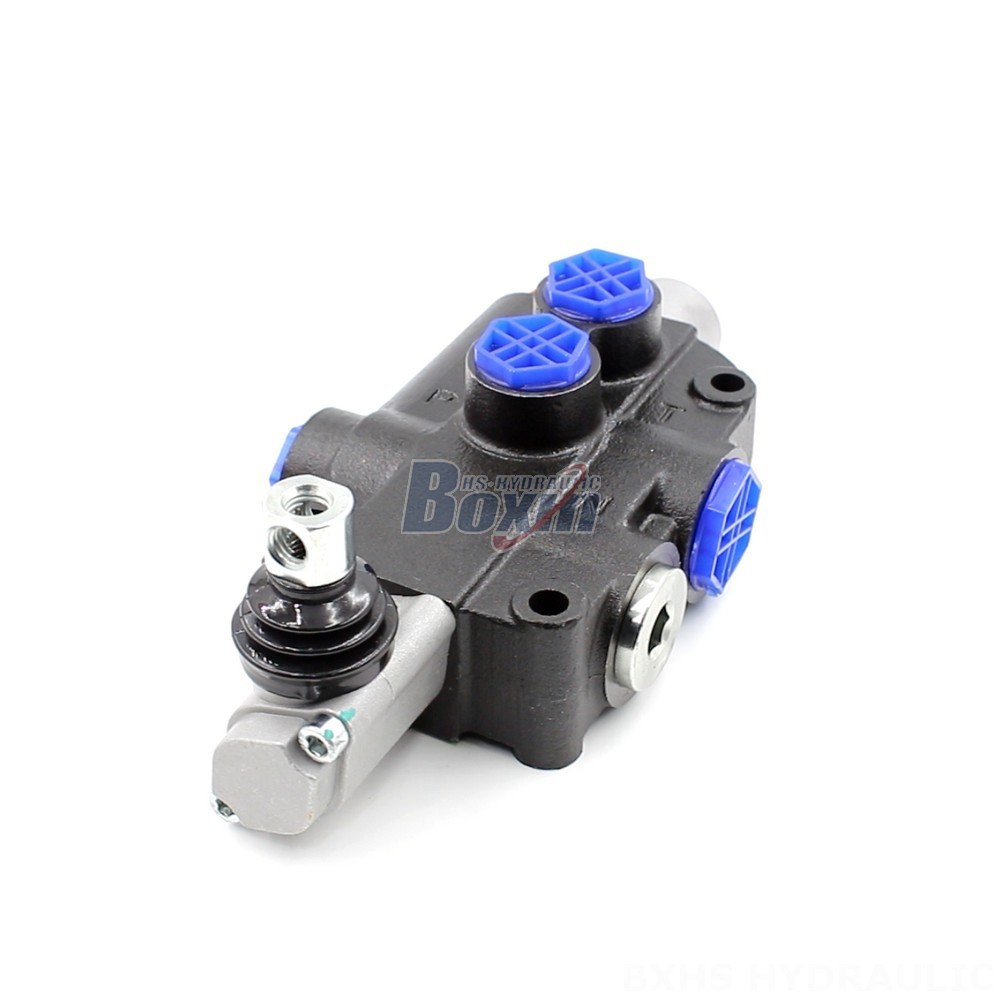

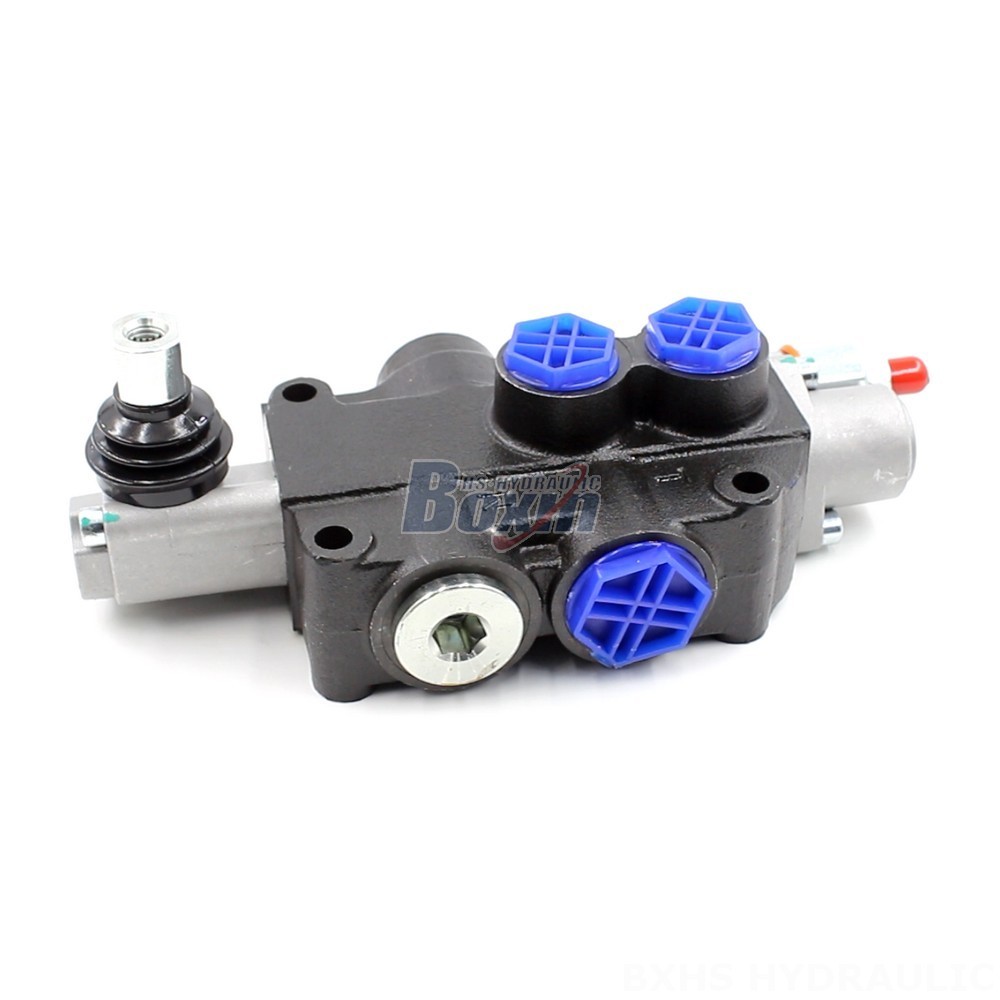

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable main image

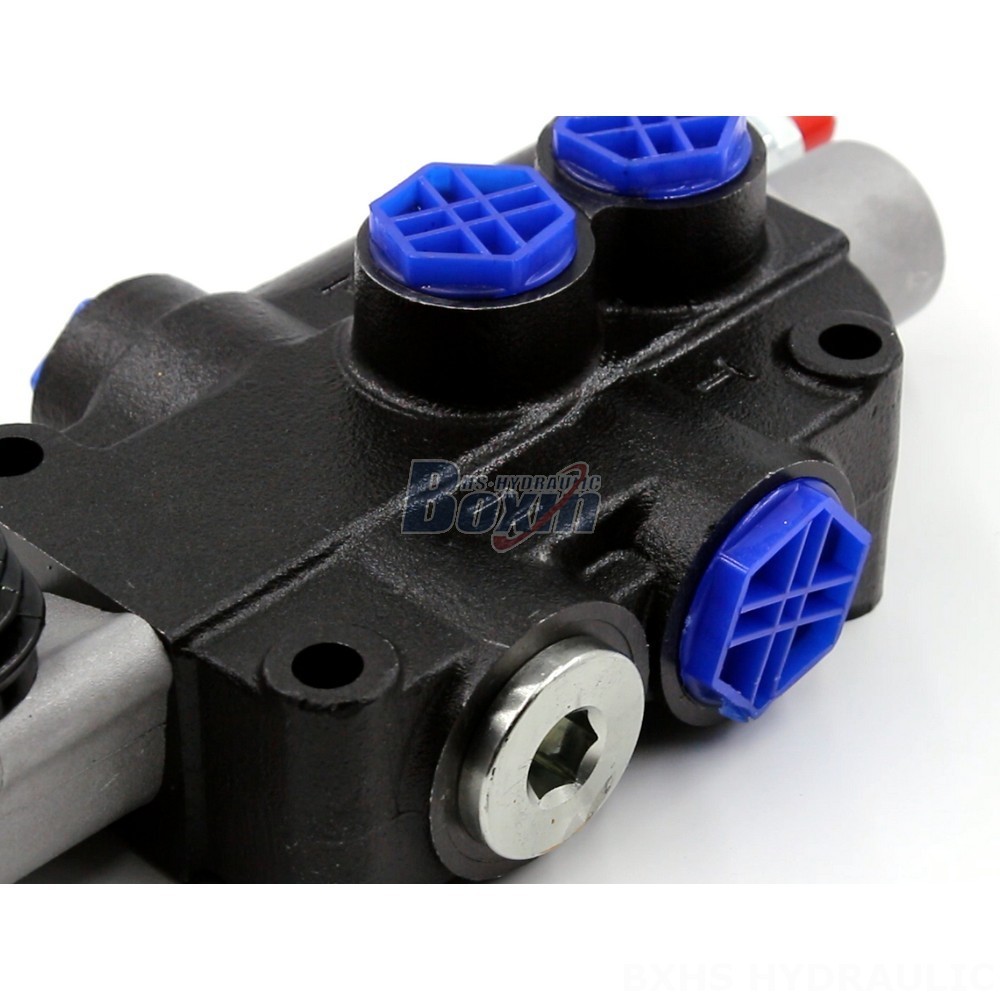

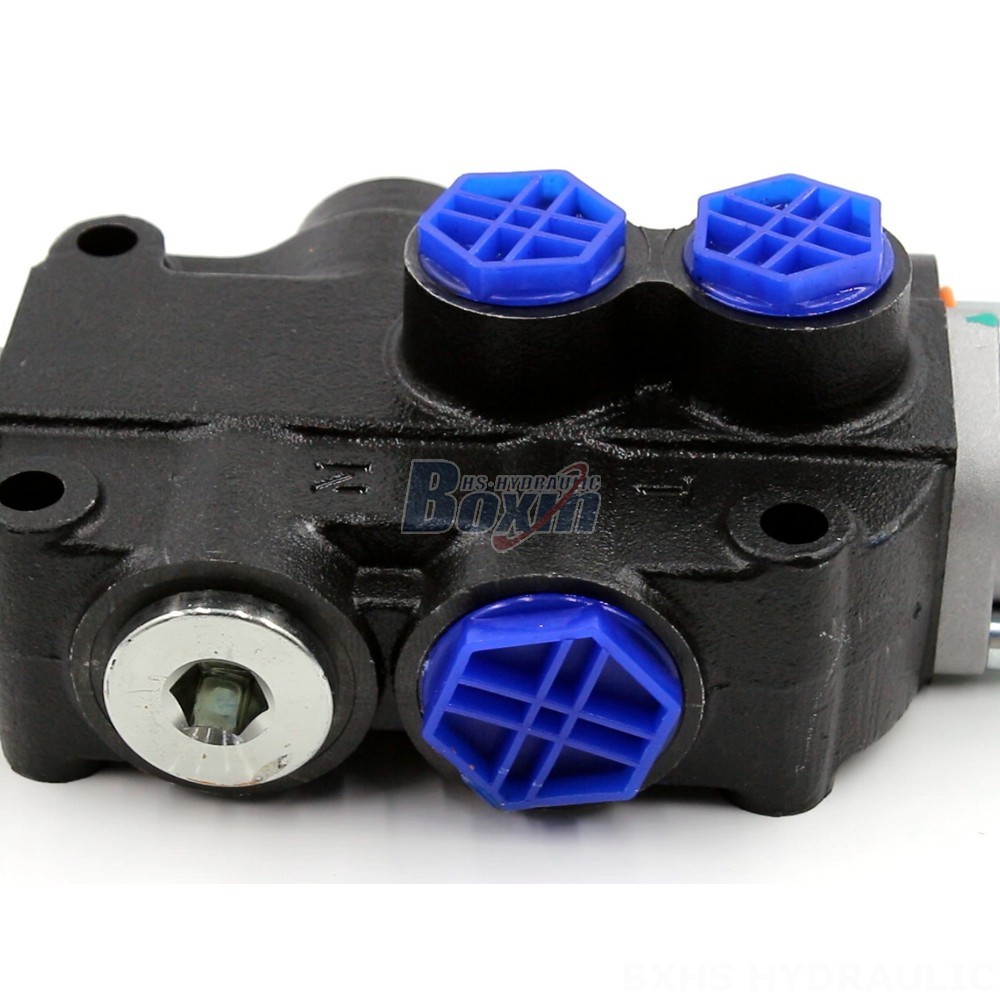

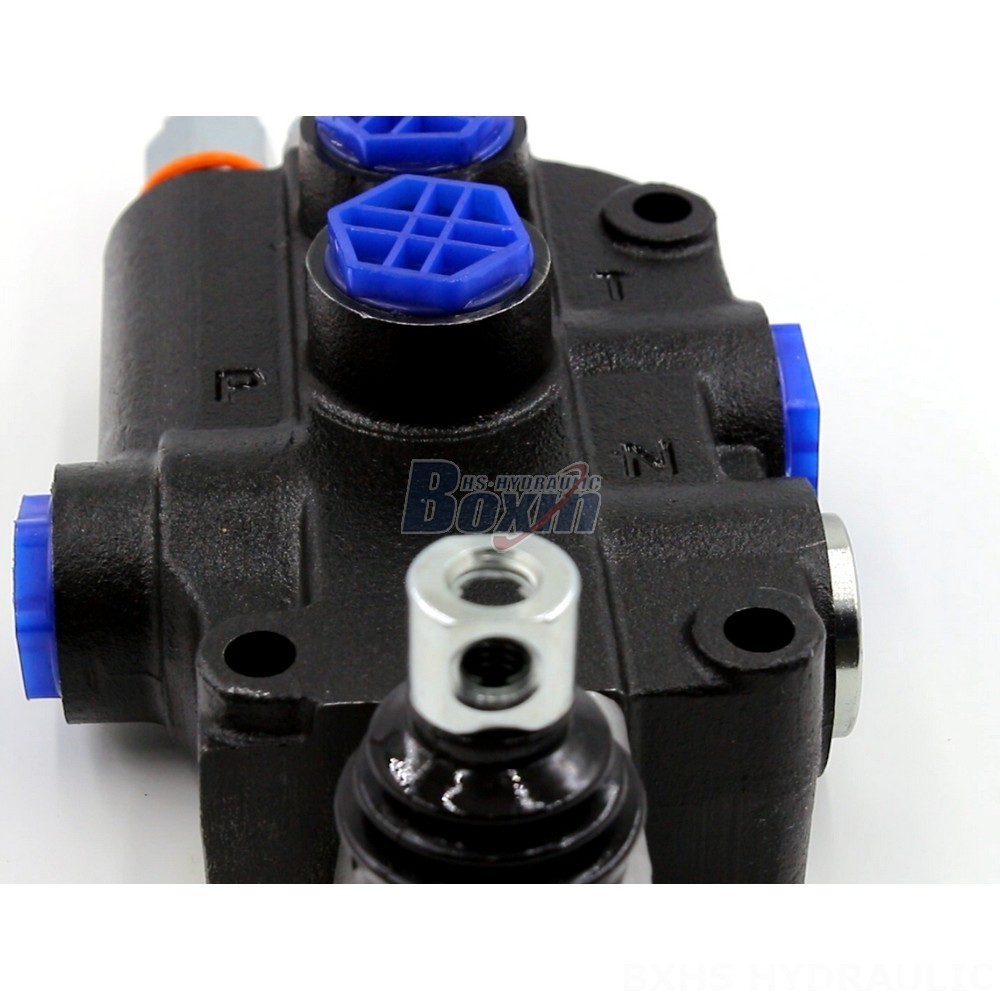

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable detail image

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable

제어 방식:수동

스풀:1 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G3/4

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P80 시리즈 모노블럭 방향 제어 밸브

포장 크기:26*15*11

총중량:5.00 kg

재고 상태: 재고 있음

문의하기

850 이 제품을 찾아보시지 않겠습니까?

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable

Monoblock Directional Valve: P80-G12-G34 Series | Customizable & Reliable drawing image

The P80-G12-G34 Series Monoblock Directional Valve is a high-performance hydraulic valve with a rated flow of 80 L/min and a maximum pressure of 250 bar. It is designed for manual control and features a monoblock construction for durability and reliability. The valve is highly customizable to meet the specific requirements of various applications, making it a perfect choice for industries such as construction, agriculture, and material handling.

P80 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 80리터 (21.2 US gpm)
최대 압력	315바 (4600 psi)
입구 포트	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**P80-G12-G34 Series Monoblock Directional Valve**

**Control Method:** Manual
**Section:** 1 Section
**Structure Type:** Monoblock valve
**Rated Flow:** 80 L/min (21.2 US gpm)
**Max Pressure:** 250 bar (3600 psi)
**Operating Viscosity Range:** 15 - 75 mm²/s (15 cSt to 75 cSt)
**Ambient Temperature Range:** -40°C to +80°C (-40°F to +176°F)
**Spool:** 1 Spool
**Series:** P80 Series

**Applications:**

- MATERIAL HANDLING
- CONSTRUCTION AND EARTH MOVING
- AGRICULTURE
- INDUSTRIAL VEHICLES

**Applicable Models:**

- TELEHANDLER
- FORKLIFT
- ALL TERRAIN CRANE
- STACKER
- AERIAL PLATFORM
- MOTOR GRADER
- MIDI-EXCAVATOR
- MINI-EXCAVATOR
- SKID STEER LOADER
- COMPACT WHEEL LOADER

The P80-G12-G34 Monoblock Directional Valve is a robust and reliable choice for a wide range of hydraulic applications. Its customizable design and high performance make it an excellent option for demanding applications in various industries.
