생산 및 배송
15-30일 생산 리드타임

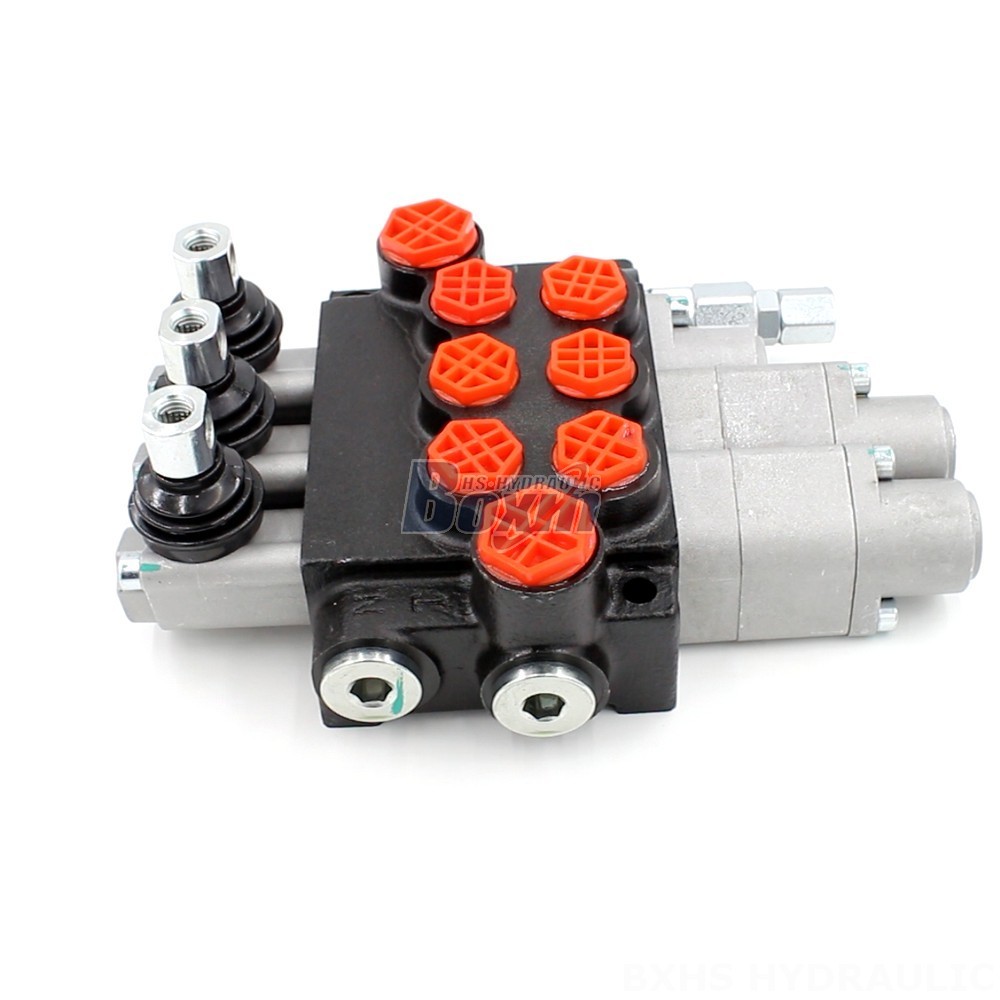

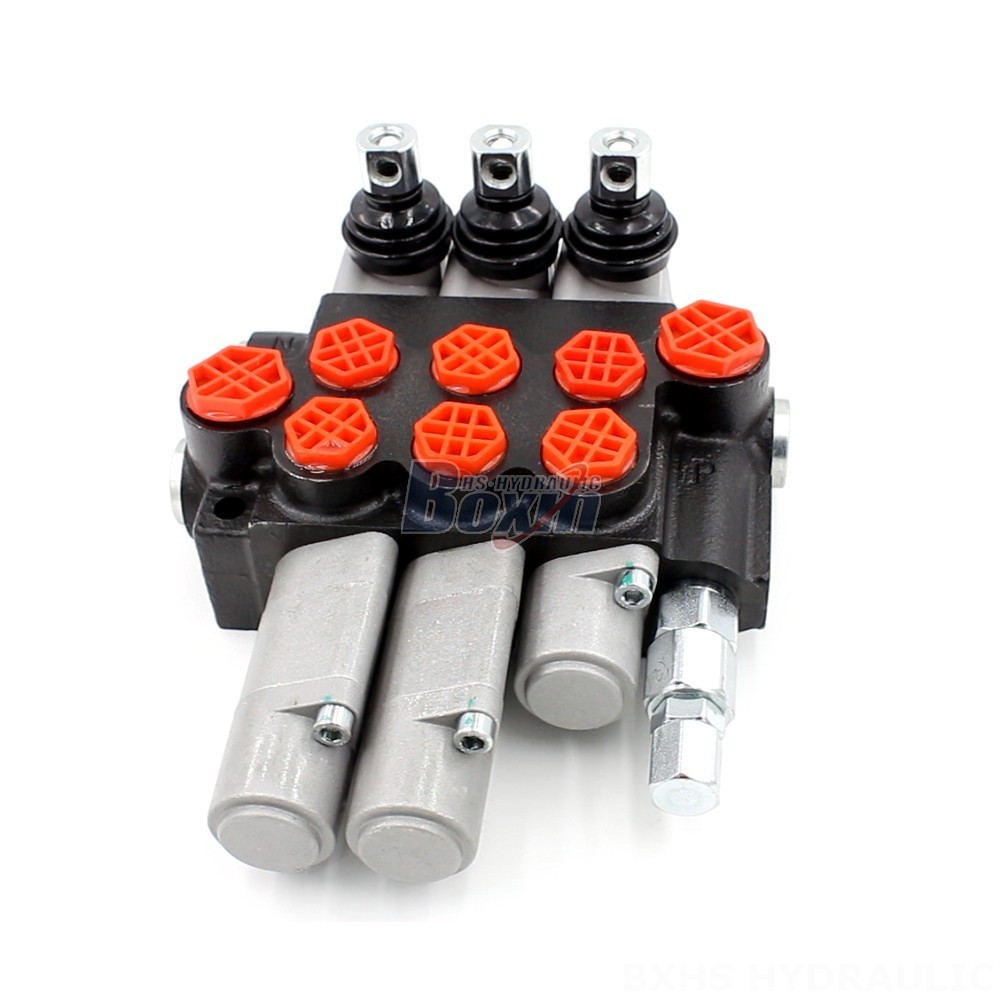

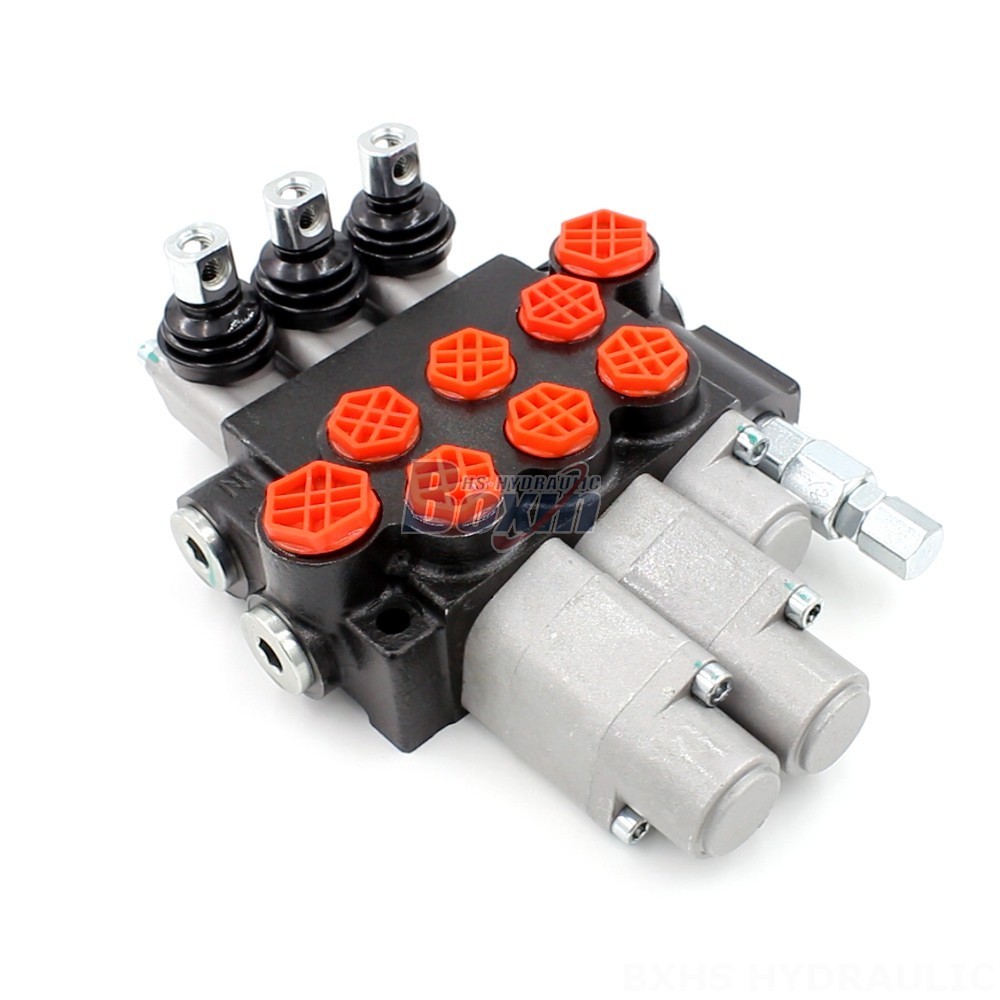

The P40-G12-G38-OT-2QTW Series is a high-performance, manual-controlled hydraulic valve designed for various construction and industrial applications. This 3-section monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 250 bar, suitable for telehandlers, forklifts, cranes, and other heavy-duty machinery.
| P40 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 출구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 포트 크기 | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
This Tractor Hydraulic Control Electric Valve Monoblock Hydraulic Valve from the P40 Series is a robust and reliable solution for controlling hydraulic systems in various applications, including construction, material handling, agriculture, and industrial vehicles. The valve features a manual control method and a 3-section monoblock structure. With a rated flow of 40 L/min and a maximum pressure of 250 bar, this valve is suitable for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, wheel loaders, and backhoe loaders. The P40-G12-G38-OT-2QTW Series offers a wide operating viscosity range of 15-75 mm²/s and can withstand ambient temperatures from -40°C to +80°C, ensuring reliable performance in diverse environments.
