What is the primary application of the Monoblock Valve | SD5 Series | Advanced Fluid Power Technology?

The Monoblock Valve | SD5 Series | Advanced Fluid Power Technology is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology

Name: Monoblock Valve | SD5 Series | Advanced Fluid Power Technology
Brand: Boxinhuasheng
SKU: BXHS-51259
Availability: InStock

홈모노블럭 방향 제어 밸브SD5 시리즈제품 상세

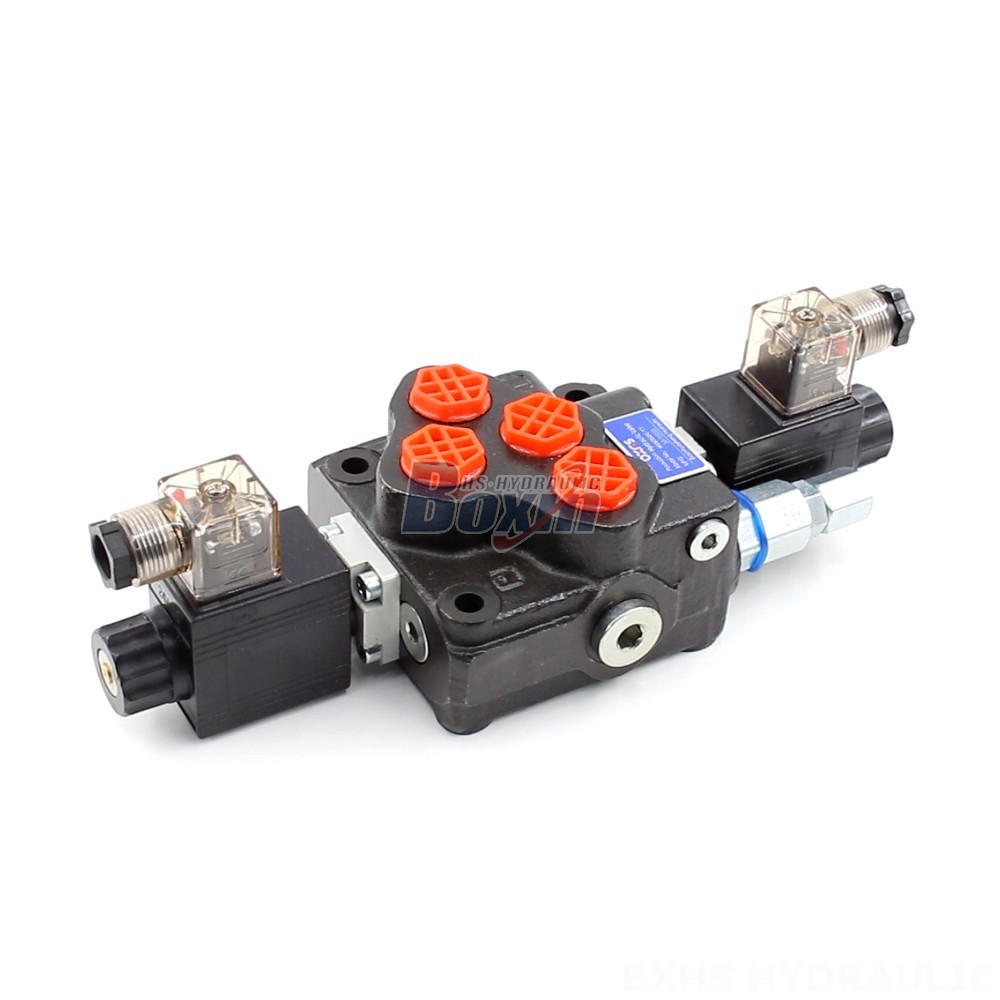

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology cover photo

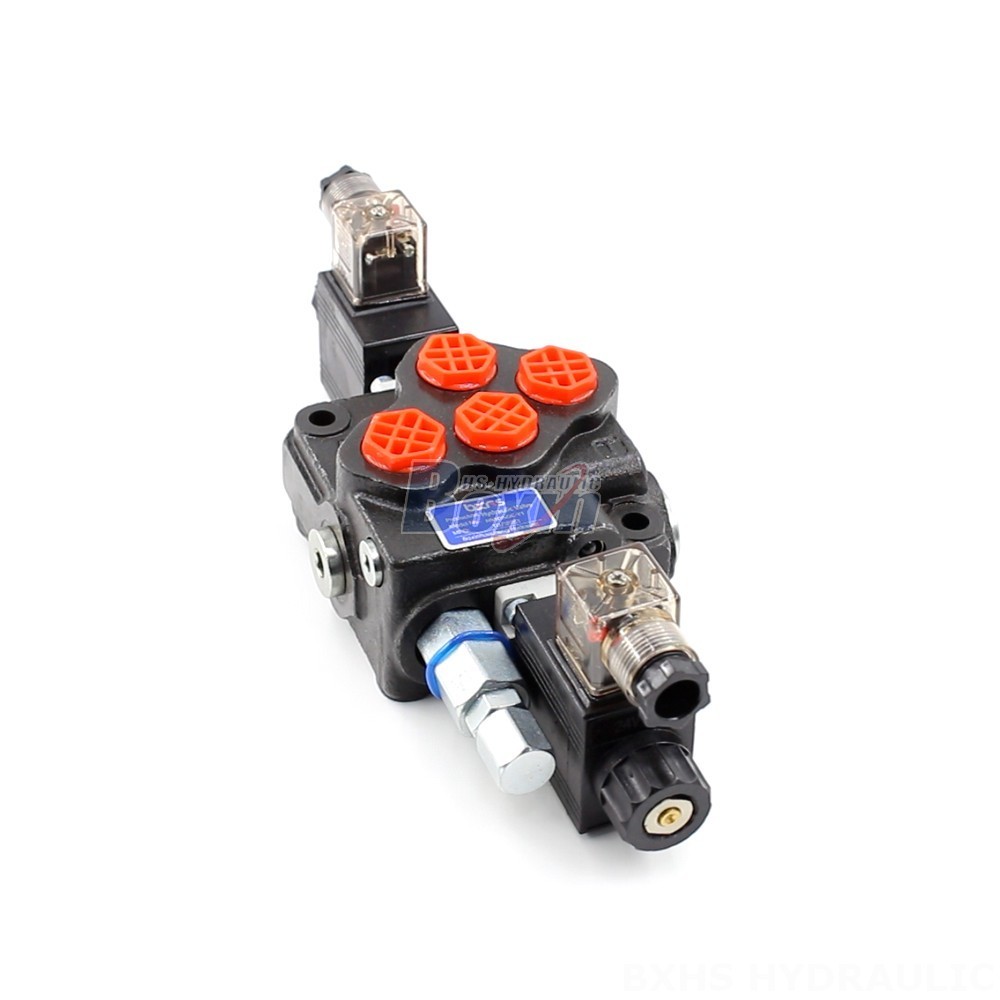

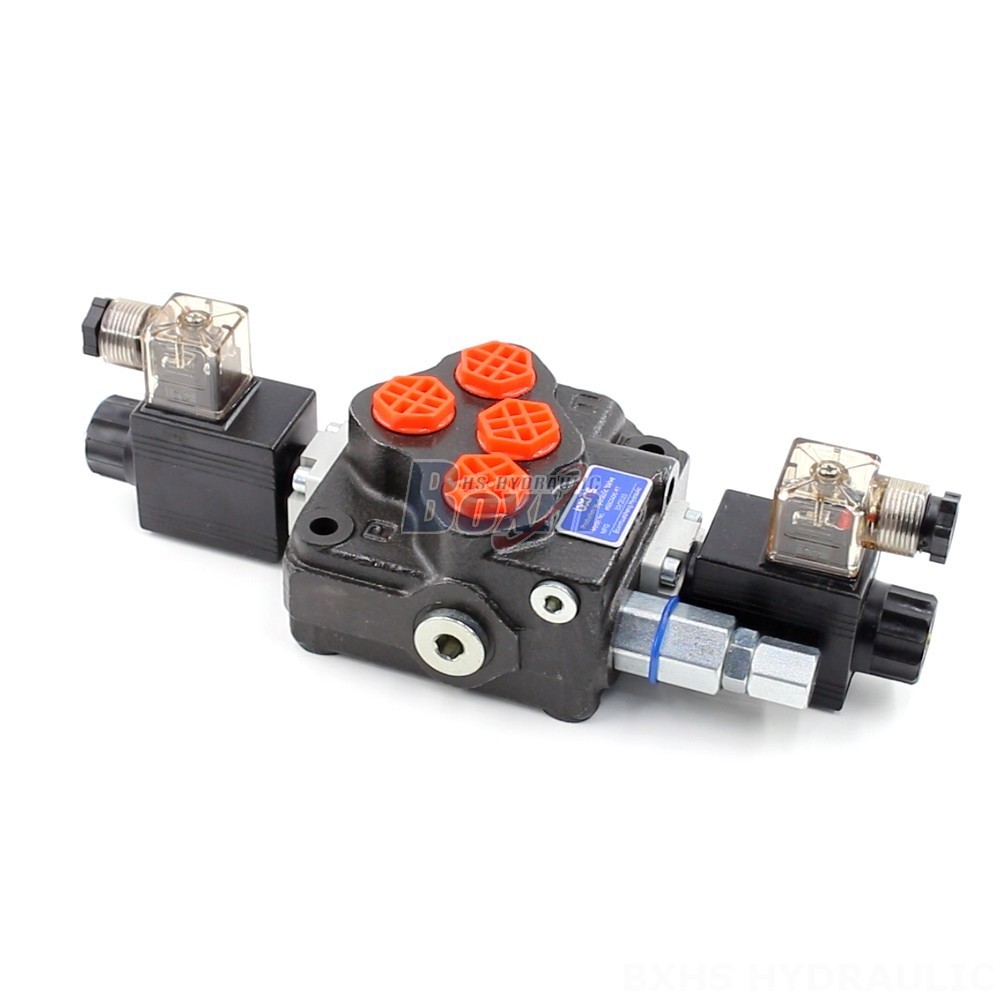

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology main image

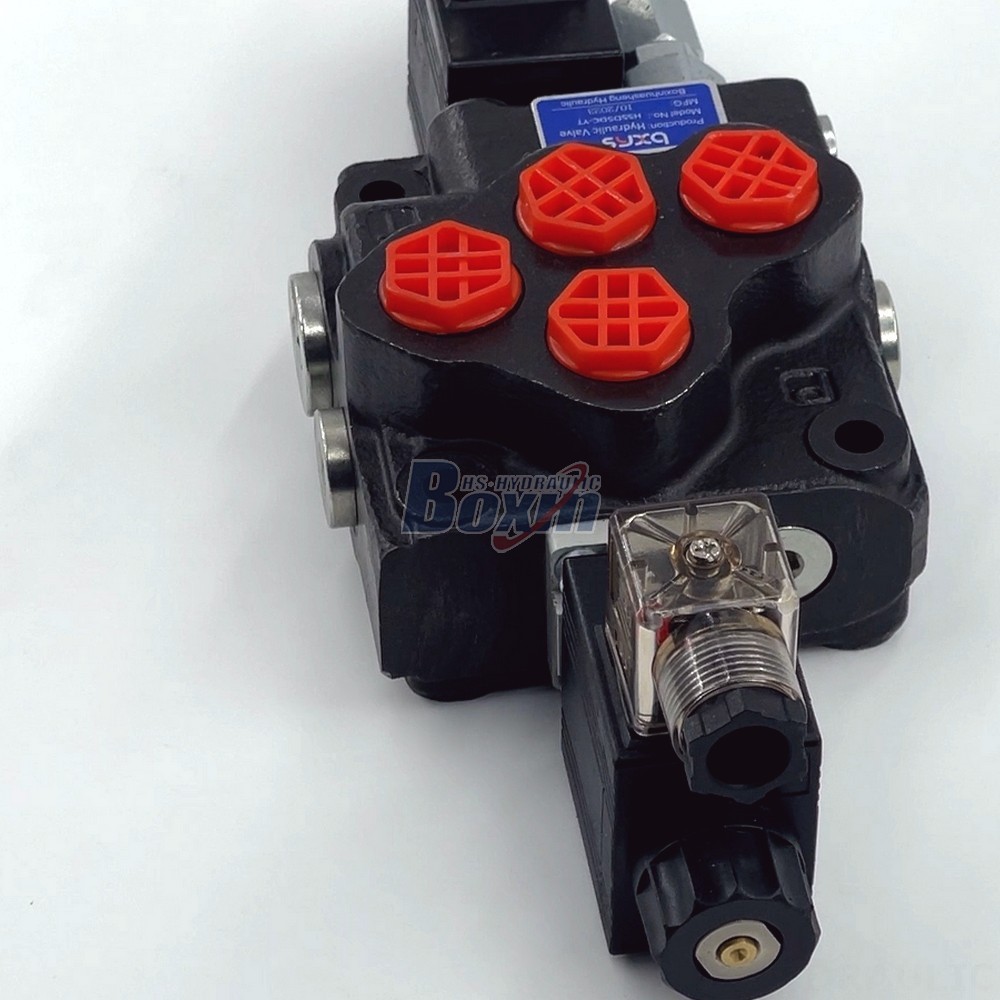

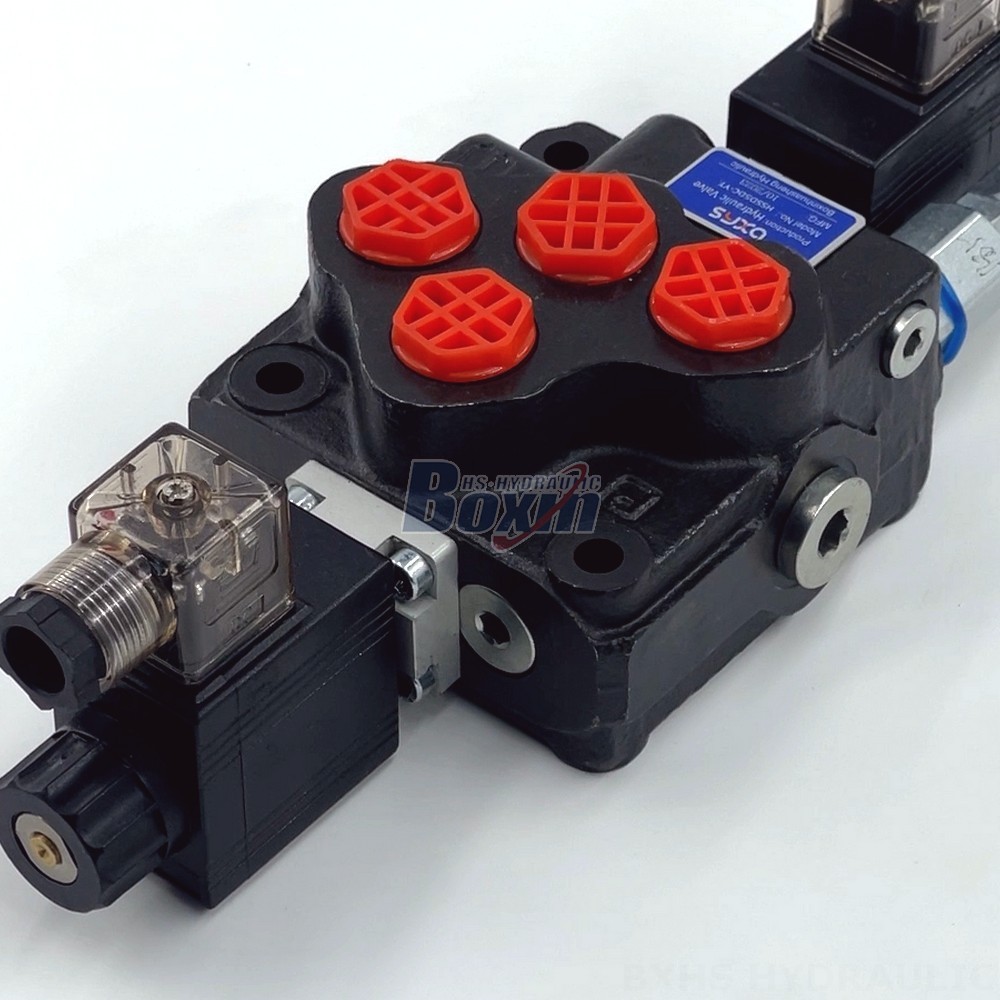

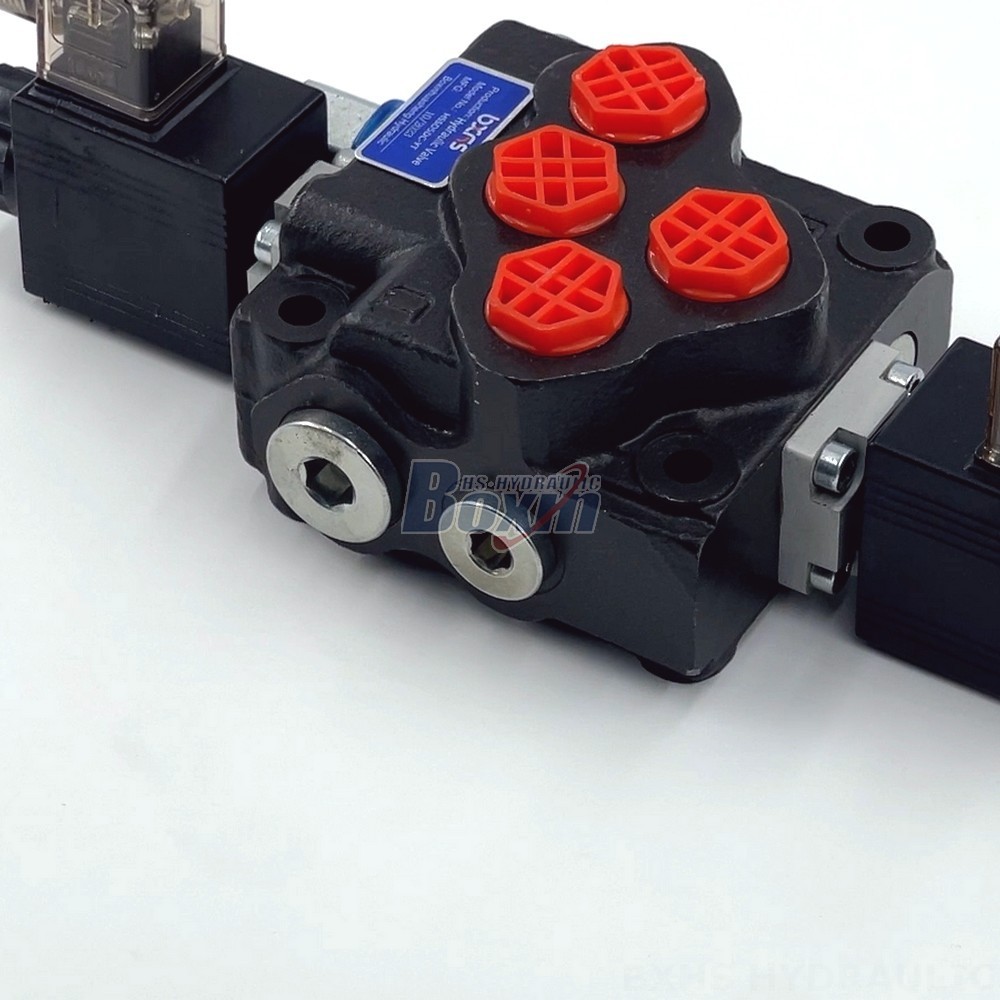

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology detail image

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology

제어 방식:솔레노이드

스풀:1 스풀

정격 유량:분당 45리터 (11.8 US gpm)

최대 압력:315바 (4600 psi)

입구 포트:G3/8

출구 포트:G3/8

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:SD5 시리즈 모노블럭 방향 제어 밸브

포장 크기:30*13*13

총중량:5.40 kg

재고 상태: 재고 있음

문의하기

1311 이 제품을 찾아보시지 않겠습니까?

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology

Monoblock Valve | SD5 Series | Advanced Fluid Power Technology drawing image

The SD5 Series Mini Control Valve is a compact and powerful 12v solenoid operated monoblock valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles.

SD5 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +60°C (-40°F to +140°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	305바 (4400 psi)
입구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8, G1-1/2
출구 포트	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8
포트 크기	G3/8, G1/2, M18×1.5, M20×1.5, SAE 6, SAE 8

This 12v mini control valve is a high-performance monoblock valve with a rated flow of 40 L/min and a maximum pressure of 305 bar. The SD5 Series is ideal for a wide range of applications including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, skid steer loaders, and compact wheel loaders. It offers reliable performance in a variety of environments with an operating temperature range of -40°C to +60°C. The 1-section, 1-spool design ensures precise control and efficient operation. This versatile valve is a cost-effective solution for your hydraulic system needs.
