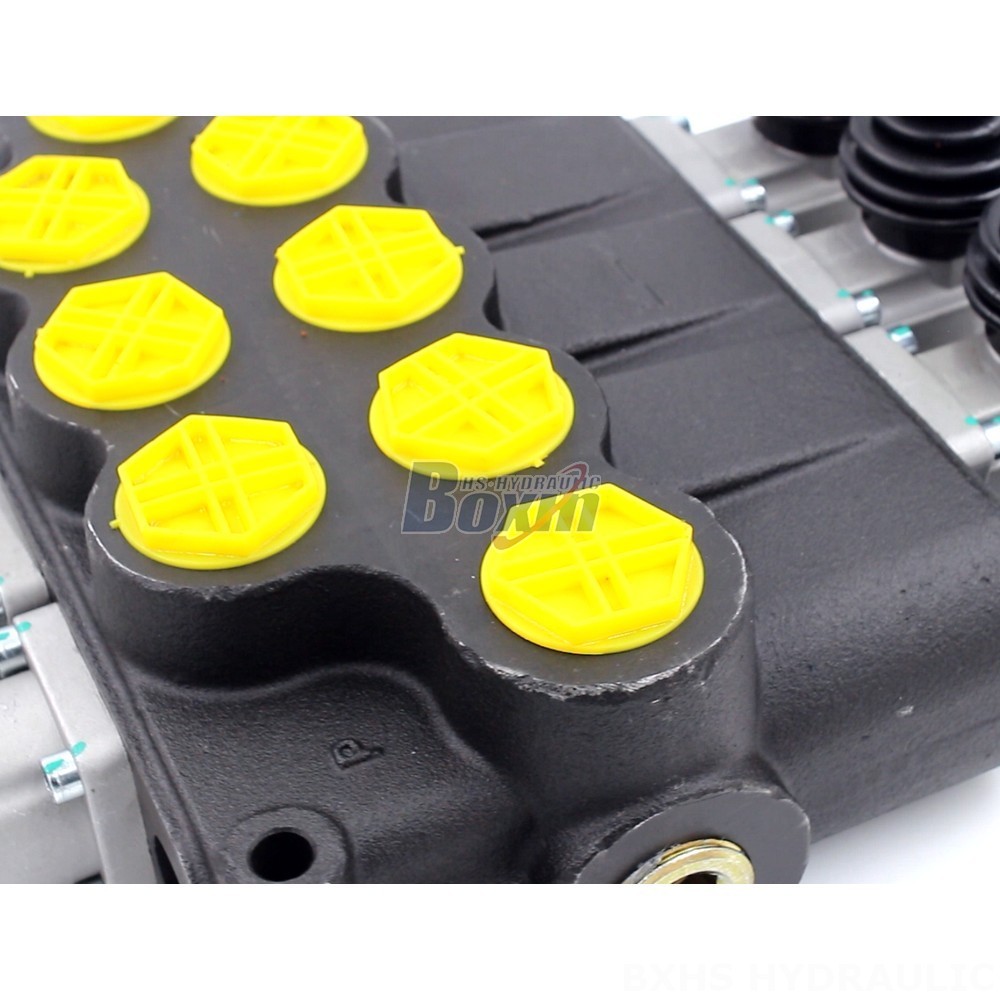

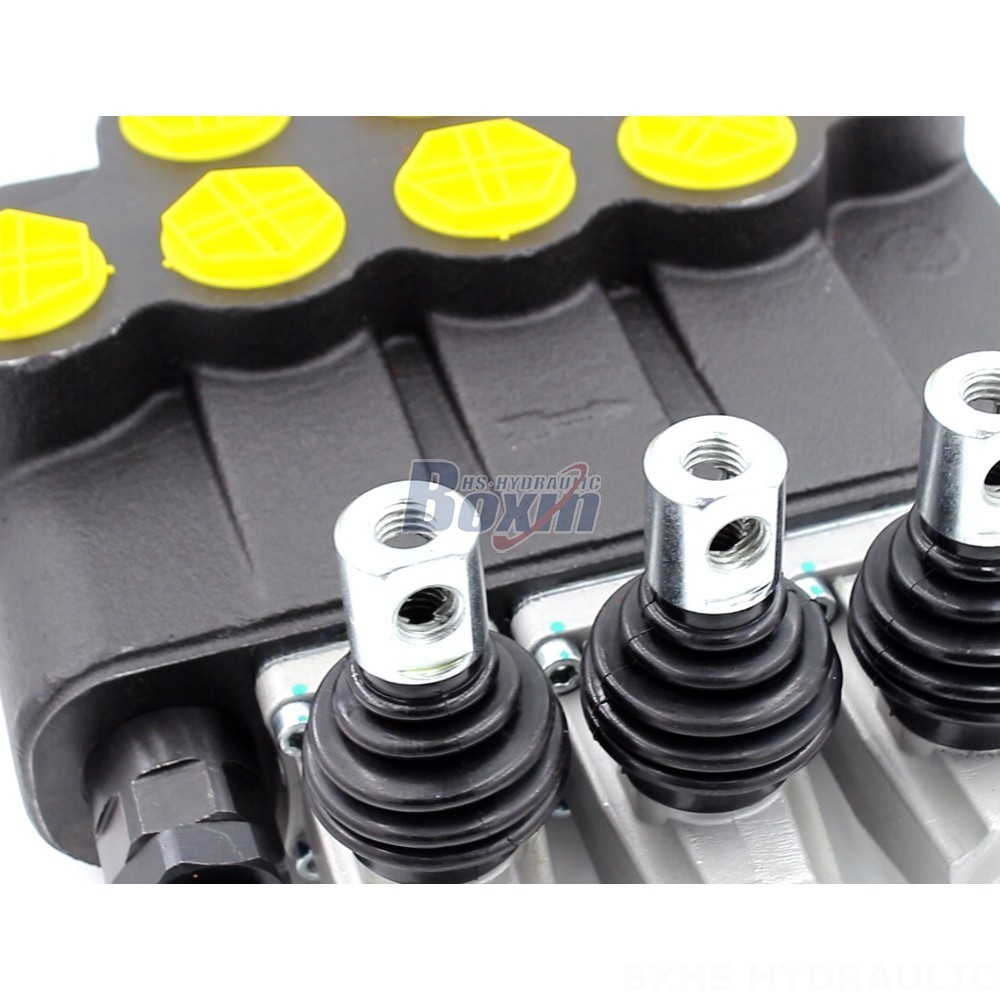

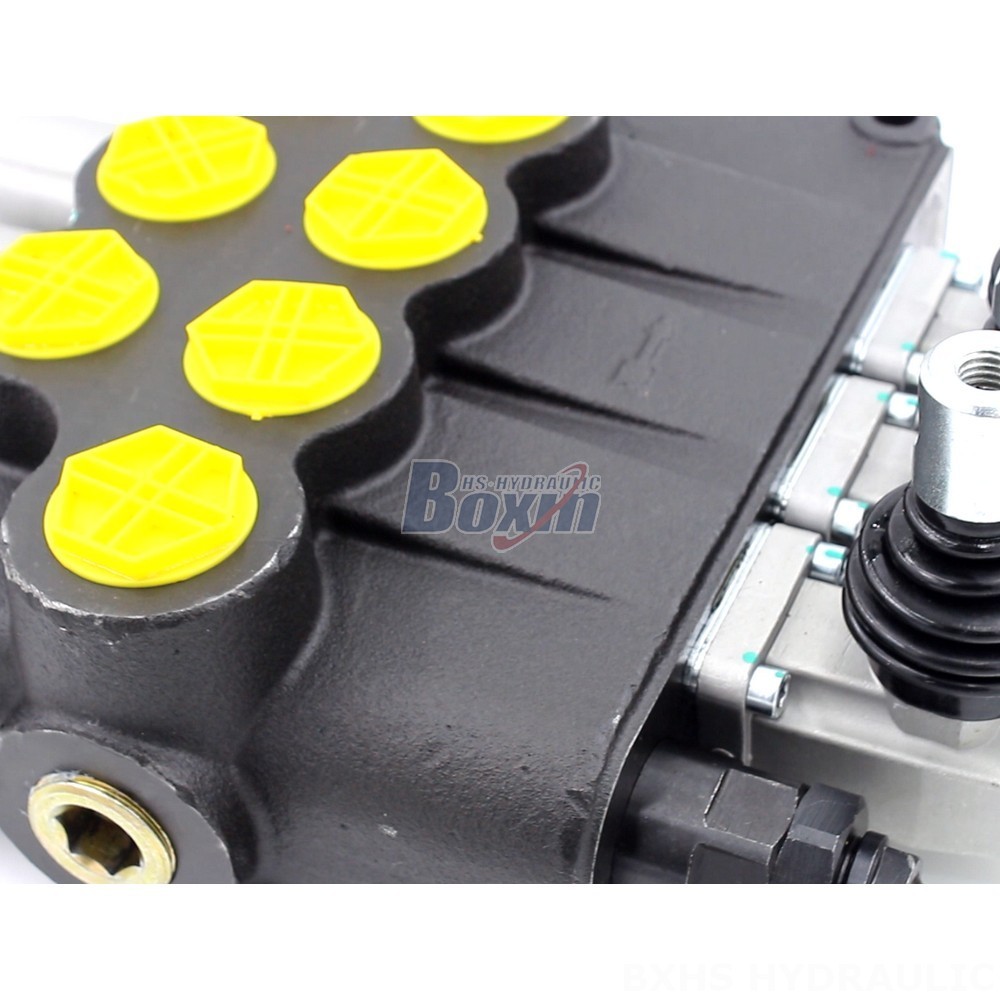

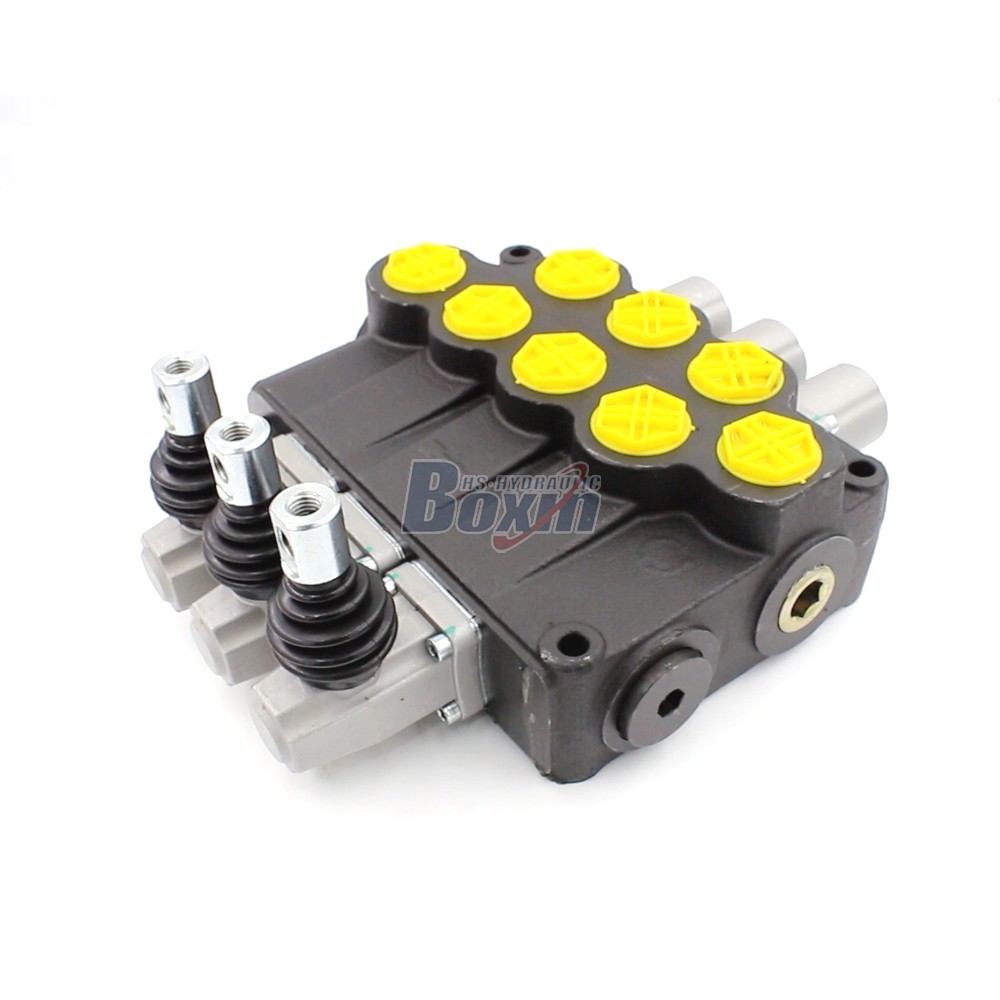

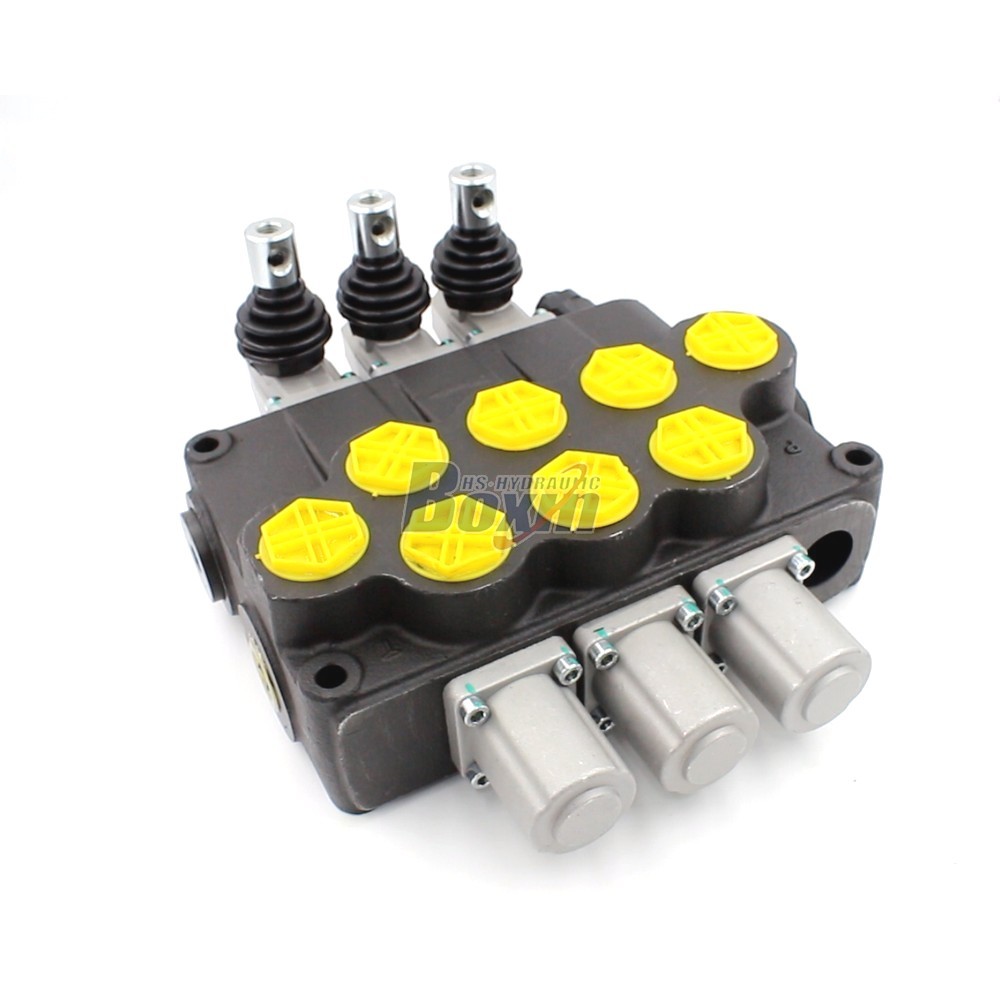

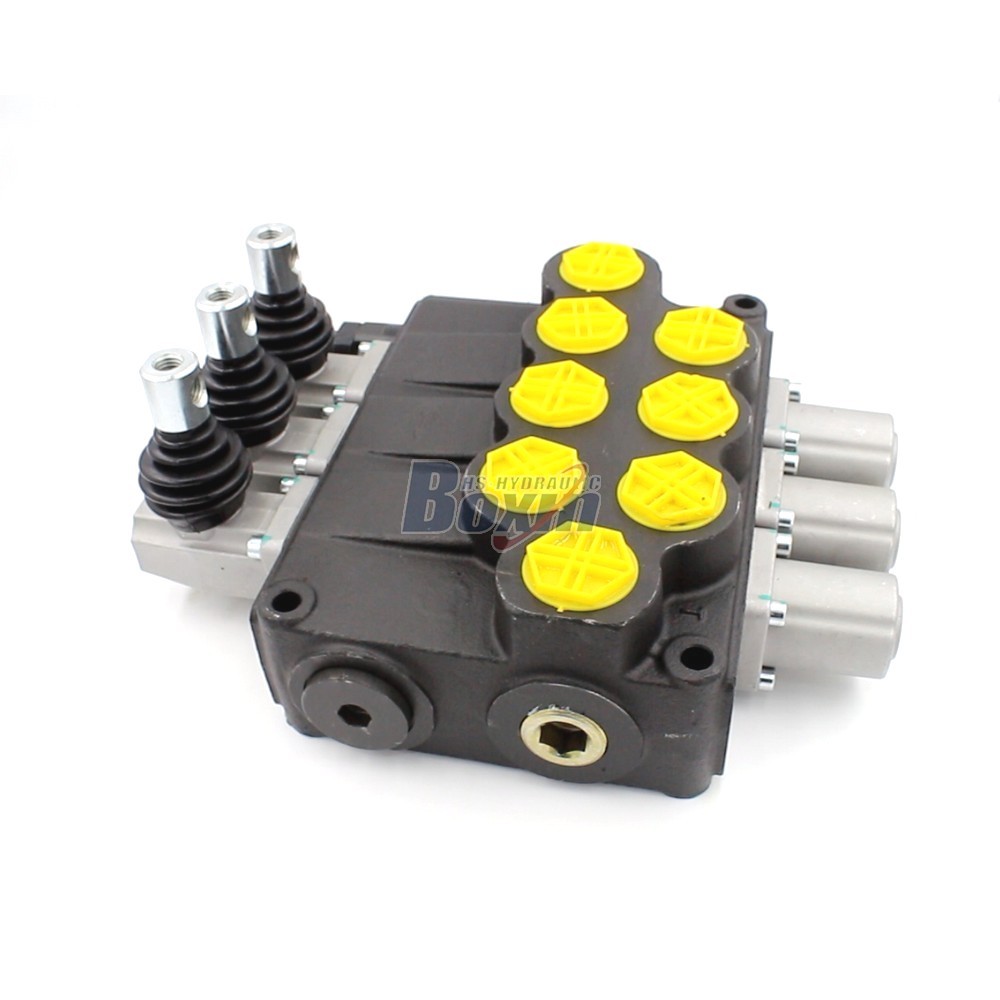

The P120-G1-OT 3 Spool Hydraulic Directional Valve is a high-performance, manually operated valve designed for demanding applications in various industries. With a rated flow of 120 L/min and a maximum pressure of 250 bar, it ensures efficient and reliable operation in a wide range of hydraulic systems.
| P120 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 케이블, 조이스틱, 수동 및 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀 |
| 정격 유량 | 120 L/분 (31.7 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2 |
| 출구 포트 | G1, SAE 16, 1 NPT, M36×2 |
| 포트 크기 | G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션 |
| 구조 유형 | 모노블록 밸브 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
**Key Features:**
- Manual control for precise and responsive operation
- Monoblock construction for durability and compact design
- 3 spool design for versatile flow control
- Rated flow of 120 L/min (31.7 US gpm) for high-flow applications
- Maximum pressure of 250 bar (3600 psi) for demanding conditions
- Operating viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various hydraulic fluids
- Wide ambient temperature range of -40°C to +80°C (-40°F to +176°F) for operation in extreme environments
**Applications:**
- Material handling equipment, such as forklifts and telehandlers
- Construction machinery, including excavators, skid steer loaders, and wheel loaders
- Agricultural machinery, such as tractors and harvesters
- Industrial vehicles, including aerial platforms and motor graders
