P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

제어 방식:수동

스풀:3 스풀

정격 유량:120 L/분 (31.7 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1

출구 포트:G1

포트 크기:G1

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P120 시리즈 모노블럭 방향 제어 밸브

포장 크기:37*37*18

총중량:24.10 kg

재고 상태: 재고 있음

1330 이 제품을 찾아보시지 않겠습니까?

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support

P120-G1-OT Valve: Technical Data, CAD Drawings, and Support drawing image

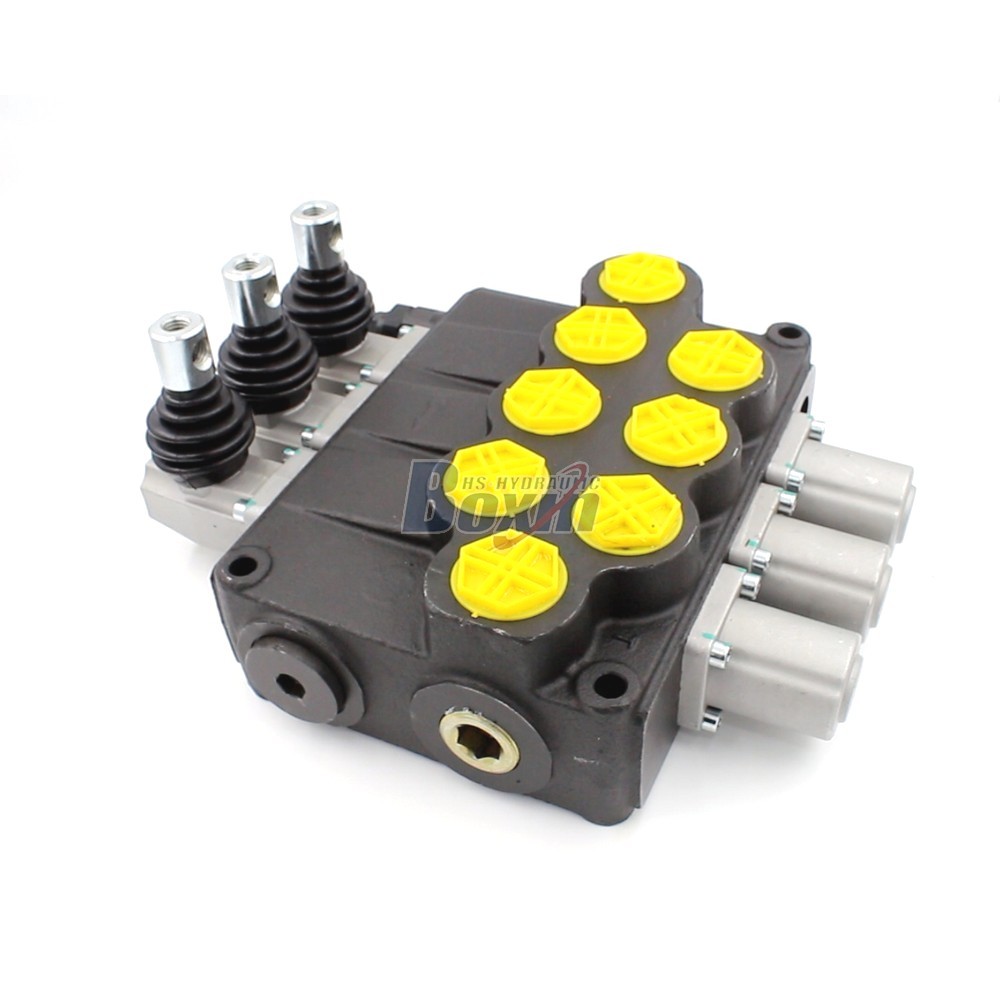

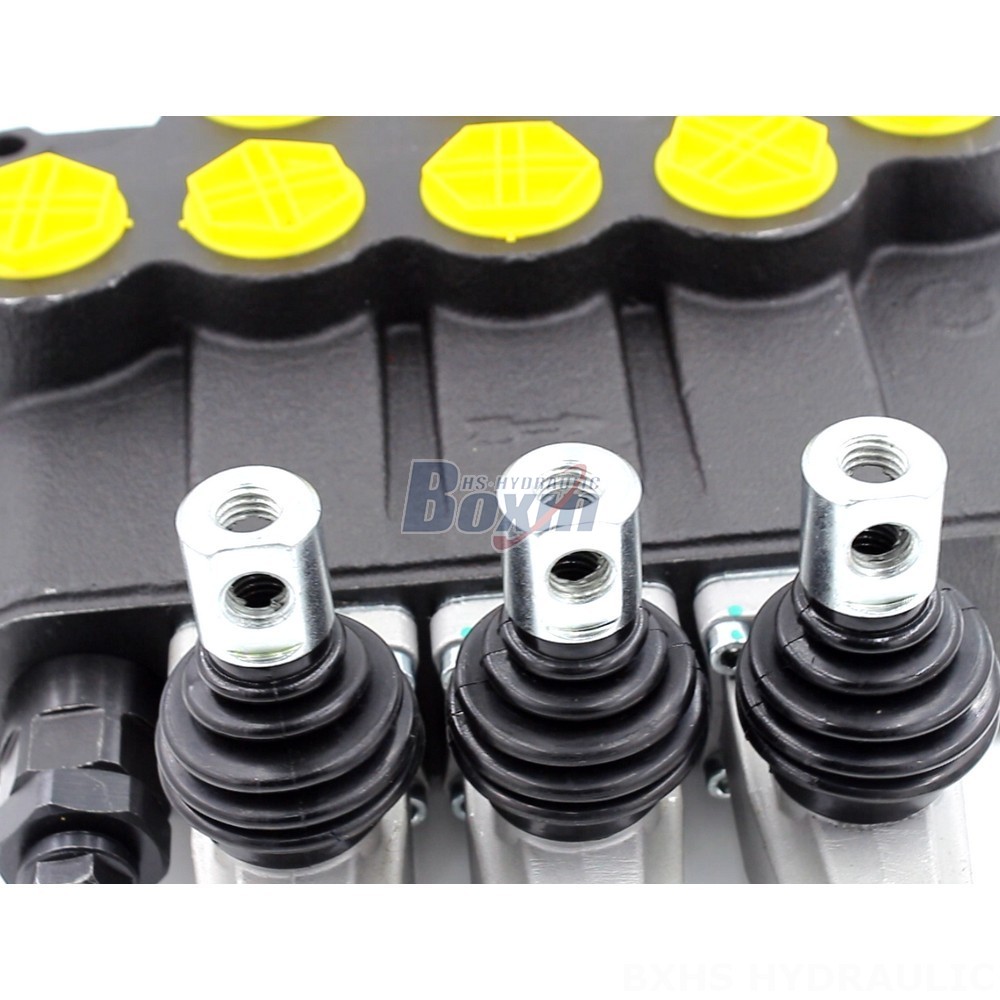

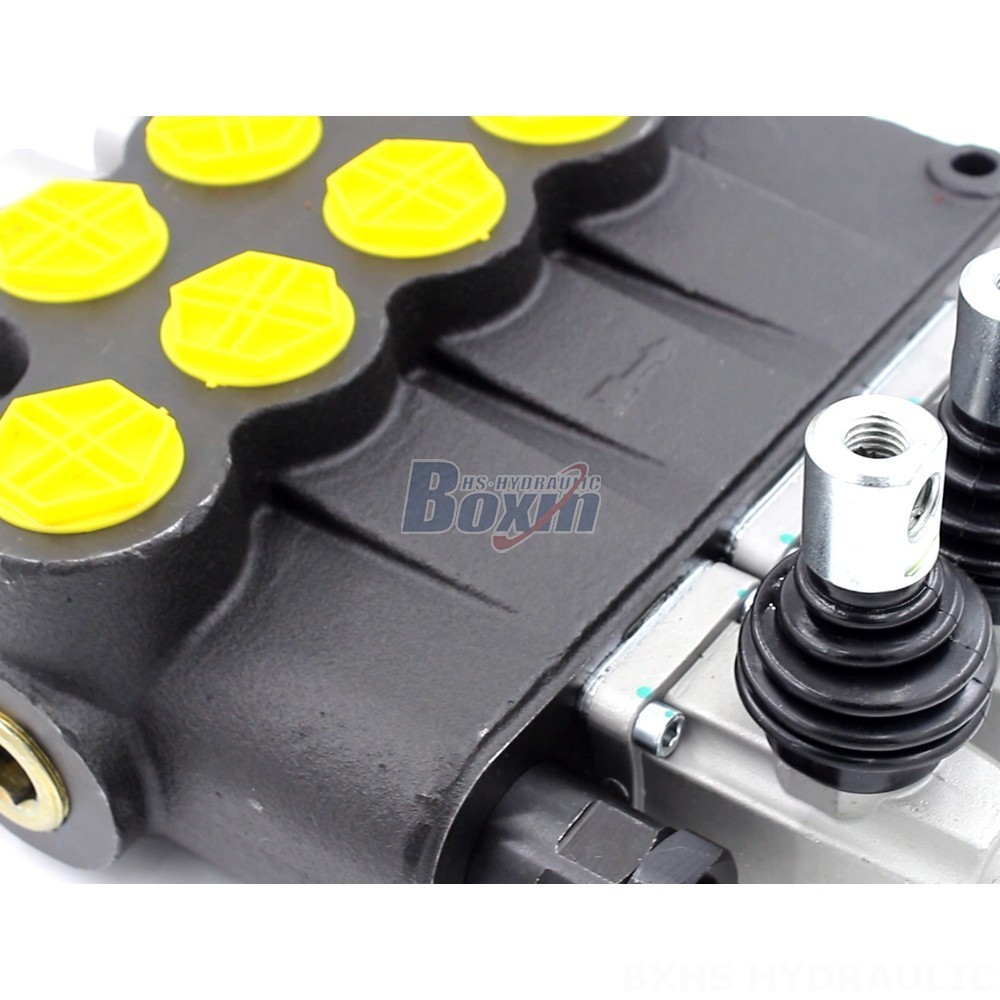

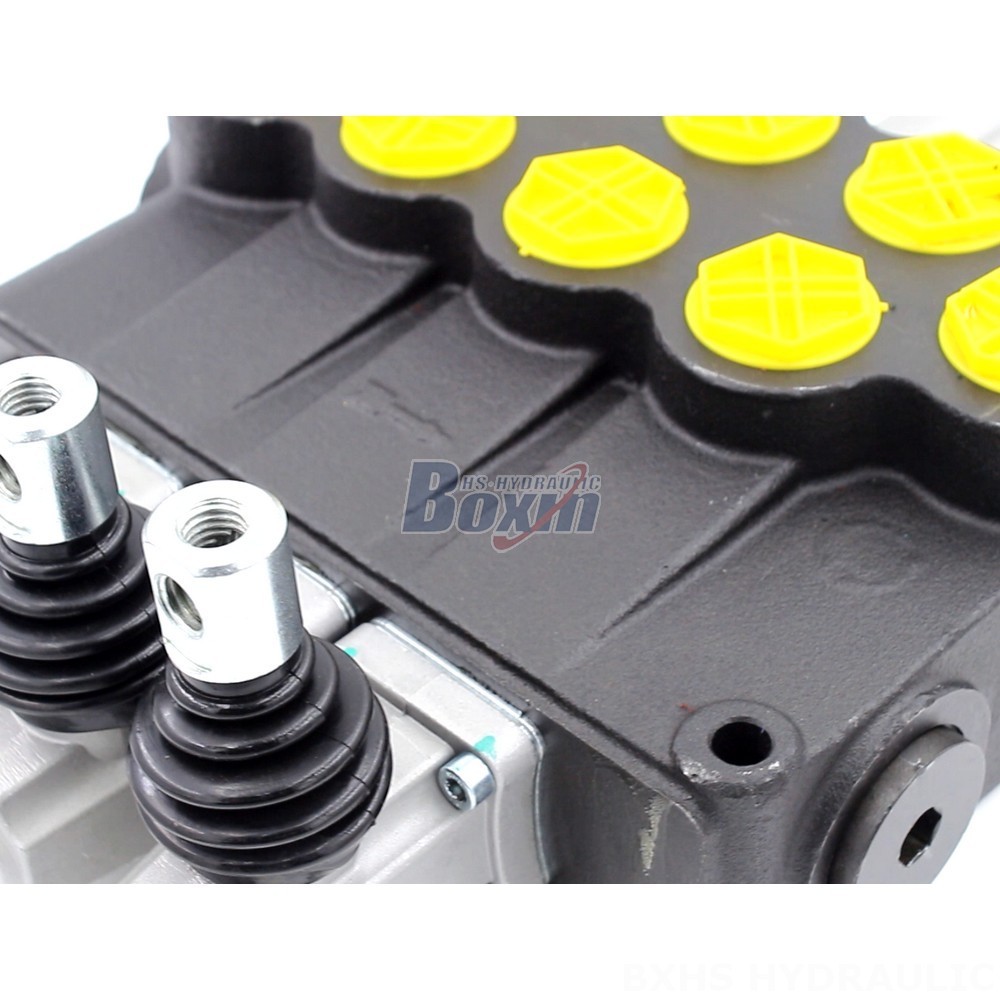

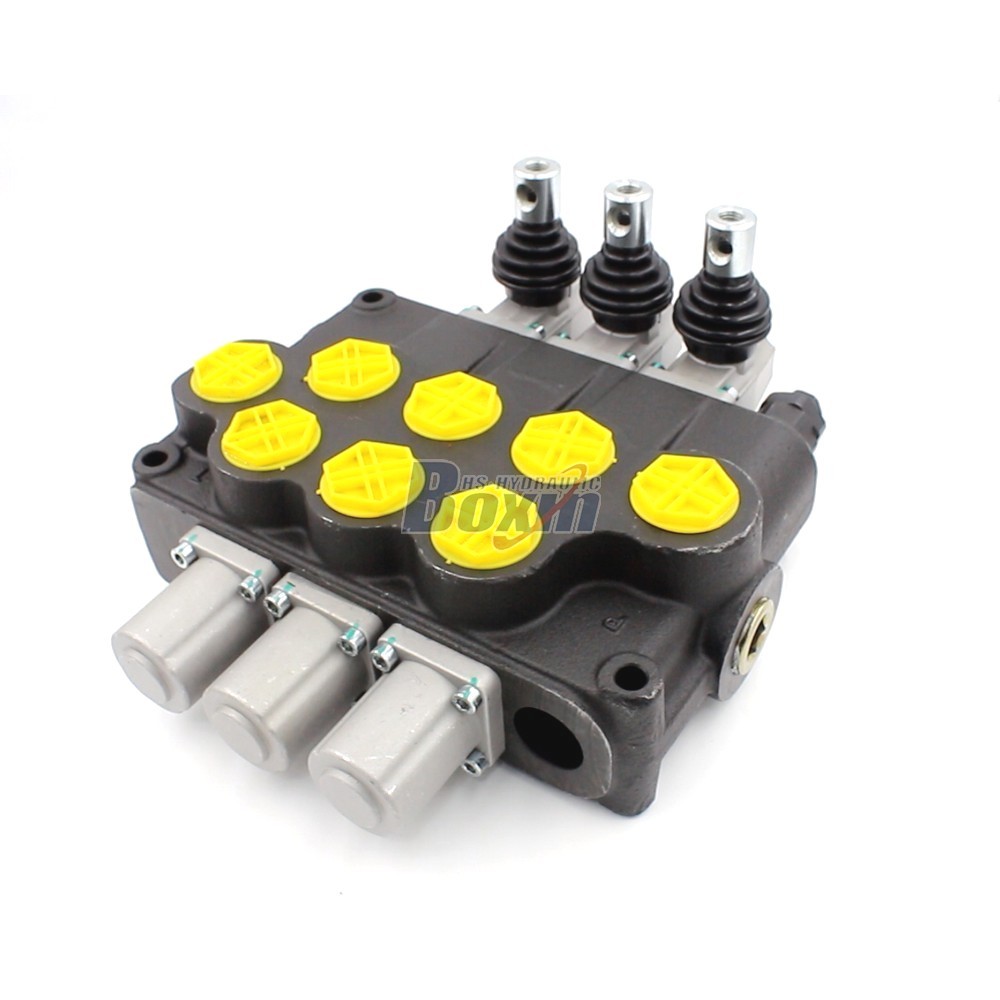

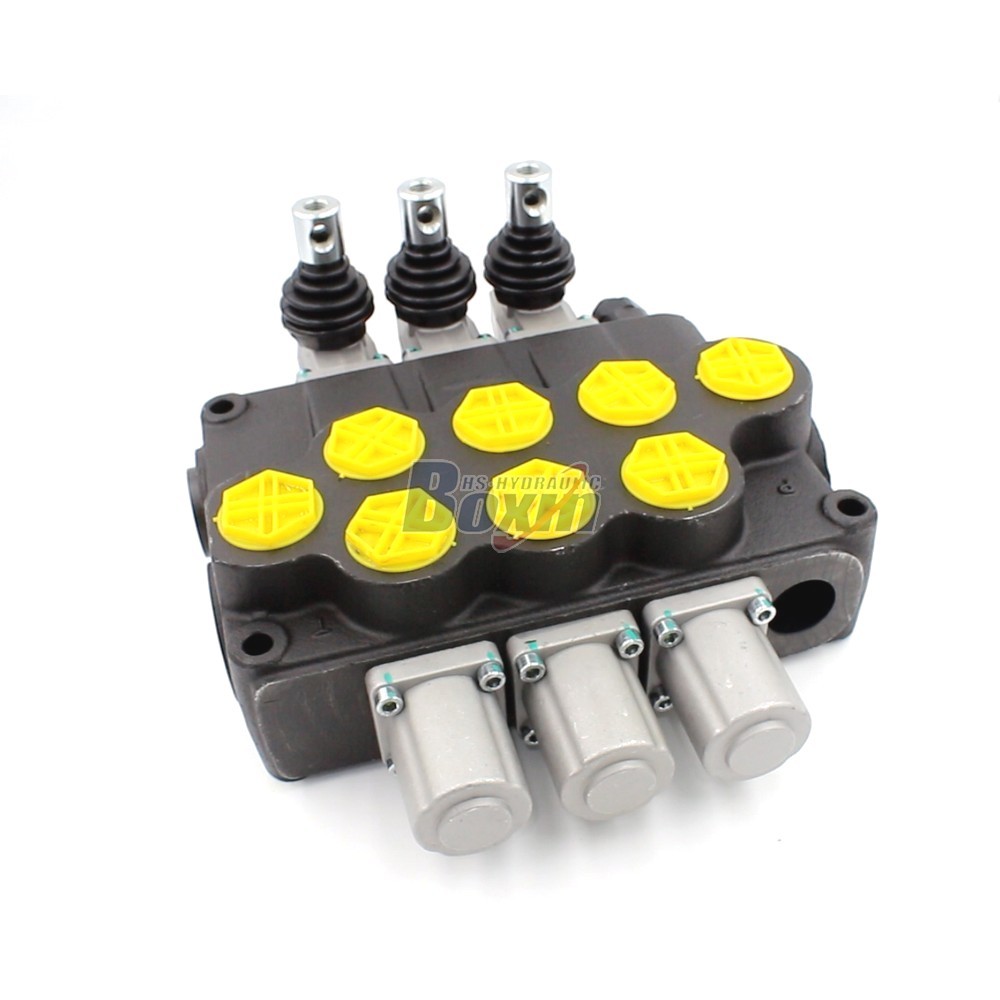

The P120-G1-OT Hydraulic Forward And Reverse Valve is a high-performance, manual control monoblock valve designed for a variety of construction, material handling, and industrial applications. It features a 3-section design, 120 L/min rated flow, and a maximum pressure of 250 bar.

P120 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀
정격 유량 120 L/분 (31.7 US gpm)
최대 압력 250바 (3600 psi)
입구 포트 G3/4, G1, M27×2.0, SAE 14, SAE 16, 3/4 NPT, 1 NPT, M36×2
출구 포트 G1, SAE 16, 1 NPT, M36×2
포트 크기 G3/4, G1, M27×2.0, SAE 14, SAE 16, 1 NPT, M36×2
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션
구조 유형 모노블록 밸브
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)

This P120 Series hydraulic valve is a 3-section, manual control monoblock valve with a rated flow of 120 L/min and a maximum pressure of 250 bar. It is ideal for use in a wide range of applications, including construction equipment (telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders), material handling equipment (telehandlers, midi-excavators, mini-excavators, skid steer loaders, compact wheel loaders, wheel loaders, backhoe loaders, dumpers), and agricultural machinery. The valve operates with an operating viscosity range of 15 - 75 mm²/s and is suitable for ambient temperatures ranging from -40°C to +80°C. The P120-G1-OT valve offers reliable performance and durability, making it an excellent choice for demanding applications.
