P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

제어 방식:수동

스풀:3 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:24*21*13

총중량:6.60 kg

재고 상태: 재고 있음

904 이 제품을 찾아보시지 않겠습니까?

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable

P40-G12-G38-OT Hydraulic Directional Valve: Factory Direct & Customizable drawing image

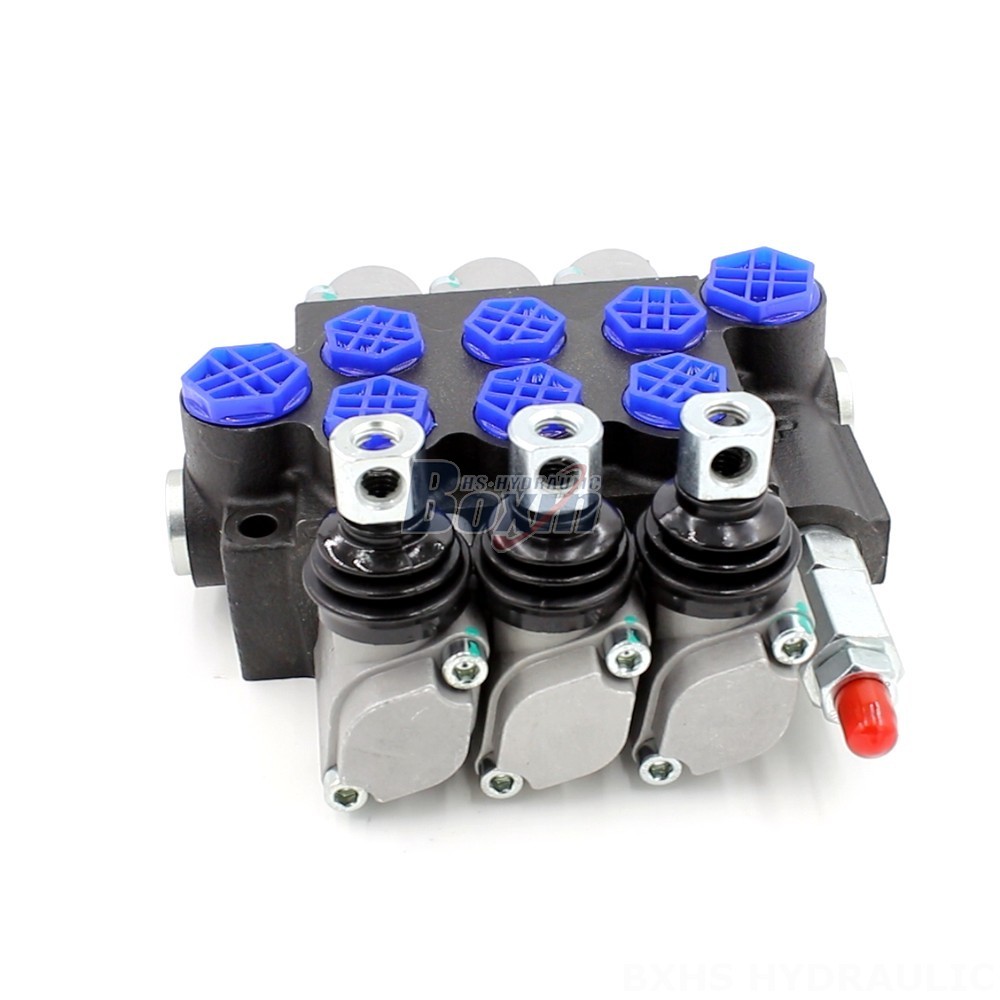

The P40-G12-G38-OT Hydraulic Directional Valve is a high-performance directional control valve designed for use in a wide range of hydraulic applications. With a rated flow rate of 40 L/min and a maximum pressure of 250 bar, this valve is ideal for use in demanding applications in industries such as material handling, construction, agriculture, and industrial vehicles.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 40리터 (10.5 US gpm)
최대 압력 250바 (3600 psi)
입구 포트 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기 G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

The P40-G12-G38-OT Hydraulic Directional Valve features a robust monoblock construction for enhanced durability. Its manual control mechanism provides precise and responsive operation, while its three-section design allows for independent control of multiple hydraulic circuits. The valve's operating viscosity range of 15 - 75 mm²/s and ambient temperature range of -40°C to +80°C ensure reliable performance in a variety of operating conditions. This valve is part of the P40 Series, known for its high quality and reliability. It is suitable for use in various applications, including telehandlers, forklifts, stackers, aerial platforms, motor graders, mini-excavators, skid steer loaders, compact wheel loaders, and backhoe loaders.
