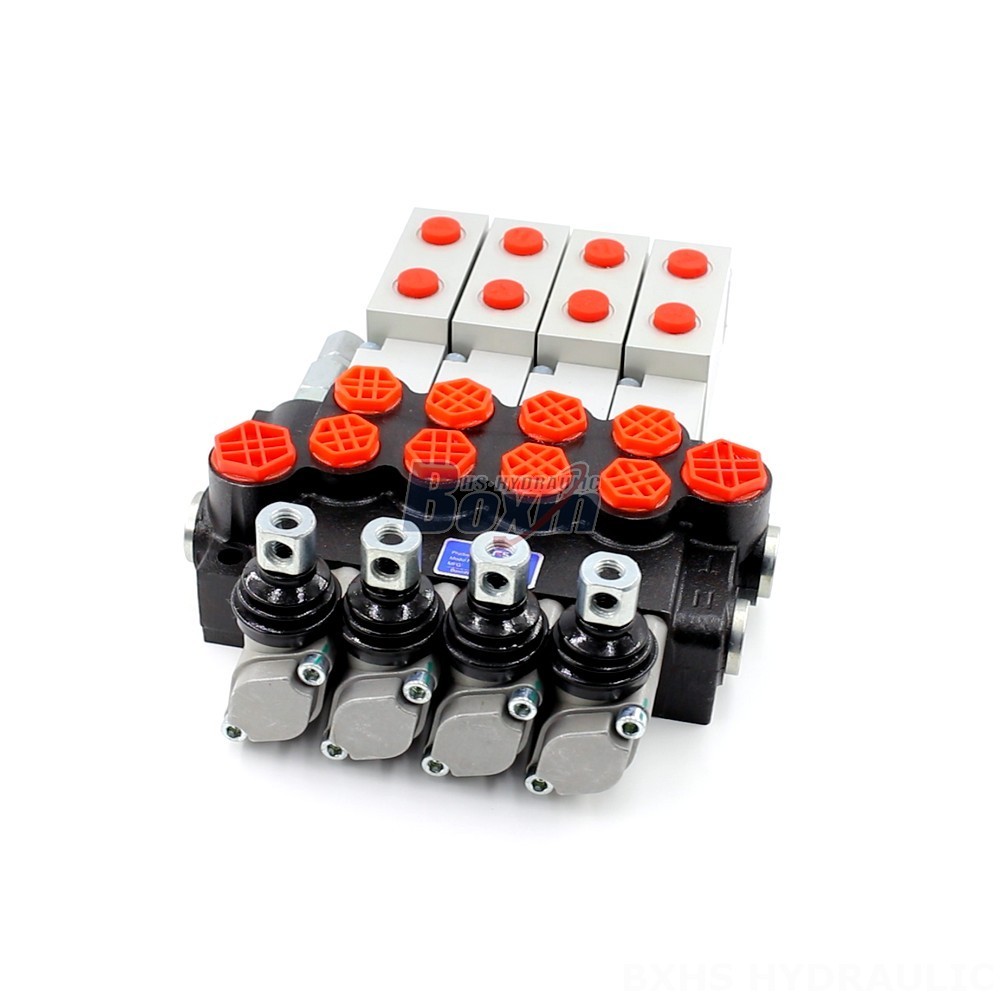

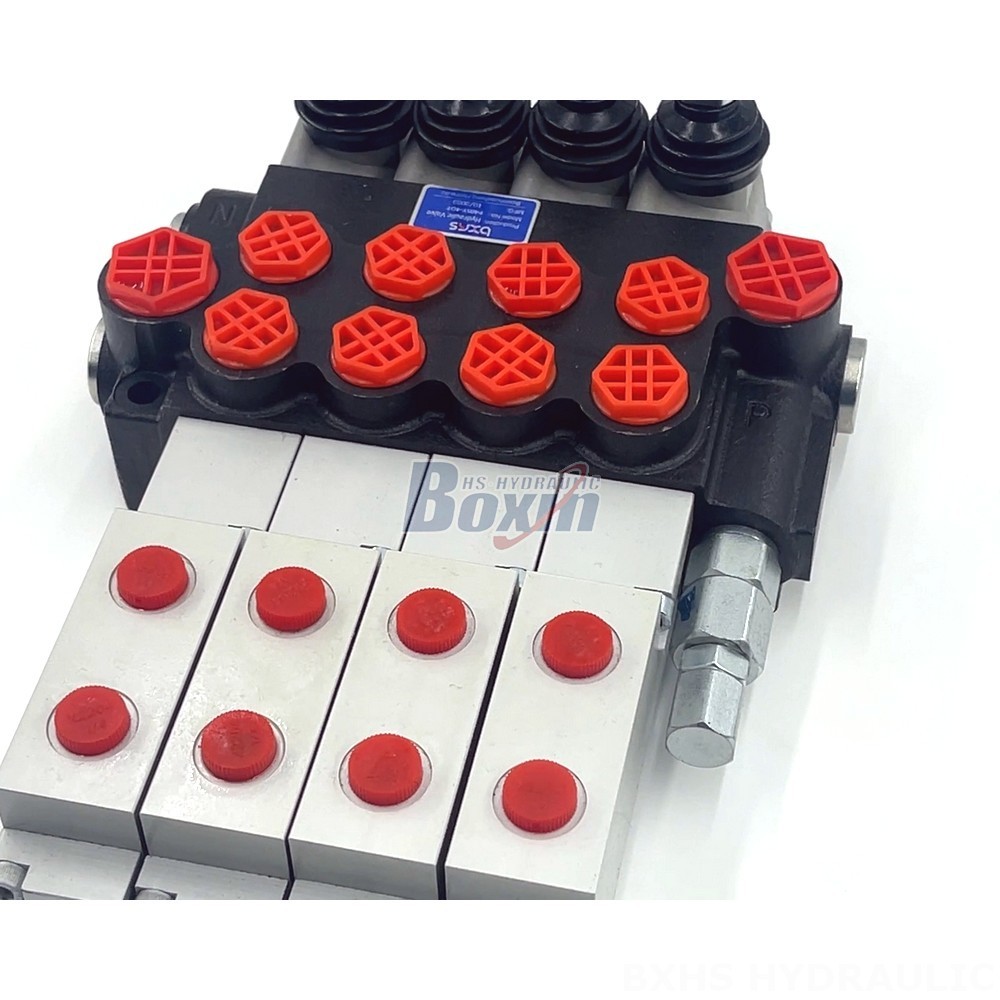

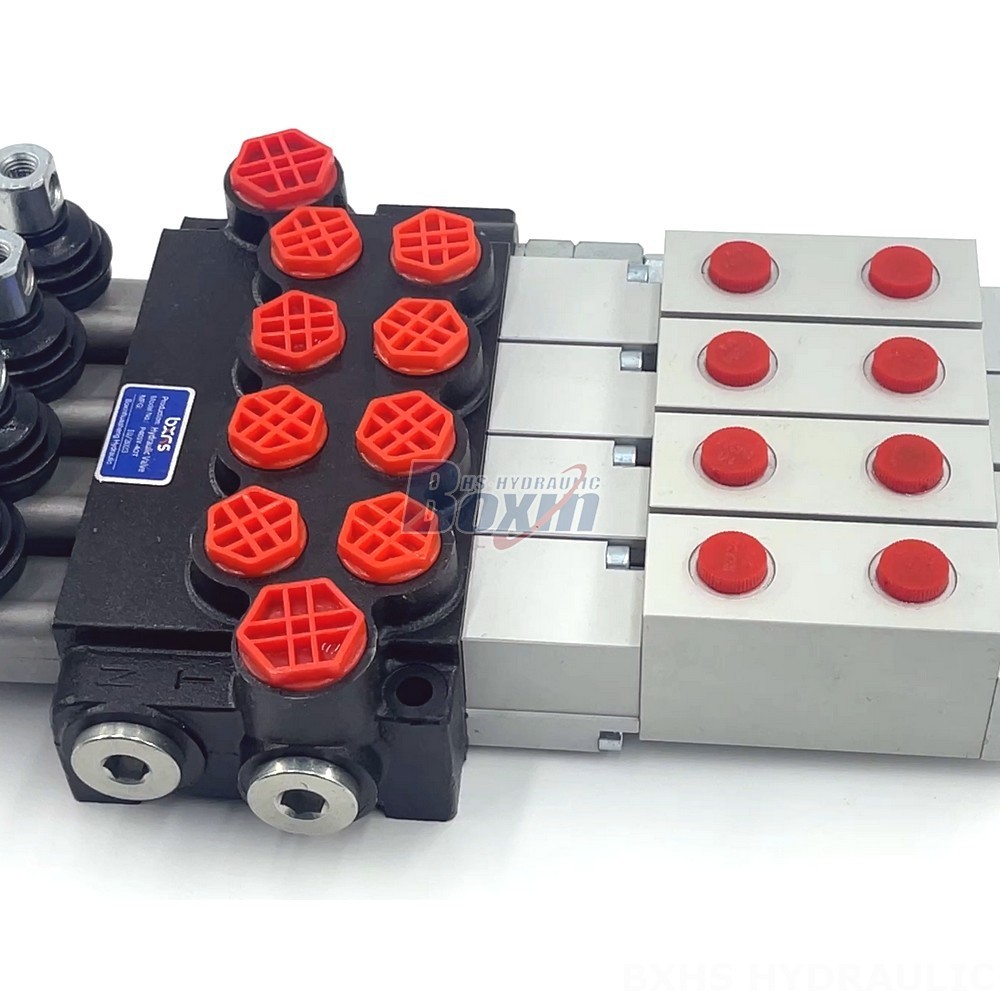

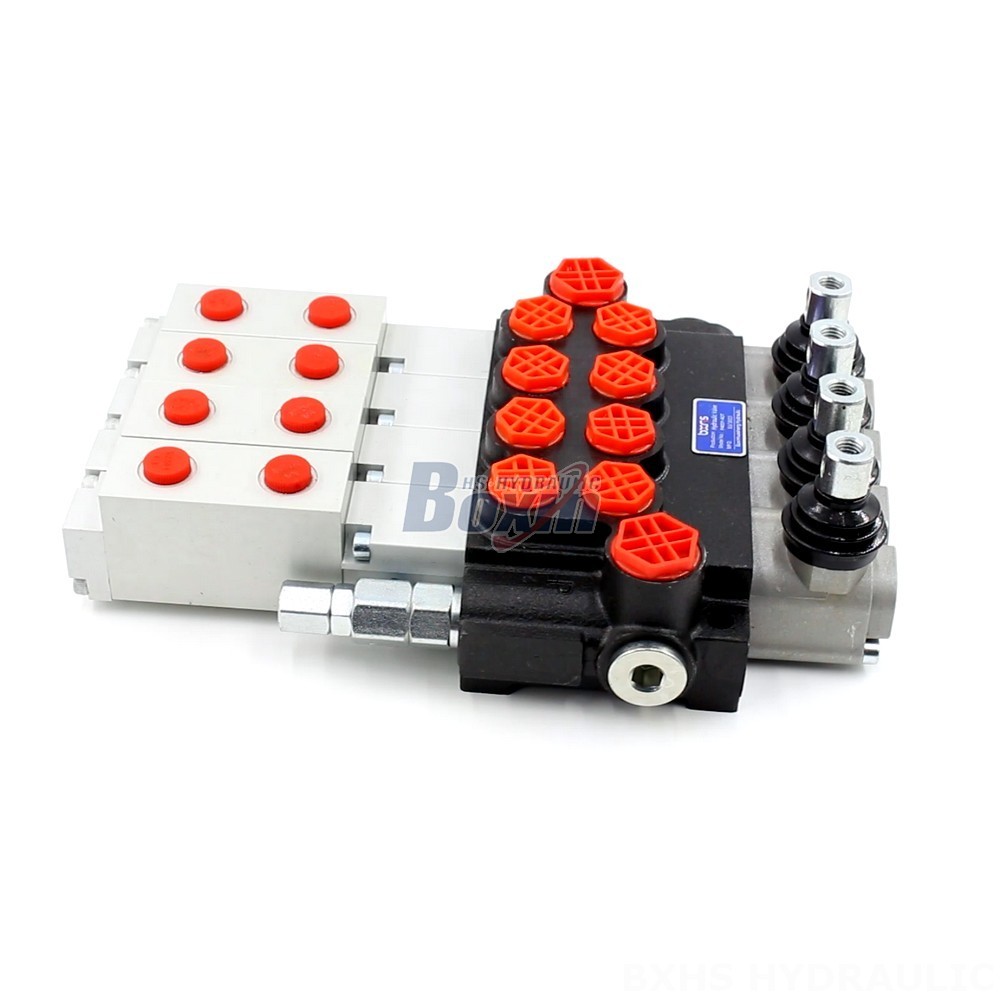

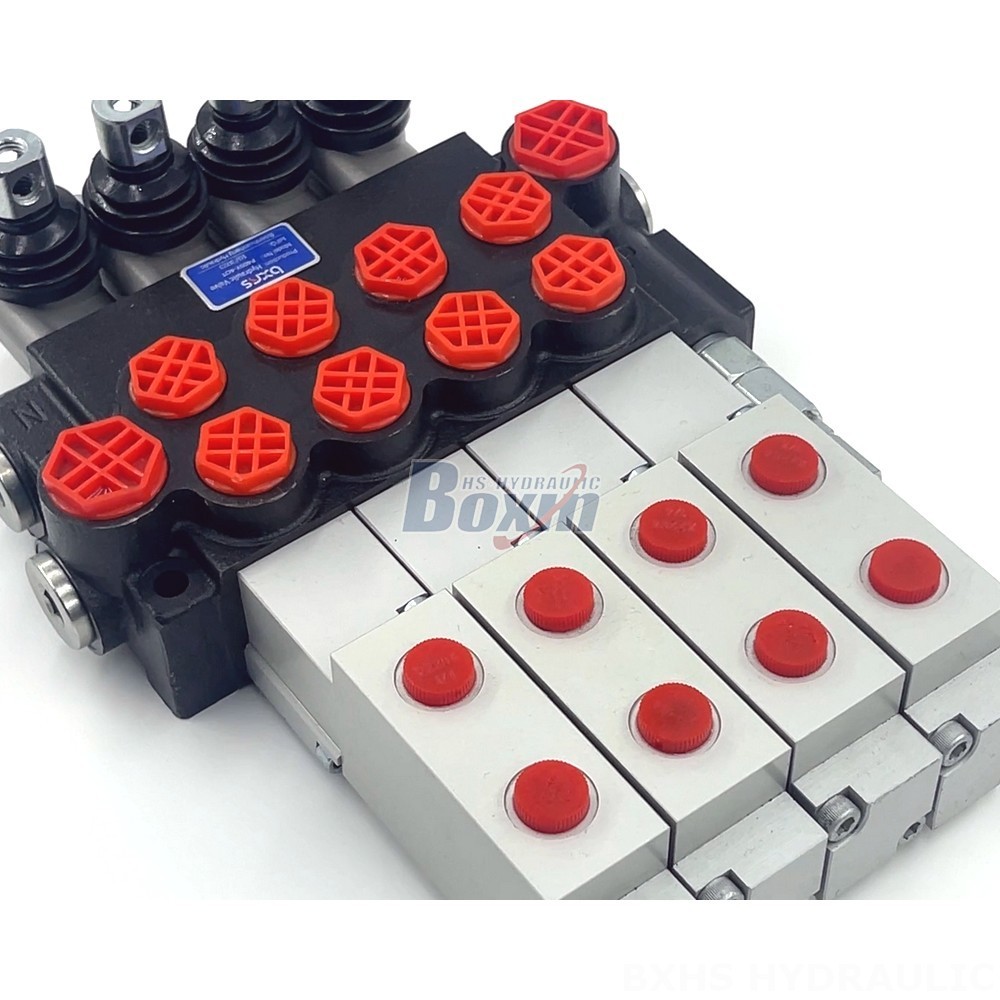

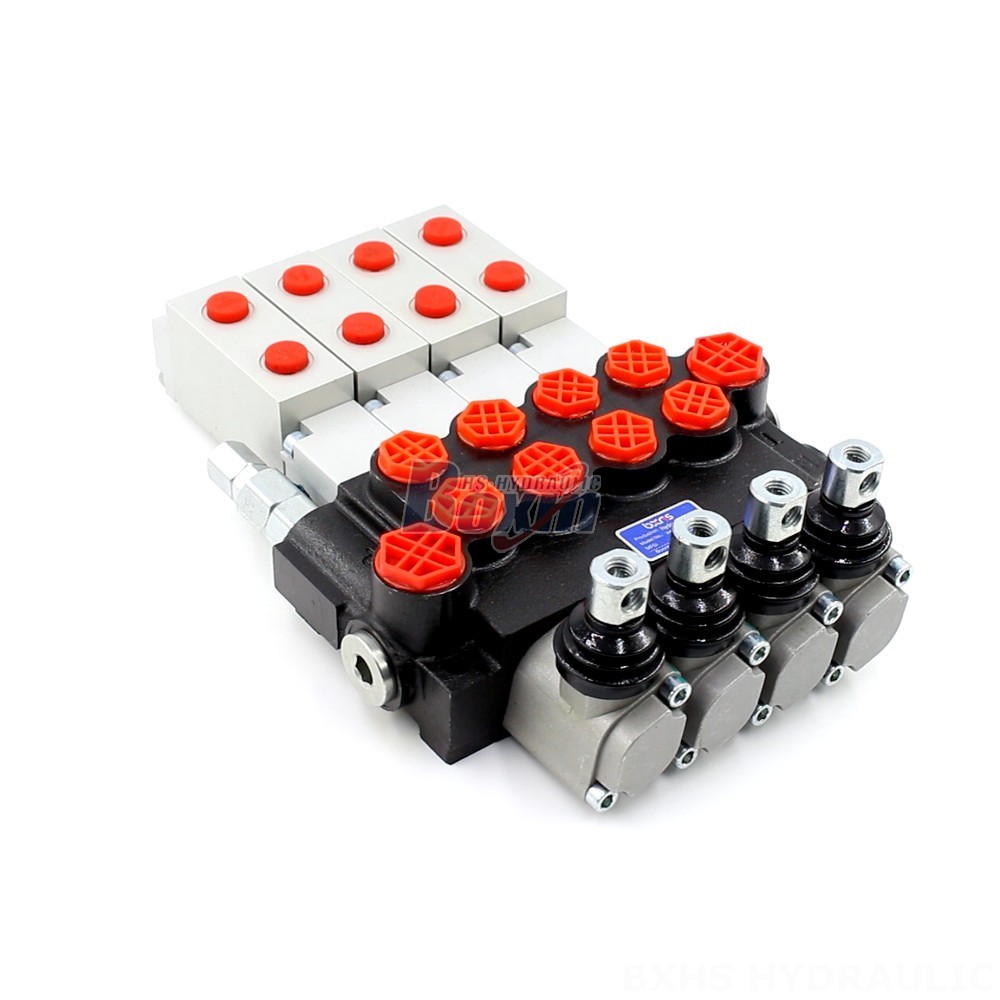

The P40 Hydraulic Directional Valve is the ultimate solution for precision control in various applications, including material handling, construction, earth moving, agriculture, and industrial vehicles. With its 4 section monoblock design, rated flow of 40 L/min, and maximum pressure of 250 bar, this valve offers exceptional performance and reliability.
| P40 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 40리터 (10.5 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 출구 포트 | G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
| 포트 크기 | G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT |
**P40 Hydraulic Directional Valve: The Ultimate Solution for Precision Control**
**Key Features:**
* Control Method: Hydraulic and Manual
* Section: 4 Section
* Structure Type: Monoblock Valve
* Rated Flow: 40 L/min (10.5 US gpm)
* Max Pressure: 250 bar (3600 psi)
* Operating Viscosity Range: 15 - 75 mm²/s (15 cSt to 75 cSt)
* Ambient Temperature Range: -40°C to +80°C (-40°F to +176°F)
* Spool: 4 Spool
* Series: P40 Series
* Application Area: MATERIAL HANDLING,CONSTRUCTION AND EARTH MOVING,AGRICULTURE,INDUSTRIAL VEHICLES
* Applicable Model: TELEHANDLER,FORKLIFT,ALL TERRAIN CRANE,STACKER,AERIAL PLATFORM,MOTOR GRADER,MIDI-EXCAVATOR,MINI-EXCAVATOR,SKID STEER LOADER,COMPACT WHEEL LOADER
The P40 Hydraulic Directional Valve is designed to provide precise and reliable control of hydraulic systems in a wide range of applications. Its robust construction, high-quality components, and advanced design ensure optimal performance and longevity.
With its 4 section monoblock design, the P40 valve offers exceptional flexibility and modularity. The valve can be easily integrated into existing systems, allowing for easy customization and maintenance. The rated flow of 40 L/min and maximum pressure of 250 bar make this valve suitable for demanding applications requiring high flow rates and pressures.
The P40 Hydraulic Directional Valve is manufactured to the highest standards of quality and precision, ensuring exceptional reliability and long service life. Its compact design, low noise operation, and easy maintenance make it an ideal choice for various applications where precision control and reliability are critical.
