What is the primary application of the P40-U78 Manual Monoblock Valve | Factory Direct & Customizable?

The P40-U78 Manual Monoblock Valve | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable

Name: P40-U78 Manual Monoblock Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-54429
Availability: InStock

홈모노블럭 방향 제어 밸브P40 시리즈제품 상세

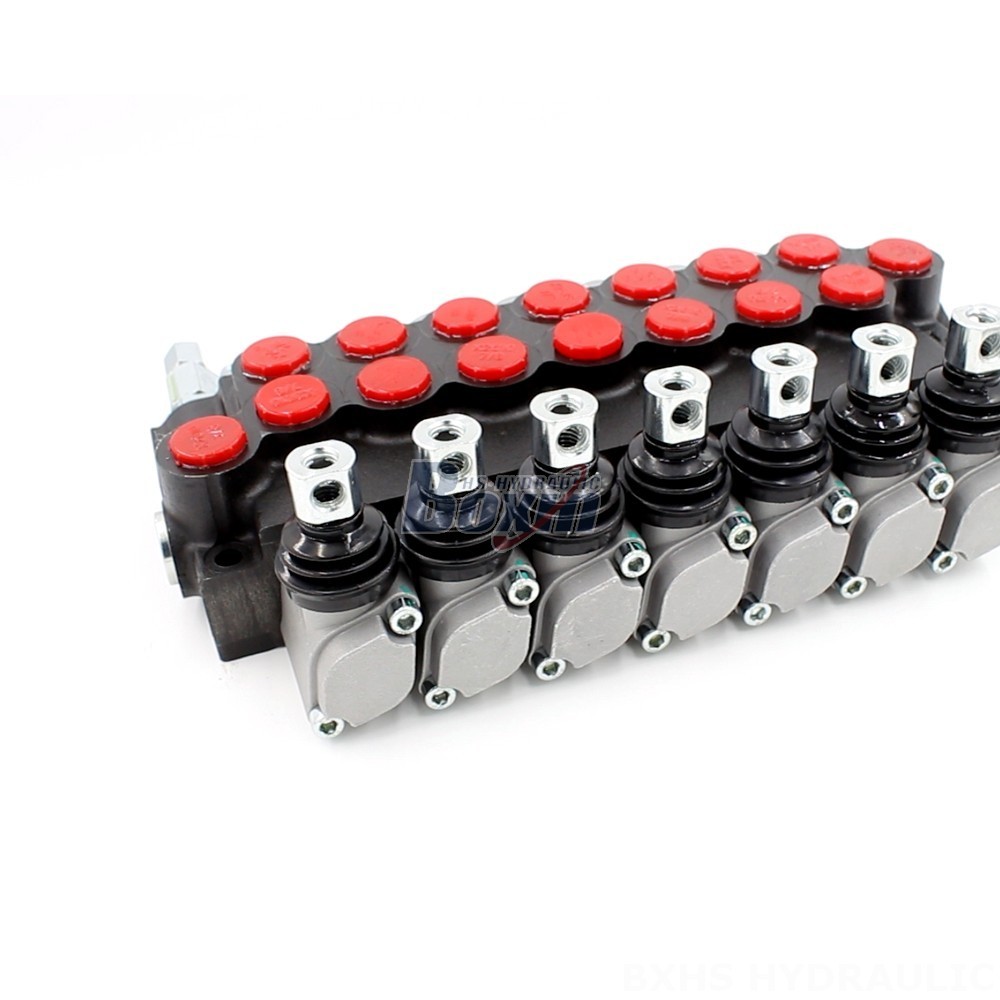

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable cover photo

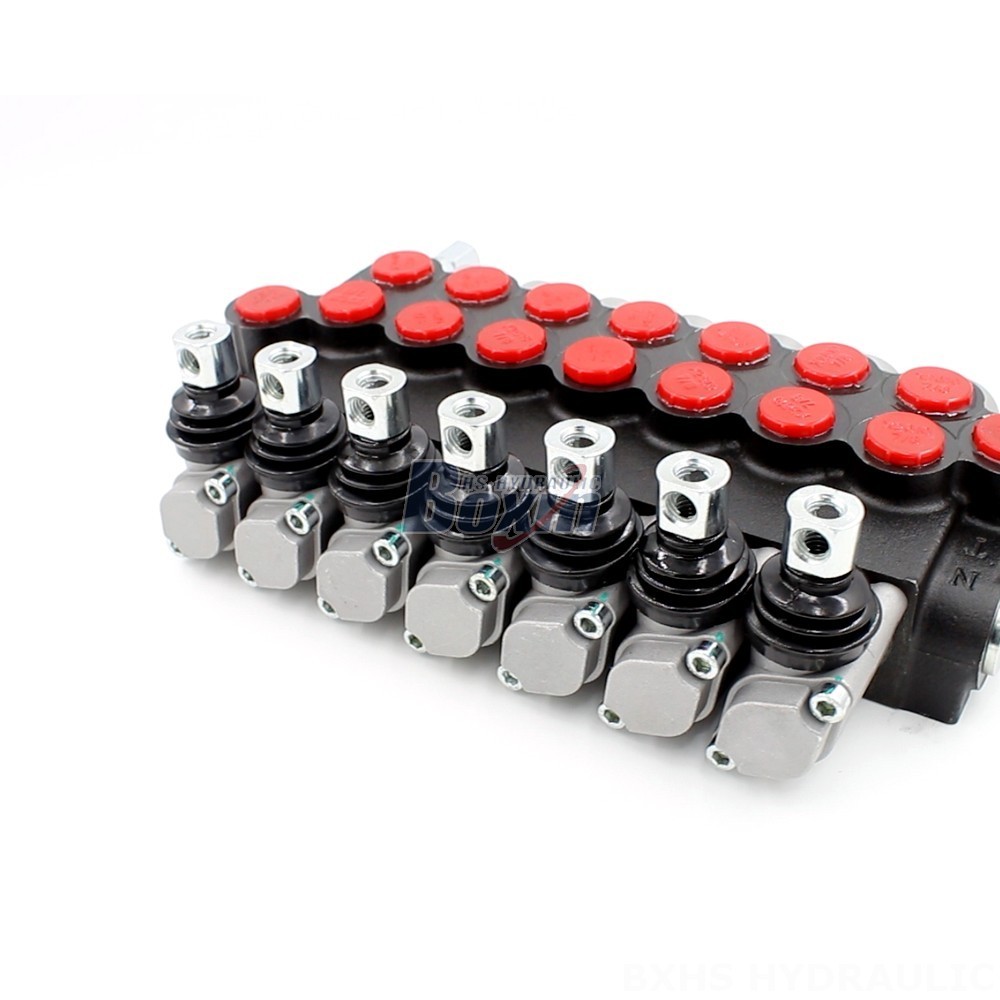

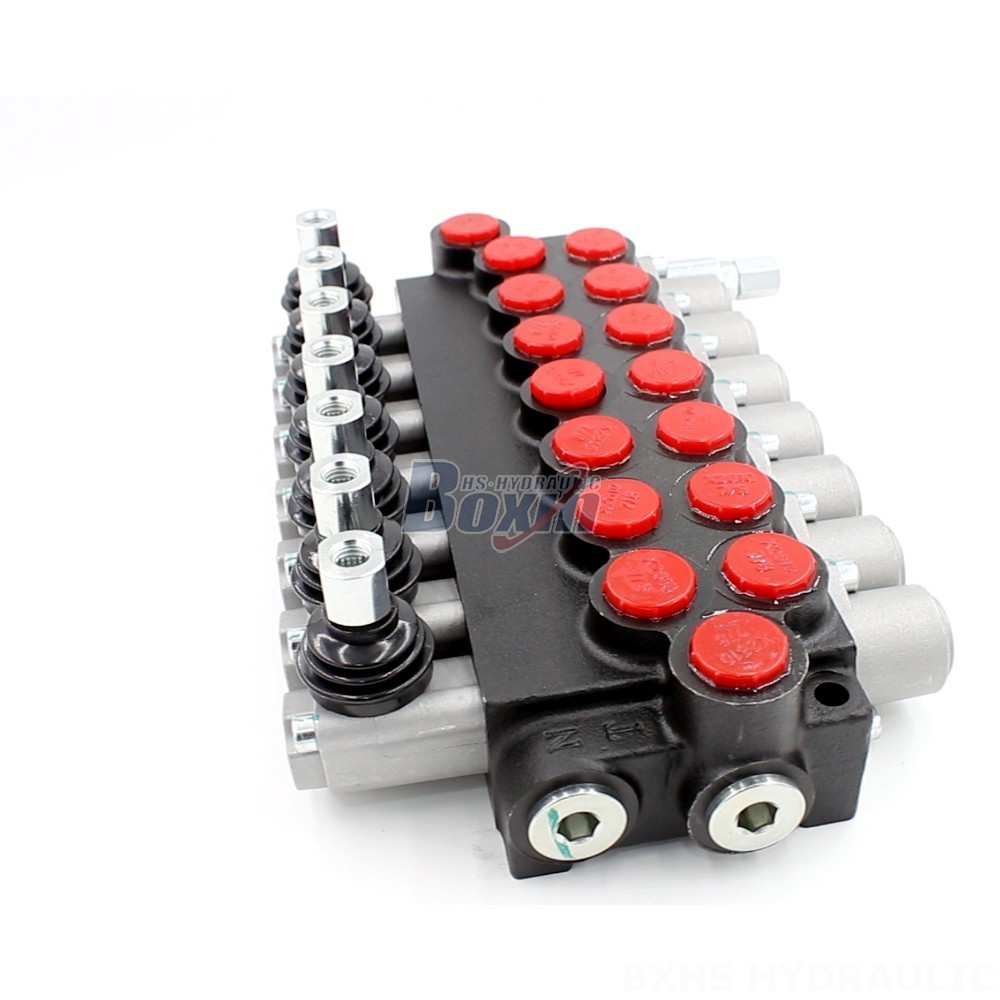

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable main image

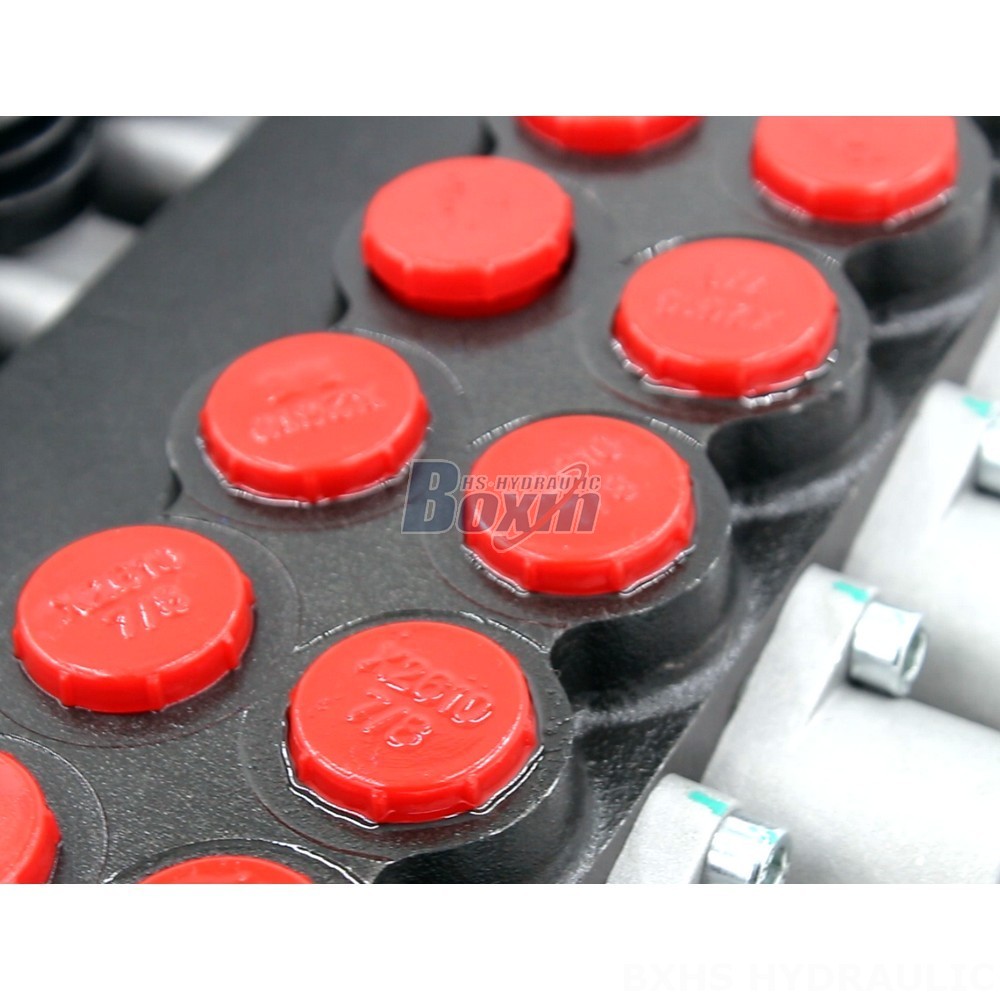

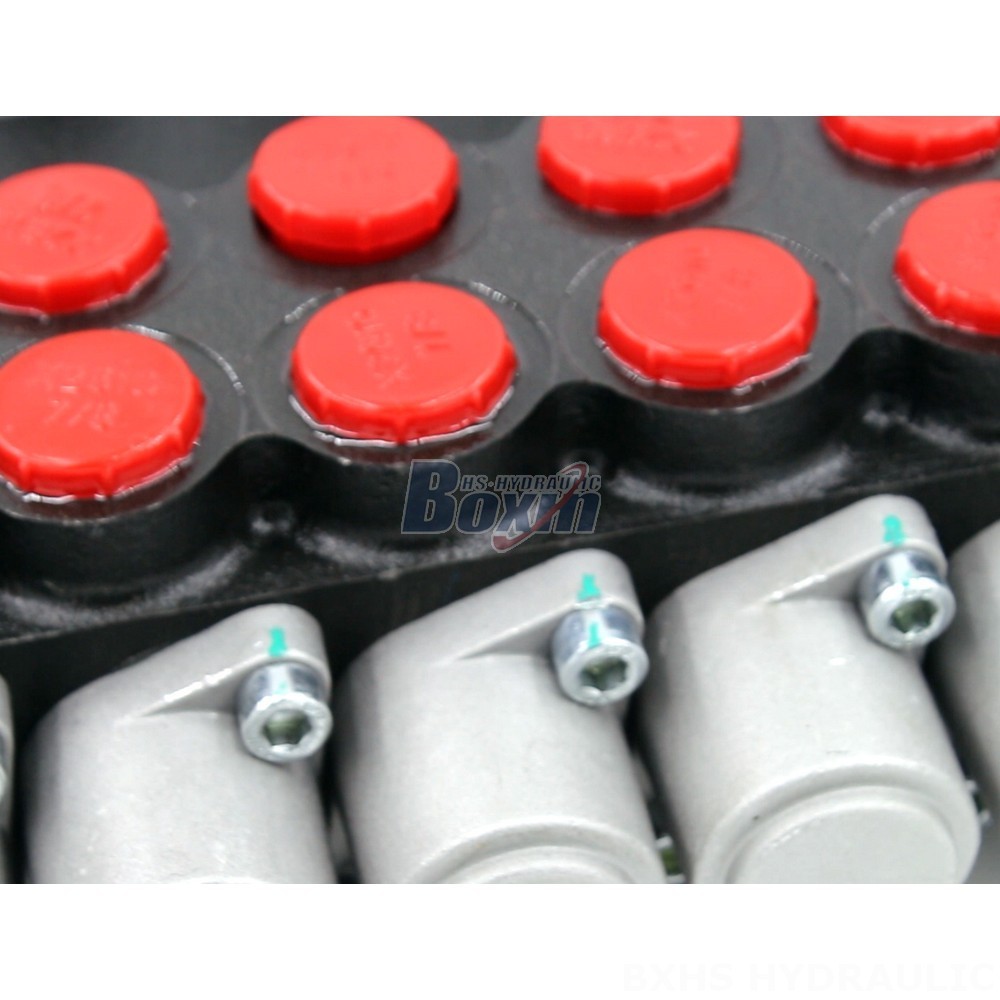

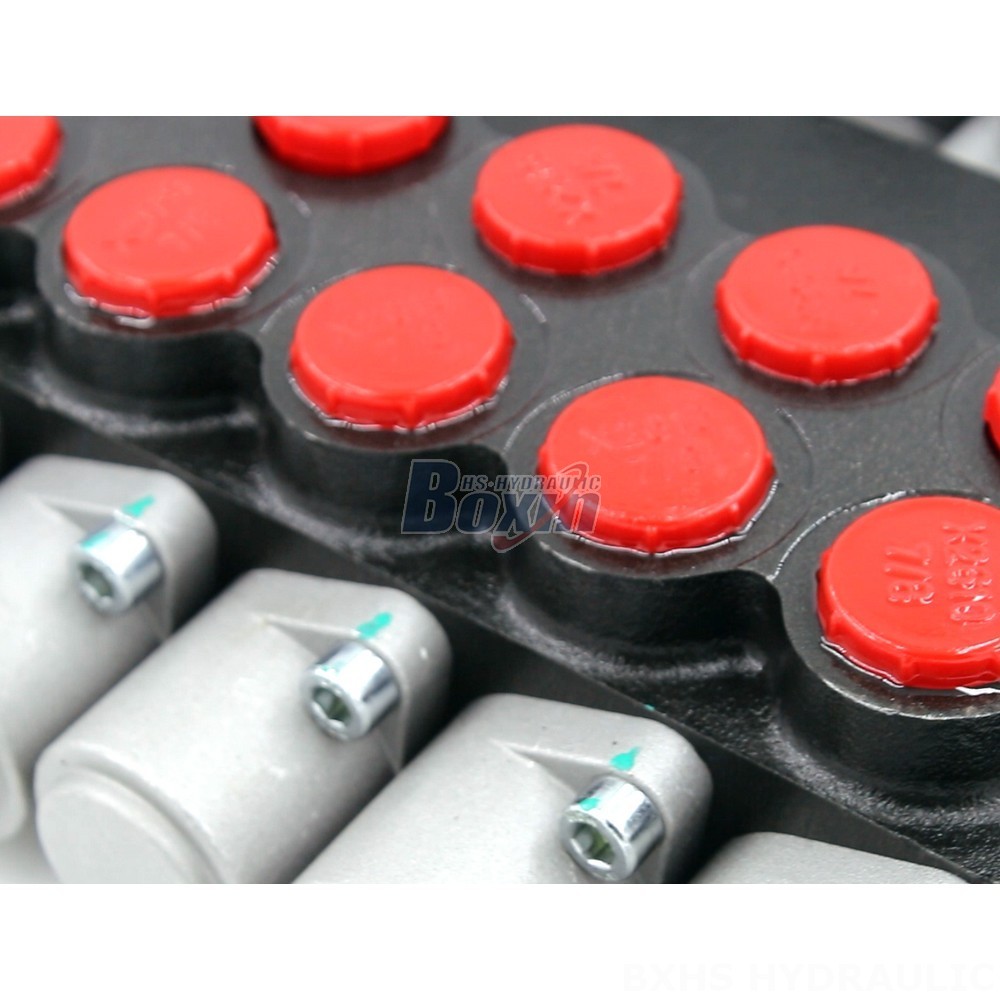

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable detail image

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable

제어 방식:수동

스풀:7 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:SAE 10

출구 포트:SAE 10

포트 크기:SAE 10

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:36*23*13

총중량:13.50 kg

재고 상태: 재고 있음

문의하기

1162 이 제품을 찾아보시지 않겠습니까?

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable

P40-U78 Manual Monoblock Valve | Factory Direct & Customizable drawing image

The P40-U78 is a heavy-duty, manual electric hydraulic control valve designed for demanding applications in construction, material handling, agriculture, and industrial vehicles. This 7-section monoblock valve offers high flow rates (40 L/min) and reliable performance under pressure up to 250 bar. It's compatible with a wide range of equipment, including forklifts, telehandlers, mini excavators, and more.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 40리터 (10.5 US gpm)
최대 압력	250바 (3600 psi)
입구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트	G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기	G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40-U78 electric hydraulic control valve is a 7-section monoblock valve with a rated flow of 40 L/min (10.5 US gpm) and a maximum pressure rating of 250 bar (3600 psi). It features a manual control method, making it easy to operate. The valve has a 7-spool design and is suitable for various applications including material handling, construction, agriculture, and industrial vehicles. The P40-U78 is specifically designed for use in telehandlers, forklifts, all-terrain cranes, stackers, aerial platforms, motor graders, midi-excavators, mini-excavators, and skid steer loaders.
