What is the primary application of the P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable?

The P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

Name: P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable
Brand: Boxinhuasheng
SKU: BXHS-55195
Availability: InStock

홈모노블럭 방향 제어 밸브P80 시리즈제품 상세

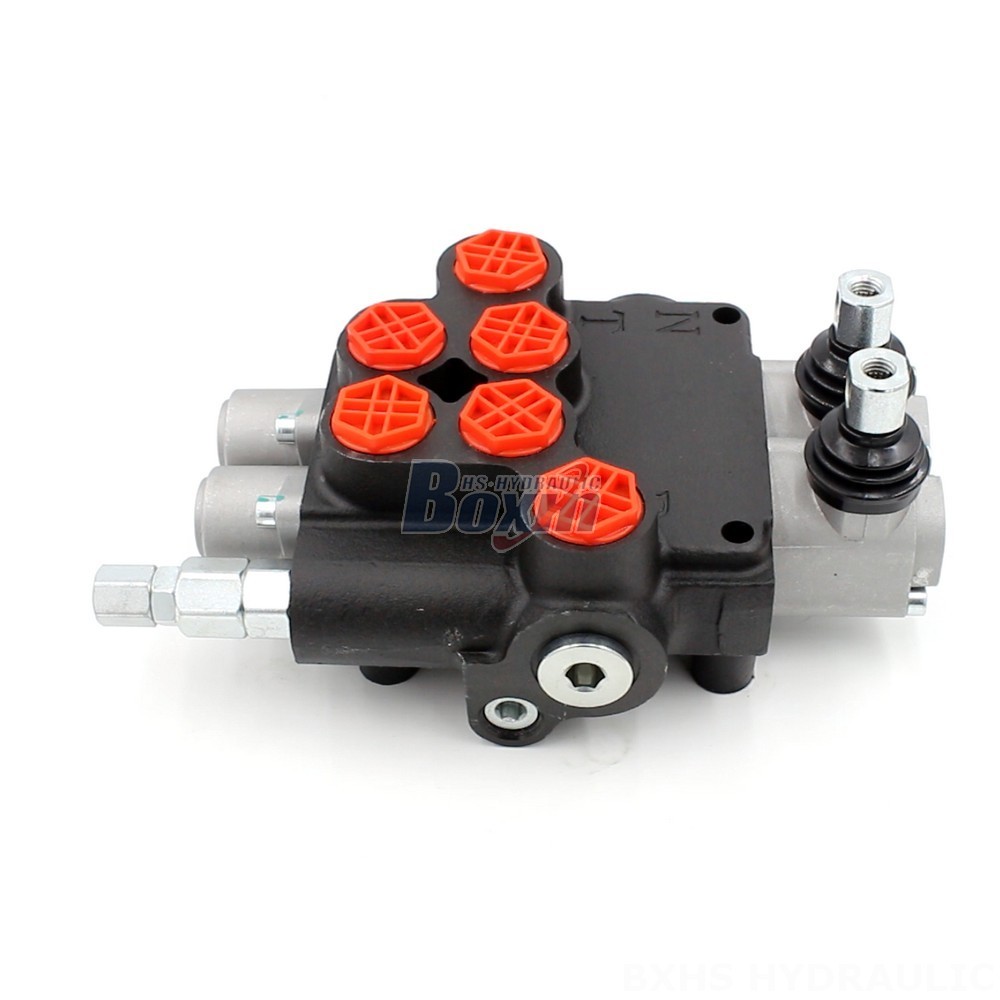

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable cover photo

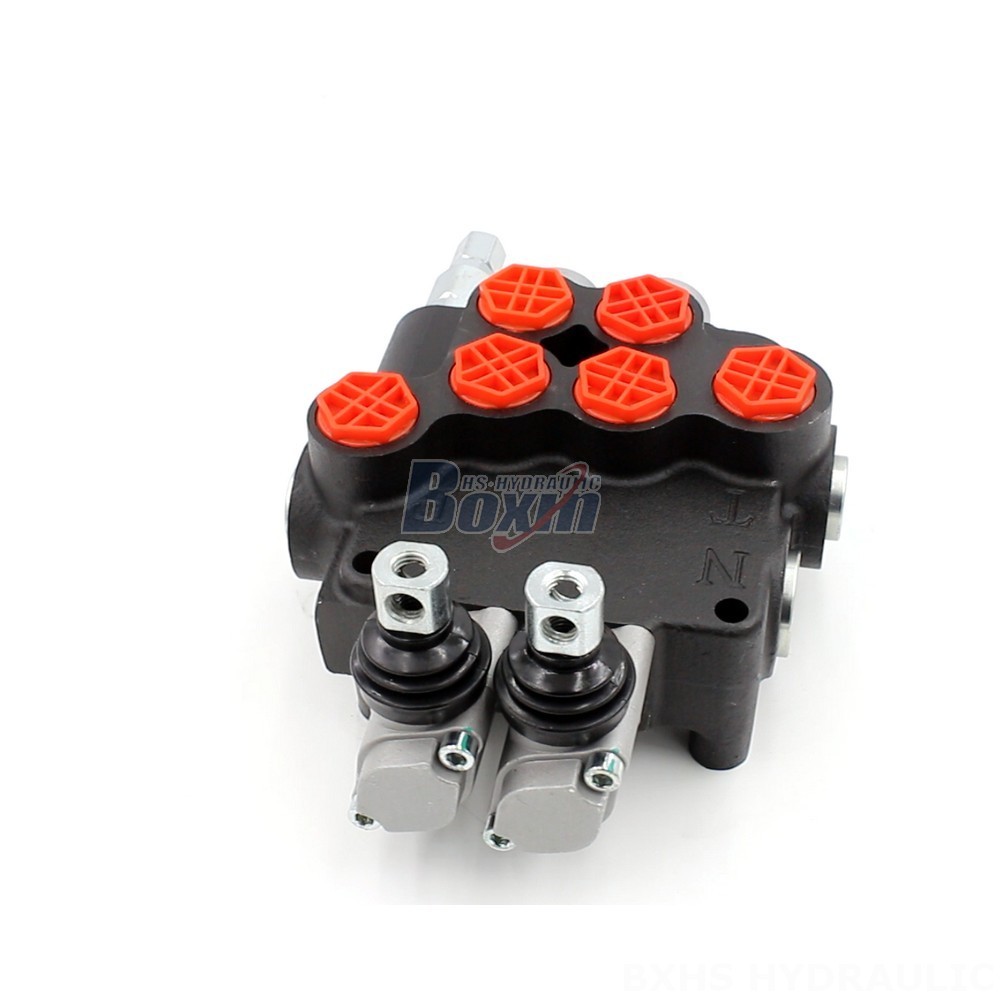

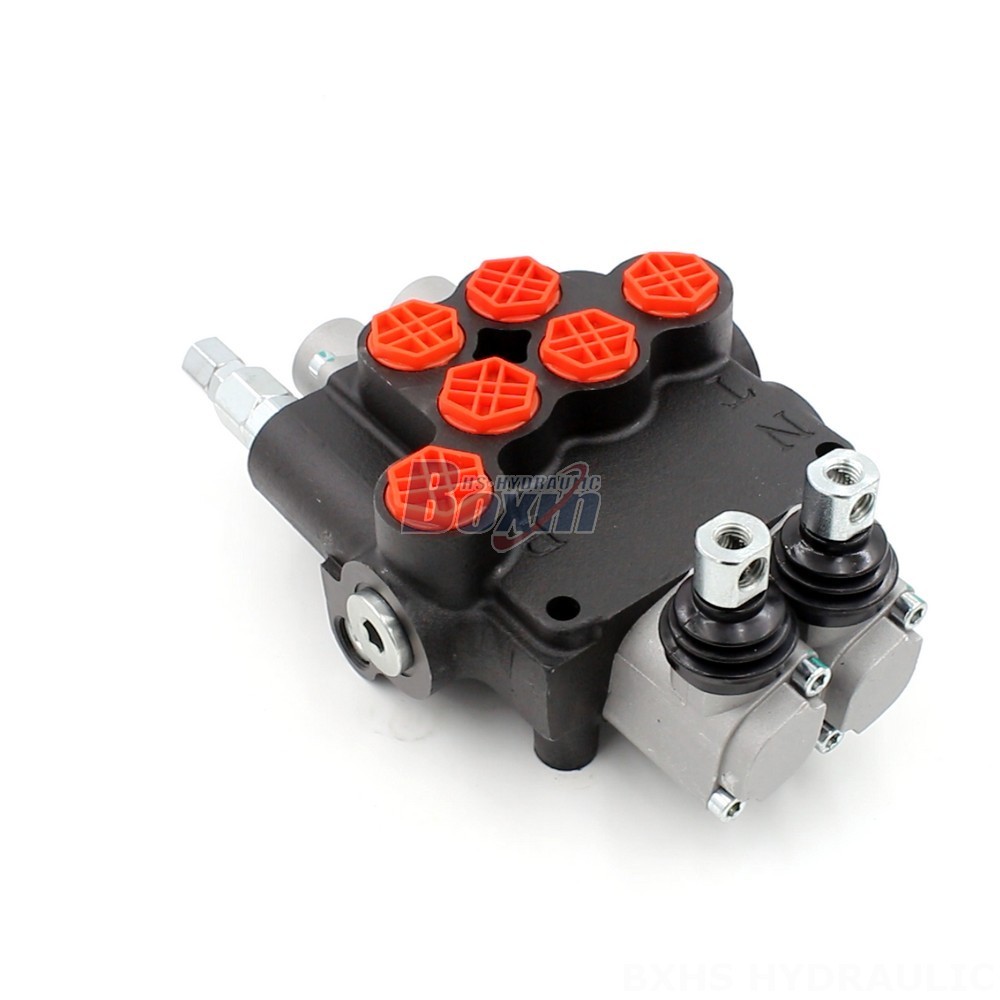

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable main image

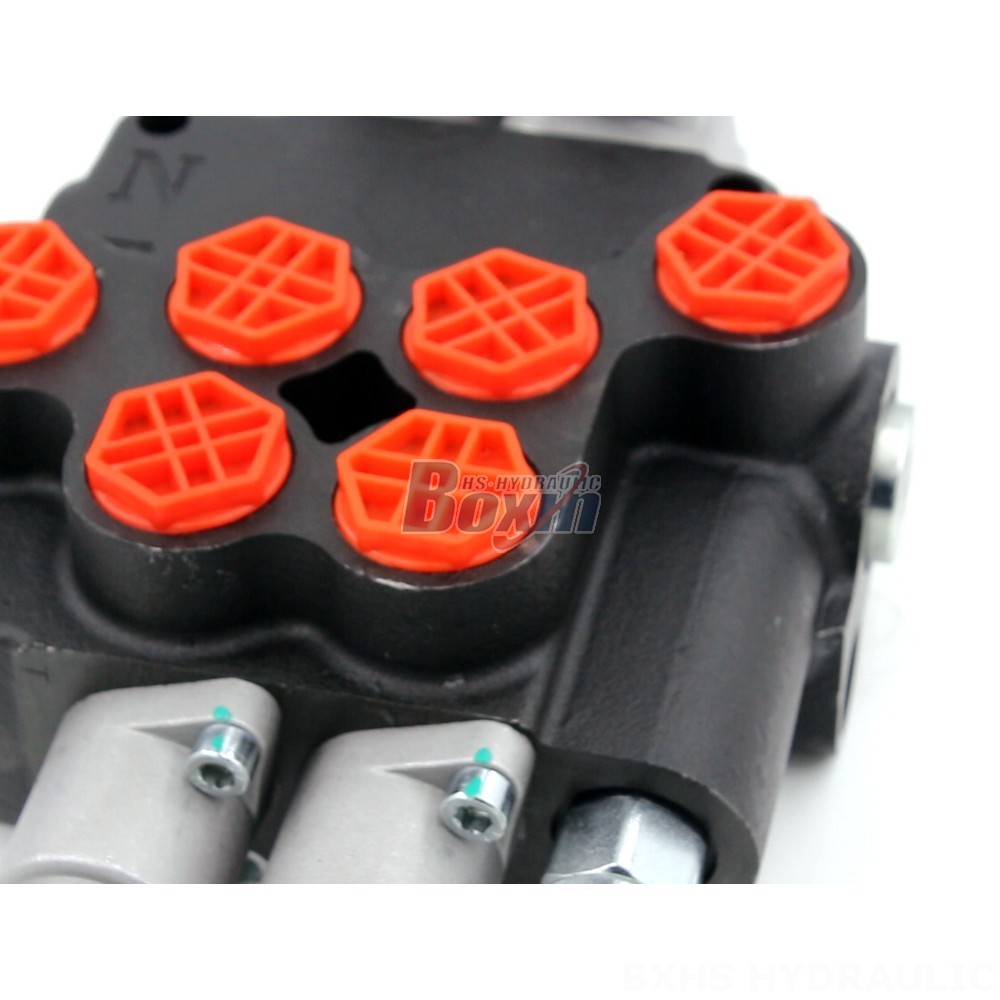

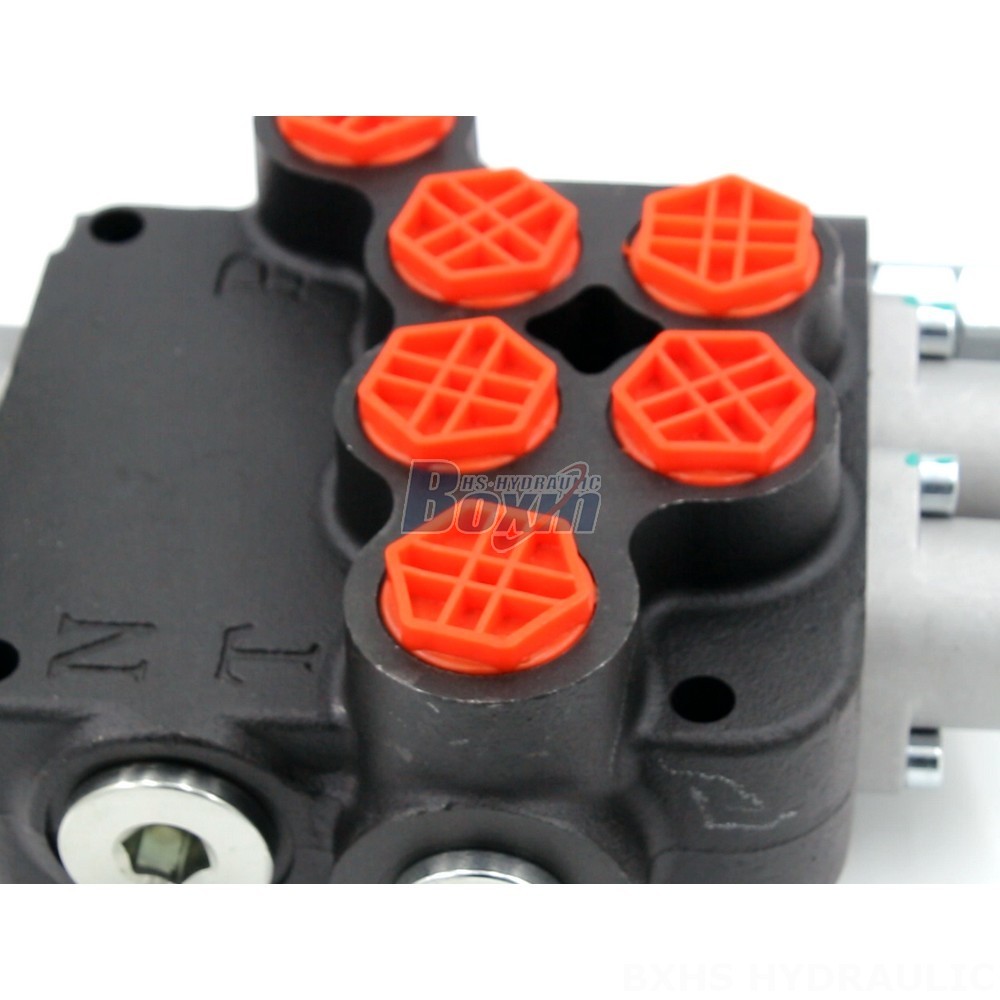

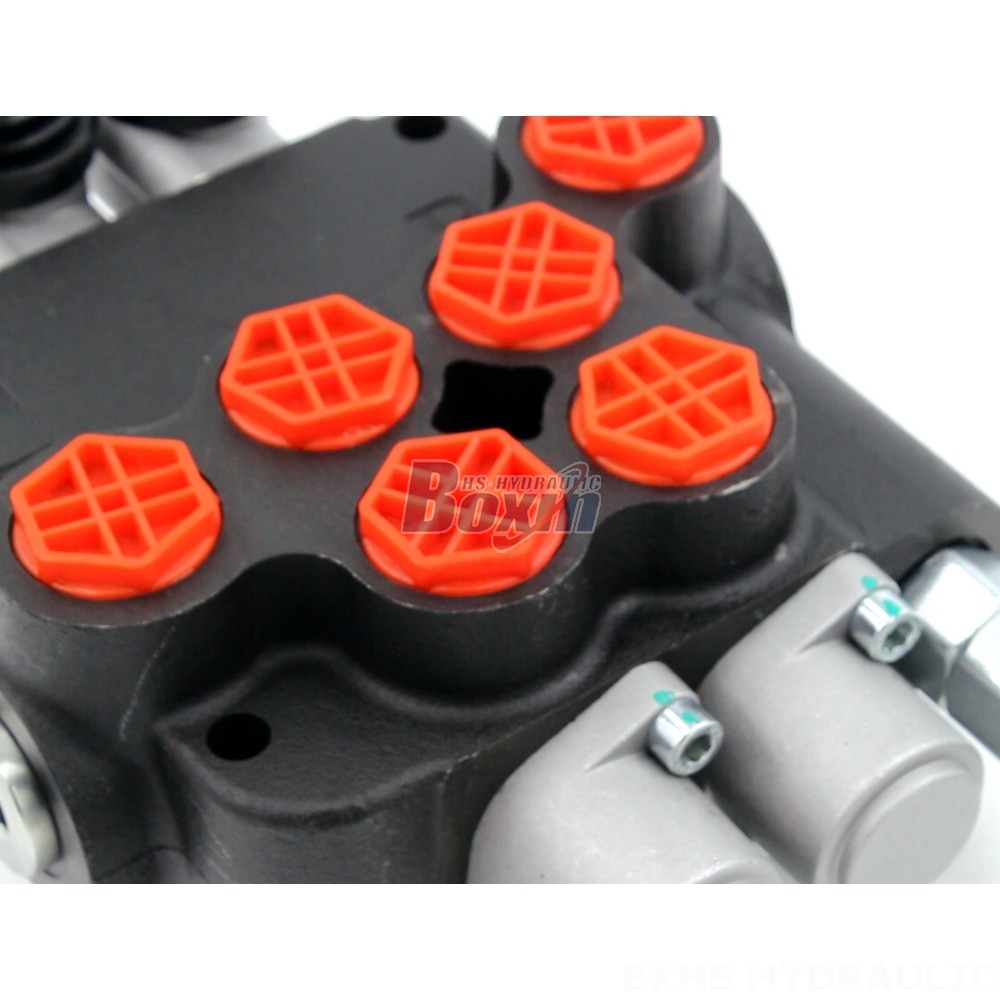

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable detail image

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

제어 방식:수동

스풀:2 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G1/2

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P80 시리즈 모노블럭 방향 제어 밸브

포장 크기:26*18*11

총중량:8.20 kg

재고 상태: 재고 있음

문의하기

899 이 제품을 찾아보시지 않겠습니까?

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable

P80-G34-G12 2-Spool Hydraulic Directional Valve | Factory Direct & Customizable drawing image

Introducing our P80-G34-G12 2-Spool Hydraulic Directional Valve, a robust and reliable solution for a wide range of industrial applications. Manufactured with precision, this valve offers exceptional performance and durability, ensuring efficient and precise fluid control.

P80 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식	수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱
스풀	1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 80리터 (21.2 US gpm)
최대 압력	315바 (4600 psi)
입구 포트	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
출구 포트	G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT
포트 크기	G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT

**Key Features:**

* Manual Control for precise and responsive operation
* Monoblock Valve construction for compact and leak-proof performance
* Rated Flow of 80 L/min (21.2 US gpm) for high-volume flow applications
* Max Pressure of 250 bar (3600 psi) for demanding pressure requirements
* Operating Viscosity Range of 15 - 75 mm²/s (15 cSt to 75 cSt) for compatibility with various fluid types
* Ambient Temperature Range of -40°C to +80°C (-40°F to +176°F) for reliable operation in harsh environments

**Applications:**

Our P80-G34-G12 2-Spool Hydraulic Directional Valve finds application in diverse industries including:

* Material Handling: Telehandlers, Forklifts
* Construction and Earth Moving: All Terrain Cranes, Stackers
* Agriculture: Aerial Platforms, Motor Graders
* Industrial Vehicles: Midi-Excavators, Mini-Excavators, Skid Steer Loaders, Compact Wheel Loaders

As a factory direct supplier, we offer customization options to meet your specific requirements. Contact us for tailored solutions and exceptional support.
