생산 및 배송
15-30일 생산 리드타임

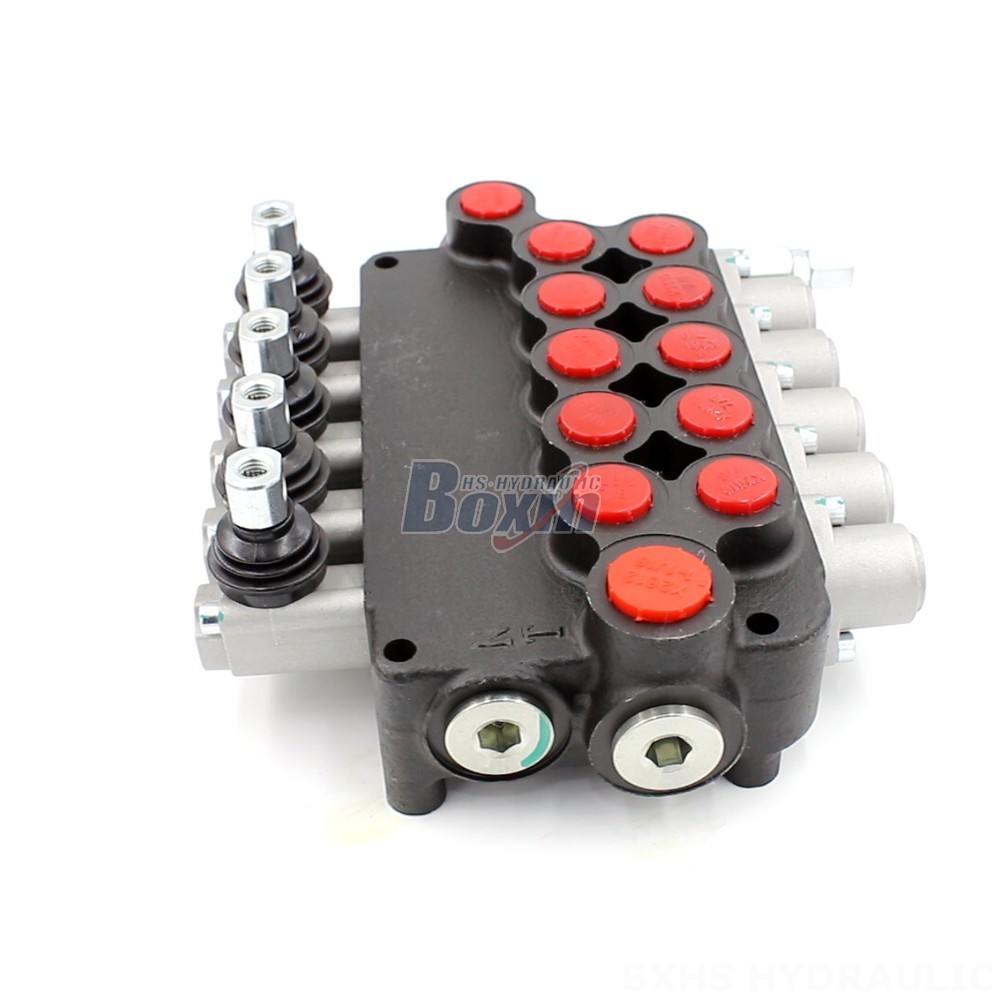

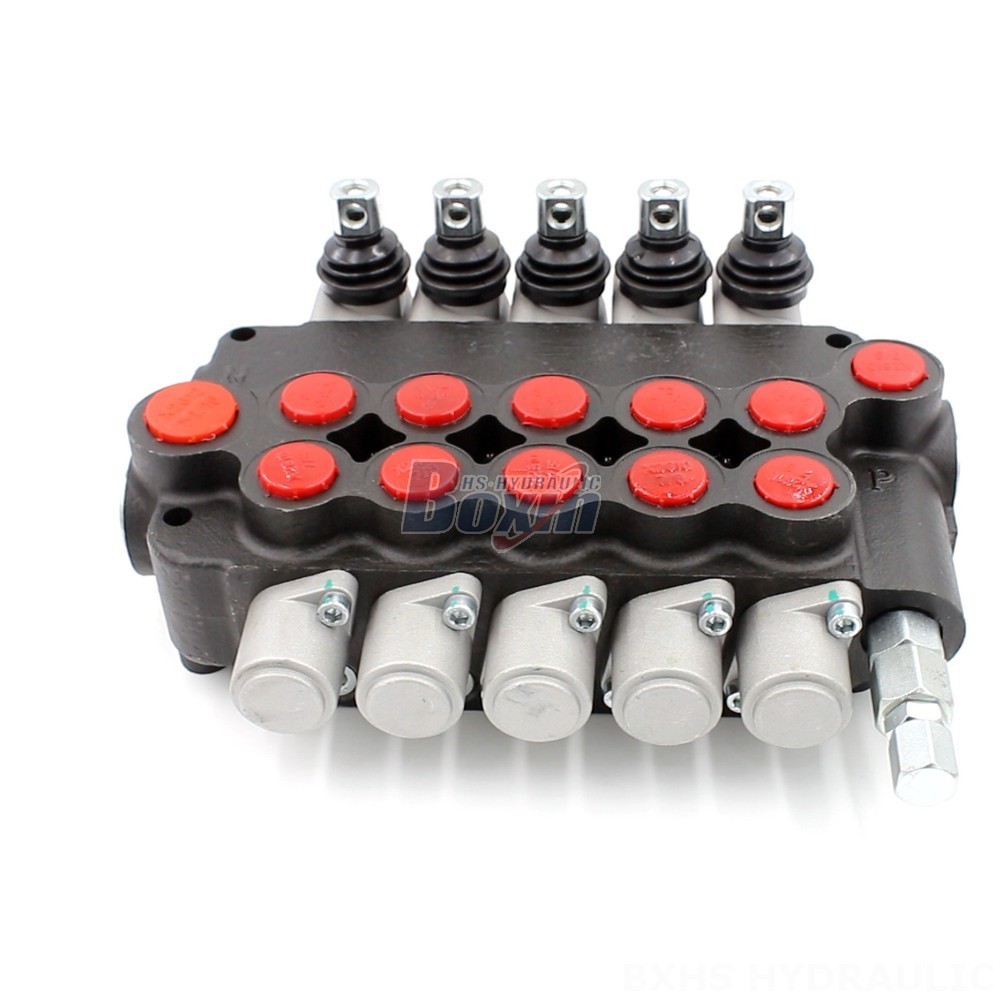

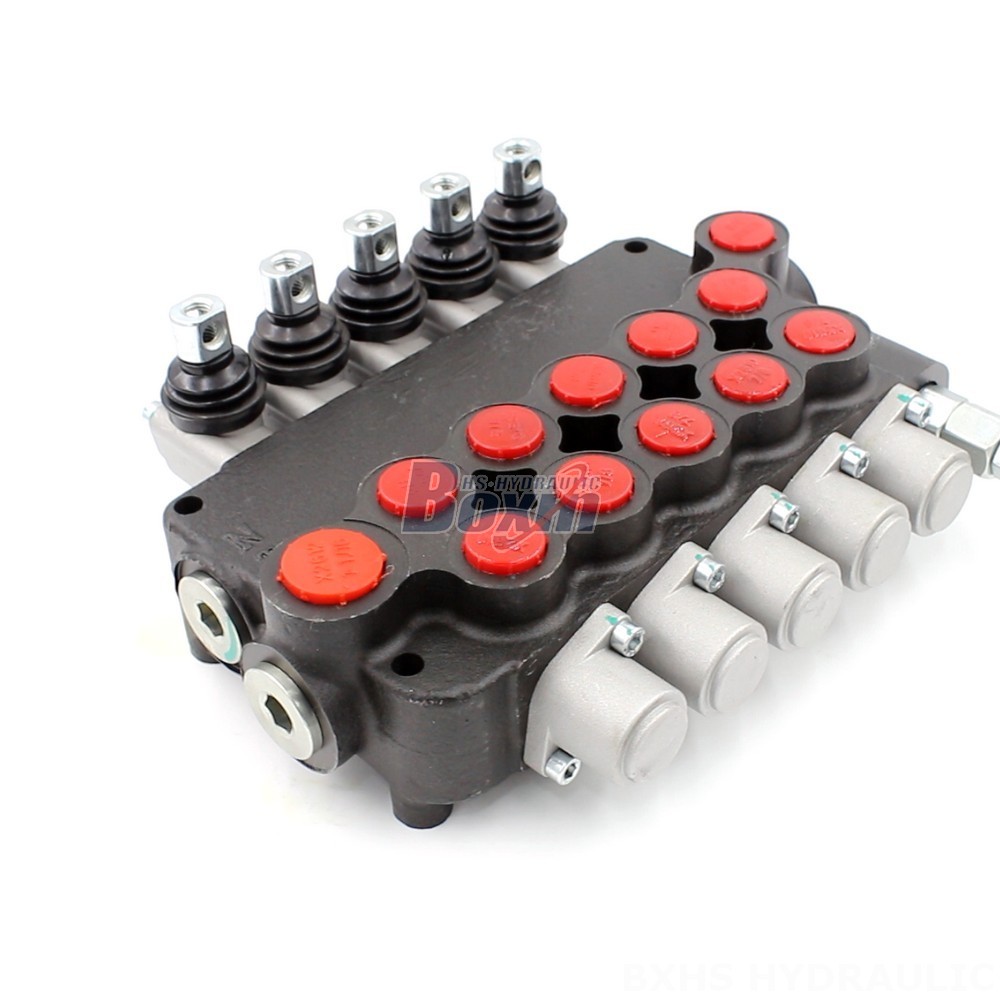

The P80-U116-U78-5OT Monoblock Valve is a high-performance hydraulic flow control valve designed for a wide range of construction and industrial equipment, including telehandlers, forklifts, and excavators. It features a 5-section, manual control design, a rated flow of 80 L/min, and a maximum pressure of 250 bar.
| P80 시리즈 모노블럭 방향 제어 밸브 매개변수 | |
|---|---|
| 제어 방식 | 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 수동 및 조이스틱 |
| 스풀 | 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션 |
| 작동 점도 범위 | 15 - 75 mm²/s (15 cSt to 75 cSt) |
| 정격 유량 | 분당 80리터 (21.2 US gpm) |
| 최대 압력 | 315바 (4600 psi) |
| 입구 포트 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 출구 포트 | G1/2, G3/4, M27×2.0, SAE 10, SAE 12, 1/2 NPT, 3/4 NPT |
| 포트 크기 | G1/2, G3/4, M22×1.5, M27×2.0, SAE 10, 1/2 NPT, 3/4 NPT |
The P80-U116-U78-5OT Monoblock Valve is a robust and reliable hydraulic flow control valve designed for demanding applications in construction, material handling, and industrial vehicles. It features a 5-section monoblock valve design with manual control, providing precise control of hydraulic fluid flow. The valve is rated for a flow of 80 L/min (21.2 US gpm) and a maximum pressure of 250 bar (3600 psi), making it suitable for a wide range of equipment sizes and operating conditions. The valve operates within a viscosity range of 15 - 75 mm²/s (15 cSt to 75 cSt) and is designed to function in ambient temperatures ranging from -40°C to +80°C (-40°F to +176°F). With its 5 spool design and P80 Series designation, this valve offers a high degree of versatility and reliability, ensuring optimal performance in a variety of applications.
