P81 Log Splitter Valve: Quality, Performance, Reliability

제어 방식:수동

스풀:1 스풀

정격 유량:분당 80리터 (21.2 US gpm)

최대 압력:19 MPa (2735 psi)

입구 포트:G1/2

출구 포트:G3/4

포트 크기:G3/4

브랜드:BXHS

제품 유형:로그 스플리터 밸브

제품 시리즈:P81 시리즈 로그 스플리터 밸브

포장 크기:27*16*12

총중량:4.80 kg

재고 상태: 재고 있음

1883 이 제품을 찾아보시지 않겠습니까?

P81 Log Splitter Valve: Quality, Performance, Reliability

P81 Log Splitter Valve: Quality, Performance, Reliability

P81 Log Splitter Valve: Quality, Performance, Reliability drawing image

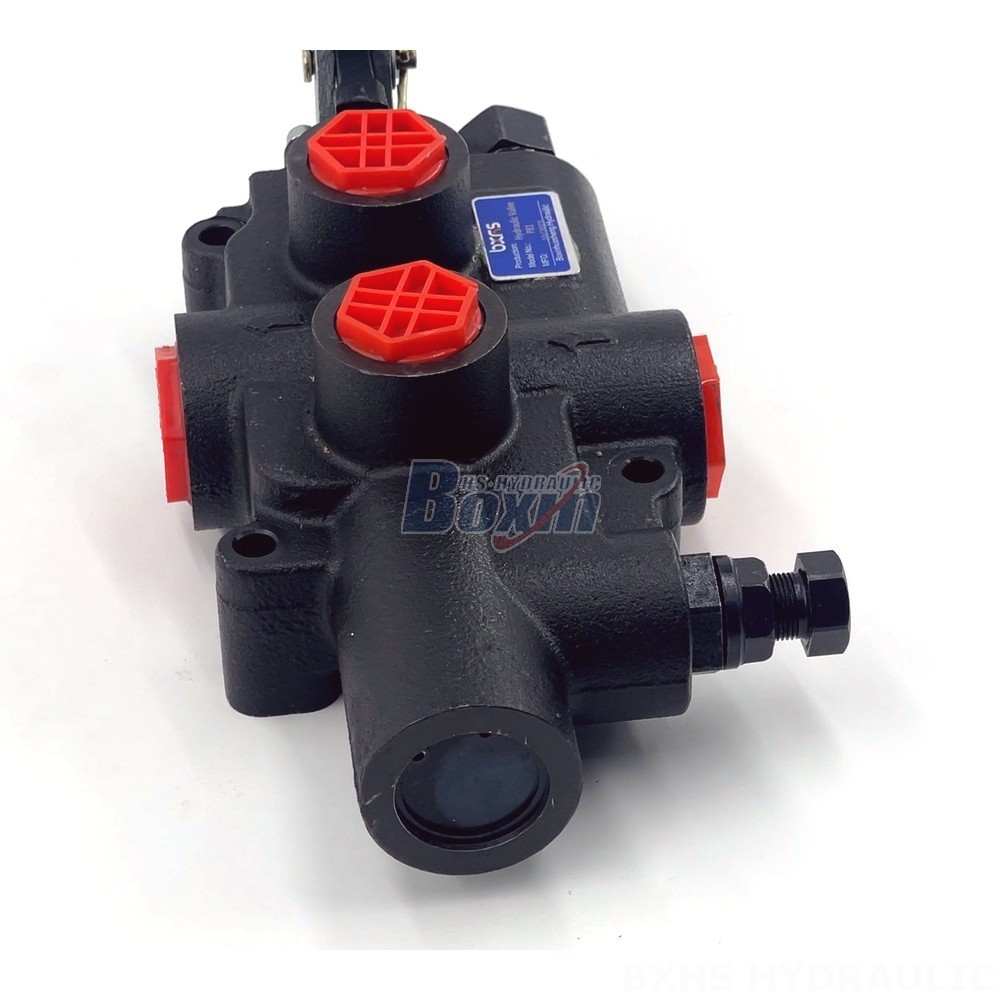

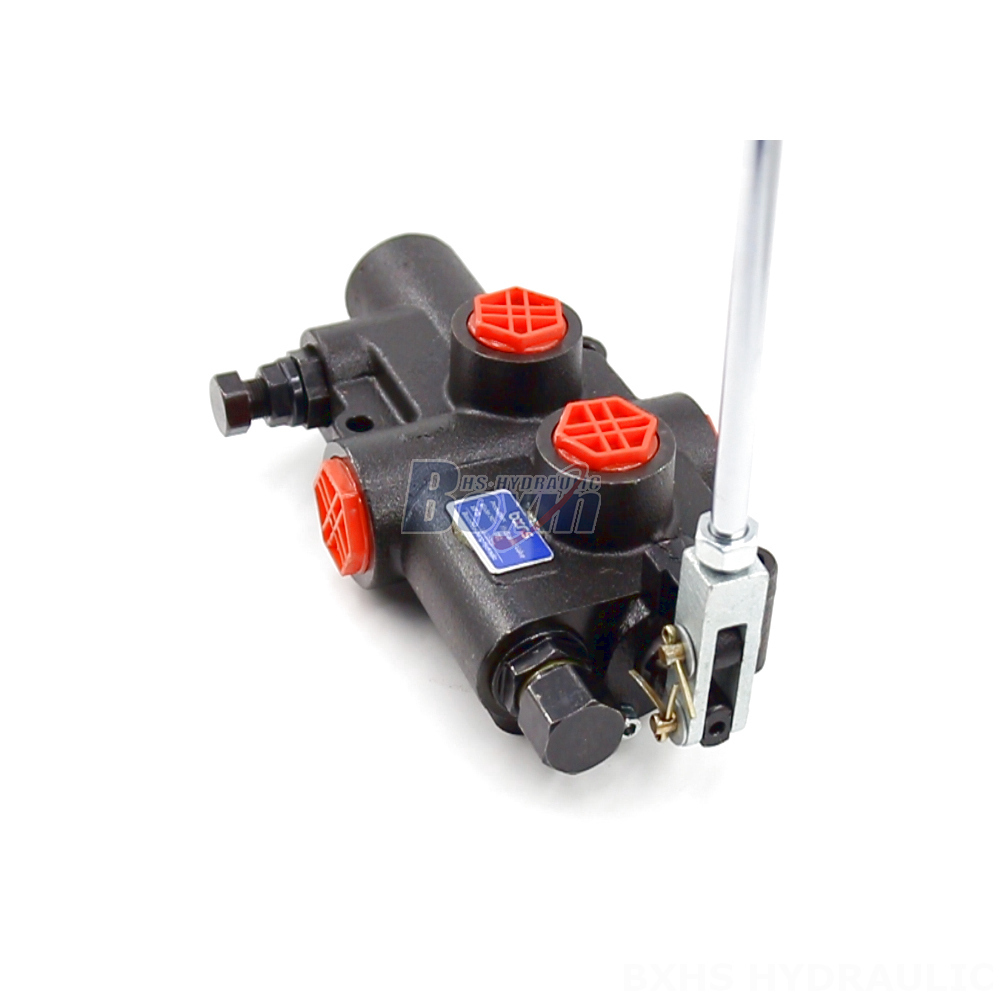

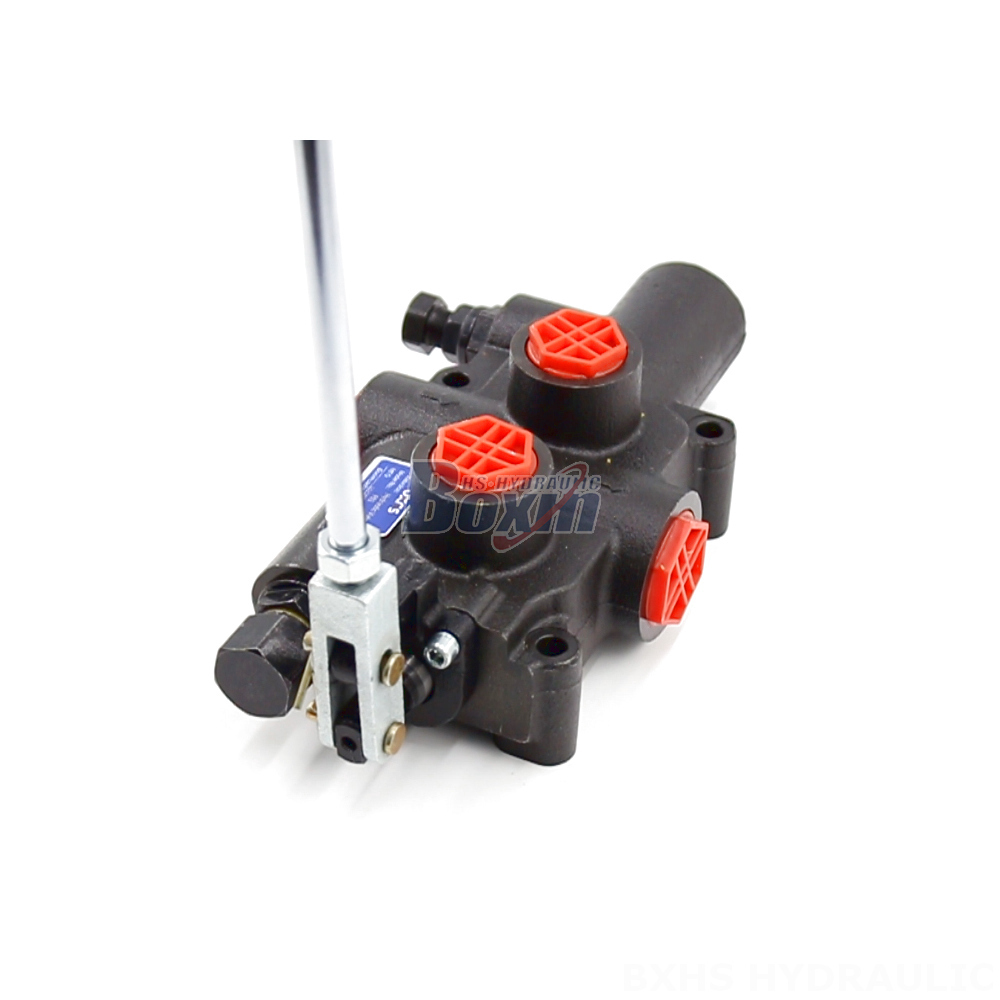

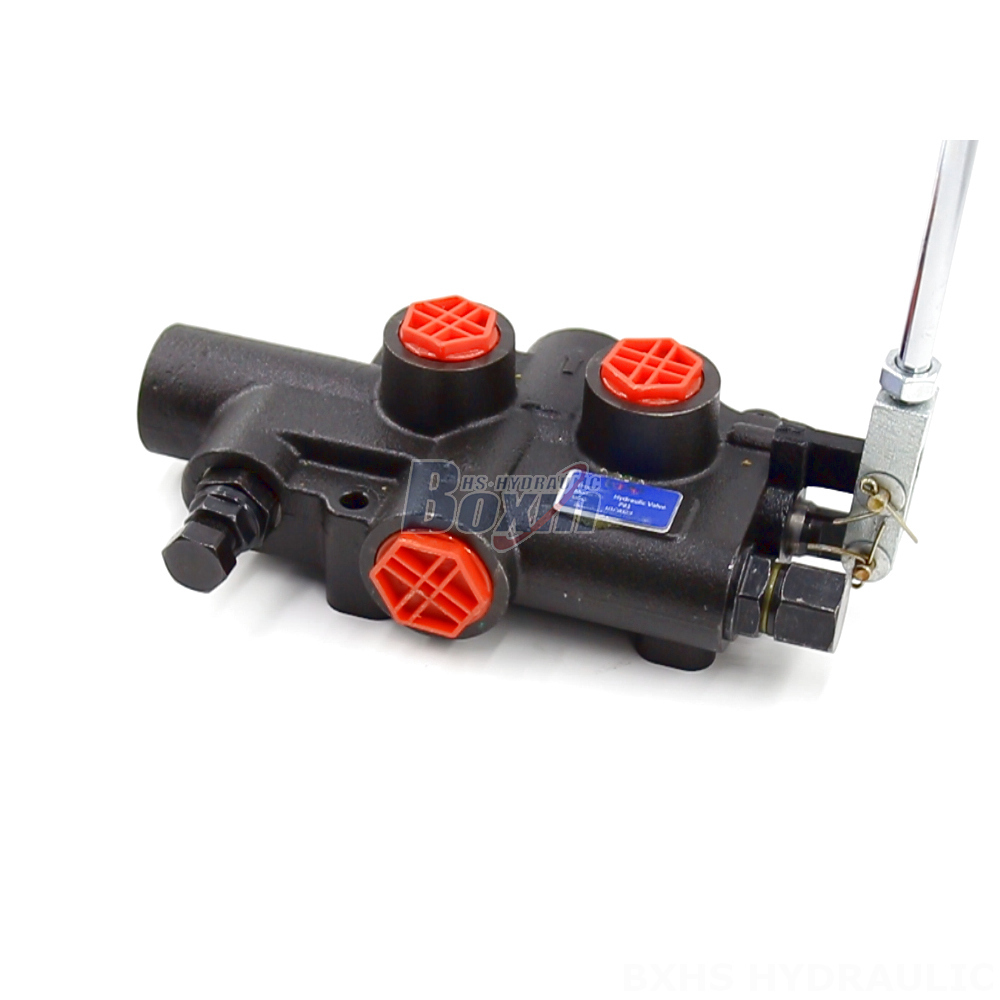

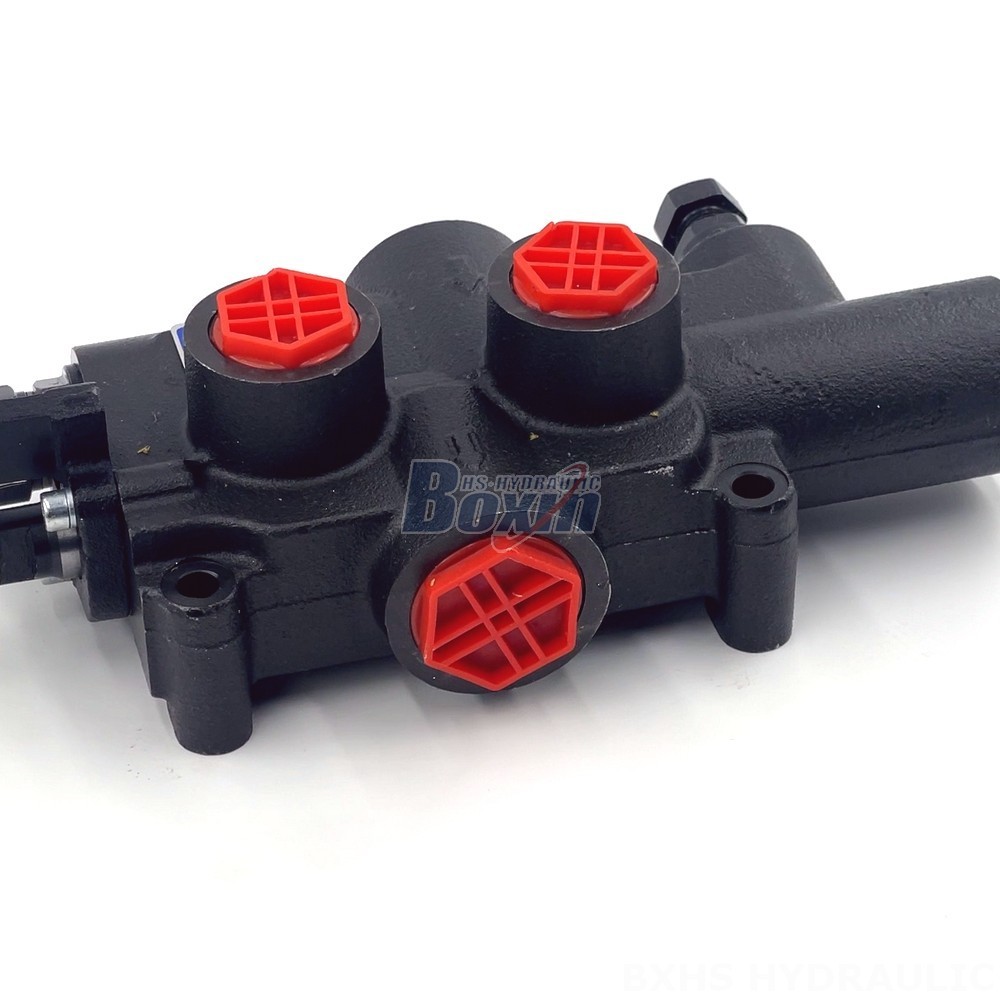

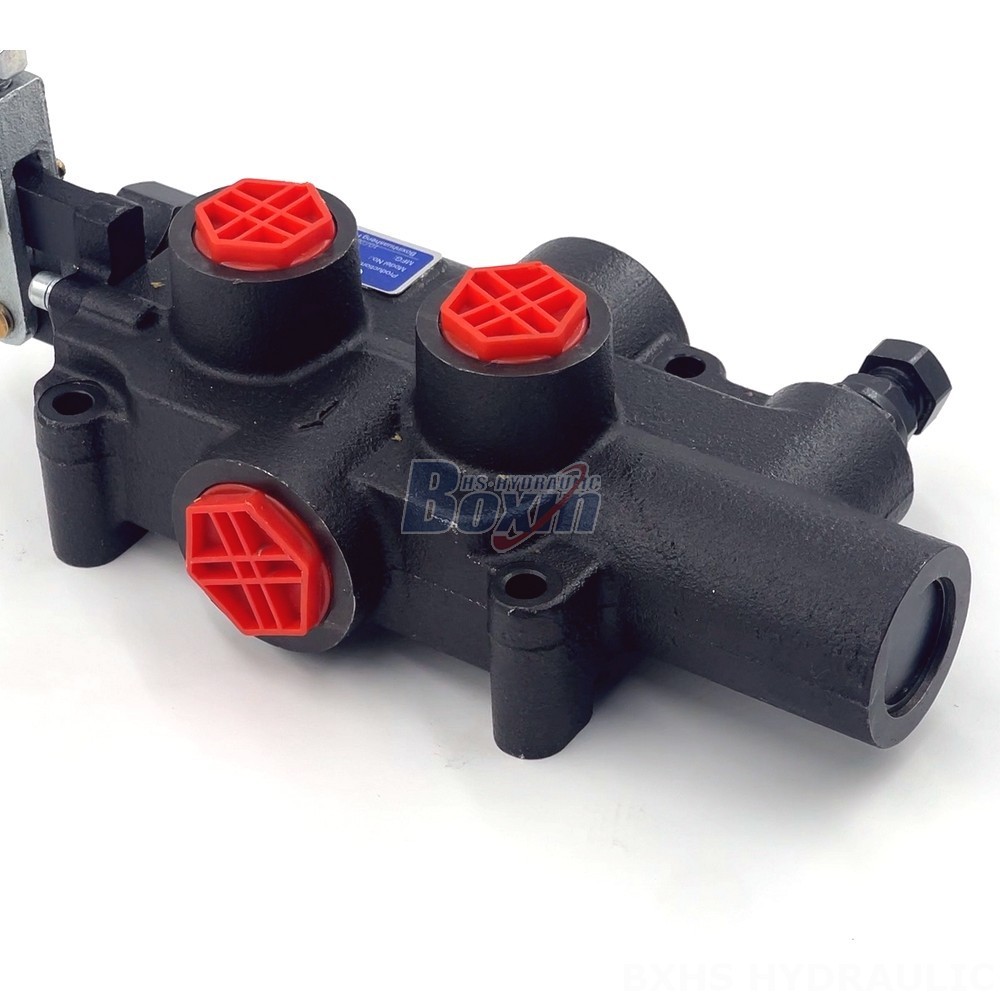

The P81 Series 3/2 Directional Control Valve is a high-performance, reliable hydraulic valve specifically designed for wood splitters. This manual control monoblock valve features a rated flow of 80 L/min, a maximum pressure of 250 bar, and a kick-out setting pressure of 70~140 bar, making it ideal for demanding industrial applications.

P81 시리즈 로그 스플리터 밸브 매개변수
제어 방식 수동
스풀 1 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 80리터 (21.2 US gpm), 분당 95리터 (25.1 US gpm)
최대 압력 19 MPa (2735 psi)
입구 포트 G1/2
출구 포트 G1/2
포트 크기 G3/4

The P81 Series 3/2 Directional Control Valve is a robust and reliable hydraulic valve designed for use in wood splitters. This manual control monoblock valve features a single spool and a rated flow of 80 L/min, making it capable of handling demanding hydraulic systems. Its maximum pressure rating of 250 bar ensures durability and performance in demanding applications. The kick-out setting pressure of 70~140 bar provides adjustable protection for the system and its components. This valve is designed for industrial vehicles and is built to withstand harsh operating conditions. The operating viscosity range is 15 - 75 mm²/s (15 cSt to 75 cSt), and the ambient temperature range is -40°C to +80°C (-40°F to +176°F). This valve is an excellent choice for anyone looking for a high-quality, reliable, and high-performance hydraulic valve for their wood splitter.
