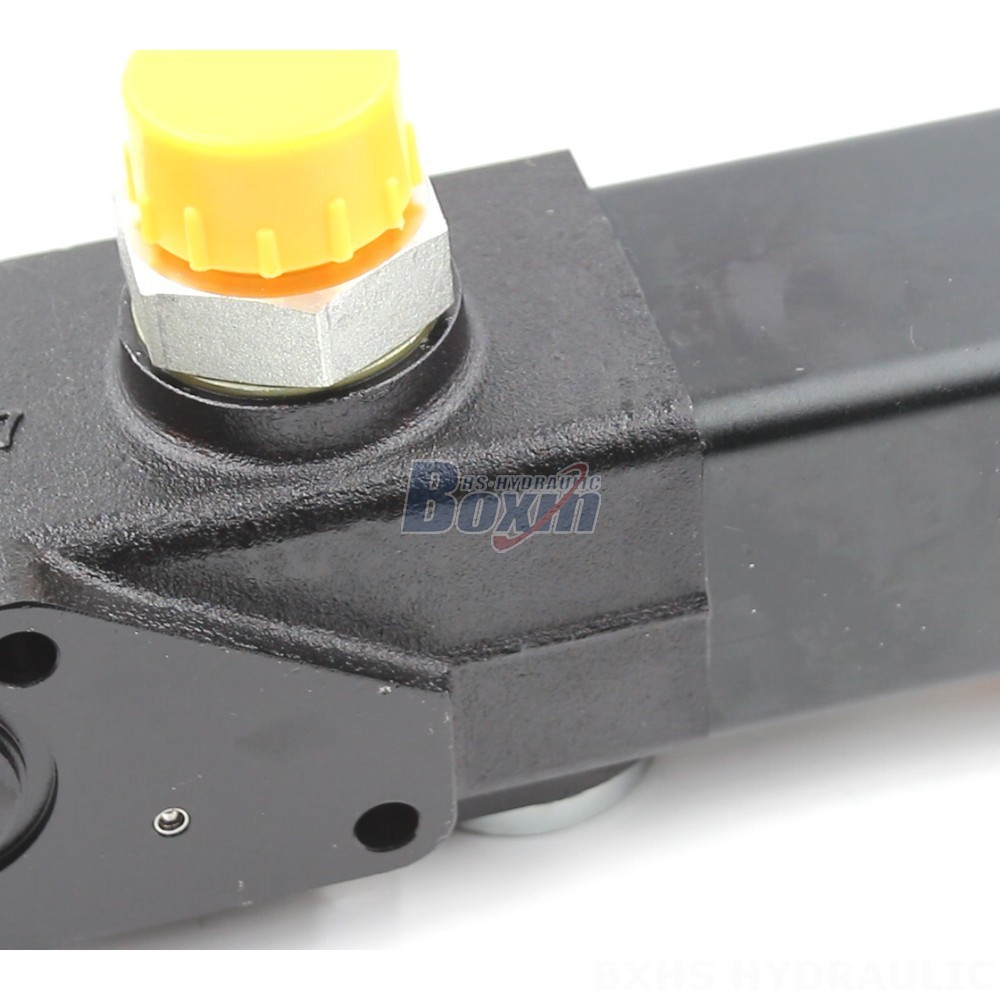

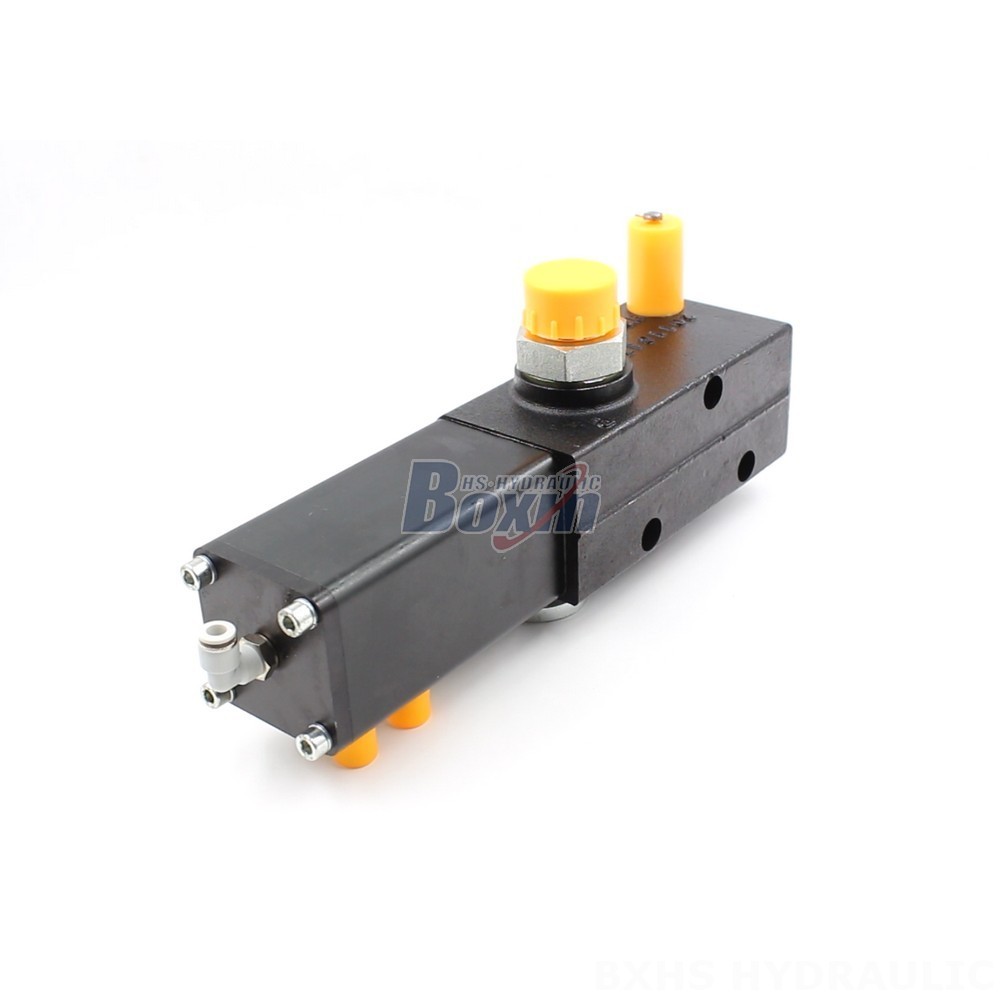

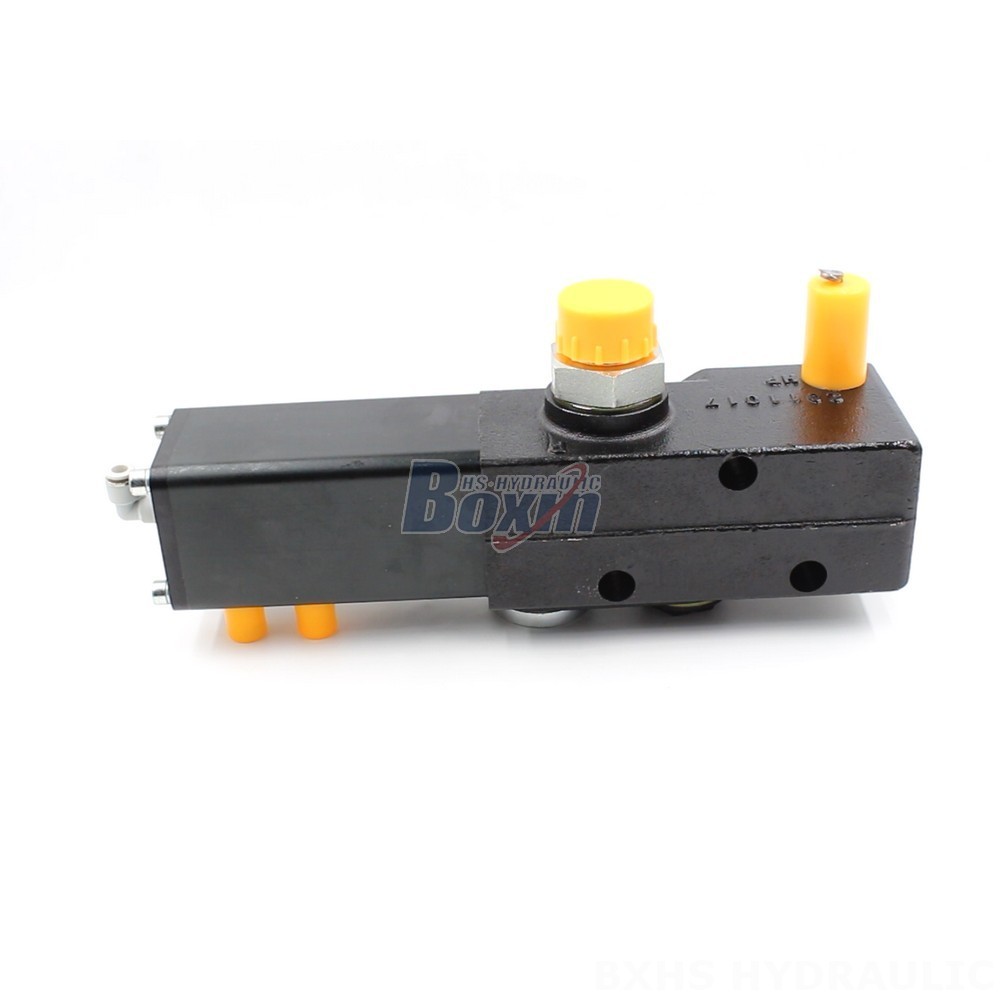

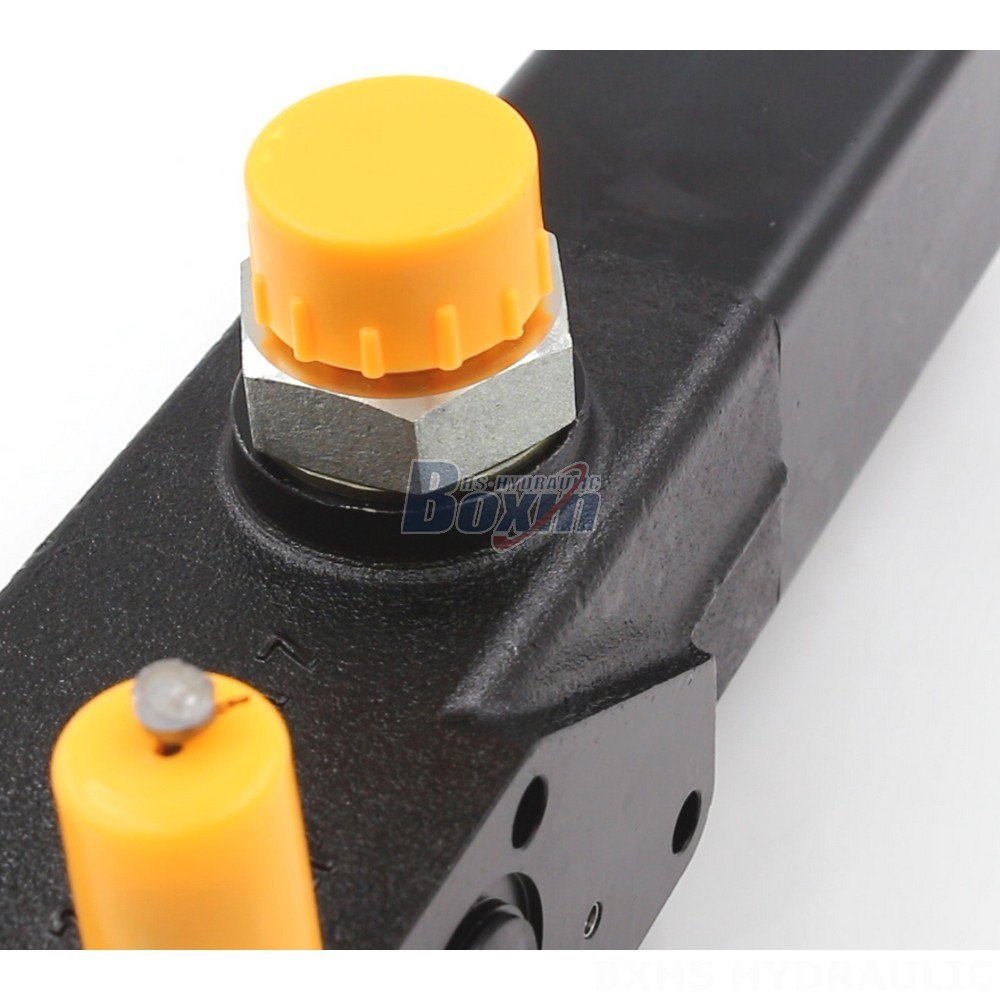

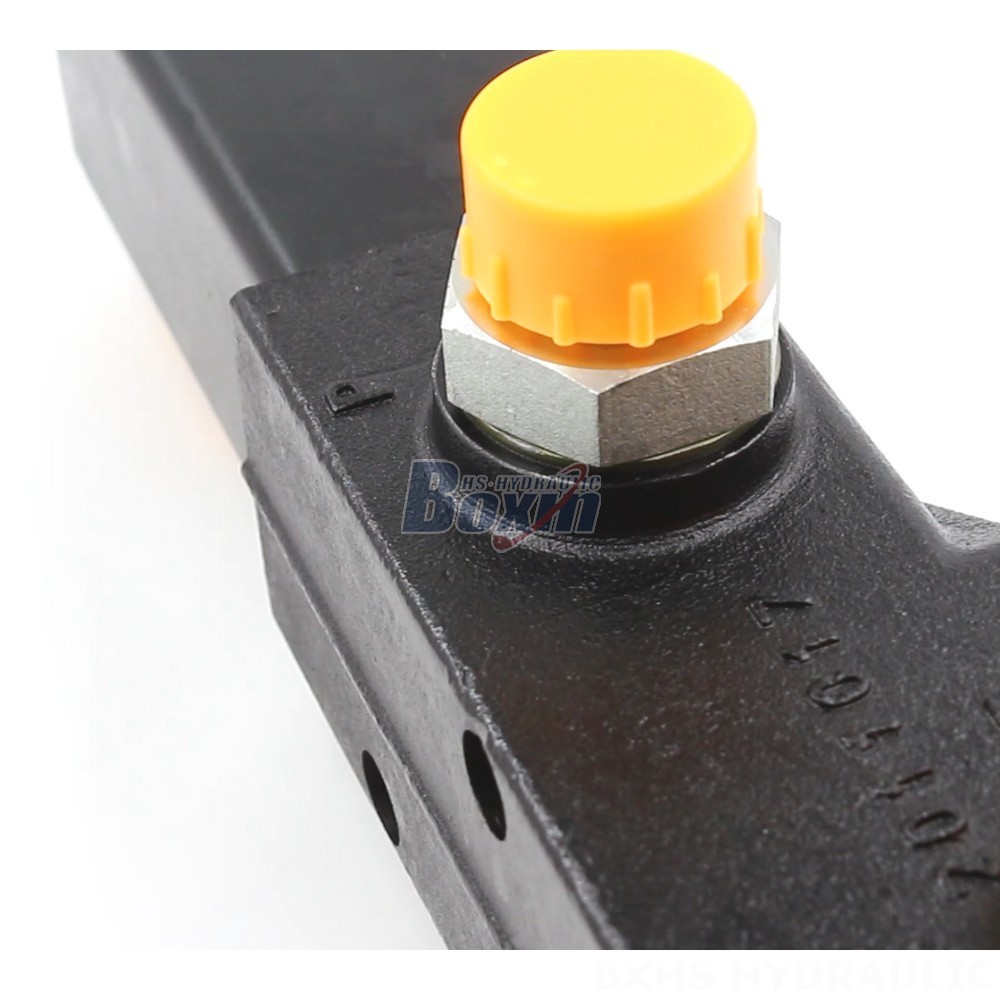

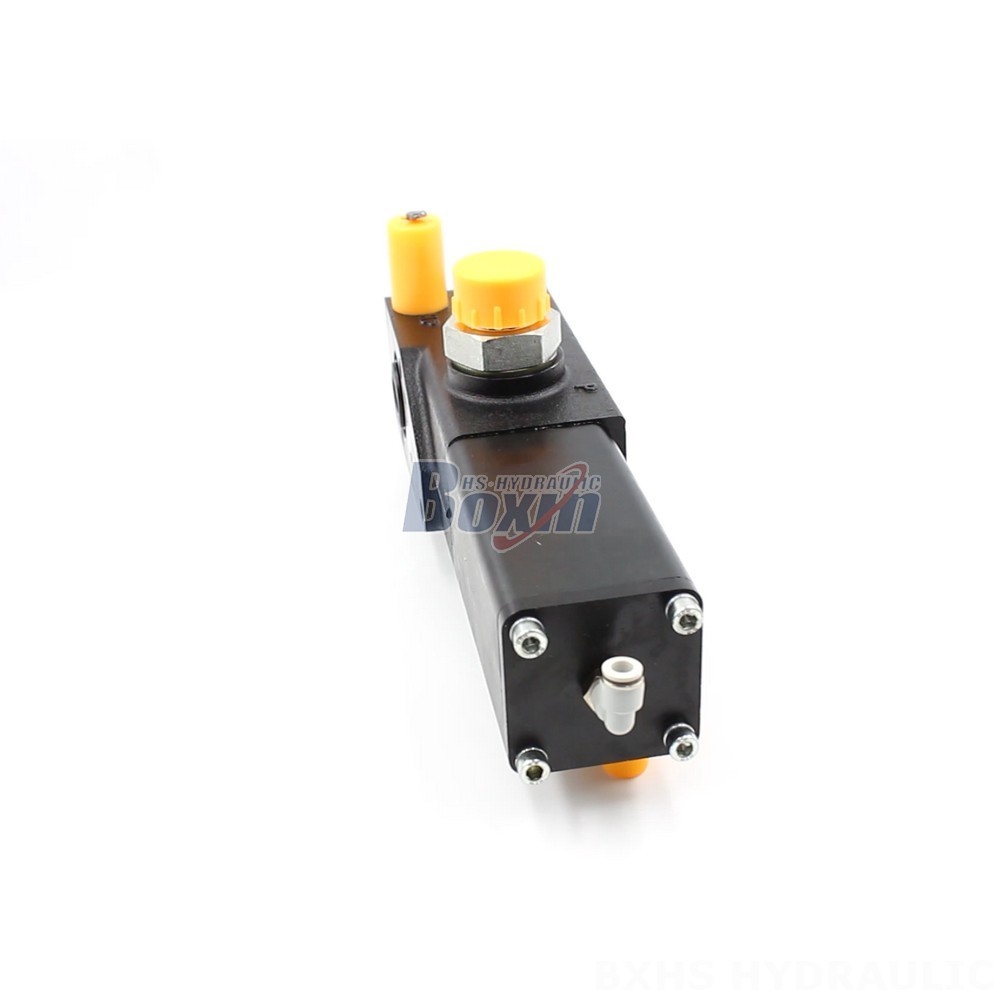

The PT-1220 Series Pneumatic 1 Spool Monoblock Directional Valve is a high-performance, high-flow valve designed for demanding applications in material handling, construction, agriculture, and industrial vehicles. It features a robust design, compact size, and reliable operation.
| PT-1220 시리즈 티핑 밸브 매개변수 | |
|---|---|
| 제어 방식 | 공압 |
| 스풀 | 1 스풀 |
| 주변 온도 범위 | -40°C to +80°C (-40°F to +176°F) |
| 구조 유형 | 모노블록 밸브 |
| 섹션 | 1 섹션 |
| 작동 점도 범위 | 12 - 400 mm²/s (12 cSt to 400 cSt) |
| 정격 유량 | 분당 220리터 (58 US gpm) |
| 최대 압력 | 250바 (3600 psi) |
| 입구 포트 | G1 |
| 출구 포트 | G1 |
| 포트 크기 | G1 |
This pneumatic directional valve boasts a robust monoblock construction, offering exceptional durability and long service life. Its single spool design provides efficient control with a rated flow of 200 L/min (52 US gpm) and a maximum pressure rating of 315 bar (4600 psi). The valve is engineered for diverse applications including telehandlers, forklifts, mini and midi-excavators, skid steer loaders, compact and wheel loaders, backhoe loaders, dumpers, tractors, and front-end loaders. The PT-1220 Series delivers reliable performance across a wide operating viscosity range of 12-400 mm²/s (12 cSt to 400 cSt) and ambient temperature range of -40°C to +80°C (-40°F to +176°F).
