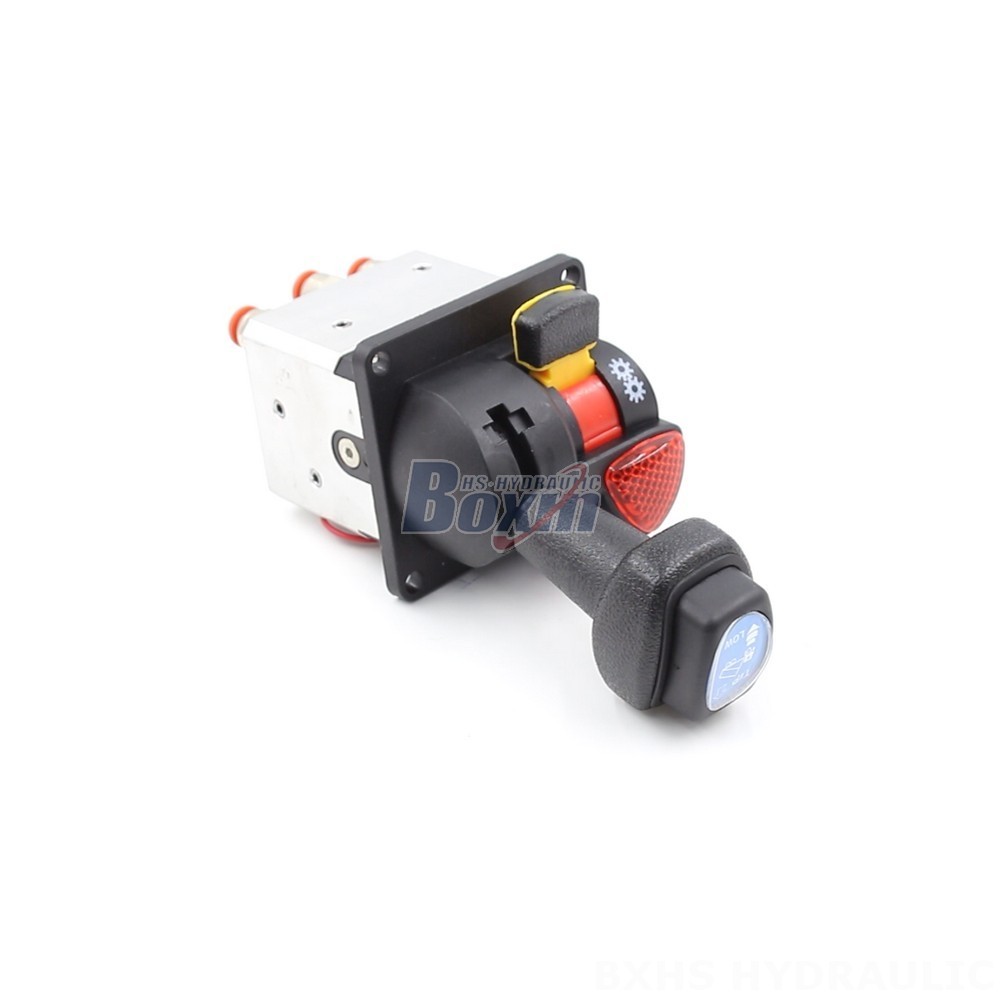

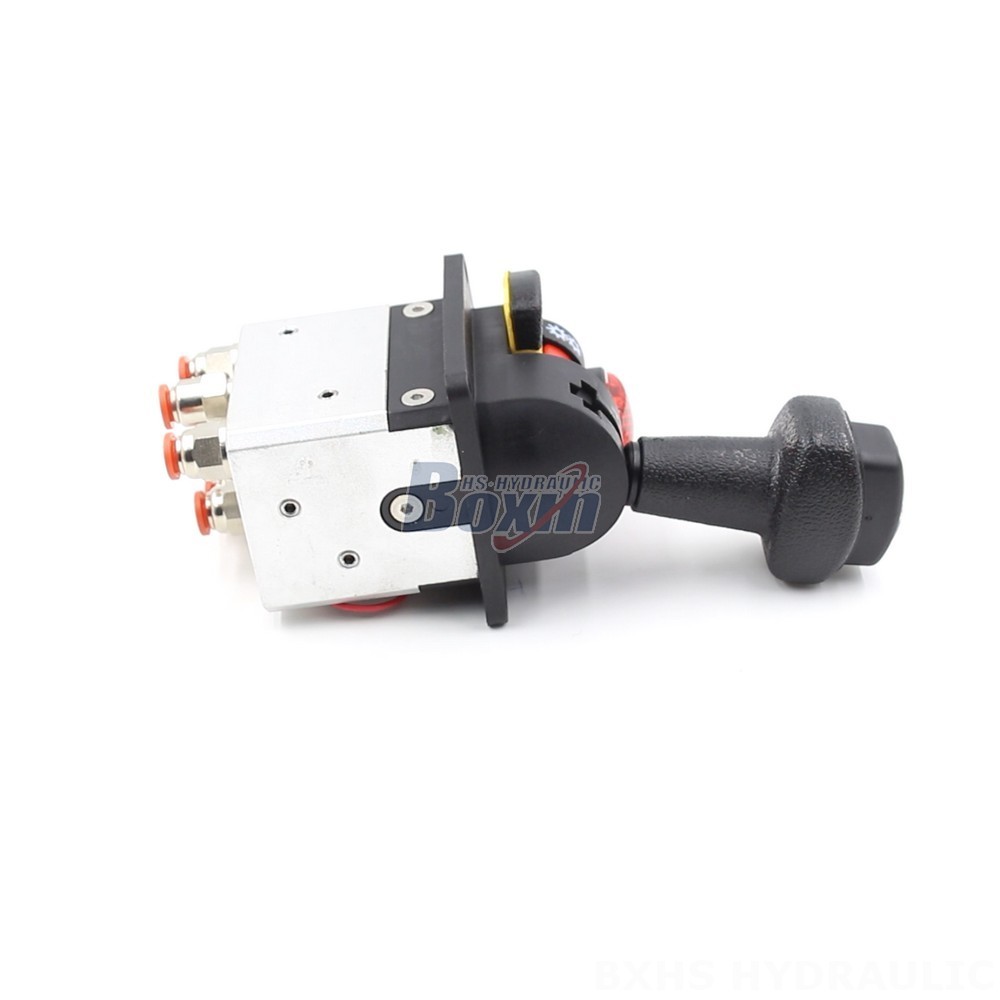

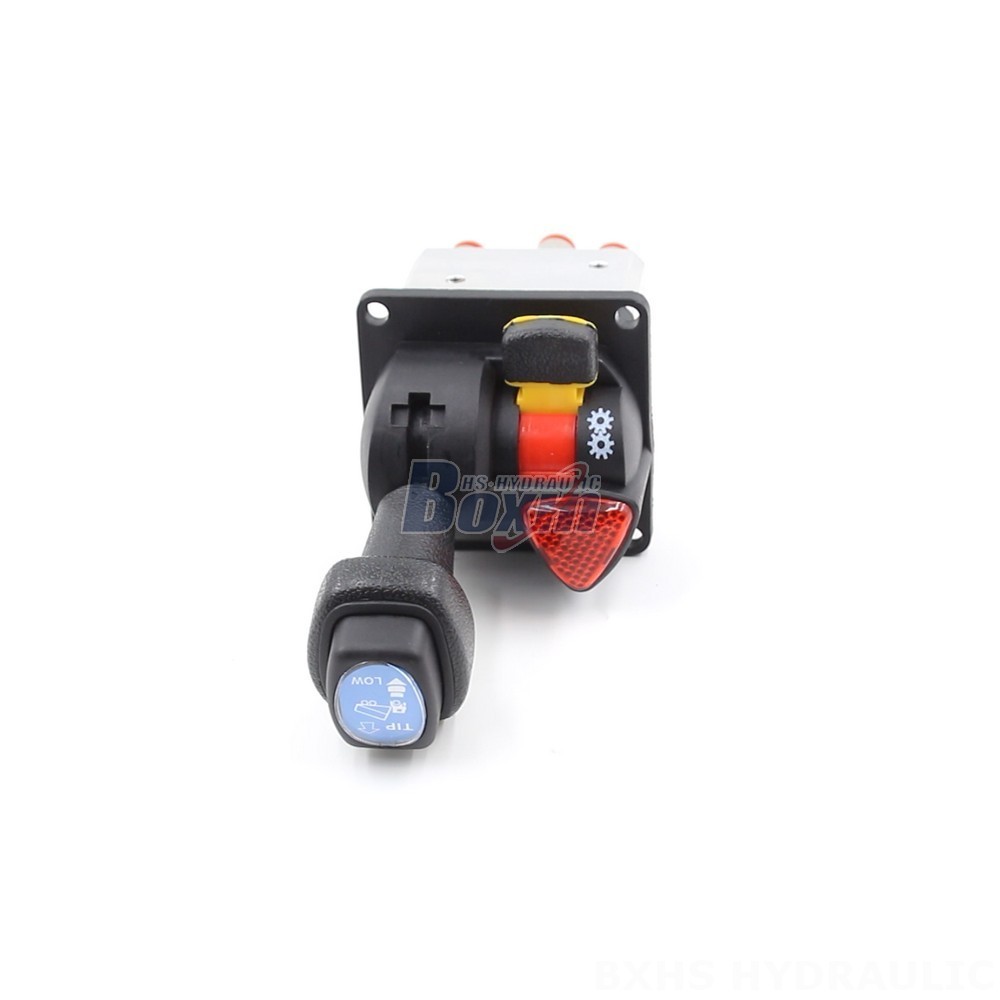

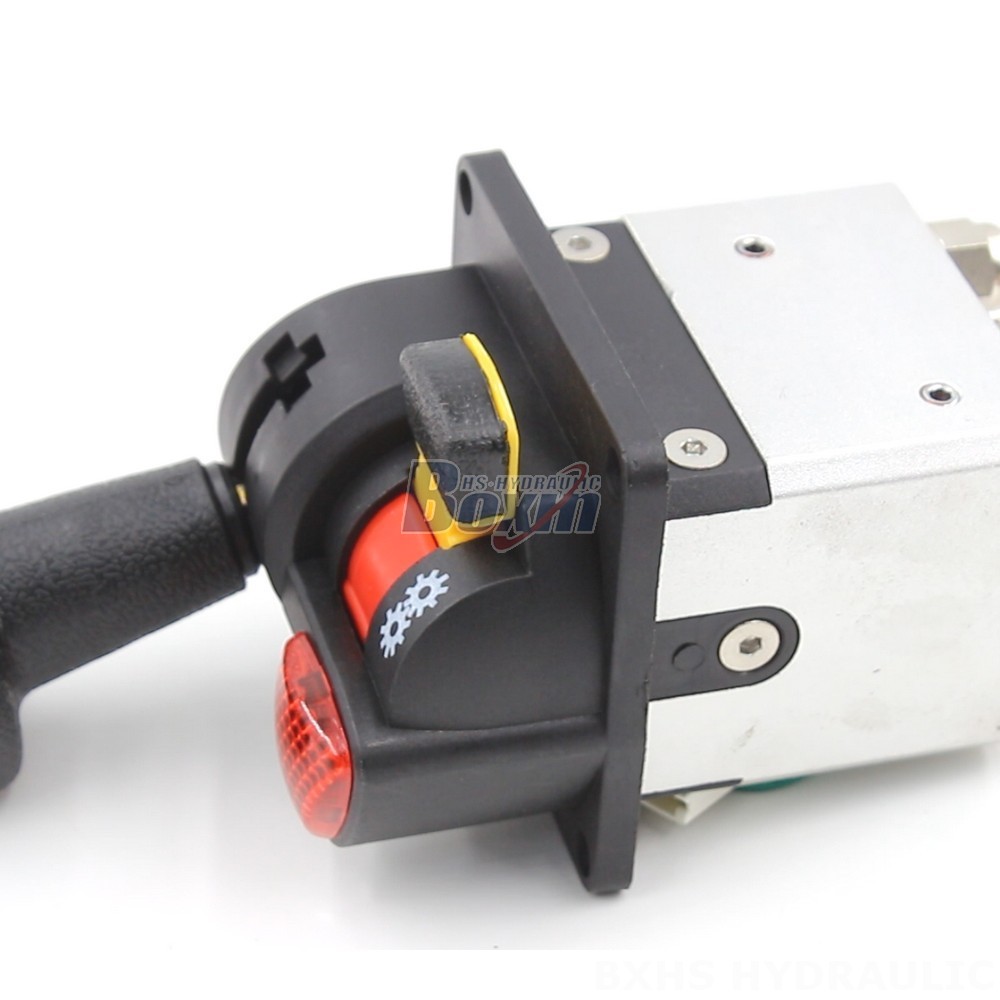

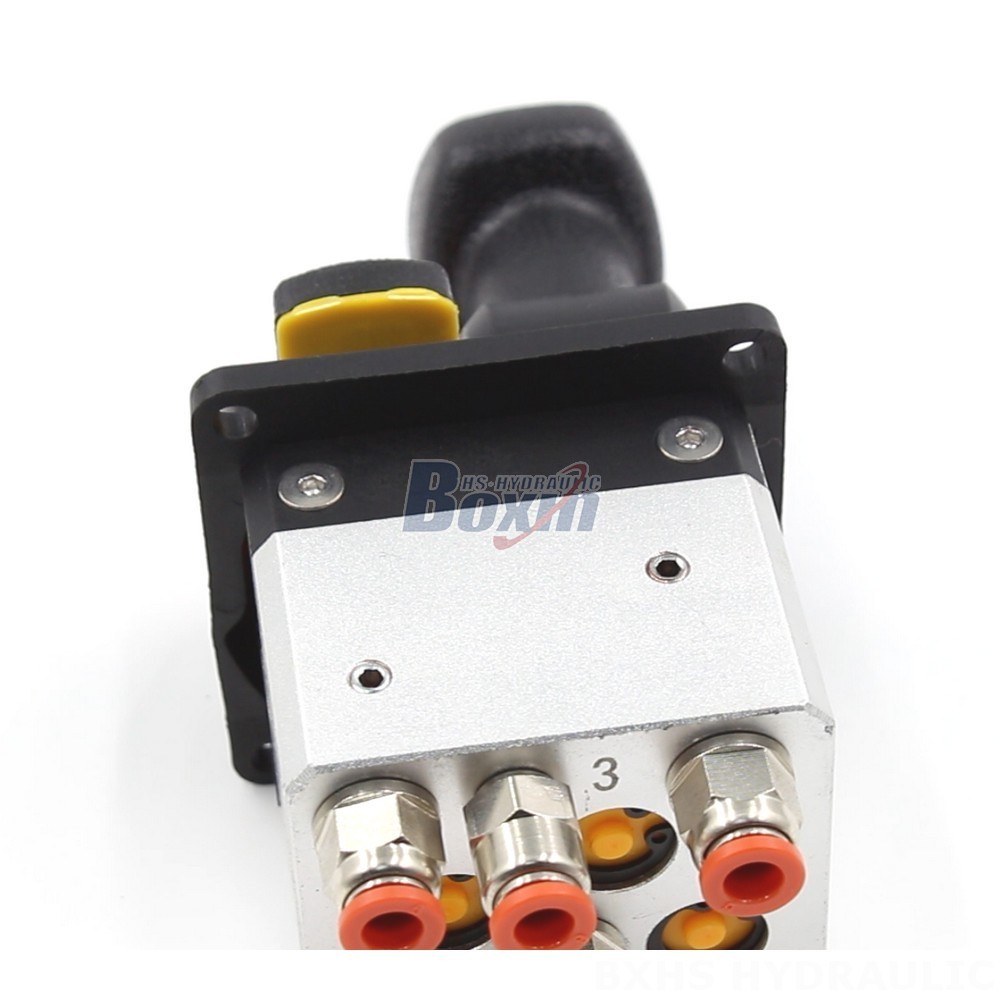

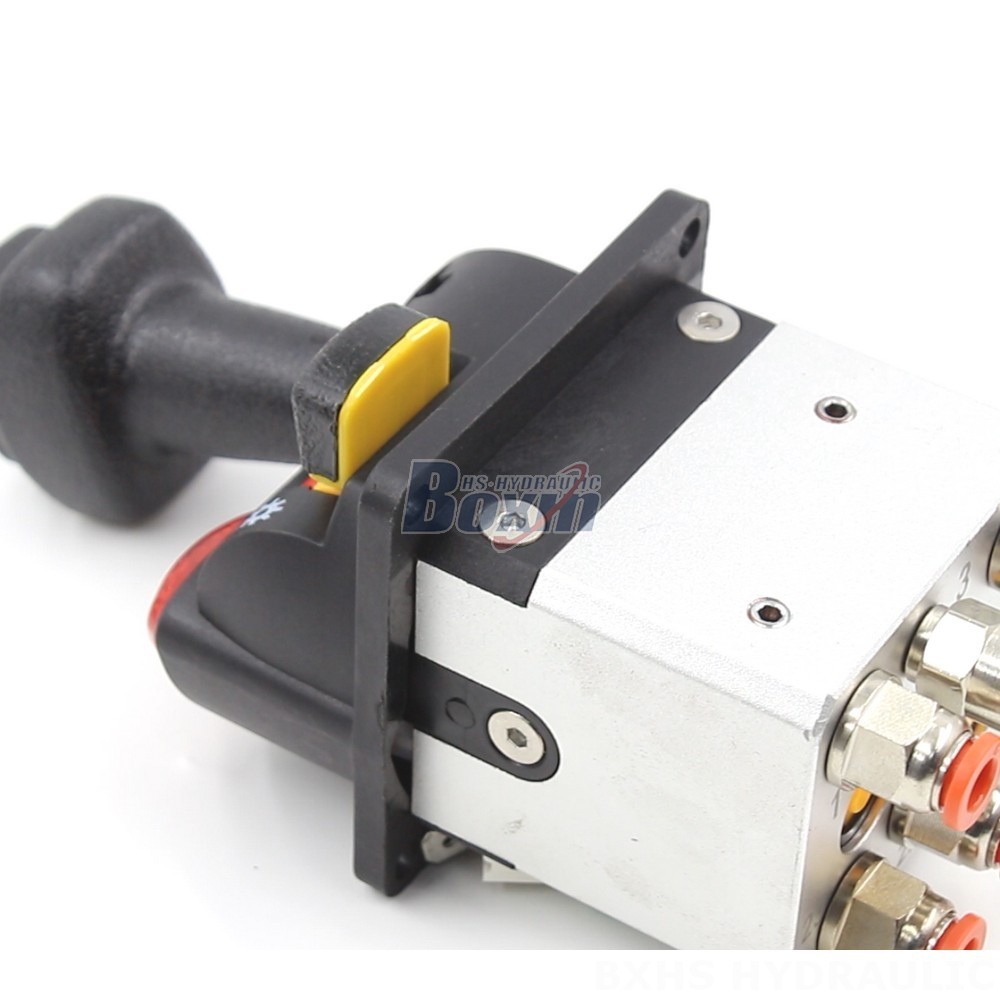

Pneumatic Control Valve 1 Spool | Factory Direct & Customizable

제어 방식:공압

스풀:1 스풀

정격 유량:분당 50리터 (13.2 US gpm)

최대 압력:1 MPa (145 psi)

입구 포트:G1/4

출구 포트:G1/4

포트 크기:G1/4

브랜드:BXHS

제품 유형:공압 제어 밸브

제품 시리즈:BKQF34 시리즈 공압 제어 밸브

포장 크기:15*10*10

총중량:0.59 kg

재고 상태: 재고 있음

791 이 제품을 찾아보시지 않겠습니까?

Pneumatic Control Valve 1 Spool | Factory Direct & Customizable

Pneumatic Control Valve 1 Spool | Factory Direct & Customizable

Pneumatic Control Valve 1 Spool | Factory Direct & Customizable drawing image

This BKQF34 series hydraulic selector valve is a pneumatic controlled monoblock valve with 1 spool, designed for various construction and agricultural applications. It features a rated flow of 40 L/min, max pressure of 1 MPa, and operating viscosity range of 12-400 mm²/s.

BKQF34 시리즈 공압 제어 밸브 매개변수
제어 방식 공압
스풀 1 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션
작동 점도 범위 12 - 400 mm²/s (12 cSt to 400 cSt)
정격 유량 분당 40리터 (10.5 US gpm)
최대 압력 1 MPa (145 psi)
입구 포트 G1/4
출구 포트 G1/4
포트 크기 G1/4

The BKQF34 series hydraulic selector valve is a robust and reliable solution for controlling hydraulic systems in various applications. This 1 spool, pneumatic controlled monoblock valve offers a rated flow of 40 L/min and a maximum pressure of 1 MPa. It is suitable for a wide range of operating temperatures, from -40°C to +80°C. This valve is commonly used in construction and earth moving, material handling, agriculture, and industrial vehicles. Typical applications include forklifts, telehandlers, skid steer loaders, compact wheel loaders, mini-excavators, midi-excavators, tractors, front-end loaders, harvesters, balers, and sprayers. The BKQF34 series valve is a factory direct product and can be customized to meet specific requirements.
