What is the primary application of the Pneumatic Hydraulic Control Valve - Customizable & High Quality?

The Pneumatic Hydraulic Control Valve - Customizable & High Quality is designed for mobile hydraulic systems, agricultural machinery (such as tractors and harvesters), construction equipment (such as loaders and excavators), and industrial machinery. It ensures precise flow and directional control.

Is Boxinhuasheng a factory-direct manufacturer?

Yes, Boxinhuasheng (Qingzhou Boxinhuasheng Hydraulic Technology Co., Ltd.) is a factory-direct manufacturer established in 2001. We operate a 68,000m虏 facility with 4 modern manufacturing plants and 260+ production machines, supplying certified products directly to global customers.

What quality certifications do Boxinhuasheng products have?

All Boxinhuasheng directional control valves, gear pumps, and hydraulic accessories are CE certified, IATF 16949 compliant, and verified on-site by SGS, meeting international engineering standards.

Can Boxinhuasheng provide OEM/ODM customization services?

Yes, Boxinhuasheng has a team of 35 senior hydraulic engineers providing custom OEM manufacturing, ODM development, private labeling, and customized hydraulic system solutions tailored to specific operating pressures and flows.

What is the warranty and shipping lead time?

We offer a 1-year warranty with free replacement for any quality defects. Standard express delivery is within 30 days, supported by our robust annual capacity of 1.5 million hydraulic units and export experience to 80+ countries.

Pneumatic Hydraulic Control Valve - Customizable & High Quality

Name: Pneumatic Hydraulic Control Valve - Customizable & High Quality
Brand: Boxinhuasheng
SKU: BXHS-56566
Availability: InStock

홈티핑 밸브QFCK-F20L 시리즈제품 상세

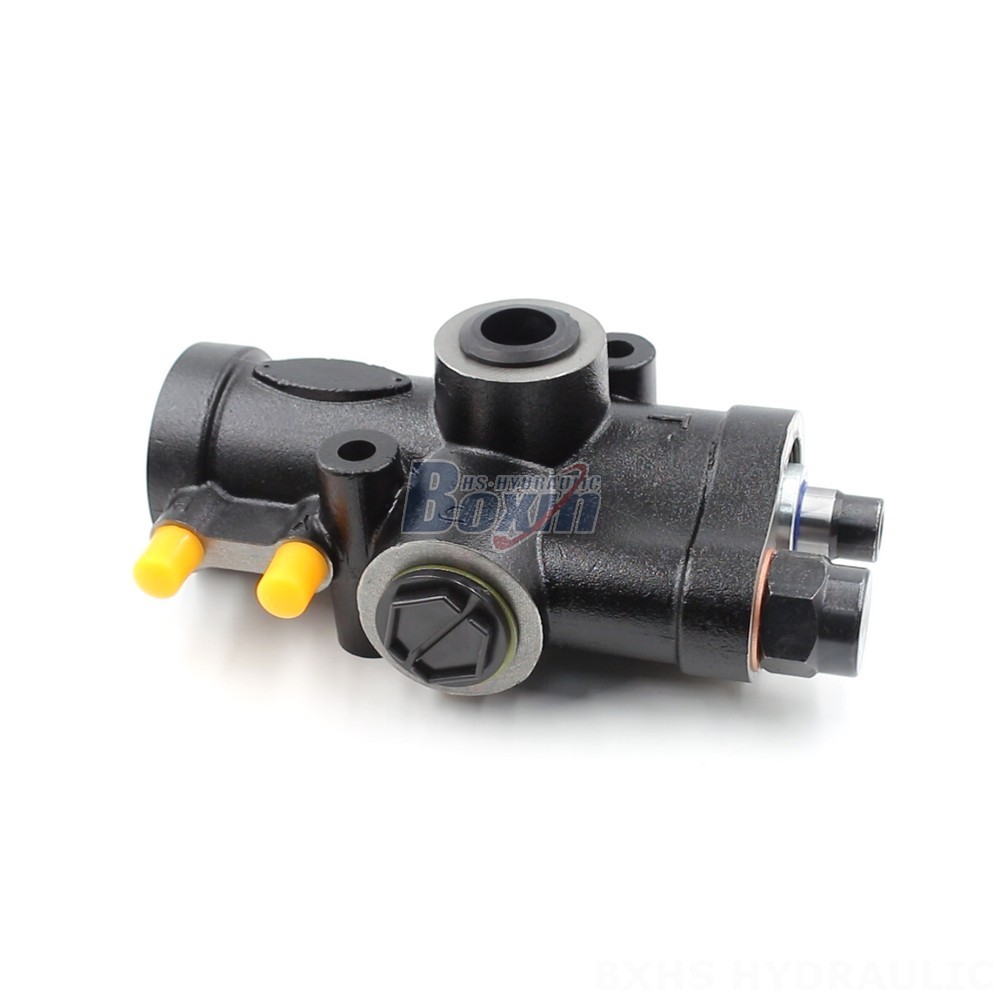

Pneumatic Hydraulic Control Valve - Customizable & High Quality cover photo

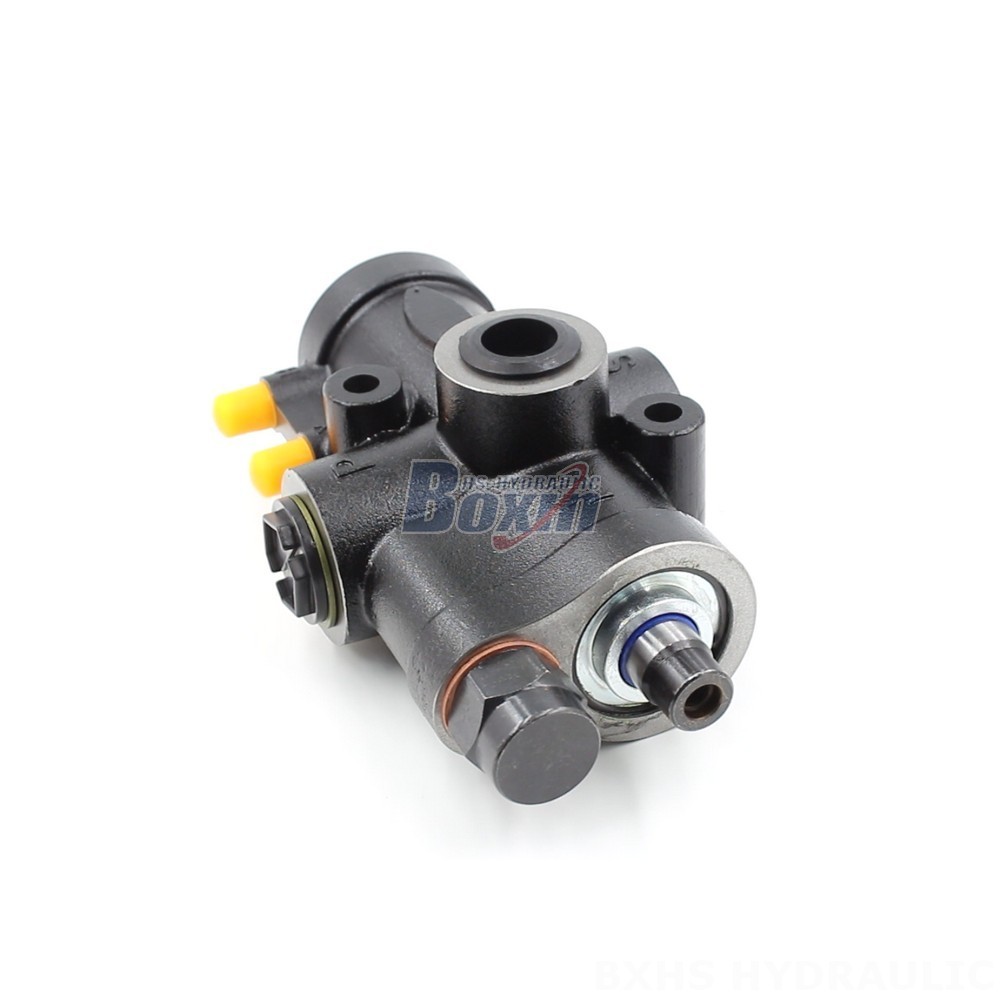

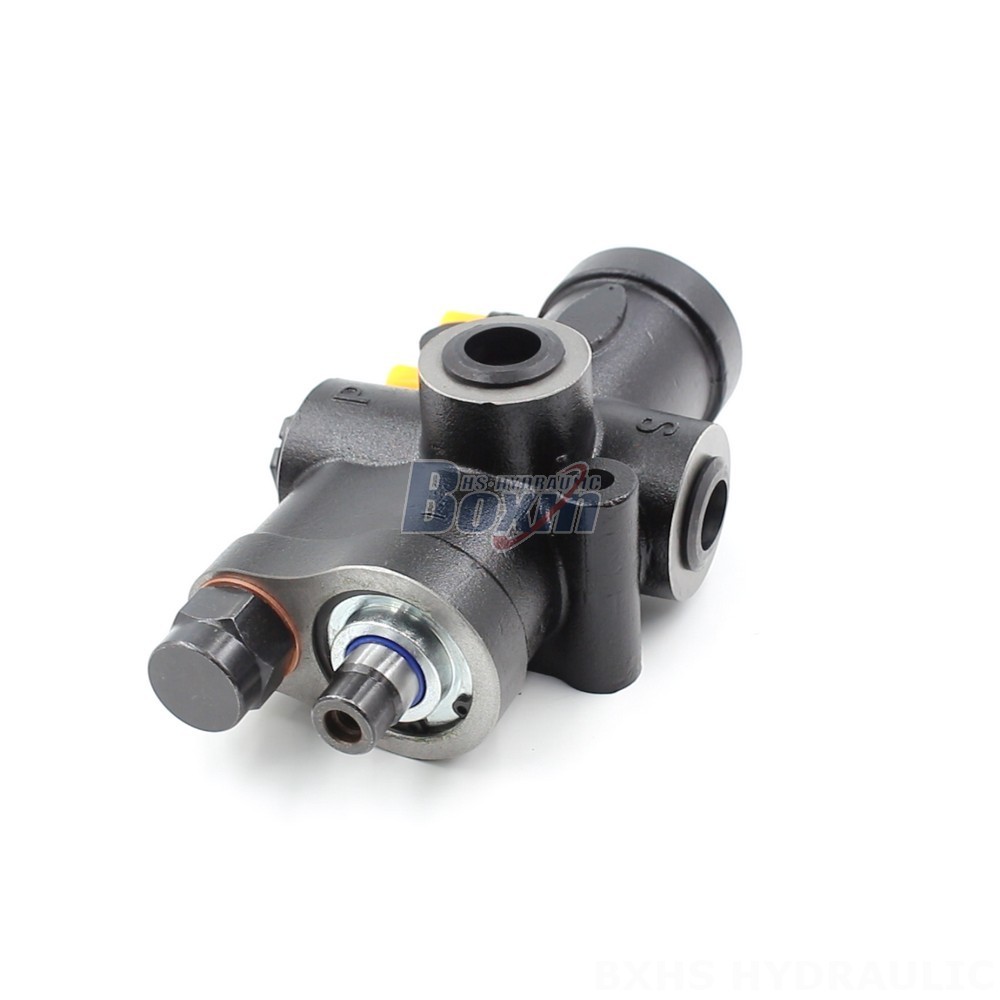

Pneumatic Hydraulic Control Valve - Customizable & High Quality main image

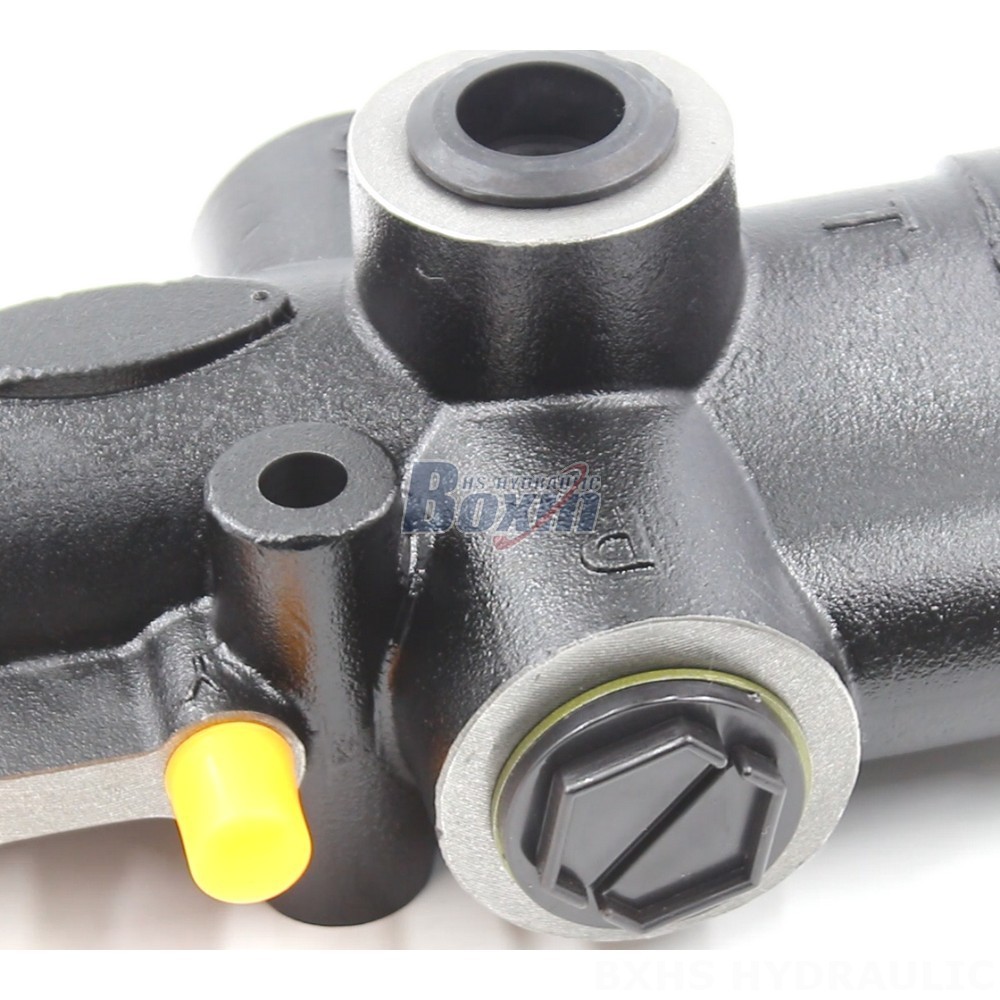

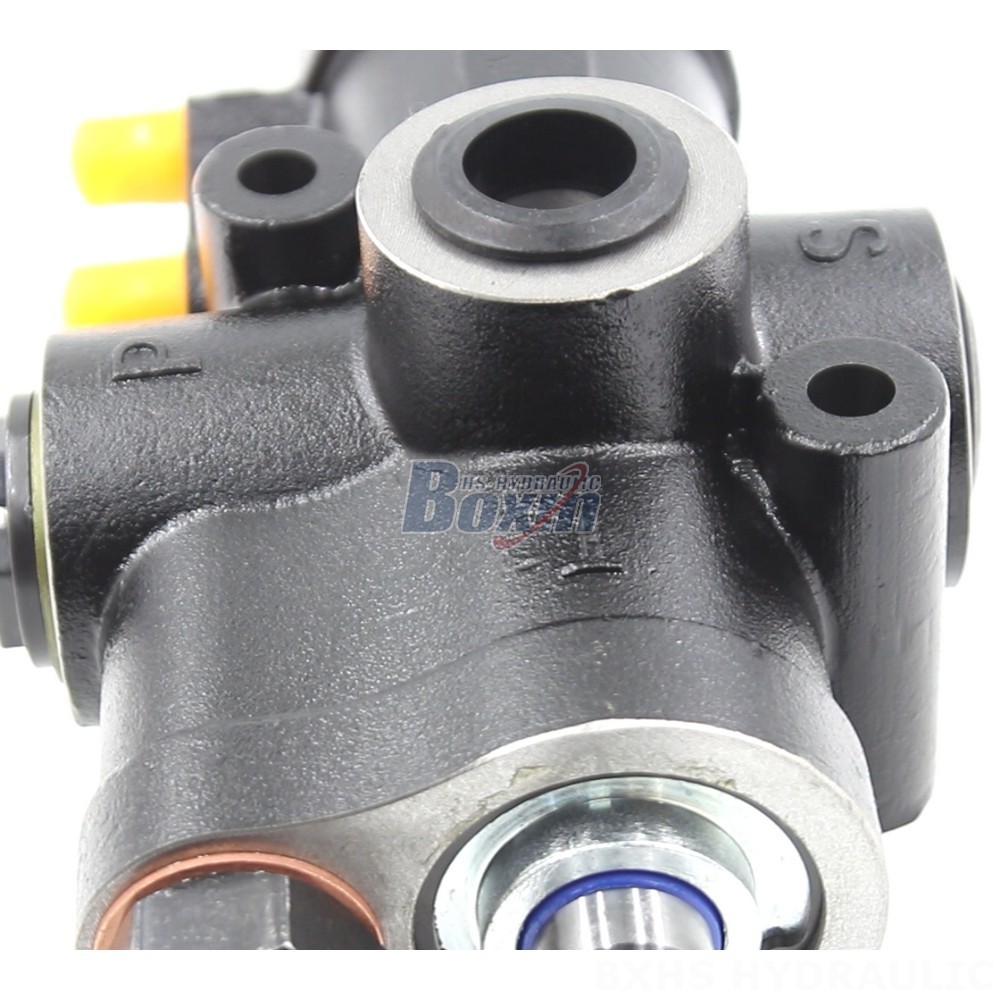

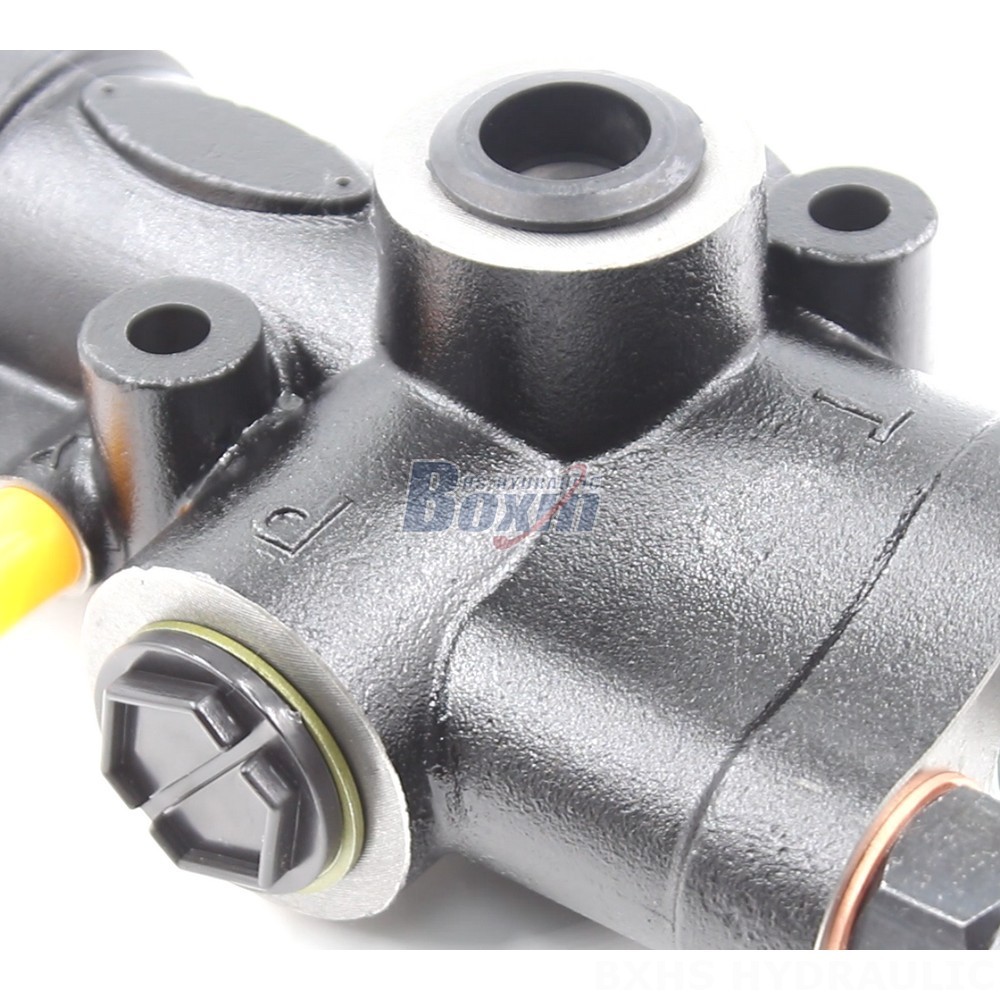

Pneumatic Hydraulic Control Valve - Customizable & High Quality detail image

Pneumatic Hydraulic Control Valve - Customizable & High Quality

제어 방식:공압

스풀:1 스풀

정격 유량:분당 150 L (39.6 US gpm)

최대 압력:230바 (3300 psi)

입구 포트:G3/4

출구 포트:G3/4

포트 크기:G1/4

브랜드:BXHS

제품 유형:티핑 밸브

제품 시리즈:QFCK-F20L 시리즈 티핑 밸브

포장 크기:25*20*14

총중량:6.50 kg

재고 상태: 재고 있음

문의하기

1033 이 제품을 찾아보시지 않겠습니까?

Pneumatic Hydraulic Control Valve - Customizable & High Quality

Pneumatic Hydraulic Control Valve - Customizable & High Quality drawing image

The QFCK-F20L is a high-quality, customizable pneumatic hydraulic directional control valve designed for use in various construction, agriculture, and industrial vehicles. With a rated flow of 140 L/min and a maximum pressure of 210 bar, this valve offers reliable performance for demanding applications.

QFCK-F20L 시리즈 티핑 밸브 매개변수
제어 방식	공압
스풀	1 스풀
주변 온도 범위	-40°C to +80°C (-40°F to +176°F)
구조 유형	모노블록 밸브
섹션	1 섹션
작동 점도 범위	15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량	분당 150 L (39.6 US gpm)
최대 압력	210바 (3045 psi)
입구 포트	G3/4
출구 포트	G1
포트 크기	G3/4, G1, G1/4

This robust directional control valve features a monoblock construction and a single spool design. It is suitable for operating pressures up to 210 bar (3045 psi) and has a rated flow of 140 L/min (37 US gpm). The valve operates with a wide viscosity range of 15-75 mm²/s (15 cSt to 75 cSt) and can withstand ambient temperatures from -40°C to +80°C (-40°F to +176°F). Its versatility makes it ideal for use in a wide range of applications, including telehandlers, forklifts, mini and midi excavators, skid steer loaders, wheel loaders, backhoe loaders, dumpers, tractors and front-end loaders, and harvesters.
