Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

제어 방식:솔레노이드

스풀:2 스풀

정격 유량:분당 40리터 (10.5 US gpm)

최대 압력:250바 (3600 psi)

입구 포트:G1/2

출구 포트:G1/2

포트 크기:G3/8

브랜드:BXHS

제품 유형:모노블럭 방향 제어 밸브

제품 시리즈:P40 시리즈 모노블럭 방향 제어 밸브

포장 크기:30*18*12

총중량:6.50 kg

재고 상태: 재고 있음

1080 이 제품을 찾아보시지 않겠습니까?

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves

Private Label P40 Solenoid 2 Spool Monoblock Directional Valves drawing image

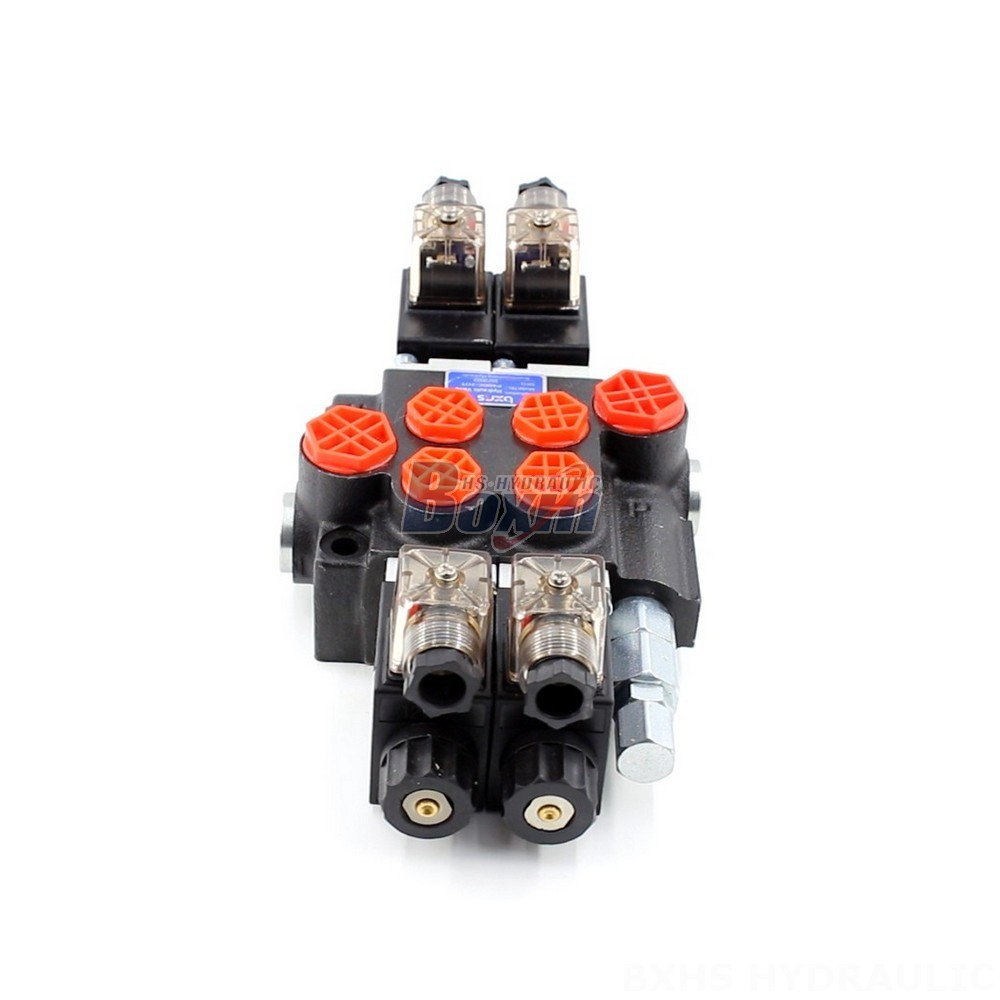

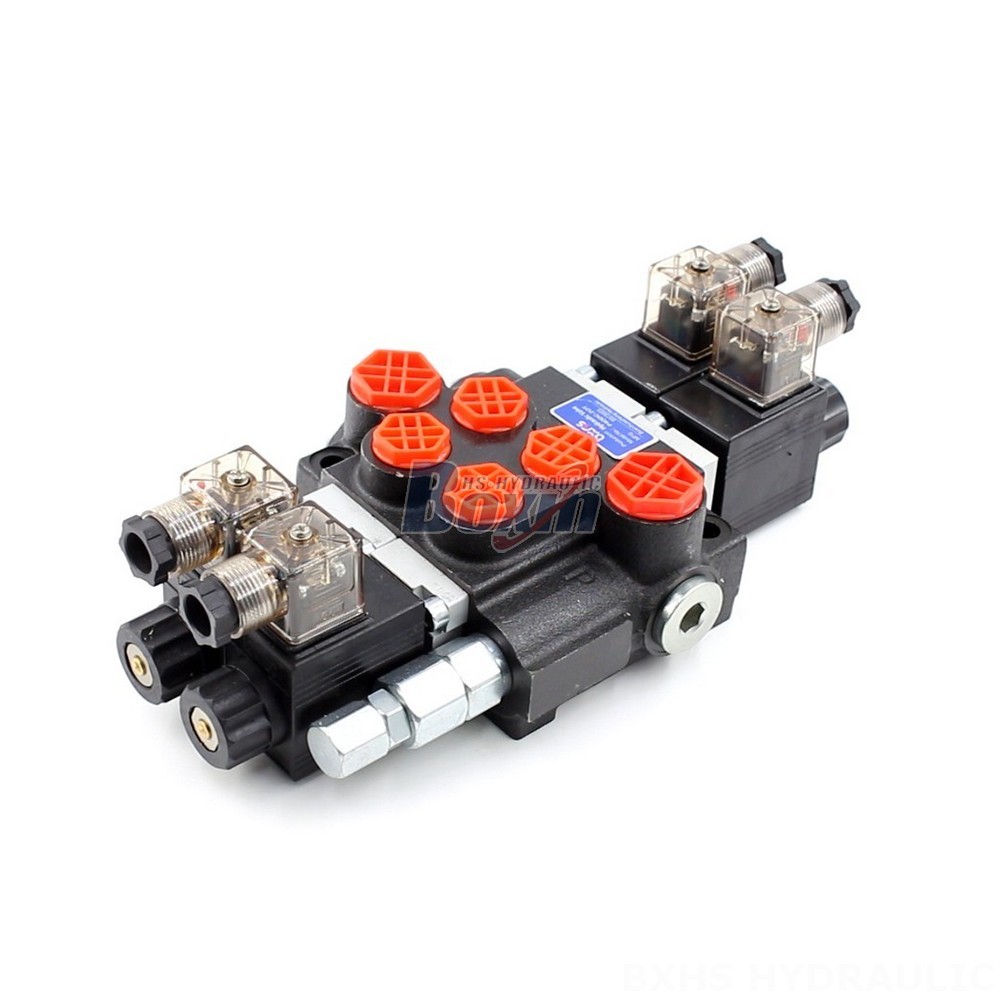

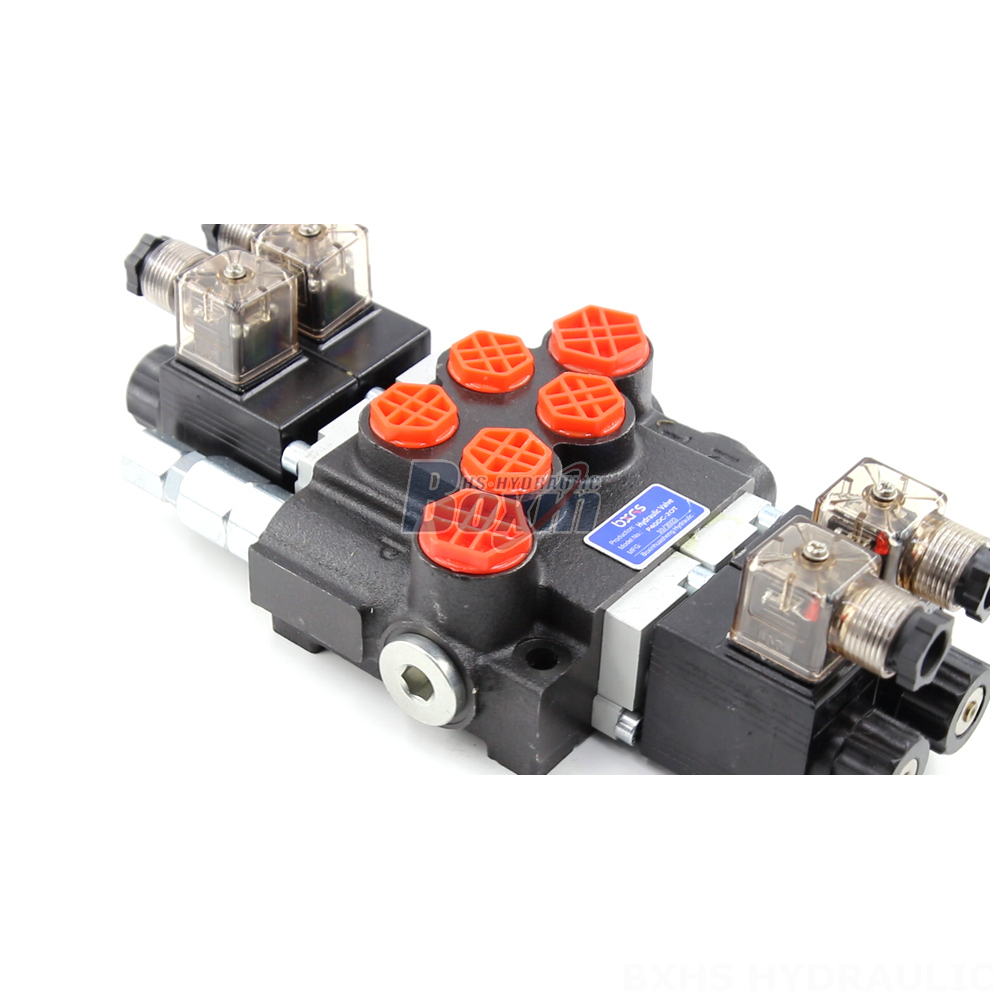

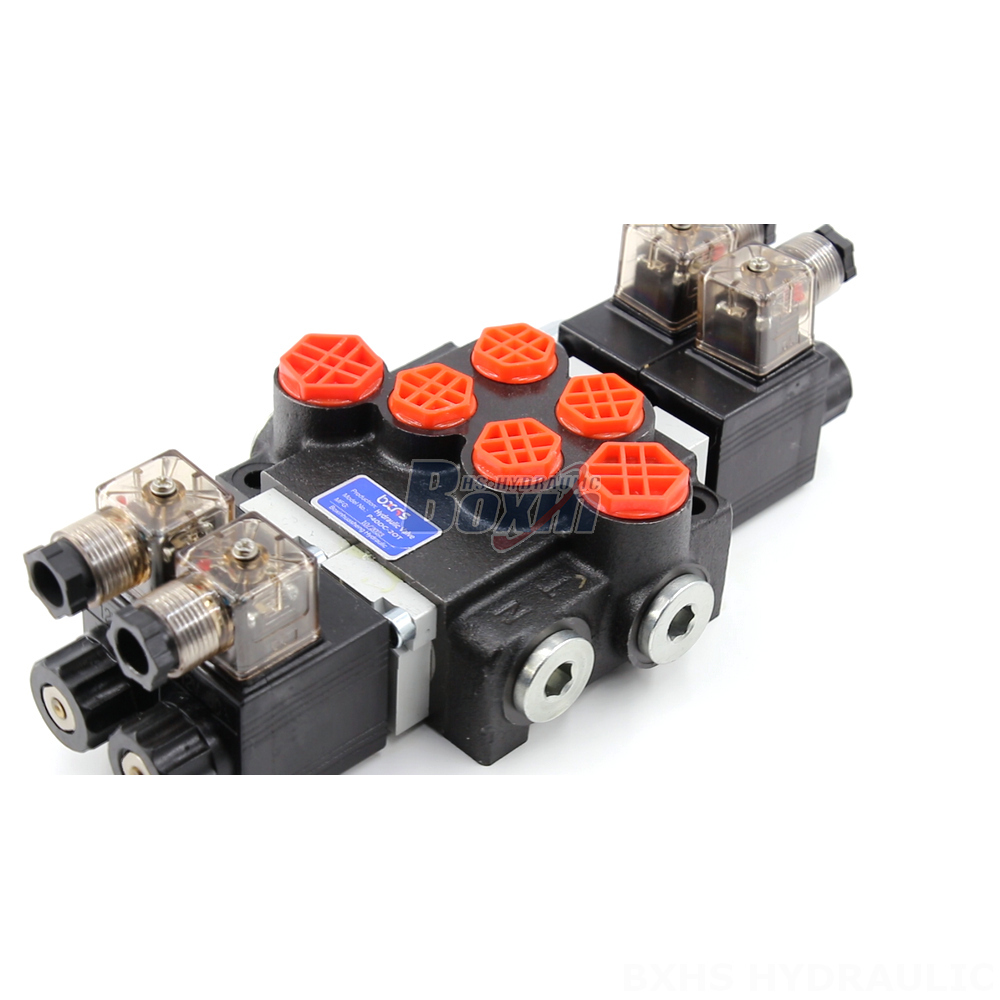

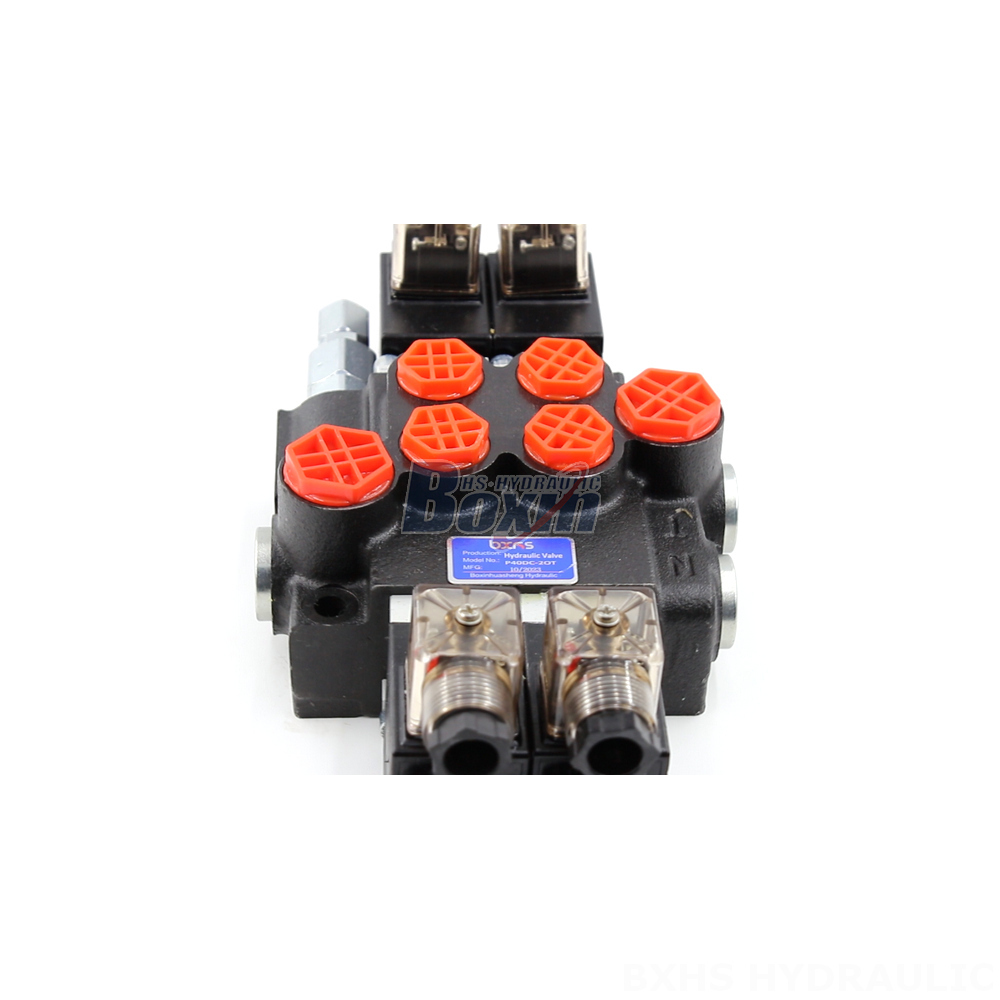

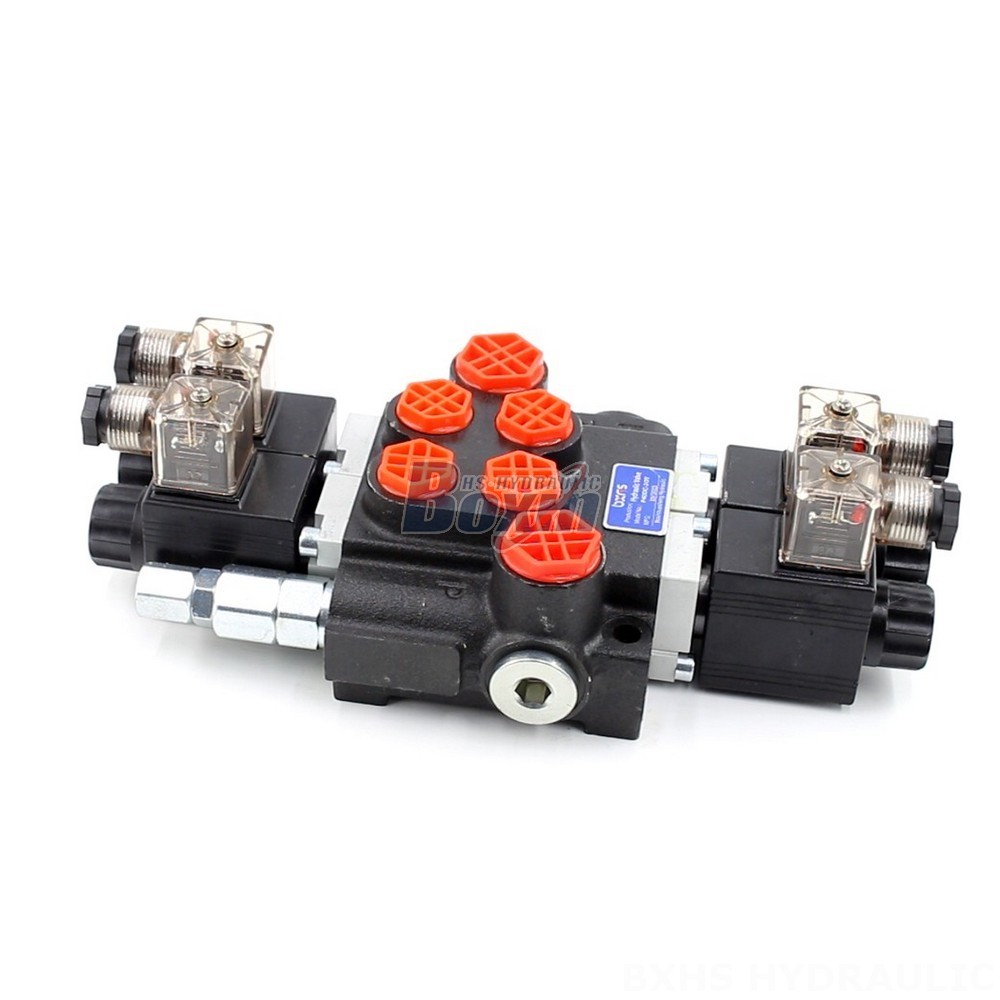

The P40 Series Solenoid 2 Spool Monoblock Directional Valve is a high-performance hydraulic valve designed for a wide range of applications in material handling, construction, agriculture, and industrial vehicles. It features a compact design, robust construction, and reliable operation with a flow rate of 40 L/min and a maximum pressure rating of 250 bar.

P40 시리즈 모노블럭 방향 제어 밸브 매개변수
제어 방식 수동, 공압, 전기 공압, 전기 유압, 솔레노이드, 유압, 유압 및 수동, 케이블, 조이스틱, 솔레노이드 및 조이스틱, 수동 및 조이스틱, 솔레노이드 및 케이블
스풀 1 스풀, 2 스풀, 3 스풀, 4 스풀, 5 스풀, 6 스풀, 7 스풀
주변 온도 범위 -40°C to +80°C (-40°F to +176°F)
구조 유형 모노블록 밸브
섹션 1 섹션, 2 섹션, 3 섹션, 4 섹션, 5 섹션, 6 섹션, 7 섹션
작동 점도 범위 15 - 75 mm²/s (15 cSt to 75 cSt)
정격 유량 분당 40리터 (10.5 US gpm)
최대 압력 250바 (3600 psi)
입구 포트 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
출구 포트 G3/8, G1/2, M18×1.5, M22×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT
포트 크기 G3/8, G1/2, M18×1.5, SAE 8, SAE 10, 3/8 NPT, 1/2 NPT

This P40 Series Solenoid 2 Spool Monoblock Directional Valve is a powerful hydraulic valve that offers precise control and efficient operation. With its compact monoblock structure, it's designed for easy installation and integration into various hydraulic systems. The valve features a 2 spool design with a rated flow of 40 L/min and a maximum pressure rating of 250 bar, making it suitable for demanding applications in material handling, construction, agriculture, and industrial vehicles. The valve's solenoid control provides reliable and responsive operation. It is also designed for a wide operating viscosity range and ambient temperature range, ensuring performance in various environments. This versatile valve is compatible with a wide range of applications, including telehandlers, forklifts, cranes, stackers, aerial platforms, motor graders, excavators, skid steer loaders, wheel loaders, backhoe loaders, and dumpers. We offer this valve for manufacturing, OEM, ODM, private label, and wholesale. We are also actively seeking distributors, wholesalers, agents, and traders to expand our global reach.
